Mostly 3d Printed CNC 3d Touch Probe
IP Report
Print Profile(2)
Latest
Designer
1.2 h
2 plates
First Version
Designer
1.3 h
2 plates
Open in Bambu Studio
Boost
46
87
8
1
118
22
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- 4 mm Brass Bearing Balls x 6:
- spring from a battery slot x 1:
- M2.5 CNC Probe Stylus x 1:
Description
Boost Me (for free)
WIP
Overview:

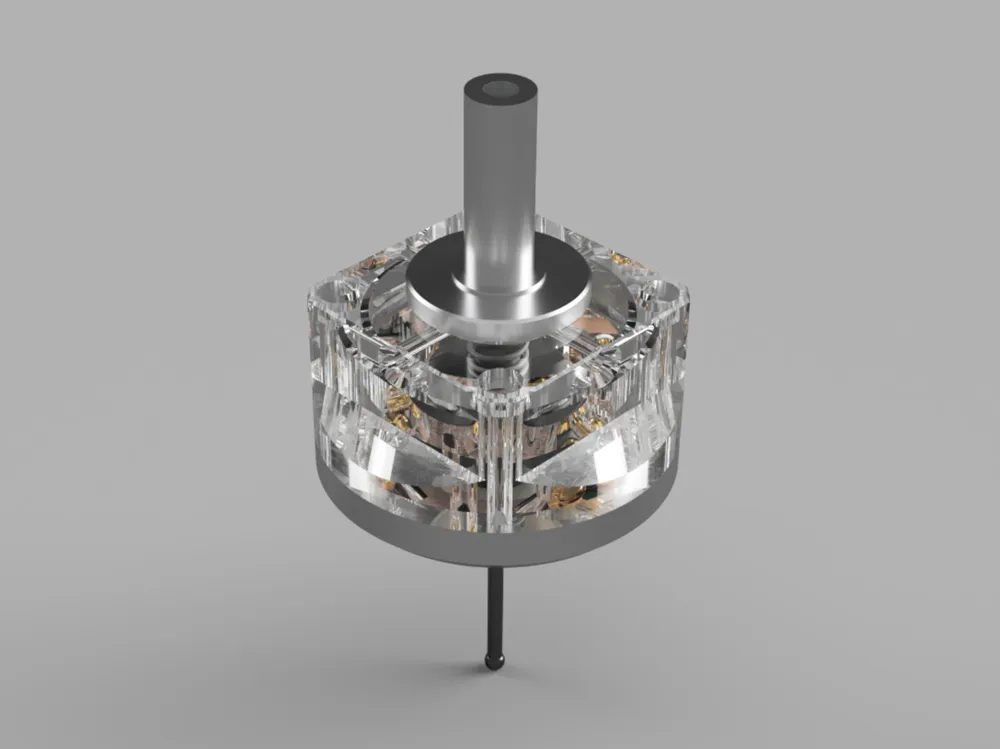

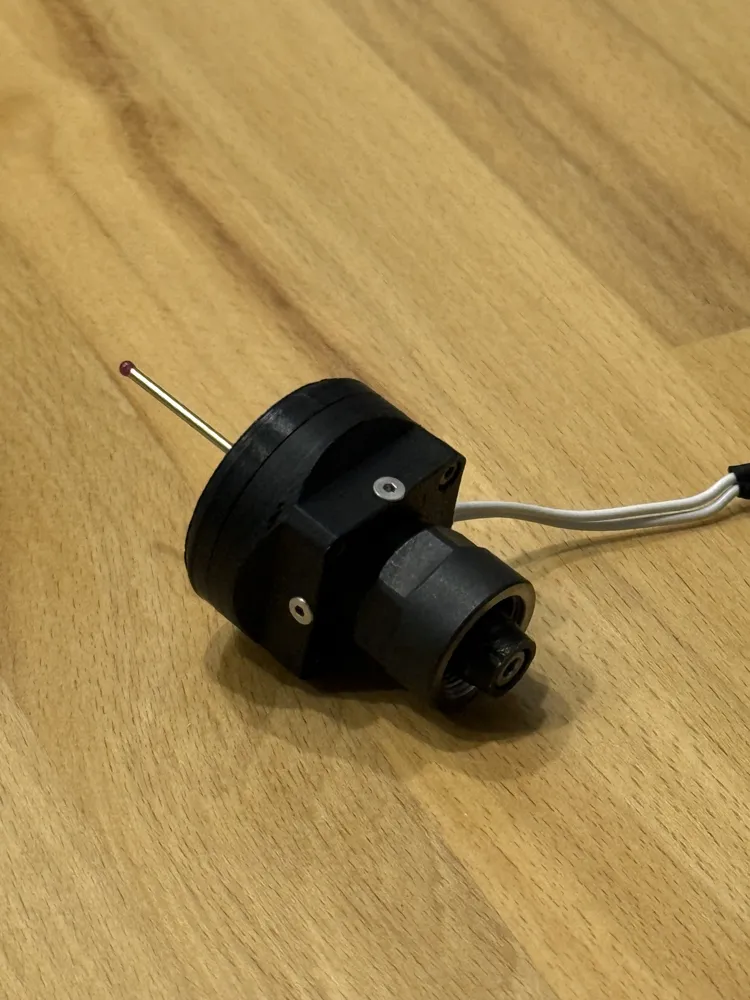

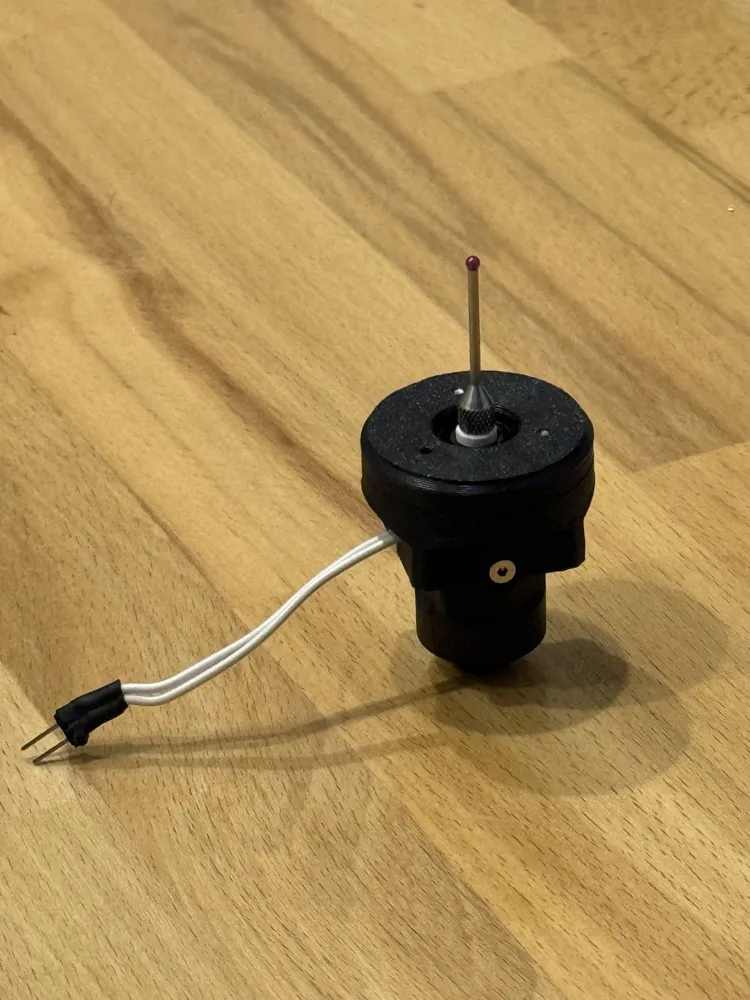

A robust and easy‑to‑print 3D touch probe designed for CNC machines and 3D printers. This compact device enables accurate surface detection, ideal for bed-leveling, Z-height calibration, and workpiece probing.
Key Features:
- Spring-loaded contact pin for precise, repeatable measurements
- Compatible with standard 6 mm or 8 mm probe tips
- No electronic components included – mechanical housing only
- Mounts easily on most print heads or spindles
- Compact and lightweight design
Specifications:
- Outer diameter: ~33 mm
Probe tip travel XYZ: ~1 mm
Assembly Instructions:

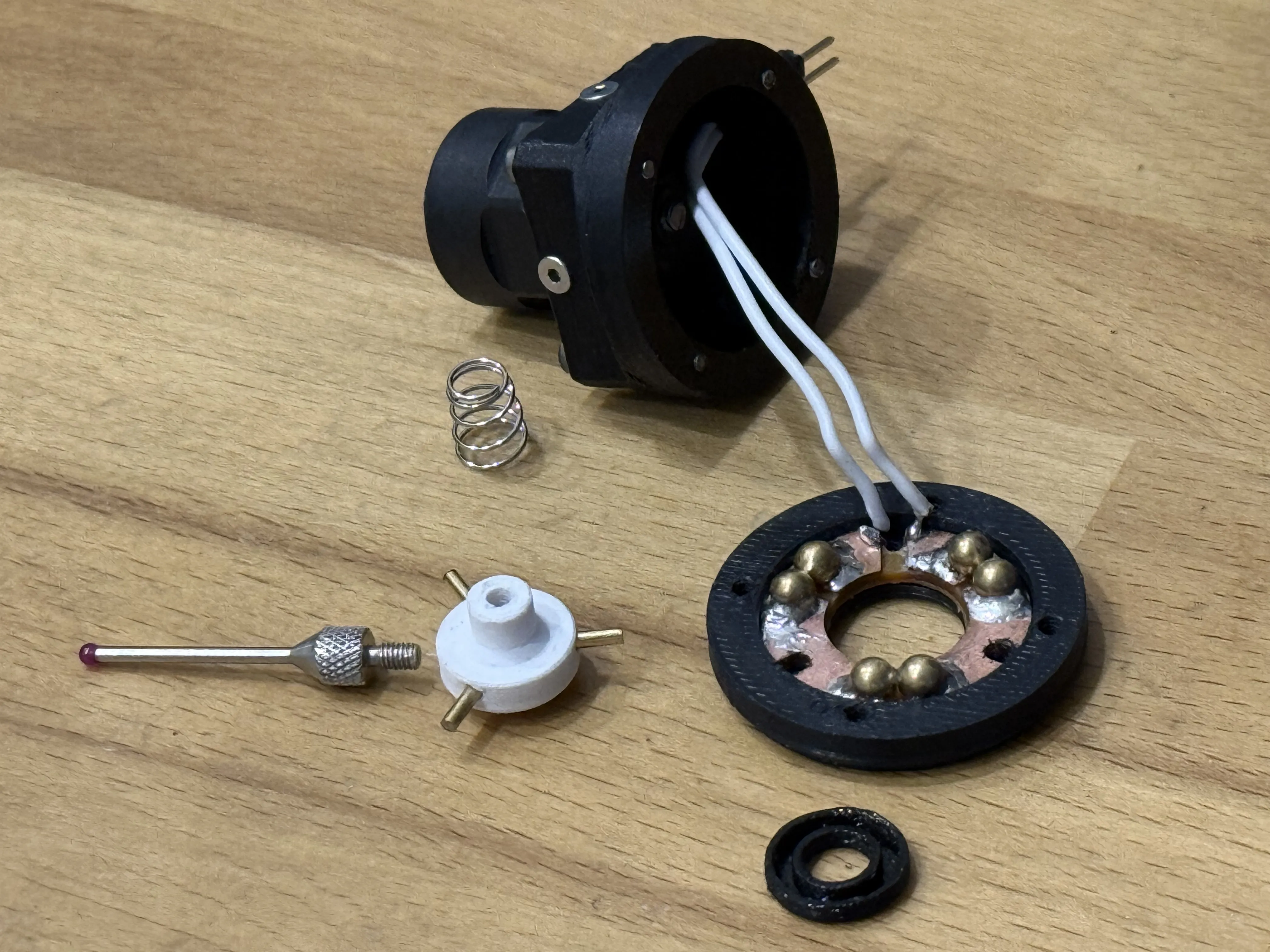

- Print all parts (probe body, cap, contact pin, spring retainer).
- Mill the pcb (step file)

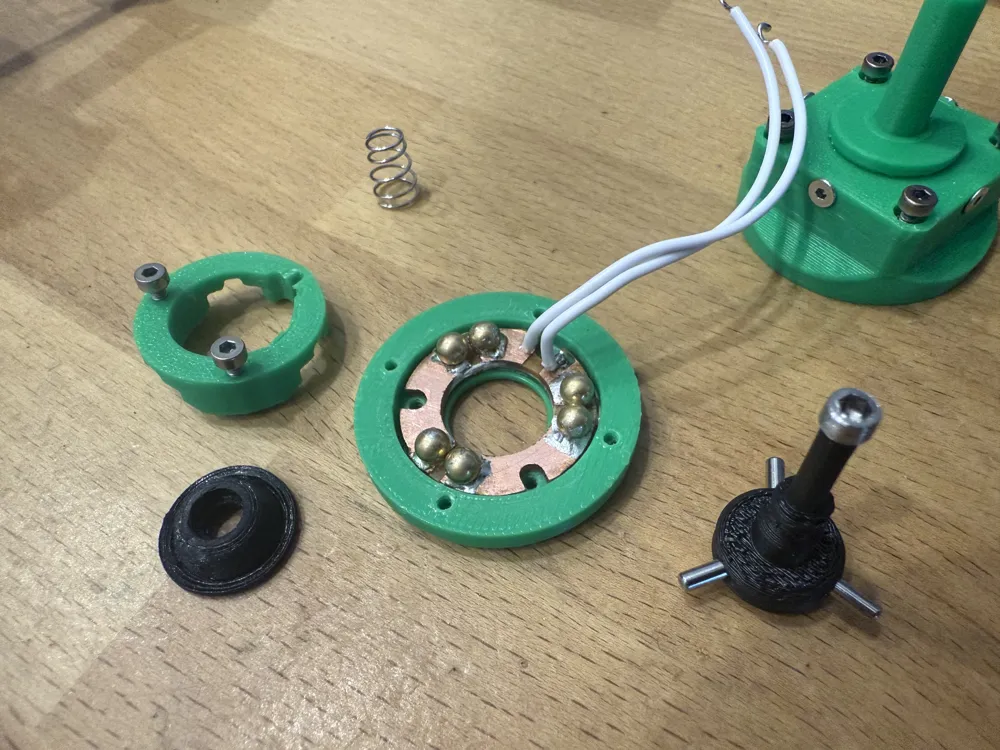

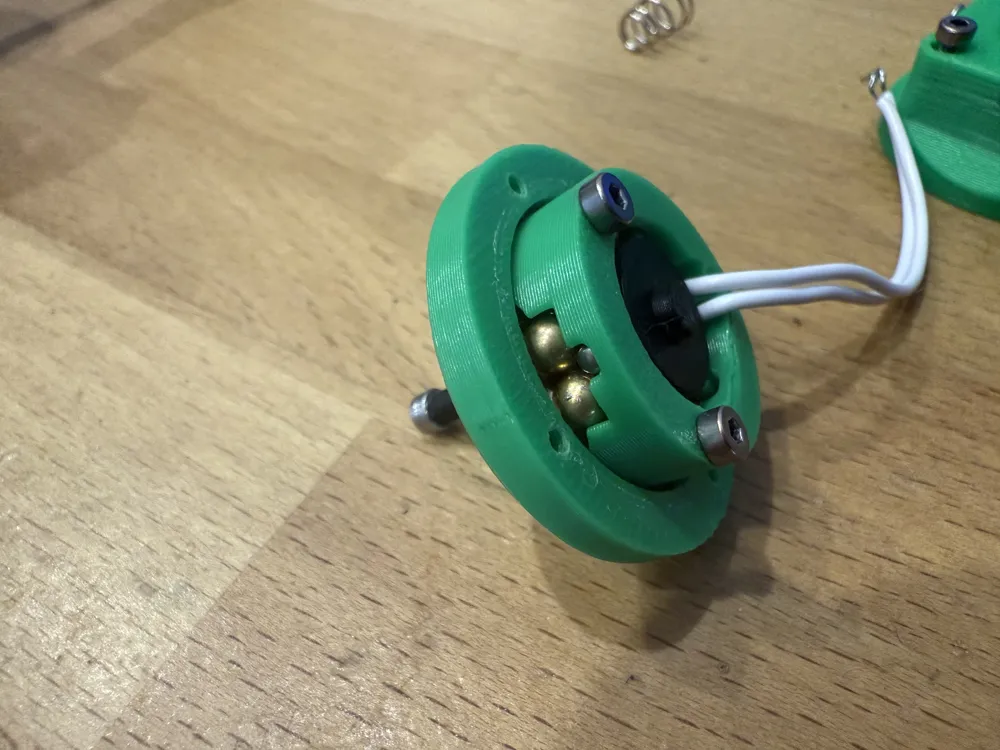

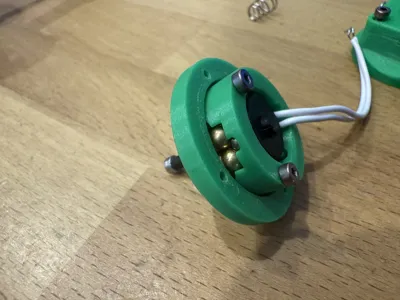

- Solder the brass balls on the pcb and 2 wire
- place the pcb on the btm shell part
- screw in the top a M2.5x6 for holding the spring
- insert the Brass Dowel Pin (cut 3 at 9mm lenght)
- place the assembly on top of the pcb

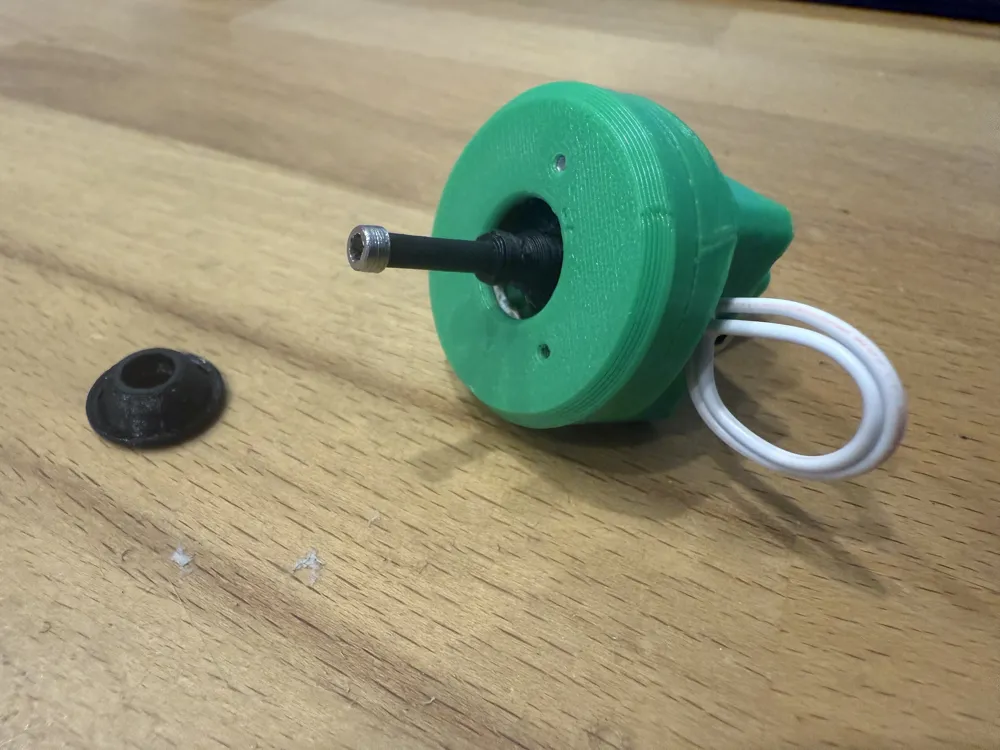

- add the needle guide and screw it in
- pass the wire in the top shell
- screw in the two shell parts toghether
