Arduino Mega 2560 Mini PRO Case

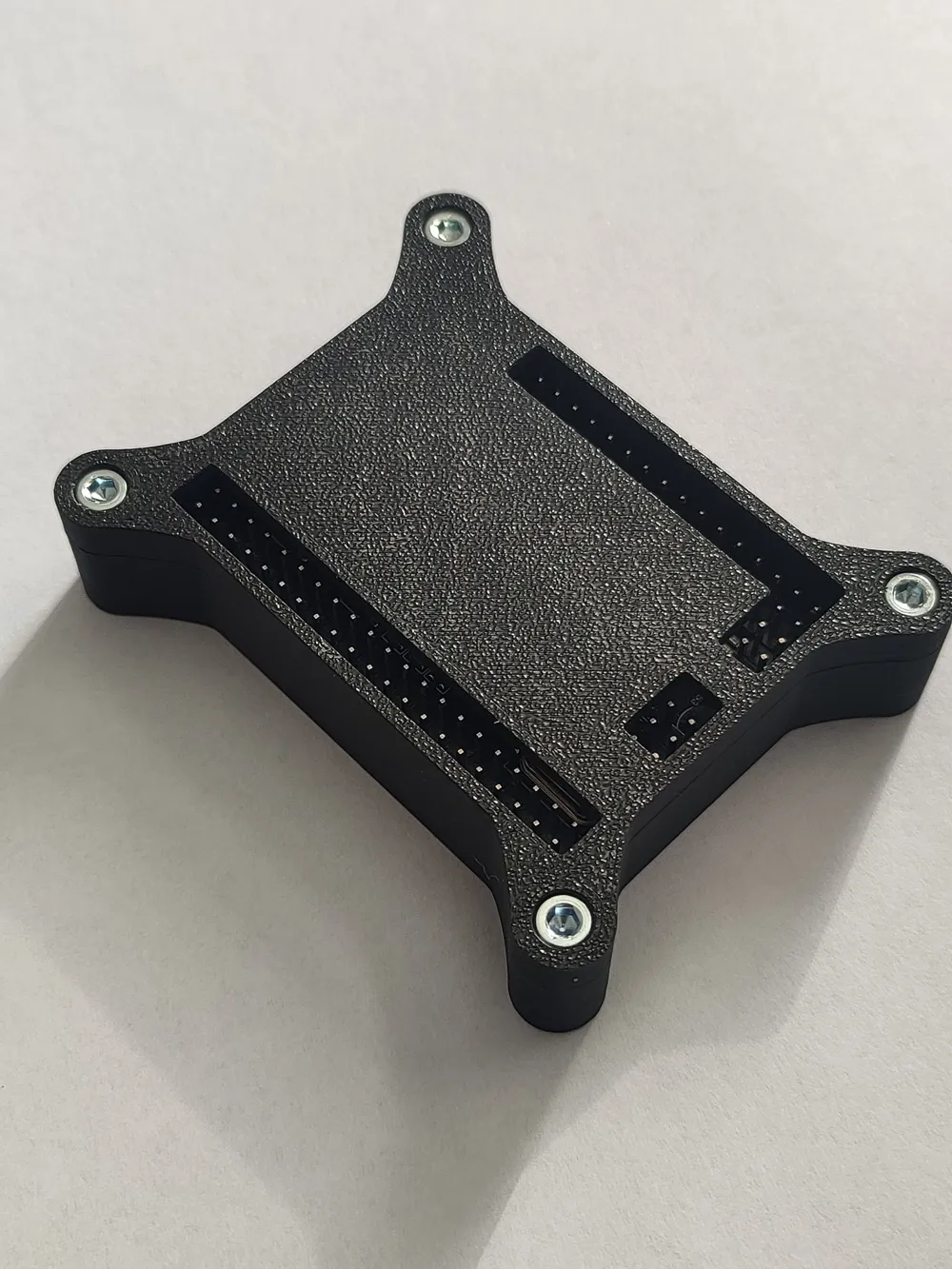

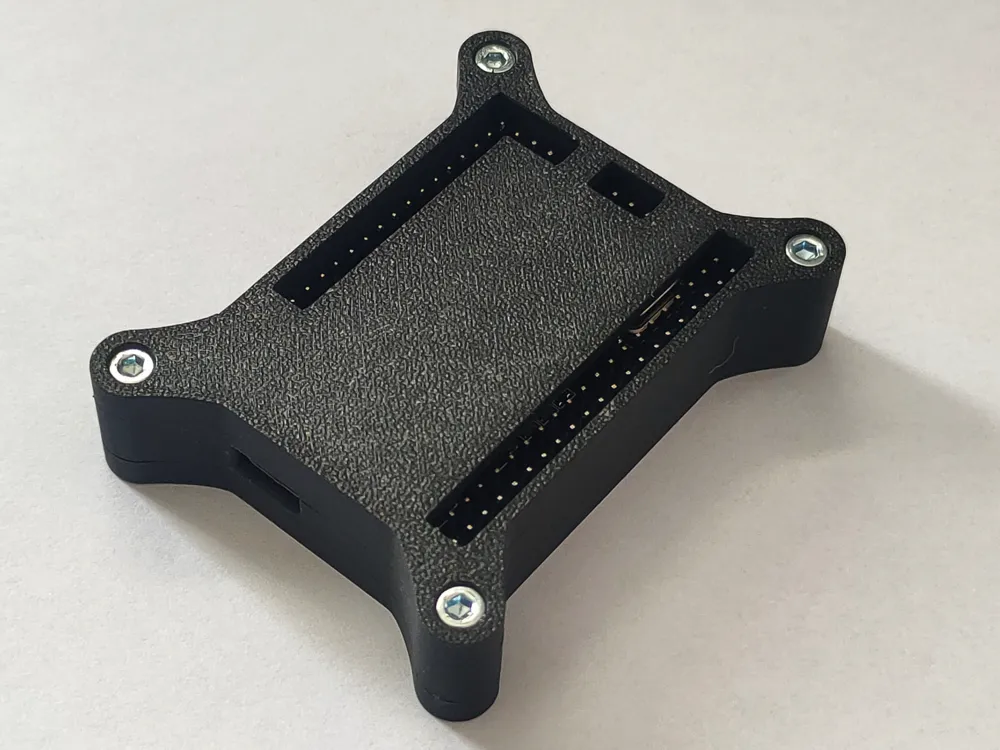

This is a custom-designed case for the Arduino Mega 2560 Mini PRO board. It provides a compact, protective housing while still allowing easy access to all pins and connectors. The enclosure consists of two parts: a top cover and a bottom base, secured together using four M3x14 screws and M3 nuts.
Features:
- Designed specifically for Arduino Mega 2560 Mini PRO
- Screw-fastened design for secure assembly
- Openings for USB and header pins
- Compact footprint for easy integration into larger projects
Recommended print settings:
- Layer height: 0.1 mm
- Infill: 10%
- Supports: As needed (depending on printer and orientation)
- Material: PLA, PETG, or ABS
Hardware required:
- 4× M3x14 screws
- 4× M3 nuts
