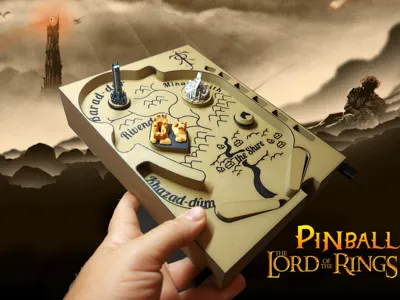

Mini Pinball “The Lord of the Rings”
“The Road goes from the Door where it began” Let your adventurous game in Middle-earth begin!

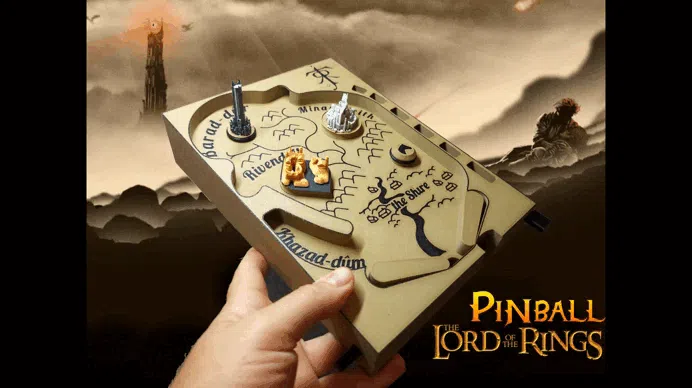

This portable mini pinball machine is a creative reinterpretation of the Lord of the Rings universe. Designed to be compact yet rich in detail, it combines fantasy aesthetics with playable functionality, making it a truly unique collector's item.
⚙️Technical Features
Fully 3D Printed: Every part, from the body to the themed decorations, is printed in multicolor PLA with snap-fit joints.
Compact Size: Designed to comfortably fit in one hand or sit on a desk.
Mechanical Operation: The pinball game is fully playable, featuring spring mechanisms for ball launch and functional flippers.
Themed Game Map

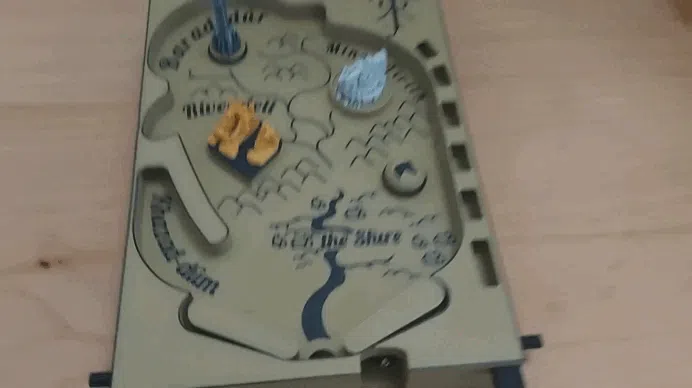

The playfield reproduces a raised map of Middle-earth, featuring the following iconic locations:
Barad-dûr: The Dark Tower of Sauron, printed in dark gray.
Minas Tirith: The White City, intricately detailed in light gray.
Rivendell: The Elven valley, marked on the map.
Khazad-dûm: The ancient Dwarven stronghold, located in an underpass to represent the caverns.
The Shire: The peaceful Hobbit region, decorated with a stylized tree and small hobbit houses.
The Prancing Pony
Game Mechanics

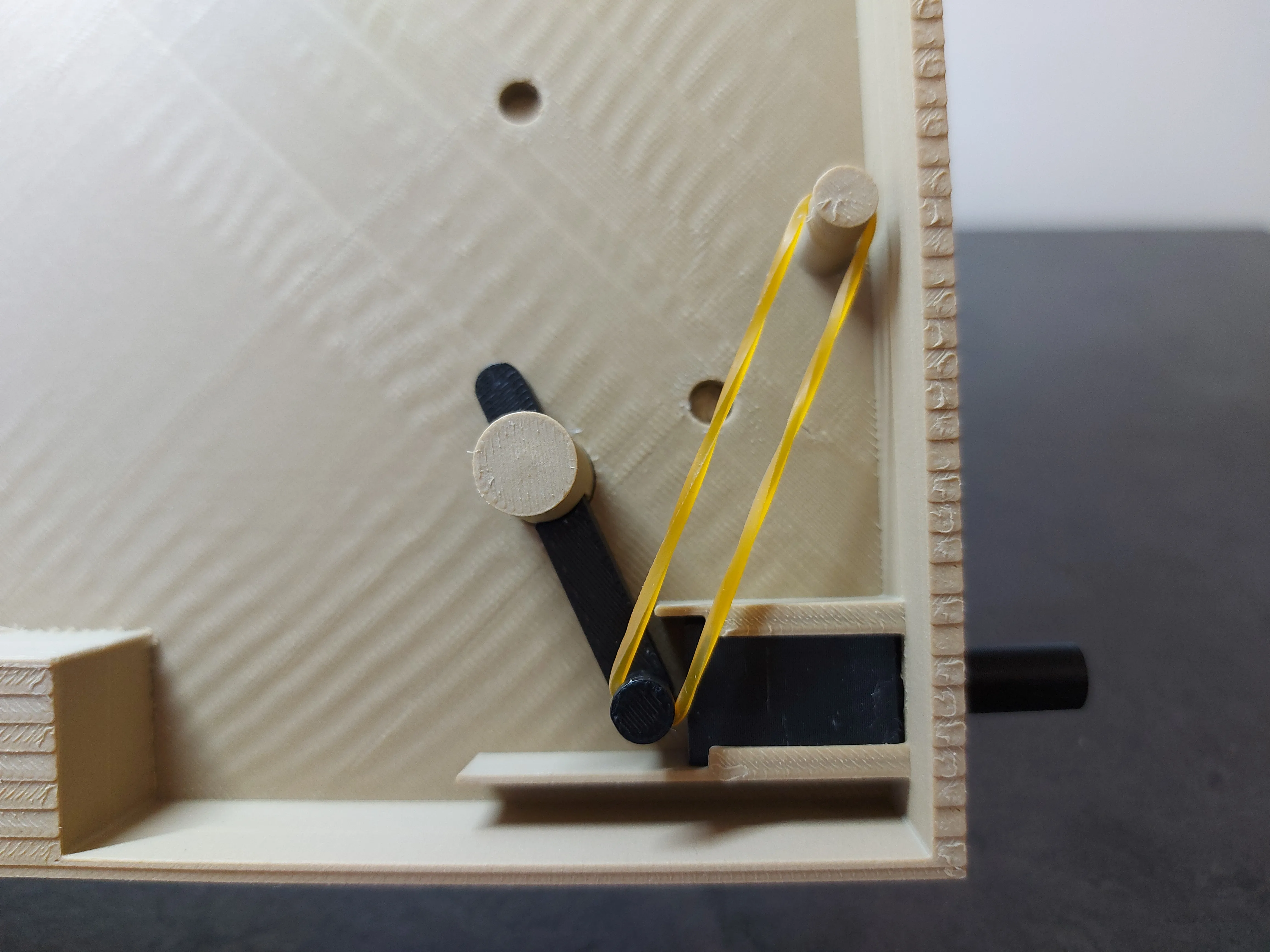

Movable Flippers: Manually operated via side levers, fully functional.

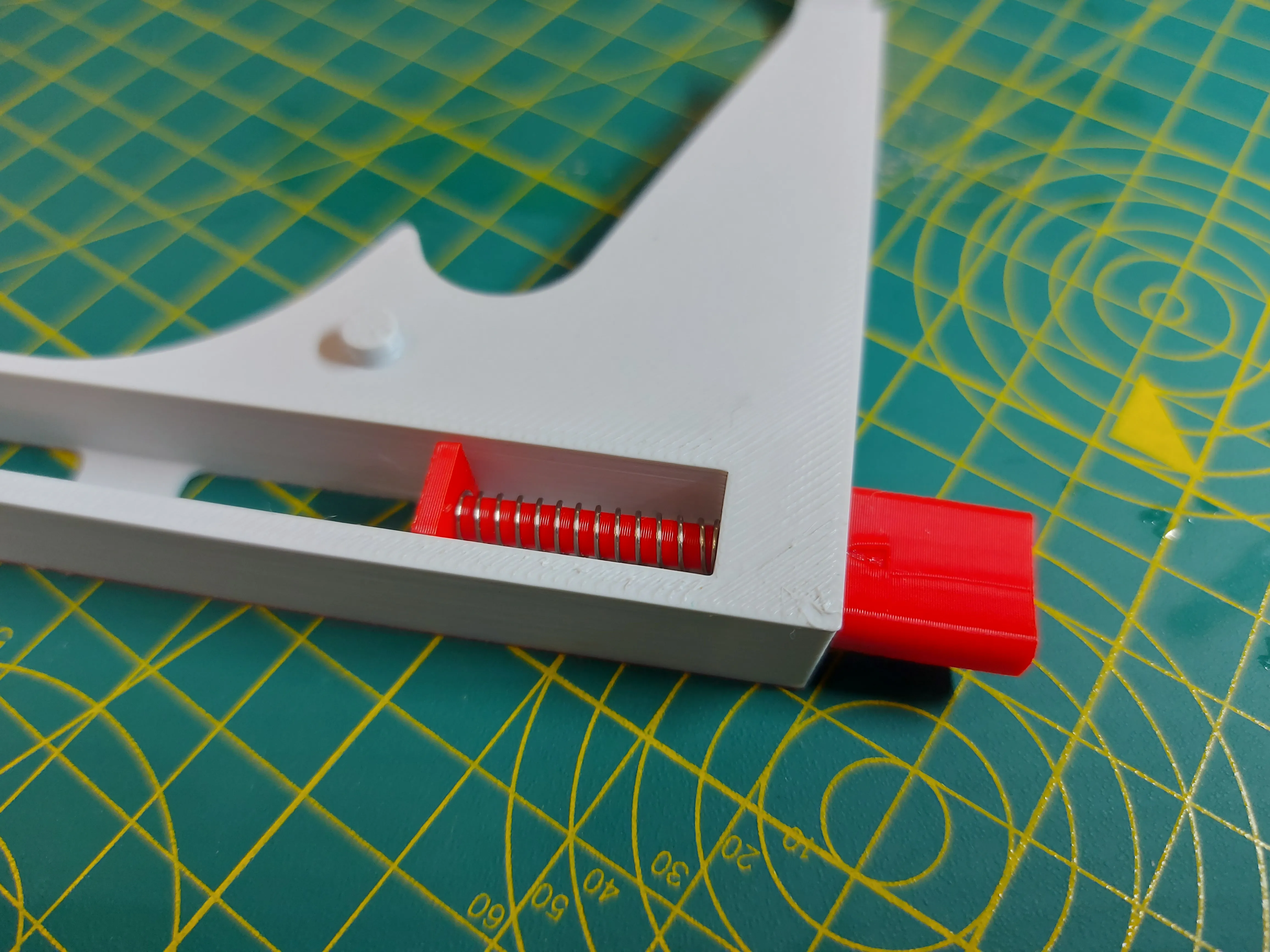

Spring Launch: A lever launches the ball onto the map in classic pinball style.
Themed Obstacles: Decorative elements represent obstacles and targets within the game.
Everything you need to make it is in the Maker's Beginner Kit:
1x 8mm Stainless Steel Ball

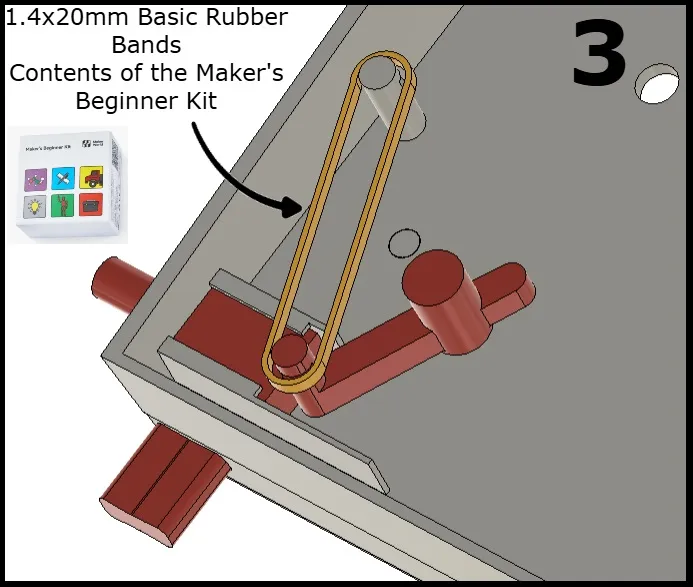

2x 1.4x20mm Basic Rubber Bands

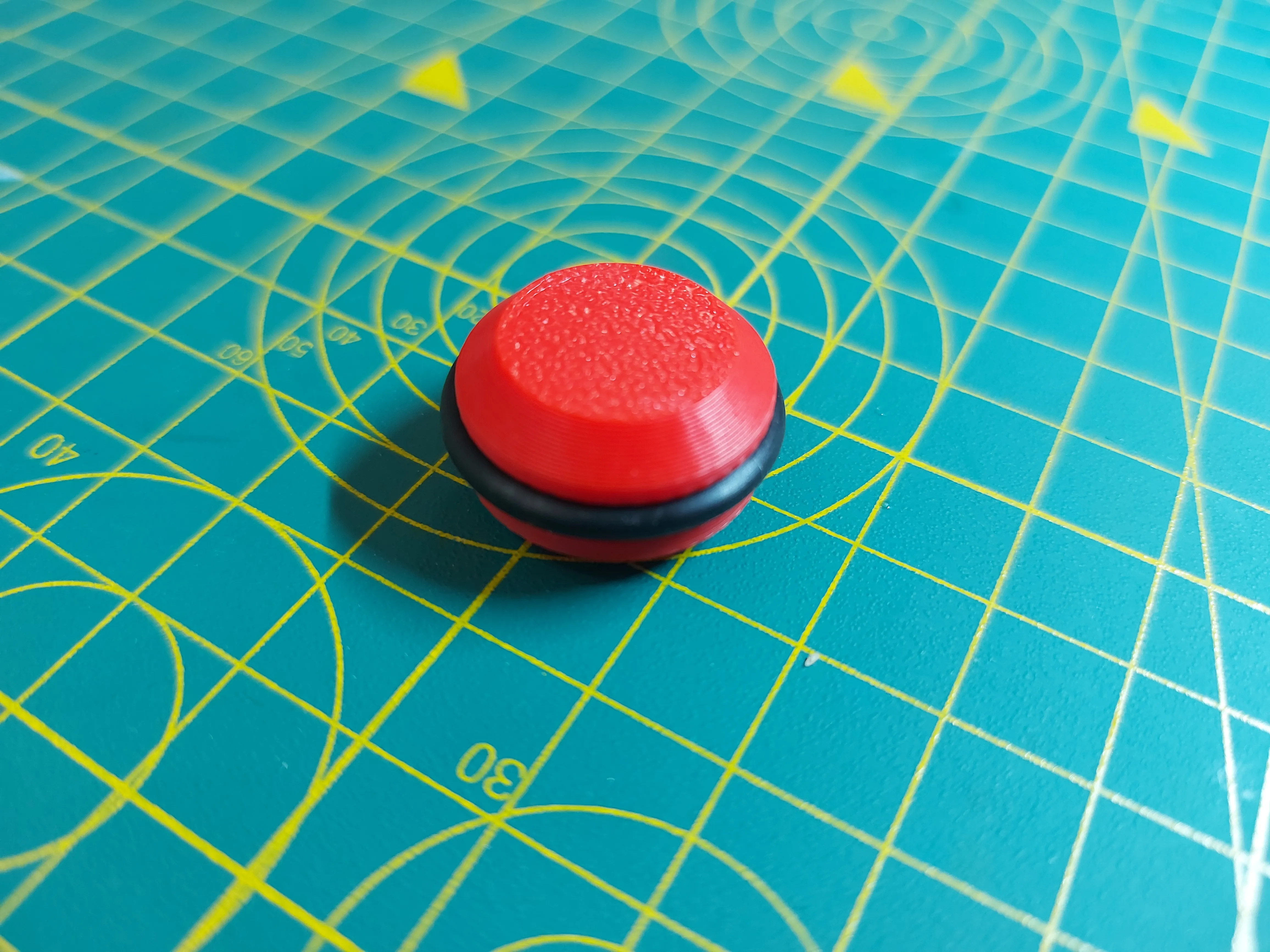

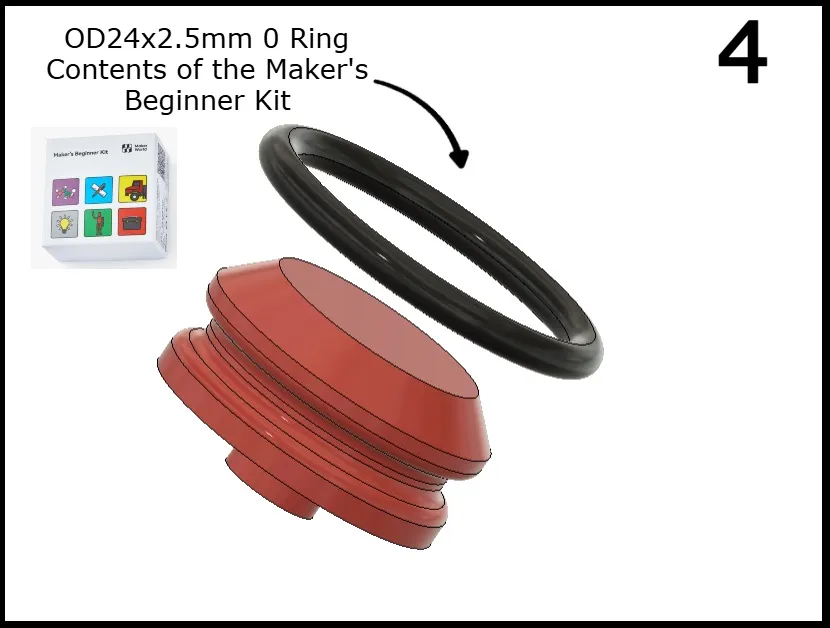

2x OD24x2.5mm 0 Ring
1x 0.5x5x25 mm Helical- Compression Spring
This model is compatible with the Maker’s Beginner Kit (B-ZC002). The kit includes various non-printed parts to support multiple designs, so some components may not be necessary for this specific model

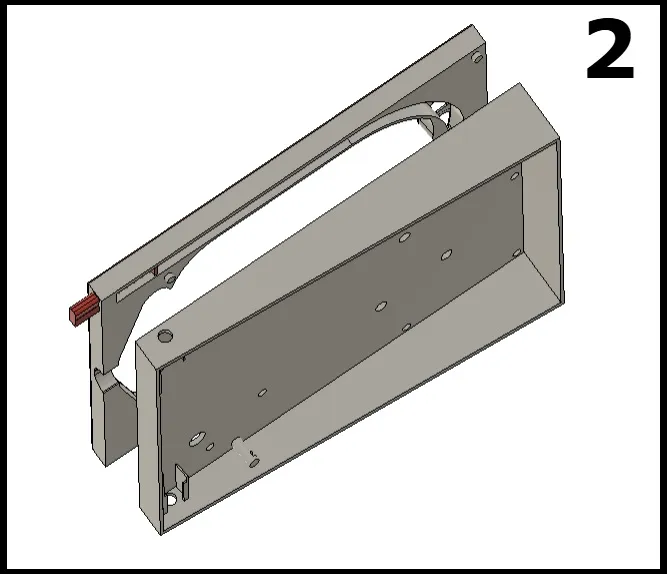

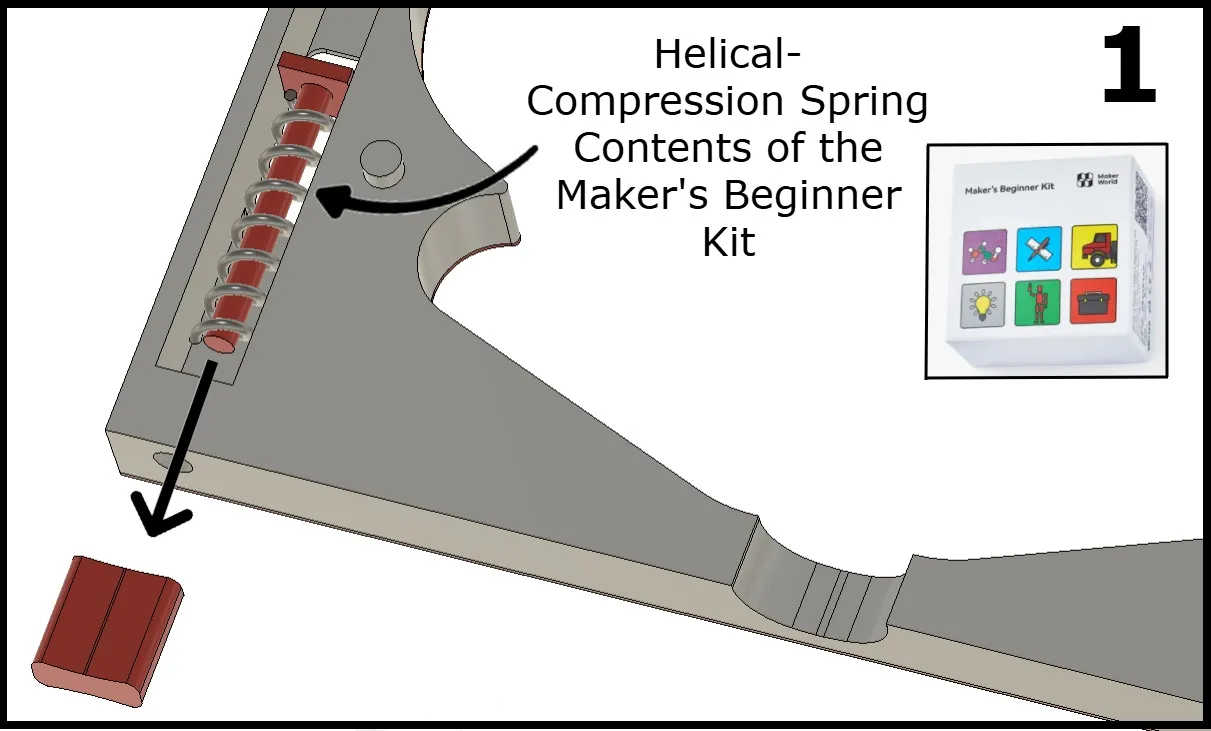

Some explanatory images for the assembly (I assembled everything without using glue, but if you see that it feels weak in some places, reinforce it with a drop of glue):
