Flared Ports and the Fibonacci Ratio: Optimizing Audio Performance with an 8-to-13-Inch Design
Flared ports, often referred to as aero ports, are a critical component in subwoofer enclosures, designed to enhance airflow and minimize distortion in audio systems. By incorporating the Fibonacci ratio (approximately 1.618), particularly in a flared port design scaling from an 8-inch to a 13-inch diameter, we can leverage mathematical harmony to optimize acoustic performance. This write-up explores the concept of flared ports, the application of the Fibonacci ratio in their design, and the specific benefits of an 8-to-13-inch flared port configuration.
Understanding Flared Ports

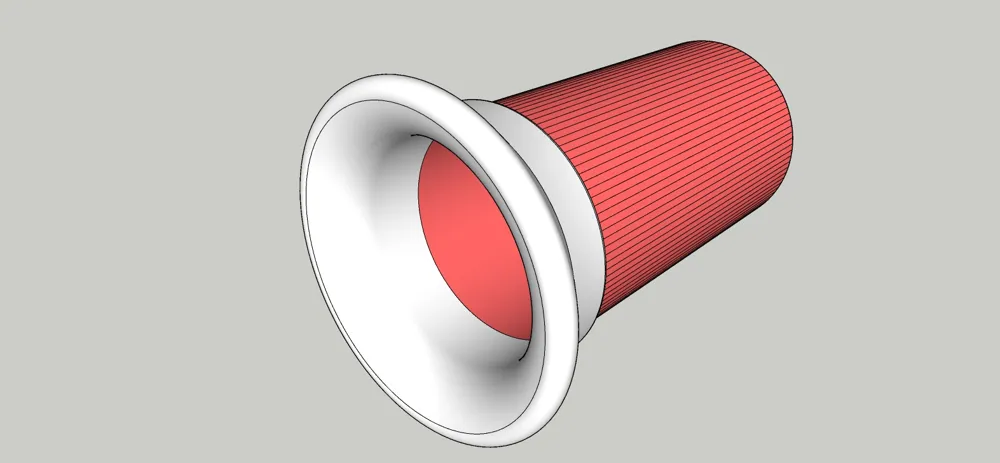

Flared ports are cylindrical or conical tubes used in ported (vented) subwoofer enclosures to allow air to move in and out, facilitating low-frequency sound reproduction. Unlike straight ports, flared ports feature widened ends that smooth the transition of airflow, reducing turbulence and port noise (also known as "chuffing"). This design enhances efficiency, allowing the subwoofer to produce cleaner, deeper bass with less distortion. Flared ports are widely regarded as superior to straight ports due to their ability to handle high air velocities, making them ideal for high-performance audio systems.

The Fibonacci Ratio and Its Relevance
The Fibonacci sequence (0, 1, 1, 2, 3, 5, 8, 13, 21, etc.) is a series where each number is the sum of the two preceding ones. The ratio of consecutive Fibonacci numbers approximates the golden ratio, 1.618, as the sequence progresses (e.g., 13 ÷ 8 = 1.625, very close to 1.618). This ratio is found throughout nature, art, and architecture, often associated with aesthetic harmony and efficient patterns, such as the spirals of sunflowers or nautilus shells.

In audio design, applying the Fibonacci ratio to flared port dimensions can create a geometrically harmonious structure that aligns with natural patterns, potentially improving airflow dynamics and acoustic efficiency. The 8-to-13-inch flared port design uses Fibonacci numbers (8 and 13) to define the port's diameter at different points, ensuring a gradual, proportional flare that adheres to the golden ratio.

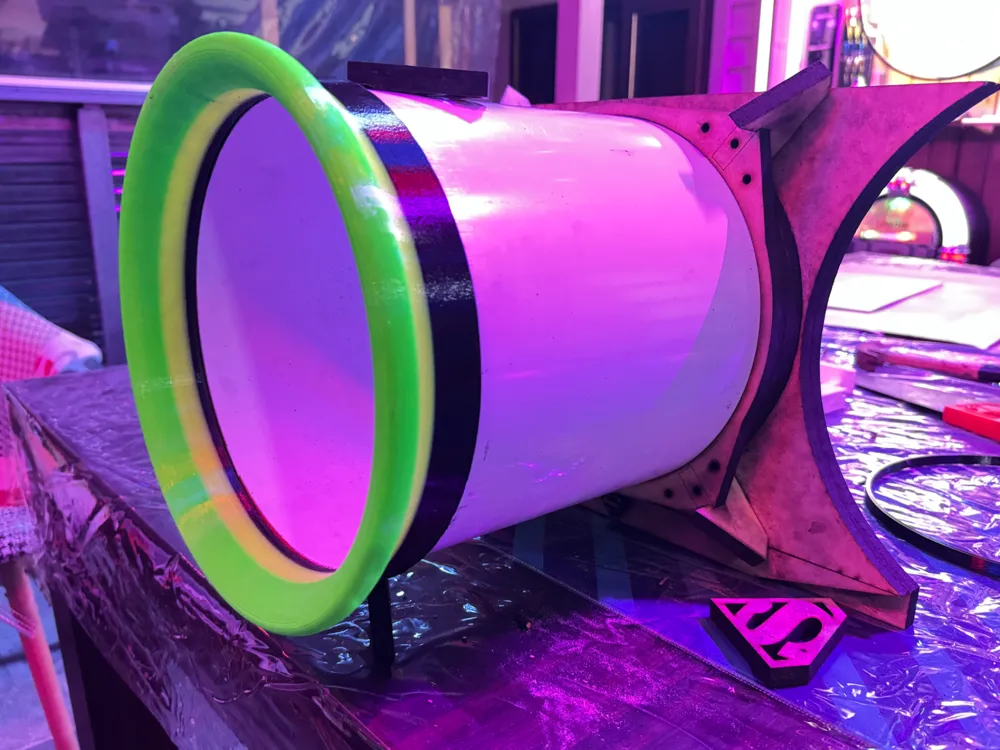

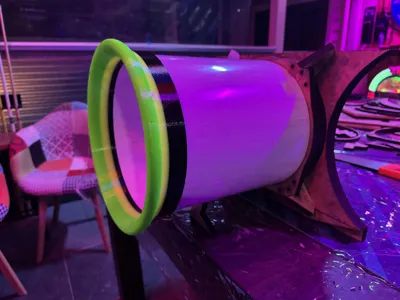

The 8-to-13-Inch Flared Port Design

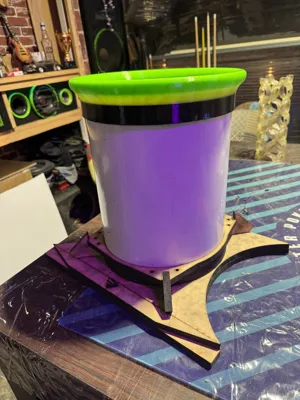

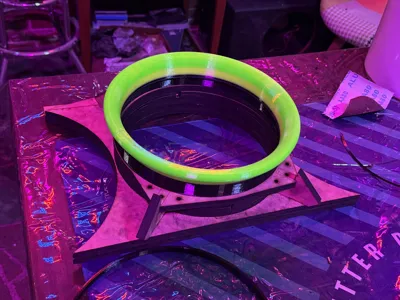

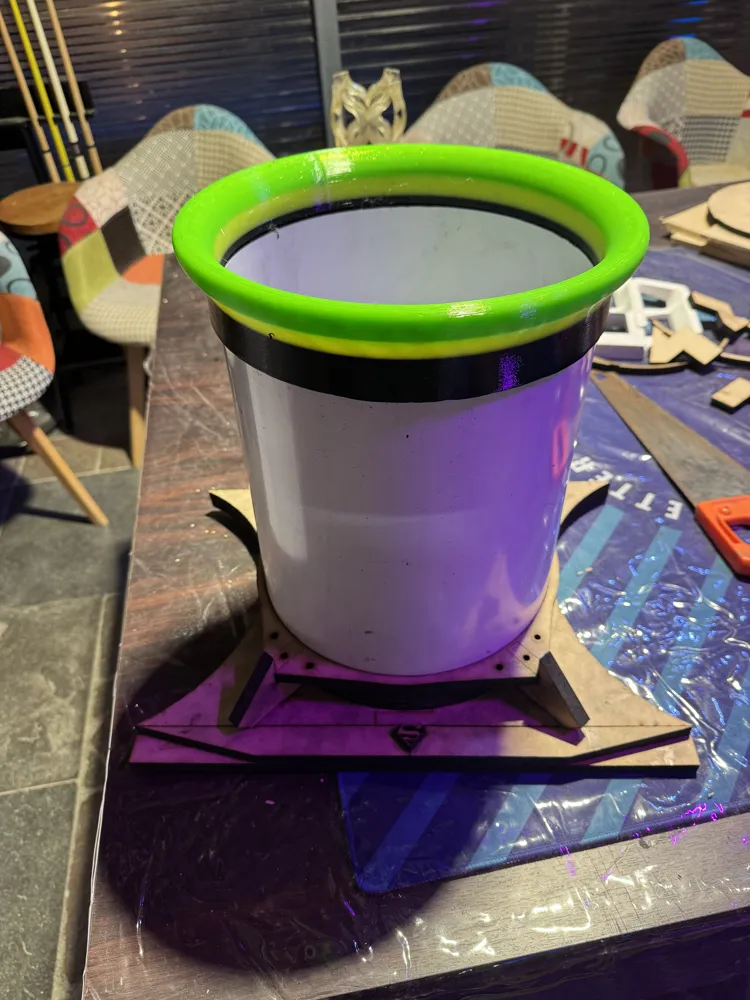

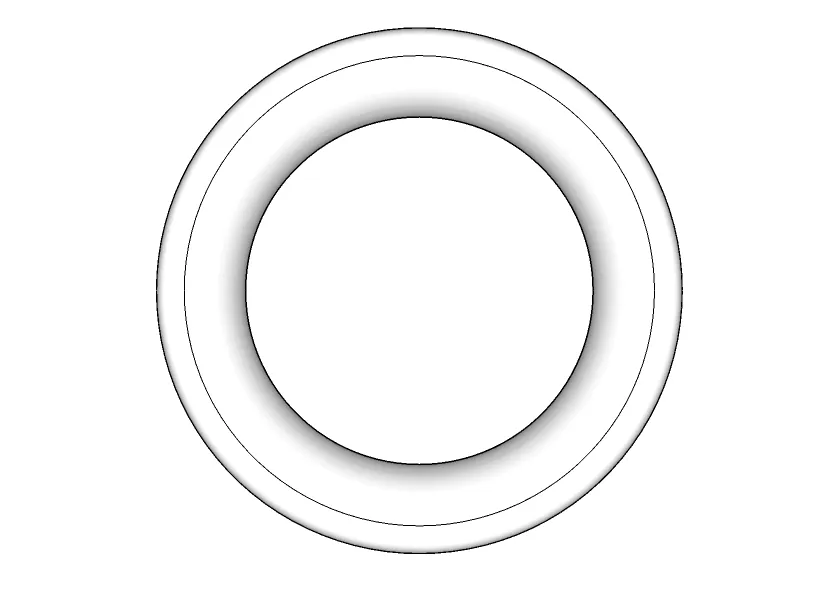

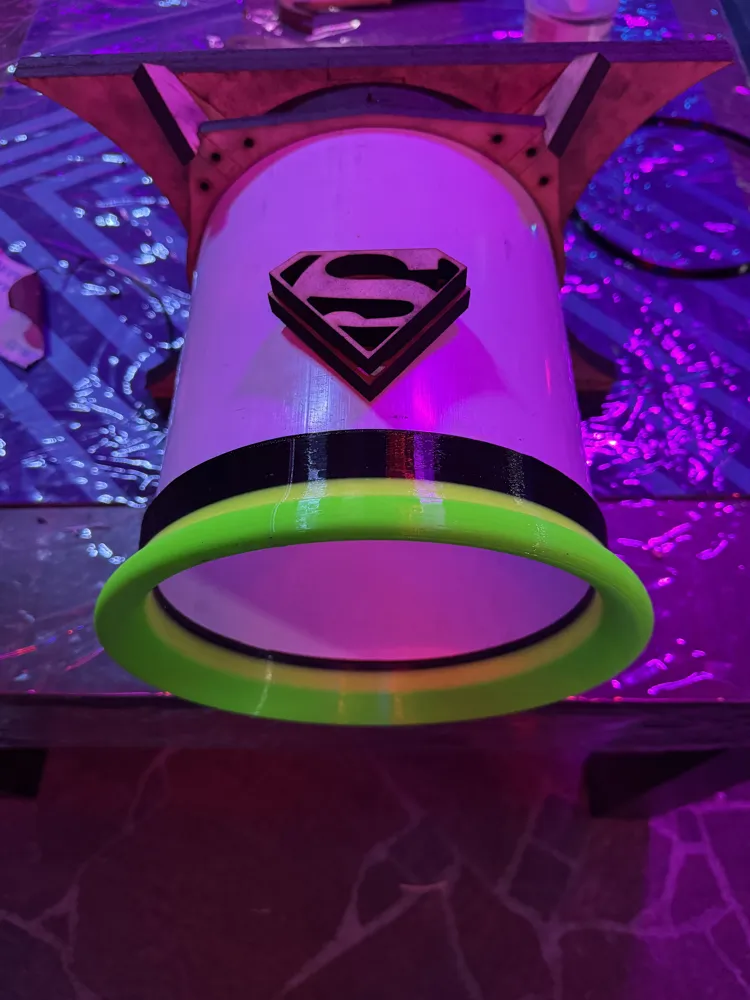

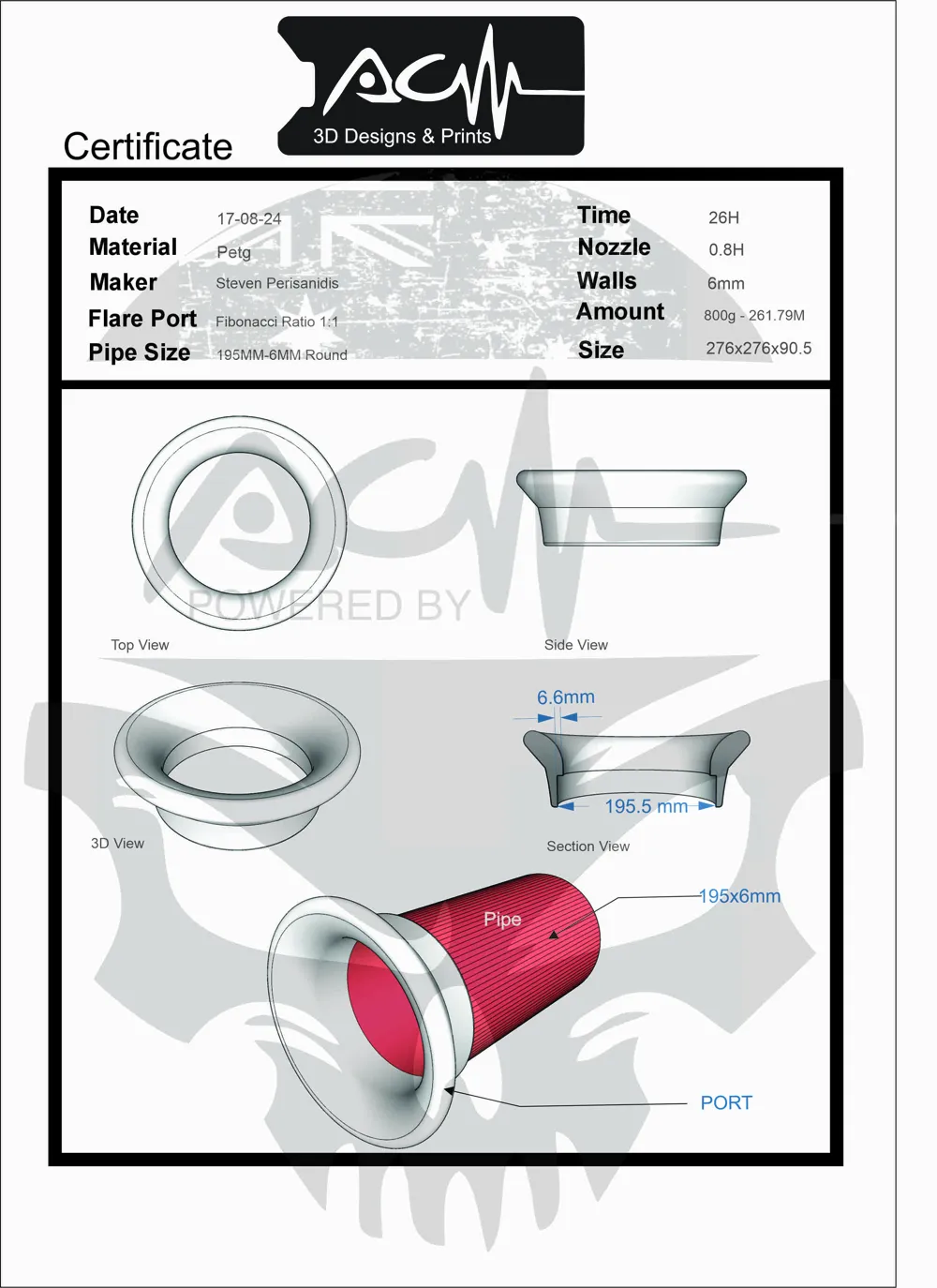

In this context, an 8-to-13-inch flared port refers to a port with an inner diameter of 8 inches at its narrowest point (typically the throat) and an outer diameter of 13 inches at the flared ends. The ratio of these diameters (13 ÷ 8 = 1.625) closely approximates the Fibonacci ratio of 1.618, creating a taper that is both mathematically elegant and functionally optimized. The port's length and flare radius are calculated based on the enclosure volume, tuning frequency, and desired acoustic output, often using tools like the Flared Port Calculator.

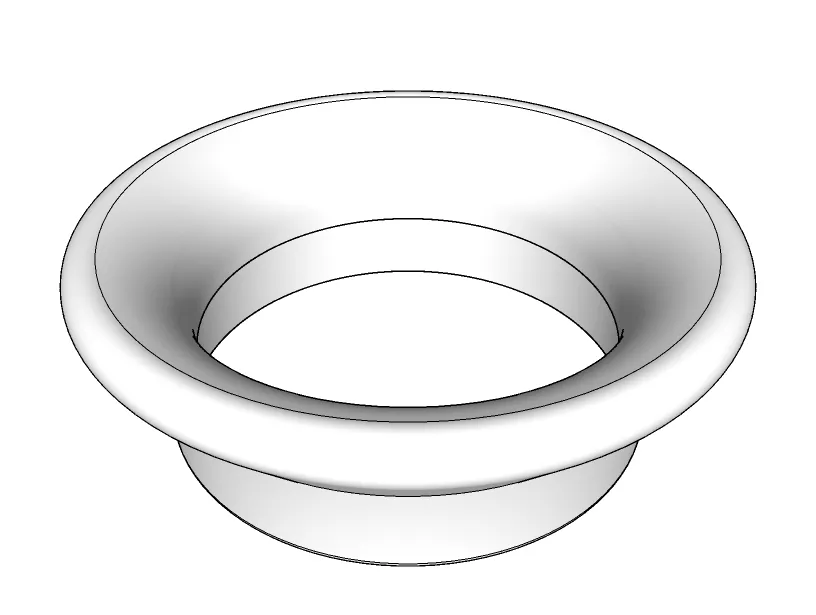

The arch of the flare can be envisioned as a smooth, curved transition, resembling a section of a golden spiral—a logarithmic spiral derived from Fibonacci proportions. This spiral shape ensures that air moves through the port with minimal resistance, as the gradual widening mimics natural flow patterns observed in fluid dynamics.
