Adjustable Tract Feet (Pasco compatible)
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
4.5 h
2 plates
Open in Bambu Studio
Boost
3
8
2
1
5
3
Released
Description

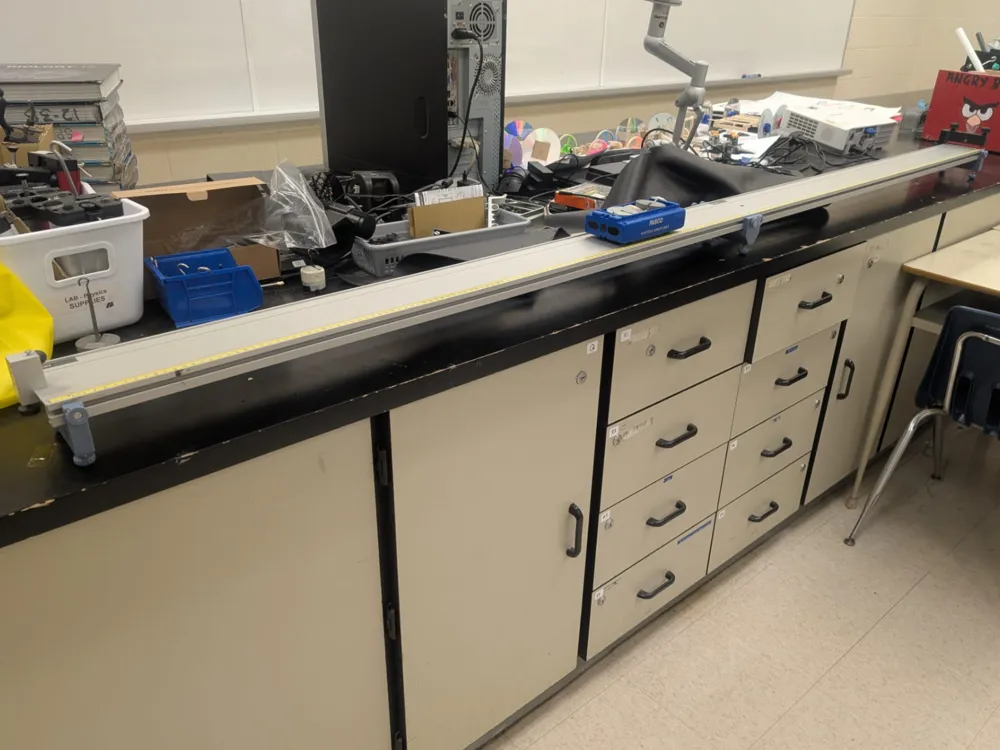

Replacement Adjustable Track feet for Pasco MS-8972 Physics tracks.
- Uses M5 x 25mm Bolts
- Optional but recommended:
- M5 Tap
- PlastiDip
Assembly:
- Snap fit M5 screws into the circular knurled knobs.
- Two will be the feet and the other the horizontal lock.
- Glue domes onto the feet.
- For added grip, spray a couple of layers of PlastiDip on the foot domes before gluing, or print them in a rubber filament.
- Tap the foot holes and nut holes with an M5 Tap. You can also probably just screw in the M5 bolts without tapping (the STL hole size is 4.5mm), but I would recommend a tap.

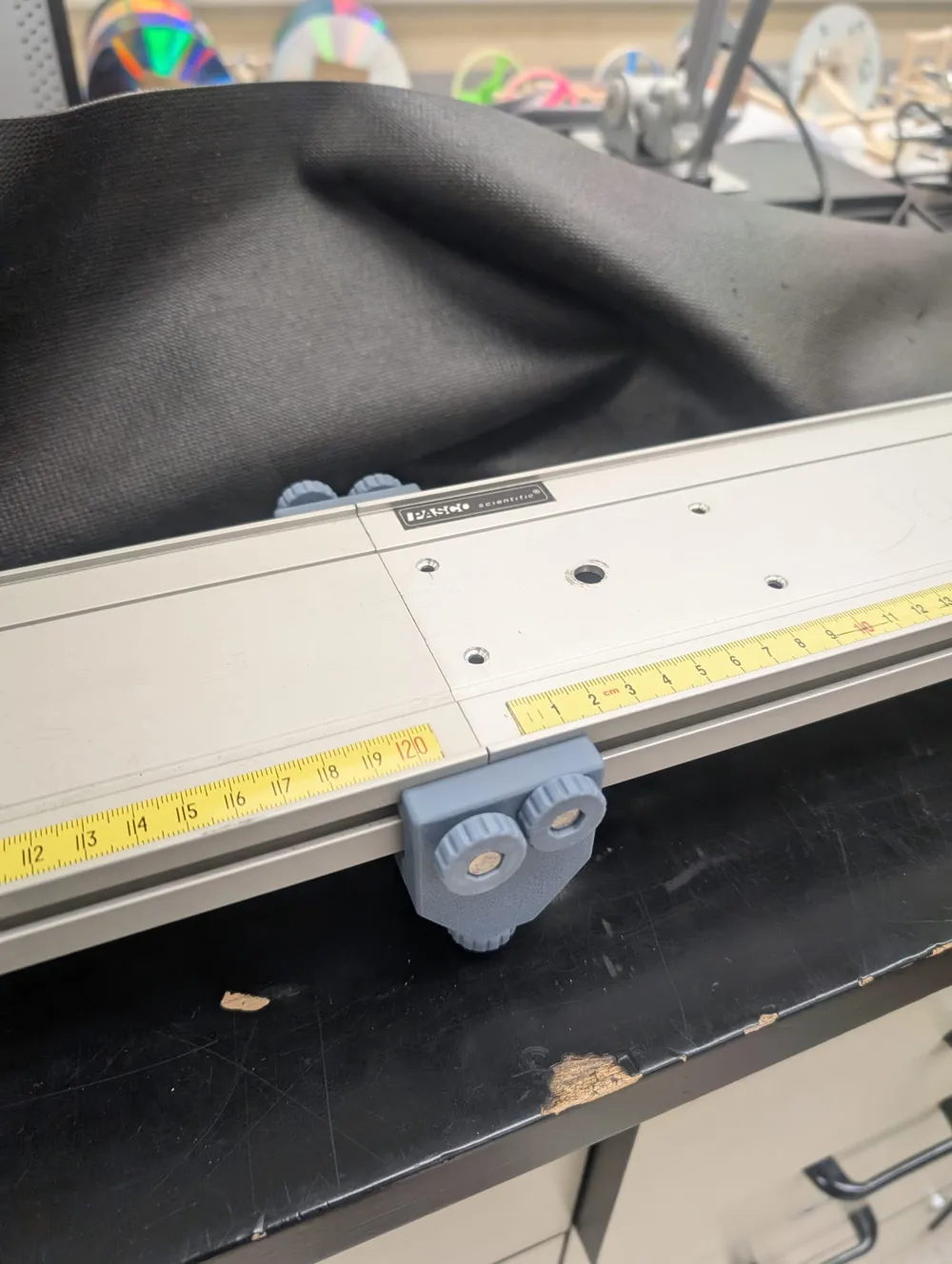

A custom double module is also included to allow joining two tracks together.
