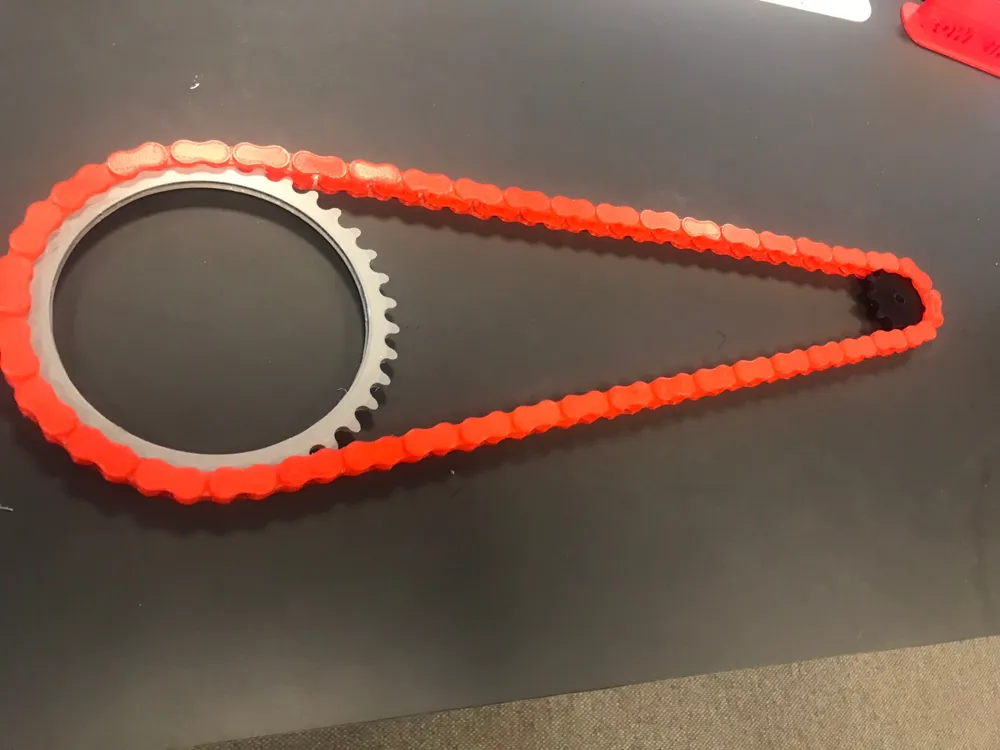

420 roller chain with chain lock and sprockets
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
29.7 h
6 plates
Open in Bambu Studio
Boost
49
119
3
3
312
142
Released
Description

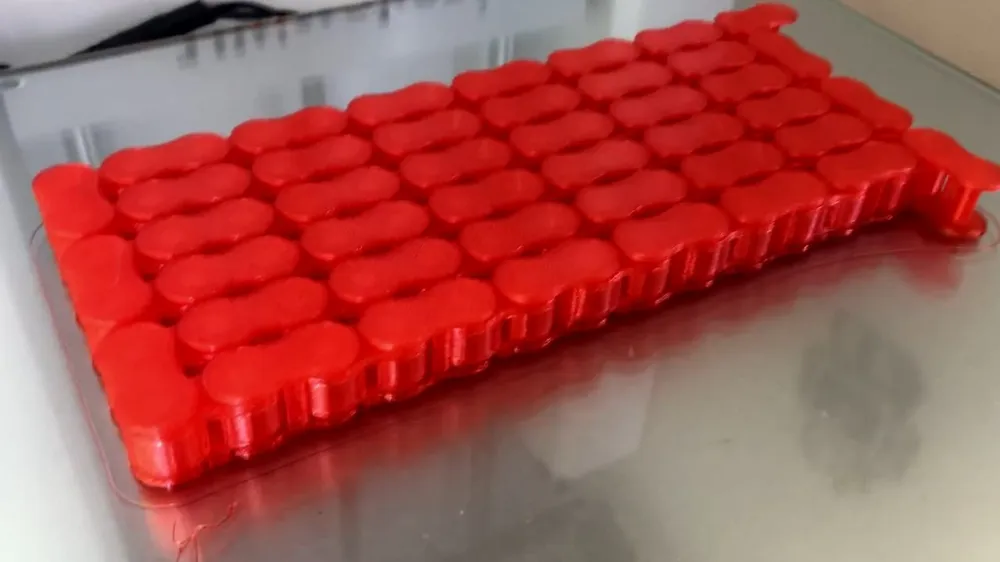

420 roller chain in a compact print design

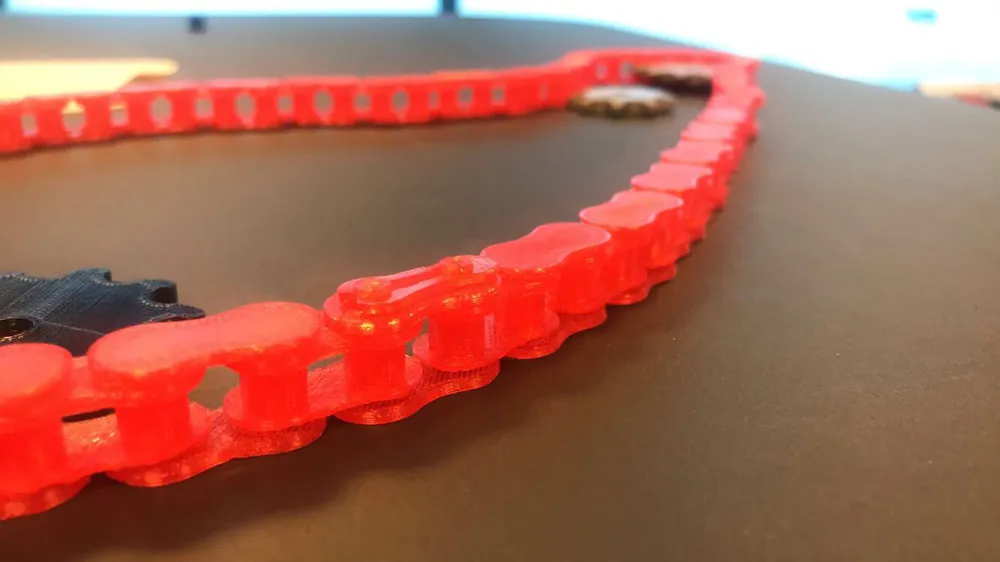

chain lock included
No support is needed
42 links 53,3 cm
84 links 106,7 cm
168 links 213,4 cm
Also made a 102x102 mm version for smaller print beds
Sprockets:
9T,11T,12T,36T,48T
You have to break off the two ends so you get two "female" links to mate the chain lock with. The reason they are there is to provide support for the female ends during printing.
https://www.youtube.com/watch?v=2Vp0MVR-mFI&t=6s
For STEP files, see:
https://grabcad.com/library/3d-printable-chain-and-sprockets-1
The model is inspired from:
https://www.thingiverse.com/thing:2793147
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
