Clamping MIC Arm
Print Profile(1)
Description

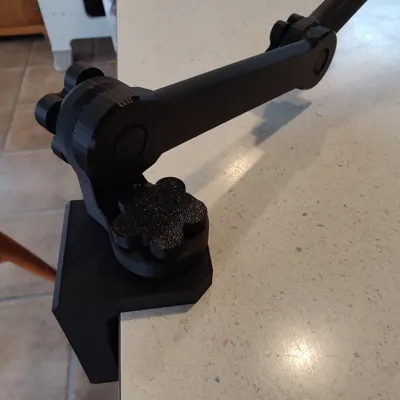

This print is an adjustable MIC arm that will fit on most microphones (5/8"-27 thread). It will clamp onto most desks or other flat surfaces. The arm has multiple joints that can be adjusted in 12 degree increments. The rotation of the bolt that screws into the MIC can be adjusted by using the nut. The print profile has three arms, but you can add or take away as many as you want. When printing additional arms, print the arm with threads only on ONE SIDE.
Printing:
-I used PLA, but other stiff materials should work too.
-If you want it to look cooler, I recommend printing the bolts and nuts in a different color
Assembly Tips:
-When connecting the arms, line up one hole with threads and one hole without threads and then screw the bolt in
-For the threaded rod that connects to the MIC, the finer threads face out and screw into the MIC
-When clamping the arm down, apply the minimum force to secure it to ensure it doesn't crack
