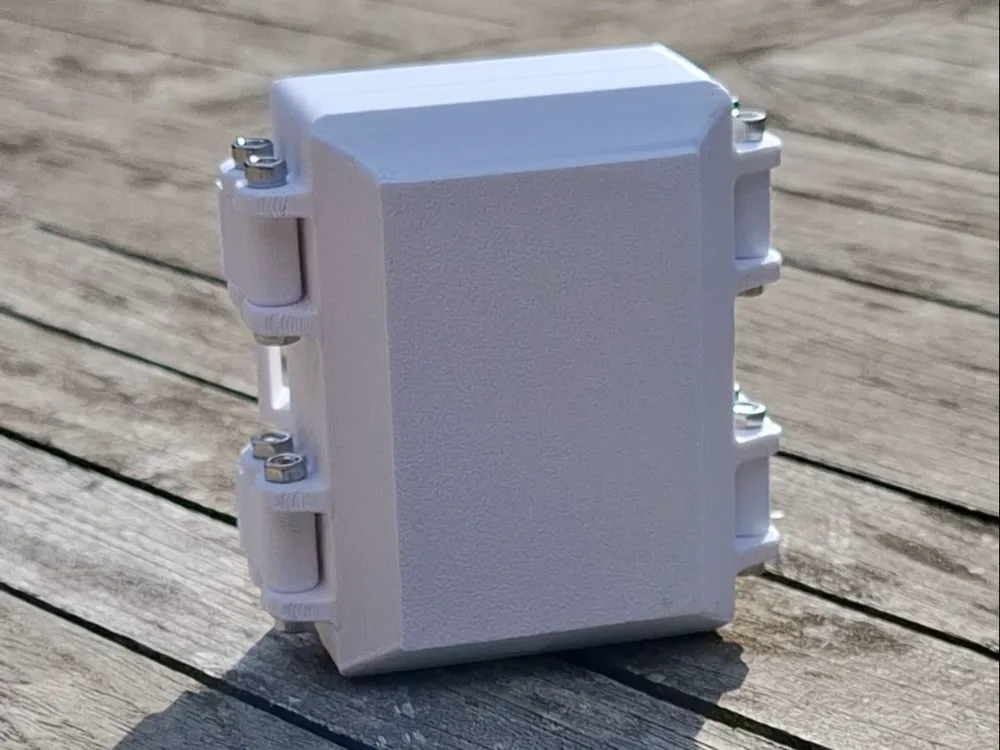

Weather-proof electronics box with hinged clasps

A small rugged weather-proof enclosure for small electronics projects.

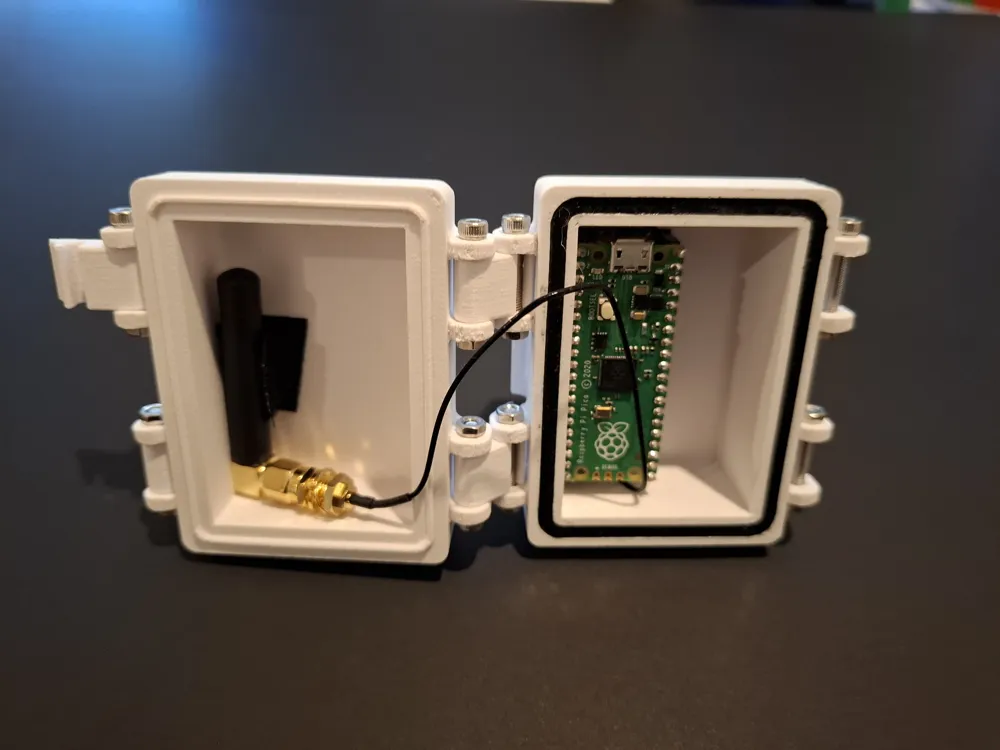

I filled the groove in the body of the enclosure with JB weld liquid gasket to create a gasket, wait 24 hours to set!

The ridge on the lid will compress the gasket and create a water-tight seal!

It's recommended to print in at least PETG filament for outdoor use!

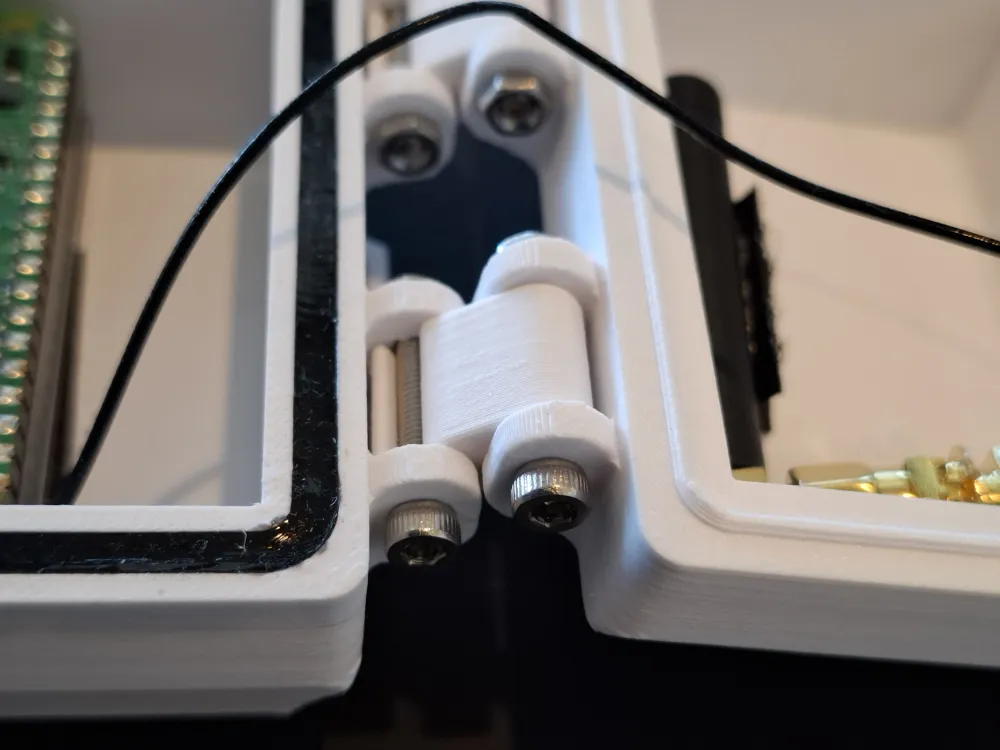

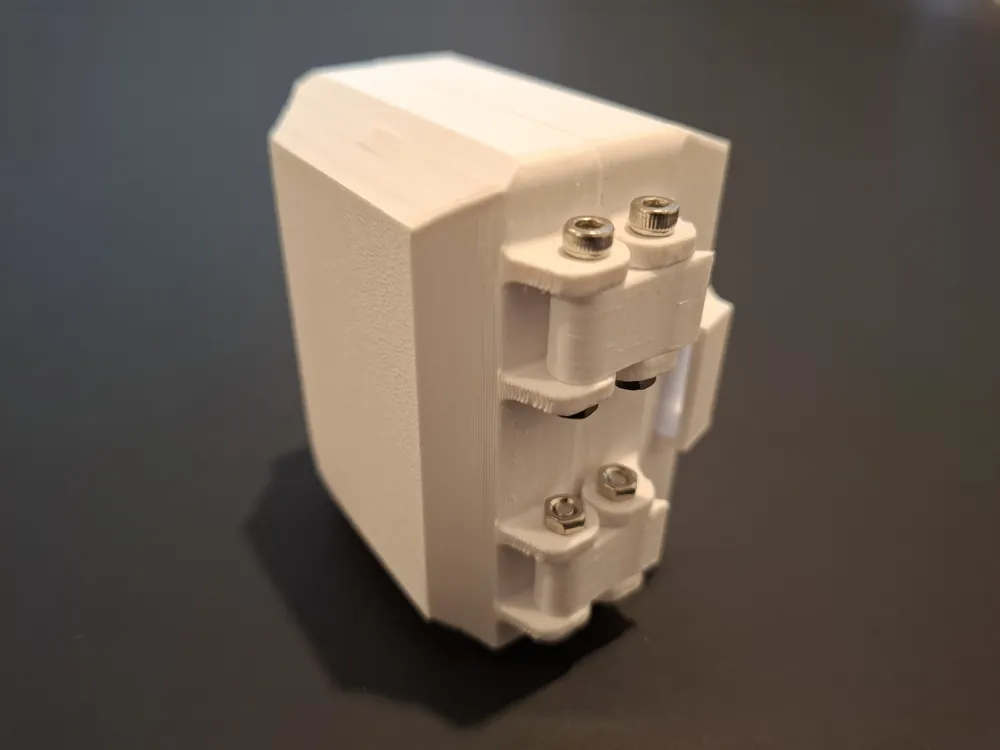

4 of the clasp are needed per box, and they are attached to the lid with 20mm M3 bolts and nuts.

4x 20mm bolts are also used as clasp-points on the body.

For the STL:

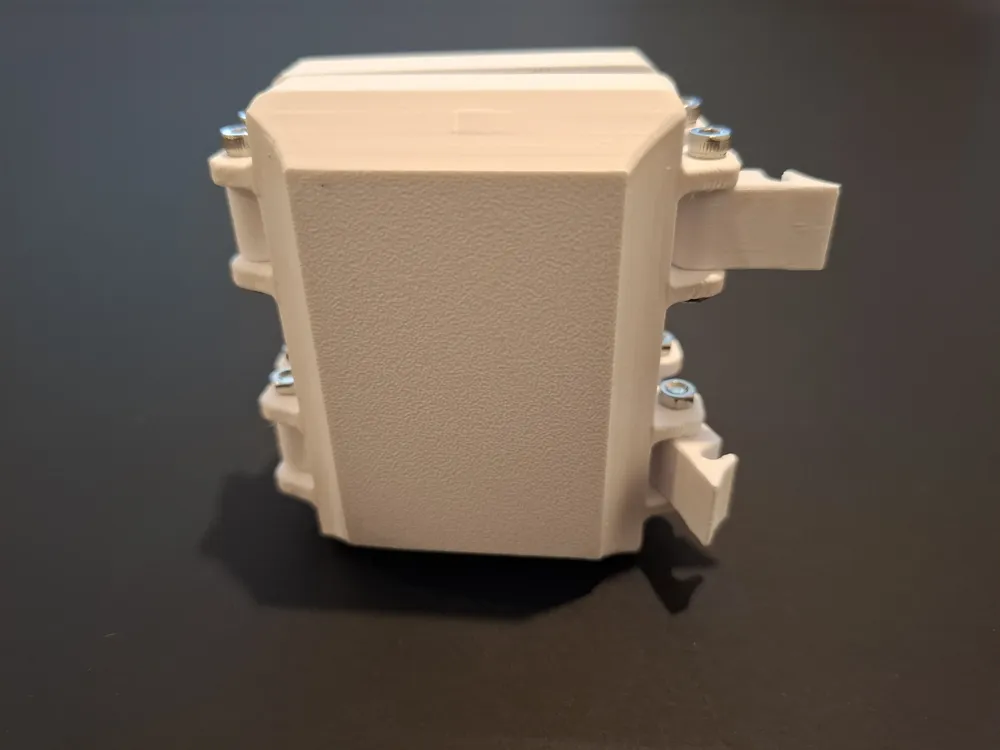

It also as slots on the back for mounting with a strap/zip-tie (17x3mm).

The body of the enclosure has interior dimensions of 25x40x60mm (HxWxL)

The Lid of the enclosure has interior dimensions of 18xx40x60mm (HxWxL)

Also:

.step file included for parameterised design file
