Description

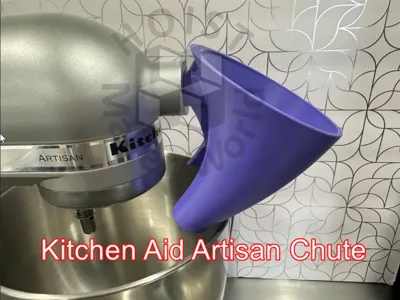

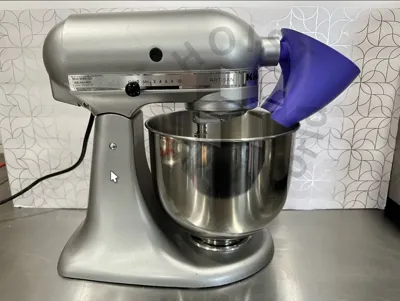

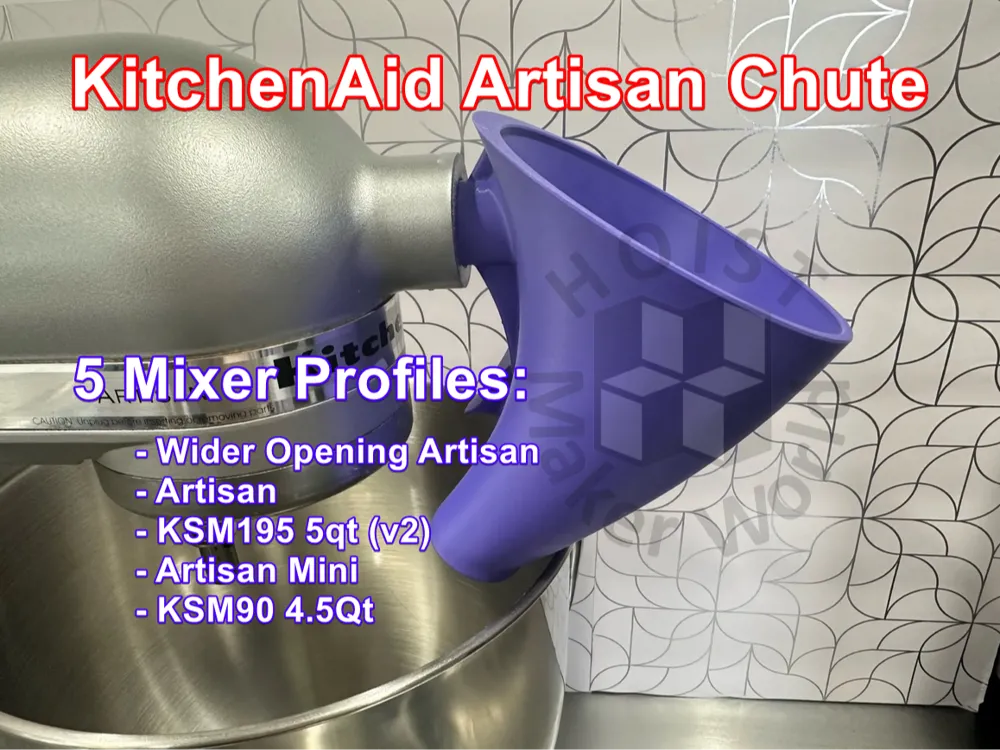

Chute for Kitchen Aid Artisan KSM150. 5qt, Tilt head, stand mixer
Bowl outside diameter of 222mm,
(This may fit other Kitchen Aid Artisan models. If you find it does, please post a comment and include your mixer model number.)
Print profiles:
- Kitchen AId Artisan Chute: Original;
- the Original
- fits KSM150, KSM180

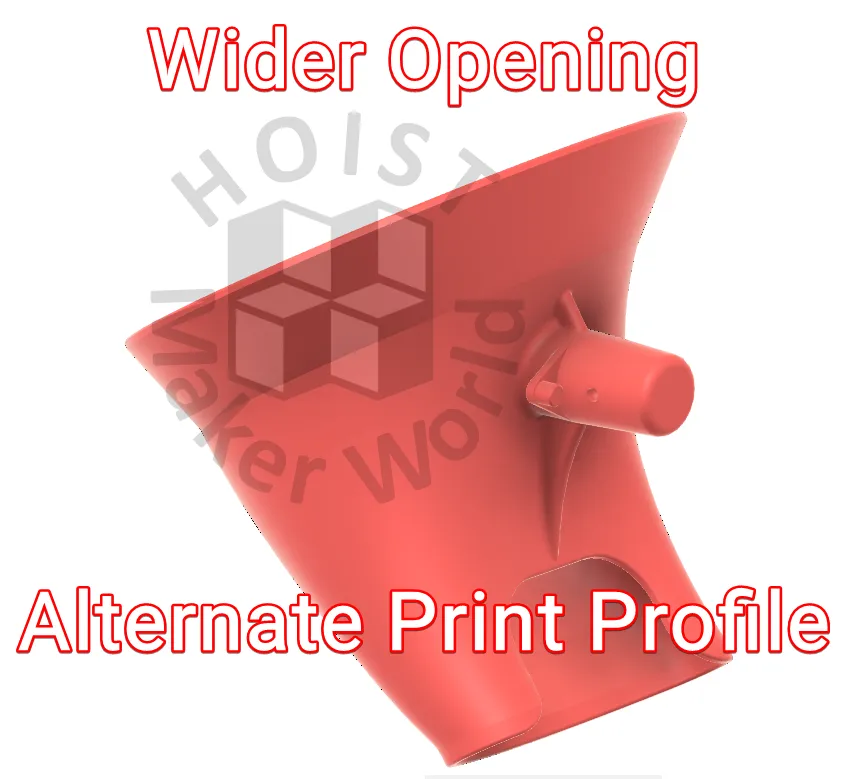

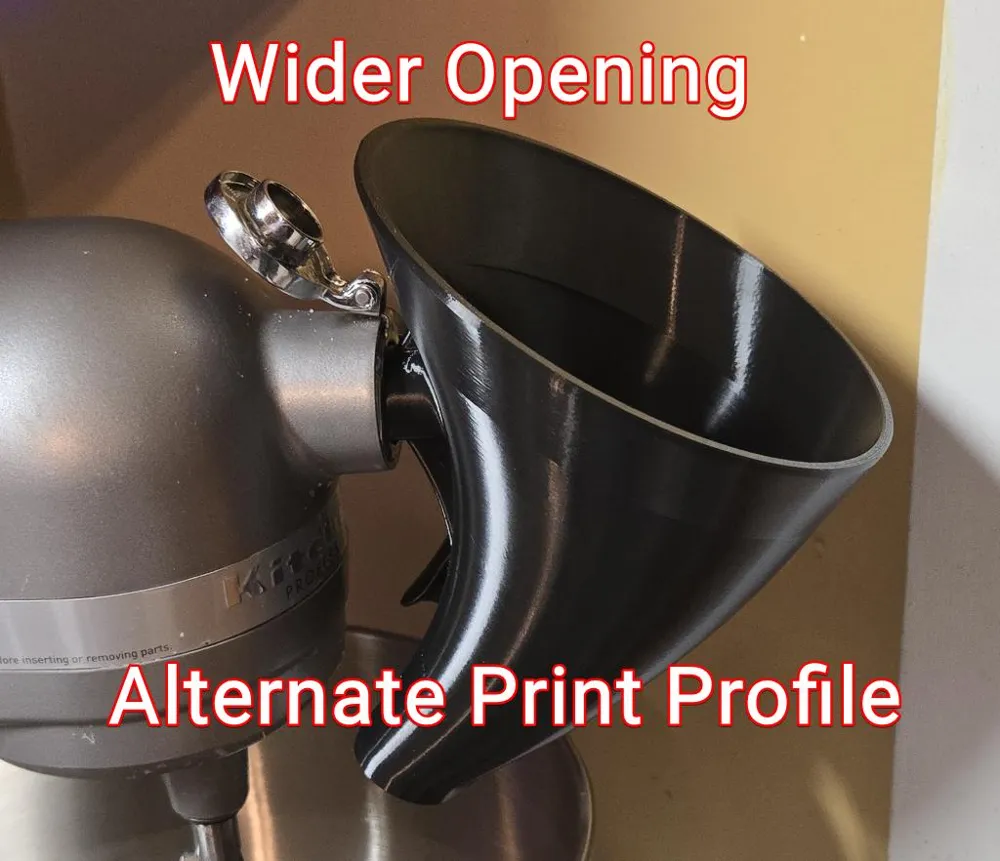

- Wider Opening 160mm Artisan Chute ;
- the Original with additional height and funnel to 160mm for 2 cup measures
- fits KSM150, KSM180

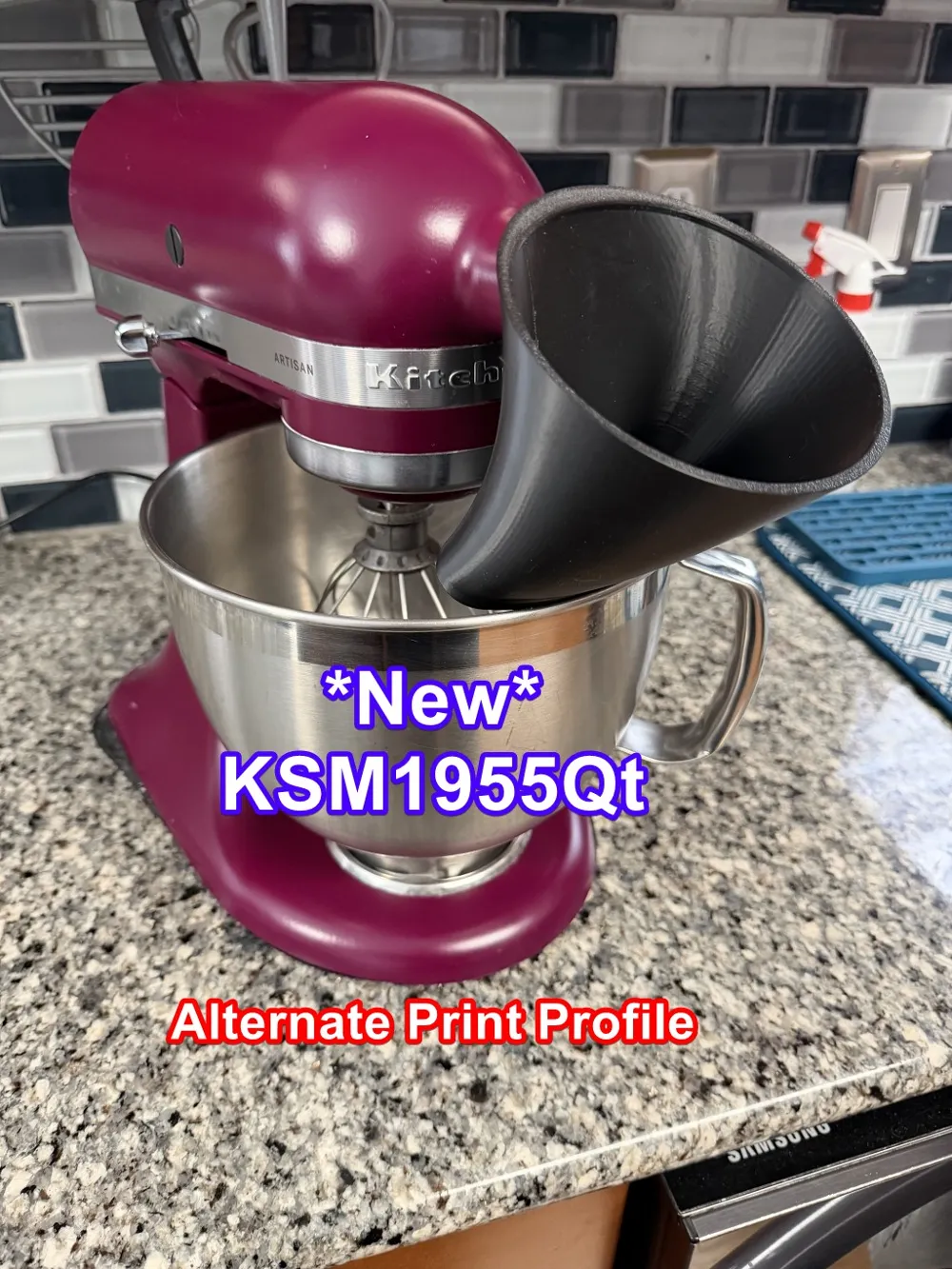

- Artisan KSM195 5 Qt (v2)
- Also fits: KSM150 5qt;
- A few were reporting issues with the original not fitting ‘color of the year’ mixers;
- Original reduced slightly for better clearances.

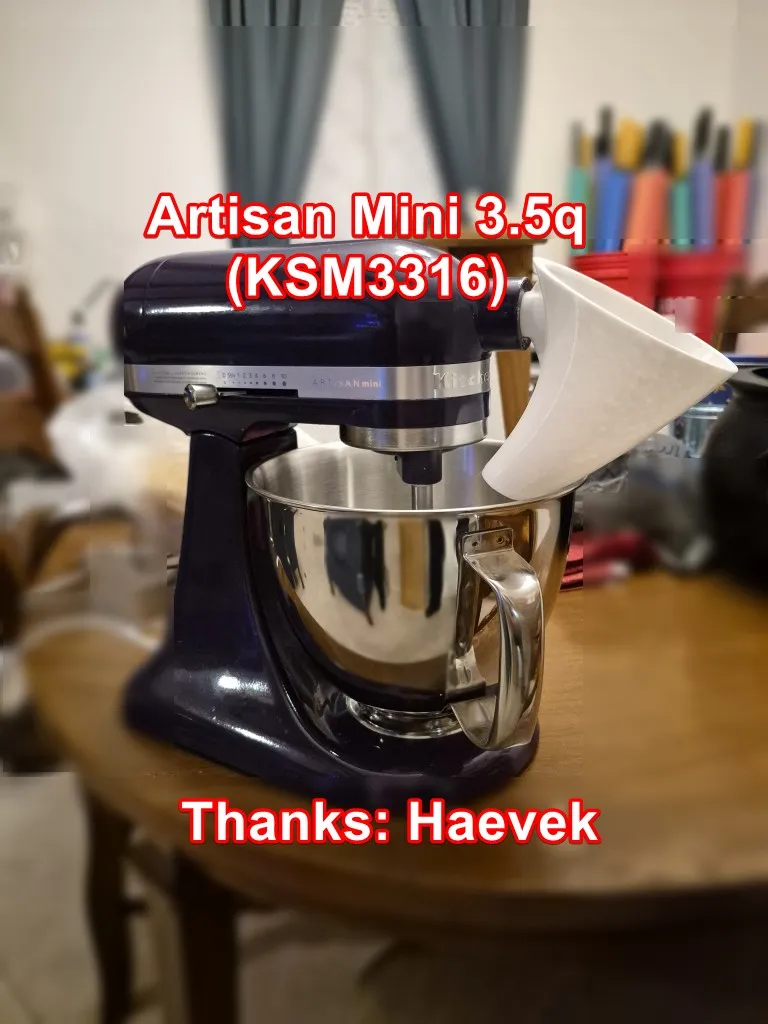

- Artisan Mini 3.5qt
- The KSM195 5qt (v2) reduced by 97.5%
- Thanks Haevek!
- KSM90 4.5Qt
- Fits KSM90

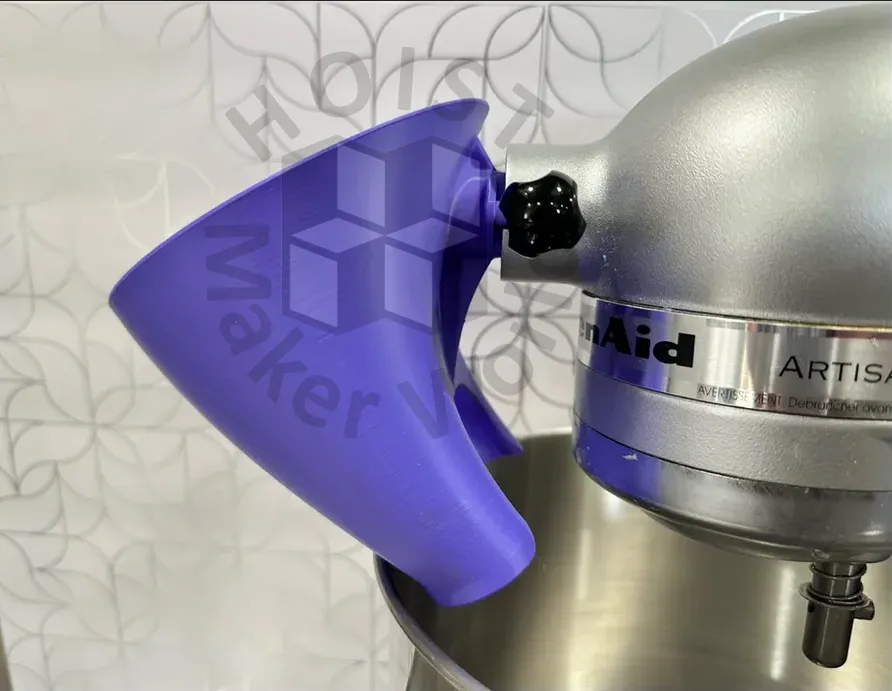

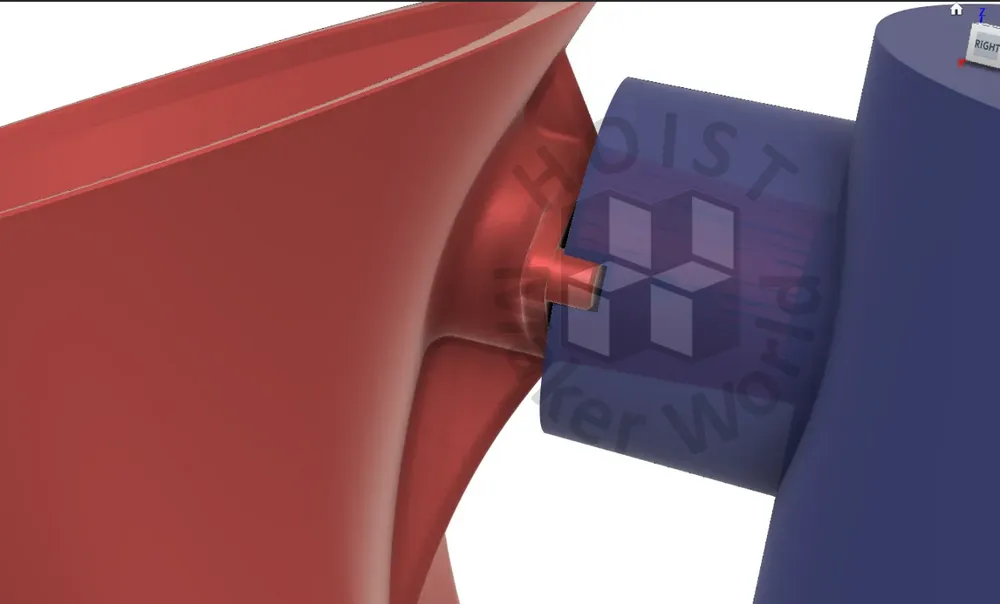

Chute attaches to accessory drive with anti-swivel pin and locked in place with the accessory screw (do not over tighten). Provides easy pouring of ingredients machine running or not. Mixer head can move up and down with Chute installed and head will lock in after the Chute is in place. 120mm mouth-opening at the top, slanted 30 degrees for ease of access and to enable support-free printing.
Please test your paddle/whisk clearances before cranking it up to 11.
If you manage to hurt yourself with this (including food safety) it's completely your fault.
A special shout-out to @CookieMonsta for proving the inspiration, measurements, print testing and photos for this model.
I am aware that there are scammers that have stolen this design from here and are selling prints of it on Amazon.com. Please respect the Standard Digital File License and don't support them.

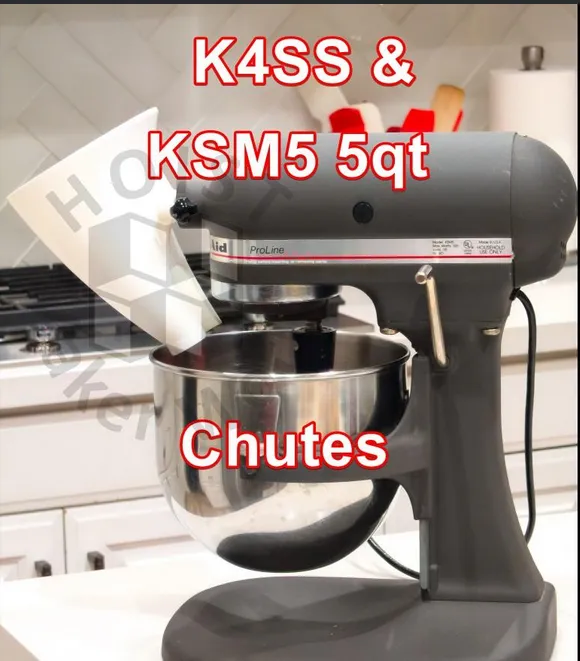

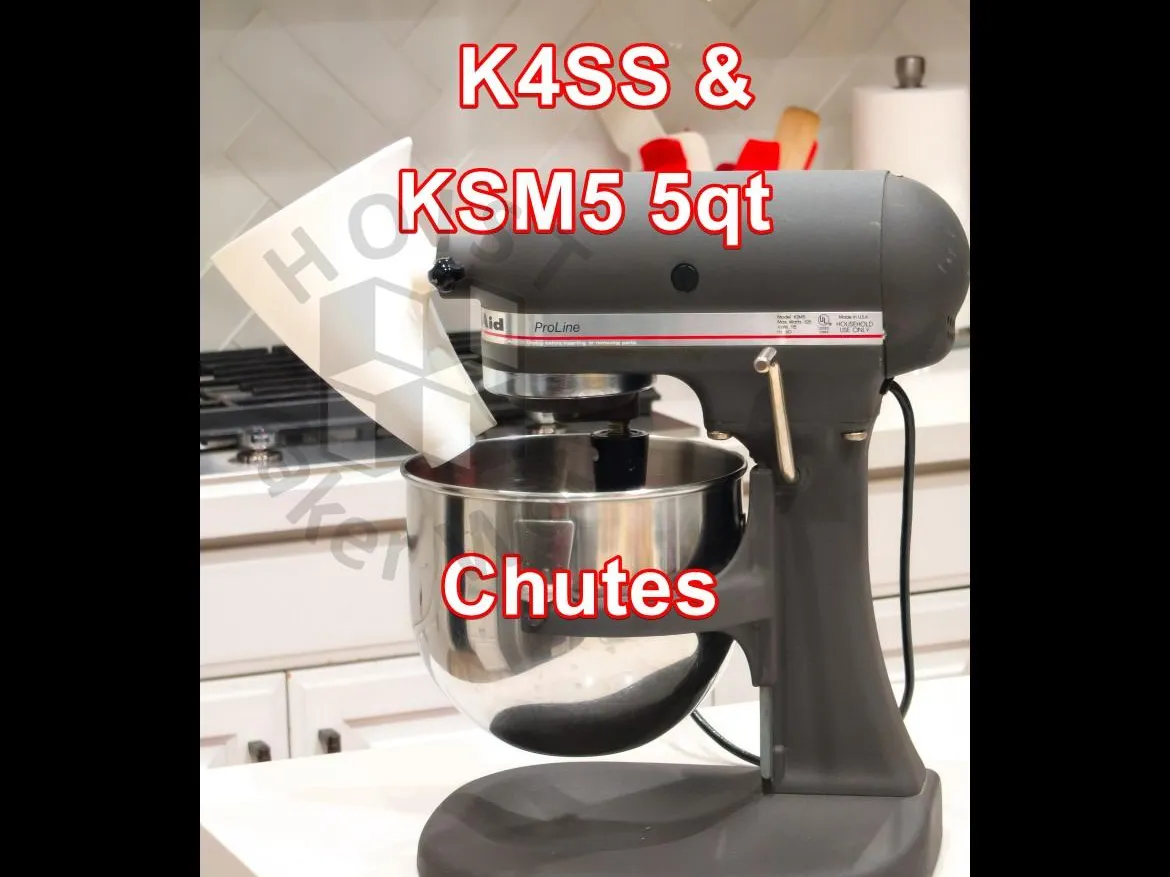

If you are looking for a Chute/Shield For a K4SS or KSM5: Please visit:
https://makerworld.com/en/models/2066191-kitchenaid-k4ss-ksm5-5qt-chutes#profileId-2262391

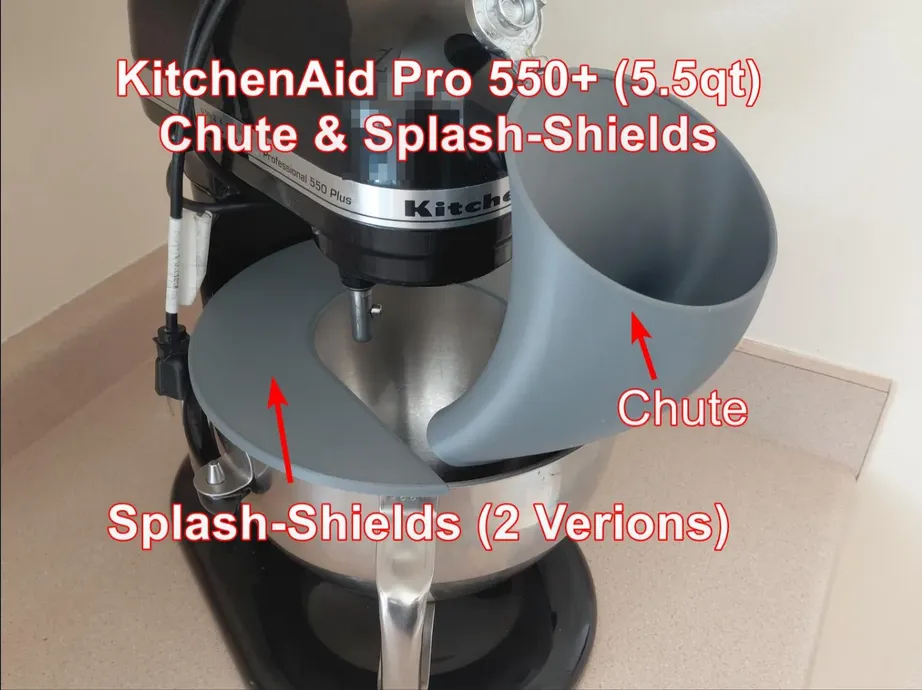

If you are looking for a Chute to fit the Kitchen Aid Pro 550+ model (5.5 Qt) Please visit:
https://makerworld.com/en/models/1513705-kitchen-aid-chute-and-splash-shield#profileId-1585351

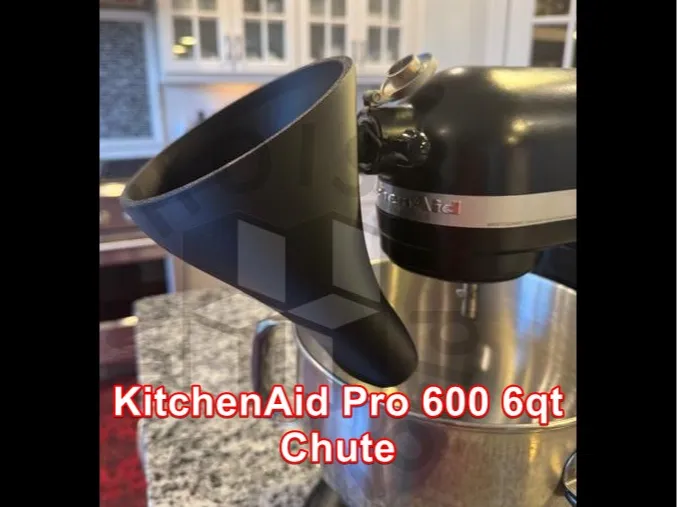

The Kitchen Aid Pro 600 6qt Bowl Lift Chute:
https://makerworld.com/en/models/1986837-kitchen-aid-pro-600-chute#profileId-2137921

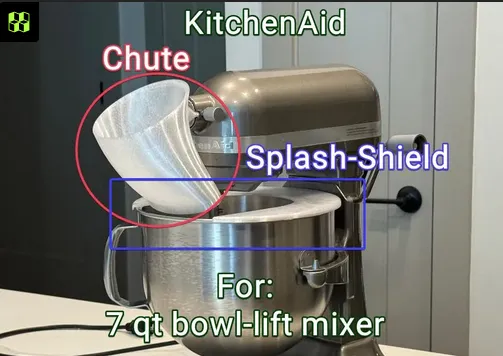

The 7 qt, Bowl-Lift Versions of the Chute and Splash-Shield are available here:
The KitchenAid K4SS & KSM5 5Qt Chutes are available here:
https://makerworld.com/en/models/2066191-kitchenaid-k4ss-ksm5-5qt-chutes#profileId-2231309
