Xiaomi Mi Stick 60mm Fan Cooler - Stop overheating

My Xiaomi Mi Stick was getting absolutely impossible to use. Constant freezes, restart, overall just terrible performance. I tried everything from factory reset, buying another one, deleting some apps but nothing fixed. Some days would work wonderfully, others would be a total PITA. Until I noticed… It was overheating!

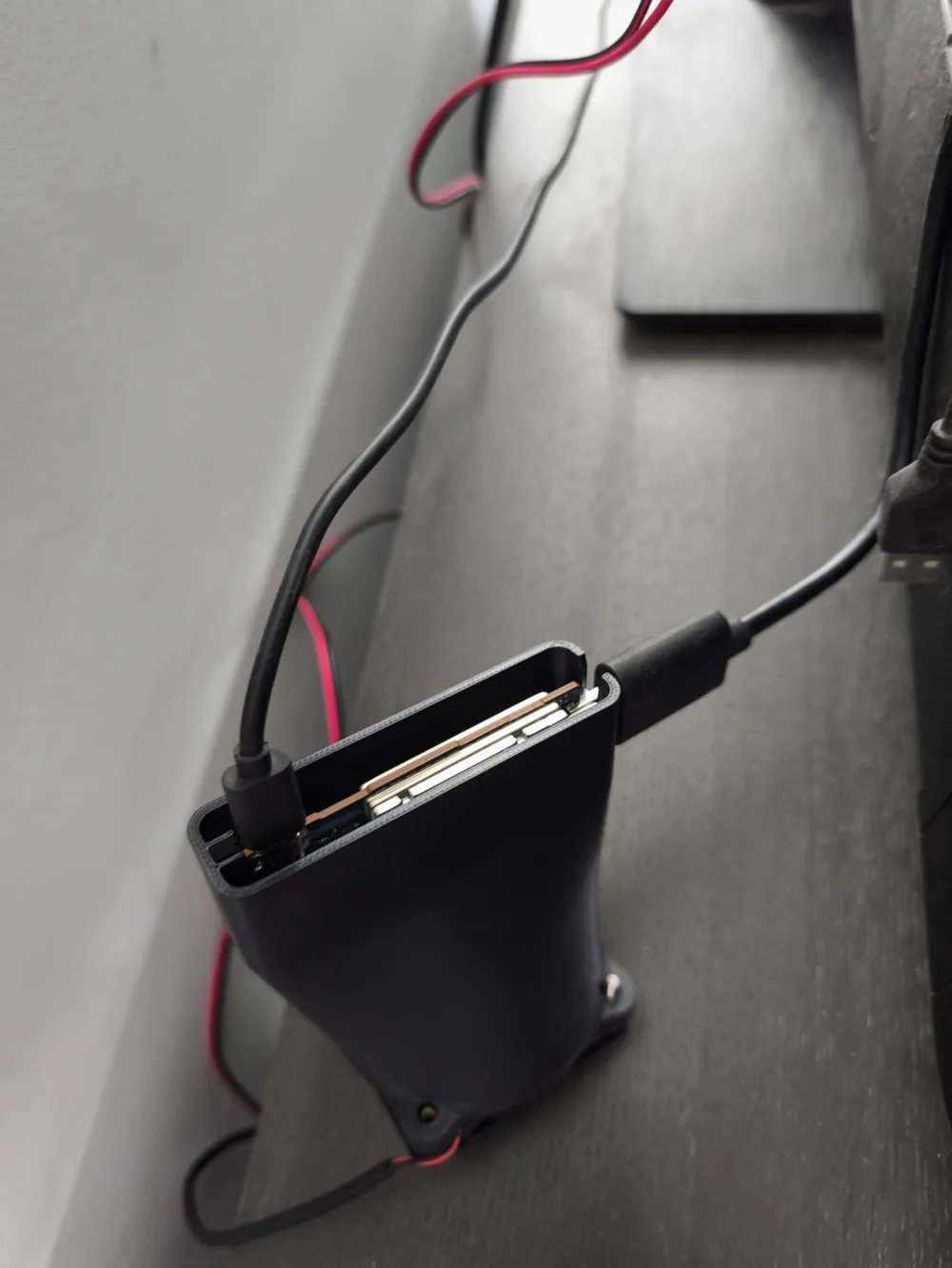

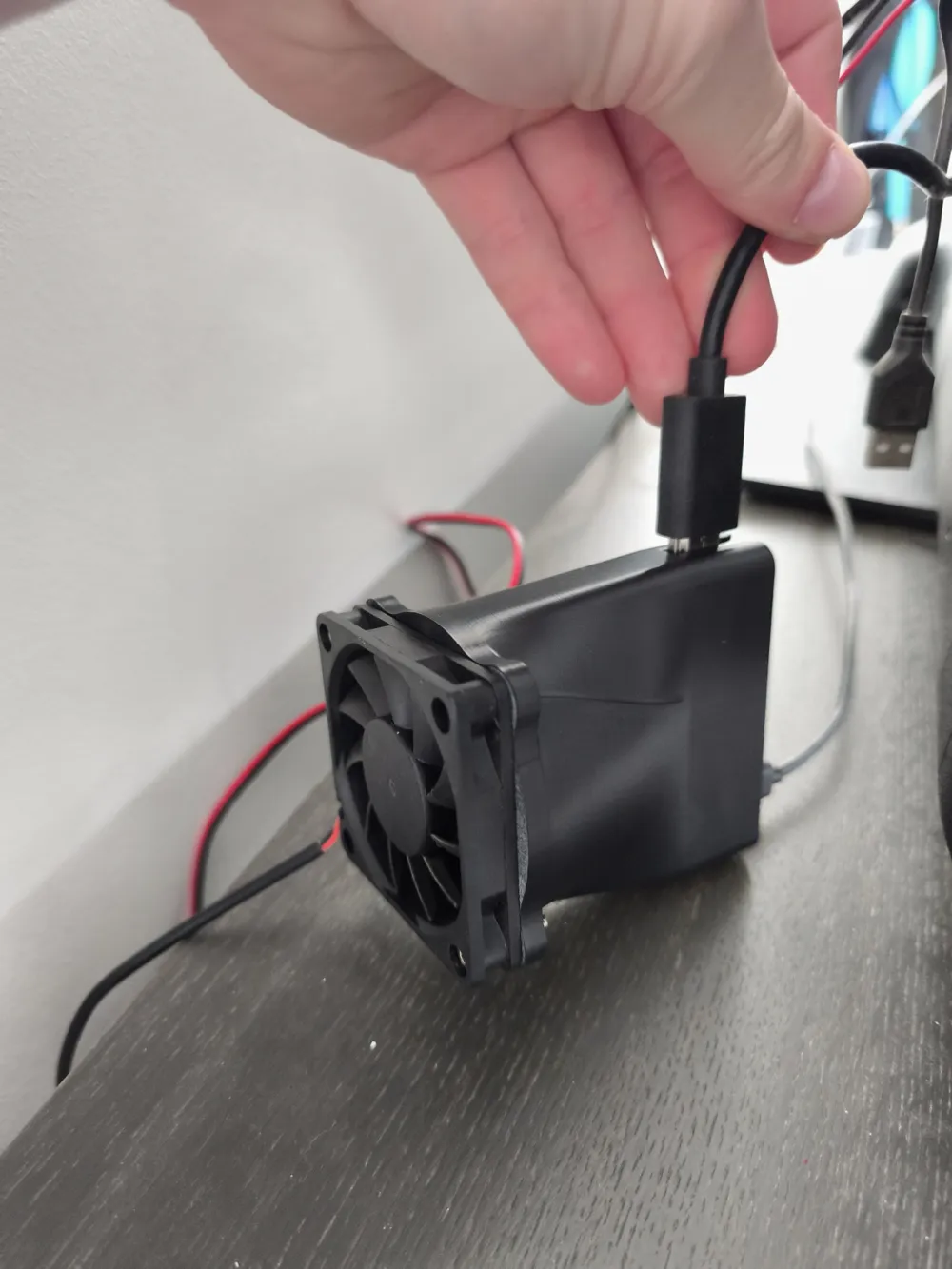

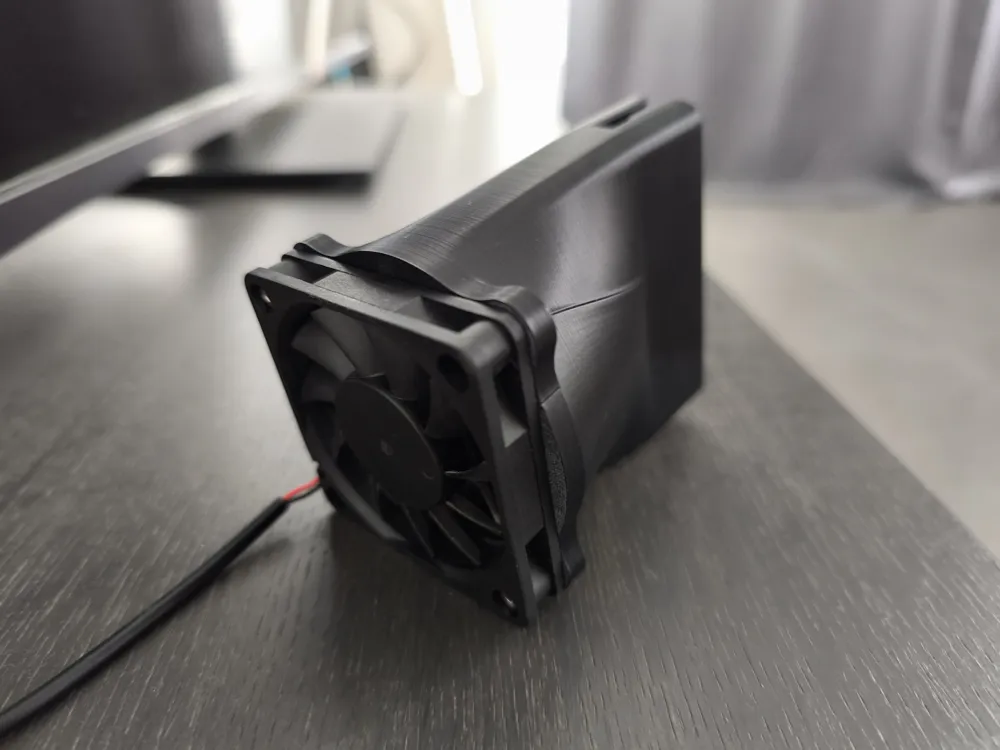

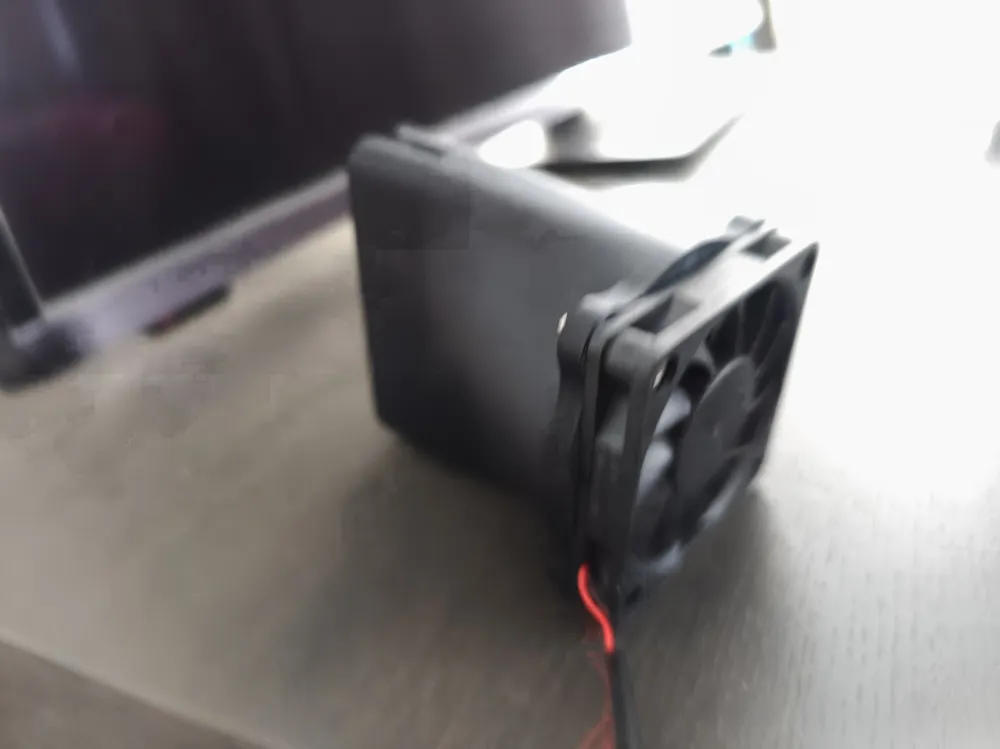

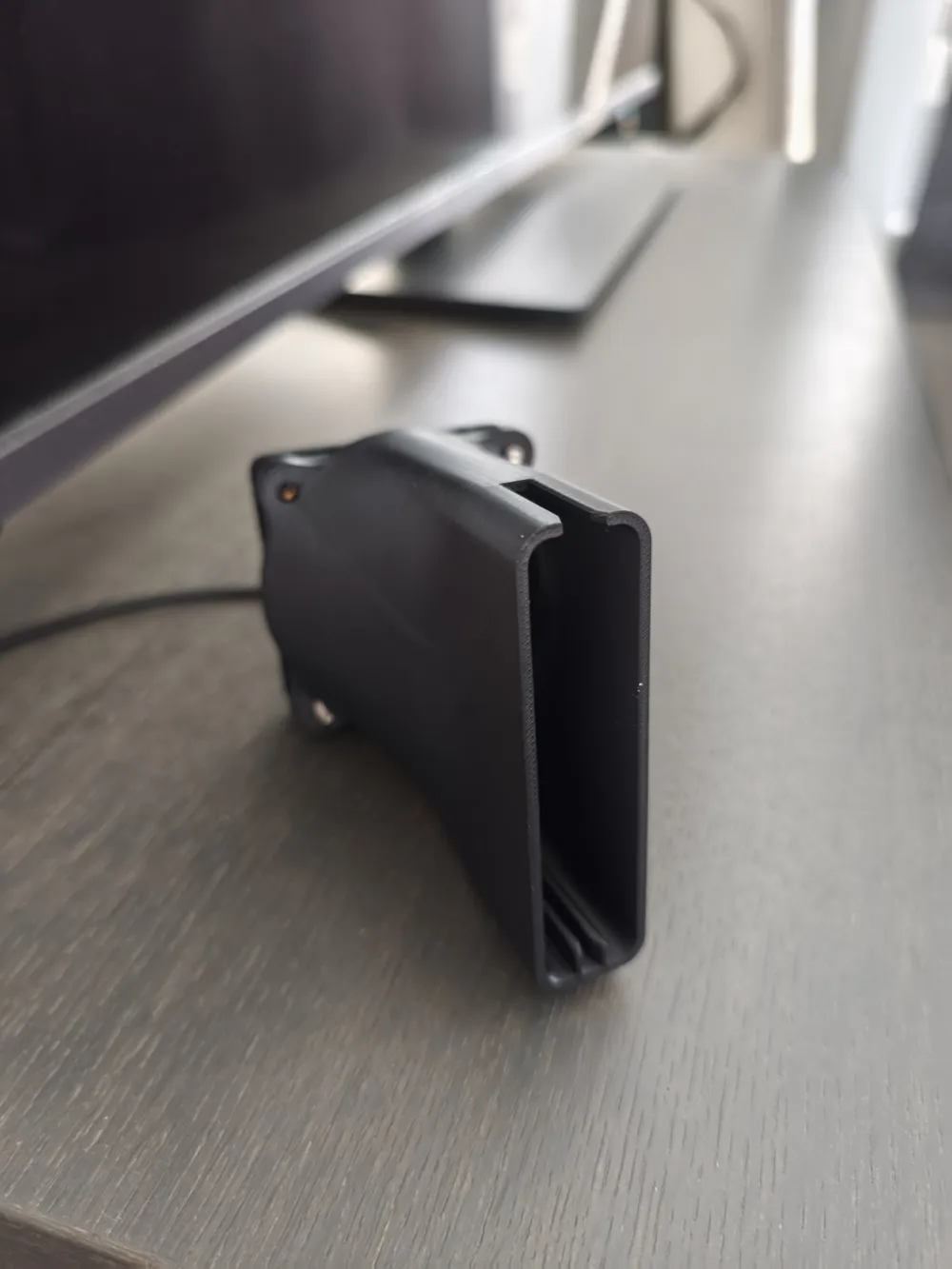

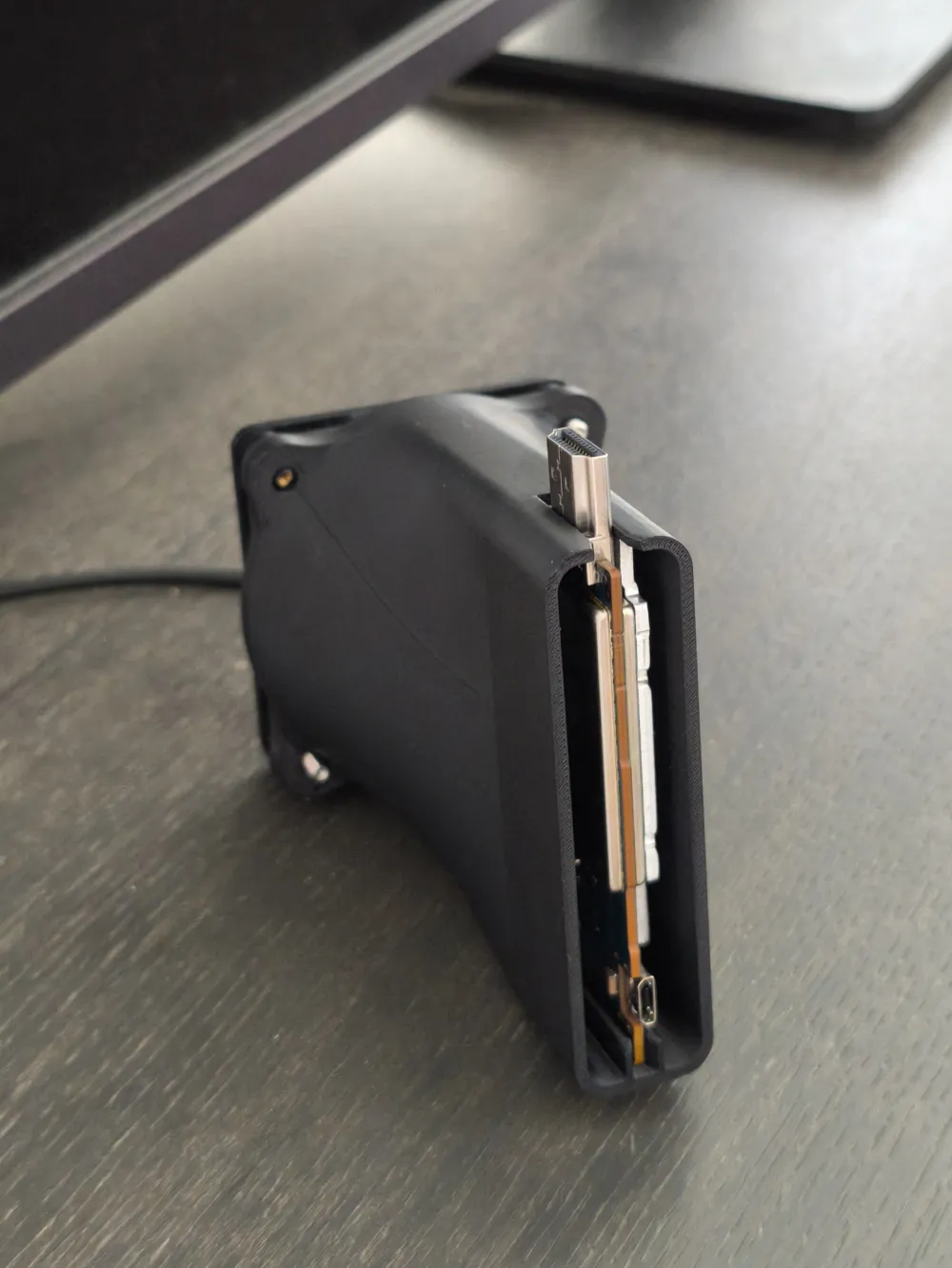

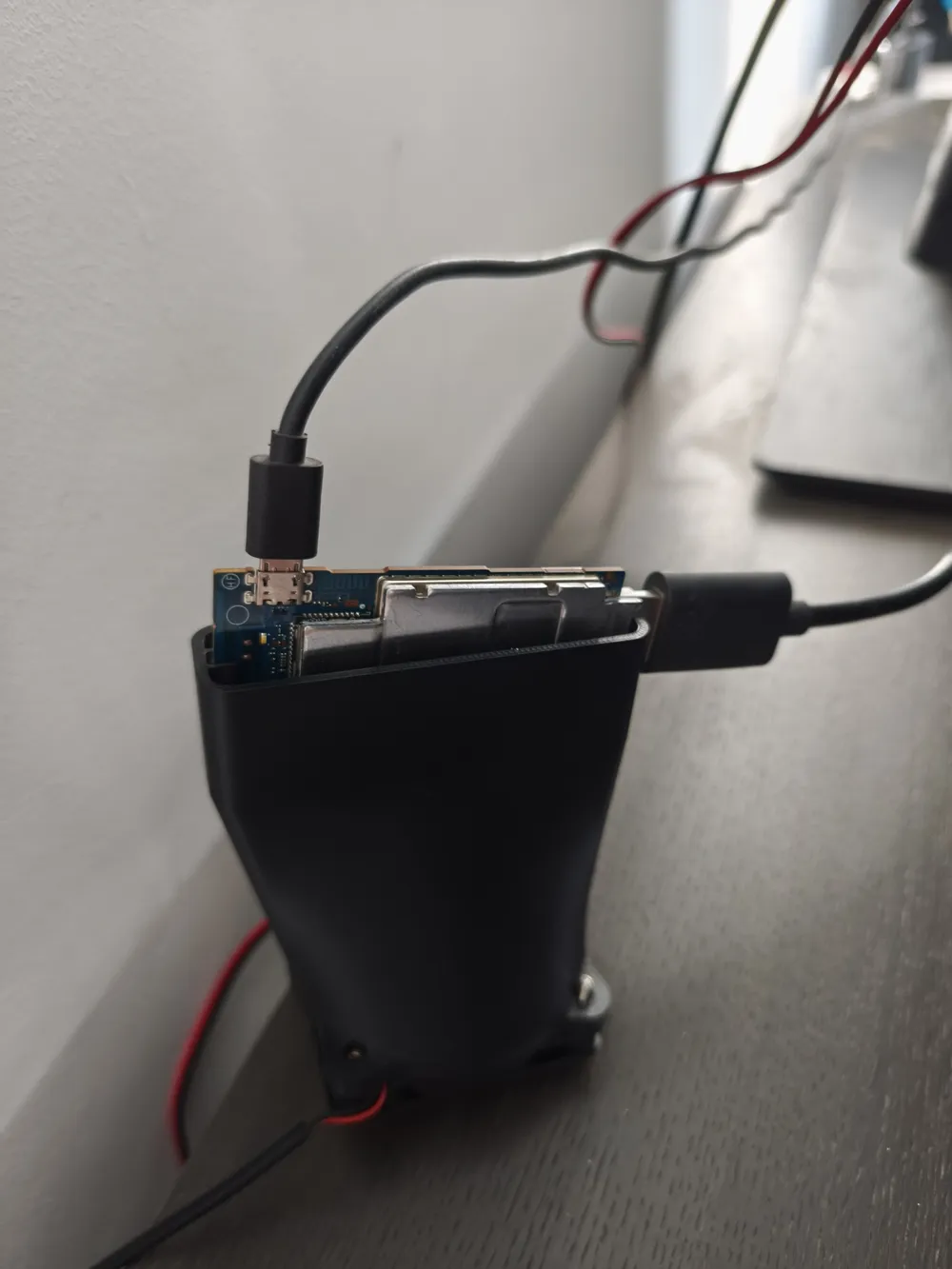

I decided to remove the plastic case and create this simple shape that makes use of a 5V 6010 fan to cool it down. With this, the performance is improved 1000% and no more resets out of the blue.

PRINT USING HIGH TEMPERATURE MATERIAL: ABS/ASA or more. PETG can also work (at your risk)

No support is needed, just print with the fan side on the buildplate.

I power the fan with a USB connected to the TV. The fan is attached using M3 heated inserts and M3x15 Bolts:

BOM:

6010 Fan: https://s.click.aliexpress.com/e/_opLyVGE

Fan to USB cable (You can connect yourself by soldering to any USB cable you have, or use something like this for plug n play connection): https://s.click.aliexpress.com/e/_oDbfDQe

M3 Heated Insert: https://s.click.aliexpress.com/e/_oltTqhu

M3x15 Screws: https://s.click.aliexpress.com/e/_on7SgMO
