Woodworking push stick, woodworking push rod, 4-in-1 push stick, table saw/edgebander push stick/push rod
Print Profile(1)
Description

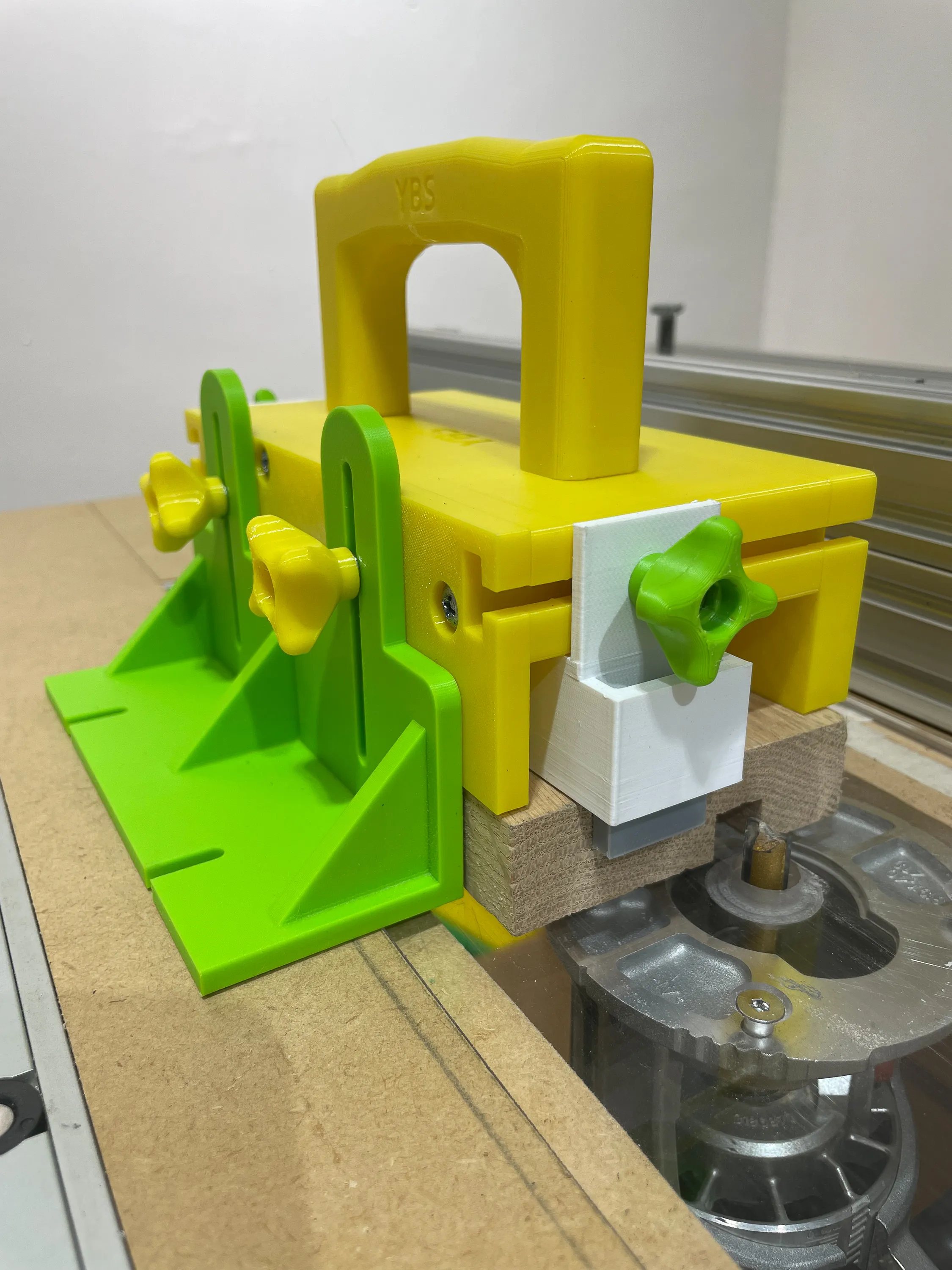

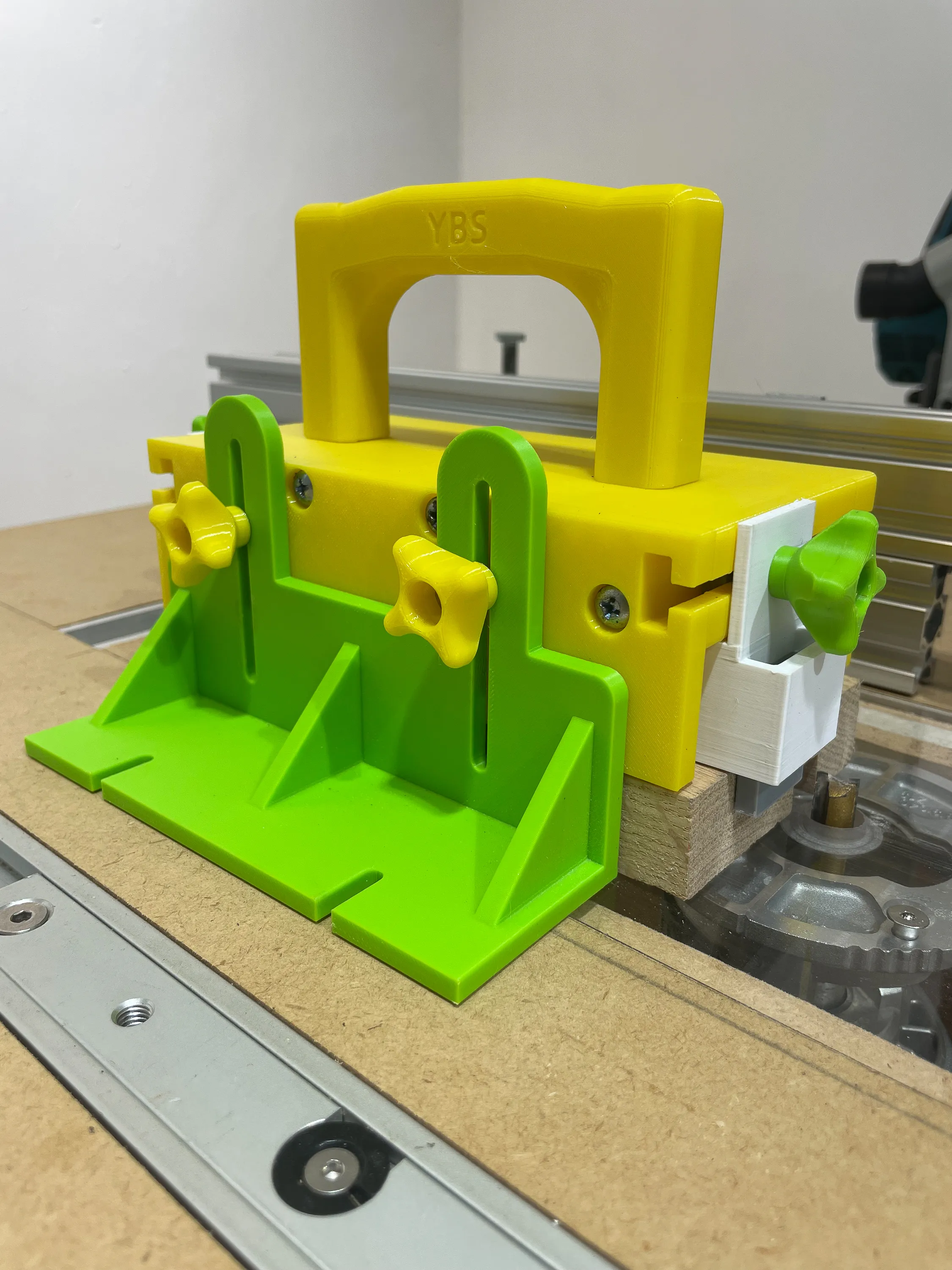

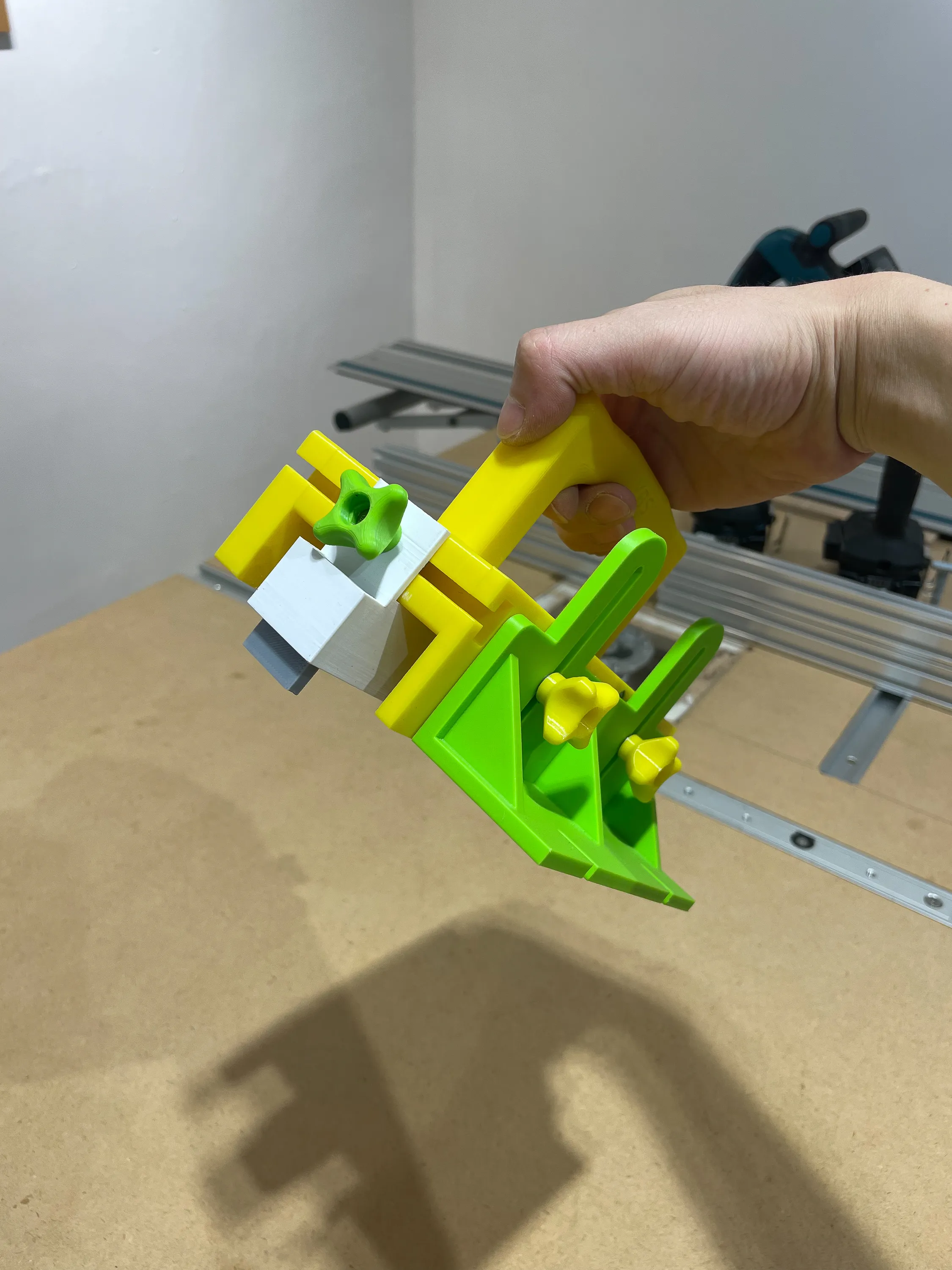

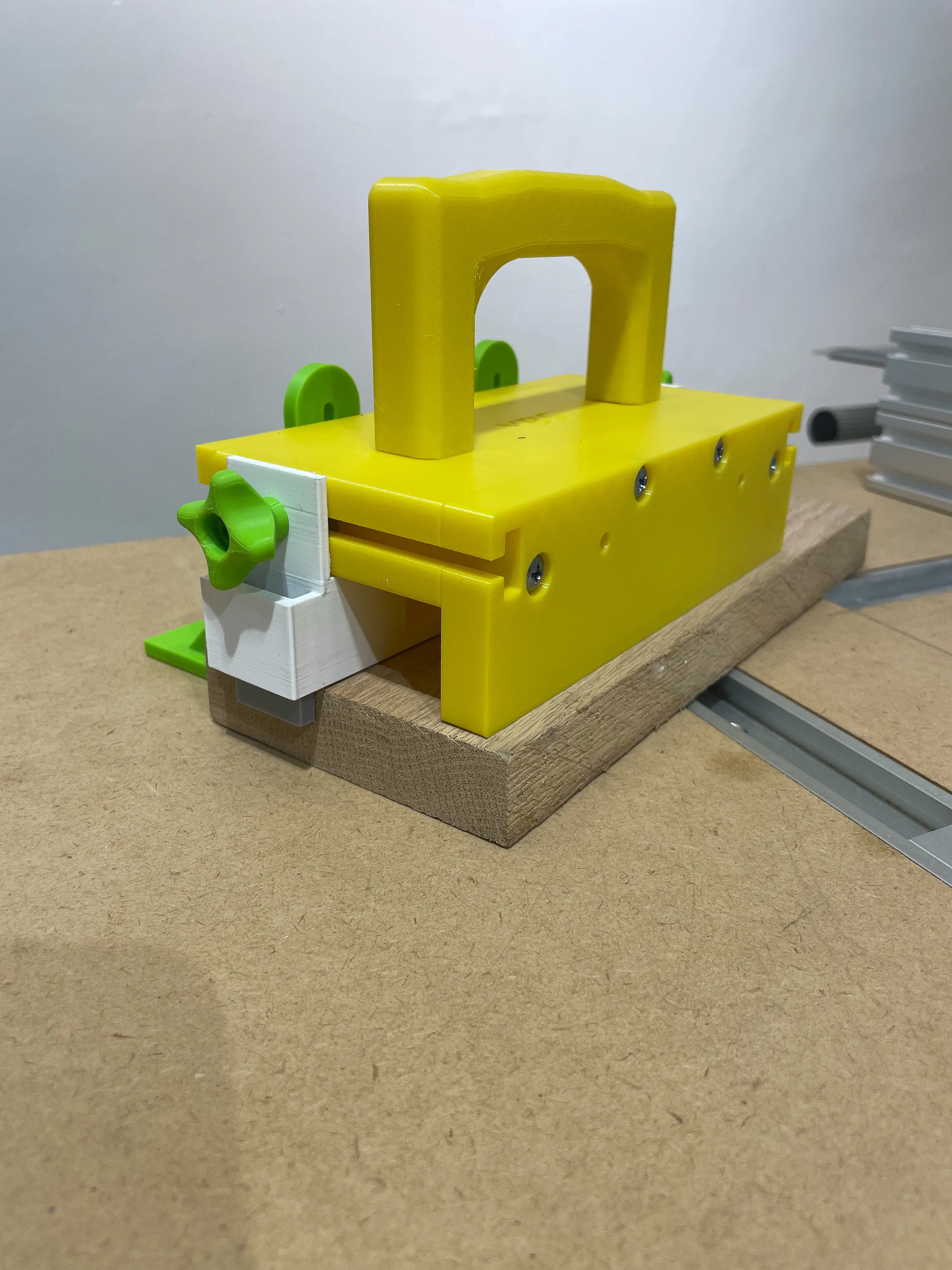

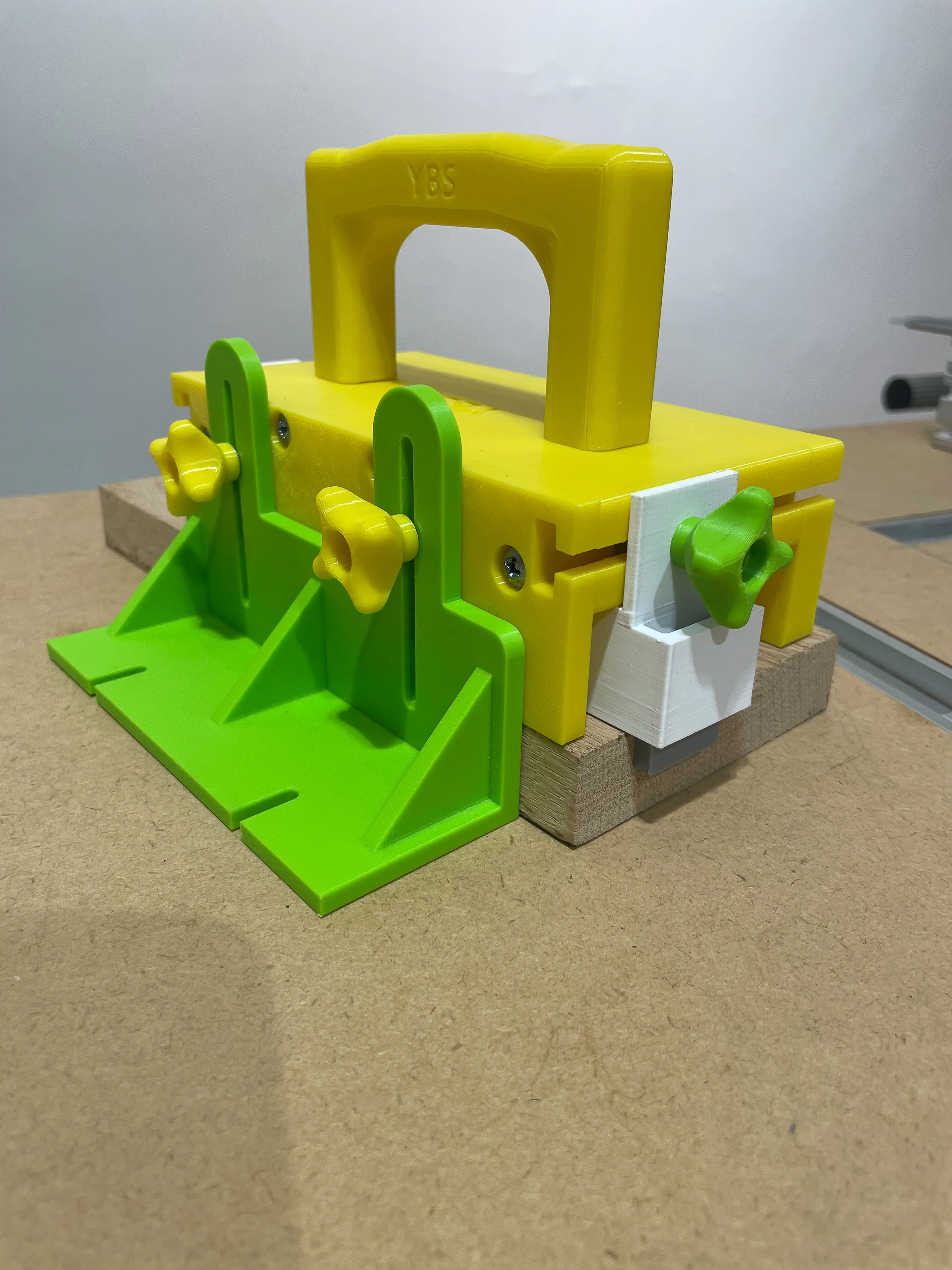

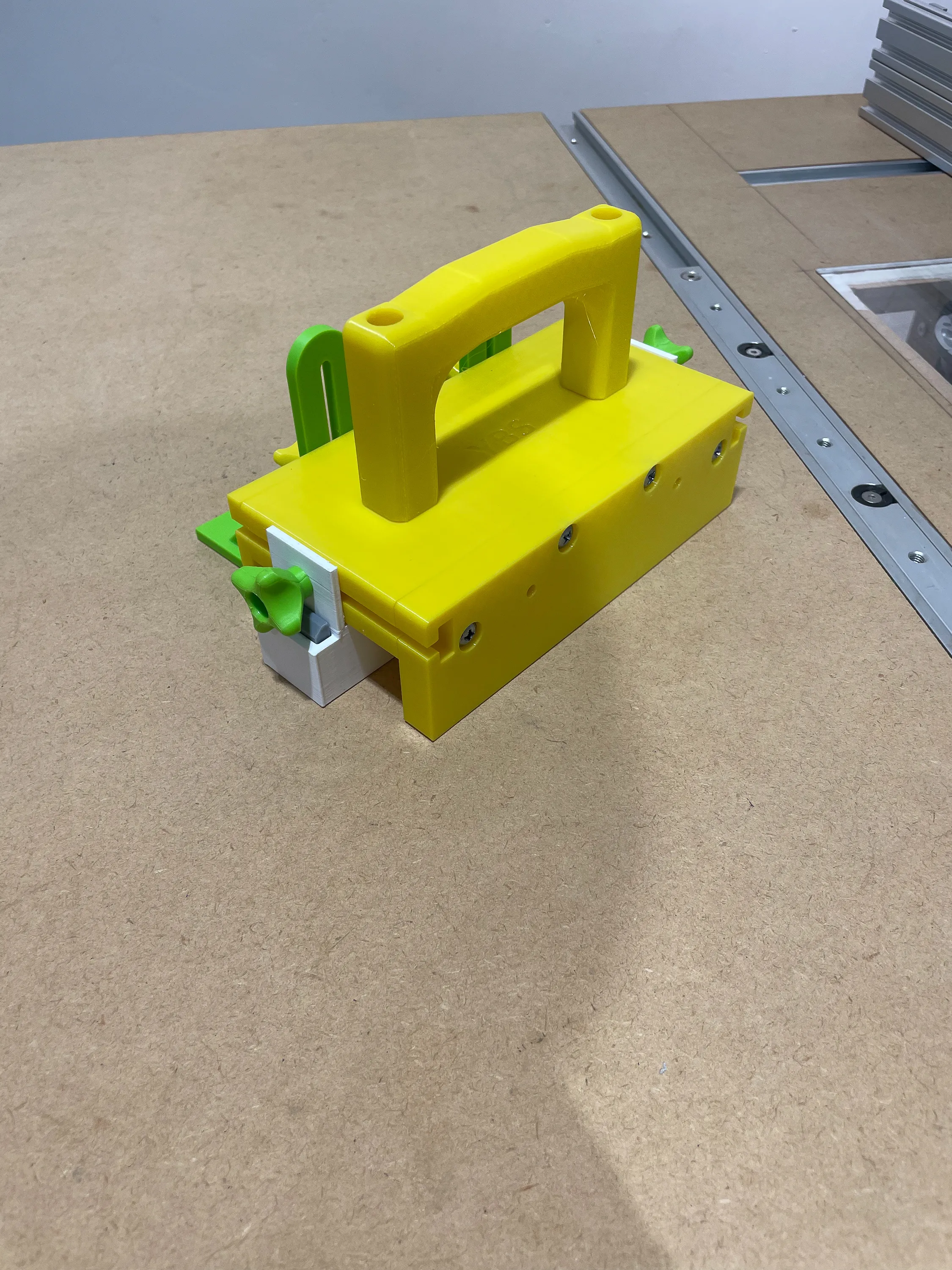

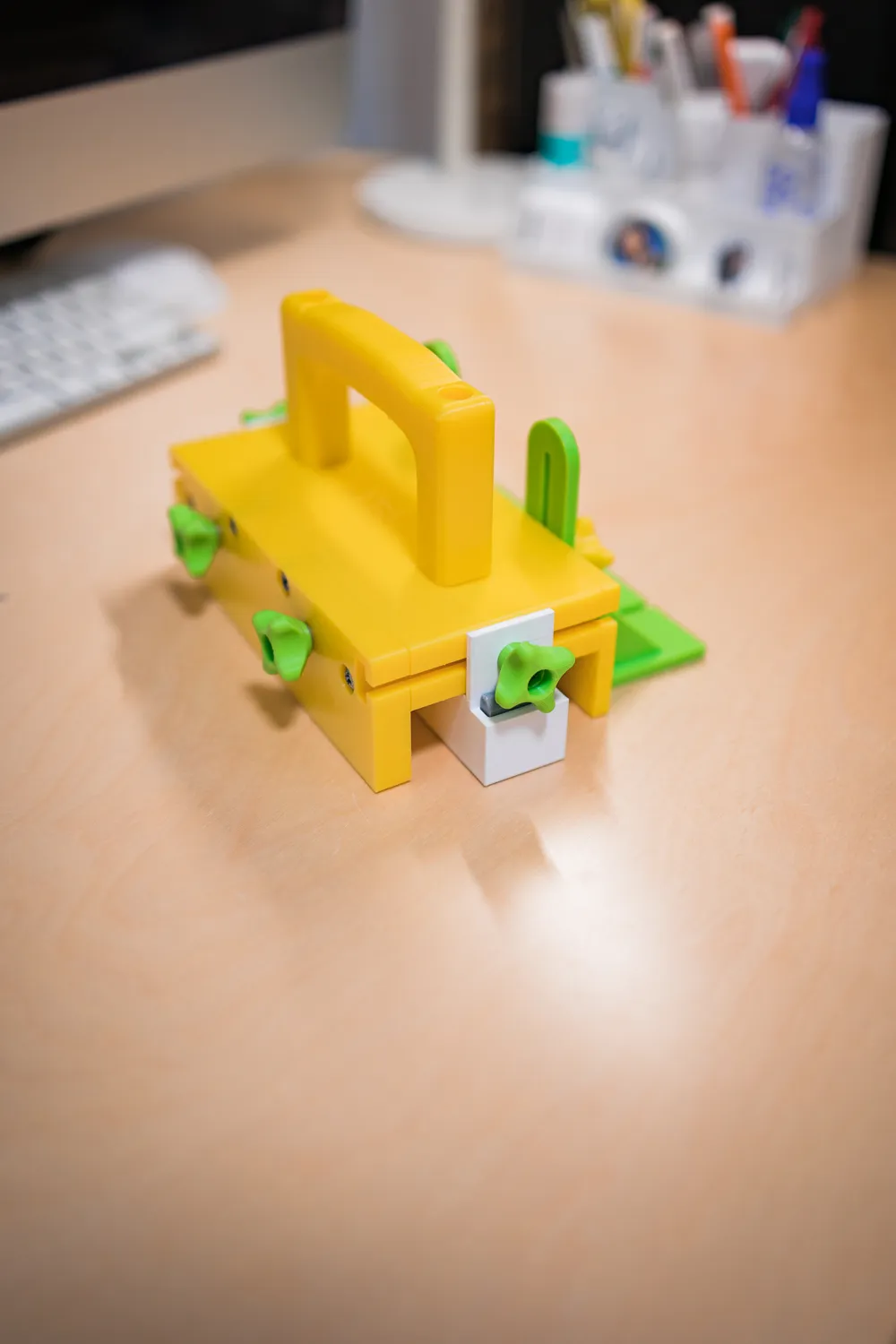

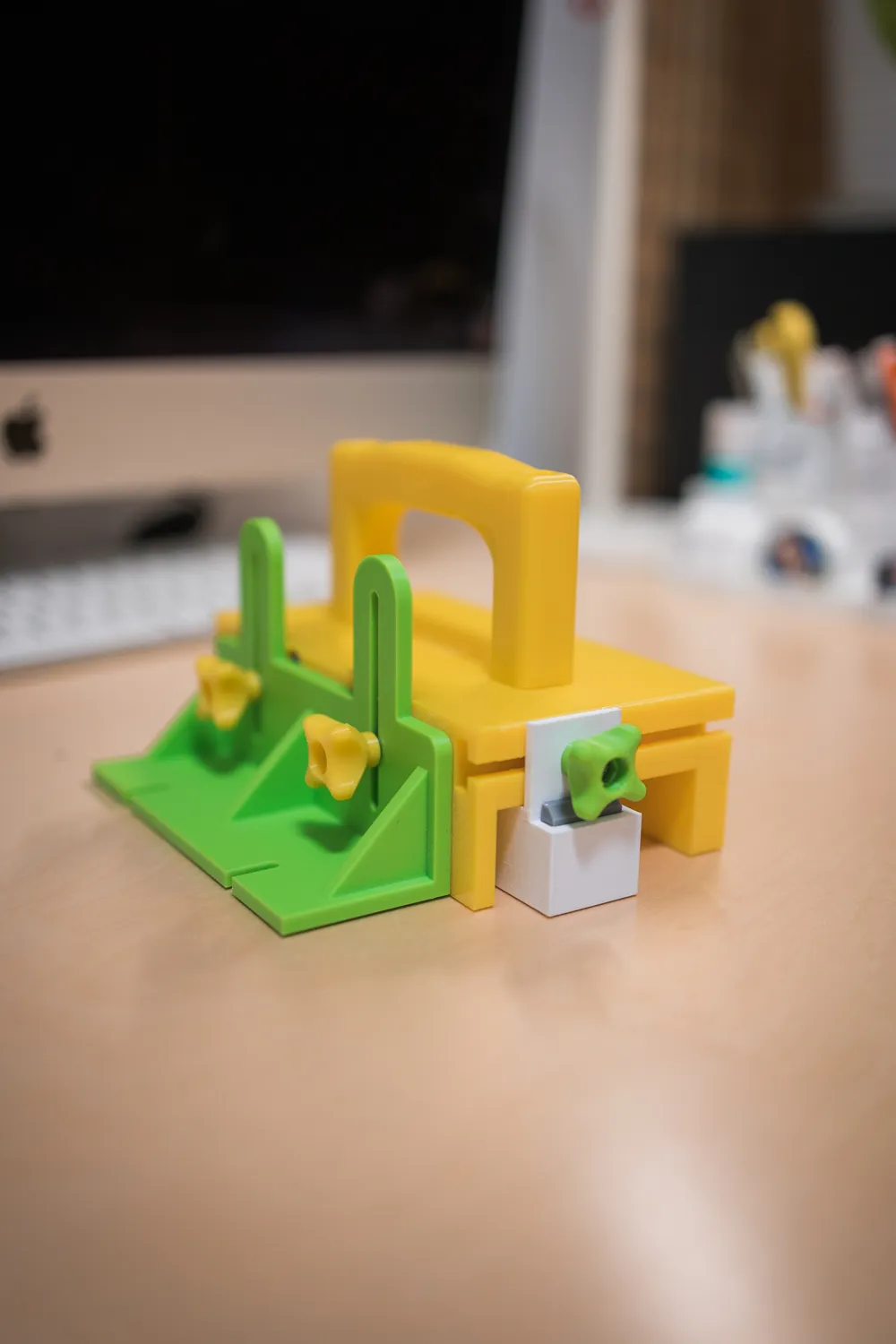

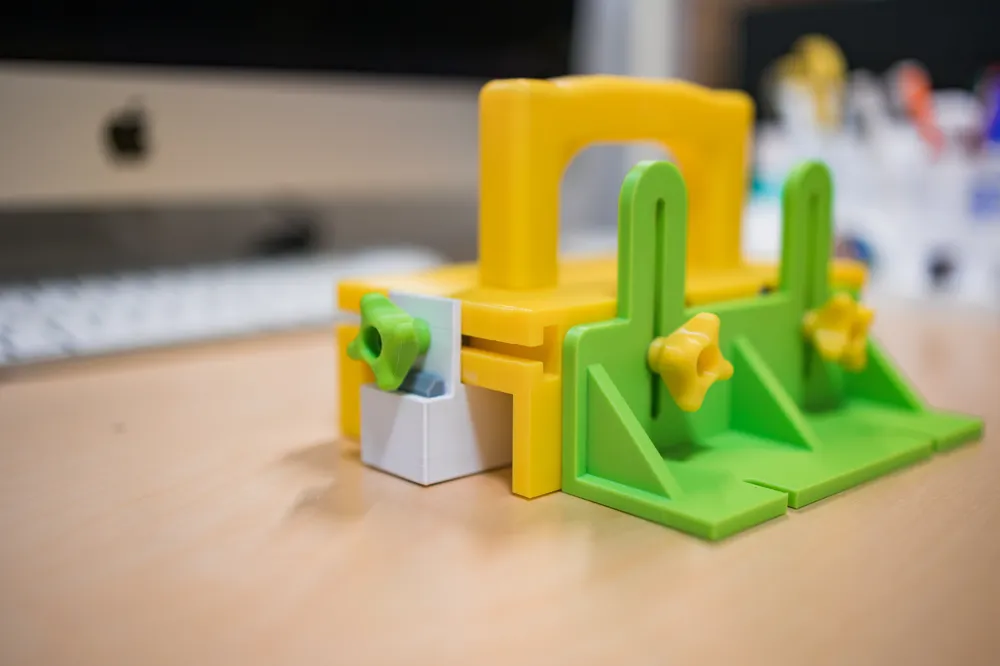

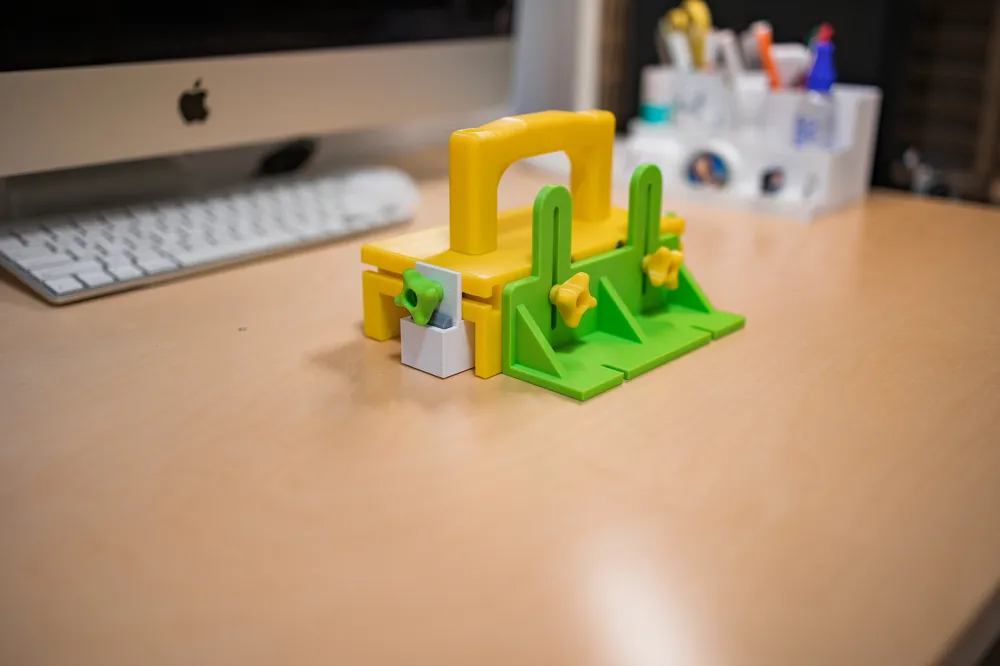

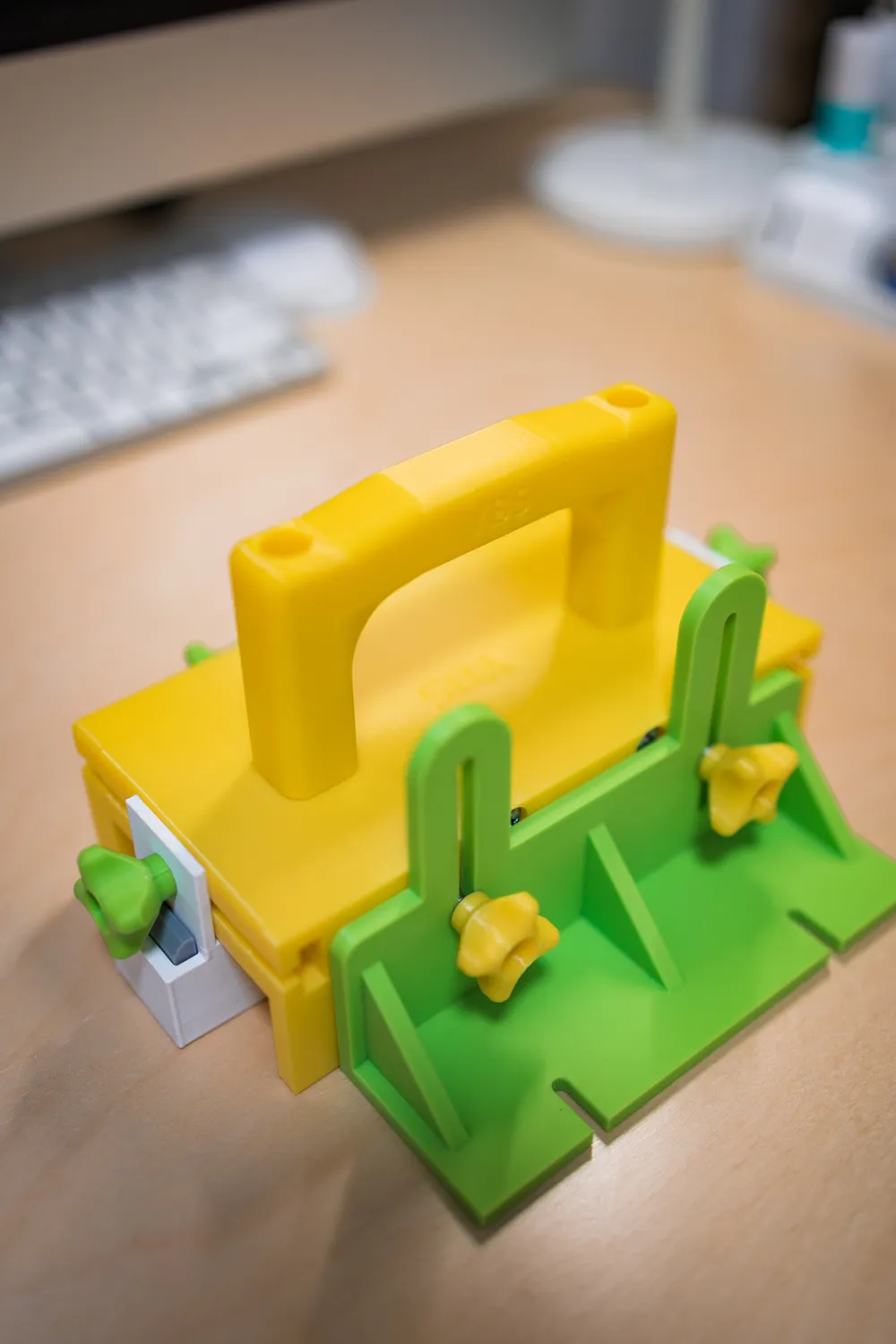

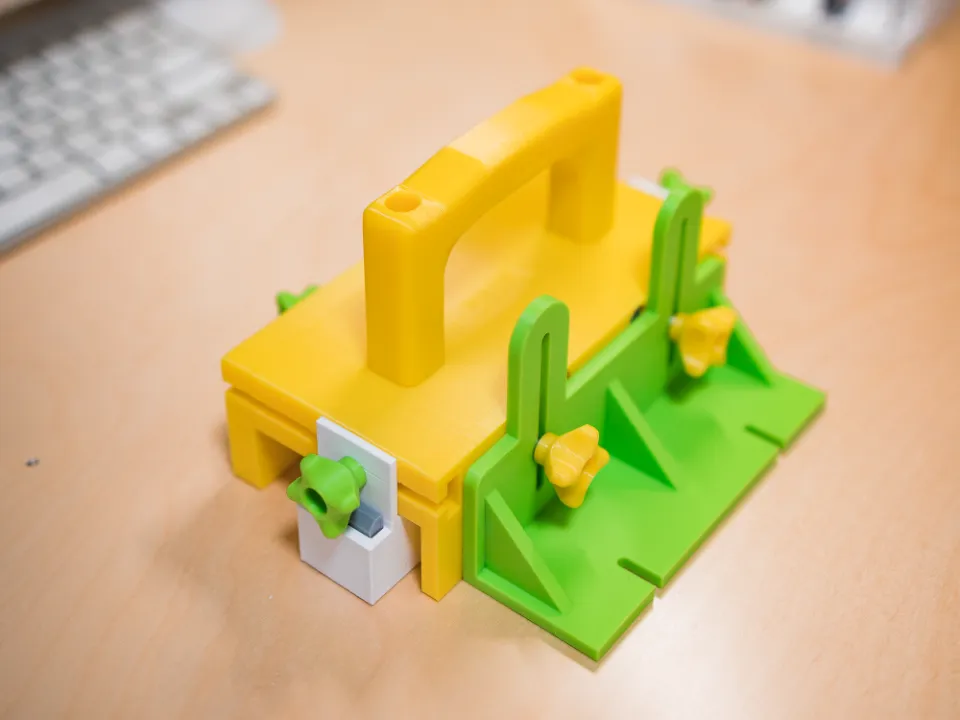

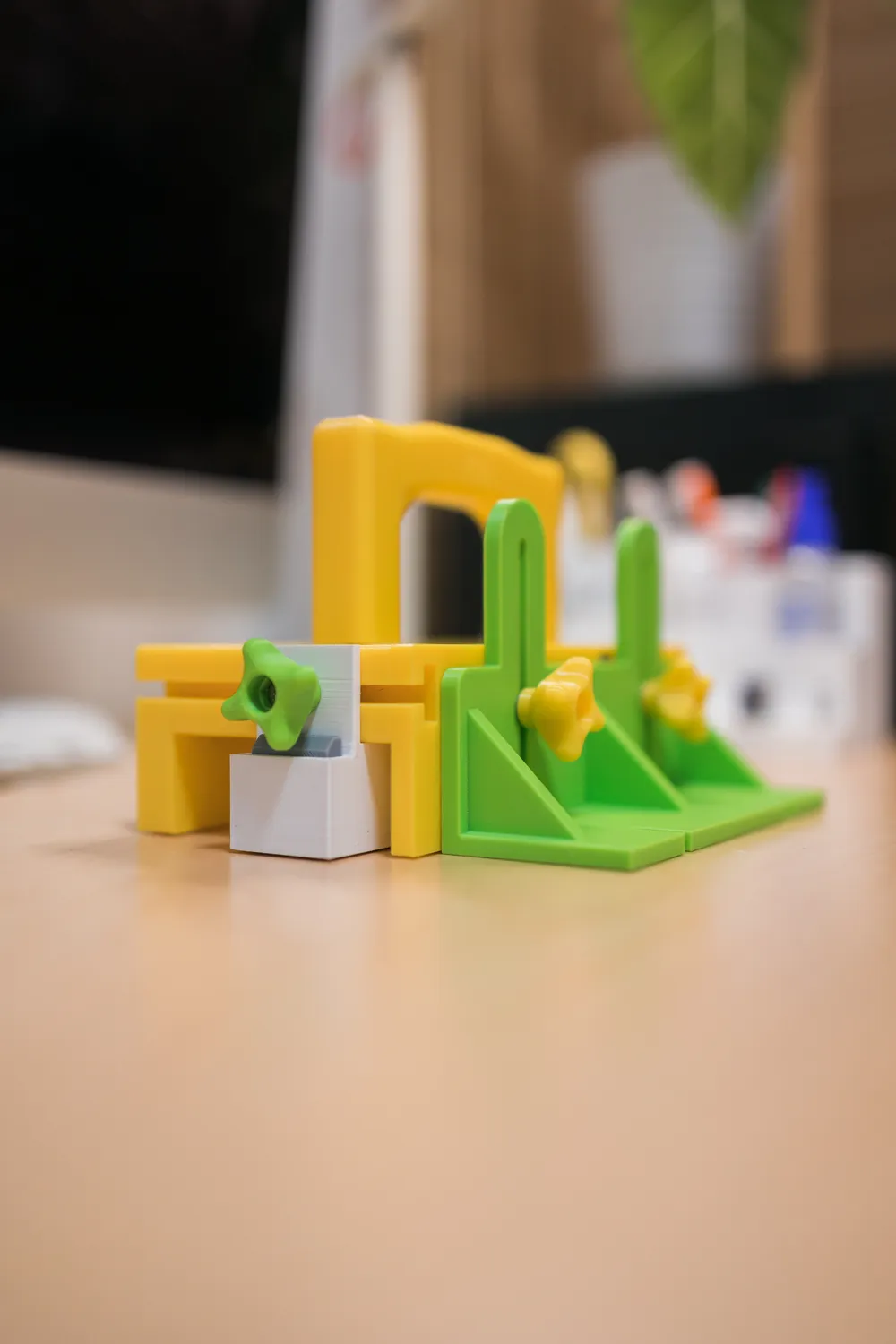

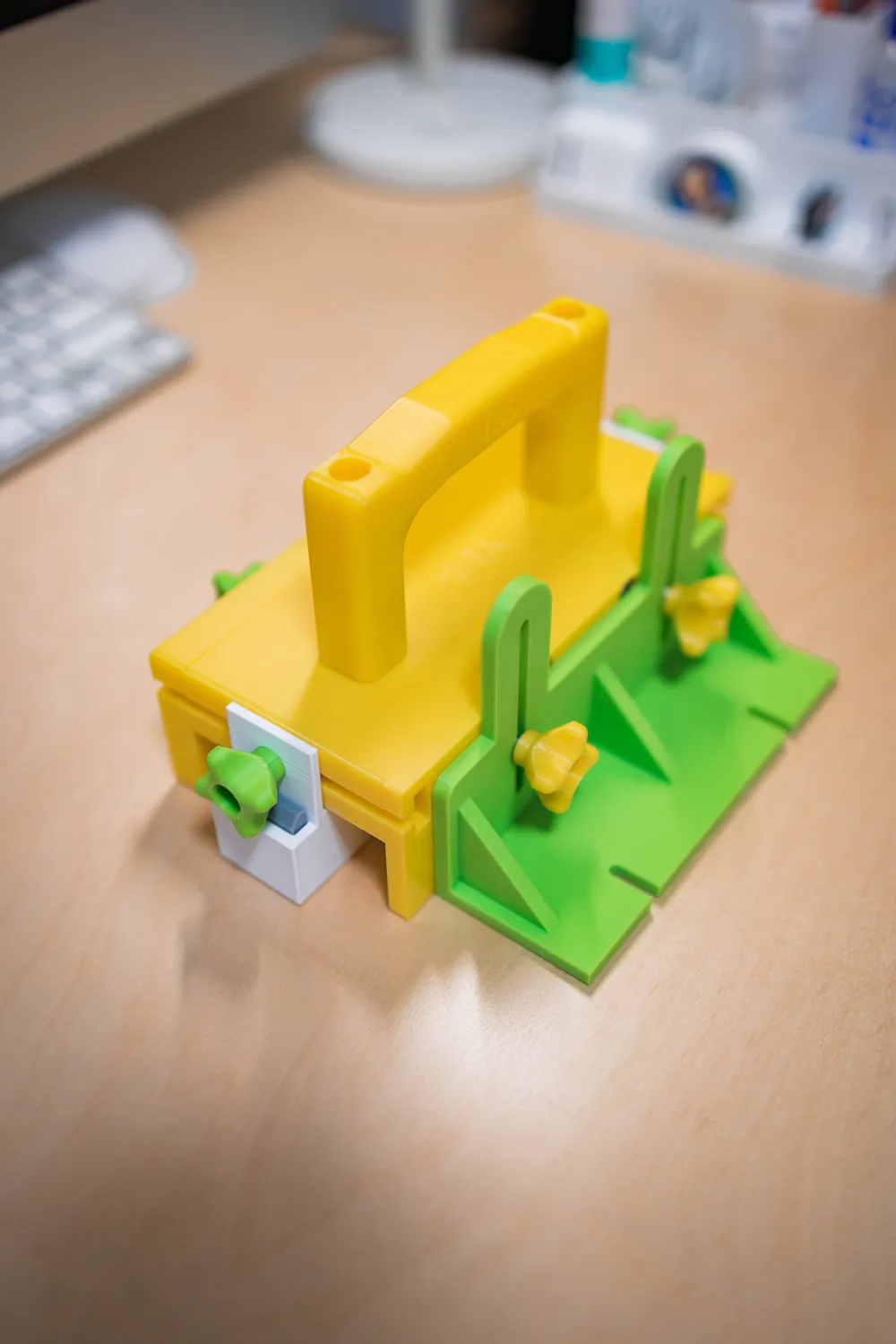

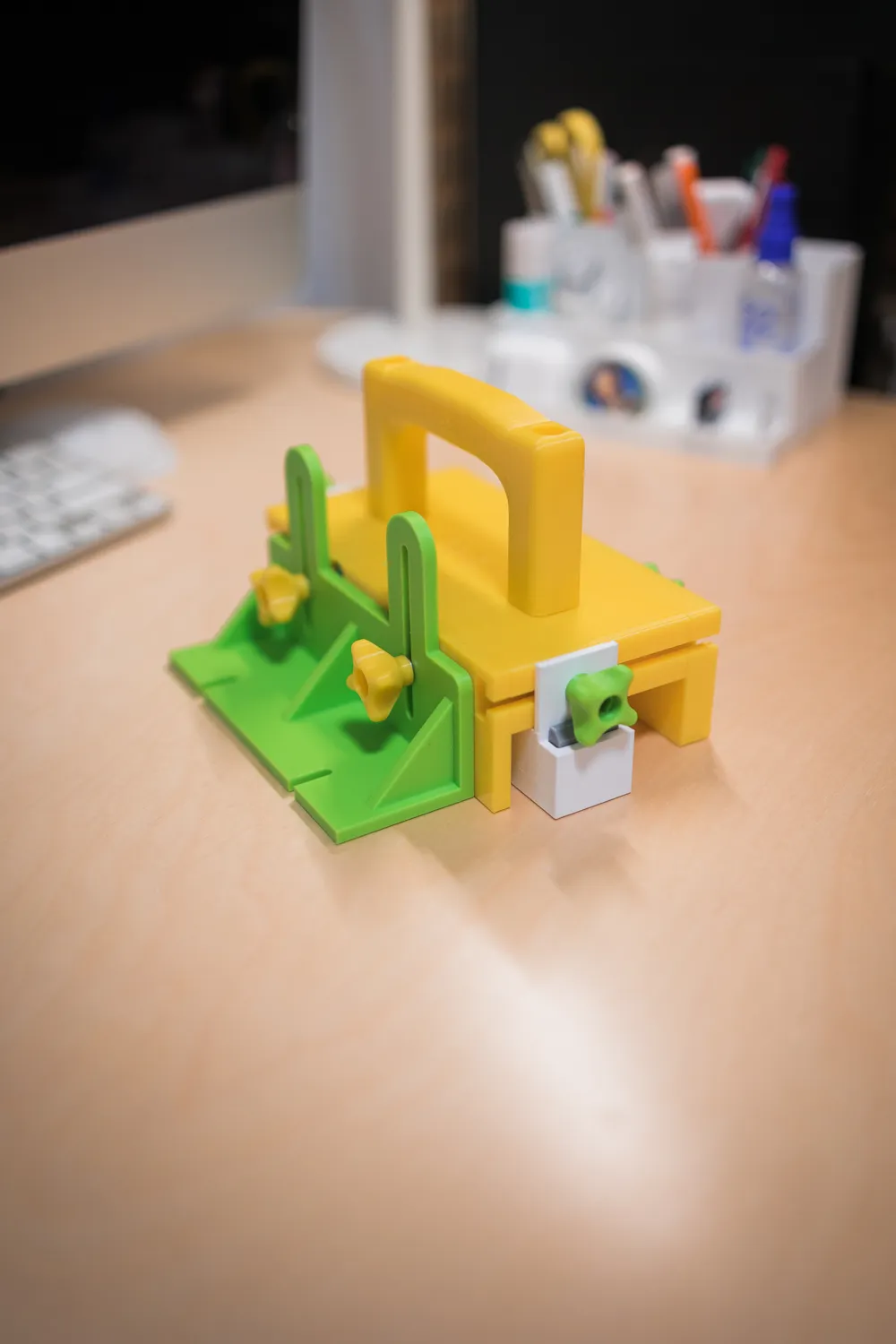

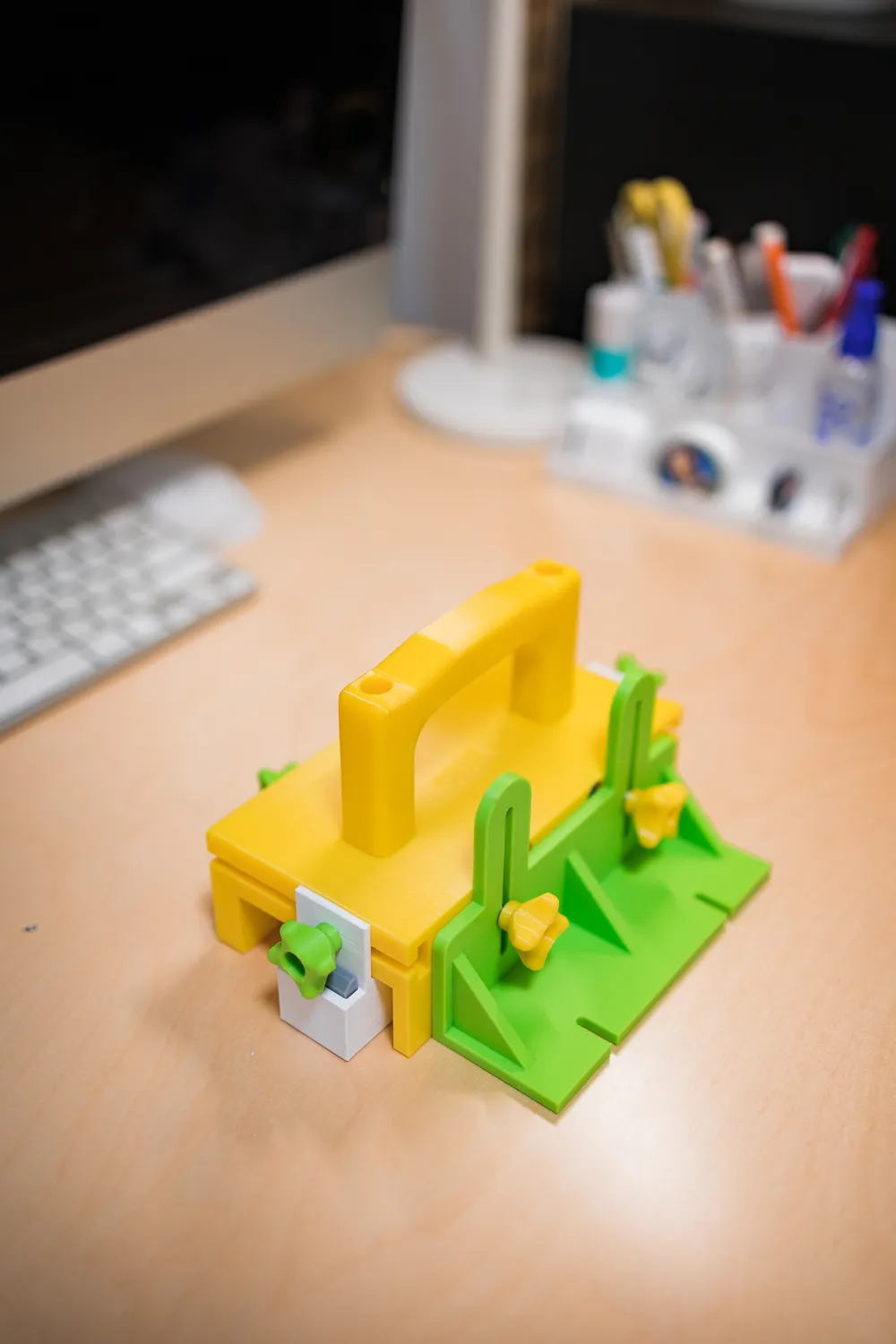

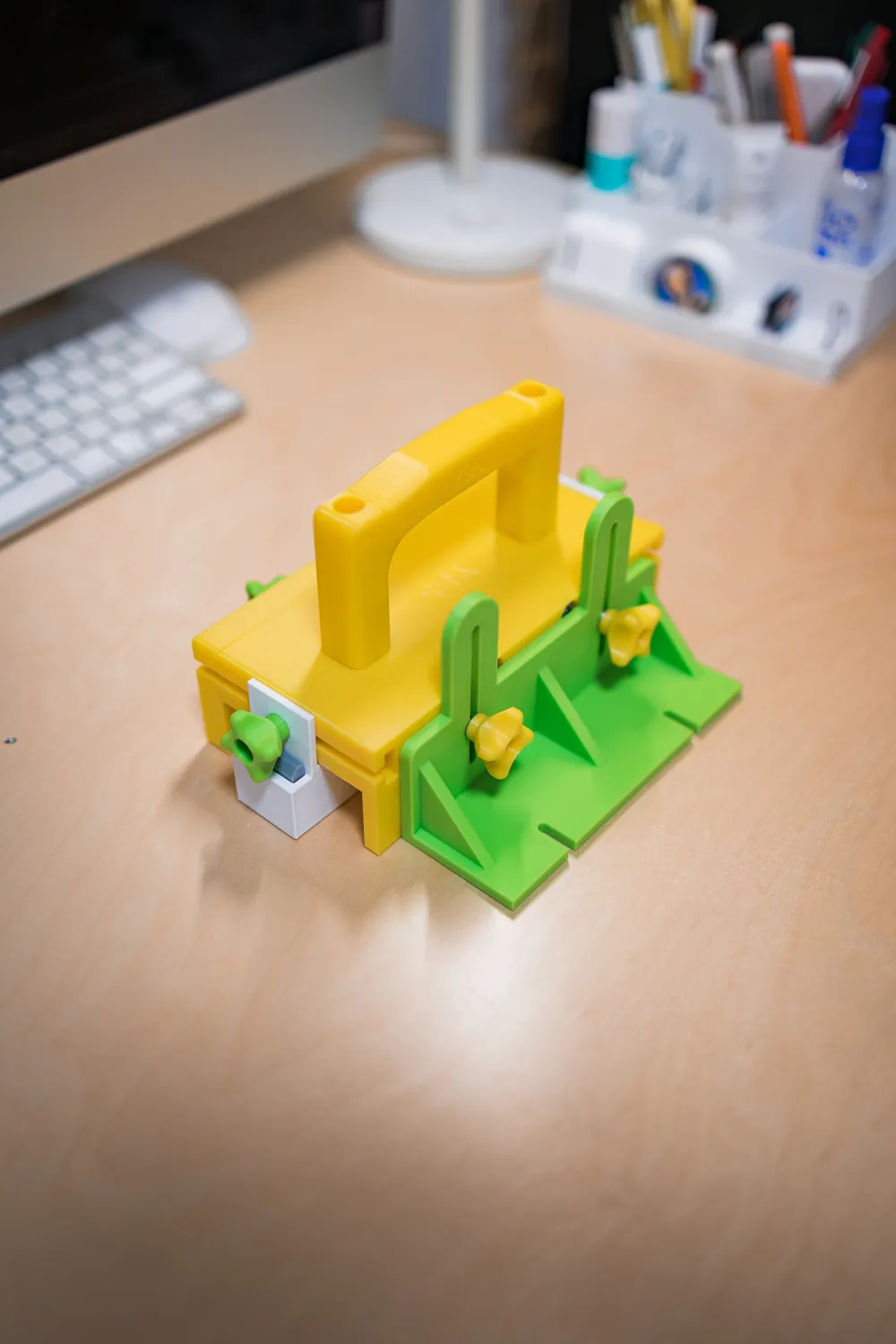

A woodworking push stick, modeled and created due to budgetary constraints preventing purchase of a commercially available model.
Functions: Designed for use with table saws, trim routers, and planers.

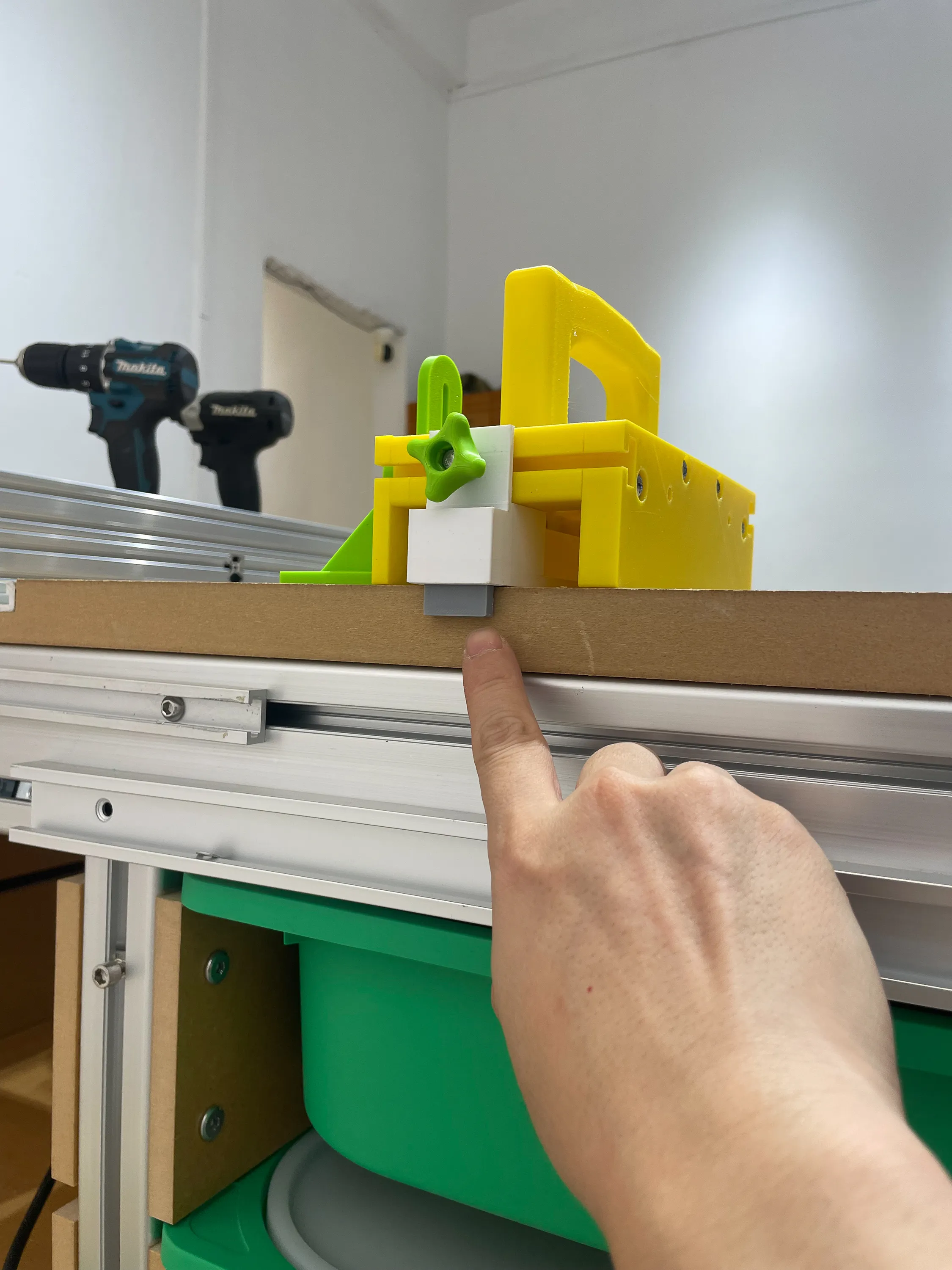

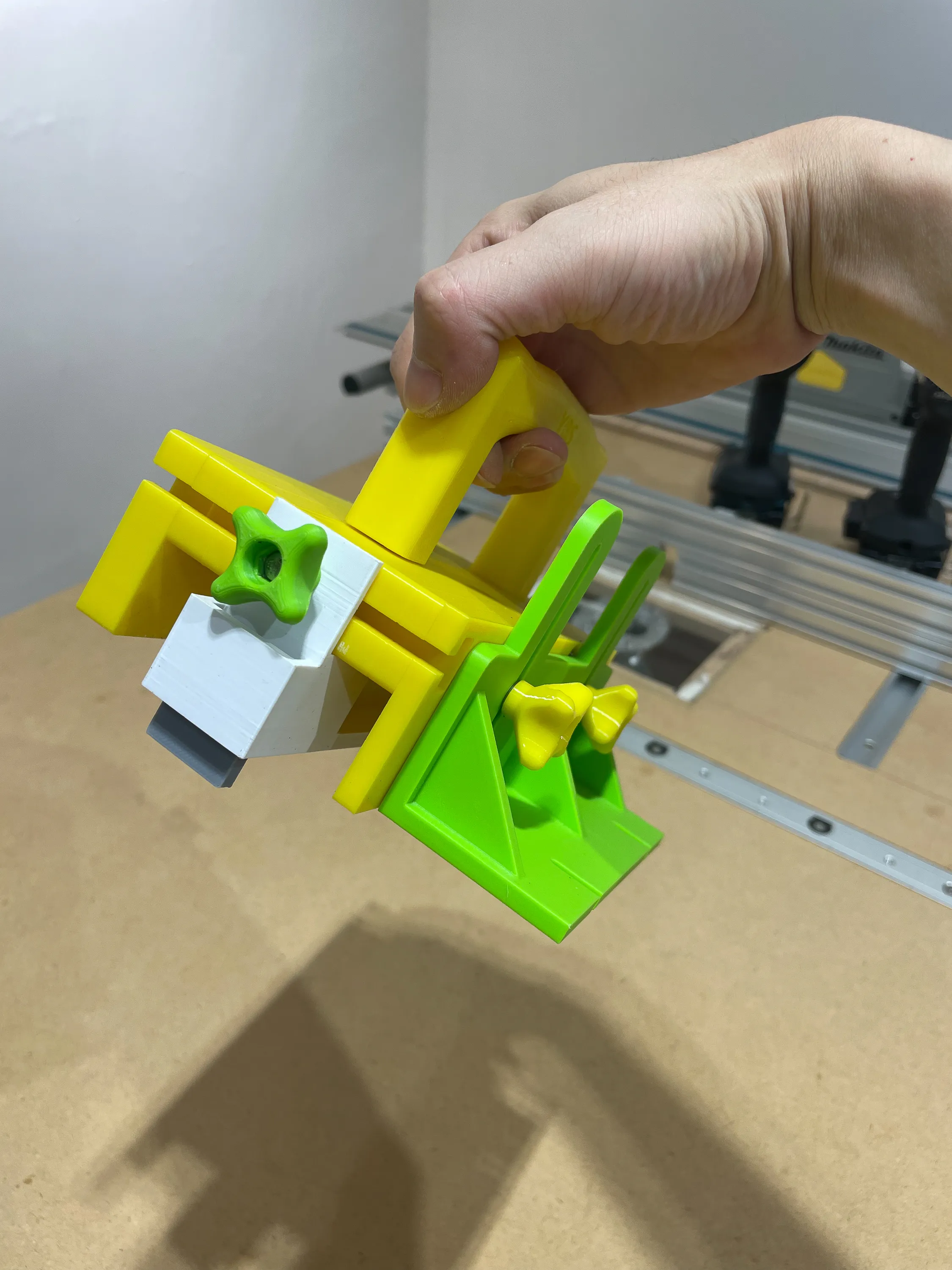

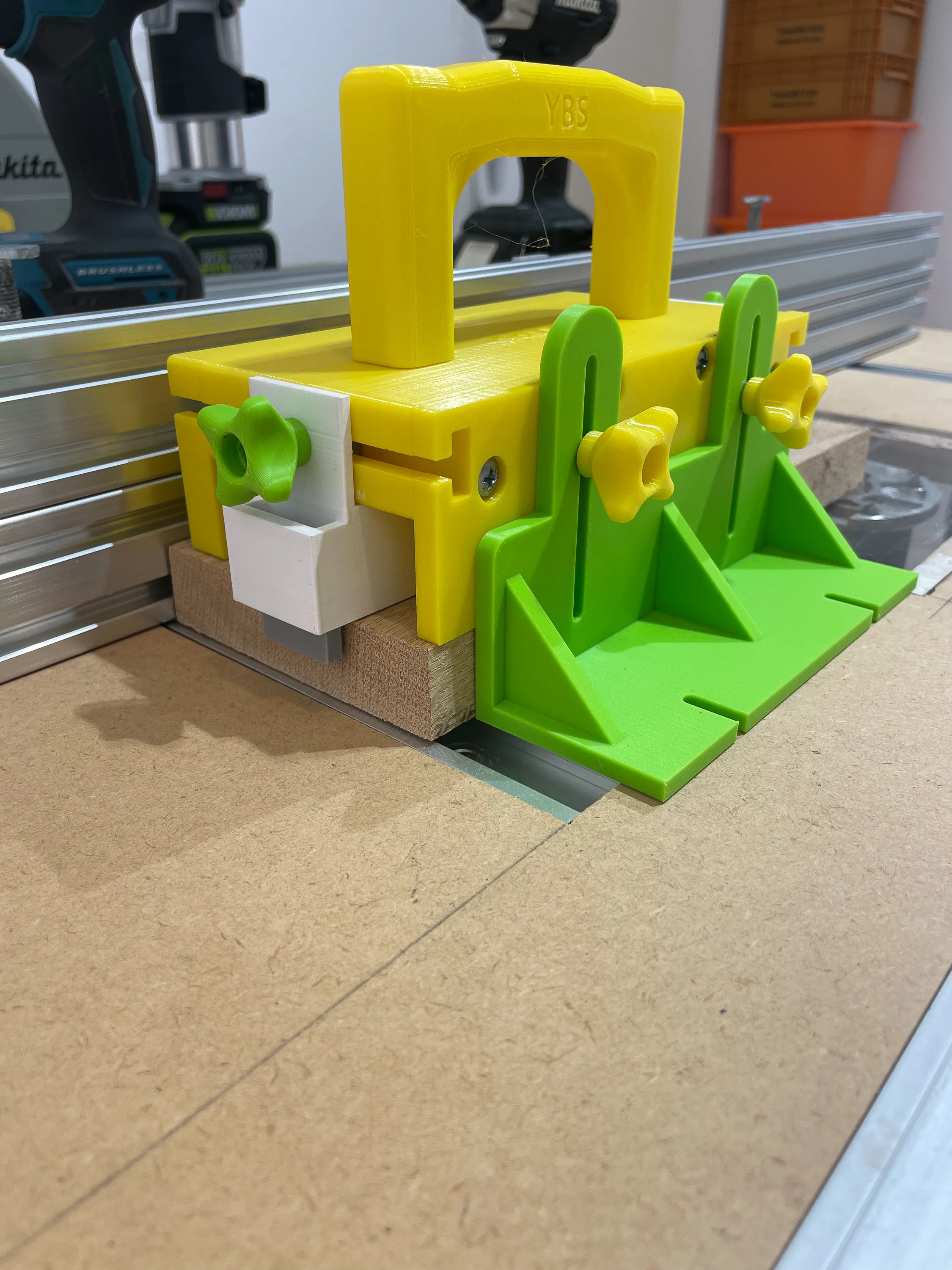

Gravity-assisted stops on both ends facilitate workpiece feeding during cutting, slotting, and planing operations.

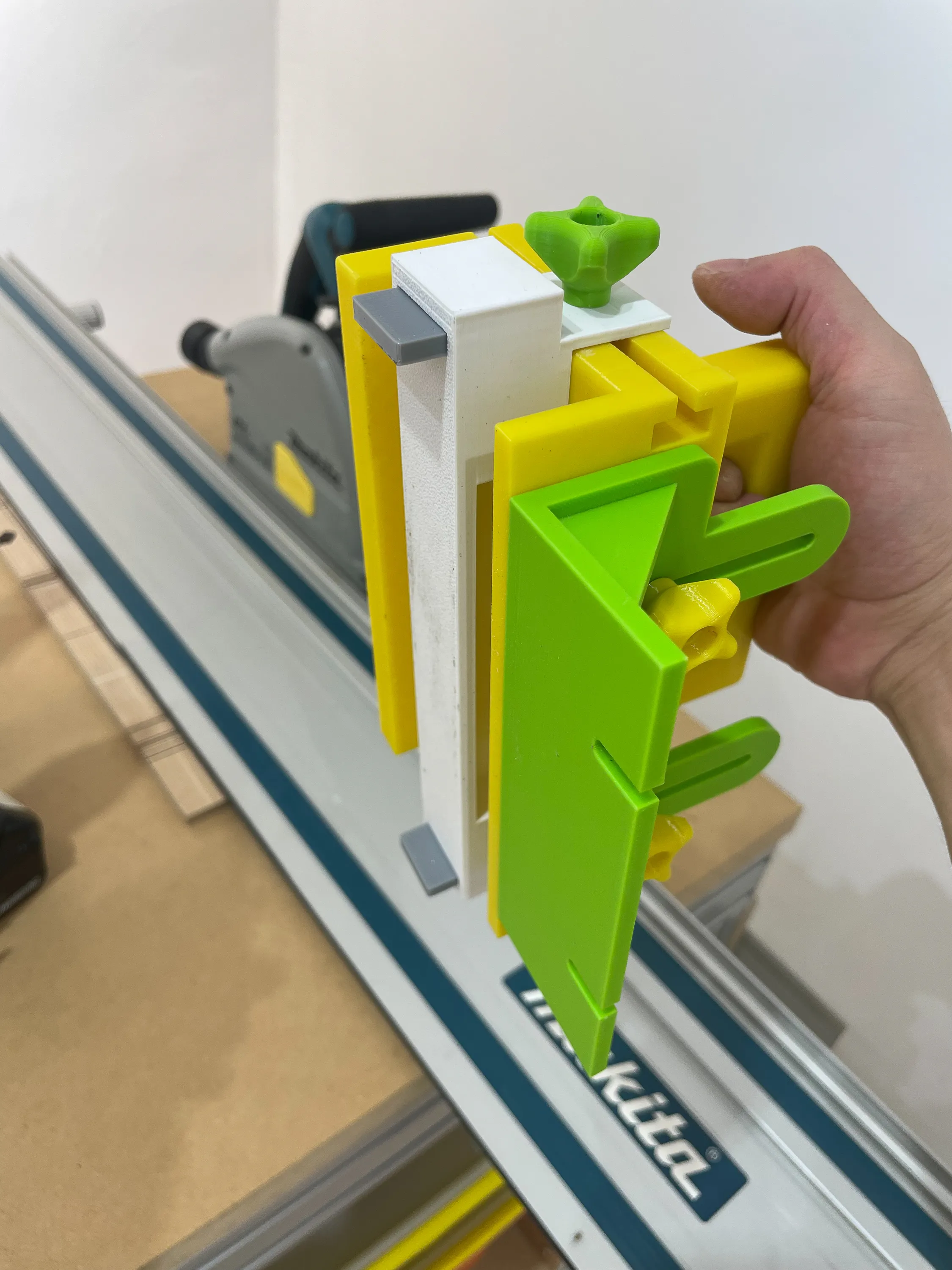

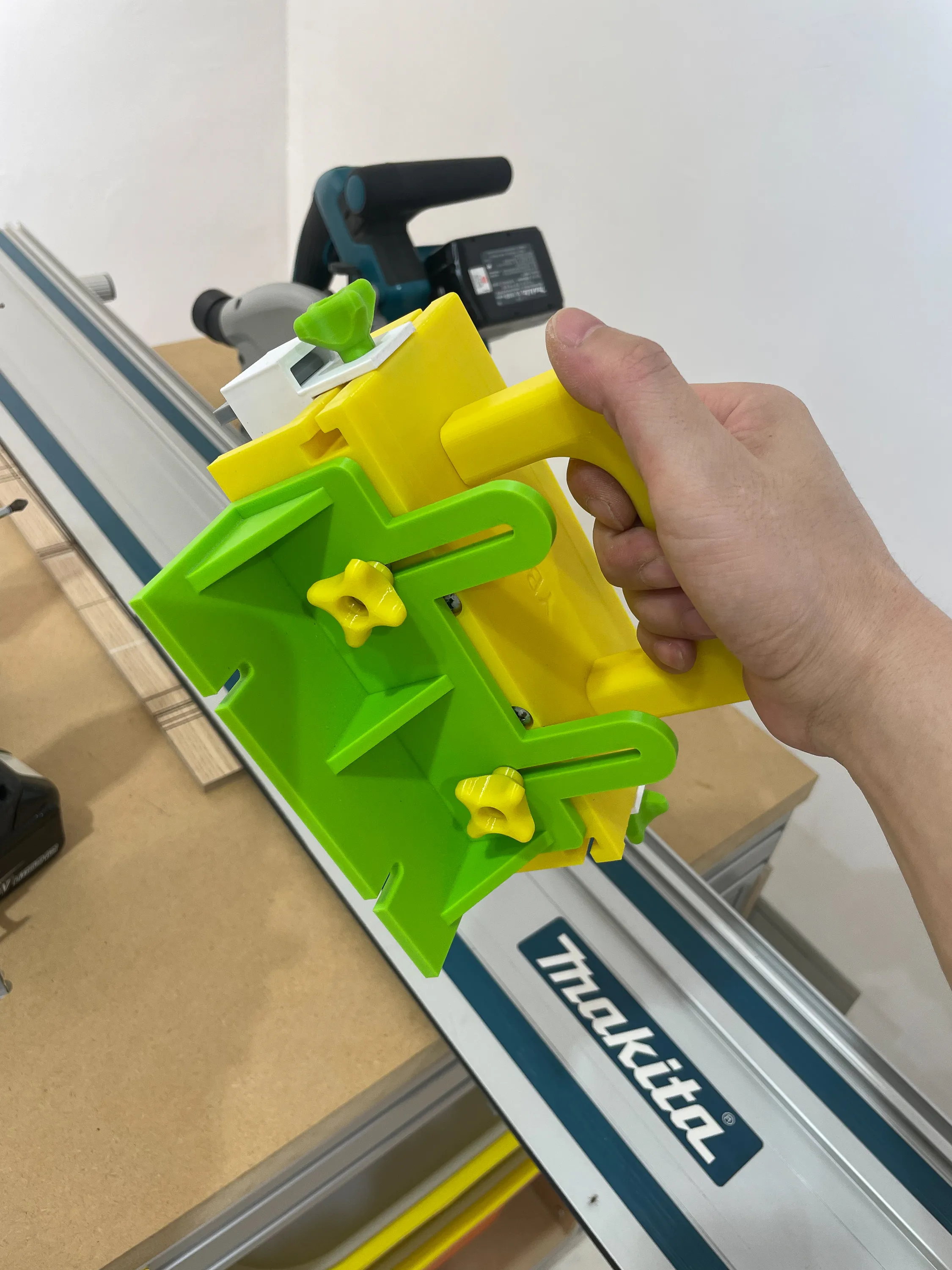

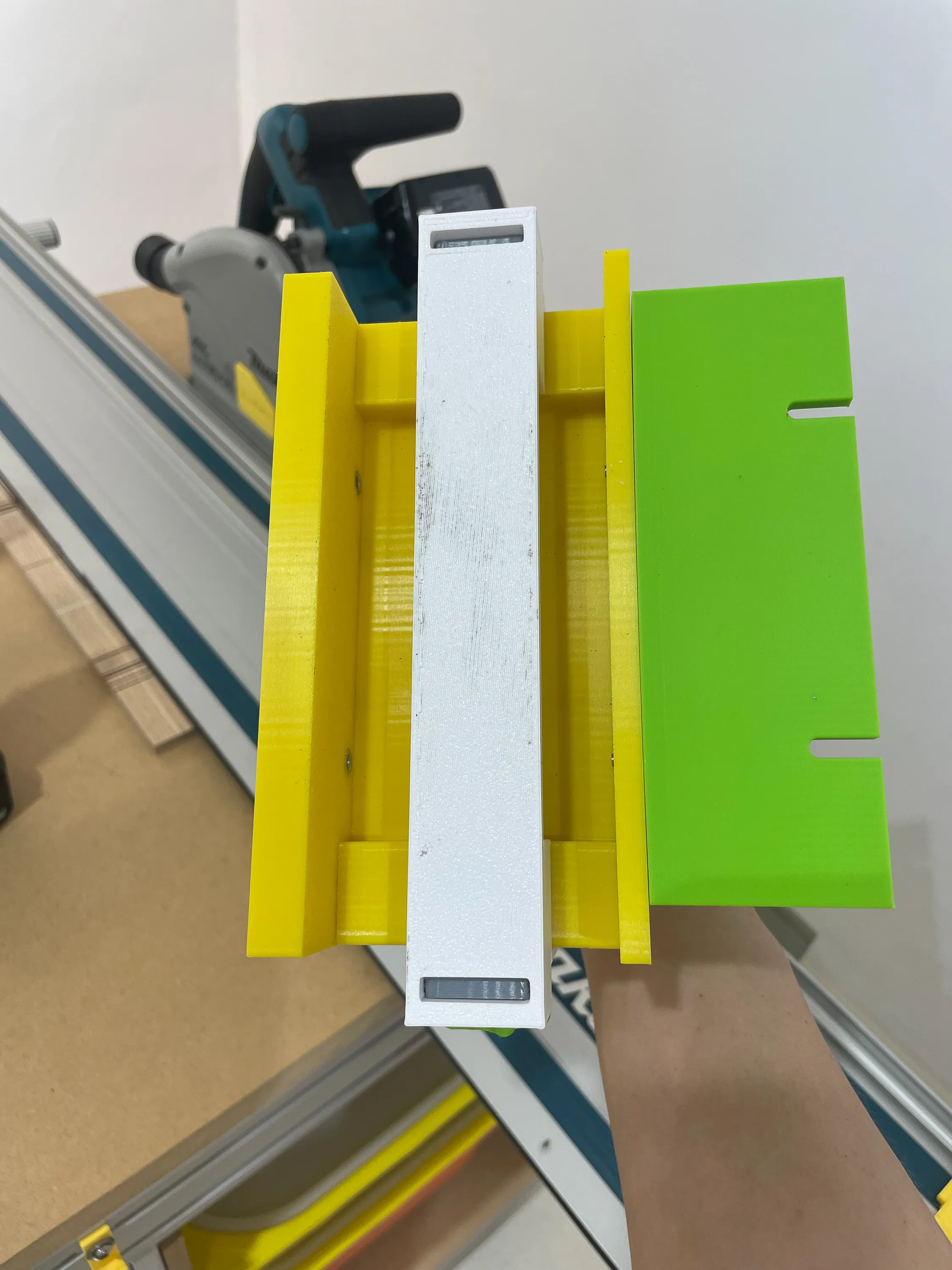

Adjustable side plates allow for workpiece clamping and secure contact against the fence.
Side plates are available in ¼ and ½ inch thicknesses.
Required Hardware:
Eight 25mm self-tapping screws, diameter ≥ 4mm (hole diameter 3.9mm), for mounting ¼ and ½ inch side plates.
Six M4 hex socket head cap screws: four M4 x 20mm and two M4 x 25mm, for knob installation.
Six M4 nuts, for knob installation.
Two M5 x 35mm or 40mm screws, for handle installation.
Two M5 nuts, for handle installation.
Feel free to ask any questions; I hope my explanation is clear. Upon assembly, the unique design of each hole will make it apparent where each nut and bolt fits.
