HKR H2D/H2S/H2C BUILD PLATE STORAGE/ AMS2&HT MOUNT
Print Profile(13)
Description

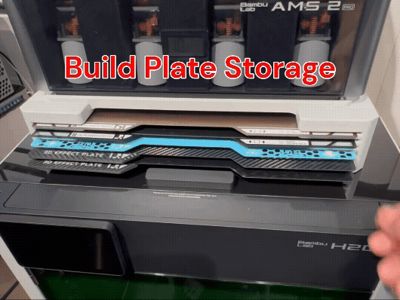

HKR Modular Build Plate / Laser, Cutting Platform storage with AMS 2 pro, AMS HT mounts are the most versatile system available.

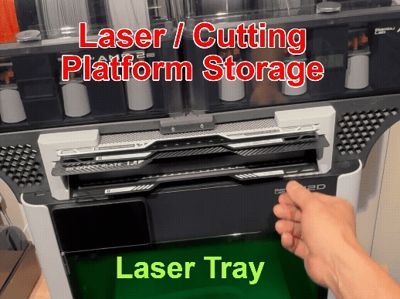

The center storage parts are both H2D laser and Non laser H2D models in mind. You can skip laser / cutting platform storage, if you are non-laser user.
AMS mounts accept : single AMS 2, dual AMS 2 and AMS 2 and AMS HT.
It's easily upgraded if you get extra AMS 2 or HT later. Just print and add appropriate AMS mounting brackets.
Boost Me (for free)
If you enjoyed this model, please consider boosting it to support creator.
Thank you!

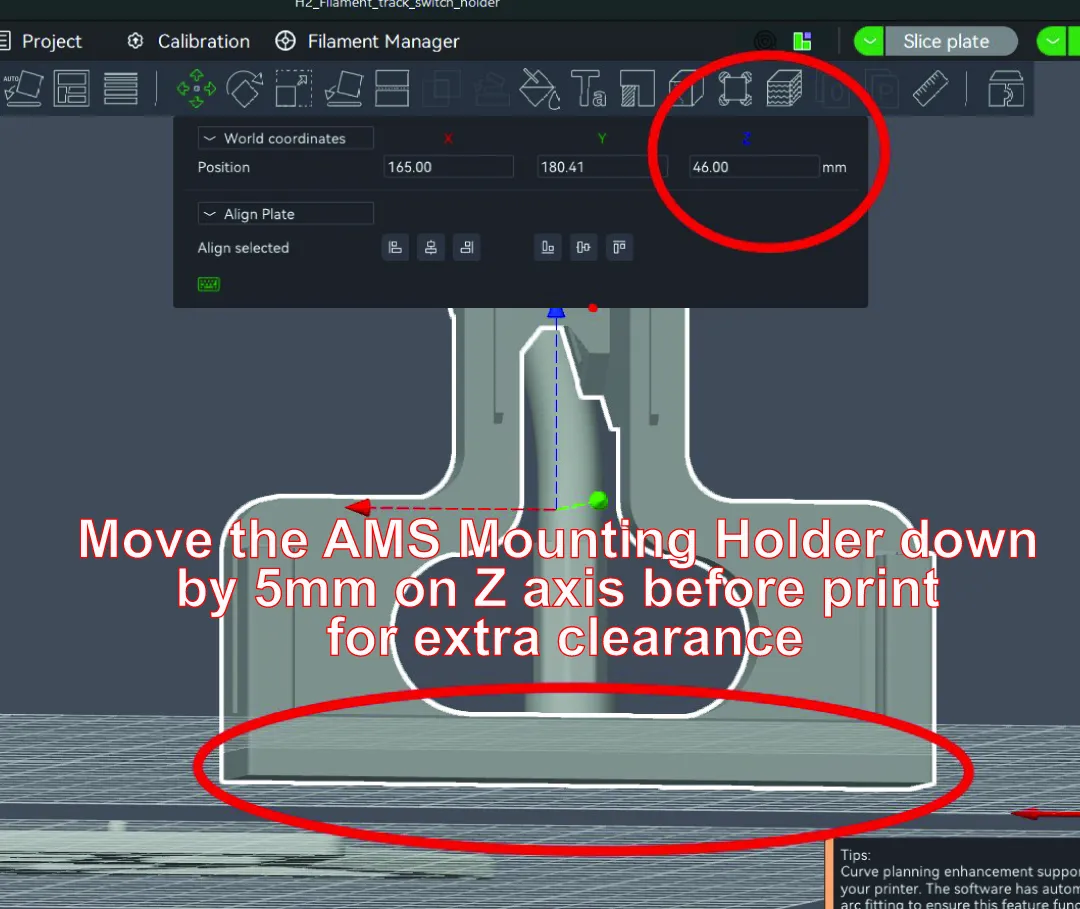

TECH NOTE: Bambu Filament track switch AMS Mounting Holder fitment guide

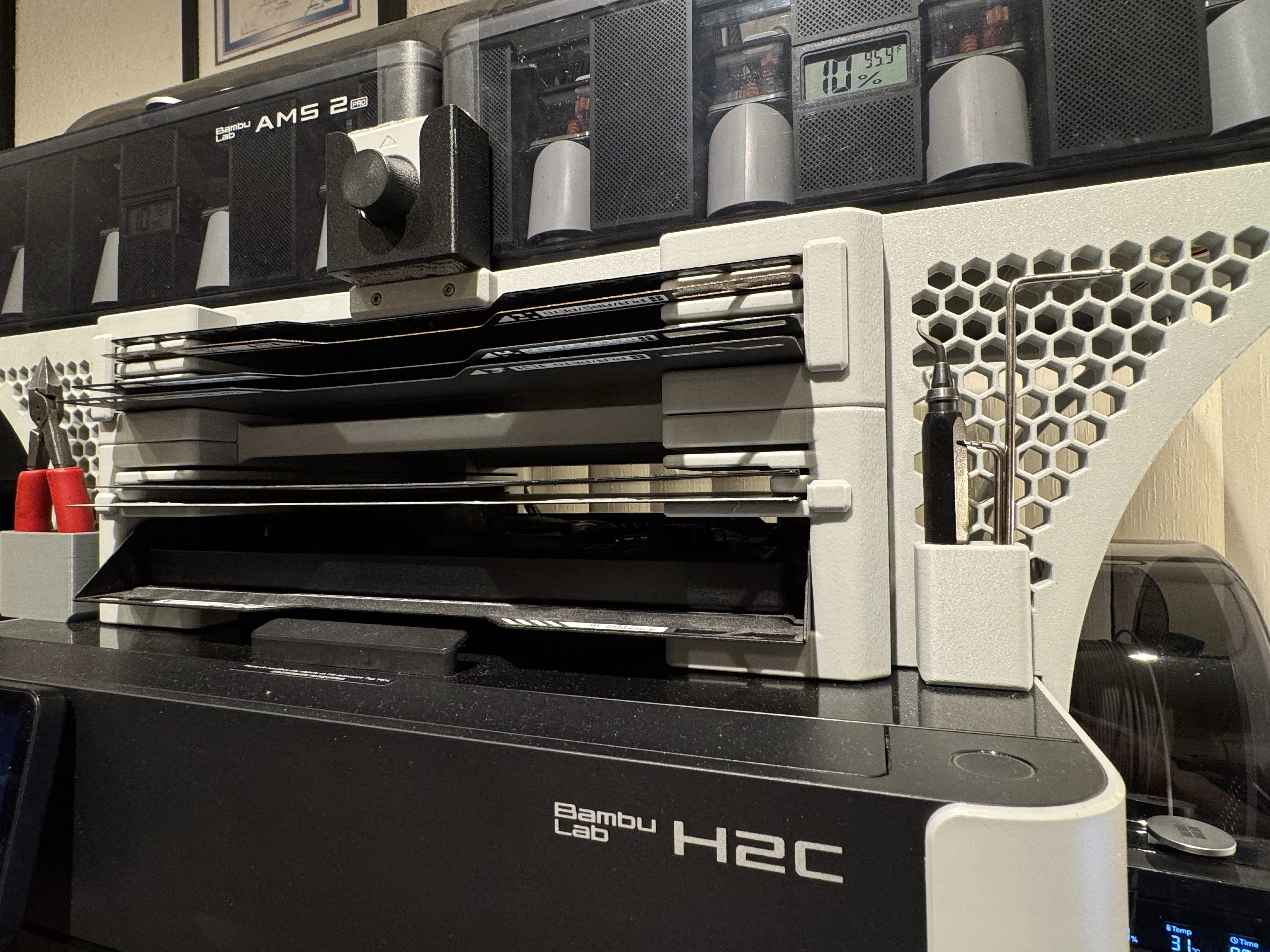

UPDATE6/13/2026 : Added print profile for H2C Build Plate and Laser Tray Storage spacers
Designed to work with the build plate storage module.

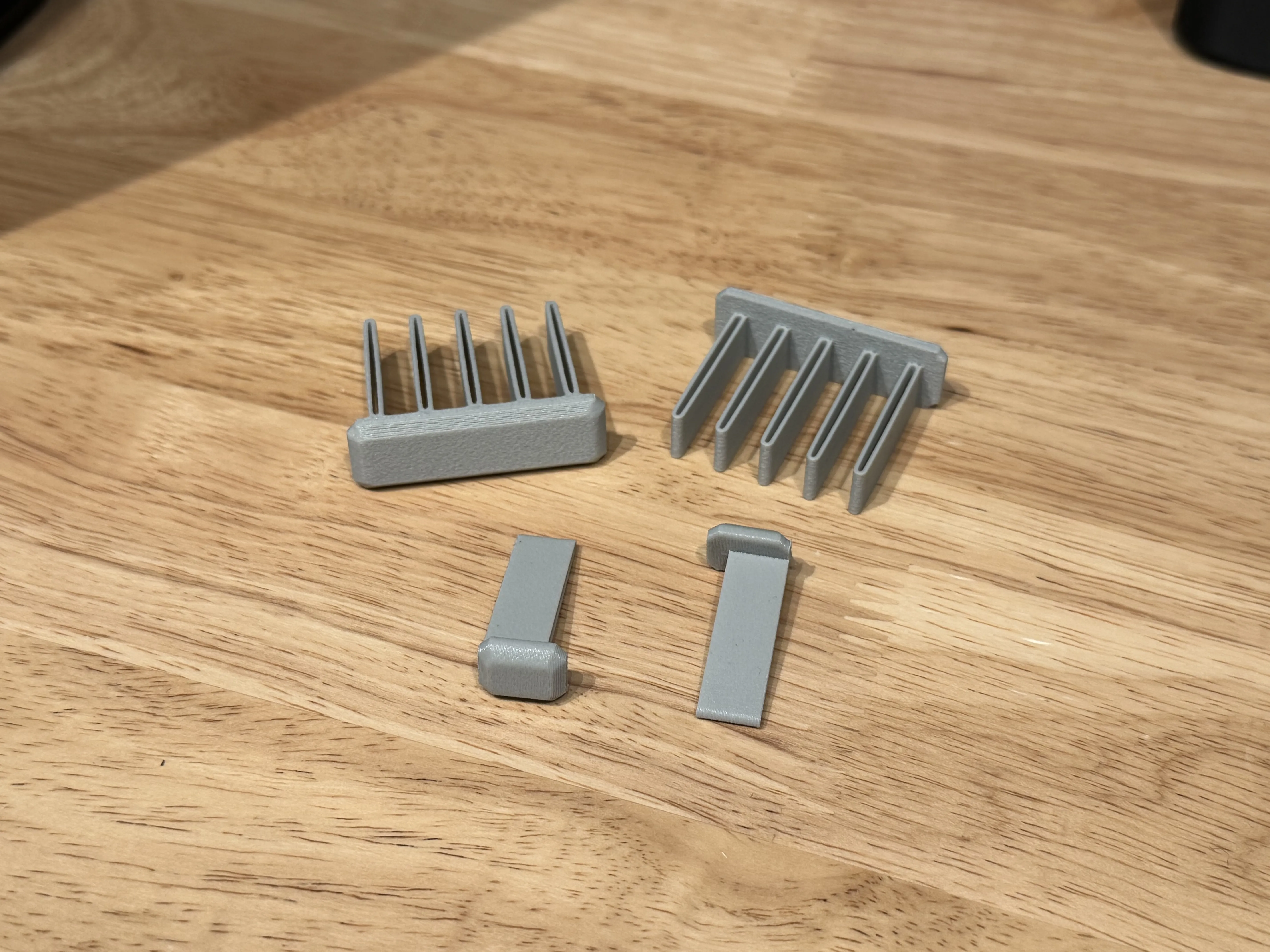

Push in spacers to take up side play on storage slots that designed for 355mm plates.
Total of 9 combinations of AMS mount and storage configurations are available. (*Old AMS does not fit this model)
Choose Your AMS(s) and desired storage type to pick exact print profile for your configuration.
All necessary parts are preset in profile.
You can simply print one of each plates to complete assembly.

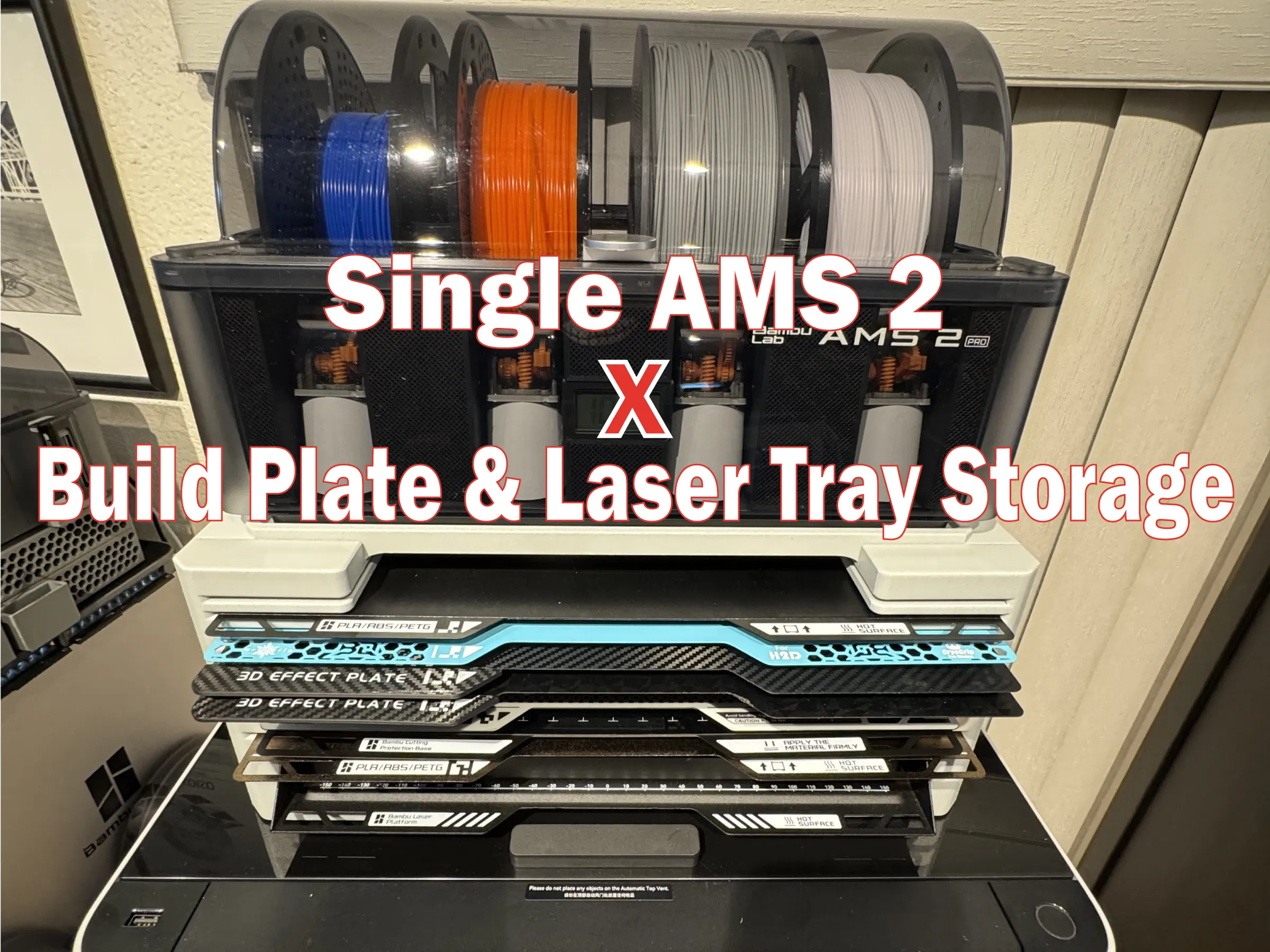

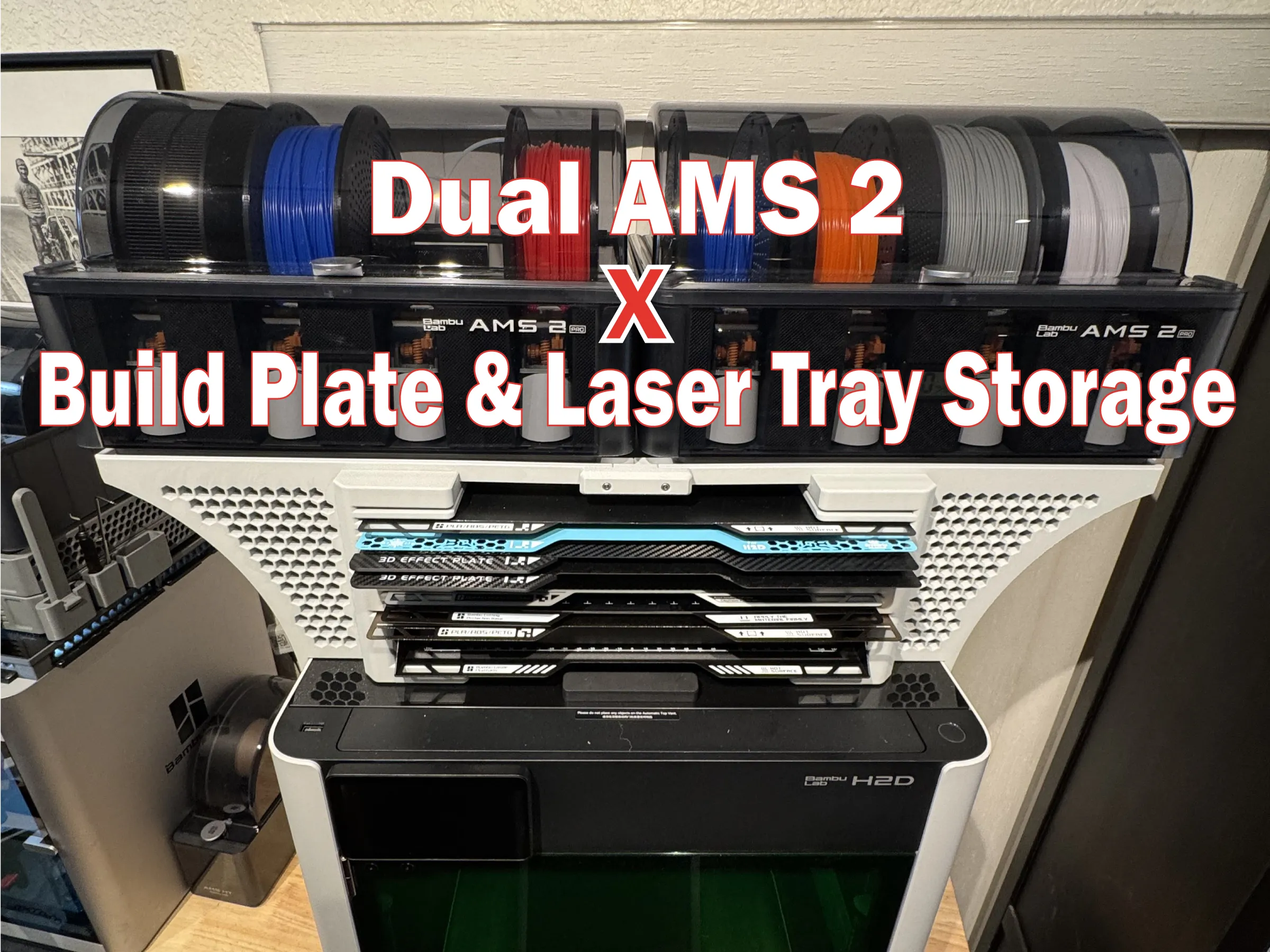

| Single AMS 2 Pro | AMS 2 Pro + AMS HT | DUAL AMS 2 Pro | |

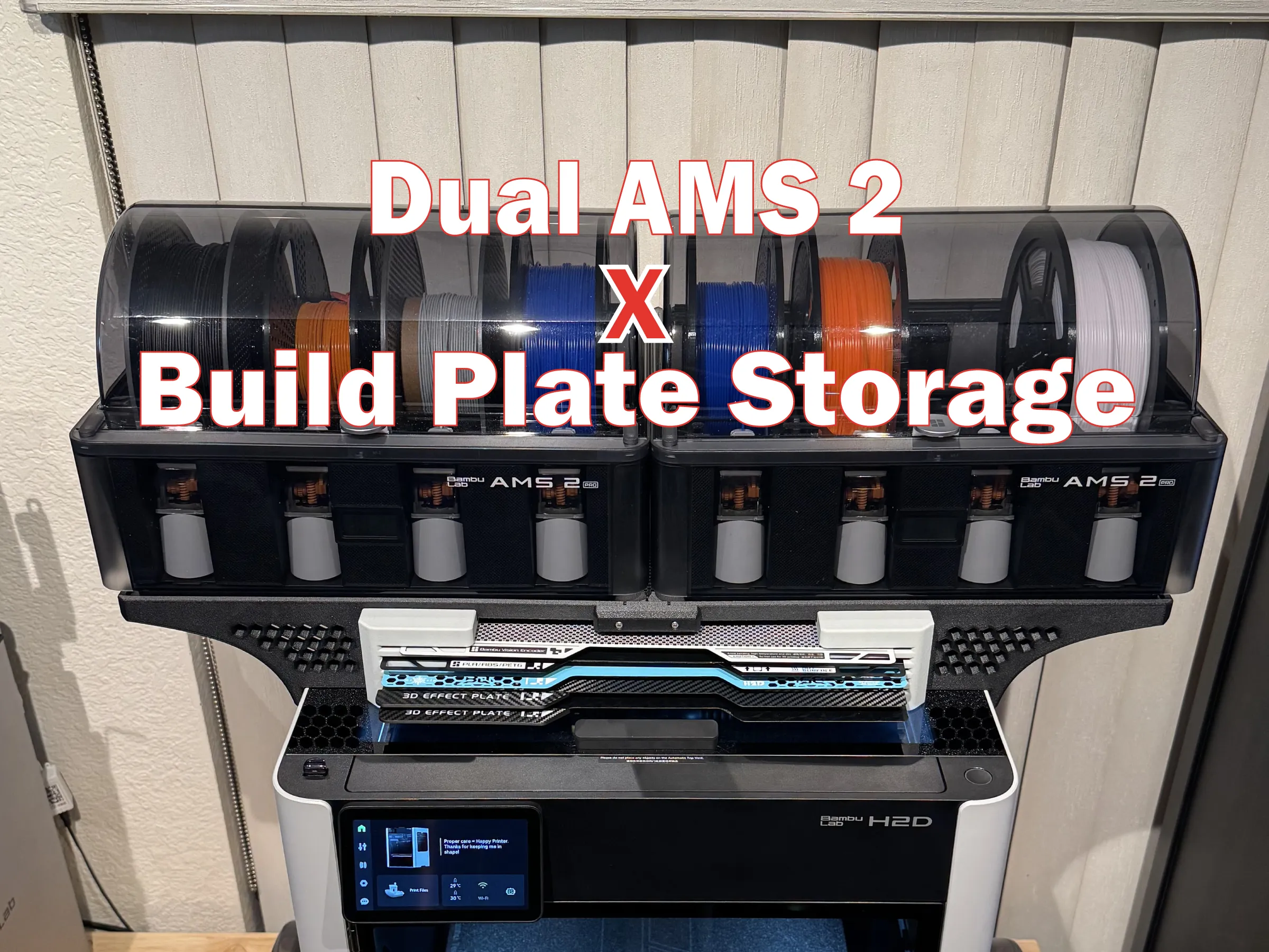

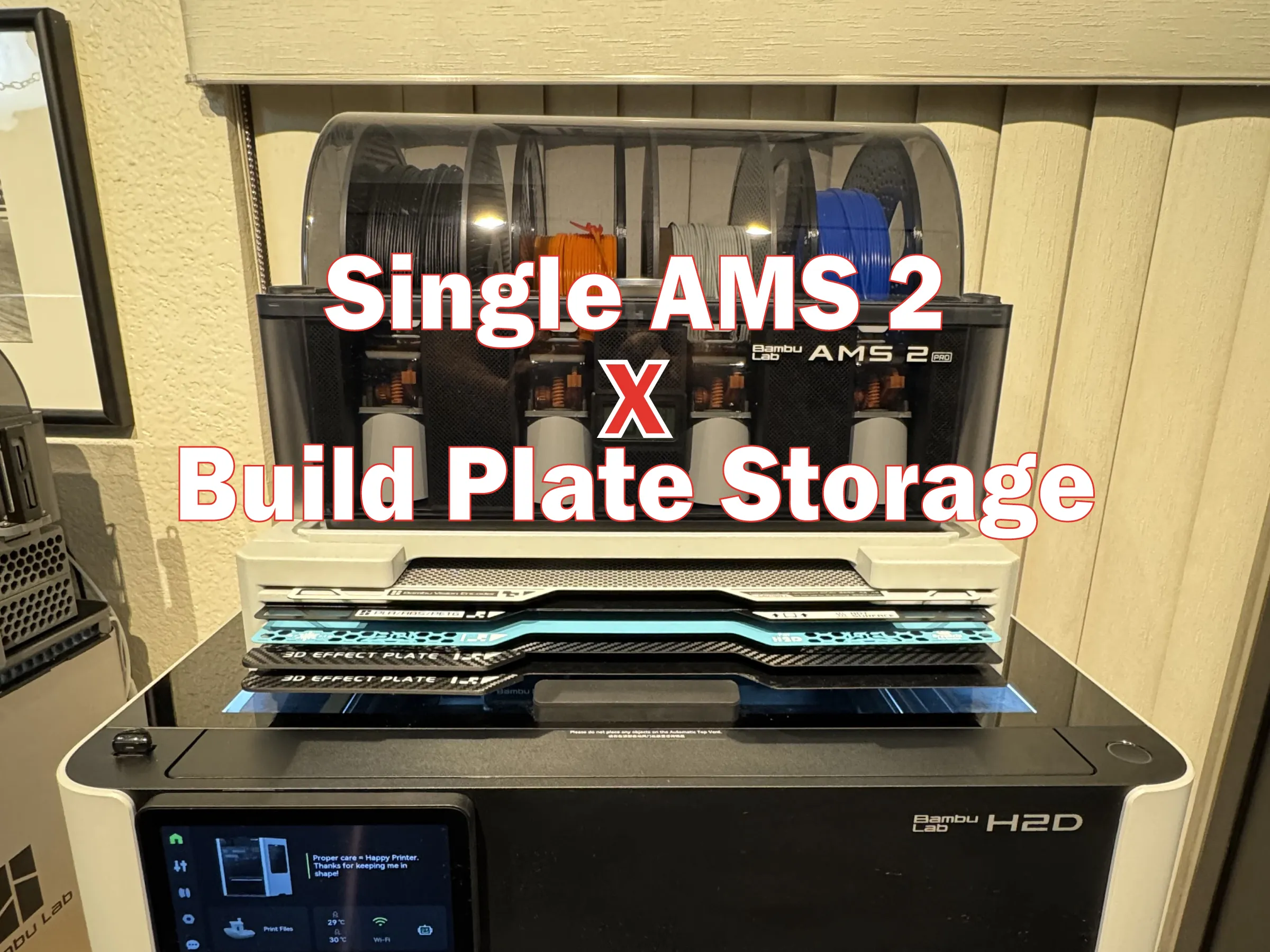

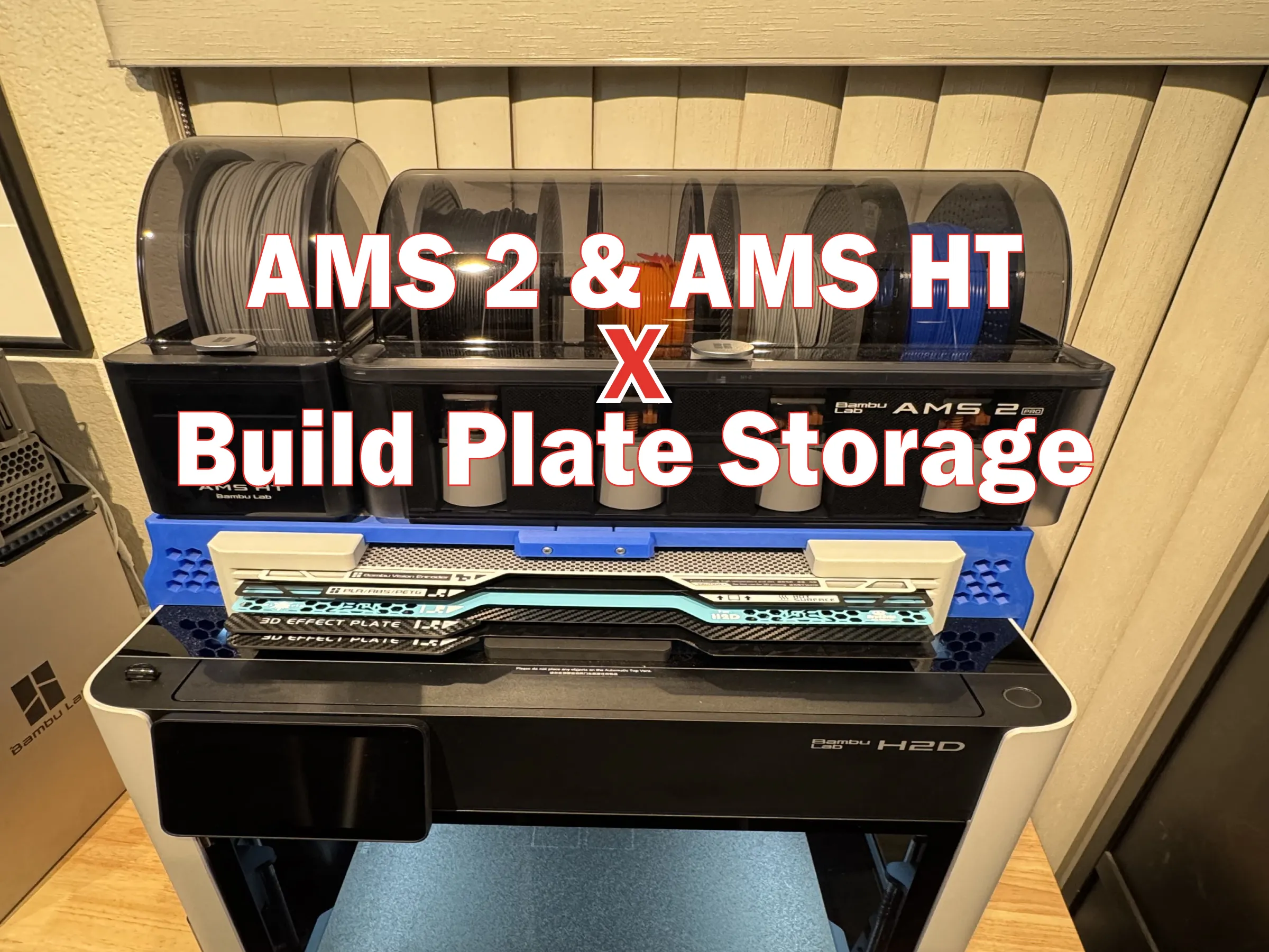

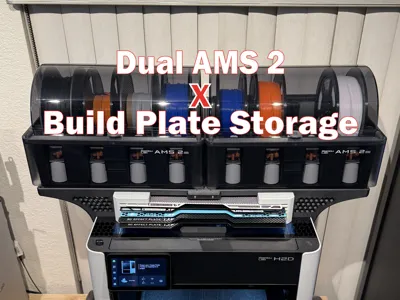

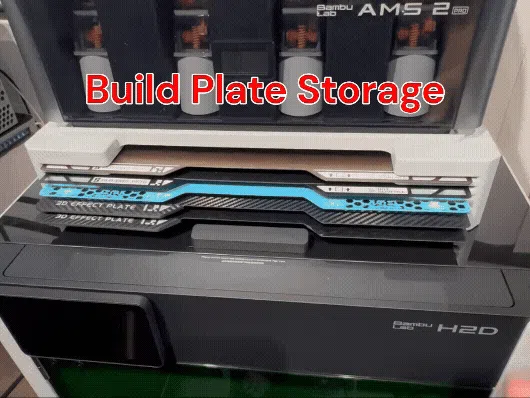

| 5 slots build plate storage | Single AMS 2  | AMS 2+AMS HT 5 slots build plate storage  | DUAL AMS 2 5 slots build plate storage  |

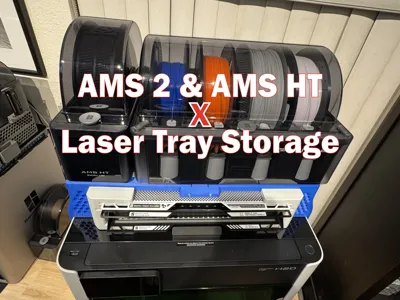

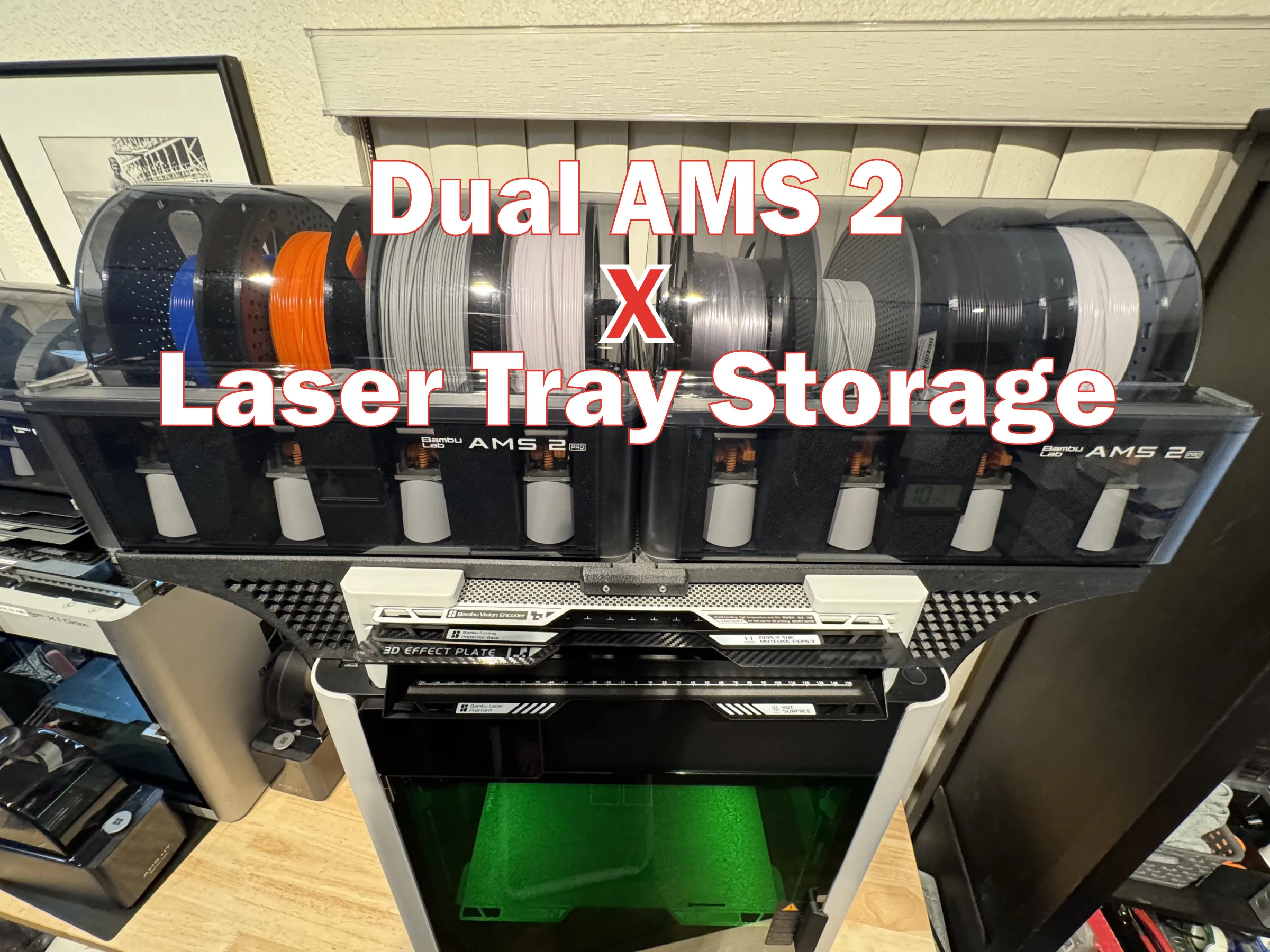

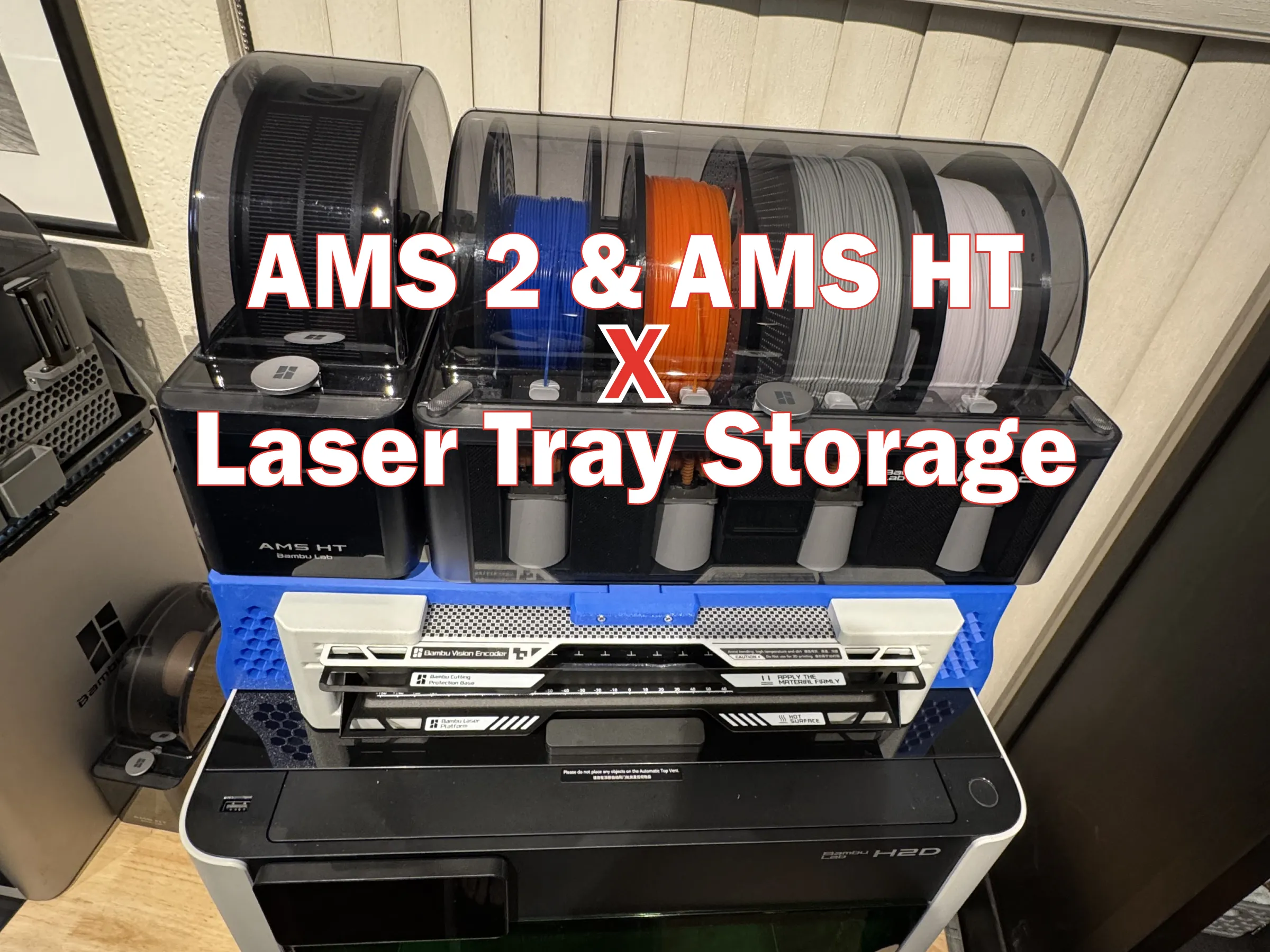

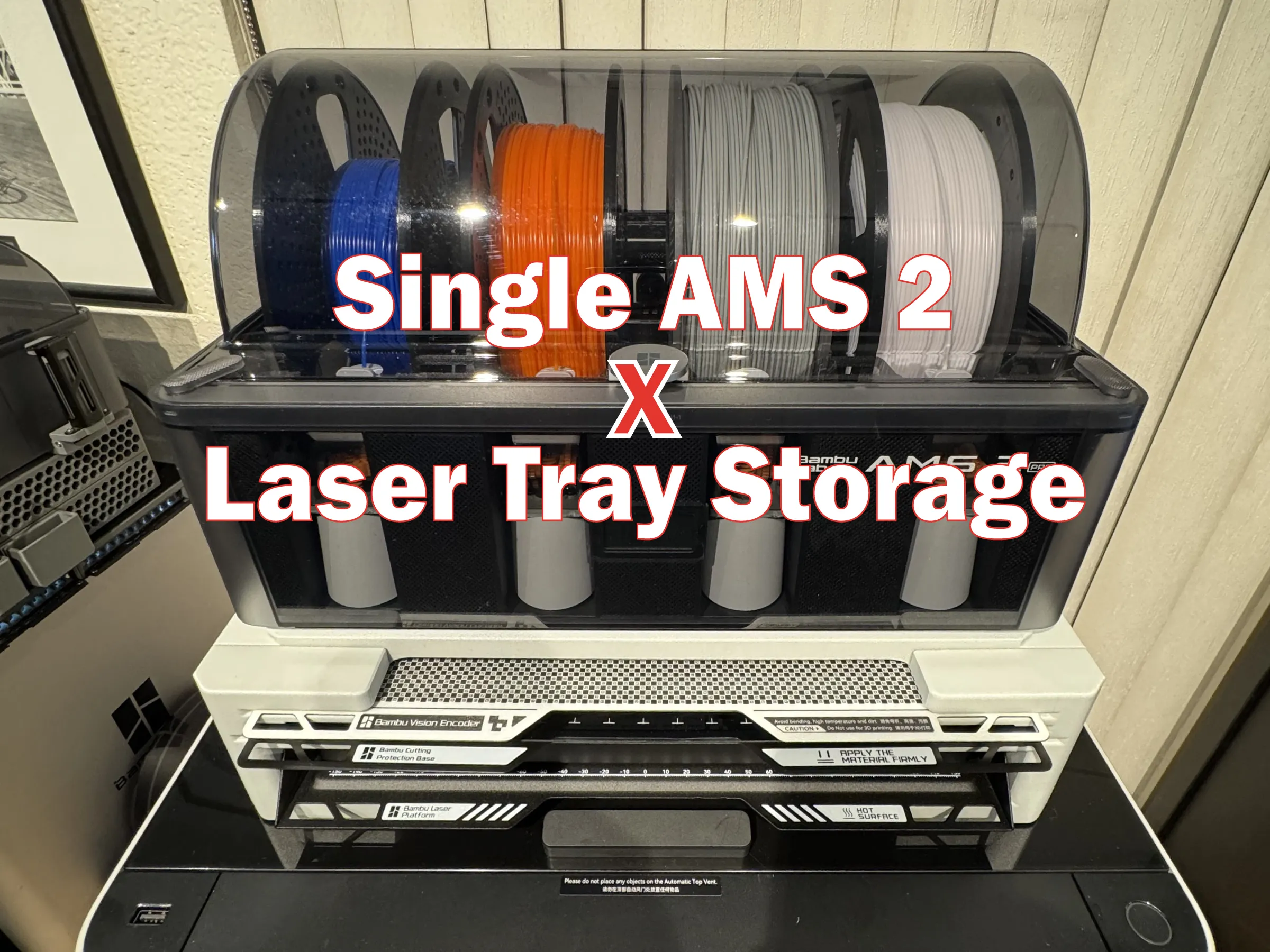

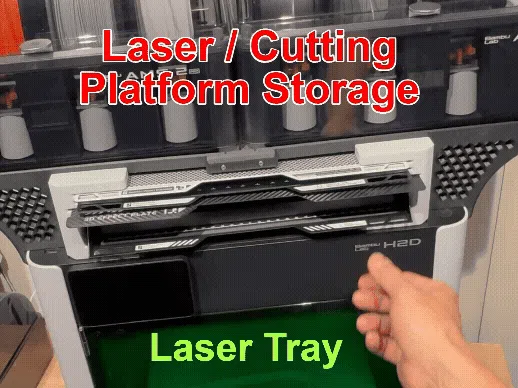

| Laser / Cutting platform storage | Single AMS 2 Laser / Cutting platform storage  | AMS 2 + AMS HT Laser / Cutting platform storage  | DUAL AMS 2 Laser / Cutting platform storage  |

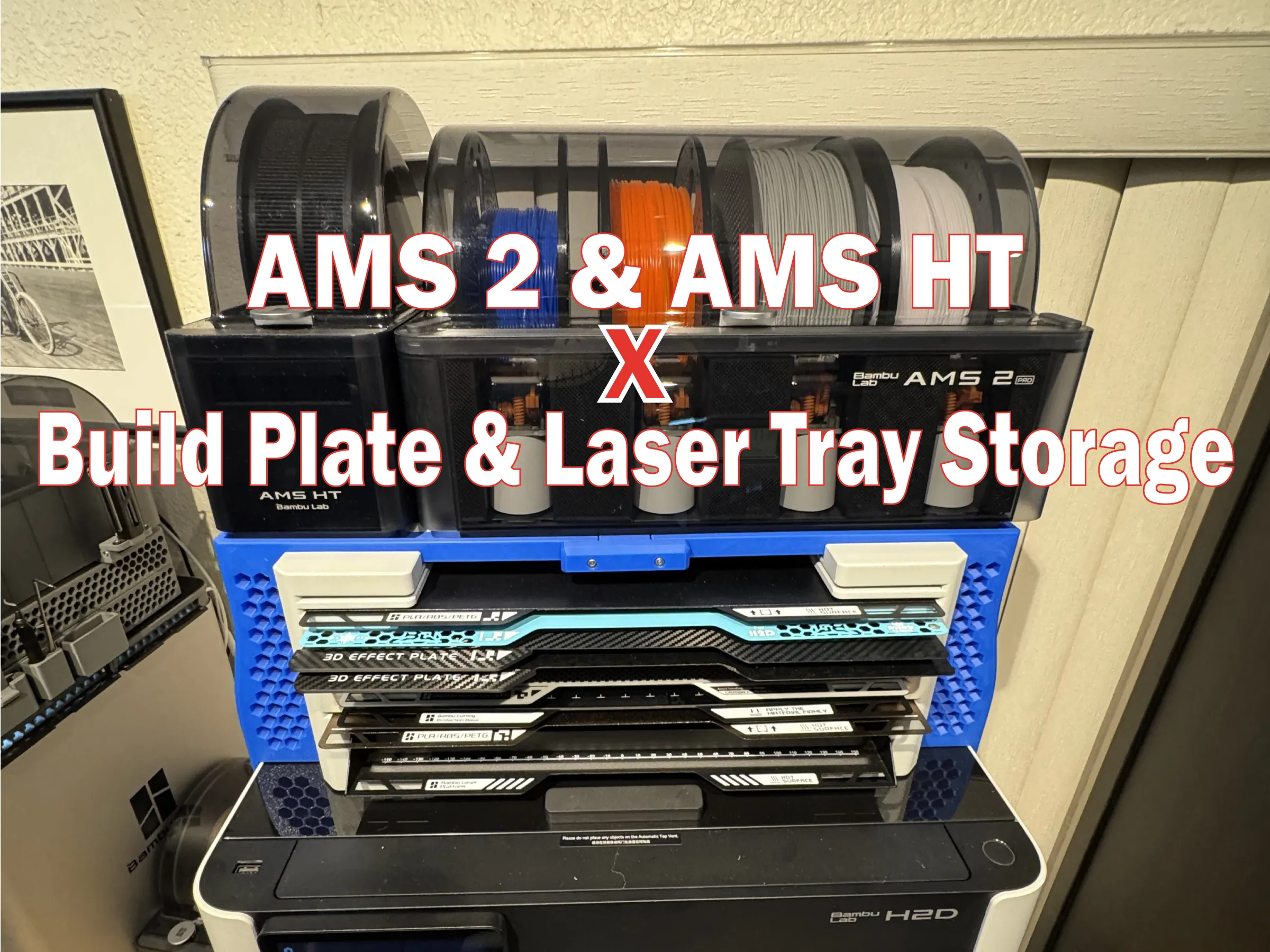

| Both storages above (Combo storage) | Single AMS 2 Combo storage  | AMS 2 + AMS HT Combo storage  | DUAL AMS 2 Combo storage  |
Material:
Due to heat from the printer chamber and firmament dryer function on AMS 2 pro, ABS is default material for the model and recommended.
If you are not printing engineering materials or not using dryer function, the model could be printed with lower temp material but designer wont be responsible for heat rerated parts failure.

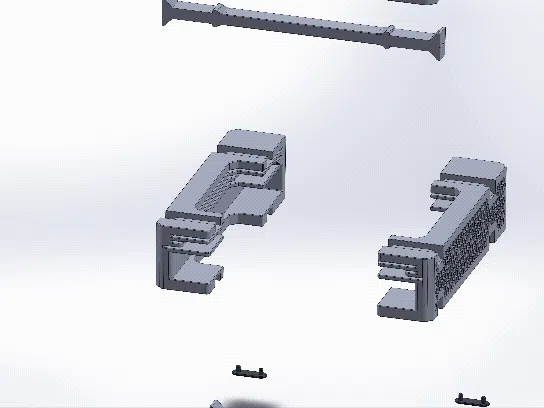

Construction:

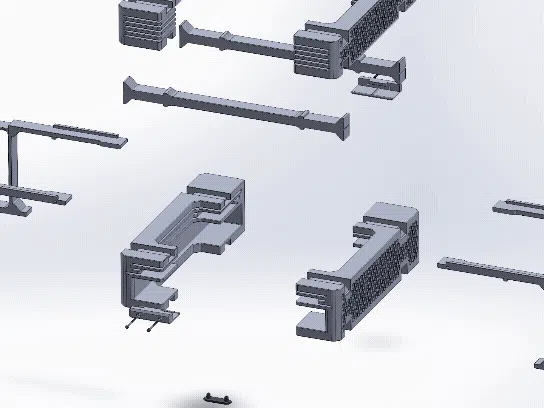

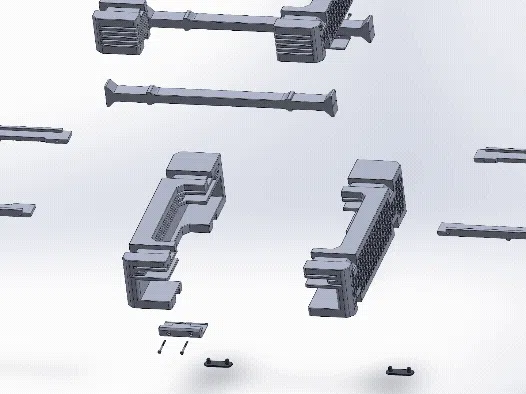

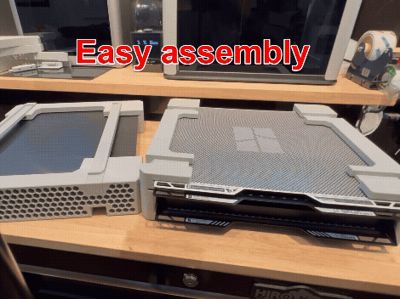

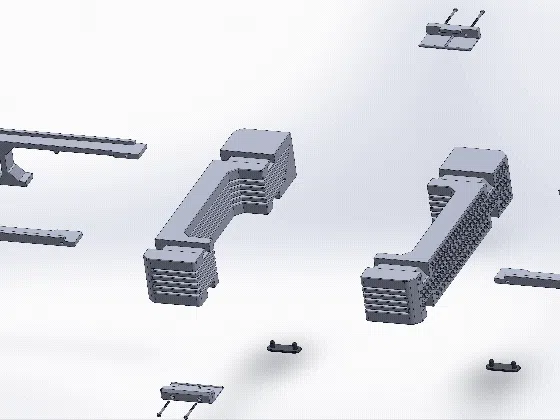

Assembly Instruction:
No glue required

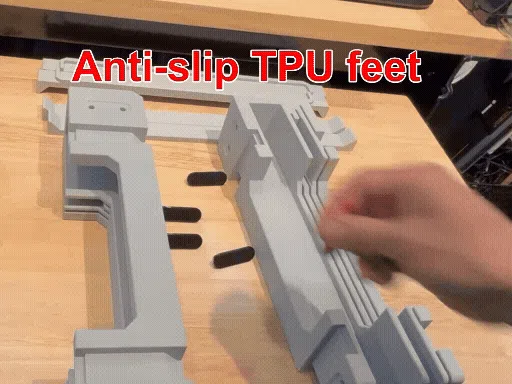

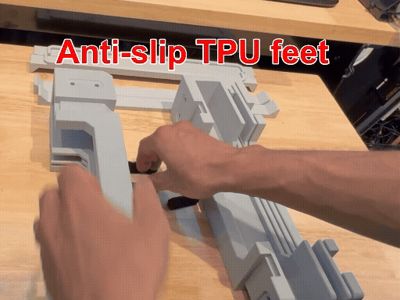

Push in TPU four feet only in the bottom of storage assembly.
AMS Mounts are snap on fit to the storage module.

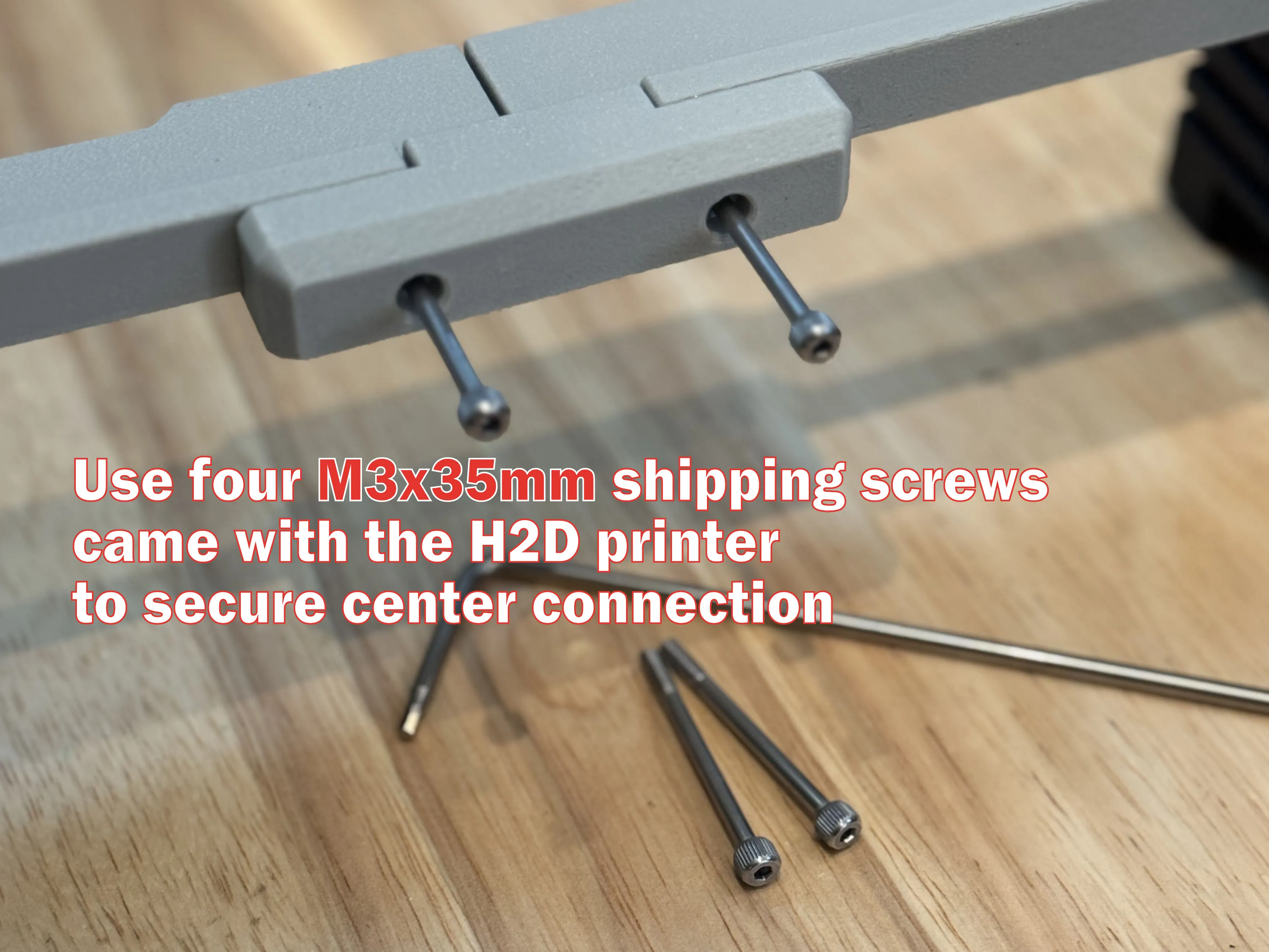

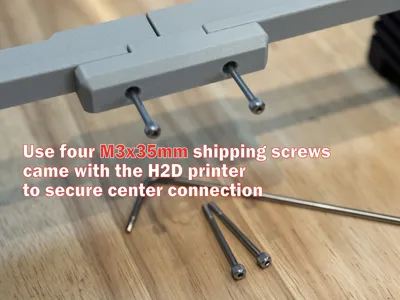

Use four M3x35mm screws came with the H2D printer for shipping to secure the center connector of AMS mounts.

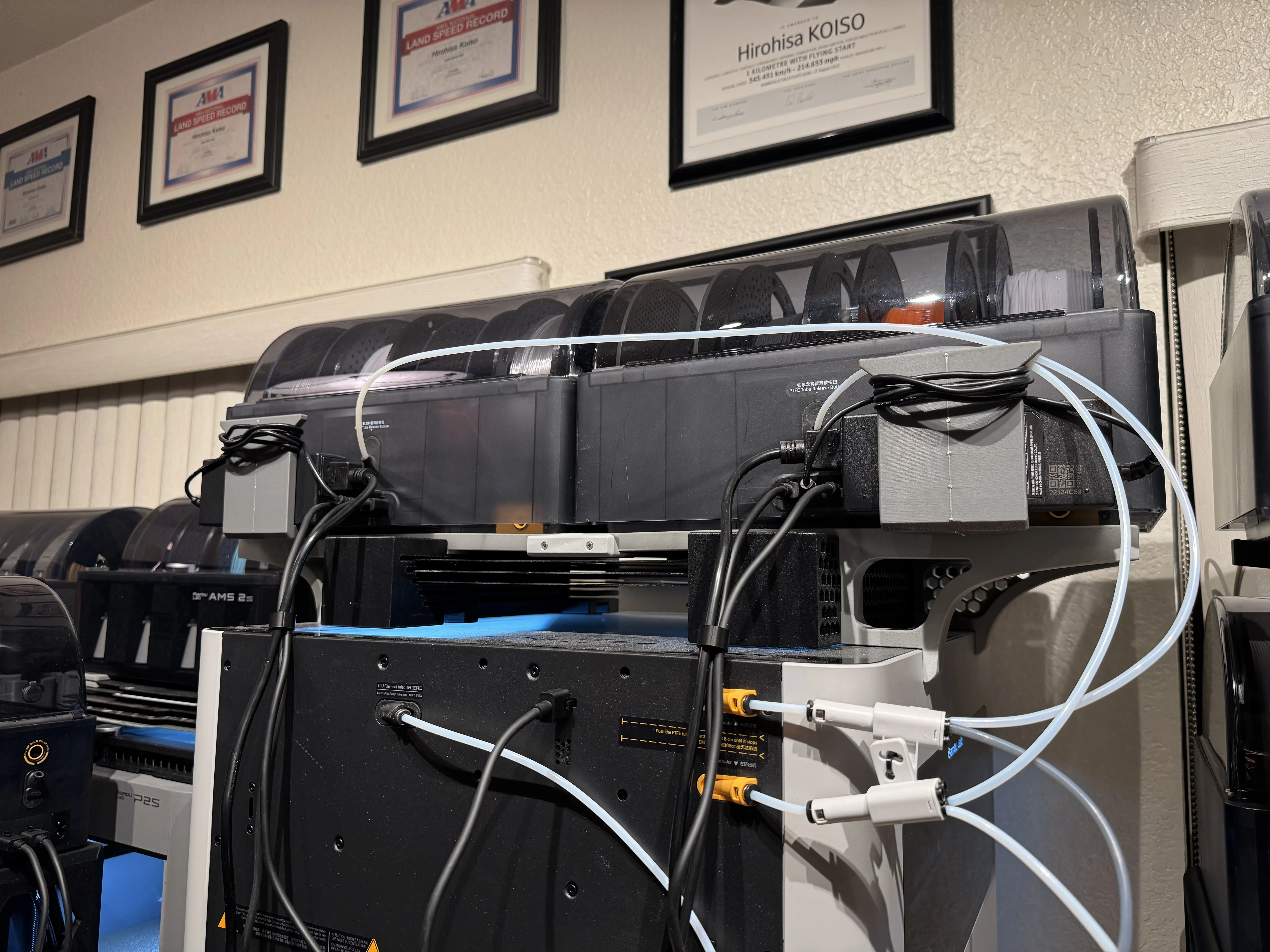

To clean up wirings on back of AMSs, Switching Adapter Mount is available here:
https://makerworld.com/en/models/2494833-hkr-switching-adapter-mount-for-ams-2-pro#profileId-2741819
Check out other accessory for H2D:
https://makerworld.com/en/models/1289566-hkr-modular-h2d-poop-chute-no-hardware-required#profileId-1319473

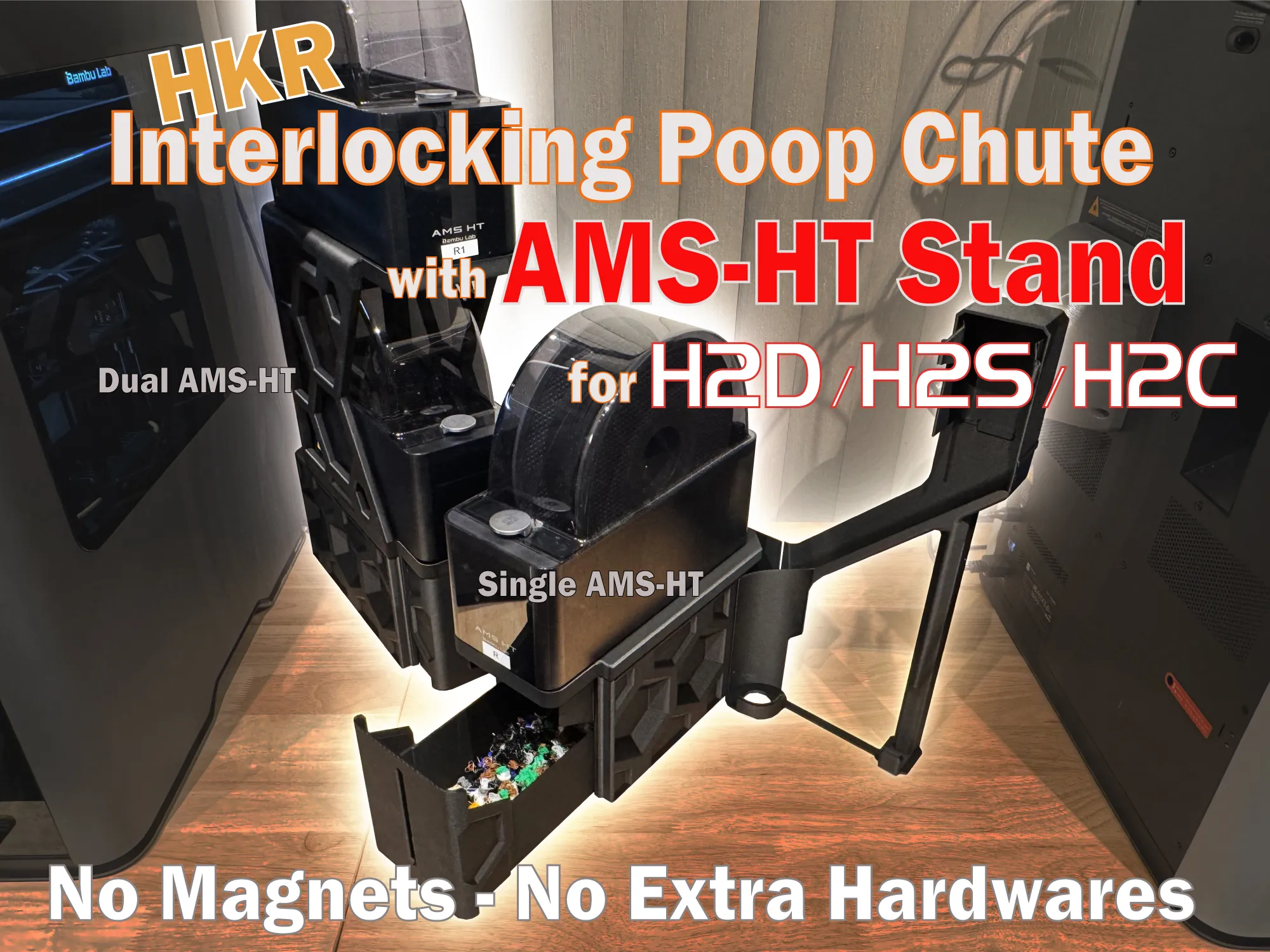

HKR Interlocking Poop chute / AMS-HT Stand
Non-Poop Chre Version for right side
Happy Printing!
