Miller Lite Beer LED Light Box

Miller Lite LED Light Box

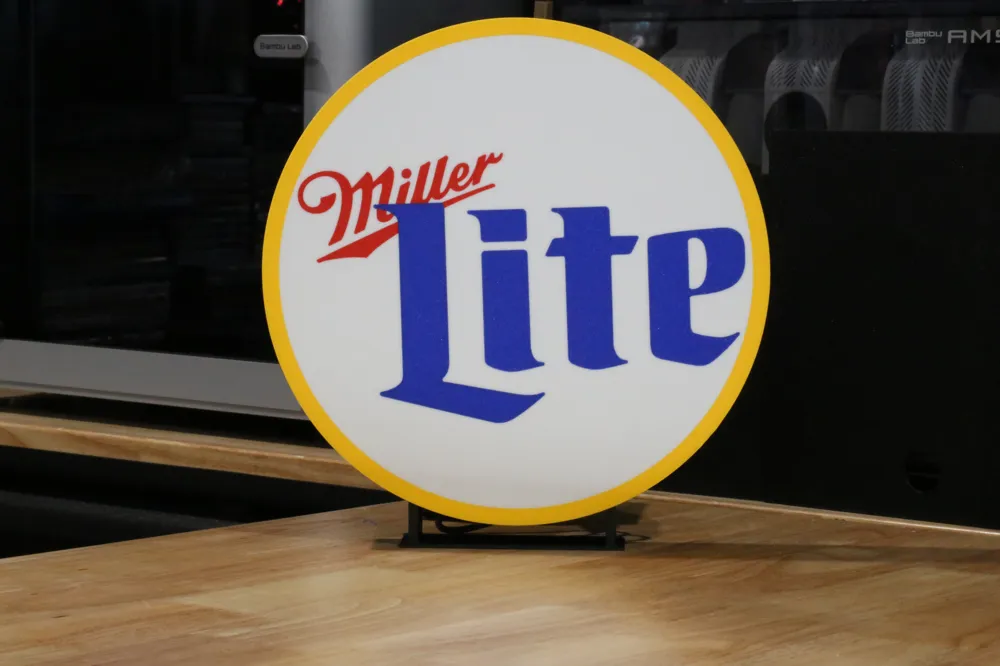

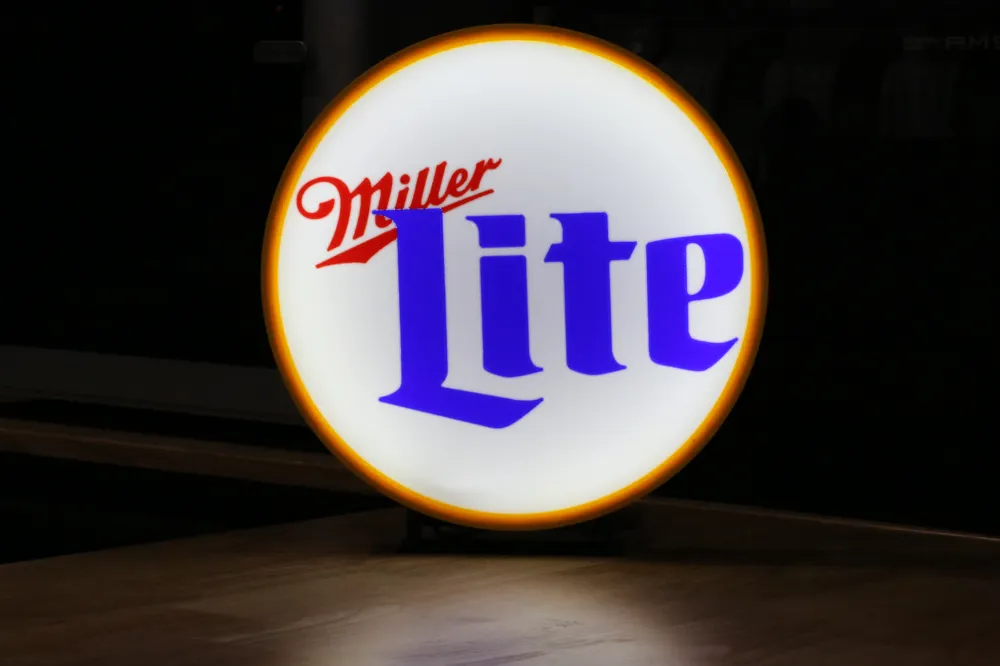

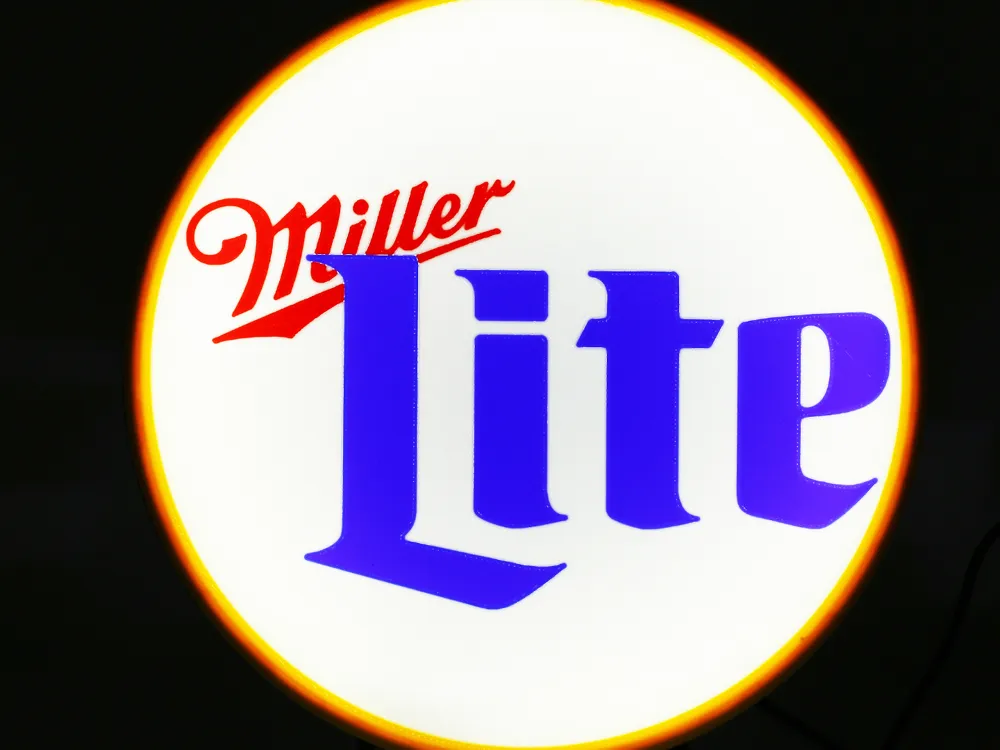

Modelled after the Miller Lite logo, this LED light box is designed for clean illumination and sharp detail, perfect for American beer fans or bar-themed setups. I wasn't sure which logo version would be preferred (being an Aussie, I don't know!) so I have done two versions of the Miller Lite light box. Please see my profile for the other version.

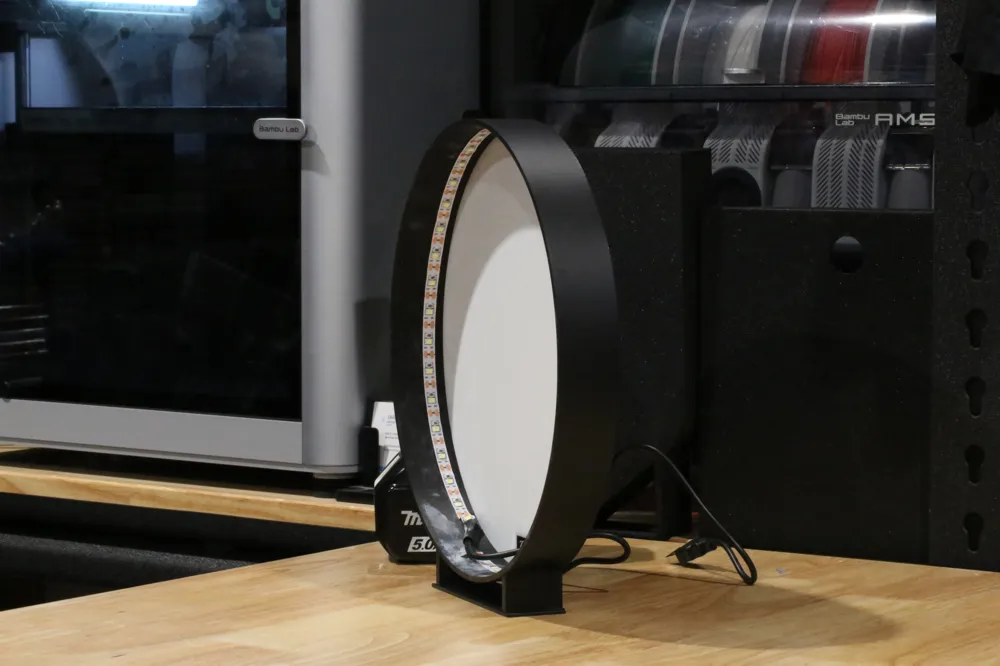

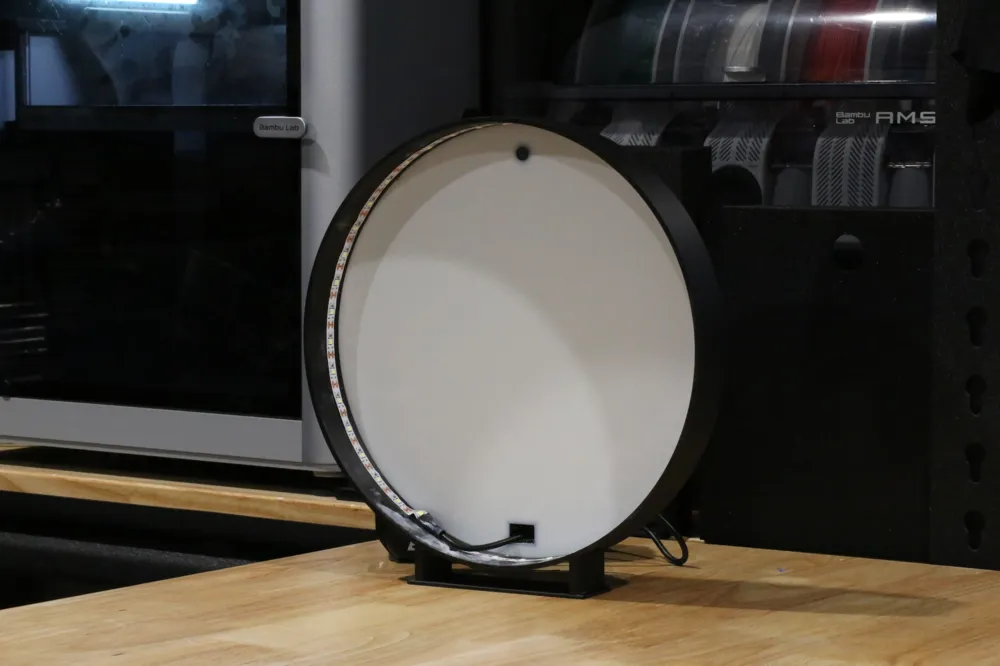

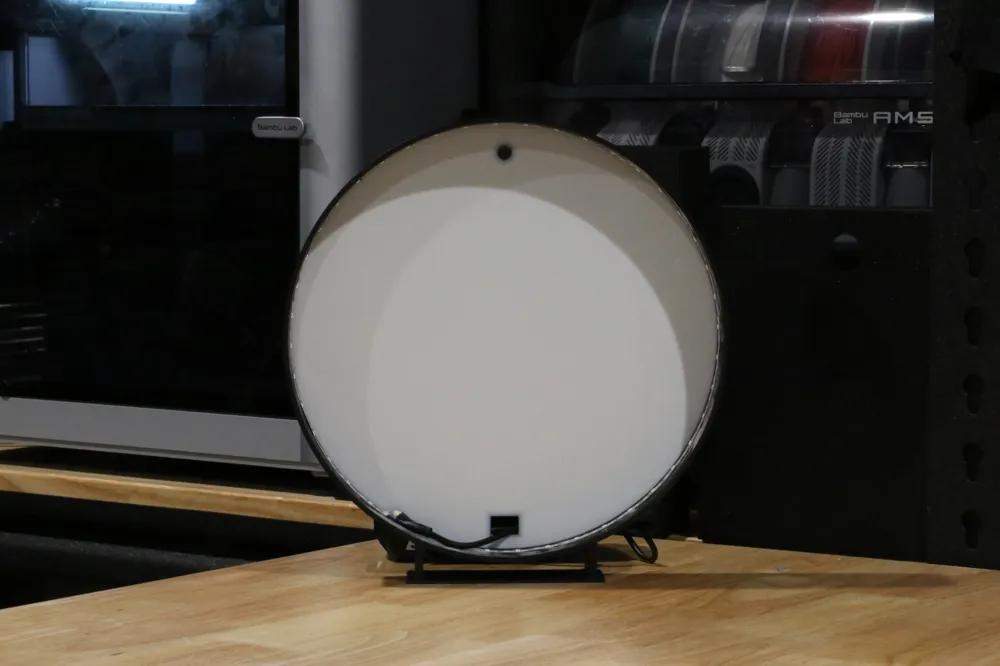

A dedicated channel is included to fit a standard LED light strip, with the internal structure optimised for easy wiring and straightforward installation. I've added photos showing the internal layout to guide setup. For best results, position the LED strip close to the rear panel—this helps the light diffuse more evenly across the front plate.

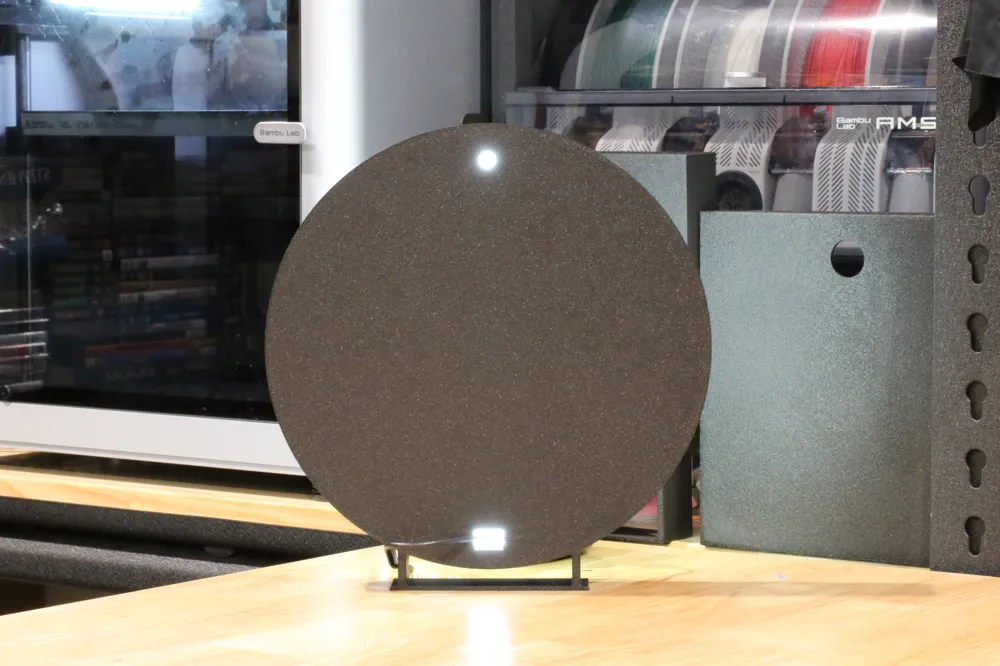

The rear plate is 2mm thick for added durability, and the inside is white to improve light reflection and illumination. If you’d prefer not to use multi-colour printing for the backplate, highlight it in Bambu Studio, press “N” to enter painting mode, and select ‘Erase All Painting’ to revert it to a single colour.

Note:
To make things easier for my commercial members, all beer light boxes marked with this note use the same rear box and stand design. This allows you to print multiple front plates in advance and swap them as needed—no need to reprint the back each time.

I'm designing popular drinks from around the world! Check out the collection so far below:
https://makerworld.com/en/collections/7040495-drink-light-boxes

Details:
• Modelled after the Miller Lite beer logo
• Standard LED strip channel included
• Internal layout optimised for easy wiring
• Stronger 2mm rear backplate
• White internal surface for better light diffusion
• Optimised X1C profile with minimal pinholes between filament joins

October 2025 Update

• A new Dual-Sided Light Box Bracket & Holder is now available!

• Mount your round light boxes to the wall and swap designs in seconds.

• Check it out here: https://makerworld.com/en/models/1936933-dual-double-sided-light-box-bracket-holder

Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.

All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).
