Project Idea: LED Nameplate "Ayleen" with WS2812
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
6.9 h
3 plates
Open in Bambu Studio
Boost
1
7
0
0
1
0
Released
Description
Content has been automatically translated.
📦 Design & Assembly

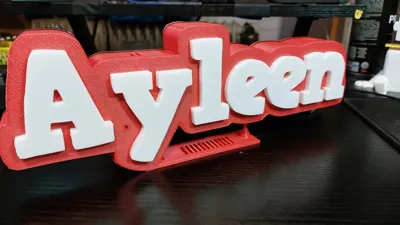

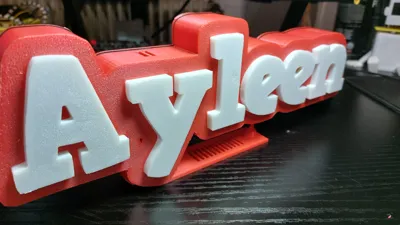

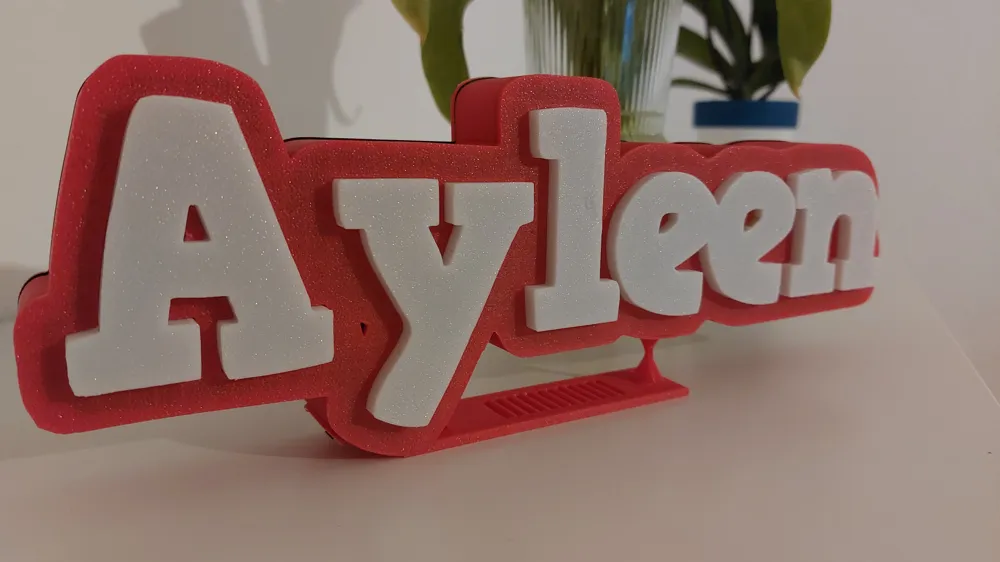

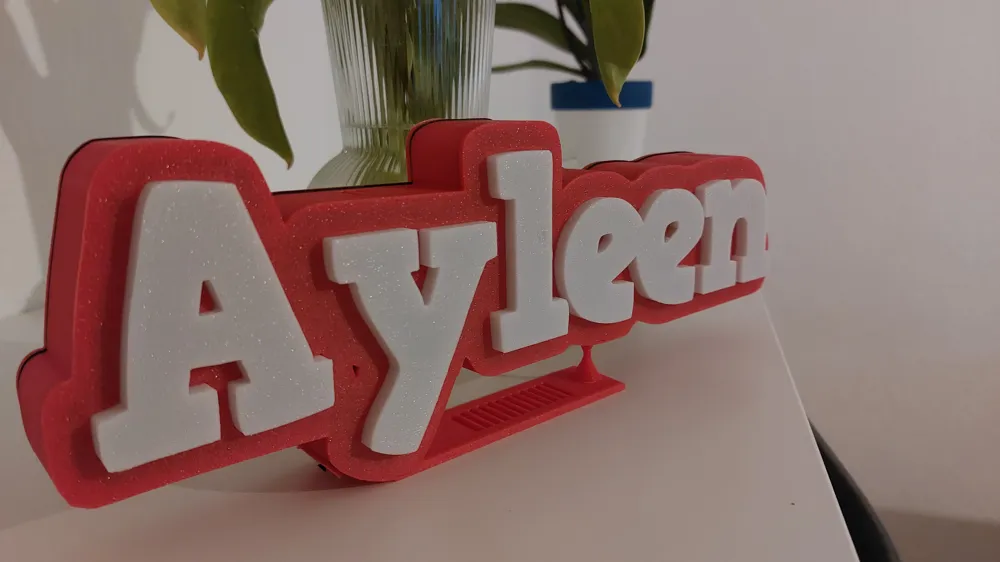

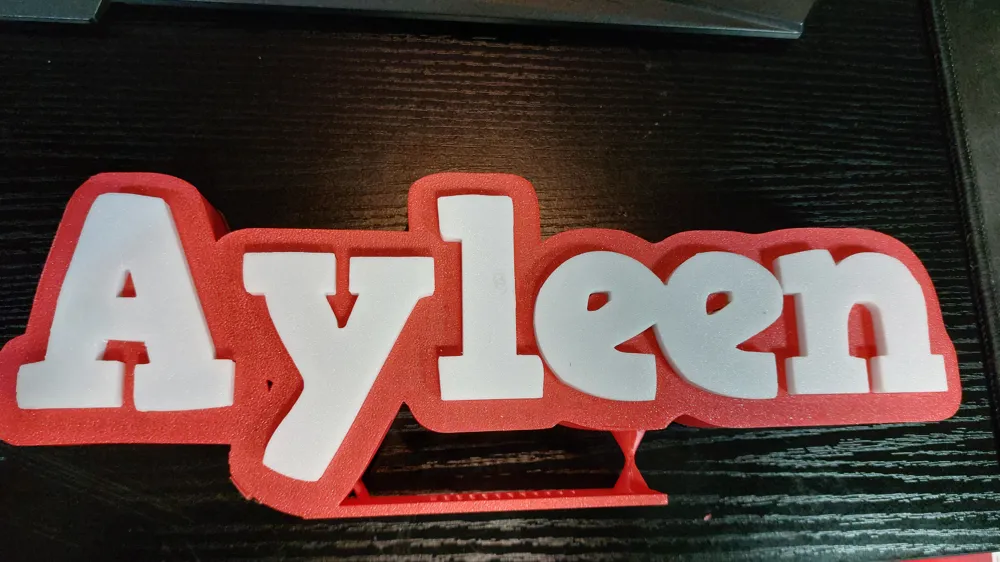

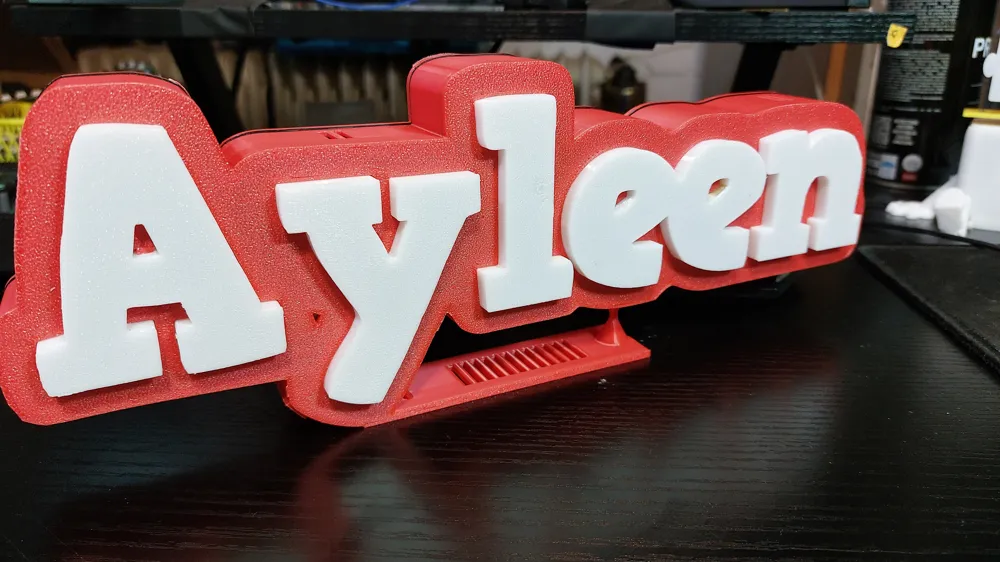

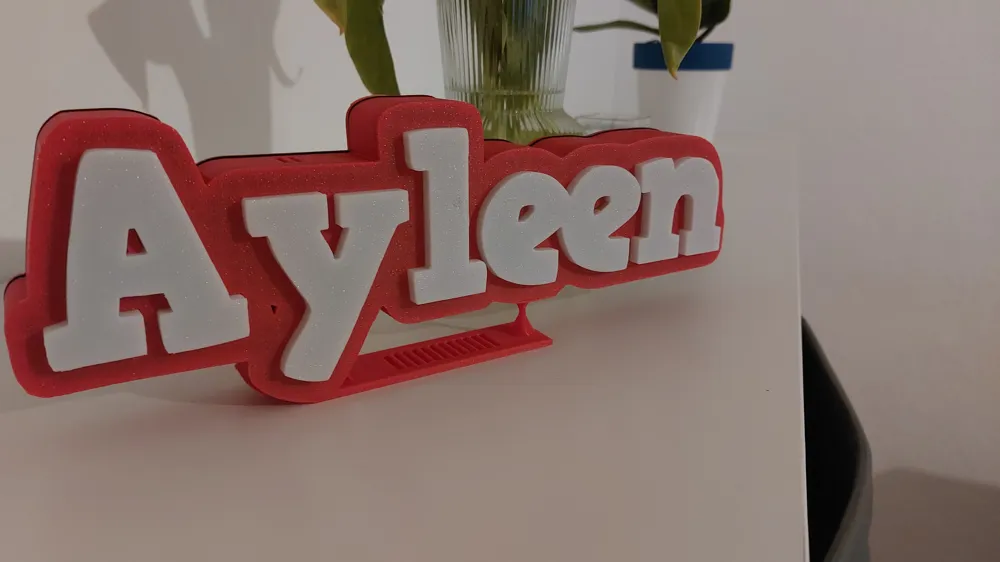

- Name: Ayleen (as a 3D lettering or engraved)

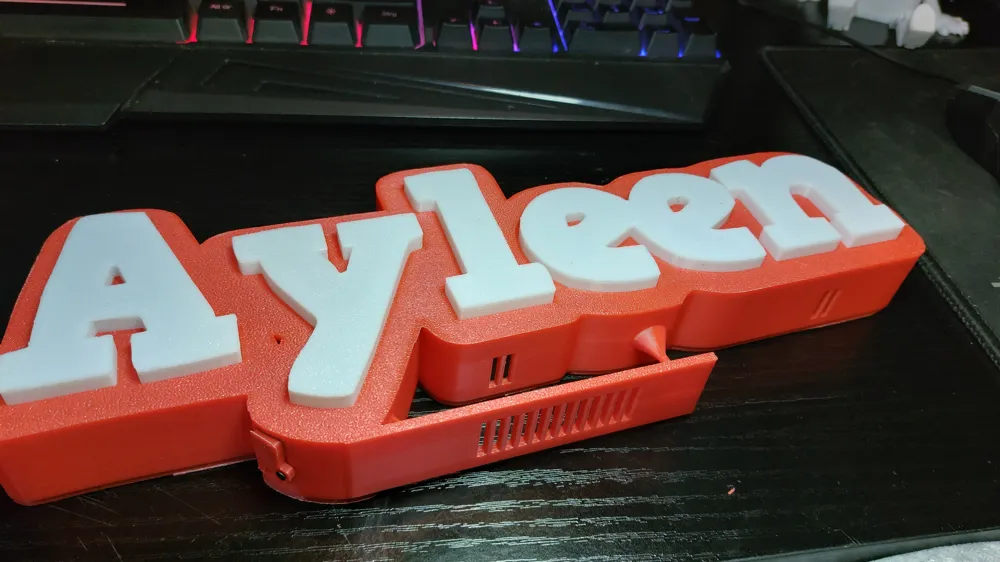

- Material: PLA, in 3 parts:
- Back part: with space for electronics, USB cable, and wall mount
- Middle cover: for fixing the LEDs and structure

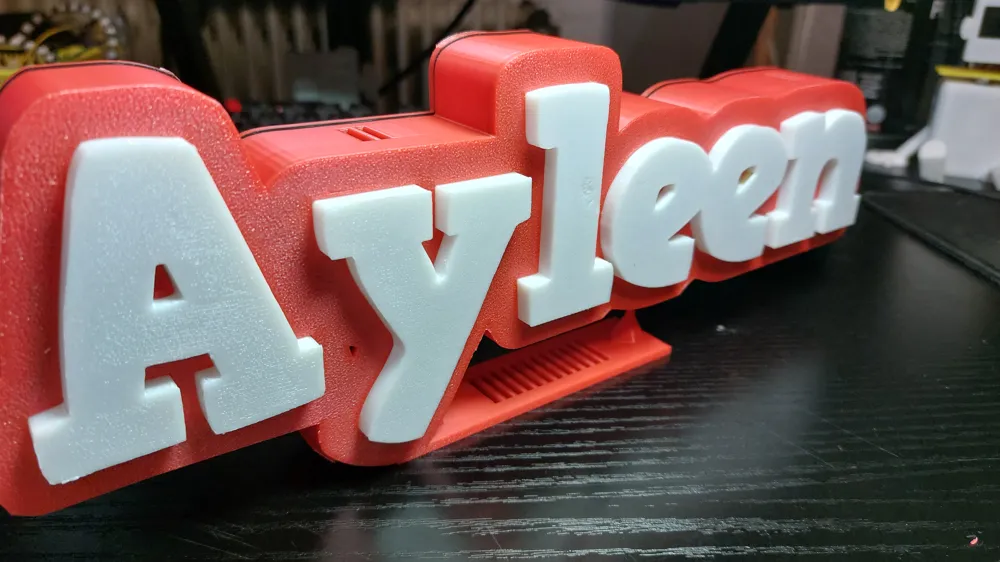

- Front part (white/diffused): for beautiful light distribution
- LEDs: WS2812 (e.g., LED strip) – individually addressable, perfect for dynamic effects
- Controller: e.g., ESP8266 (D1 Mini) or ESP32-C3/S3, flashed with WLED
- Connection: USB cable output on the side or back
- Logo: integrated 3D logo (on the back or front)
- Design Note: Original design, not for commercial use
💡 Functions & Features
- WLED-compatible: control via WLAN/smartphone, many lighting effects
- Space for electronics: provided in the back part – neatly stowed away
- USB access: direct charging or constant current via USB cable
- Mounting options:

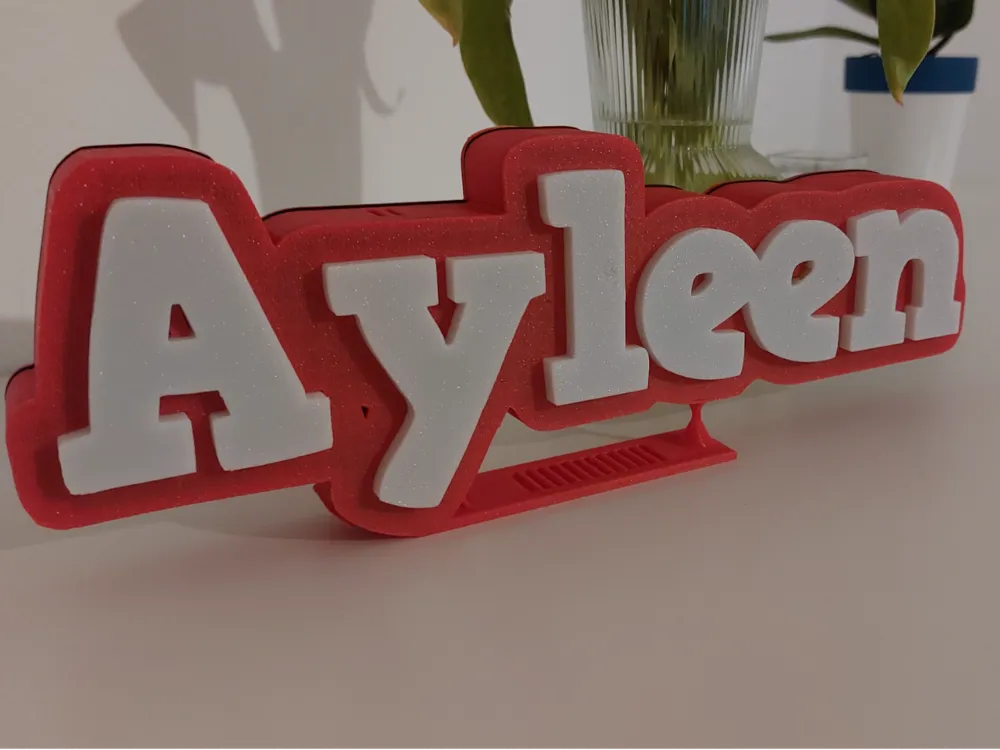

- As a table lamp: simply place it down – stable stand thanks to the back part

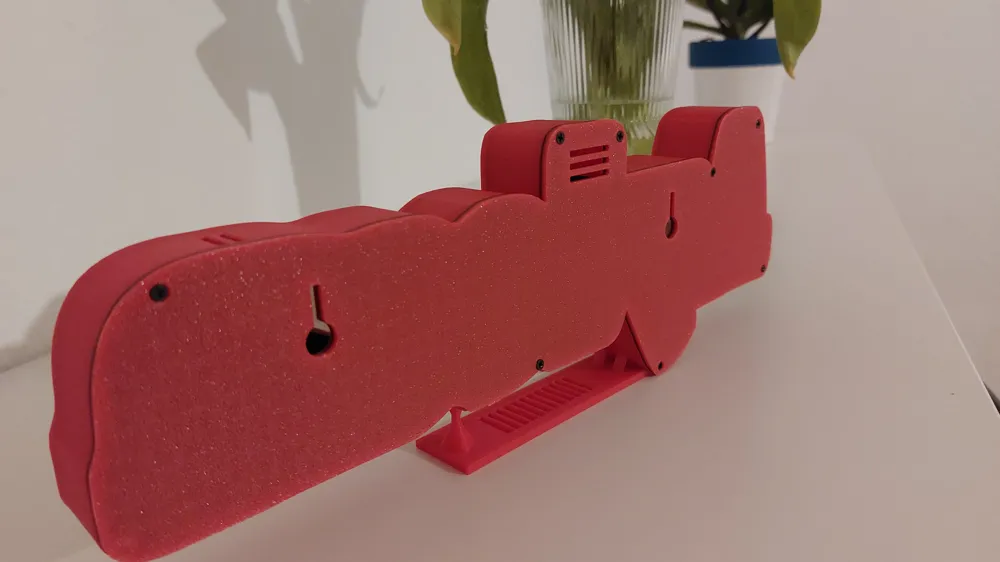

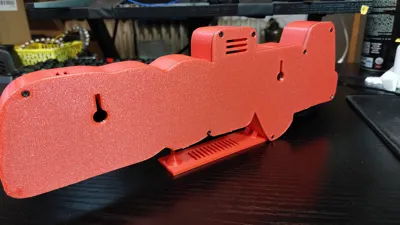

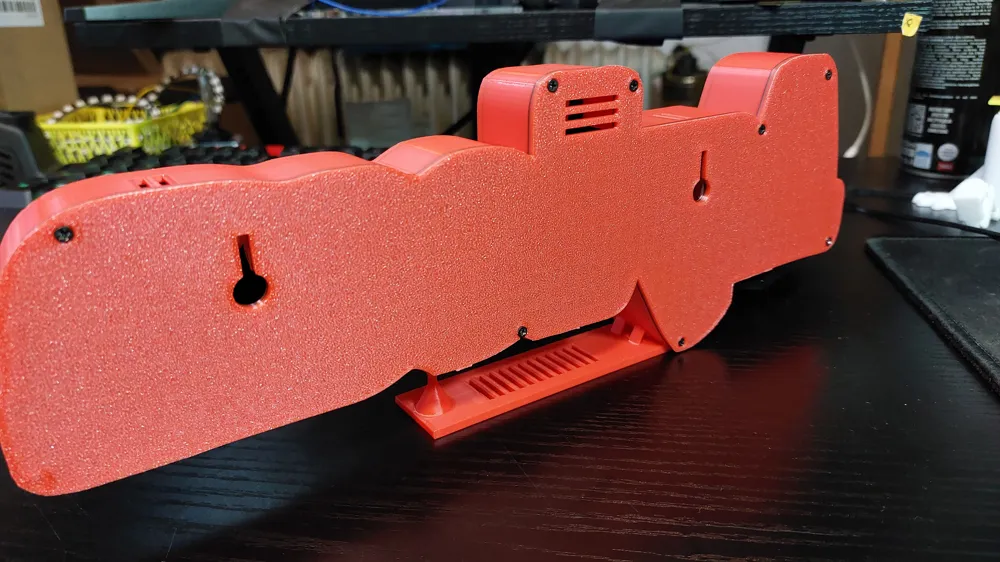

- For wall mounting: special space at the back prepared for screws/hooks
🛠️ Possible Extensions
- Button for effect switching
- Touch or motion sensor
- Battery option (e.g., 18650 with charging module)
