Collection of 14 metric washers M2.5 - M24
Print Profile(1)
Description

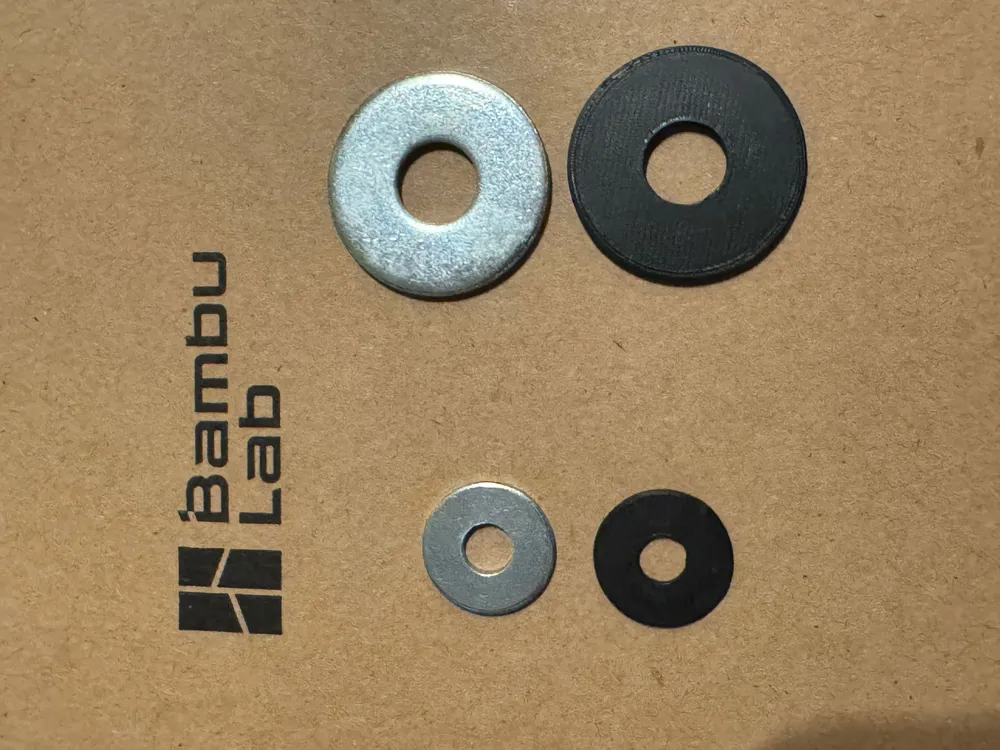

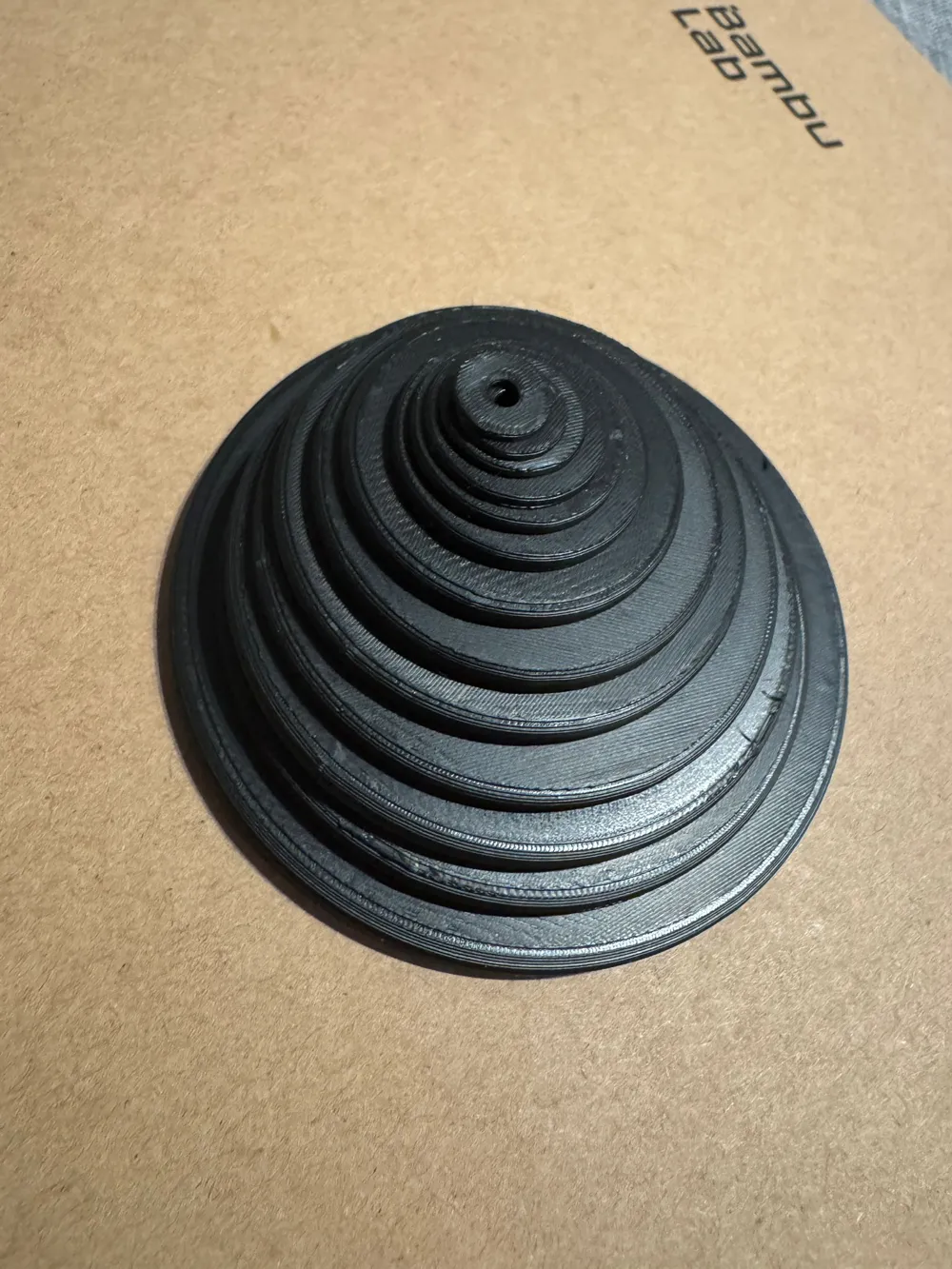

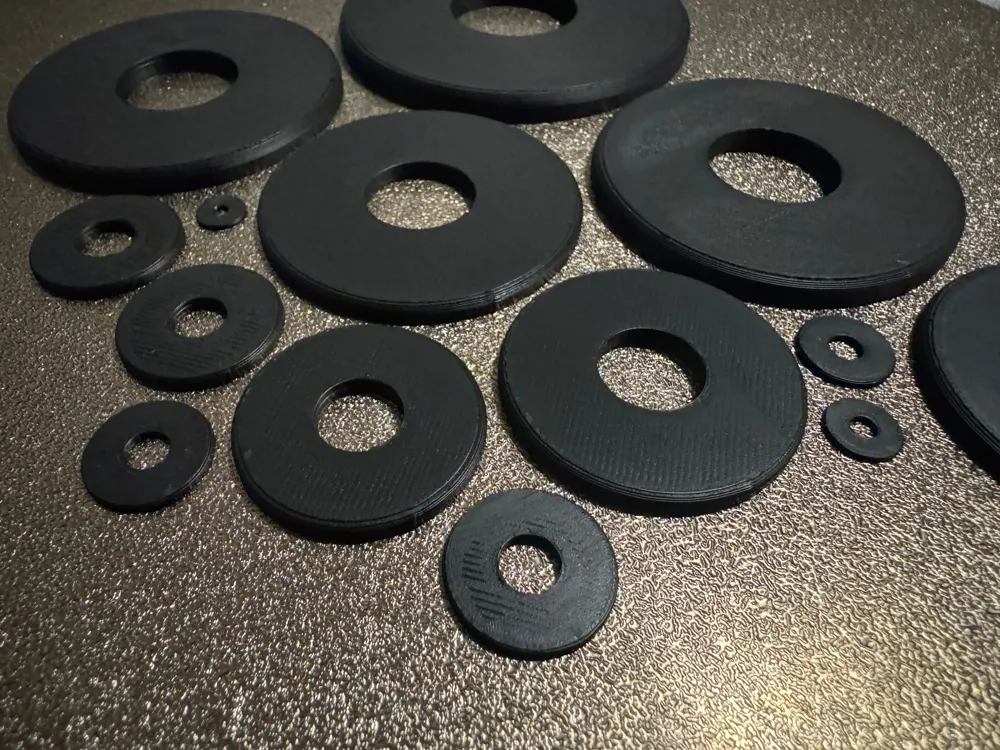

A collection of 14 metric washers ranging from M2.5 to M24.
All washers are dimensioned according to DIN 9021 (ISO 7093).
Included washers:
M2.5, M3, M4, M5, M6, M7, M8, M10, M12, M14, M16, M18, M20, M24

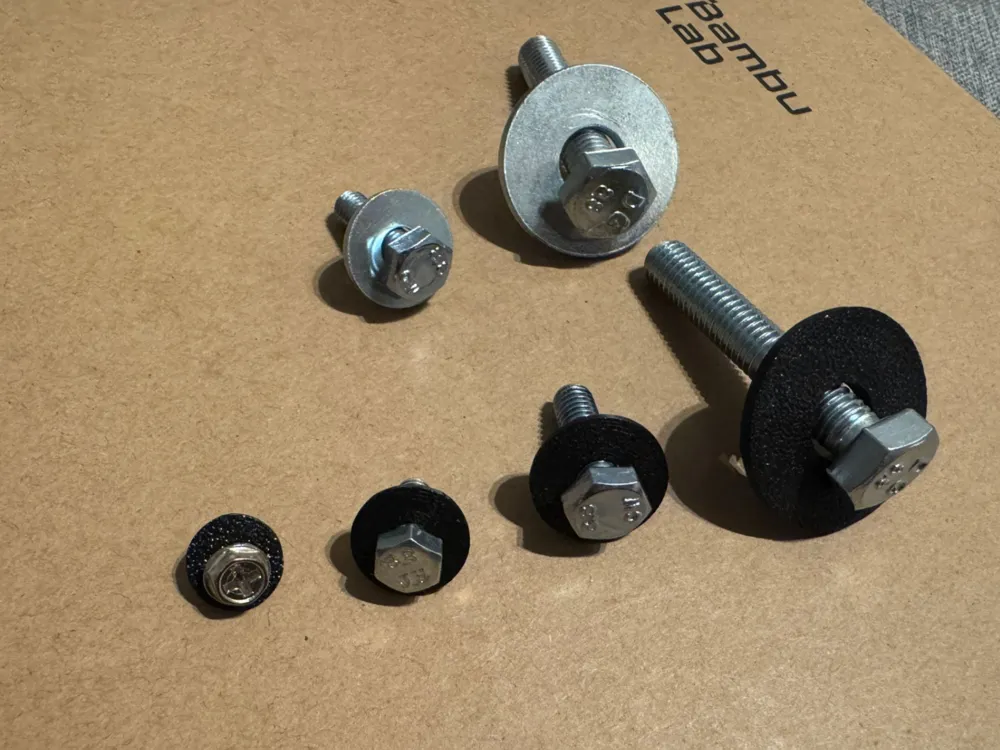

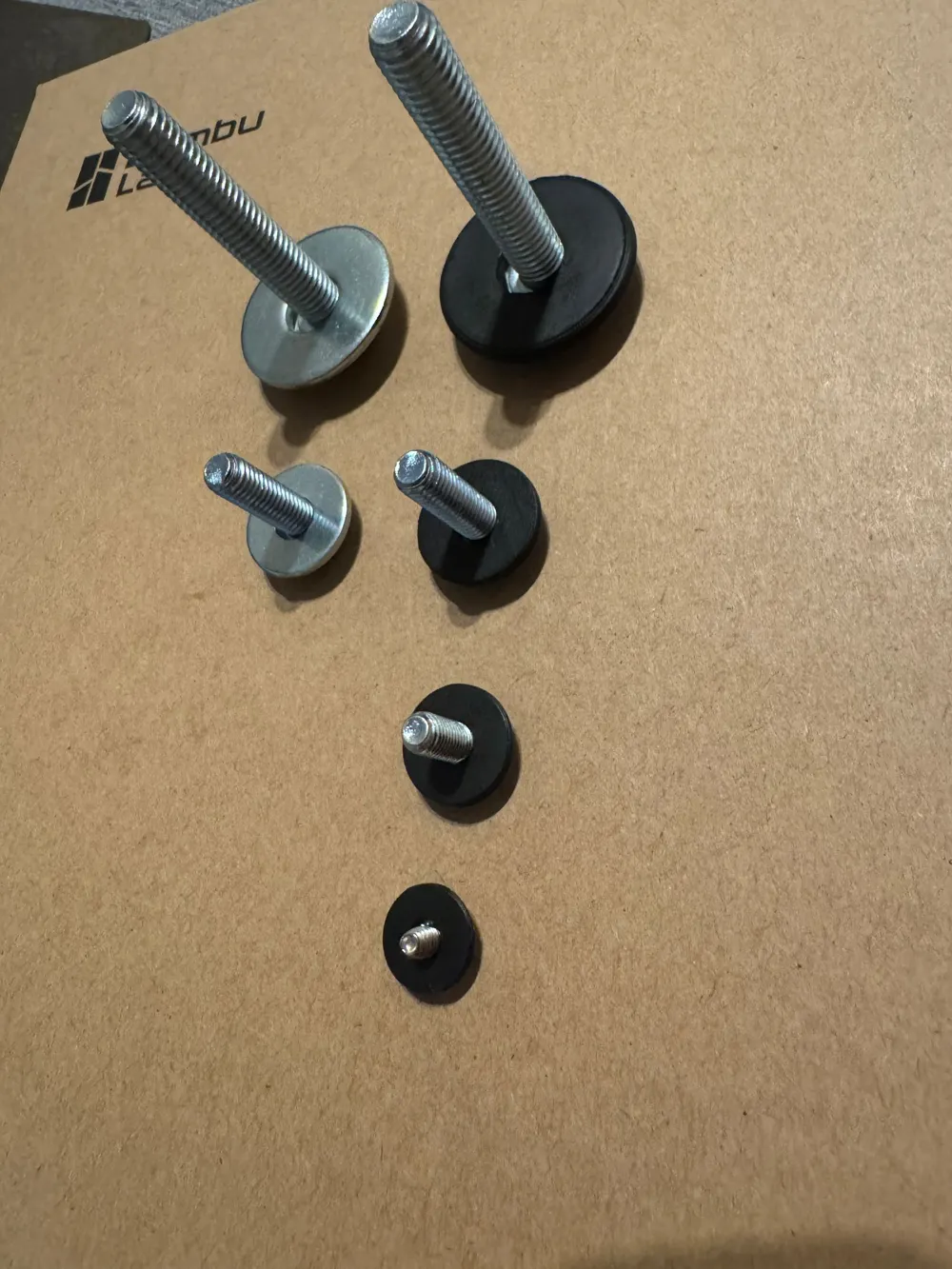

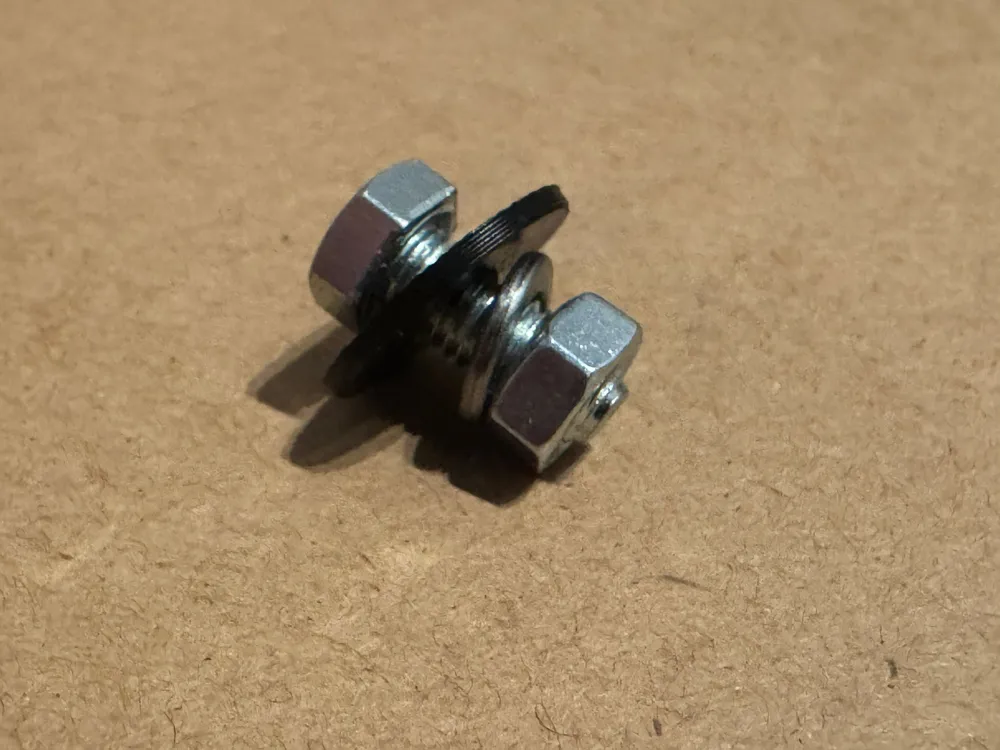

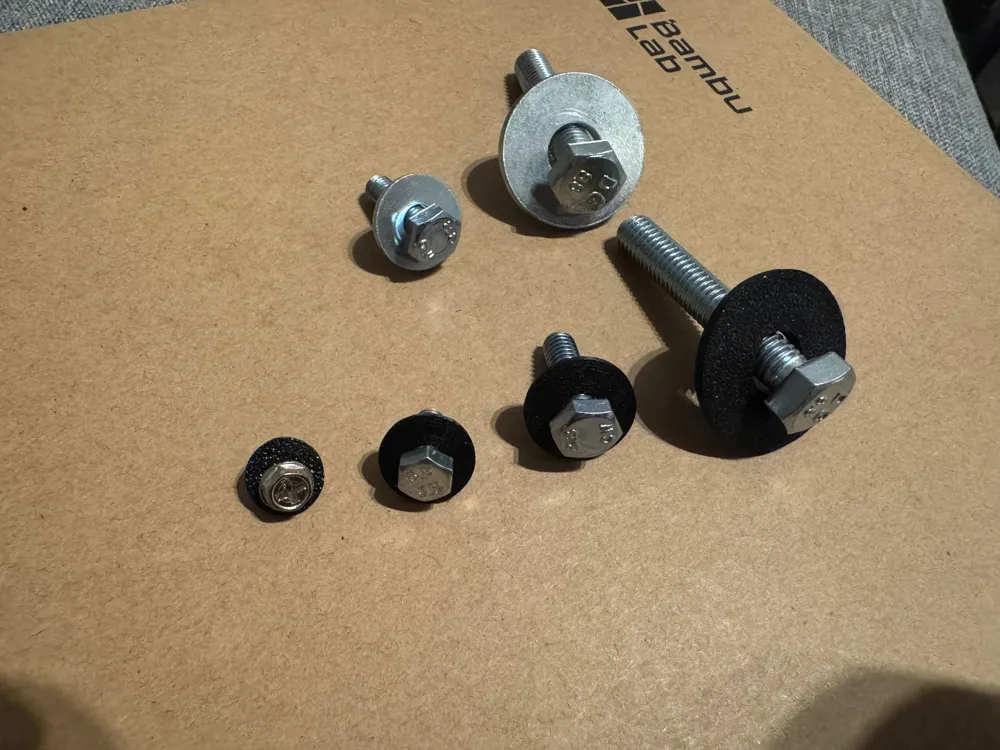

Useful for protecting, for example, spring rings or metallic washers from painted or soft substrates.
Or in case different noble metals need to be protected from each other (diffusion/contact corrosion).
The required washer height can of course be adjusted as desired.

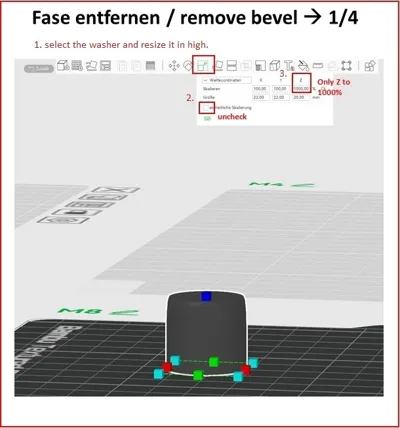

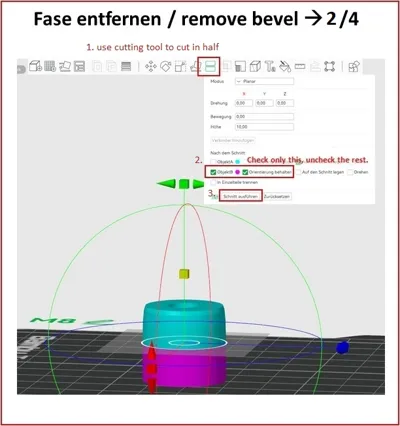

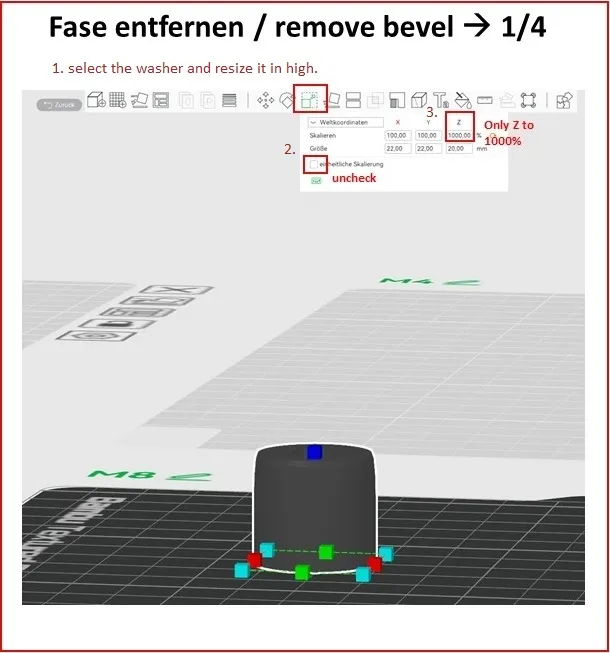

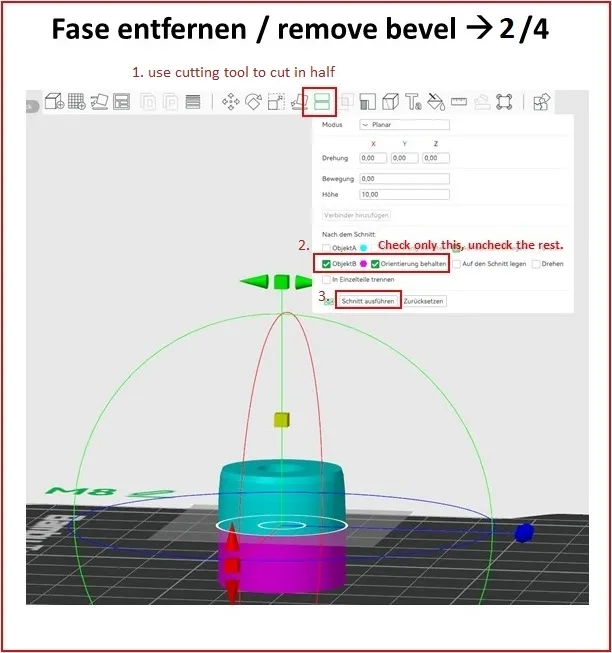

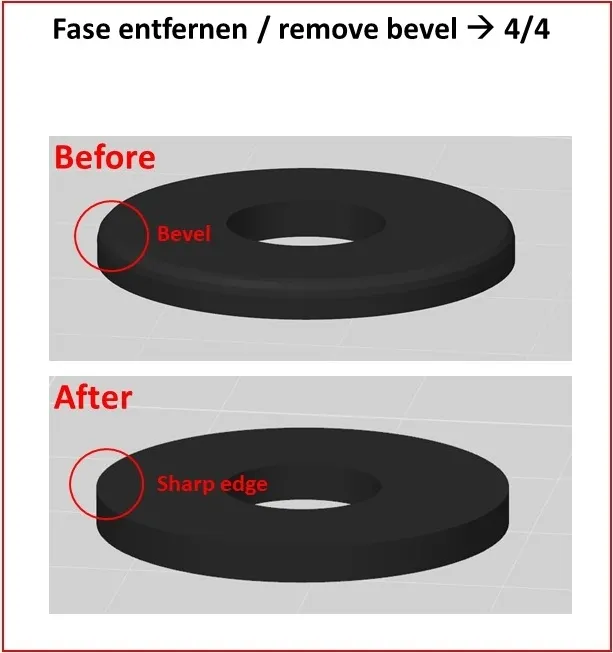

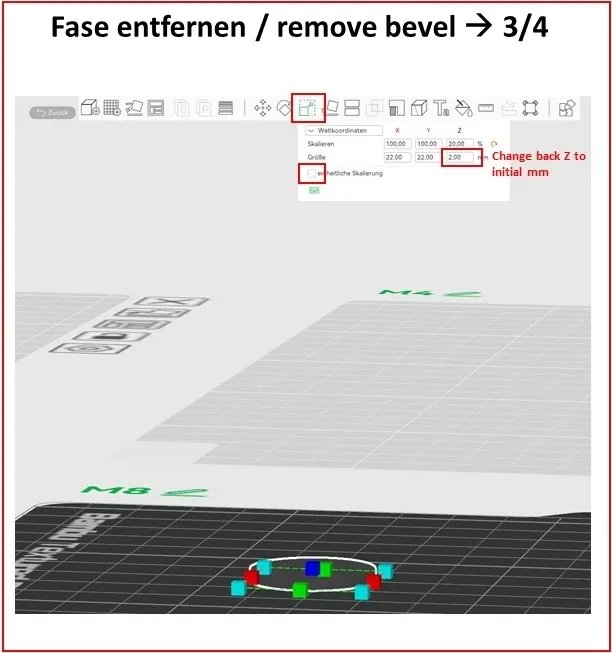

The images contain a short instruction on how to remove the chamfer if necessary.

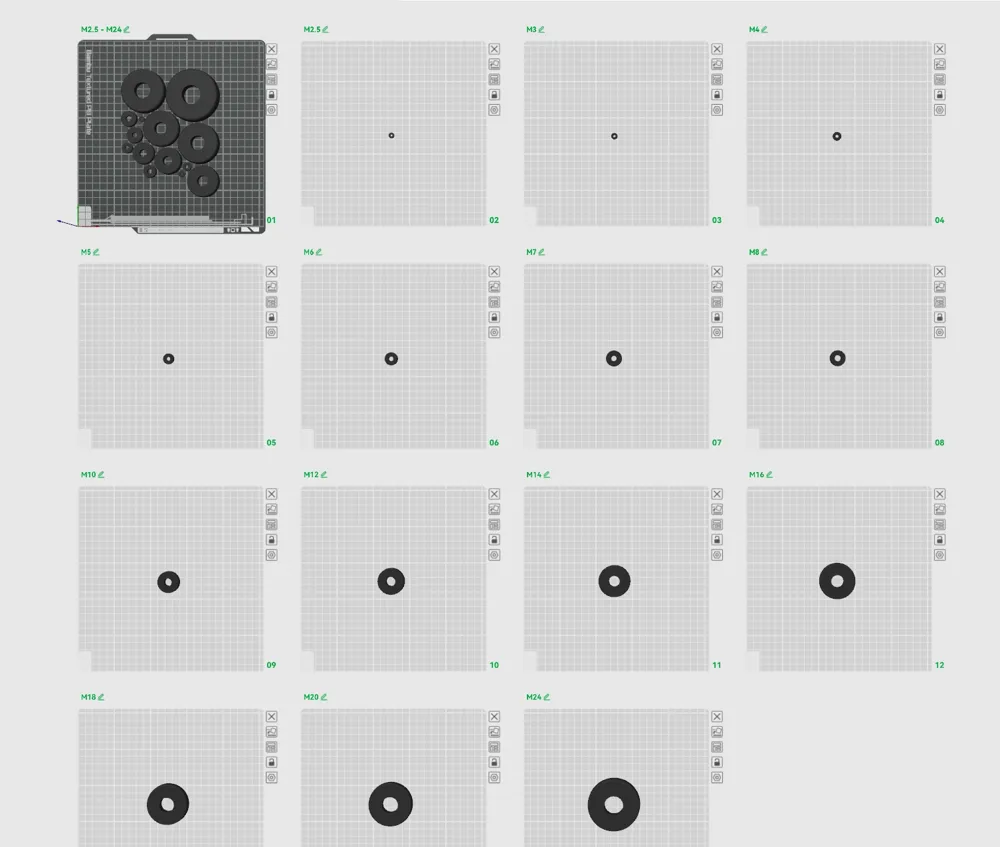

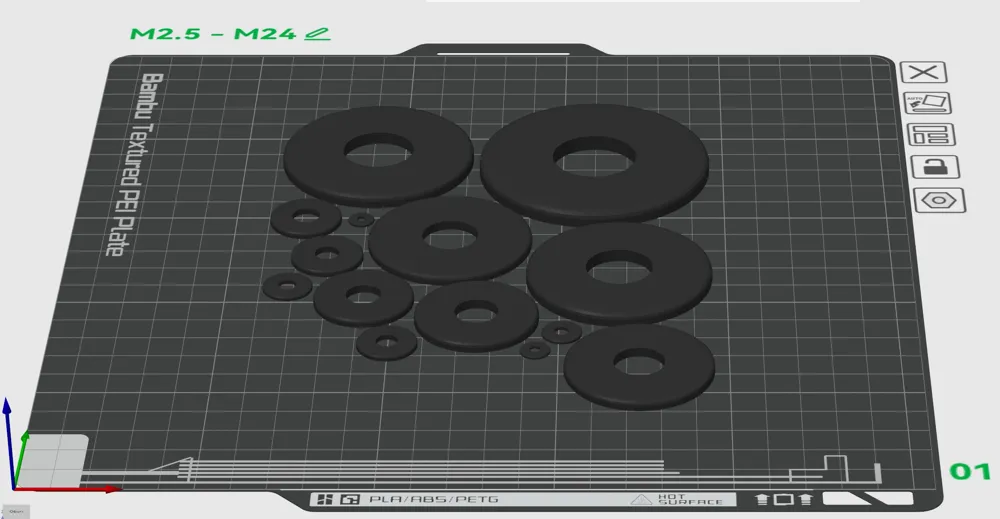

The washers are on separate print plates, pay attention to the print plate description to find the correct washer 😉.
