UPDATE 20th April 26: I added a new print profile to this collection. It allows fully 3d Printed mounting in 5mm Furniture holes.

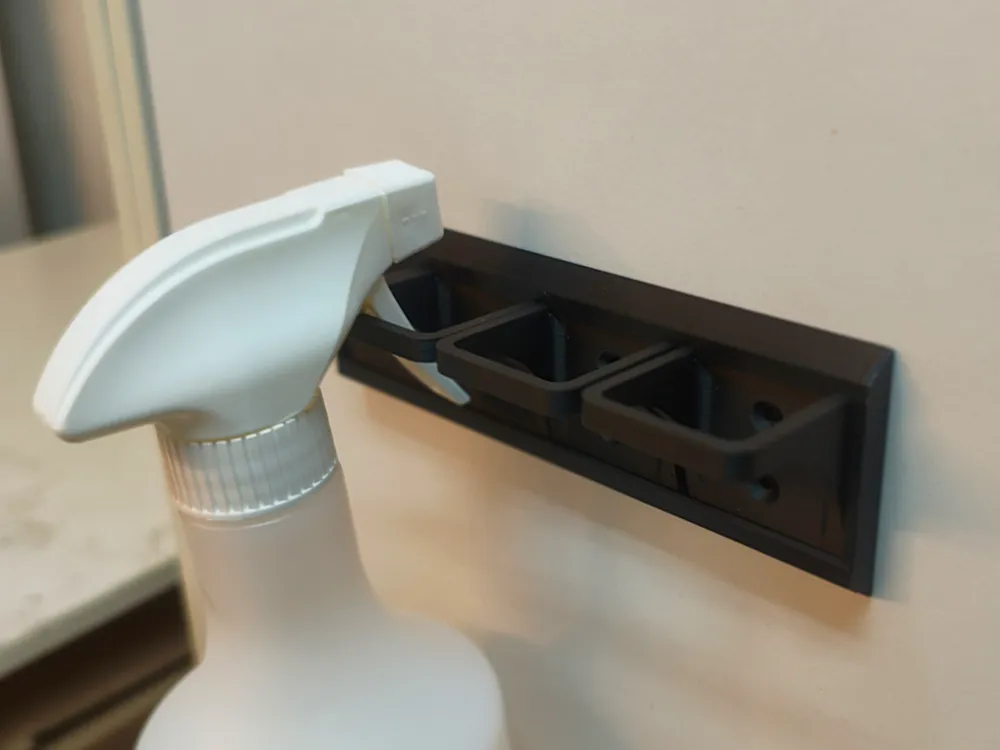

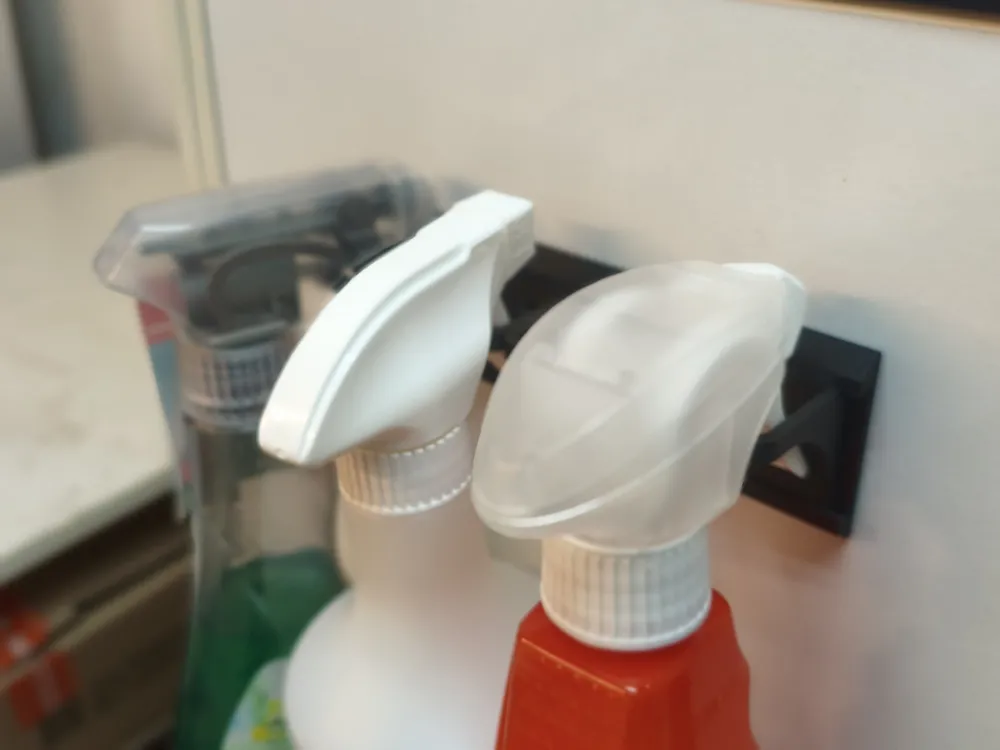

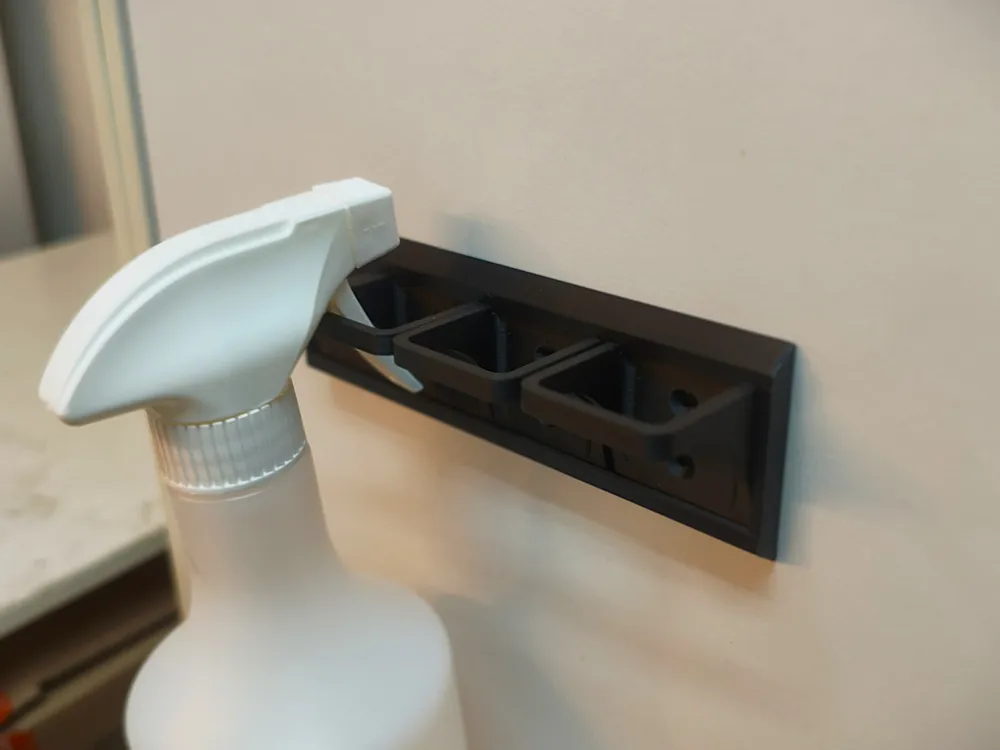

This adjustable wall-mounted rail system is designed to hold up to four spray bottles using slide-in hooks. Perfect for organizing pump sprayers in your workshop, garage, or cleaning station. The hooks can be spaced flexibly for larger bottles, and the rail mounts securely using screws. The mounting holes on the rail have countersinks so the screws mount flush and the slide-on mechanism works. Both ends of the rail can be plugged with the plugs in the file to achieve a clean look.
Hooks can also be mounted without the rail.
Modular, functional, and easy to print – great for PETG or sturdy PLA.

Edit 1: I added an profile with the rail, 2 Plugs and 1 Hook as the original placement of the parts didn't allow printing on the A1 Mini.

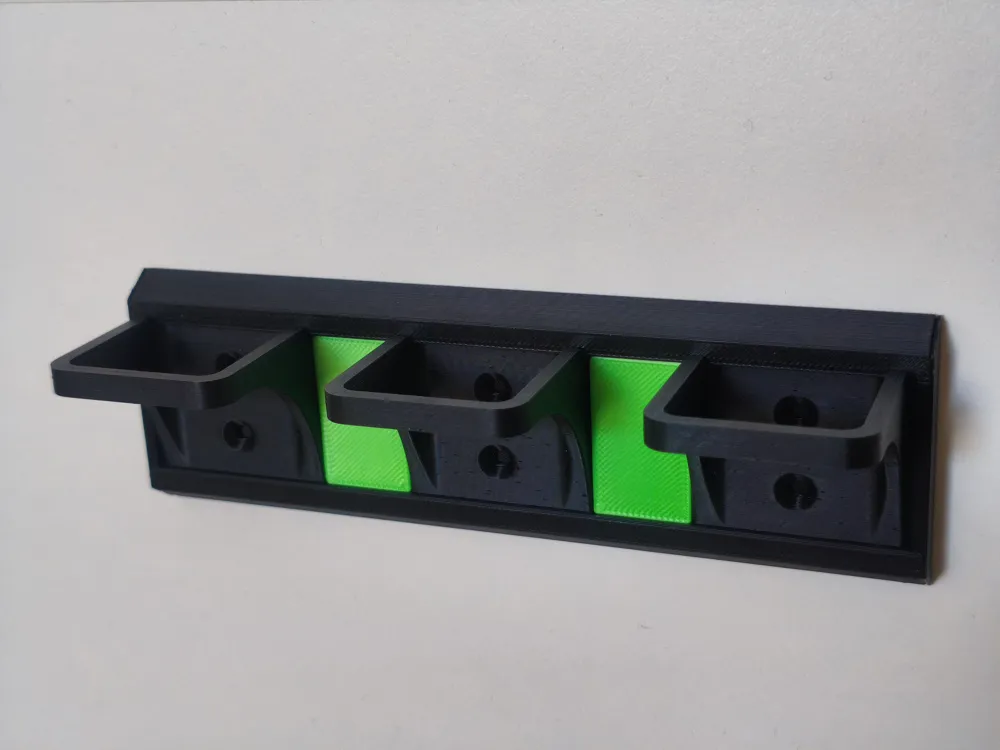

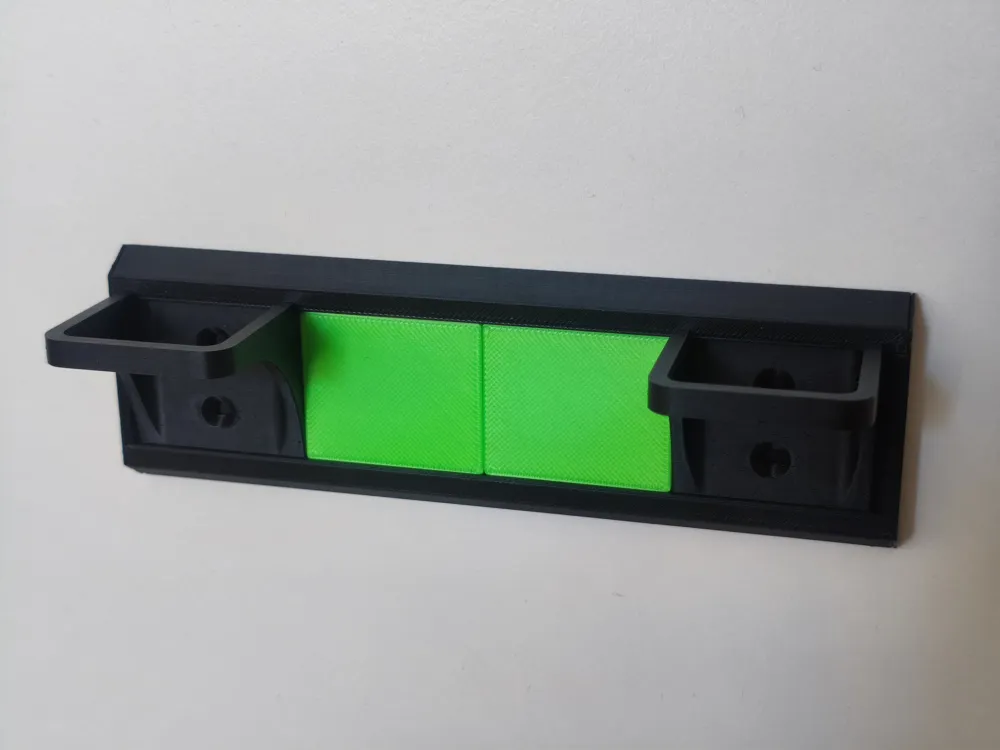

Edit 2: I added two profiles that contain spacer covers to evenly space the hooks inside the rail.
