Hydraulic Arm Robot
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
10.2 h
4 plates
Ender 3V2: 0.2mm layer, 3 walls, 15% infill
Designer
17.6 h
3 plates
Open in Bambu Studio
Boost
83
152
6
2
229
81
Released
Description

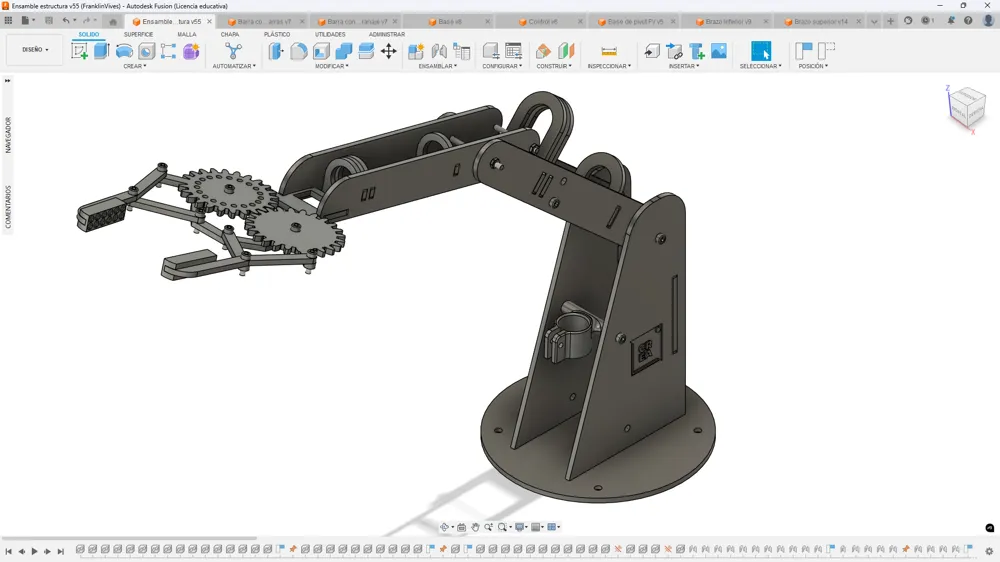

Hydraulic arm designed for 10ml syringes.
For the assembly the following wardare is needed:
- 3 - m4 x 50
- 3 - m4 x 45
- 2 - m3 x 35
- 8 - m3 x 10 (m3 x 12 will also work)
Using washers is recomended for a smoother movement but not strictly requiered

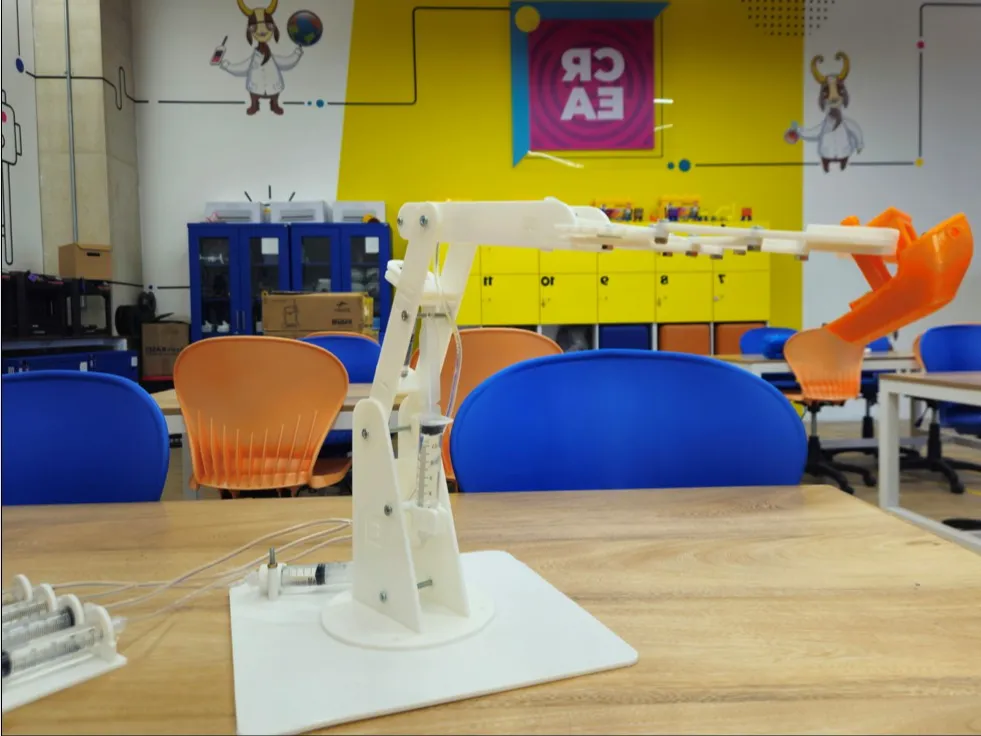

Here's a demo of the arm working; hope you like it
