LED Matrix Case 64x32 x 2 Displays - Adafruit
Print Profile(1)
Description
Combine two (2) LED Matrix Panels.
Modification of the model from Lame_Dave - https://www.thingiverse.com/thing:5701517/files. Special thanks to Lame_Dave for making the original model.
This model is for the Adafruit LED Matrix Panel 64x32. The model combines two 64x32 LED Matrix Panels with a small gap in between the two panels.

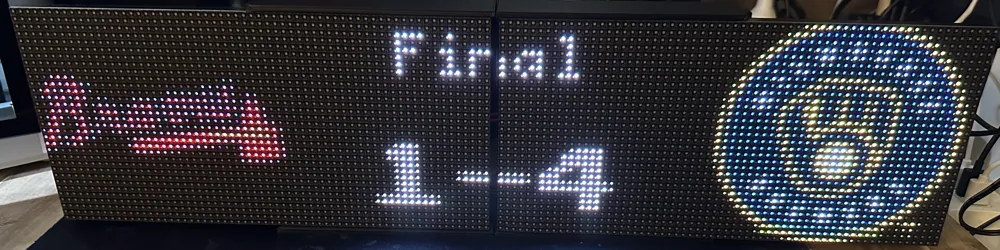

The scoreboard project details and code can be found here (Chuck Builds): https://www.chuck-builds.com/
Youtube video:

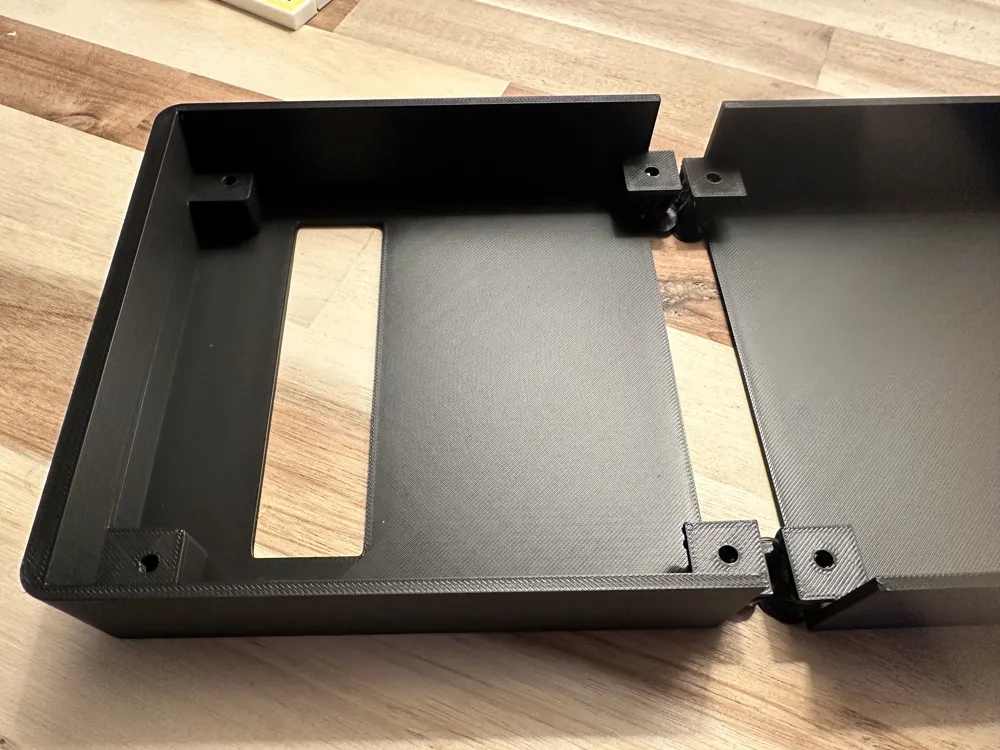

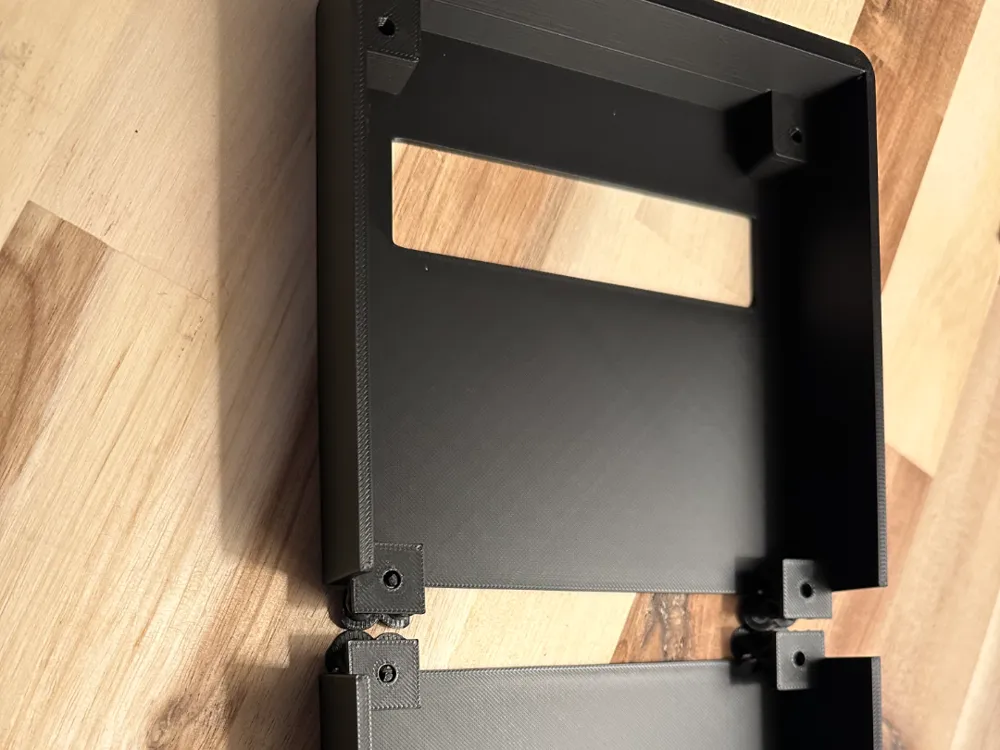

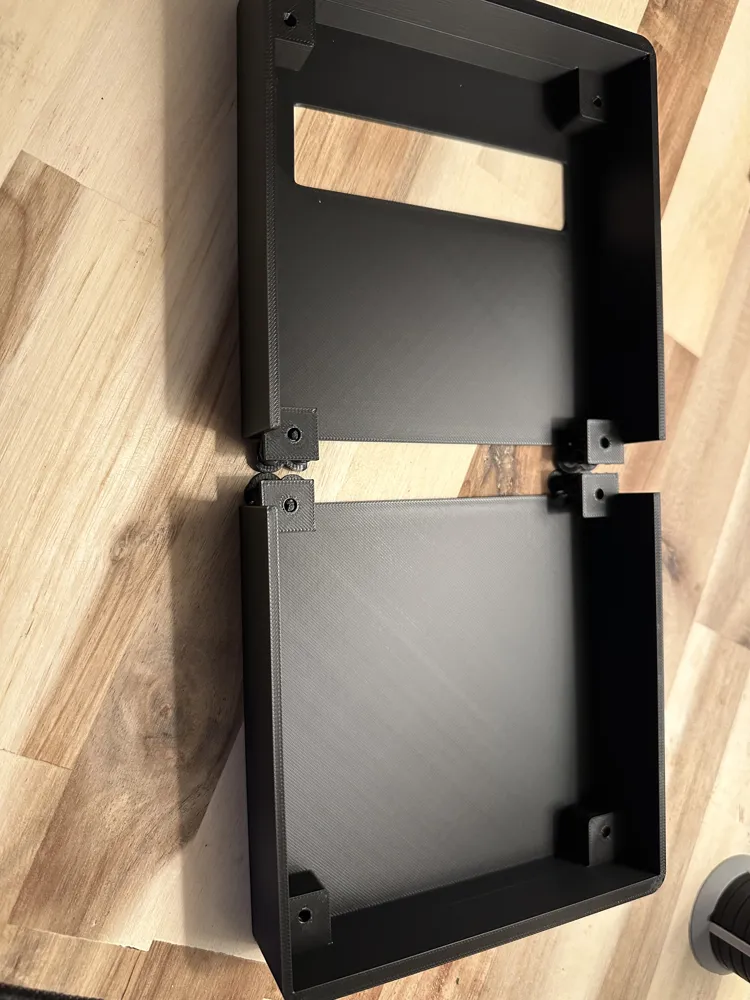

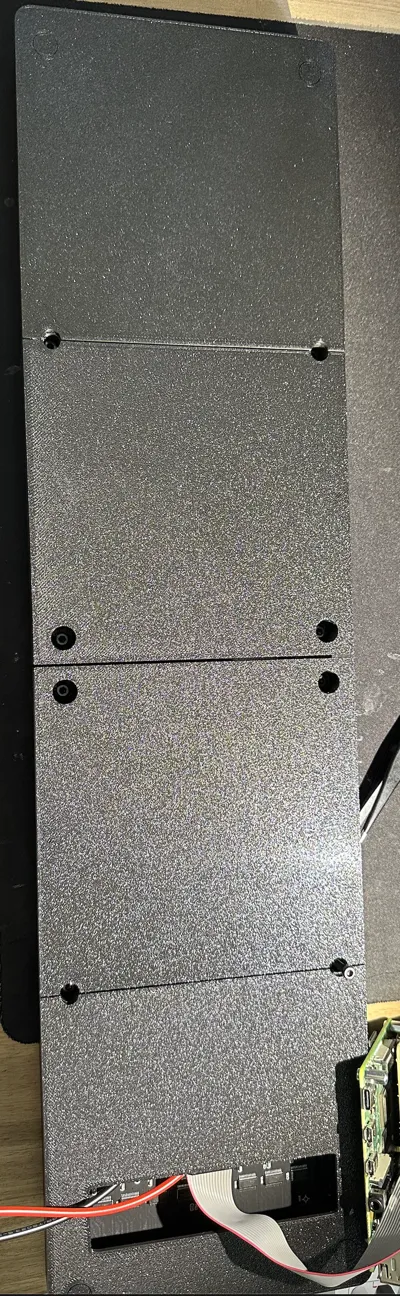

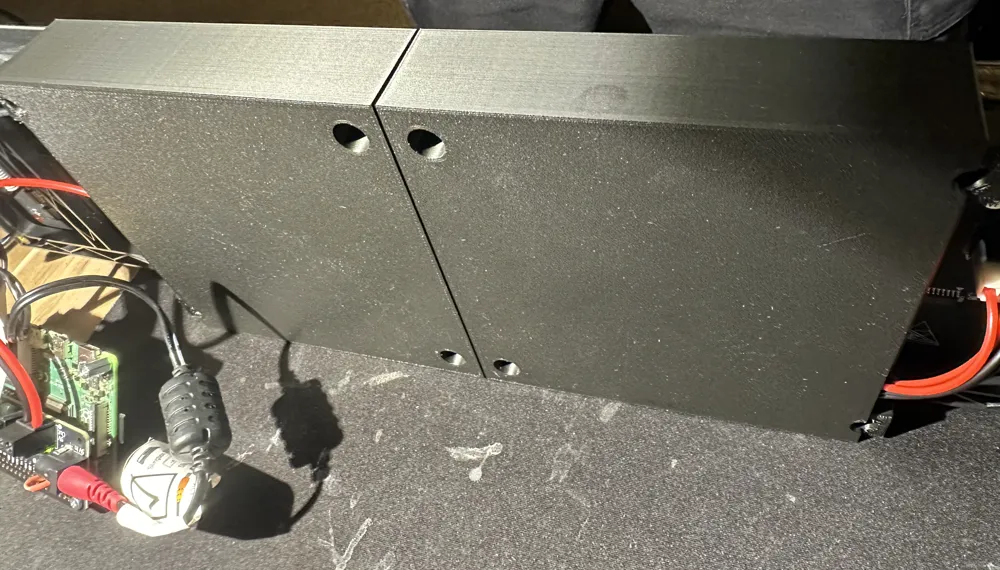

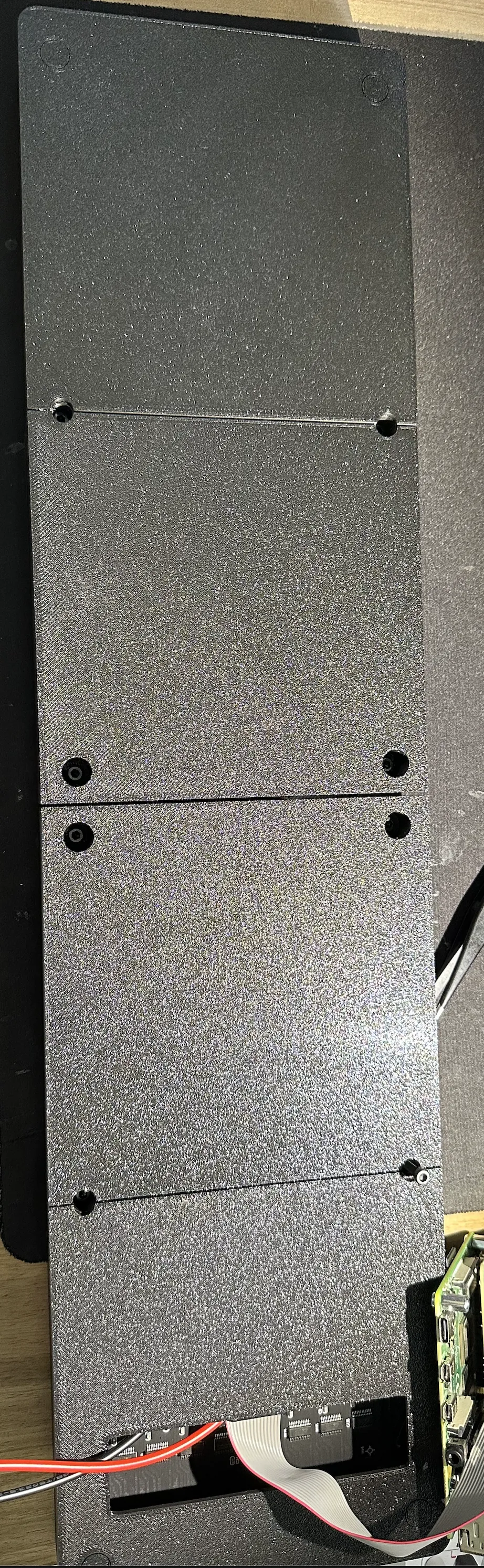

To assemble the case, the left-middle and right-middle cases have small braces that are printed and placed between the display and case then screwed in with M3 screws from the back. The ends of the case slide into place and are then screwed in from the back to the display.
