🌀 RadGauge – Radius Measurement Tool

Radgauge is an innovative device designed to quickly and accurately measure the radius of a curved surface. Currently, various designs are available depending on the measurement range and function, and the characteristics of each design can be checked in the table below.

(Click on the letters in the table to go to the page where you can print the design.)

Regular version of RadGauge here. (There are something to read about this tool)

RadGauge Family

Name	Measure Range (Radius)	Scale Unit	Measure Location	Size (mm)	Scale Type
RadGauge	1~50mm	metric	Outter Round	81.3 x 70.7 x 6.4	enlarged arch
RadGauge MEGA	1~80mm	metric & imperial	Outter Round	136.4 x 113.1 x 7.0	enlarged arch
RadGauge NANO	1~30mm	metric	Outter & Inner Round	62.5 x 50.7 x 5.8	enlarged arch
RadGauge GIGA	50~160mm	metric & imperial	Outter Round	144.8 x 130 x 8.2	enlarged arch
RadGauge-X (need bearing)	1~50mm	metric	Outter Round	81.3 x 70.7 x 6.4	enlarged arch
RadGauge-Dual	1~50mm	metric or imperial	Outter & Inner Round	85.3 x 84.0 x 5.8	1:1 linear
RadGauge-Dual MEGA	1~80mm	metric or imperial	Outter & Inner Round	120.3 x 130 x6	1:1 linear
RadGauge-Dual NANO	1~30mm	metric	Outter & Inner Round	58.4 x 54 x 5.3	1:1 linear
RadGauge R-MAN	1-30mm	metric	Outter Round	60 x 60 x 5.3	1:1 linear

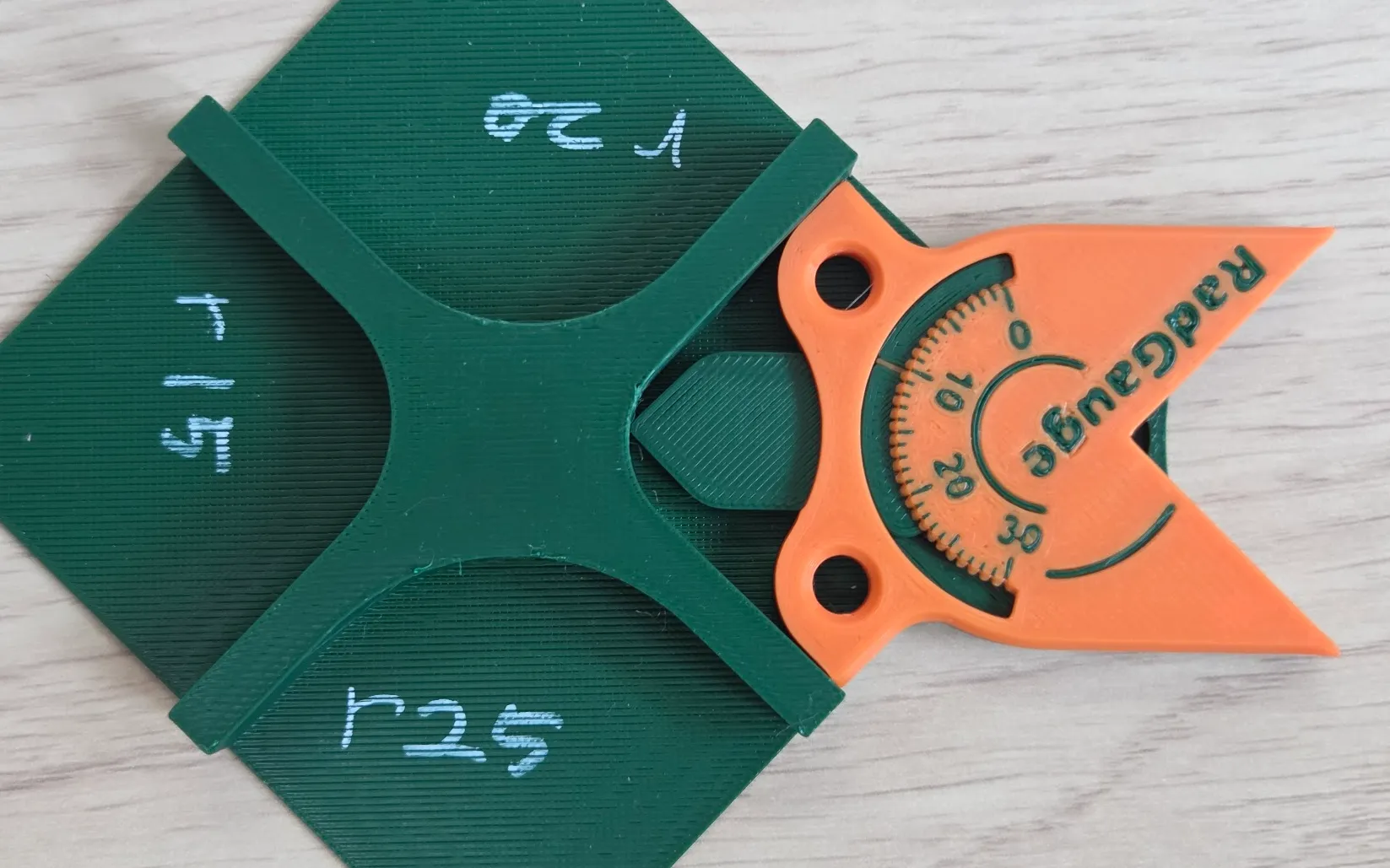

RadGauge NANO is ready for those who need to measure inner corner radius or want to carry everywhere.

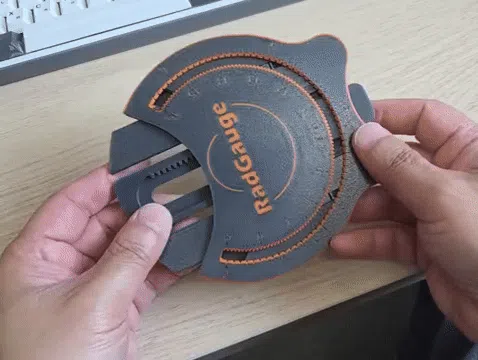

RadGauge GIGA is ready for those who need to measure even larger radius.

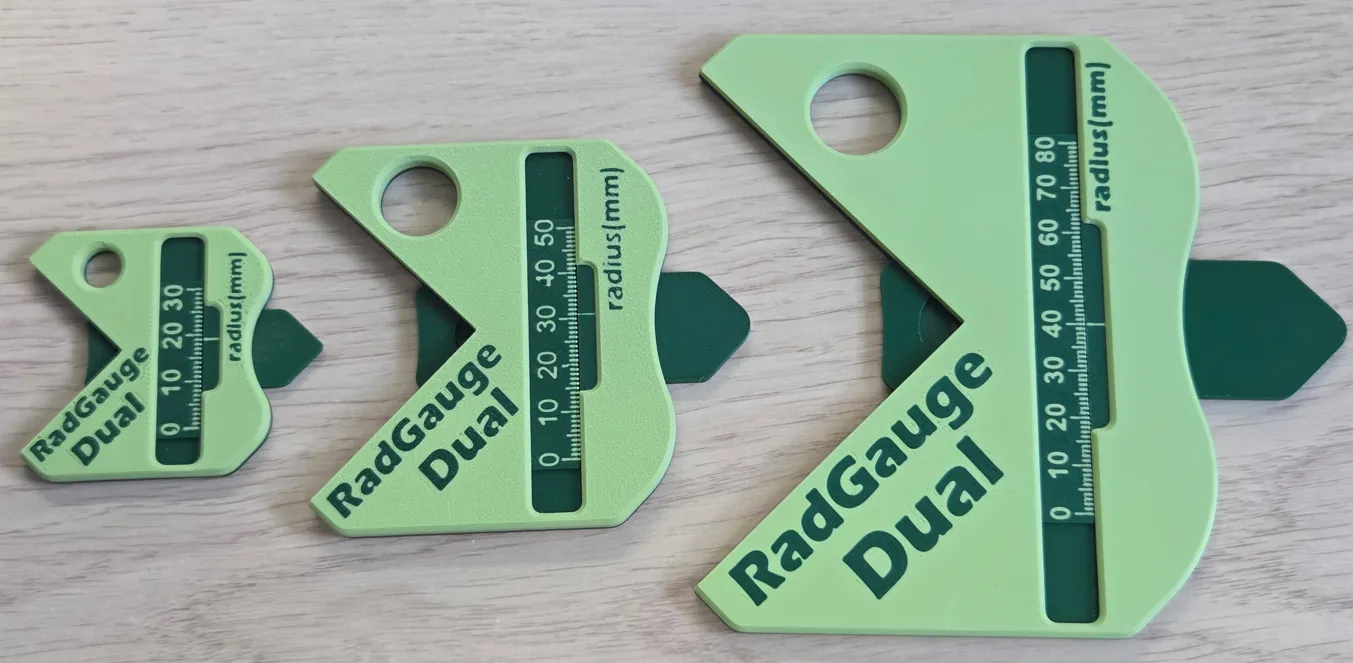

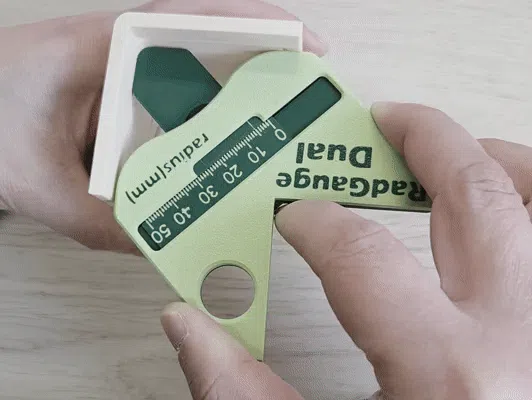

The RadGauge-Dual is a unique device that can measure both outer and inner radii up to 50 mm with a 1:1 linear scale.

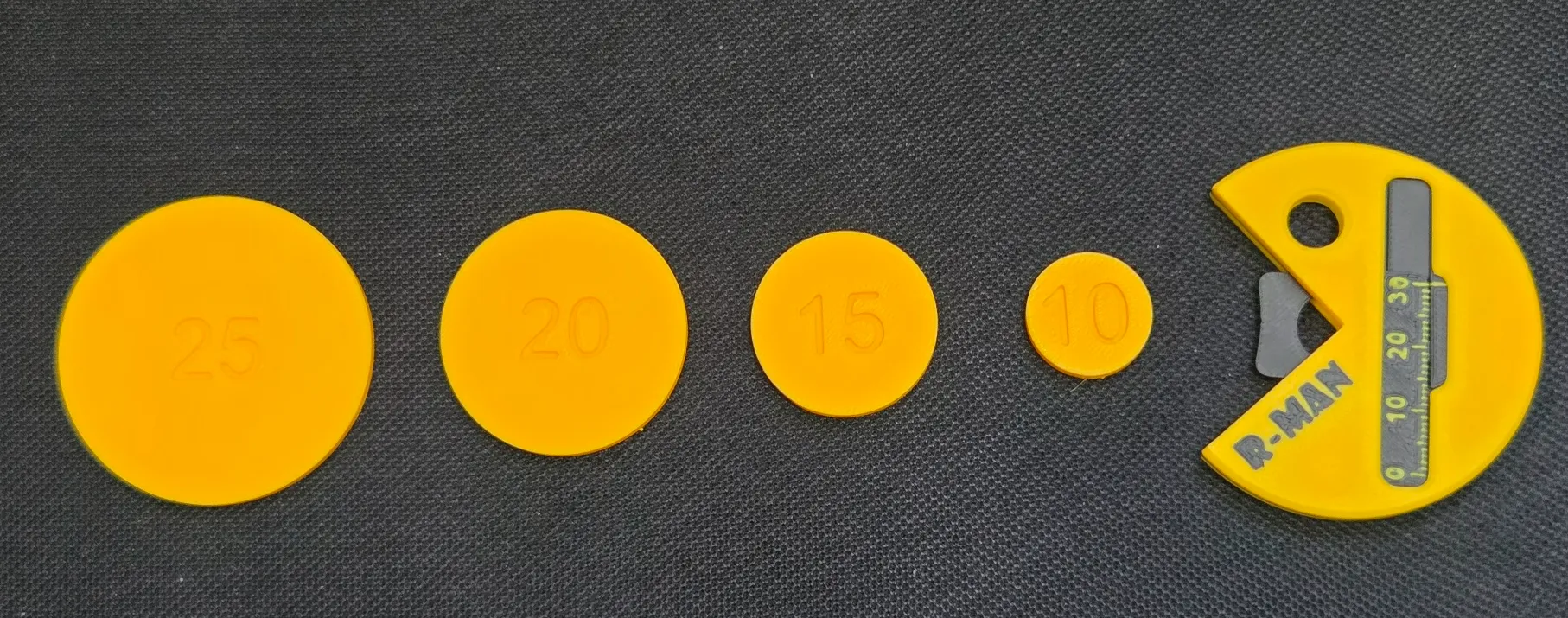

If you love old games, or something cute for keyring, R-MAN is ready for you.

RadGauge MEGA – Extended Radius Gauge (Up to 80mm)

📝 Description:

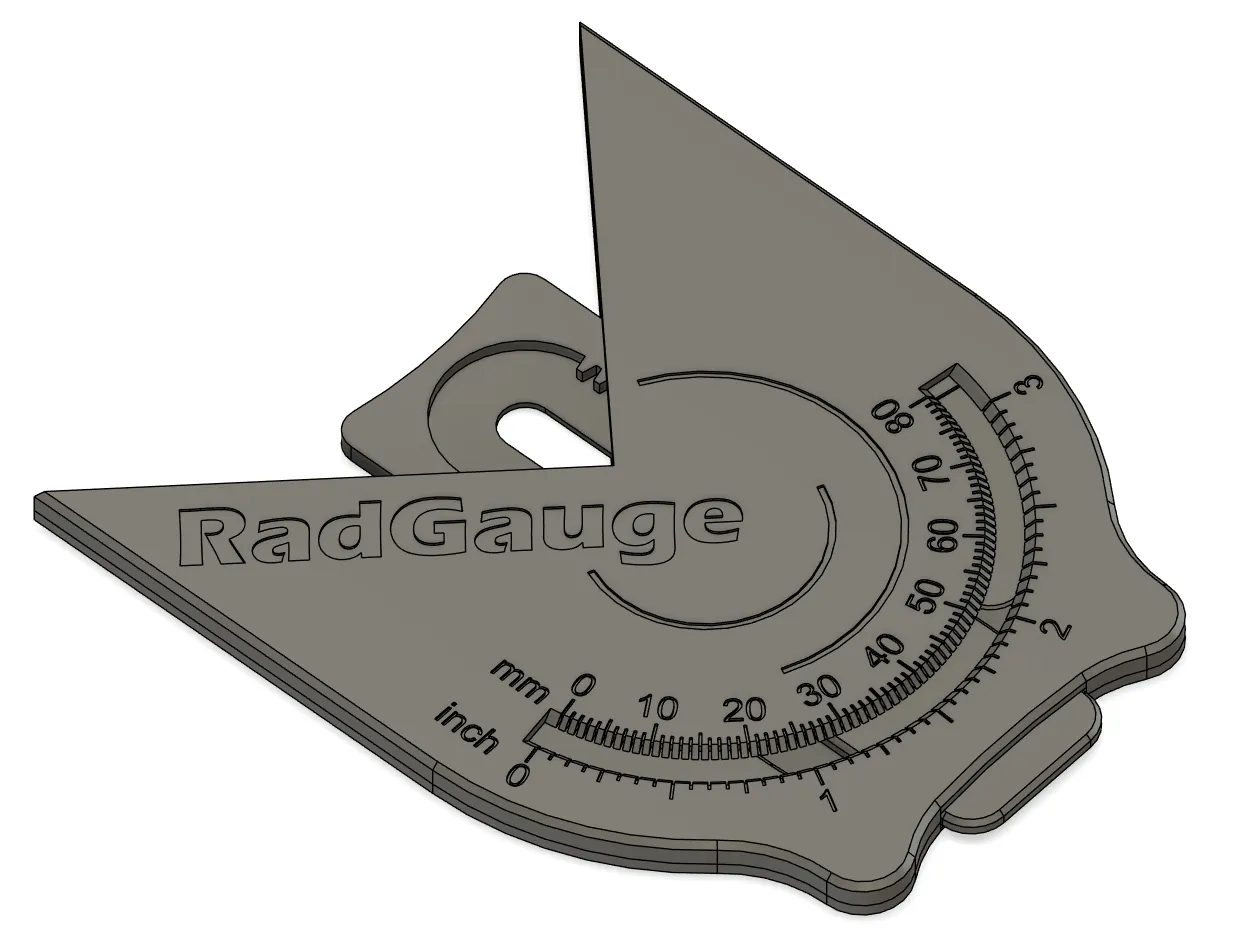

Following the overwhelming popularity of the original RadGauge, I designed this MEGA version to handle even larger tasks.

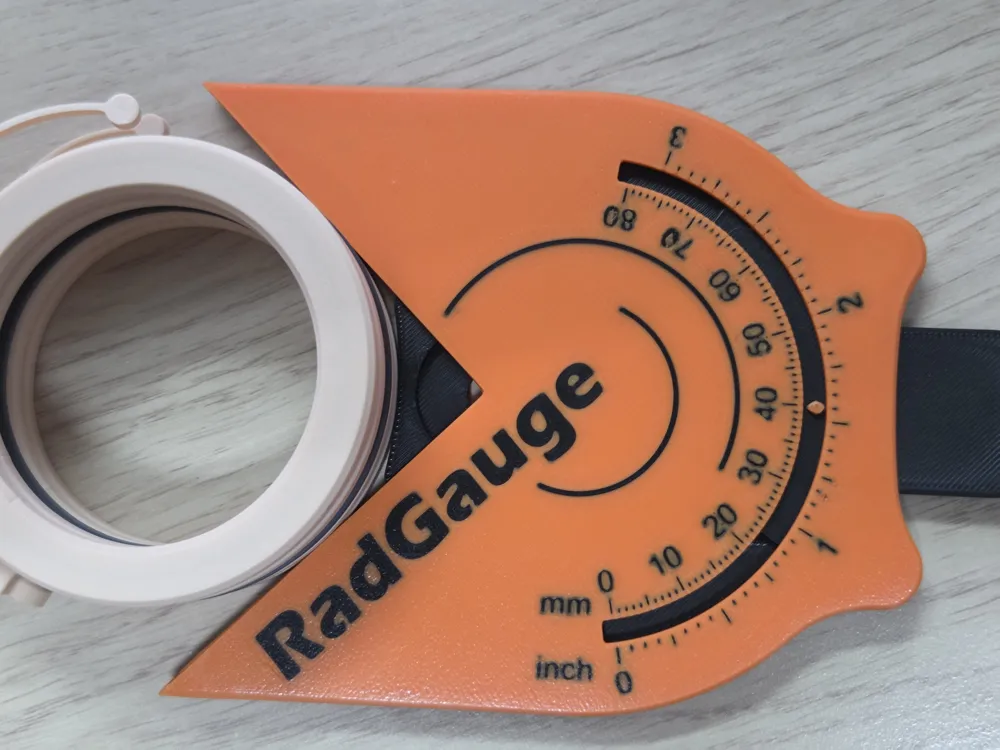

While the original model supported up to a 50mm radius, this new version extends that range to 80mm, while still being easy to operate with one hand.

The appearance stays familiar, but the model was fully re-engineered for tighter tolerances and improved precision.

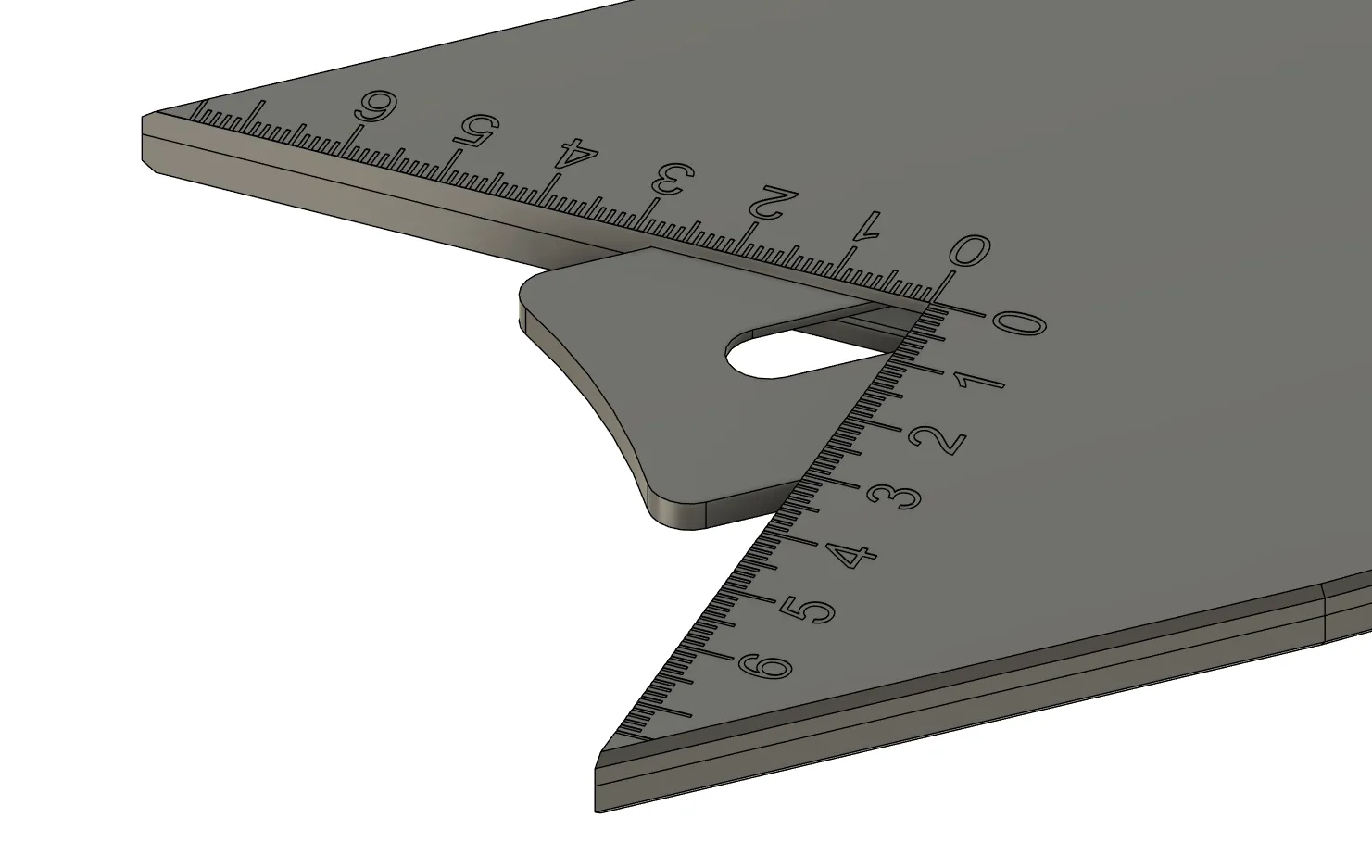

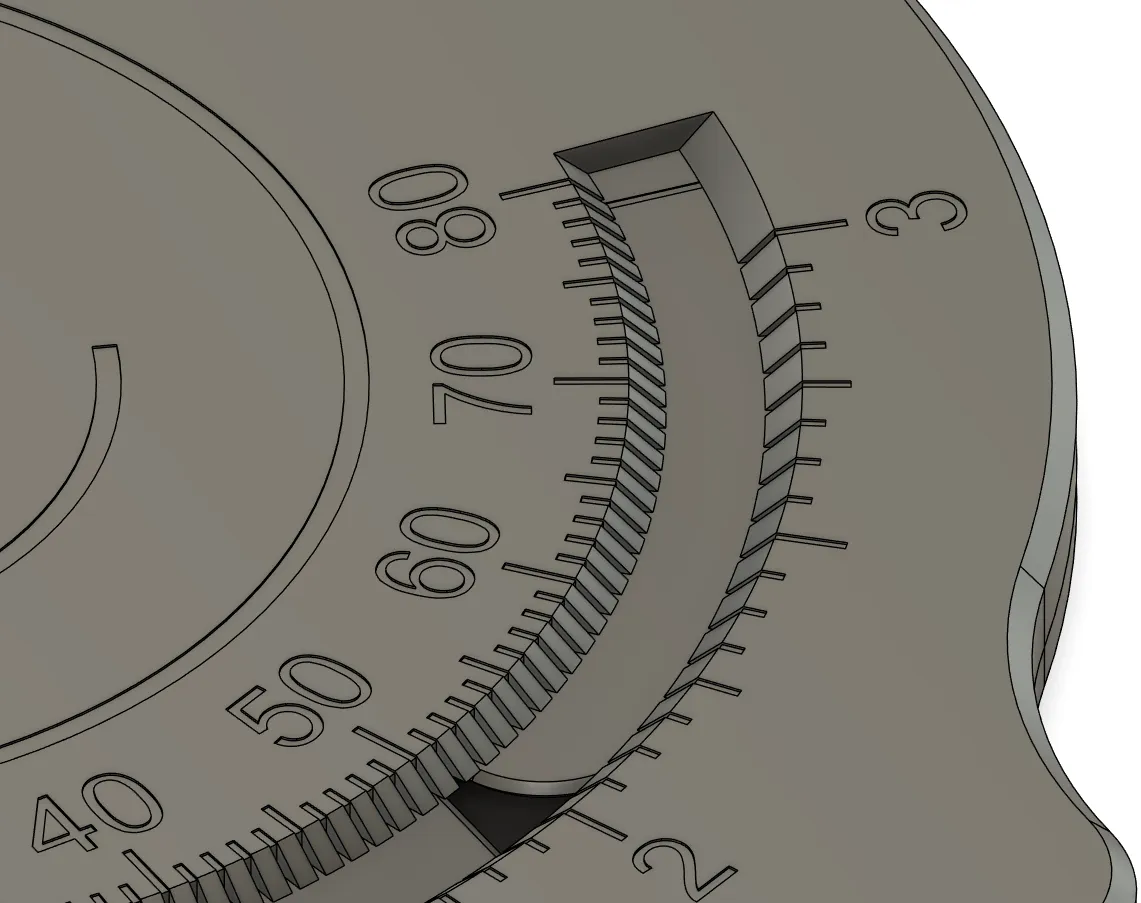

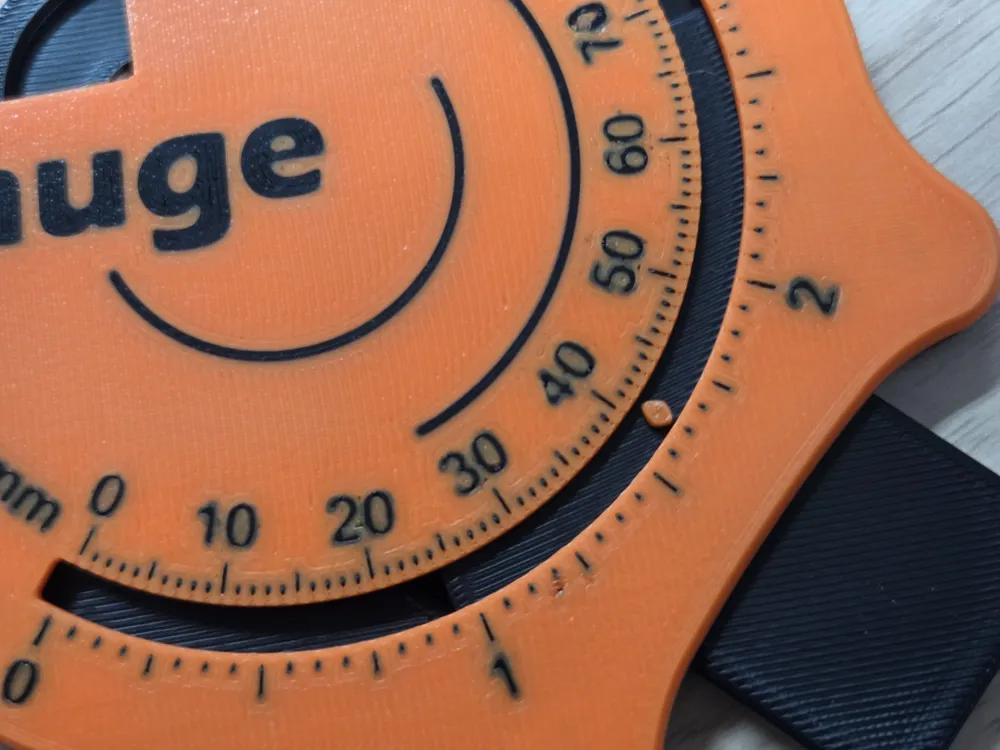

An inch scale in 1/16" increments has also been added for users working in imperial units.

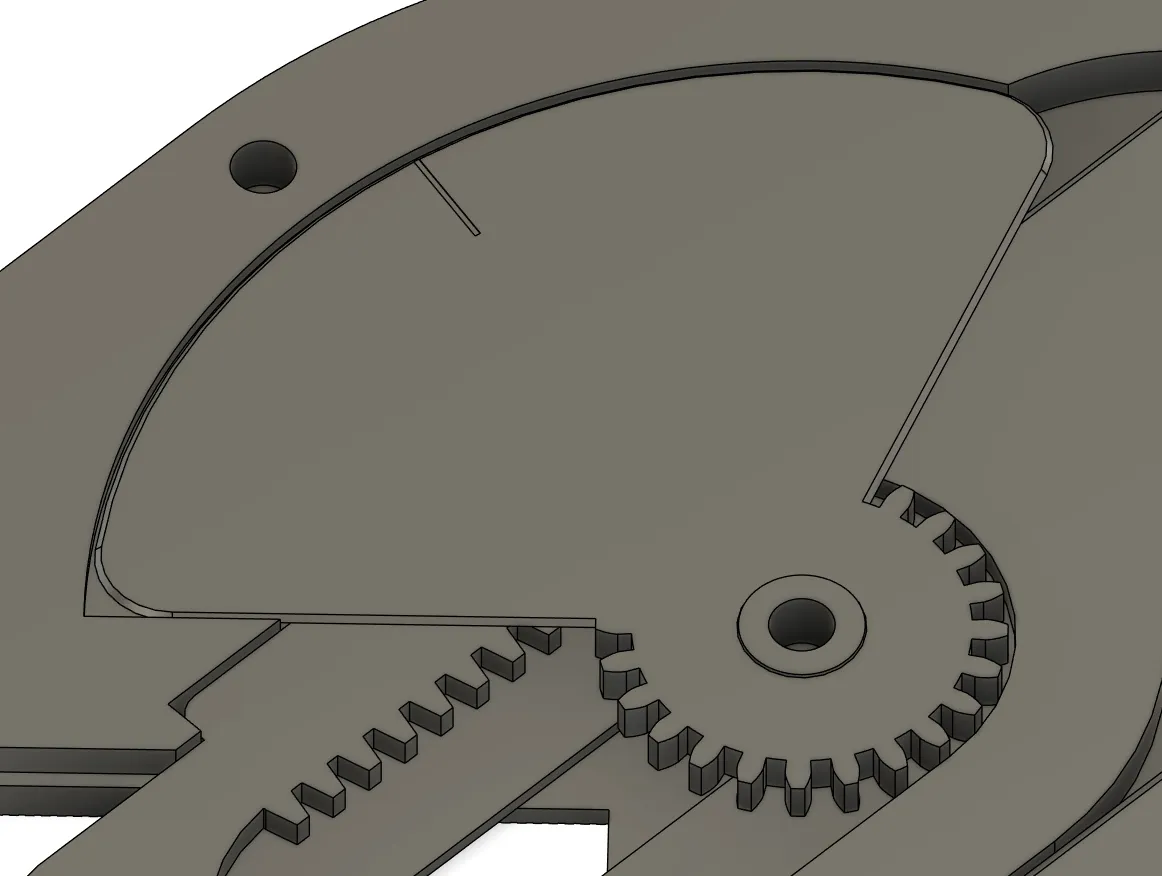

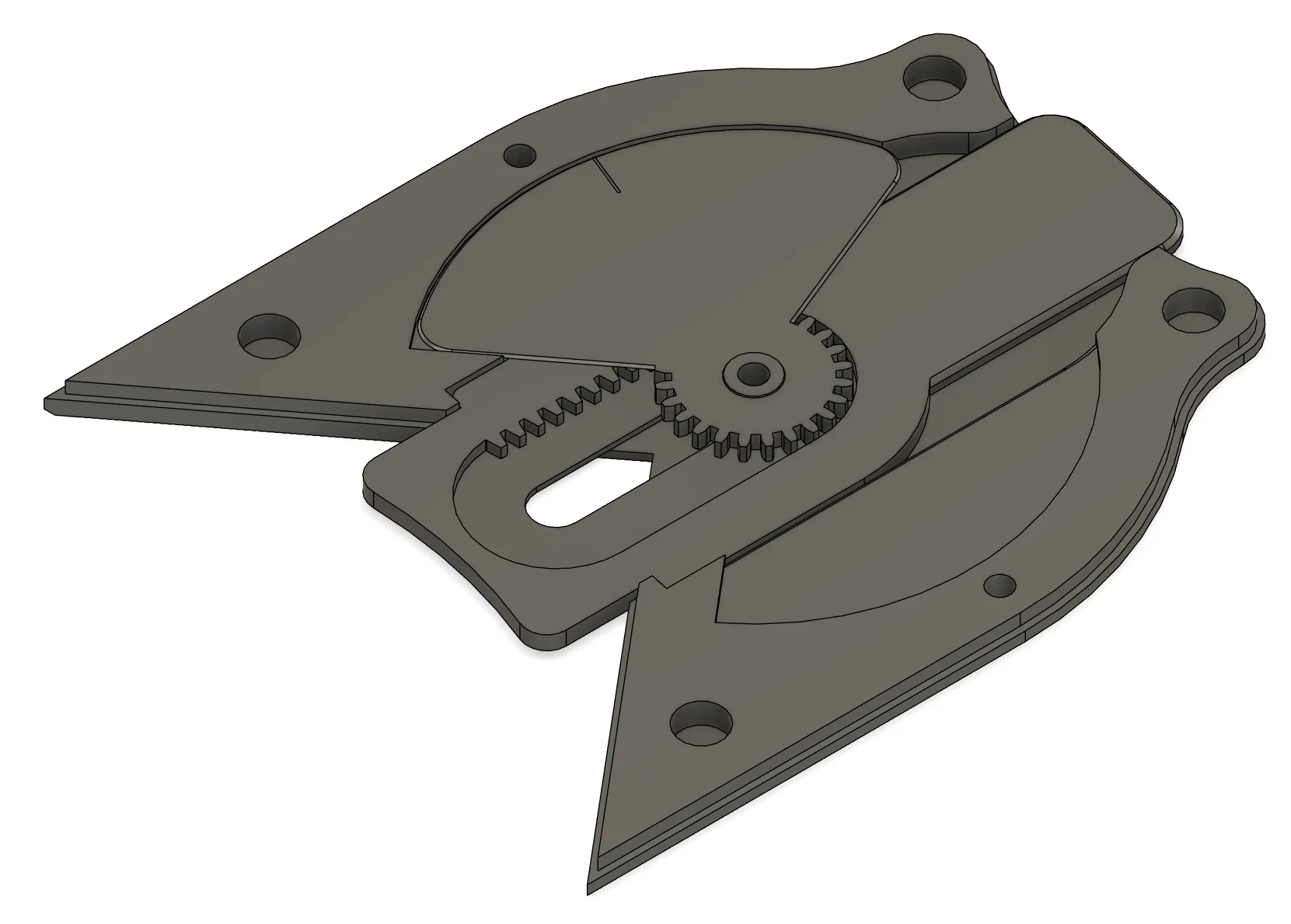

Gears have been recalculated and repositioned to minimize error and ensure smooth operation.

Whether you're working on larger prints or need more flexibility, RadGauge MEGA has you covered.

Boost Me (for free)

Your boost helps me spend more time creating better designs.
And don’t forget to check my other models — you might discover something useful! 😊

✔ Before print this

Since this model is a measuring tool, the tolerance is quite tight (0.1mm). Please make sure to use sufficiently dry filament, as you may experience difficulties in assembly if you use filament that is not sufficiently dry.

✔ Assemble layout. (Important)- Super easy and quick assemble.

Assemble at 80mm measure setting

1. General Licensing Statement

This model is copyrighted and its commercial use is strictly prohibited.
This falls under the Non-Commercial (NC) condition of the Creative Commons license.

2. Specific Prohibition on Reproduction Services

PROHIBITION OF PRINTING SERVICES: Providing this model file to any third party for the purpose of paid reproduction (printing) is strictly prohibited.
PERSONAL USE ONLY: All reproduction must be conducted solely on the end-user's personally owned 3D printer.
This license condition forbids the use of printing services, even for a single personal copy.

⚠️ Official Notice Regarding RadianLab™ Model
This model is exclusively manufactured and distributed under the RadianLab™ brand.

The unauthorized sale of this product by any other individual or entity is strictly prohibited and constitutes a violation of my brand rights. I require that any instances of unauthorized distribution or sales be reported to me immediately.

Product Information:

While the products currently sold maintain the fundamental design, they incorporate additional proprietary structures engineered for superior accuracy and usability (user experience). Furthermore, every unit undergoes a rigorous quality control inspection before being offered for sale.

____________________________

06/19/2025 Model UPDATE

Profile for No-AMS is ready.
Models included in this profile have deeper engravings of scale and lettering.

06/17/2025 Model UPDATE

1. Reduced the number of parts from 5 to 4. (Made the gear and pointer into one part.

2. Made the pointer symmetrical.(To prevent the pointer from going out of range and for visual stability.)

3. Changed the model of the scale part. (When changing the pointer from positive to negative, the height of the graduation corners was lowered to prevent misreading due to height difference.)

4. Added scales for measuring the length of the right angle corners on the back panel. (Why not?)

5. Made some modeling modifications for smooth movement.

Hope you Enjoy this model.

As always, I welcome your feedback.
