OnePlus AIRVOOC Mount for Audi A5/A4 (2016-2024)

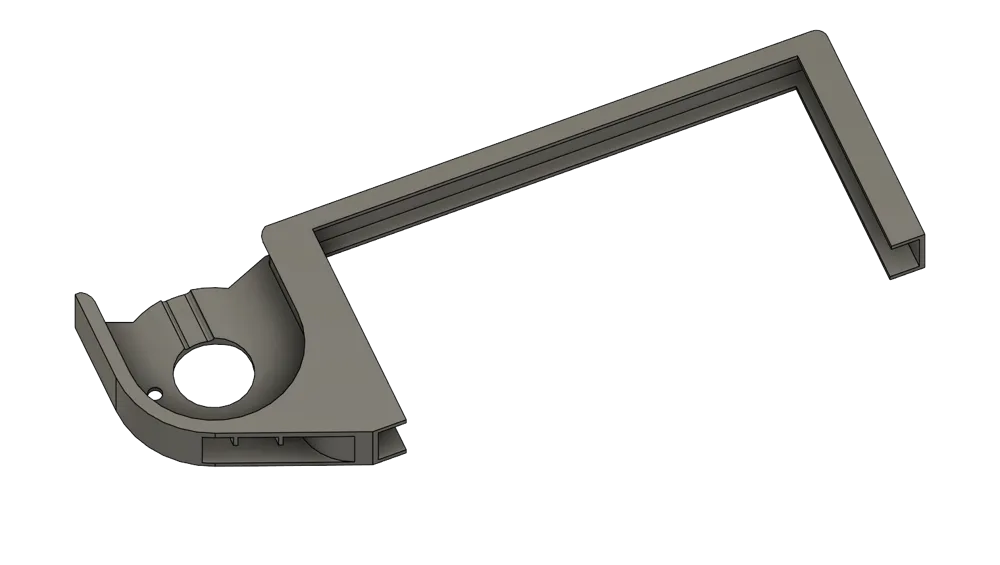

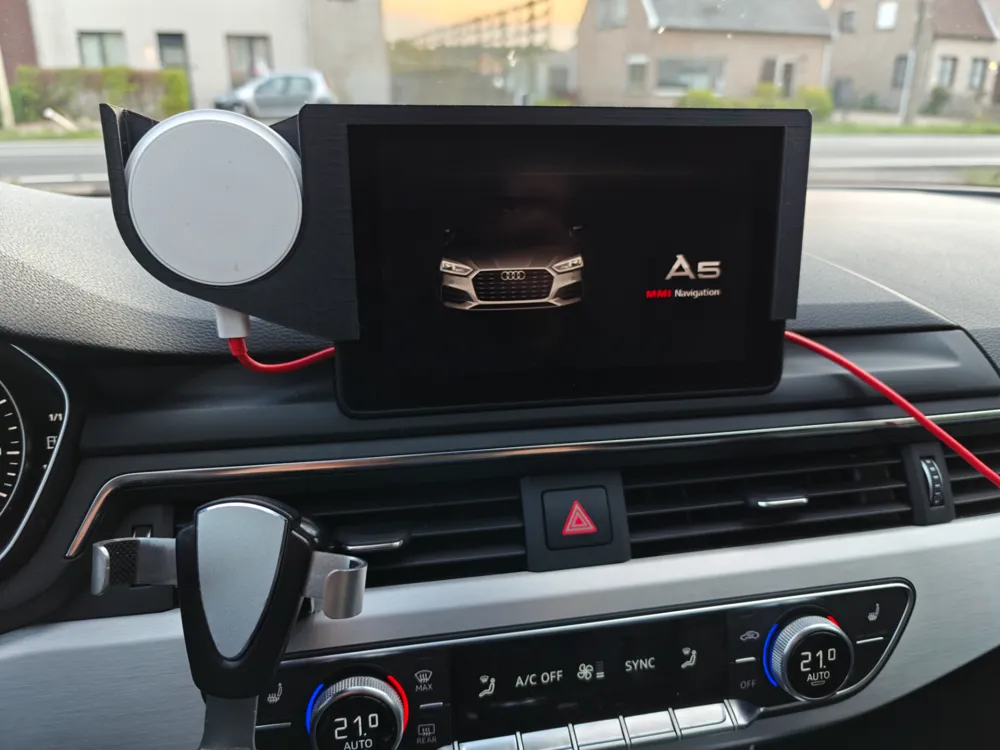

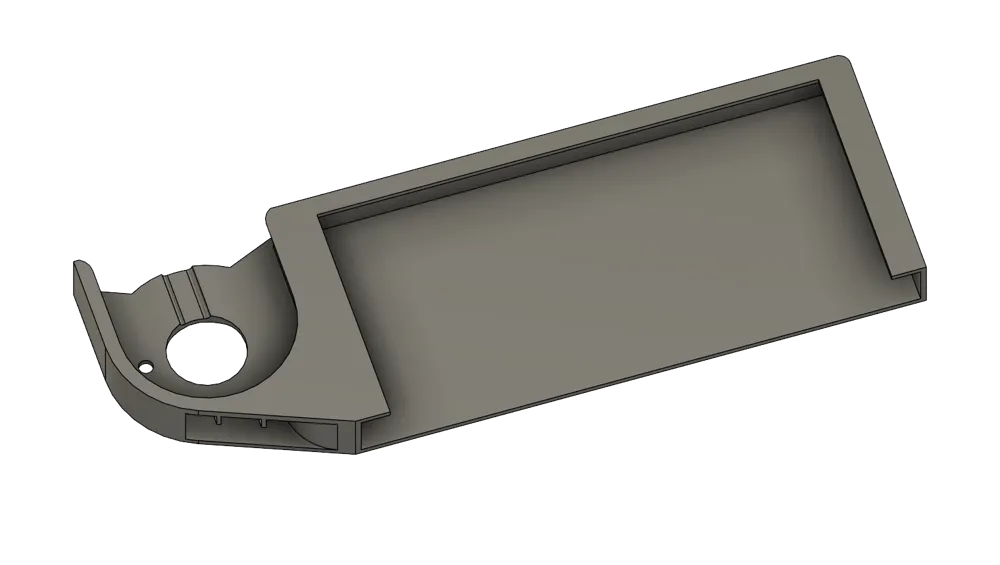

This custom-designed wireless charger mount is perfect for Audi A5 and A4 models from 2016 to 2024. It is compatible with the OnePlus AIRVOOC 50W Magnetic Charger, making it ideal for OnePlus 12 and 13 phones with MagSafe ring covers. The mount fits snugly over the center console screen, providing a secure hold thanks to the AIRVOOC's strong magnet. It features cutouts for the charger's fans and on/off light, and allows the phone to be used as a dashcam. Designed for left-hand drive cars, it can be inverted for right-hand drive vehicles. I used these settings: 0.4mm nozzle, 0.2mm layers, supports and PETG material for better heat resistance and color retention.

Summary:

• Design: A wireless charger mount for Audi A5 and A4 2016 to 2024 models, compatible with the OnePlus AIRVOOC 50W Magnetic Charger.
• Compatibility: Designed for left-hand drive cars but can be inverted for right-hand drive cars (note: on/off light visibility will be affected).
• Features: Cutouts for the AIRVOOC's fans and on/off light, allows the phone to be used as a dashcam.

Compatible Chargers:

• OnePlus AIRVOOC 50W Magnetic Charger: Compatible with OnePlus 12 (R) and 13 (R).
• OnePlus SUPERVOOC 80W Car Charger: Recommended for optimal use.
• MagSafe and Qi2 Compatible phones: Supports all phones with MagSafe and Qi2 compatibility, including iPhone models.

Compatible Audi Models:

• Audi A5 (2016-2024, second generation): The design fits over the center console screen.
• Audi A4 (2016-2024, second generation): Similar center console screen design.
• Other Models: Any Audi models with similar MMI display systems like the Audi B8 and B9 (e.g. A4, S4, RS4, A5, S5, RS5, ...)

Assumptions:

• Phone Compatibility: Designed for OnePlus 12 with a compatible MagSafe ring cover. Assumed to work with other phones that have a MagSafe ring. The phone is held securely by the AIRVOOC's strong magnet, but use is at your own risk.
• Audi Compatibility: Compatible with my 2017 Audi A5 , but assumed to be compatible with Audi A5 and A4 second generation (2016-2024), including models F5, B8, and B9 like A4, S4, RS4, A5, S5, RS5, ...

Printing Instructions:

• Nozzle Size: 0.4mm
• Layer Height: 0.2mm
• Material: PLA, but recommended to use PETG for better heat resistance and color retention under direct sunlight.
• Orientation: Print upside down, potentially diagonal to fit smaller build plates.
• Supports: Yes.
