Yamaha TT600 59x taillight adapter plate
Print Profile(1)
Description

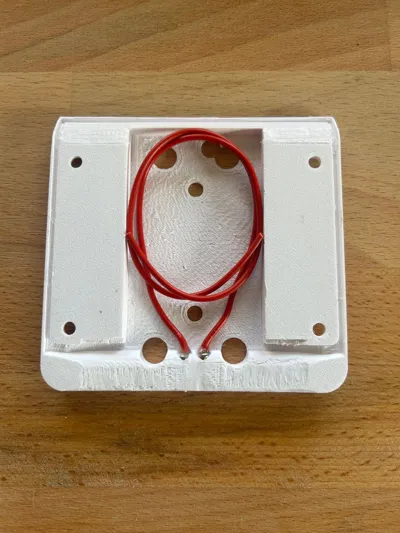

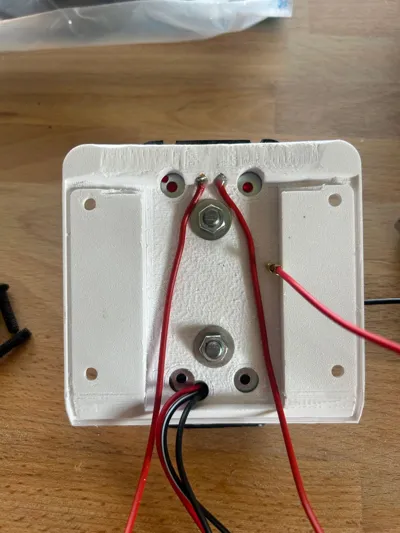

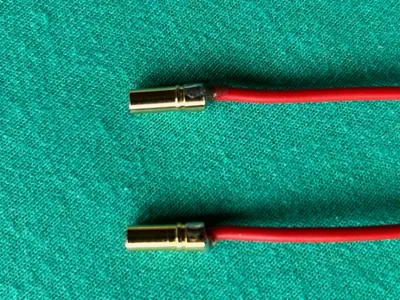

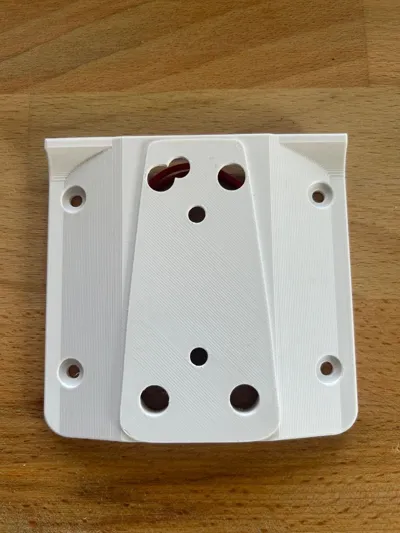

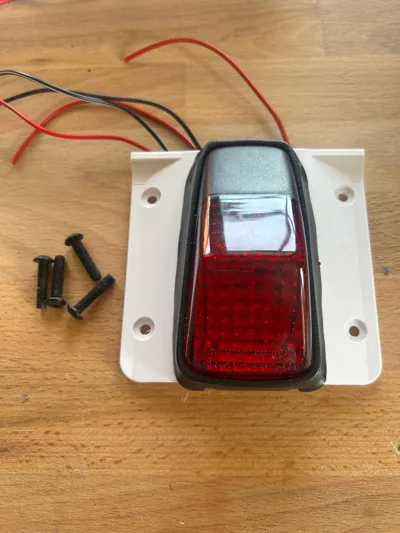

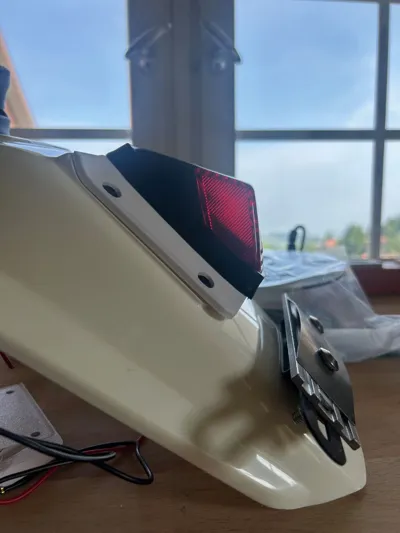

This adapter plate allows the installation of a taillight, as was common in the 90s on DR350, TTR250, XR250R, or XR650, on the original fender of a Yamaha TT600 59X. You can get the aftermarket taillight on eBay, CMSNL, etc. Search on Google using the spare part number: 33701-KT0-670. The mounting screws on the taillight need to be shortened slightly. The screws for attaching the plate are M5x22 with large washers and lock nuts. The spacers are located on the pressure plate. At the bottom of the adapter plate are two 5mm holes for female connectors used in model making. After soldering the cables, they are glued in with 5-minute epoxy. I installed these for my "street-legal" rear end, which requires a license plate light. feel free to use this option or leave it out.
Printed with the Bambu Lab A1 and Bambu Lab PETG HF
Boost Me (for free)
I would be very happy about a booster. Especially for stuff for old motorcycles that don't get many downloads anymore. I'm publishing this for a small fan community. :)
Have fun printing.
