Ender 5 S1 TZ Hotend Mod

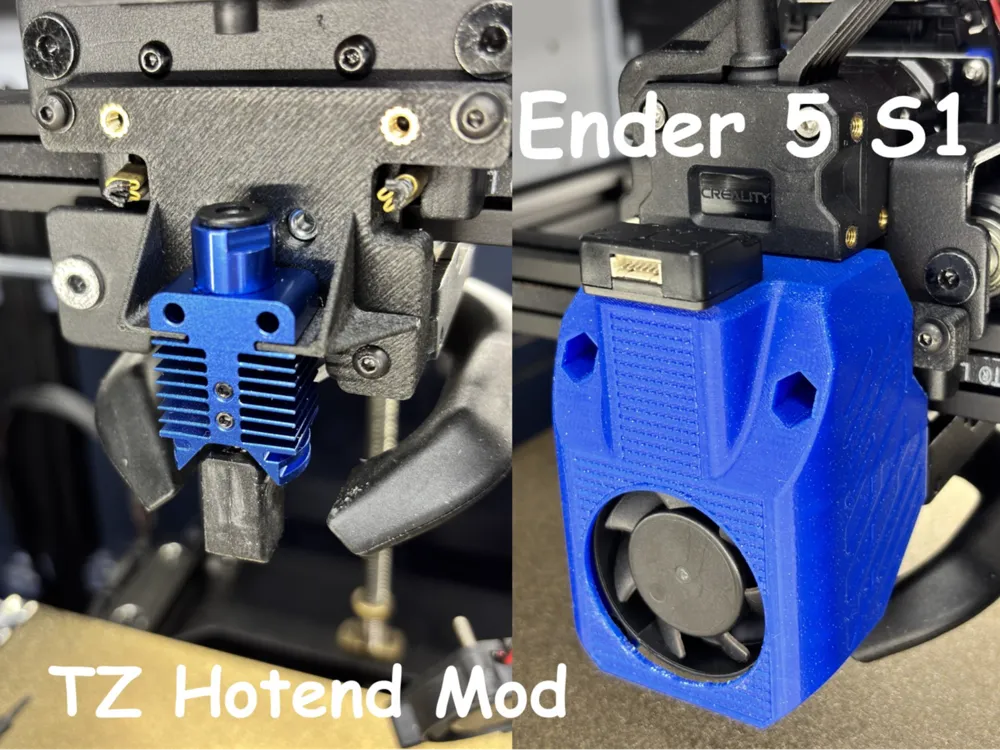

Ender 5 S1 CHC/TZ Hotend Mod w/ Cover and ADXL345 Mount (STP files included)

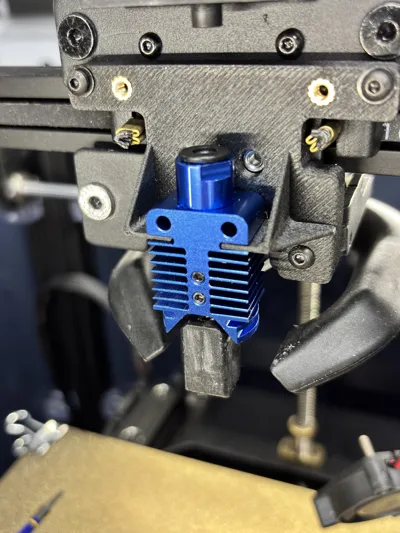

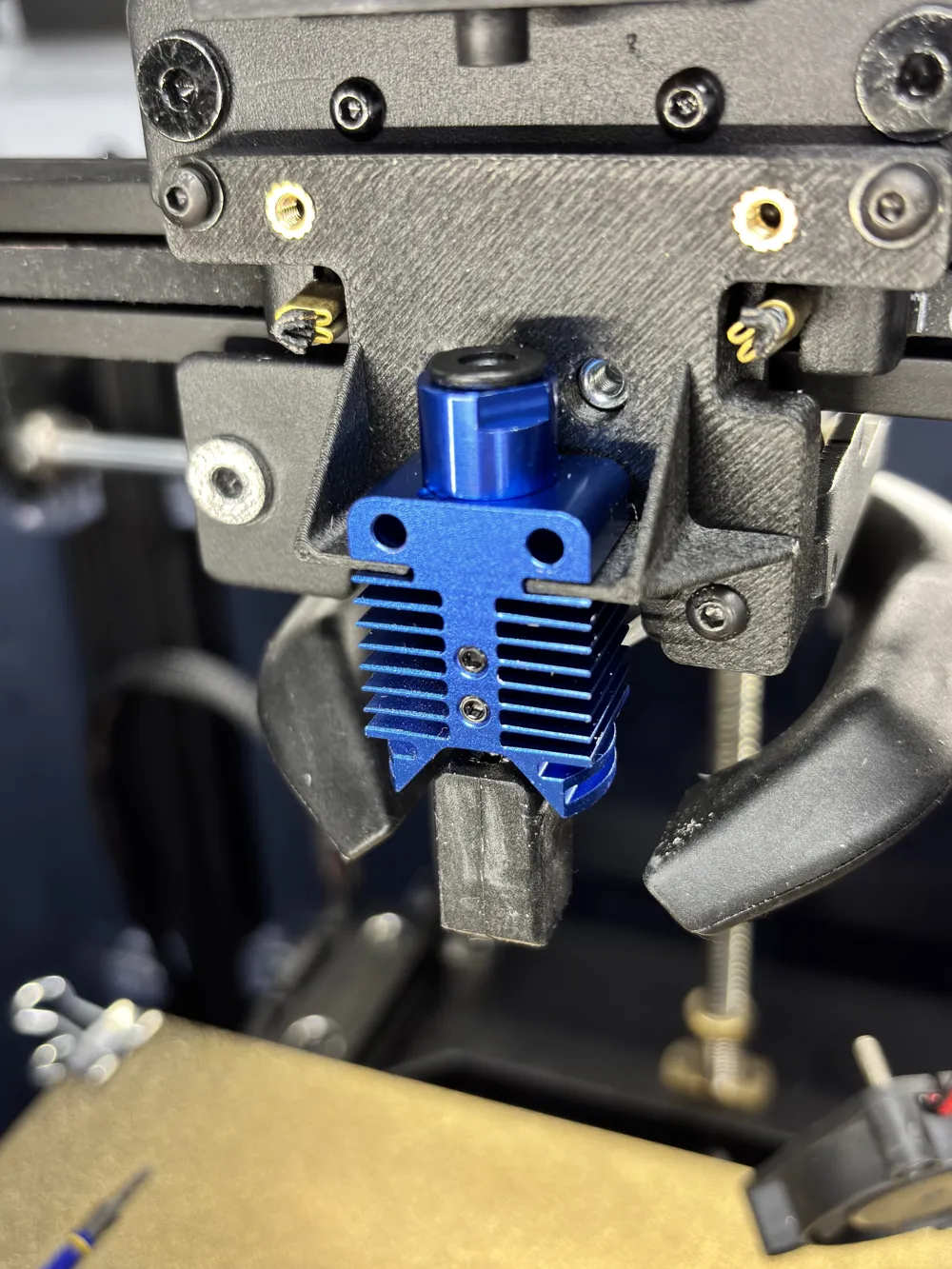

The hotend on my Ender 5 S1 decided to die so I figured instead of buying the same Spider hotend as before I would upgrade to a Bambu-style TZ Hotend.

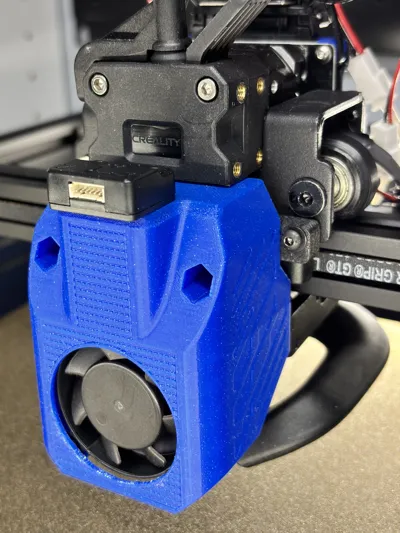

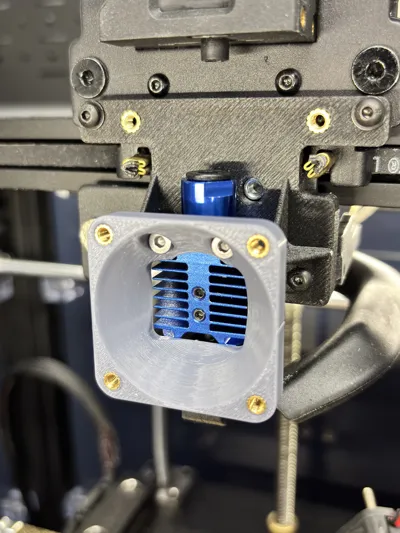

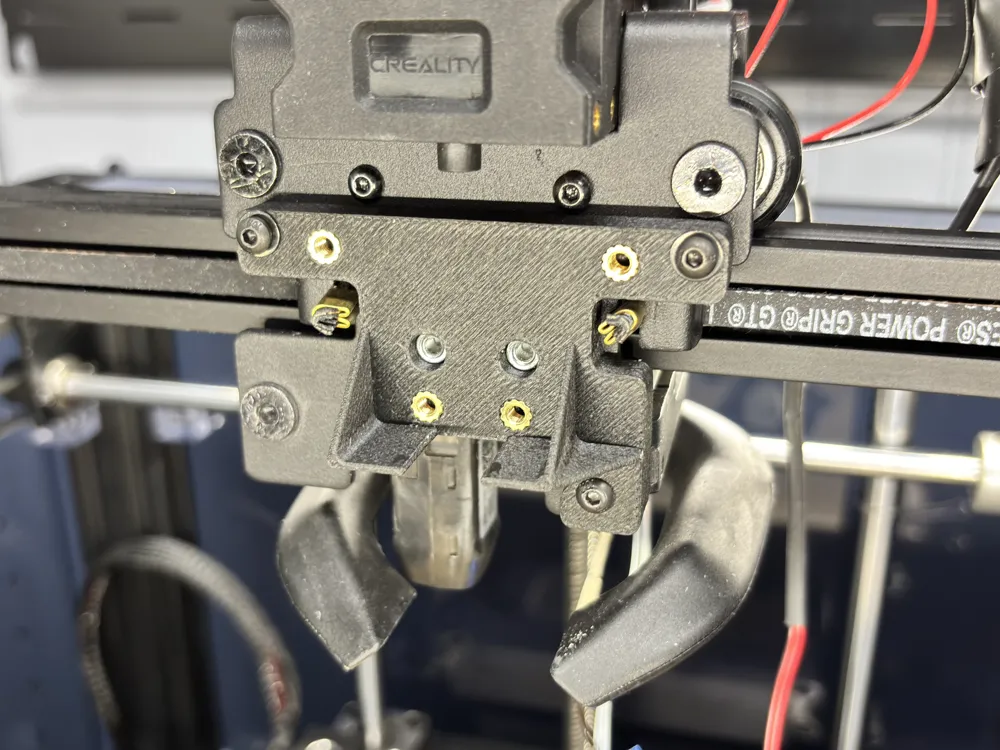

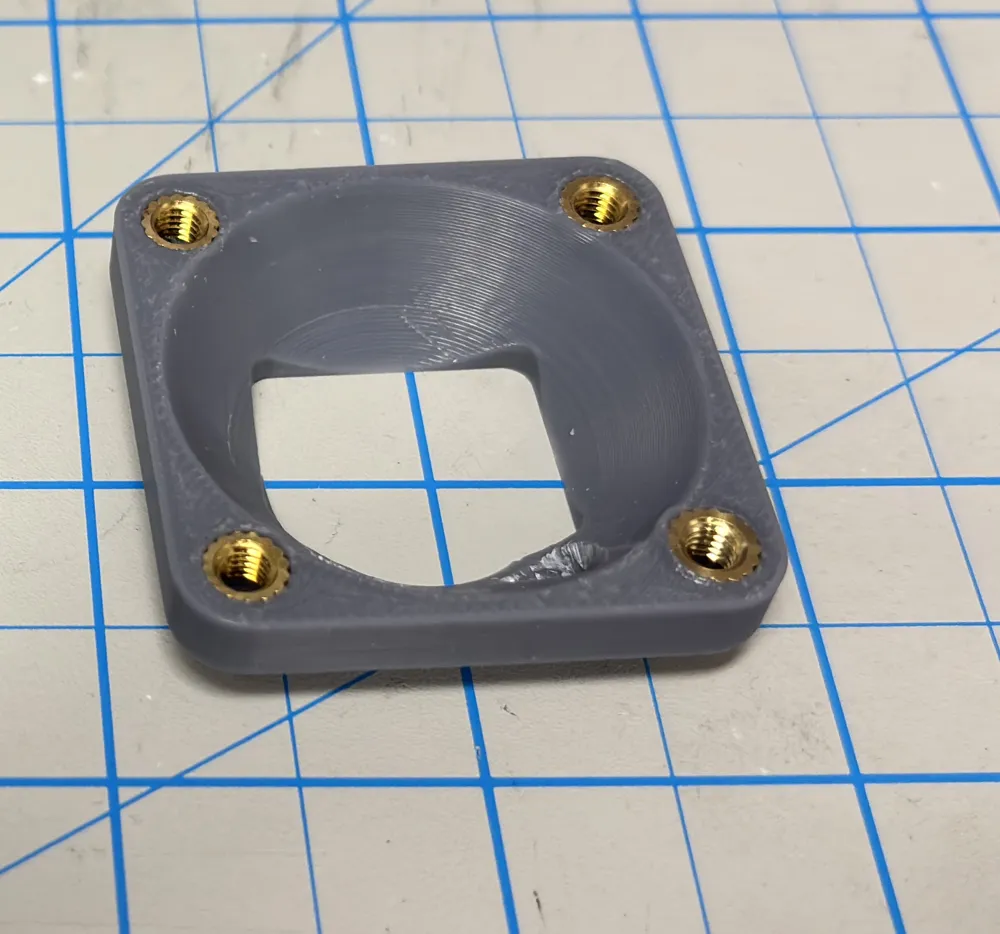

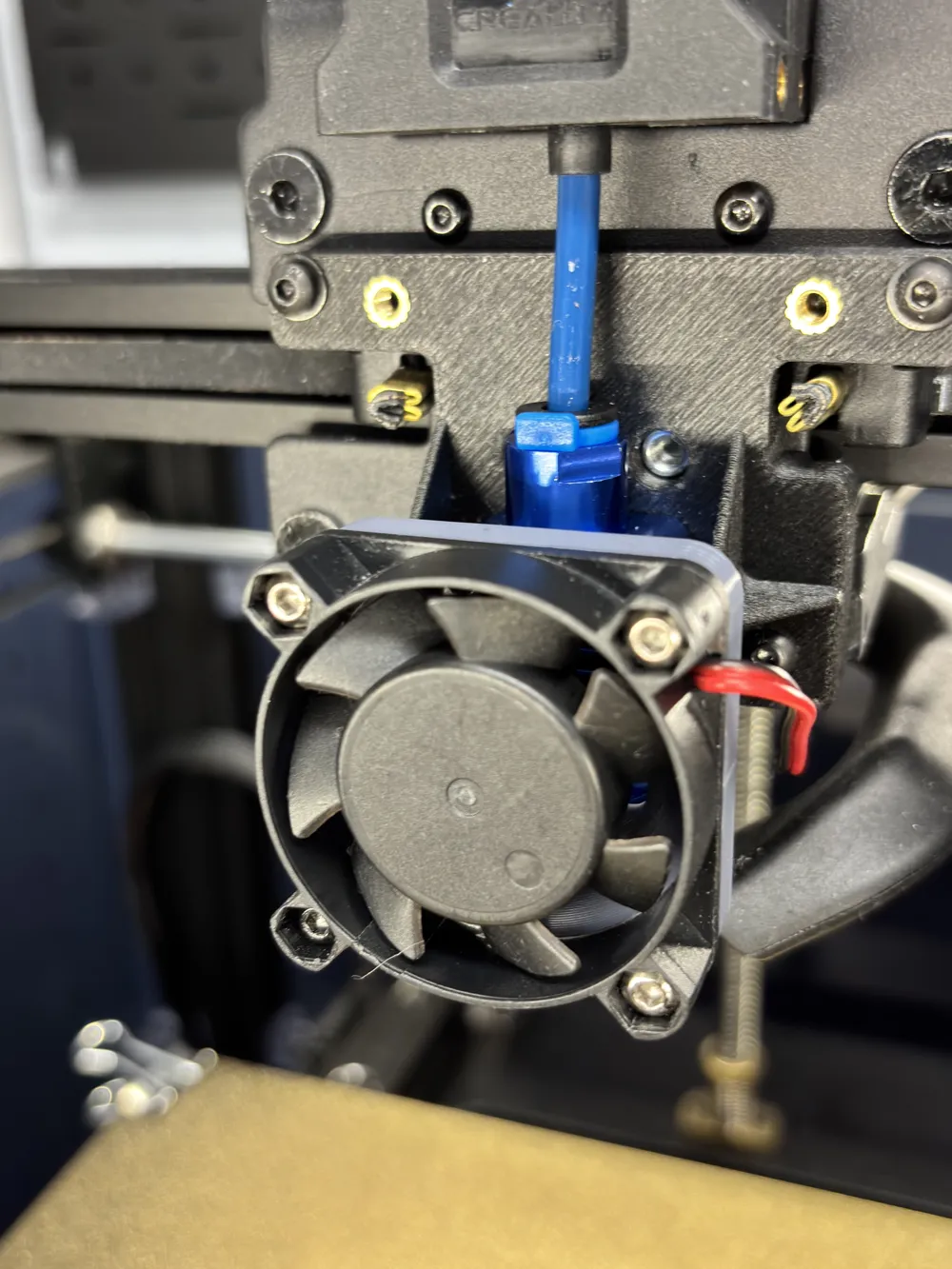

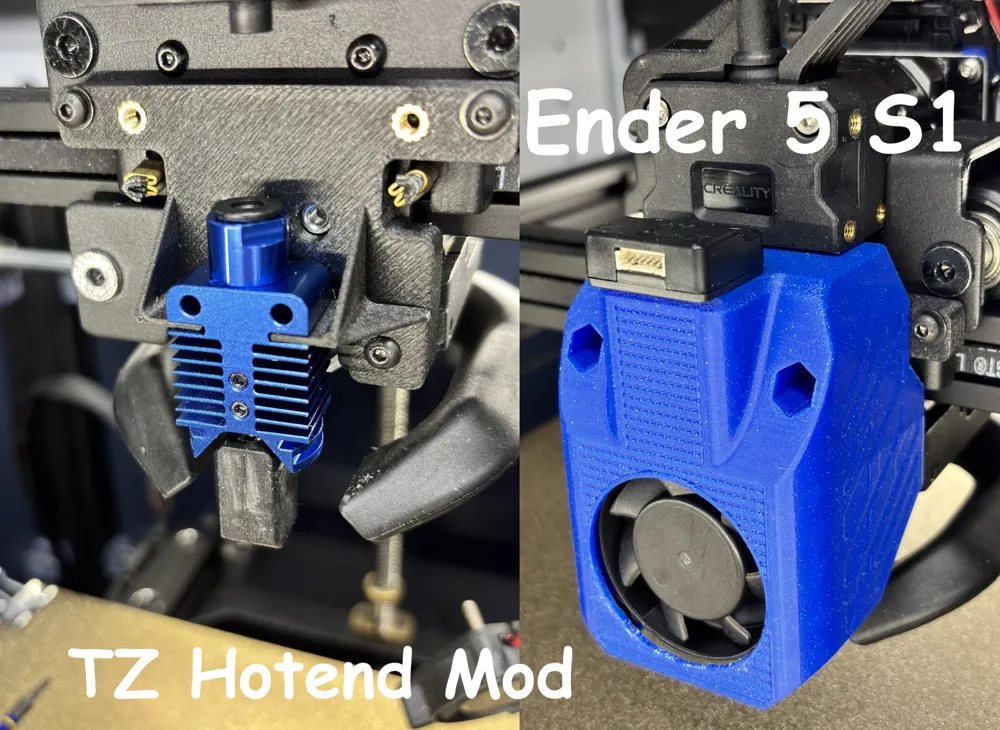

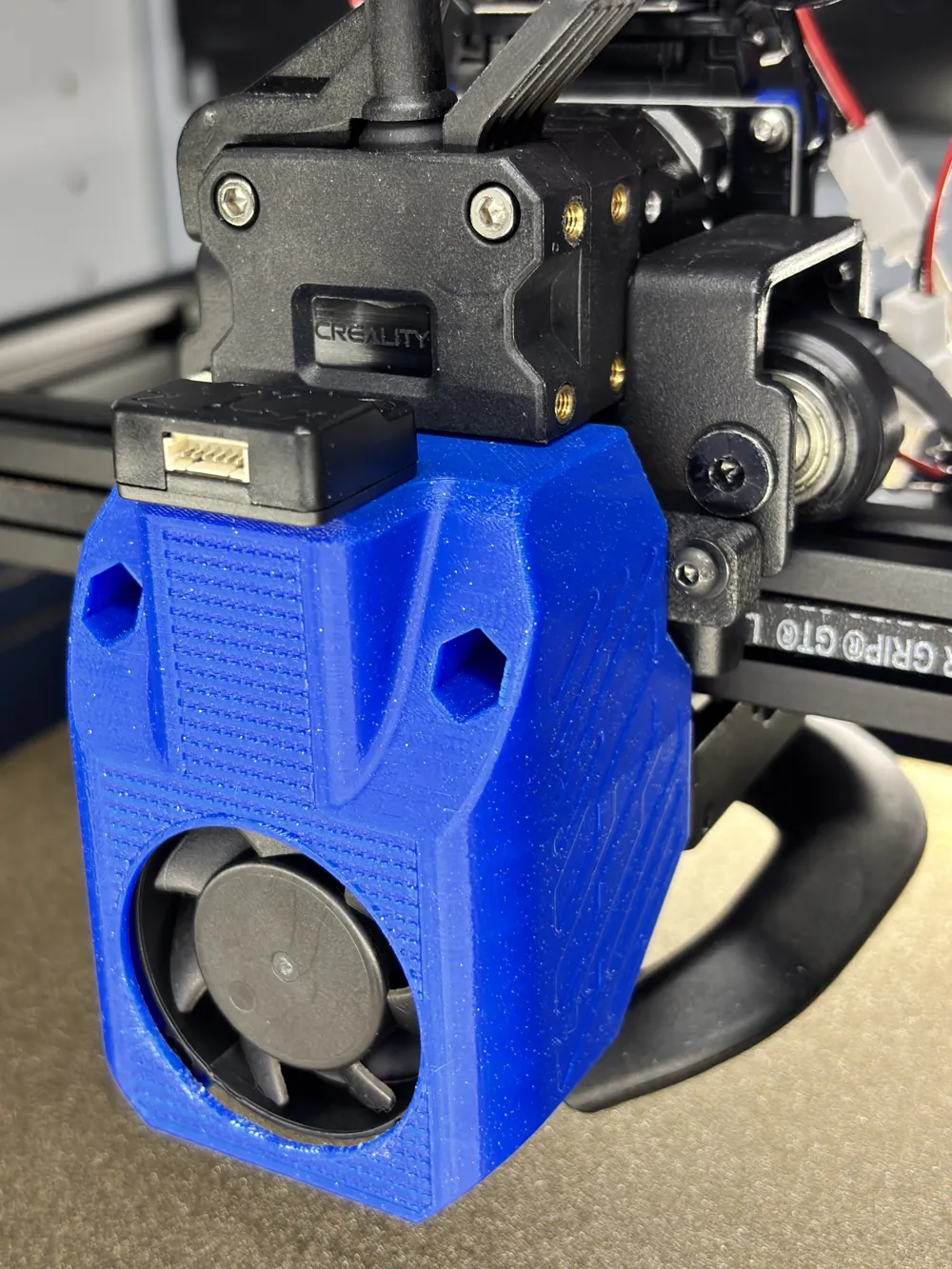

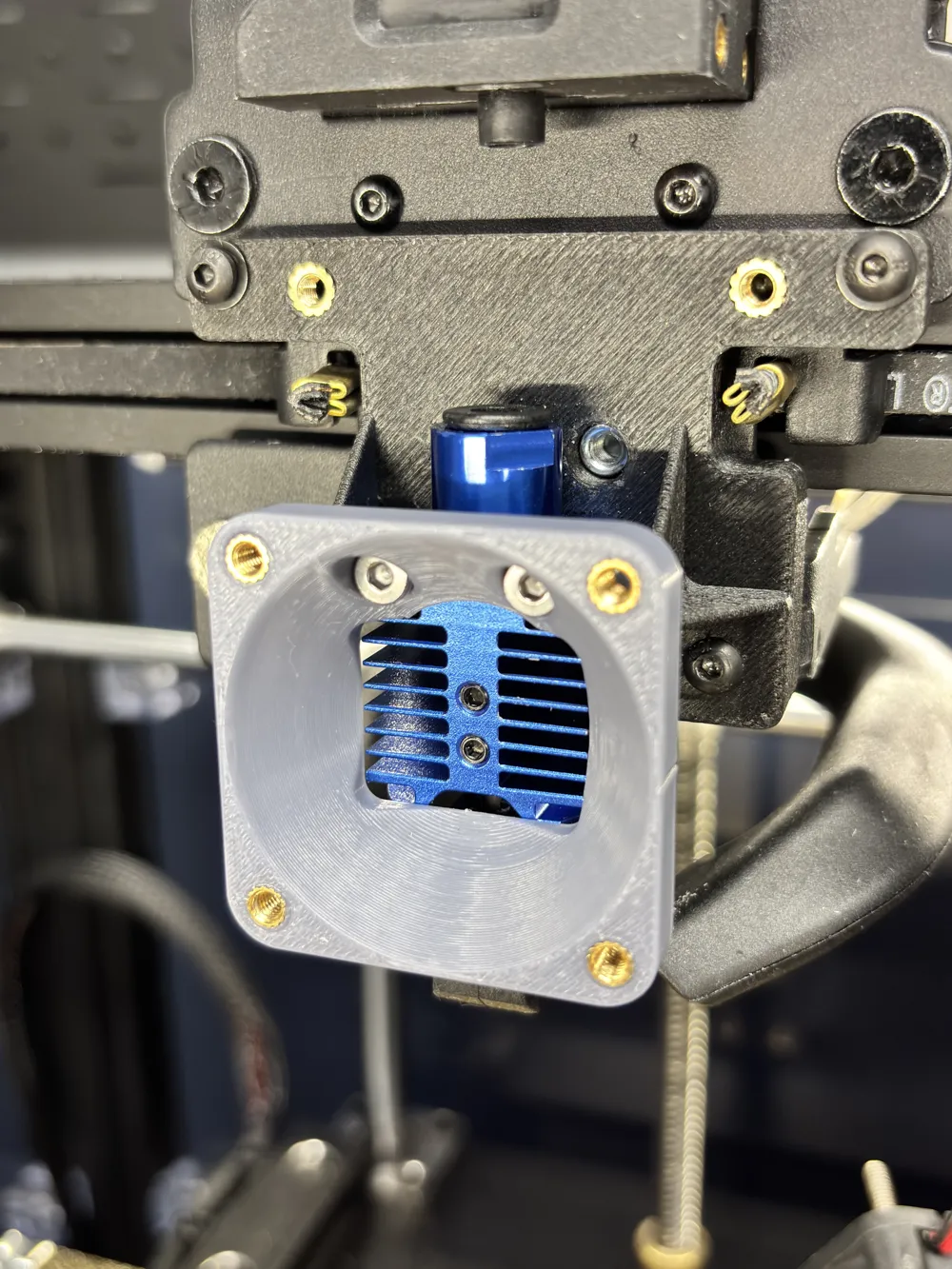

It includes an Adapter Bracket to mount the CHC/TZ Hotend to the original mounting bracket, a Fan Mounting Bracket to mount the existing 4010 fan to the TZ Hotend, and a new Fan/Hotend Cover.  This modification offsets the nozzle approximately 3.5mm closer to the front of the printer.

The Hotend I used was this: https://a.co/d/16Wabb4

Screws used:

(1) M3x8

(6) M3x12

(2) M3x16

(2) M3x20

Threaded Inserts Used:

(8) M3x4

I recommend some type of ABS or ASA due to the heat requirements.  I also included a profile for ASA-CF for the bracket.
