[Porsche] Porsche 911 GT3 RS Road Car Racing Supercar Black Red Livery with Base Assembly/Movable Wheels
Print Profile(3)
Description
Boost Me (for free)
If you like this model, please boost it! Your support is my motivation for continuous updates!
【Special Notes for F1 Models】
1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!
4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!
【Read Before Printing!!! Warm Tips】
It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.
Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.
---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------
Porsche 911 GT3 RS (RS = German for RennSport, meaning motorsport)
As the road-legal flagship of the 911 family with the most extreme track orientation and strongest naturally aspirated performance, it extensively incorporates 911 RSR/GT3 R racing technology. With aggressive aerodynamics, a high-revving naturally aspirated flat-six engine, lightweight engineering, and a professional track chassis, it defines the ultimate form of a “road-legal race car”.
Model Description

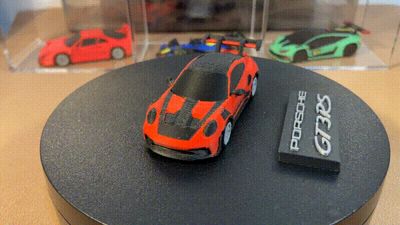

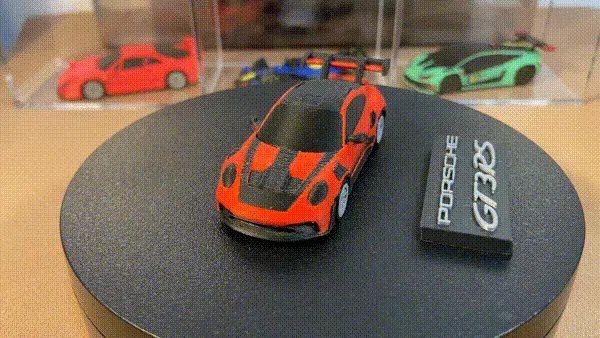

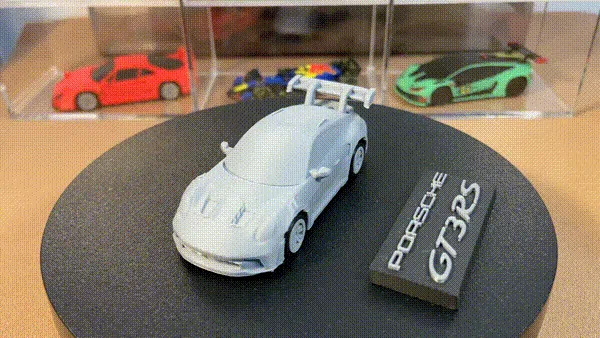

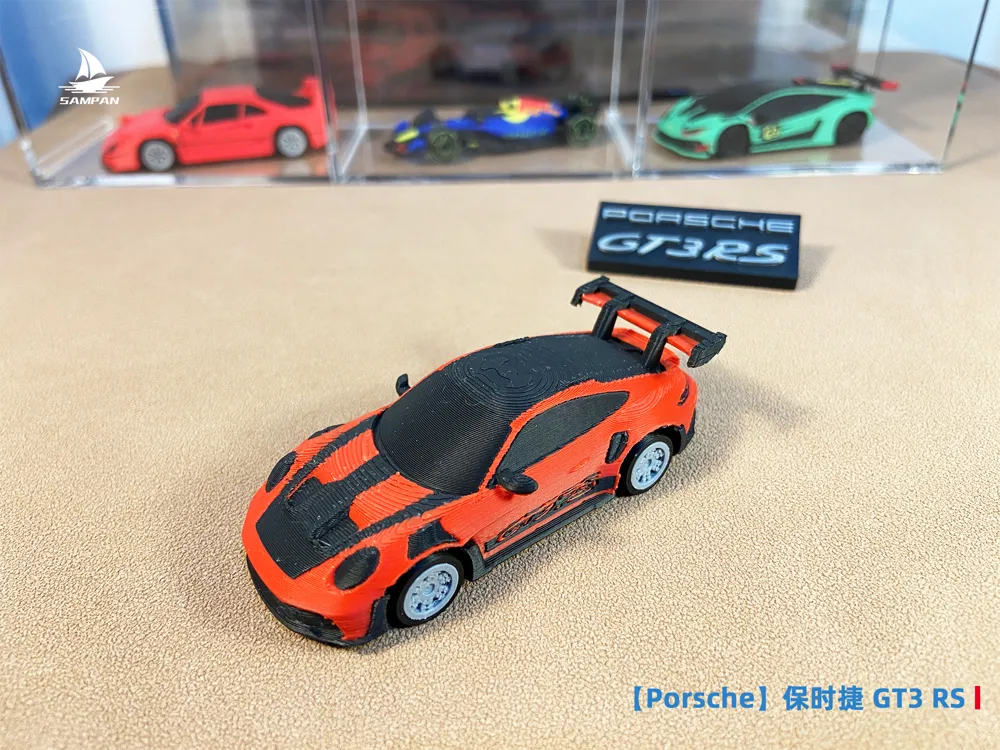

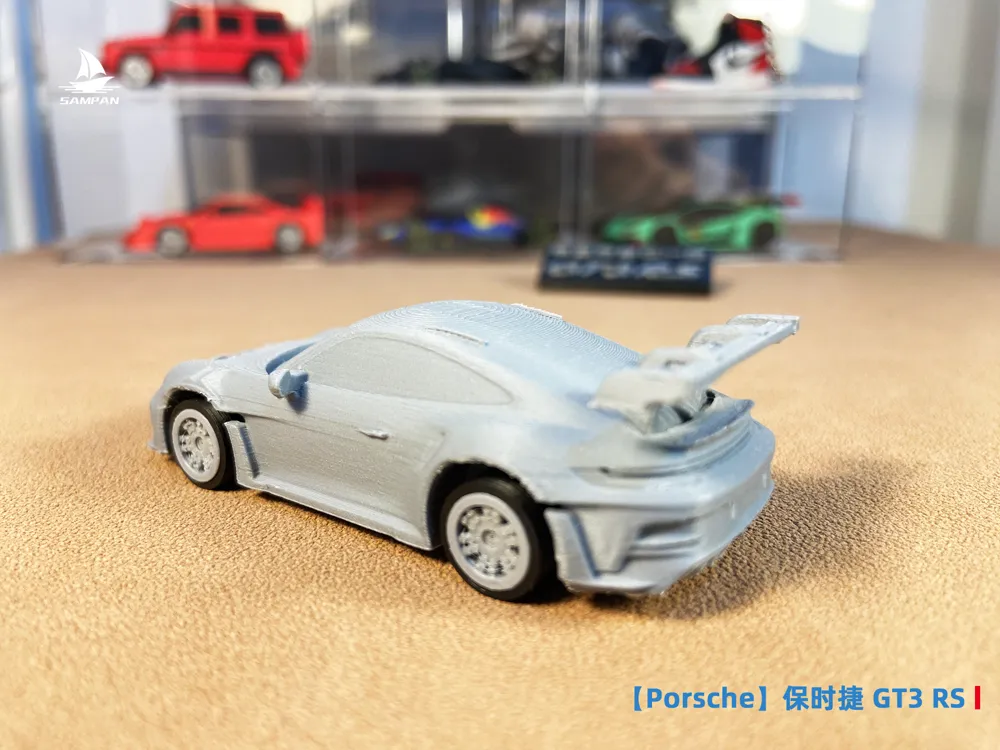

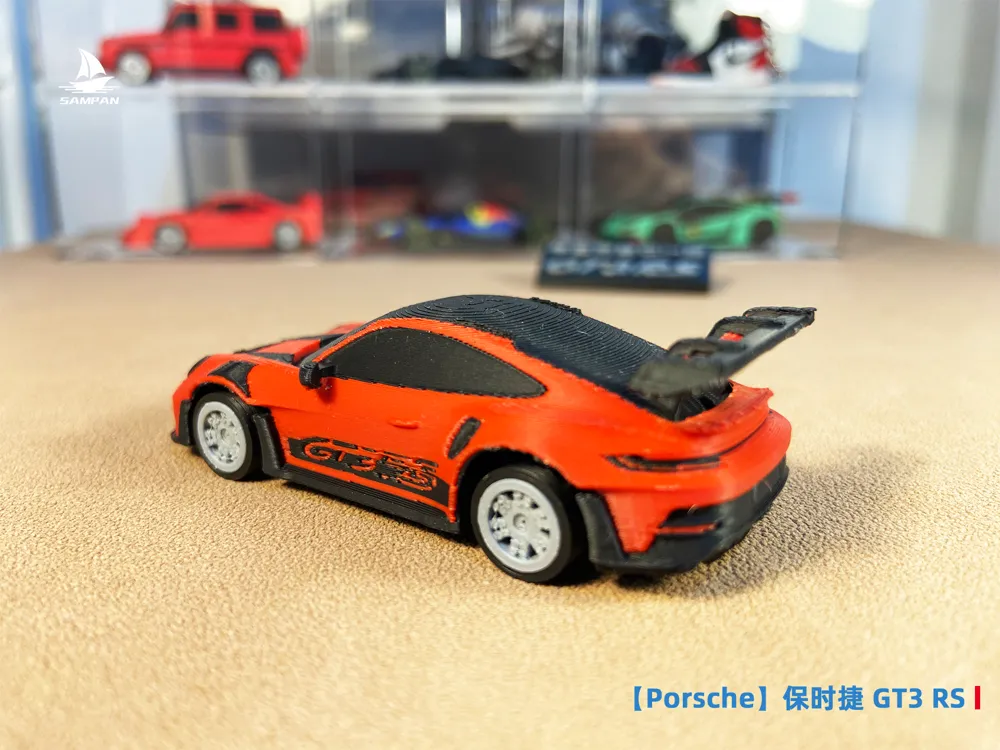

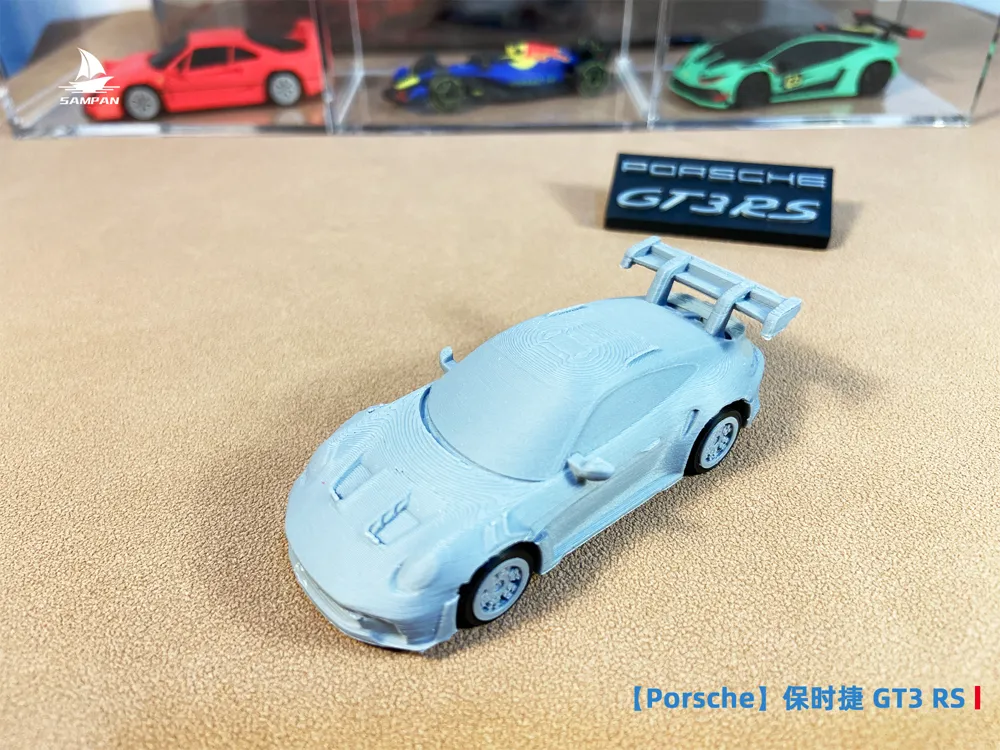

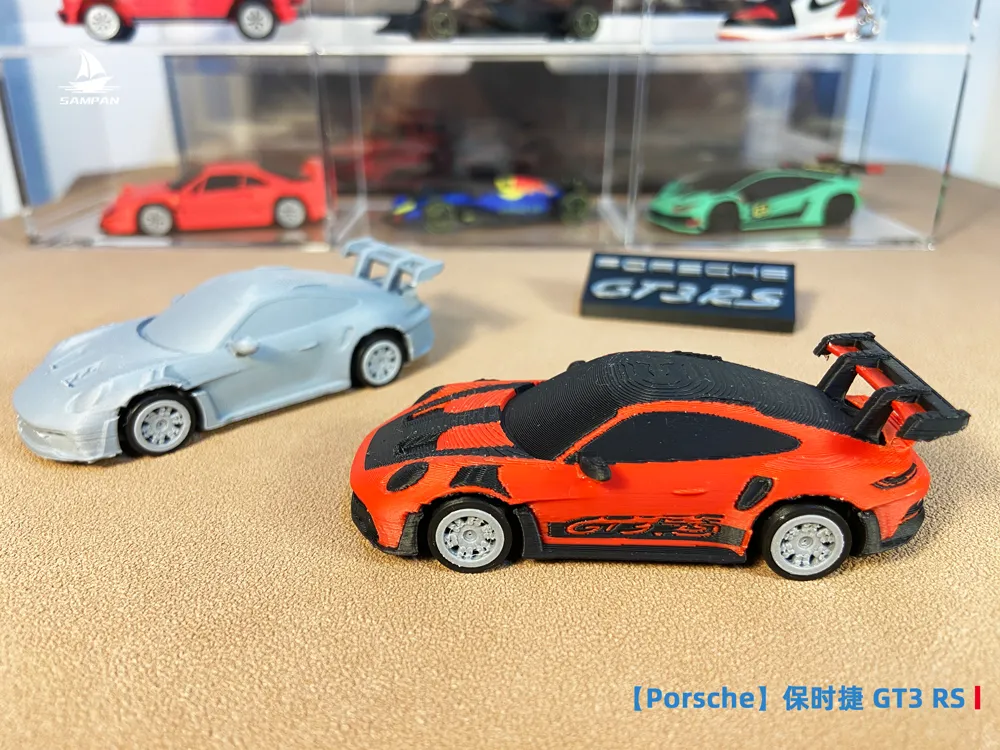

- Includes monochrome and multicolor print profiles: monochrome can be painted and decaled. Multicolor print profiles can be printed directly (uses more filament, takes longer), or used as a reference for monochrome painting.

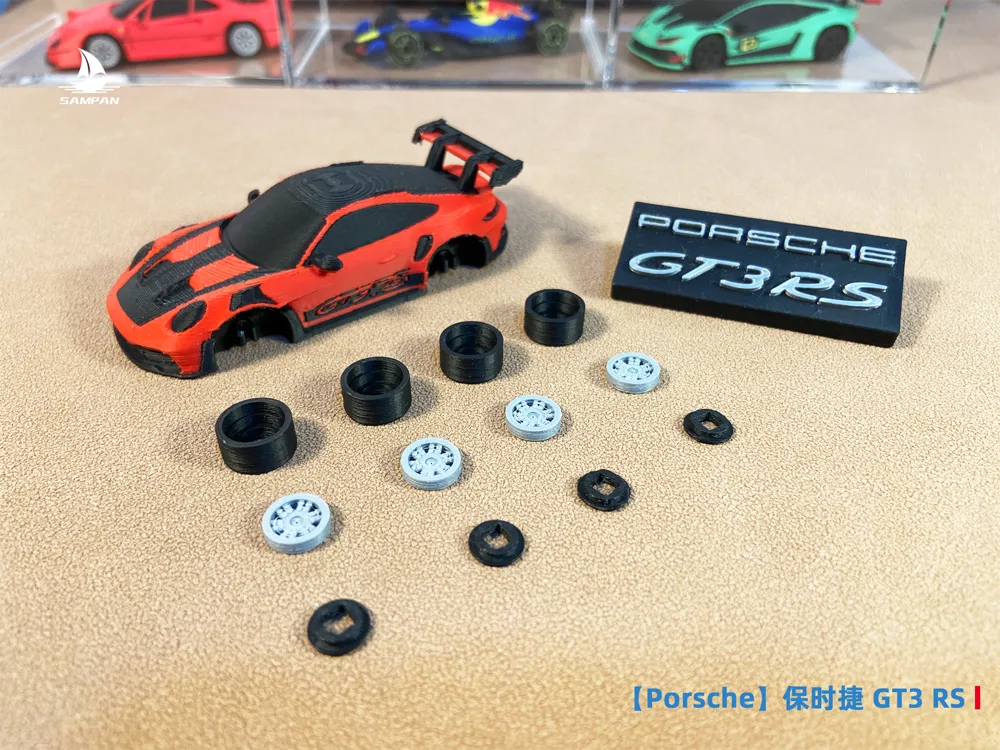

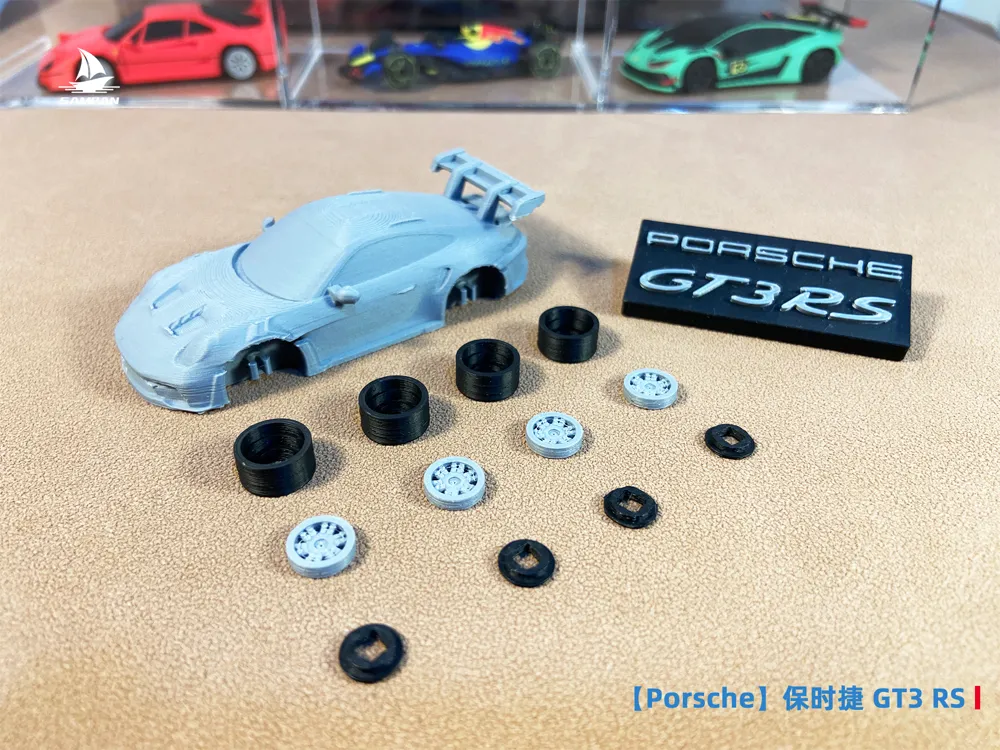

- Movable wheels, assembly requires no glue

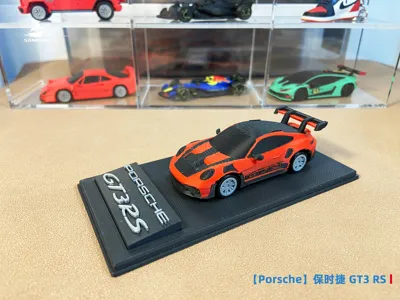

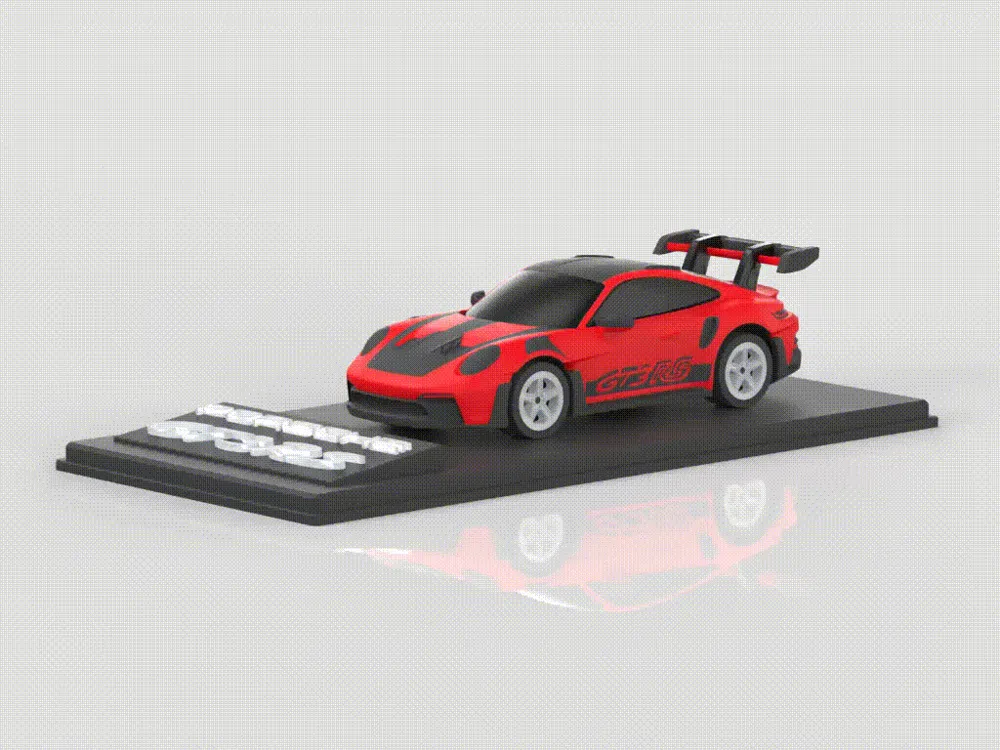

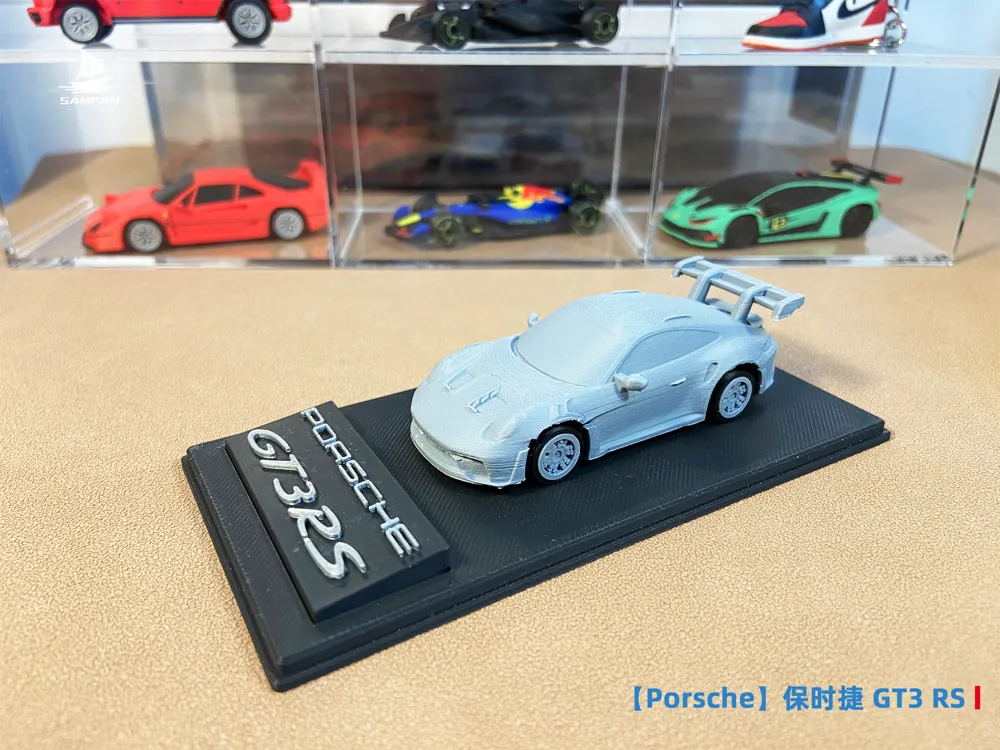

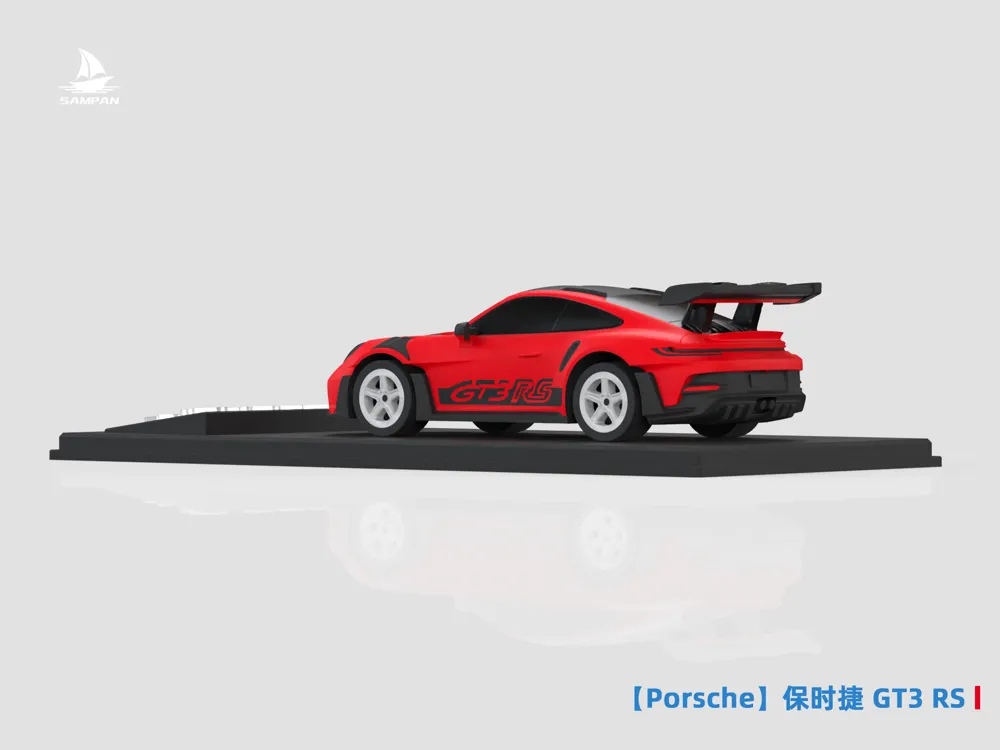

- (Optional) Display stand: More styles of display stands will be released later.
- Replaceable with a wide variety of wheels from this account, which can be browsed on the homepage to download your favorite wheel styles.
Dimensions
- 1/64 scale
- 1/43 scale: Scale the model to 150% for clearer details.
- Sliced files use minimum printer size settings. You can adjust the number of models printed at one time according to your printer size to save time and filament.
FDM Print Settings
- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Better results can be achieved by using higher-spec equipment, parameters, and filament (assembly might be too tight or too loose; this can be addressed by adjusting the XY contour compensation of the components, or by using sanding tools and 409 glue for processing and connection).
- Infill density: 15%. To increase the model's heft, the infill density can be adjusted to 100%.
- Supports: A combination of normal and tree supports was used.
- Various livery versions will be released later. Follow the account to stay updated.
- You can also adjust the parameters and print according to your own printing experience.
Support Removal Instructions
- The model is small, and supports have been added at key locations. Removing supports requires the use of flush cutters and tweezers. Breaking them off by hand is likely to cause structural breakage, especially for the side mirrors and rear wing.
- Tip: To ensure successful removal from multicolor models and avoid breakage, you can first print and remove supports from a monochrome model to understand the model and support structure, then remove supports from the multicolor model (if breakage occurs, 409 glue can be used for connection).
Monochrome Painting Reference
- Sanding: (Optional) Sand in the order of 400-600-800 grit.
- Painting: Use acrylic paints and brushes (for issues with paint bleeding into layer lines at edges, apply the main color over large areas first, then paint the edges).
- Polishing: Polish with a flannel cloth to make the acrylic paint glossy.
Assembly Instructions

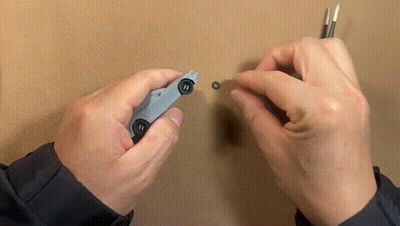

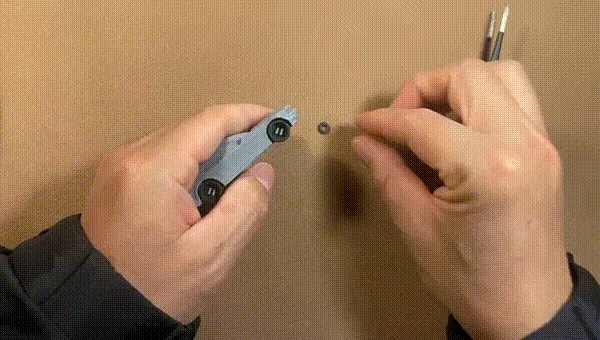

- For long-term stability, the wheels require appropriate force to install, and will be tight when first rotated. They will become more flexible after being played with a few times. See the GIF demonstration for wheel installation.
- For easy installation of wheel calipers, a wheel caliper installation tool has been specifically designed and made. Link: 64 Scale Wheel Caliper Installation Tool from SAMPAN棱界复刻 - MakerWorld
Visit the author's homepage to see all vehicle models, welcome to like and follow!
Hope to see more friends share your printing photos, I'm curious what kind of works you will print!
We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
