Lepus MK2 dart blaster

**NOT MY DESIGN**

This was designed by JackRabbitNerfer. i just brought it over here and uploaded the print profile that works for me :)

a huge shoutout to JackRabbitNerfer for taking the time to design this.  my kiddo and i have a blast modding and building dart blasters.  we are building several of these for the family get togethers!

this is the info from JackRabbitNerfer on the thingiverse page (link below)

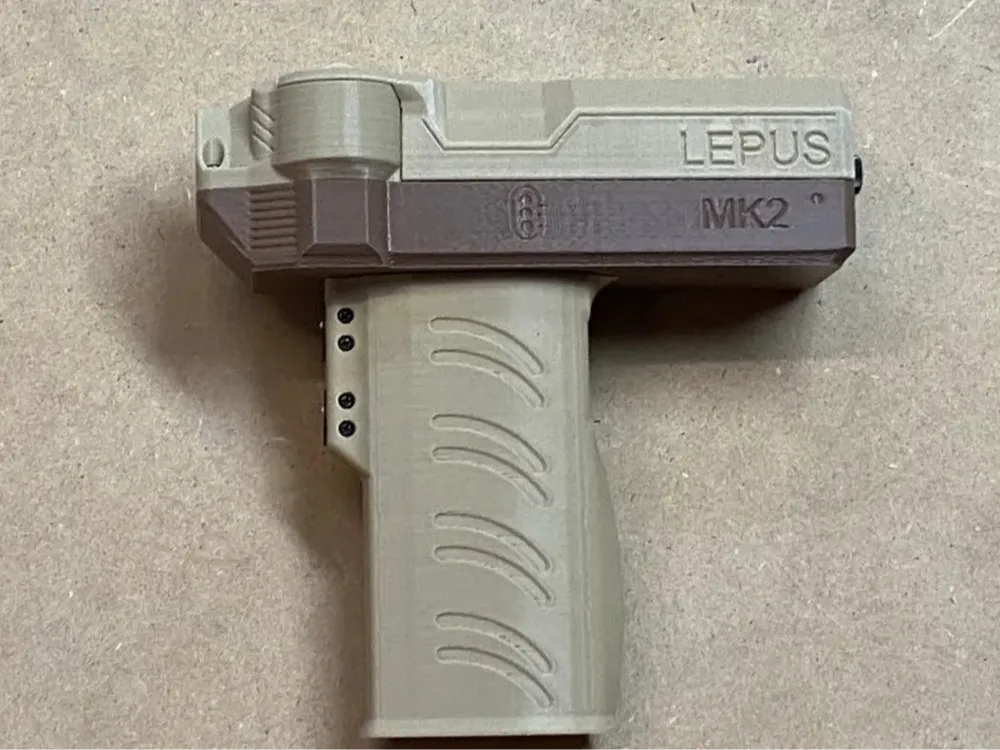

Lepus Mk2

XT-TK (eXposed Trigger - Talon + Katana) Variant

The Lepus is a fully custom designed Nerf blaster that is about as small as you can make it. It uses worker Talon mags and worker hurricane wheels and the compact n20 gear motor for the auto pusher.

Mk 2 Changes

Increased the size of the tabs on the back cover
Build in mag stop to the FWC
Change the motor mounting system from pressure fit to screws
Make different crush levels 34.0, 33.5, 33.0mm 32.5mm
Added katana compatible grip
Improve pusher cam shape
Move pusher home position switch

Contact me on facebook

Hardware you need
2x 130 motors
2x hurricane wheels
N20 gear motor 1000 or 1200rpm
Small lipo (56x31x11mm)
18awg wire
20 or 22awg wire
Heatshrink
Mosfet module (including mosfet, diode and resistors)
XT30
2x Subminiature micro switch
Miniature microswitch
7x M2.6x8mm screw
2x M2.6x10mm screw
4x M2x10mm screw
M3 brass insert
M3 thumbscrew
2 x M2 motor screws

heres the link to the original file

https://www.thingiverse.com/thing:3822393
