Roller Door Gridfinity Bin Collection

Welcome to my range of print-in-place roller door gridfinity bins.

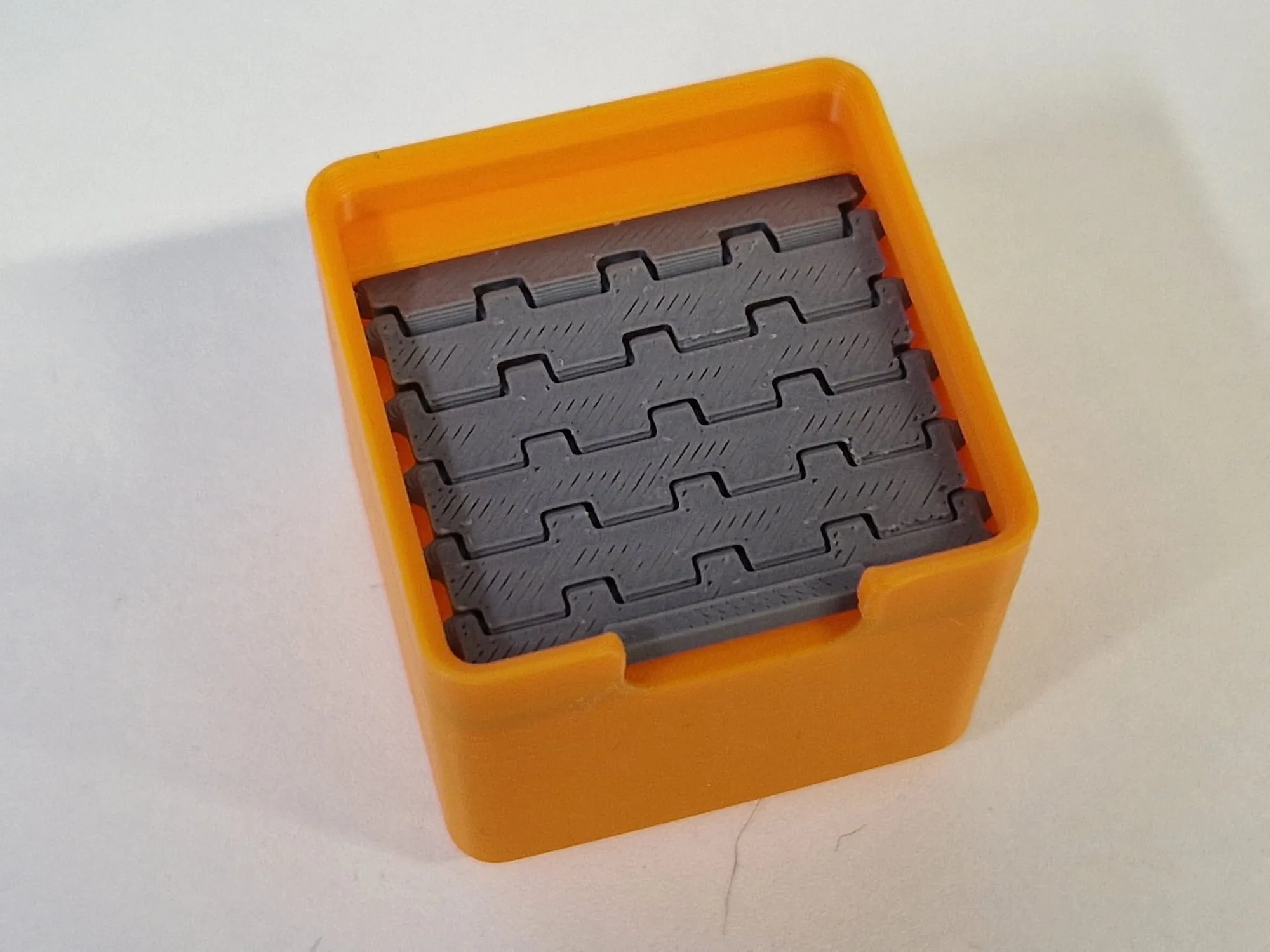

These bins consist of two parts, a "tambour" roller door and a bin.

There are 3 types of bins here:

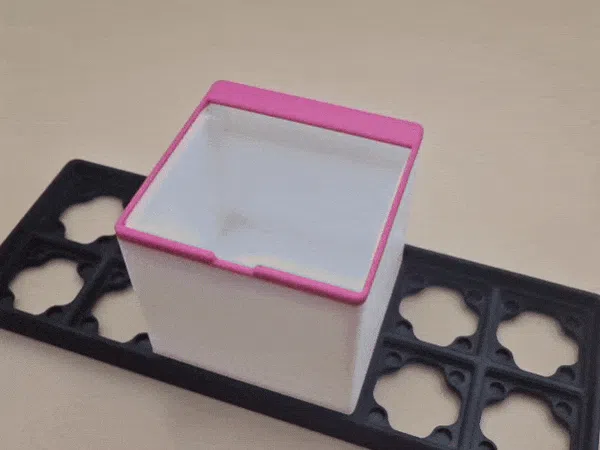

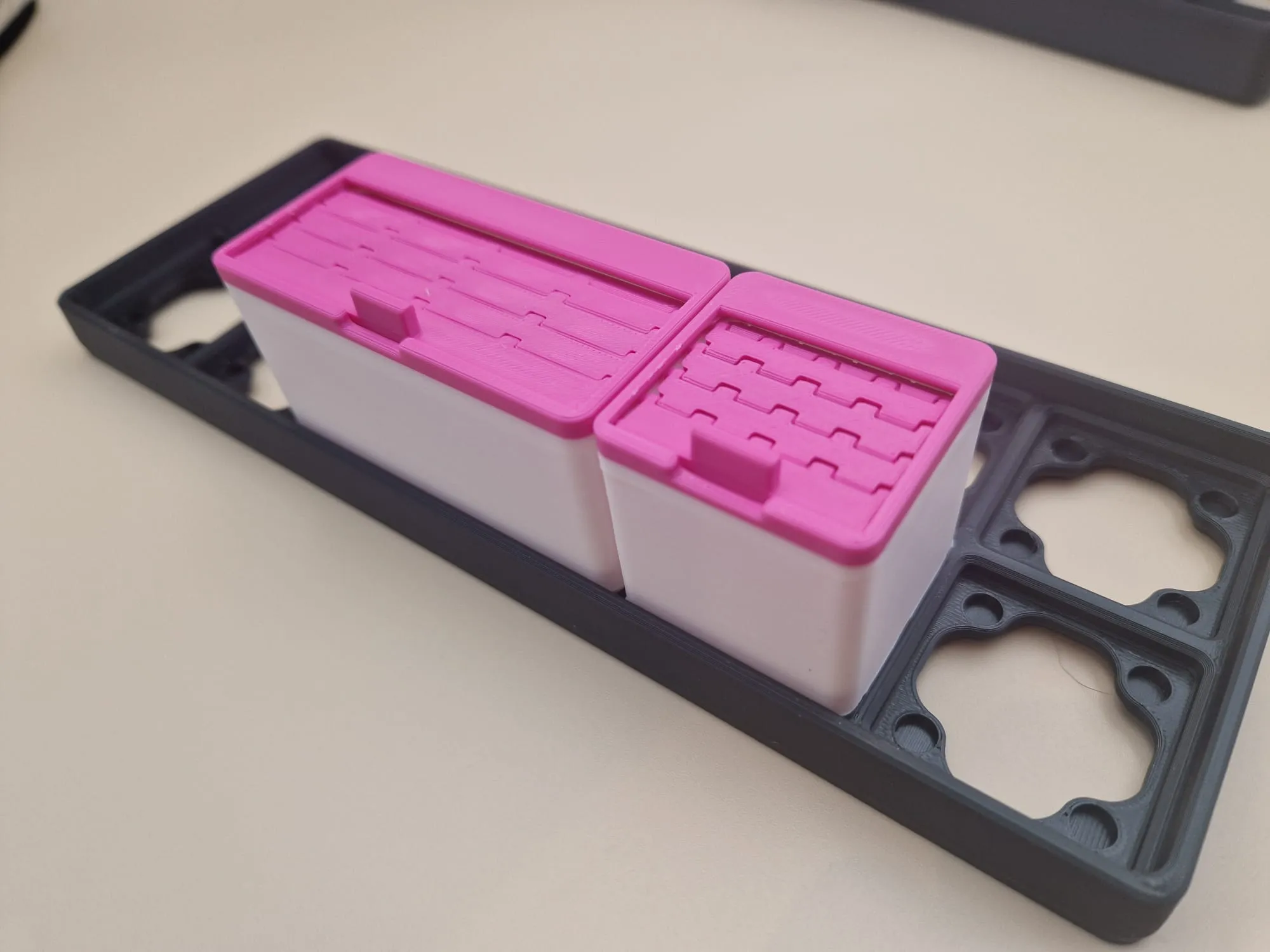

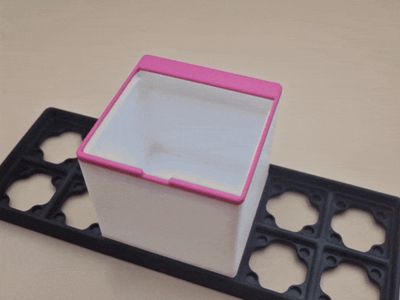

Short bins - 46mm Tall

Available in 1x1, 1x2, 1x3 bins

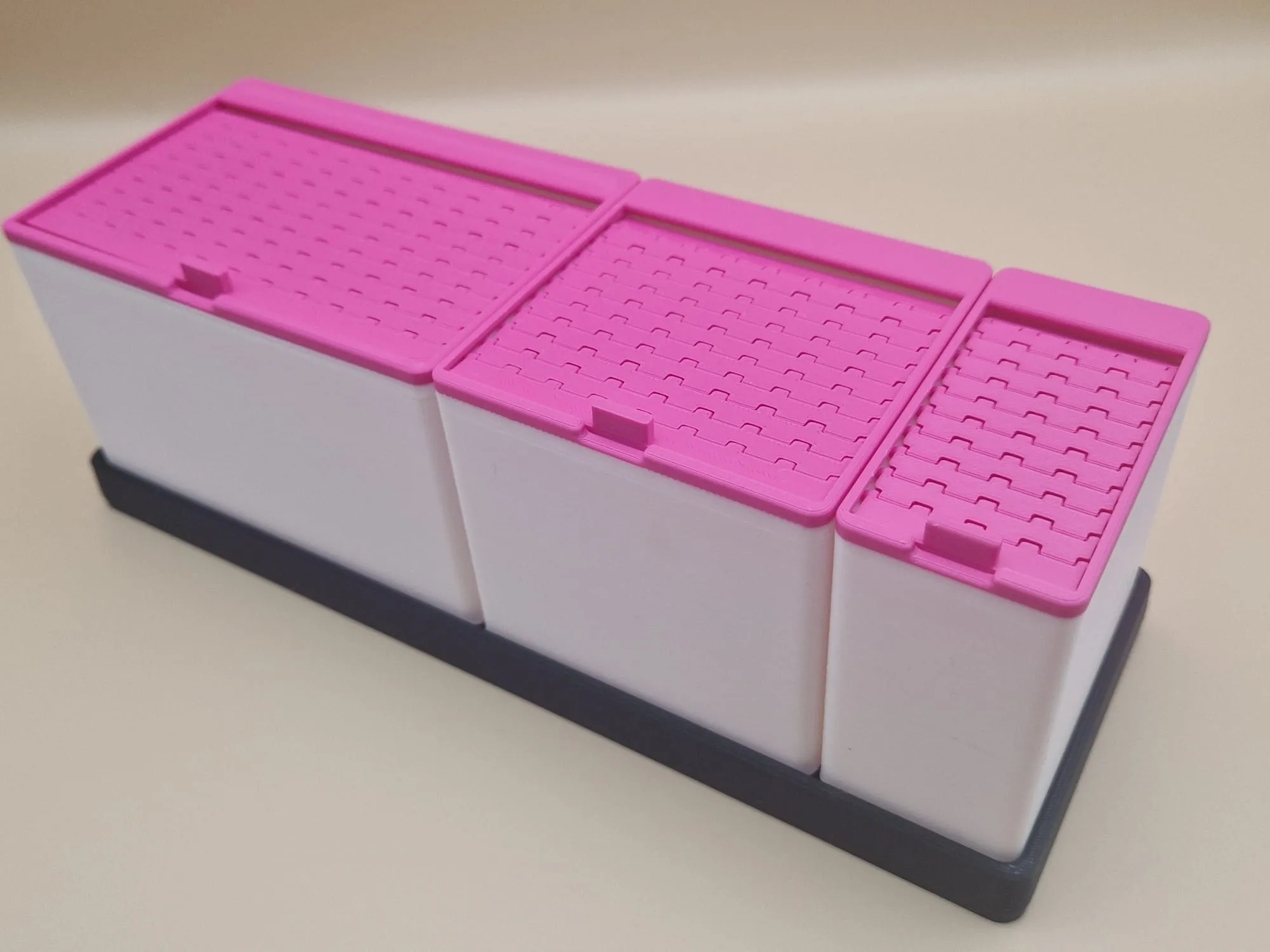

Tall Bins - 81mm Tall

Available in 1x1, 1x2, 2x1, 2x2, 3x1, 3x2 bins

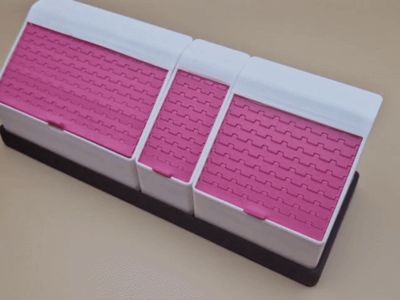

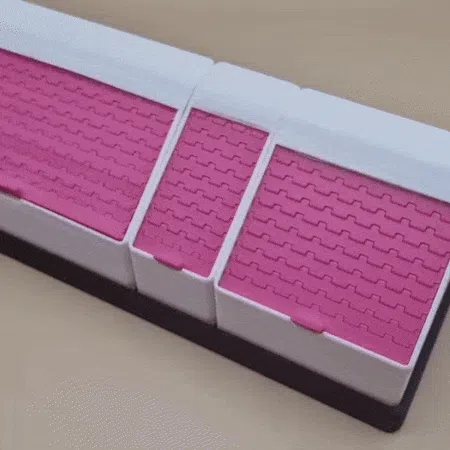

Angled Bins - 81mm Tall

Available in 1x2, 2x2, 3x2 bins

Assembly

The lid should clip inside nicely in the bin. If it's too tight, you may need to rescale it smaller by 0.5mm.

The lid should be flexible when removing it from your build plate. Make sure you wash your bed before printing it!

Version

V1.0 - Initial Release

V1.1 - Updated to add troubleshooting, and fixed tight bin lids on 2x2 and 3x2 angled bins.

Troubleshooting

• Lid not flexible when removing from the bed - Make sure your bed is washed! Print-in-place parts need small tolerances.
• Lid is too stiff - Try reprint it 0.5mm narrower. There's lots of tolerance on the height, but not much on the width.
• Lid too loose - try reprint it 0.5mm wider.
• Need magnet holes - Add them yourself on Bambu Studio using primitives.
• Do these bins stack? - Not yet, I'm working on a separate stacking version!
• Want multiple colours like mine? - Add a colour change 4mm before the top of the bin.

Looking for a stackable, parametric version?

Customise your own bins with a custom size on my new parametric version of this.
