Gate Holder for Double Wire Mesh Fence
Print Profile(1)
Description

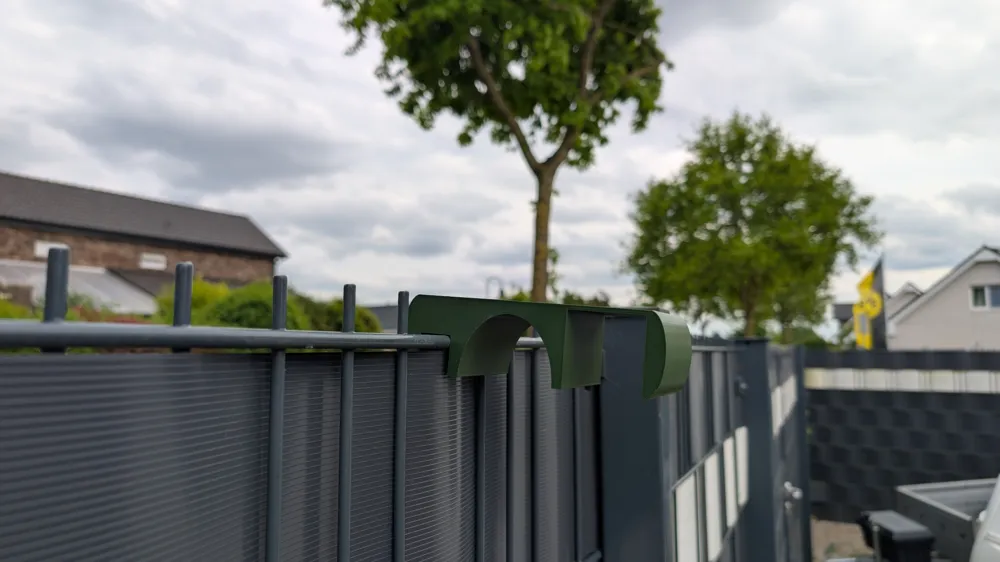

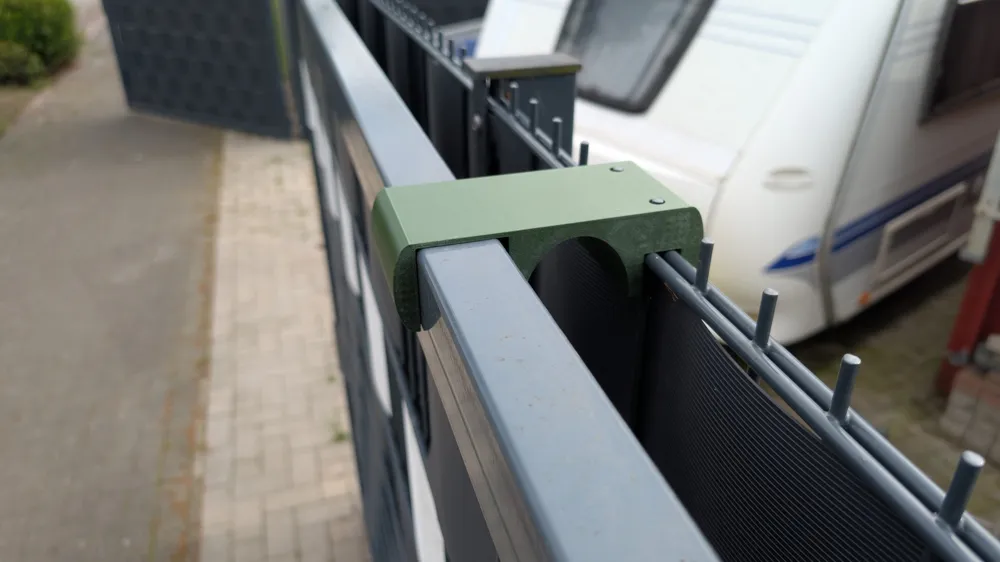

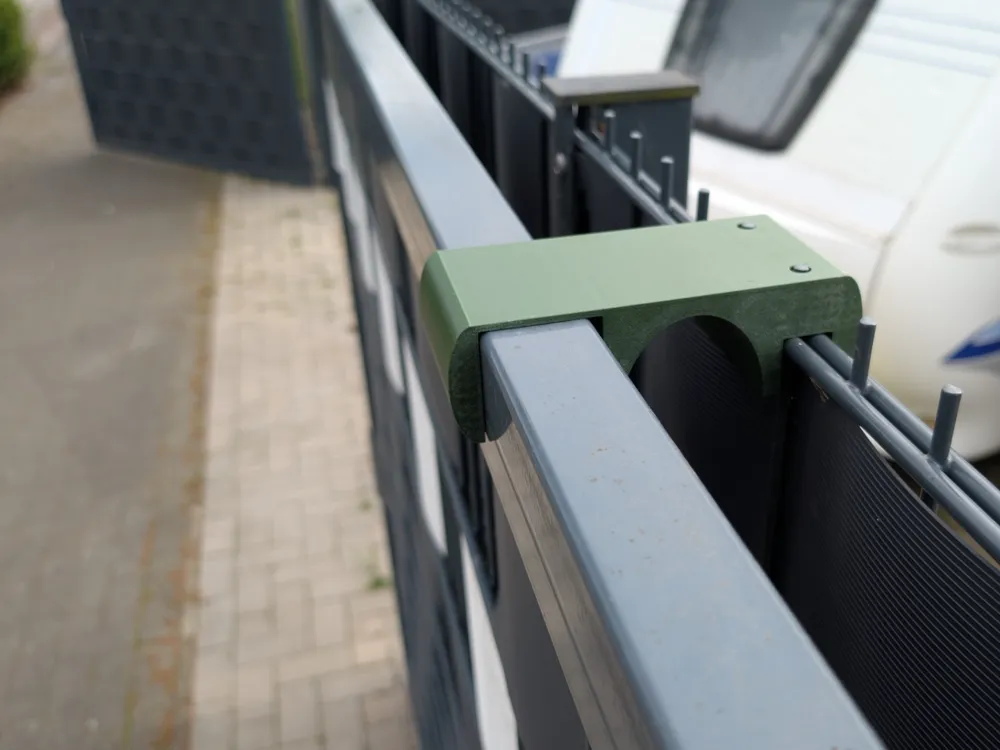

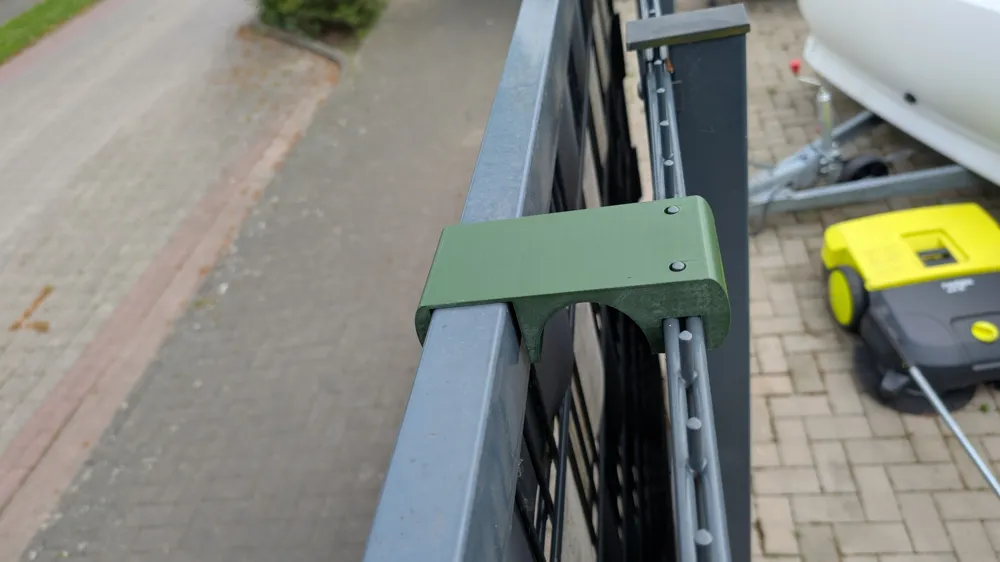

This 3D-printed component serves as a practical holder to securely keep an open gate in position. It is simply placed over the top frame of a double wire mesh fence and ensures that the gate does not unintentionally close – ideal in windy conditions or on slopes.
When not needed, it can simply be turned over.
Features and Benefits:
- ✅ Gate Fixation: The U-profile reliably holds the gate open without the need for additional aids such as stones or tension straps.
- ✅ Tool-free Assembly: Simply slides over the fence frame.
- ✅ Robust and Precise Fit: Designed for gates up to 45 mm thick.
Technical Data:
- Outer Dimensions (L×W×H): approx. 164 mm × 74 mm × 48 mm
- Maximum Gate Thickness: 45 mm
- Distance between Screw Holes (center to center): 50 mm
- Bore Diameter: approx. 5 mm
Recommended Print Settings:
- Print Position: Lying flat (on the large surface)
- Layer Height: 0.2 mm
- Infill: 30–40 %
- Wall Lines: at least 3
- Recommended Material: PETG, ASA or ABS (UV and weather resistant)
Area of Application:
Ideal for driveways, gardens, and parking areas. Keeps the gate securely open – e.g., when maneuvering with a car, caravan or trailer.
