Bottle Holder + Pump + AirTag Hiding Spot
Print Profile(4)
Bill of Materials
- Wiederverschließbare Kabelbinder 7,4 mm x 200 mm x 1: https://amzn.to/446Cc3M
Description

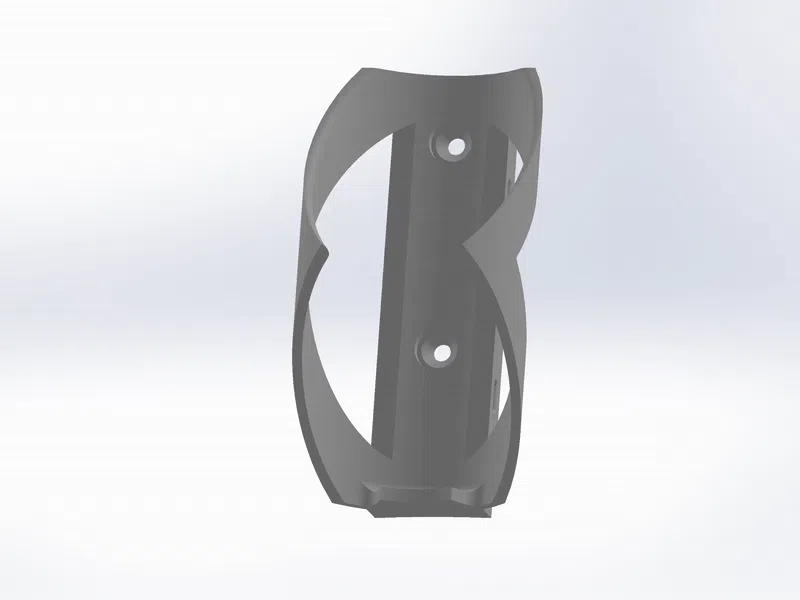

🚴 Water Bottle Holder with Optional Pump Mount & Optional AirTag Hiding Spot

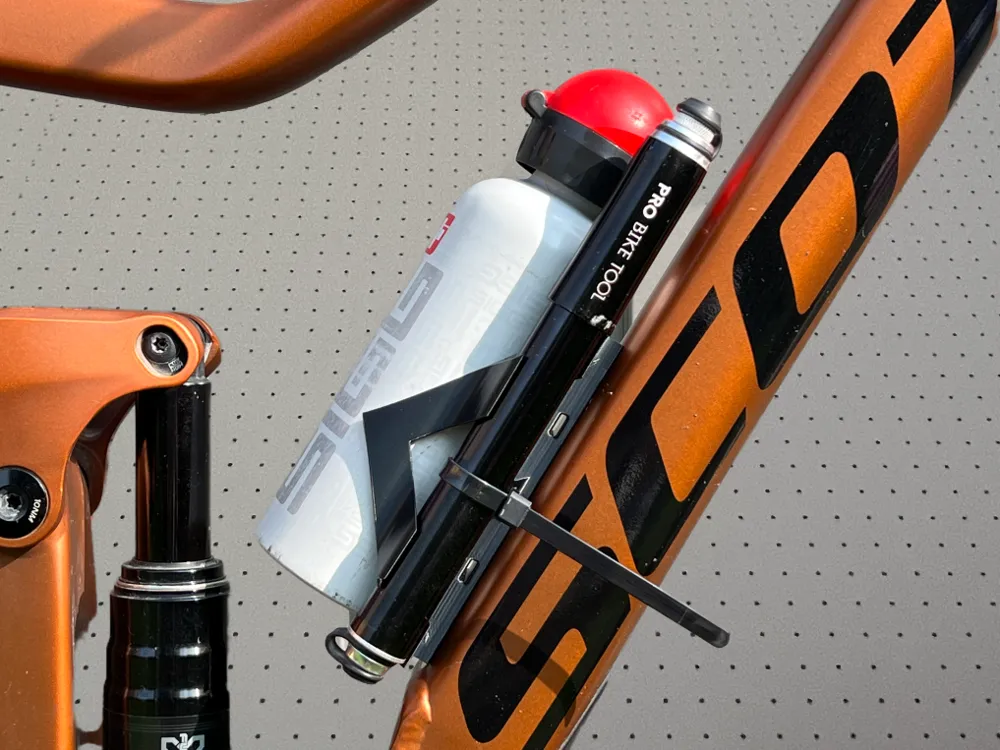

A holder for everything at once: your water bottle, air pump, and a hidden AirTag compartment – ensuring you have everything you need on your ride and your bike is more secure
🌱 The Story Behind It
Before my last big bike tour, I noticed that my air pump mount blocked the water bottle holder. So, I designed a new holder that allows me to attach both. Because used bikes have been stolen too often among my acquaintances, I later added a version with a hidden AirTag compartment – discreet and only accessible by unscrewing the holder
🧭 Important

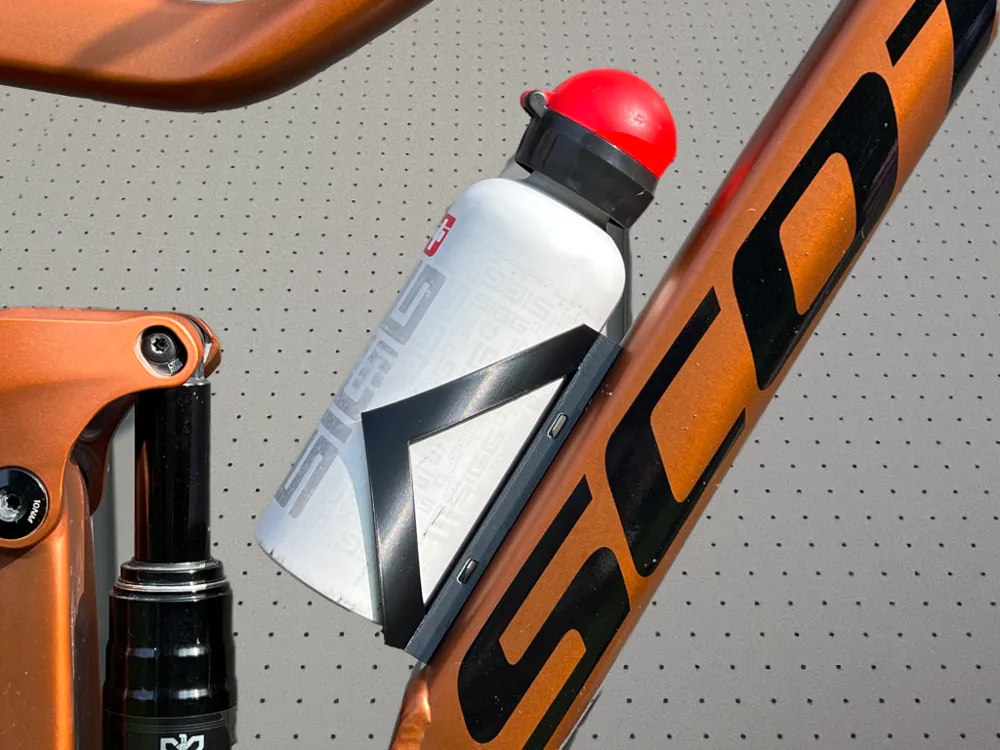

- The bottle receiver fits most bottles with approximately 70 mm diameter
- The pump receiver is designed for pumps with approximately 22 mm diameter; the pump is clamped and additionally secured with a reusable zip tie

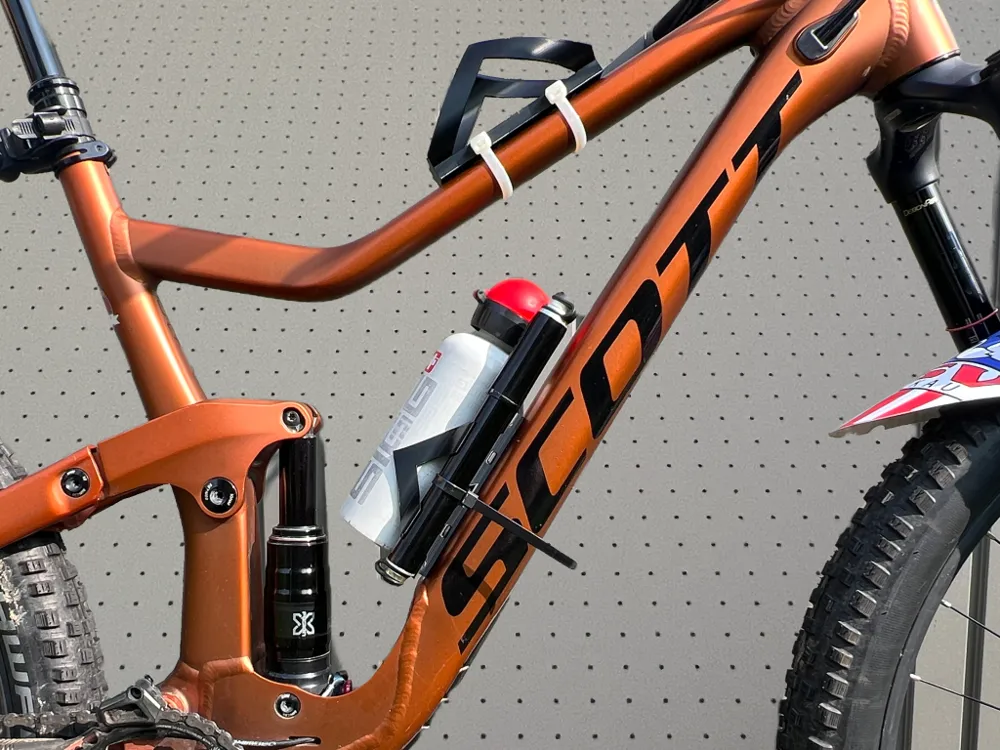

- Attachment optionally with standard screws or through the existing slots with large zip ties (see photo) – also ideal for a second water bottle without suitable frame threads

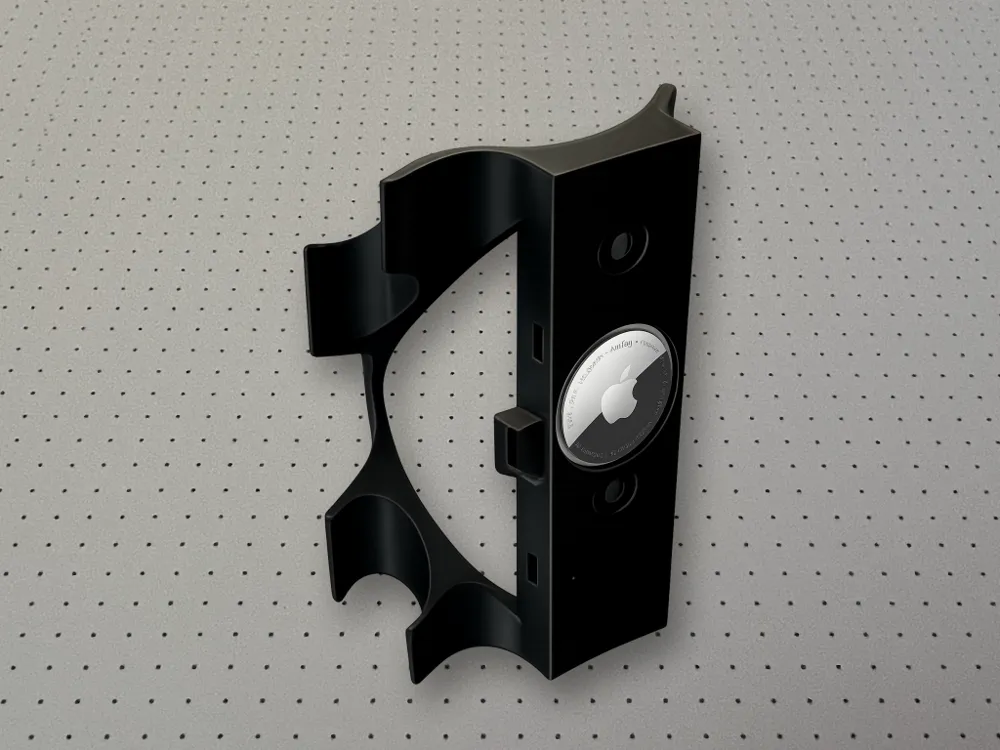

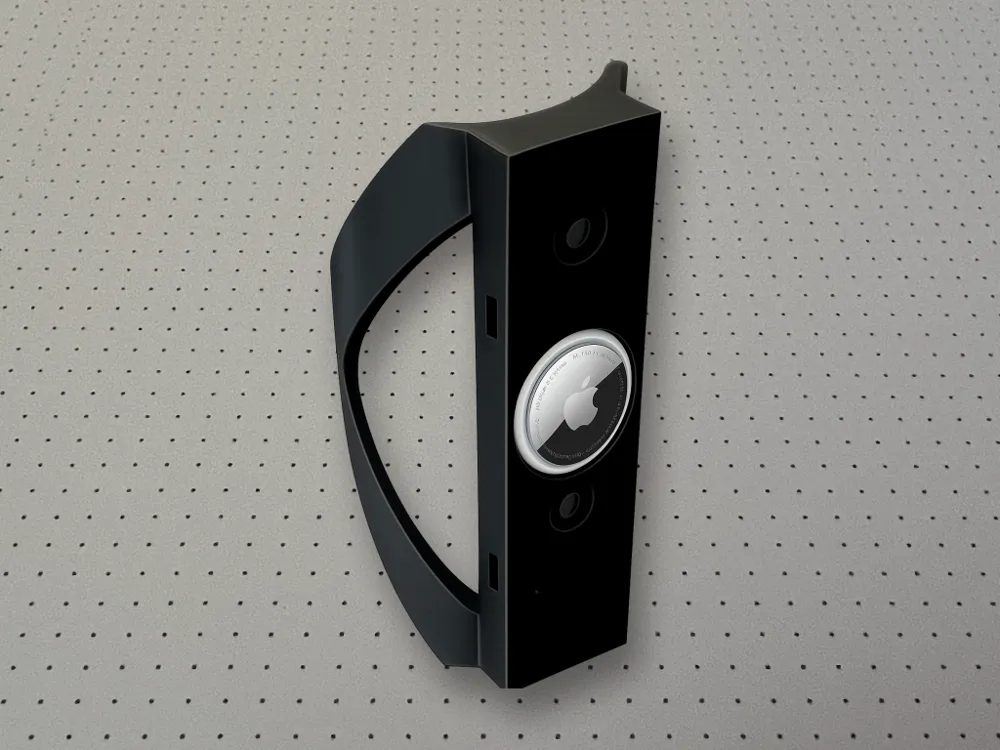

- The AirTag compartment is only accessible from the back and remains hidden on the bike
🖨️ Print profiles
Four profiles are available, depending on your needs

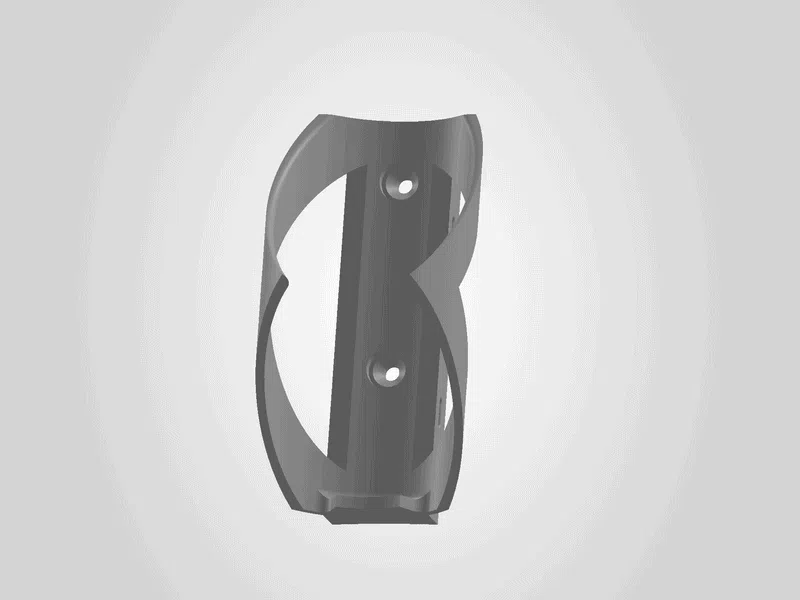

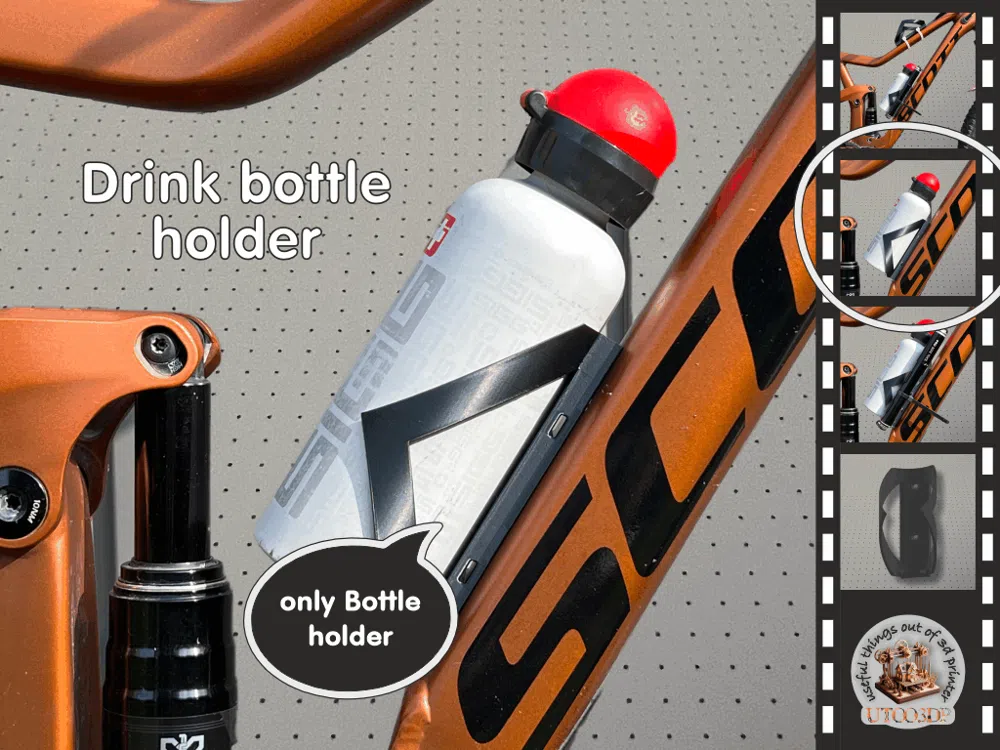

- Bottle holder only – 0.2 mm layer, 3 walls, 18% infill

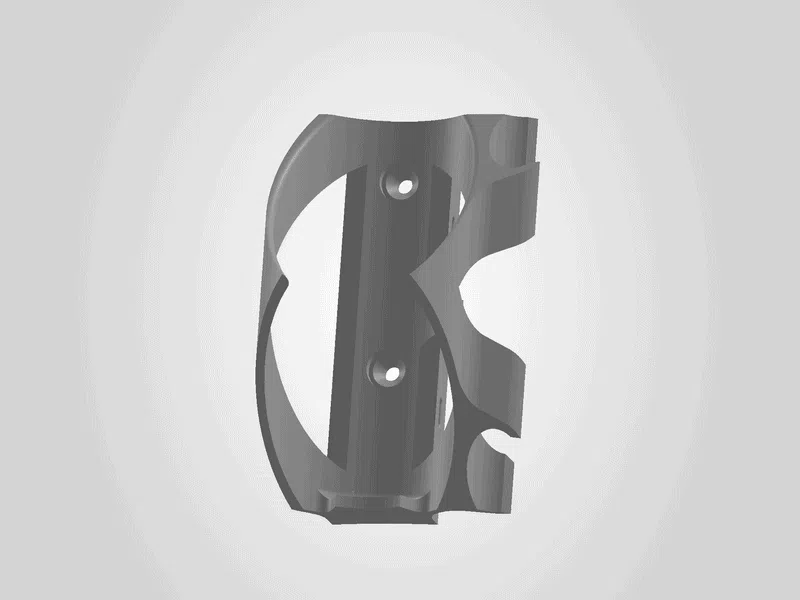

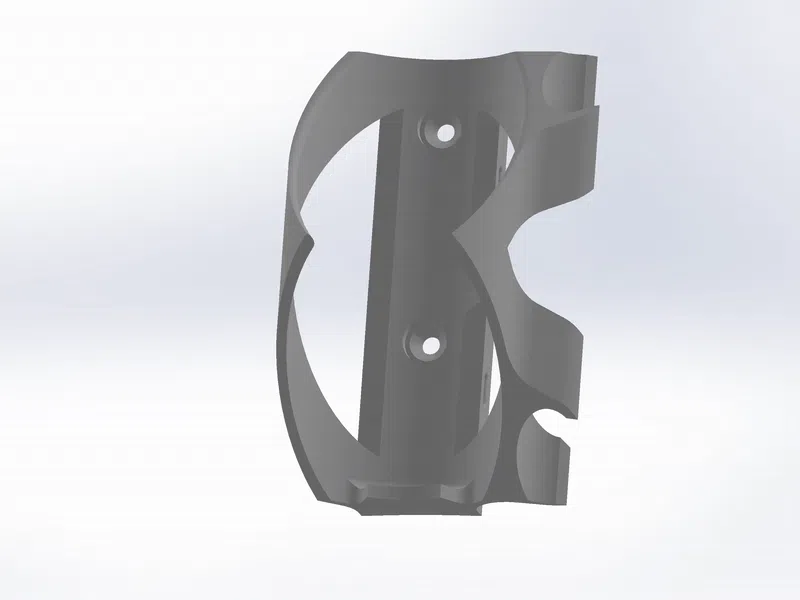

- With air pump mount – 0.2 mm layer, 3 walls, 18% infill
- With AirTag hiding spot – 0.2 mm layer, 3 walls, 20% infill
- With pump mount and AirTag hiding spot – 0.2 mm layer, 3 walls, 20% infill
Recommended material: PETG or ASA for increased strength
🎨 Instructions
- Choose the print profile that matches your setup (bottle only, with pump, with AirTag, or the combo)
- Print the holder and carefully remove the supports
- Insert the AirTag (if used) from the back before mounting the holder
- Mount with M5 screws or thread zip ties through the slots
- Insert the pump and secure it with the reusable zip tie
