[Lamborghini] Lamborghini Huracán GT3 EVO Race Car Endurance Race Champion Car Assembly / Movable Wheels
Print Profile(3)
Description
Boost Me (for free)
If you like this model, please boost it! Your support is my motivation for continuous updates!
【Special Notes for F1 Models】
1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!
4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!
【Read Before Printing!!! Warm Tips】
It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.
Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.
---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------
A friend commented several times wanting this Lamborghini Evo GT3, and it's finally ready this week!
The Lamborghini Huracán GT3 Evo is an evolved race car built specifically for GT racing, launched in 2019.
Developed on the Huracán platform, the car features optimized aerodynamic design (such as improved front splitter, rear wing, and diffuser), significantly enhancing downforce and stability.
It is equipped with a powerful and reliable 5.2-liter V10 naturally aspirated engine. It has achieved great success on the track, including three consecutive GTD class wins at the Daytona 24 Hours endurance race.
Model Description

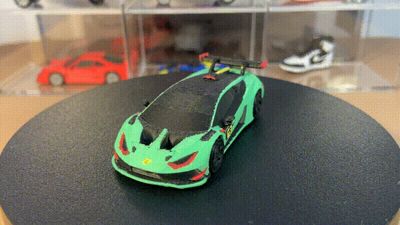

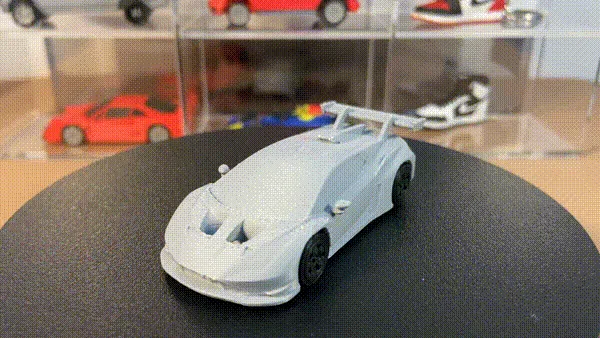

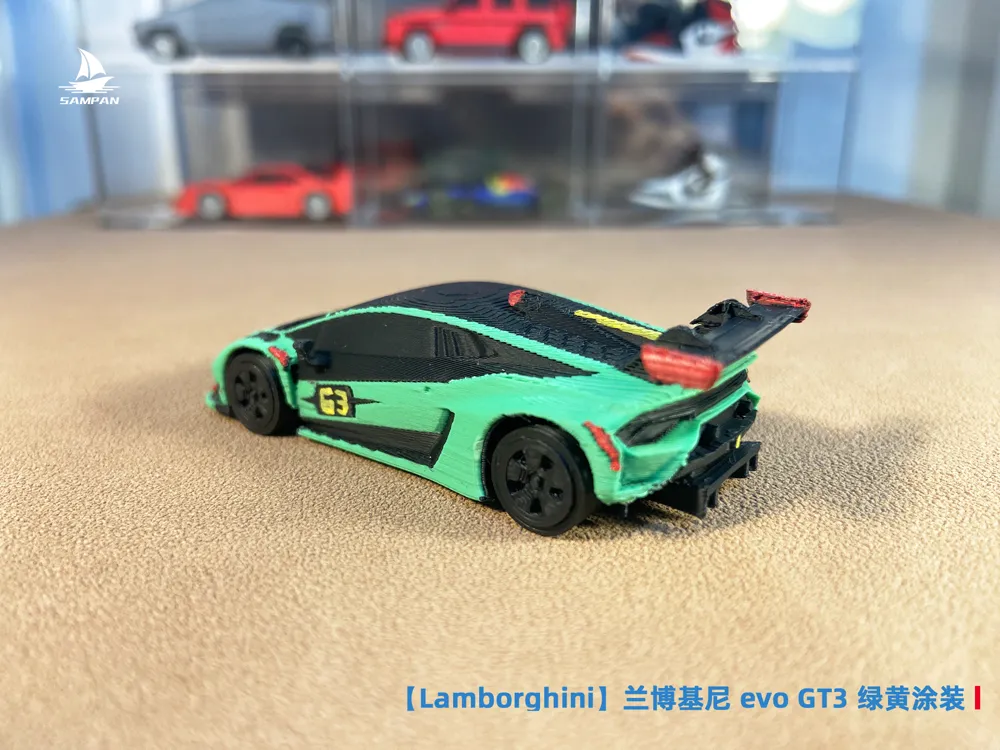

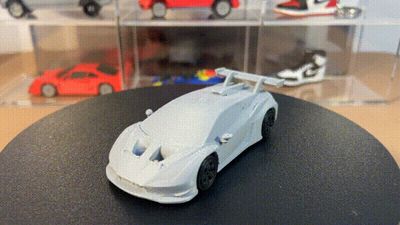

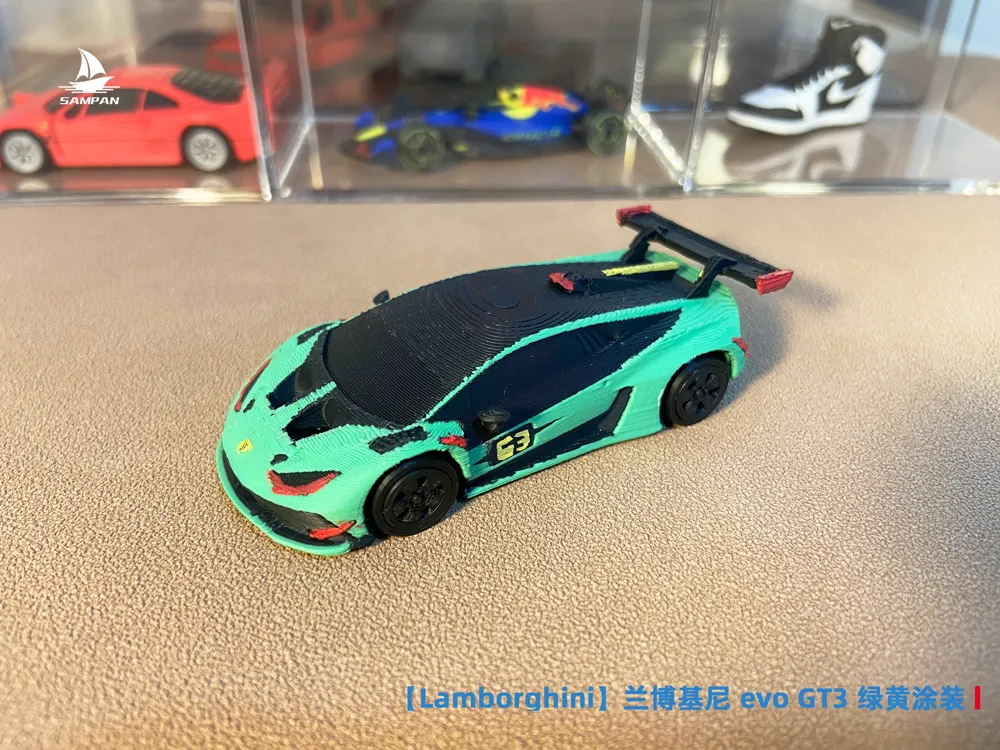

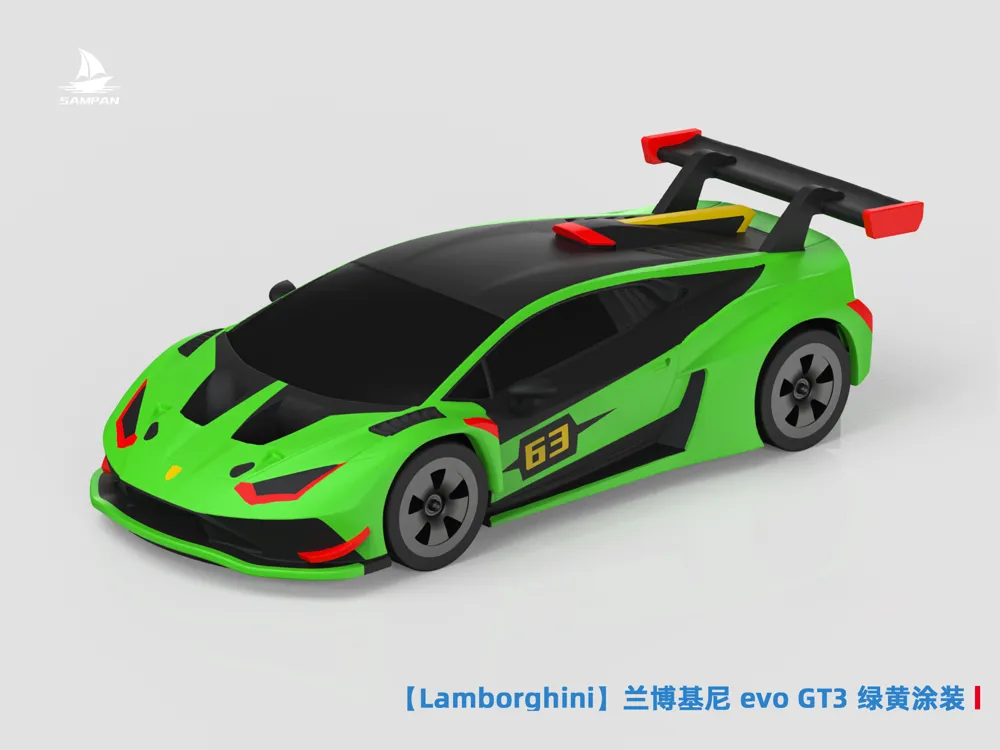

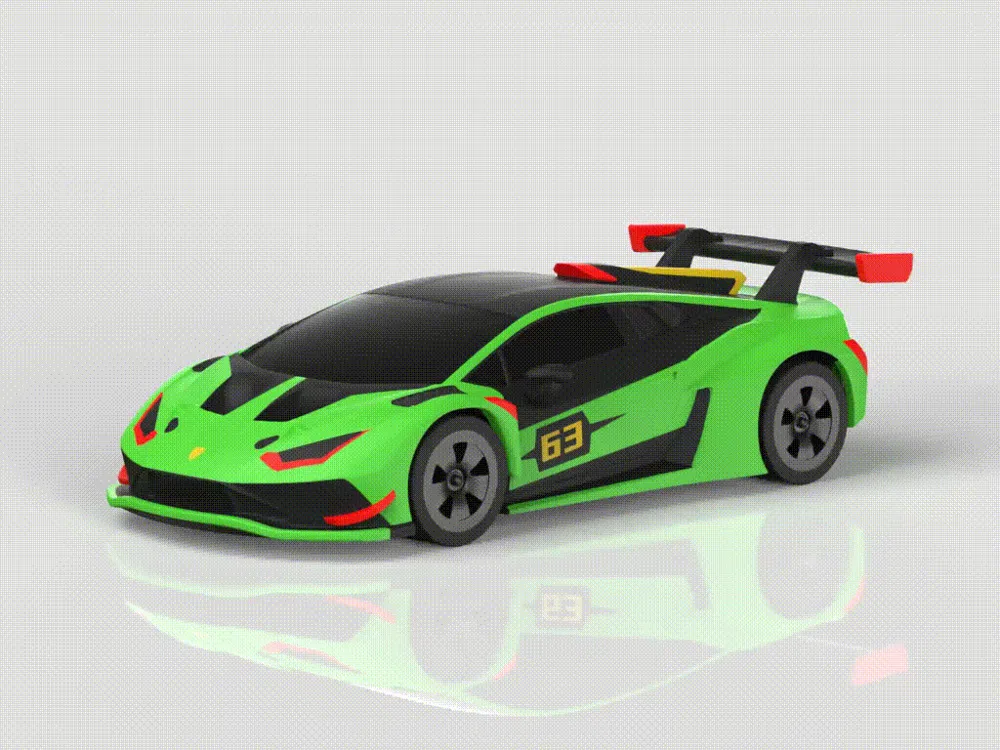

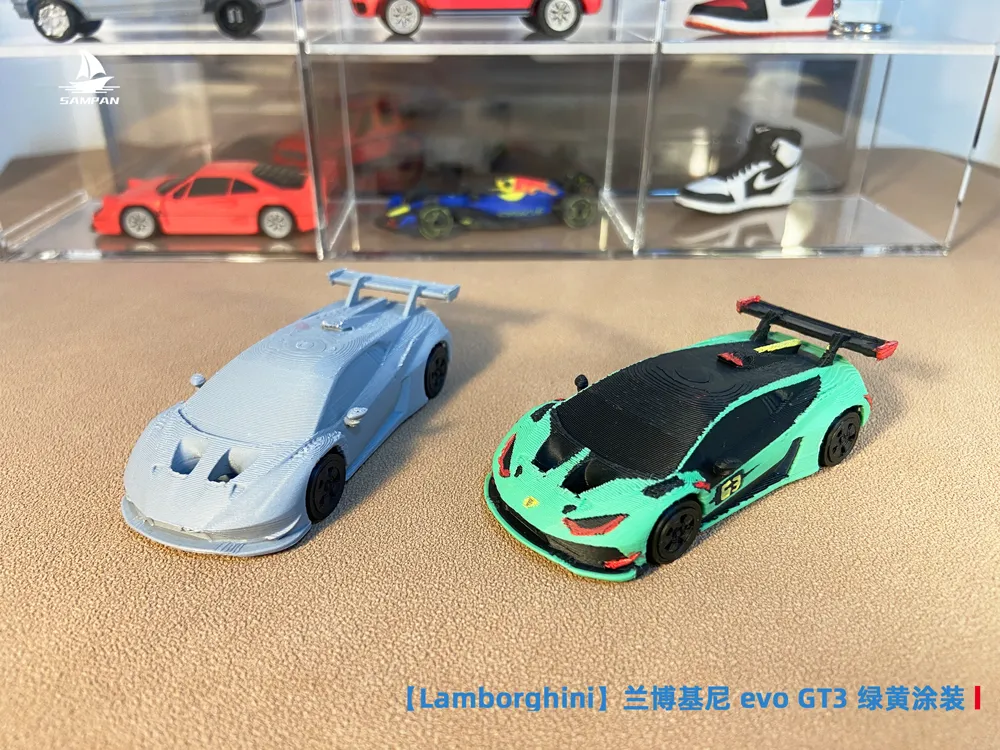

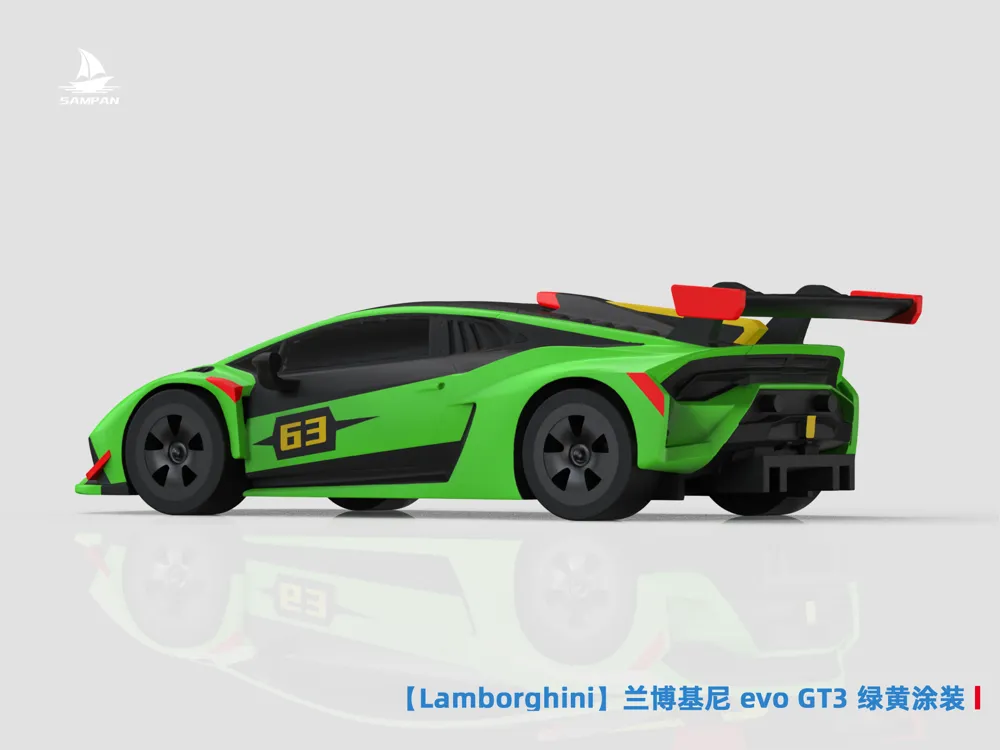

- Includes monochrome and multicolor print profiles: Monochrome can be painted and decaled. Multicolor print profiles can be printed directly (uses more filament and takes longer. You can print several on one plate), or used as a reference for monochrome painting

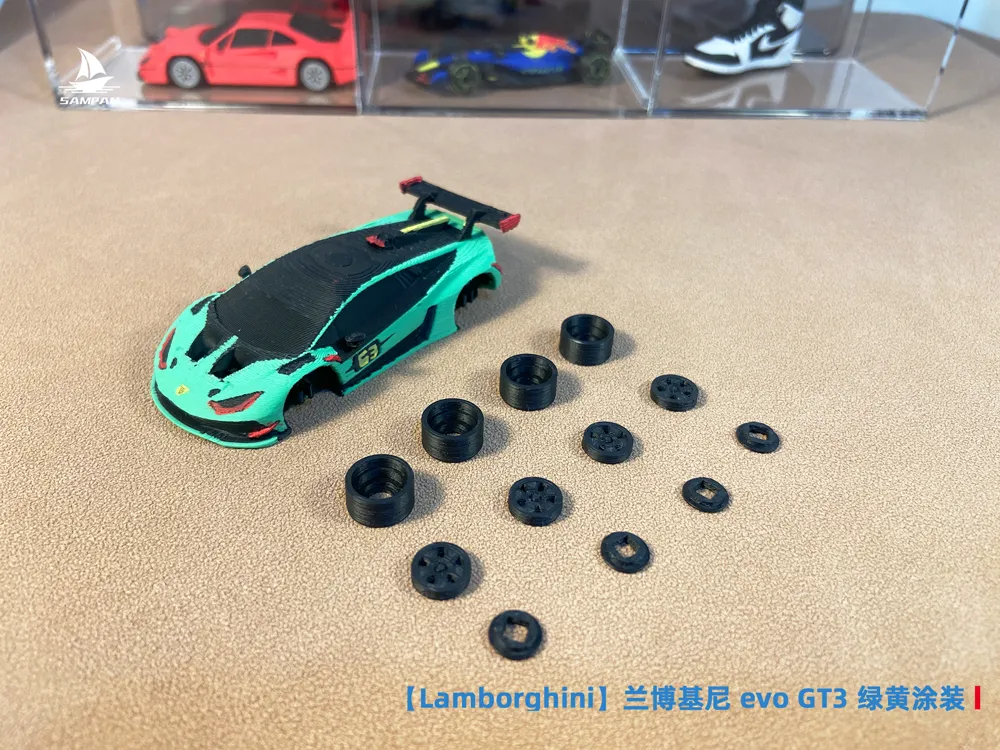

- movable wheels, no glue required for assembly
- (Optional) Display stand: More styles of display stands will be released later
- Replace with a variety of hubs from this account, browse the homepage and download your favorite hub styles
Dimensions
- 1/64 scale
- 1/43 scale: Scale the model to 150% for clearer details
- Slicing files, use minimum printer size settings. You can adjust the number of models printed at one time according to your printer size to save time and filament
FDM Print Settings

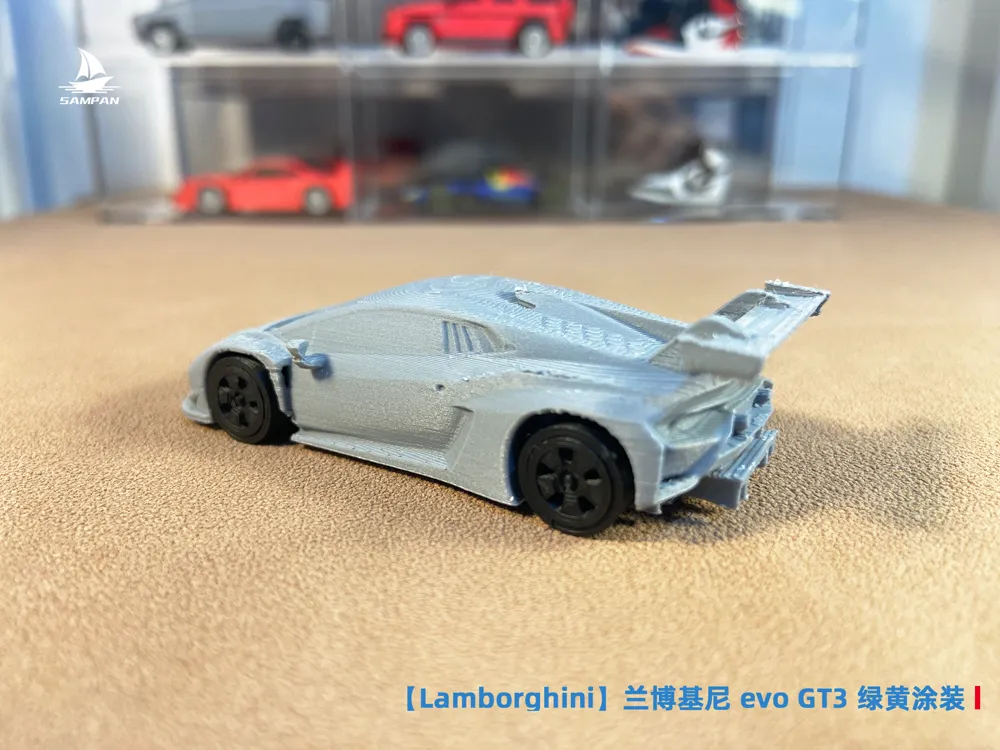

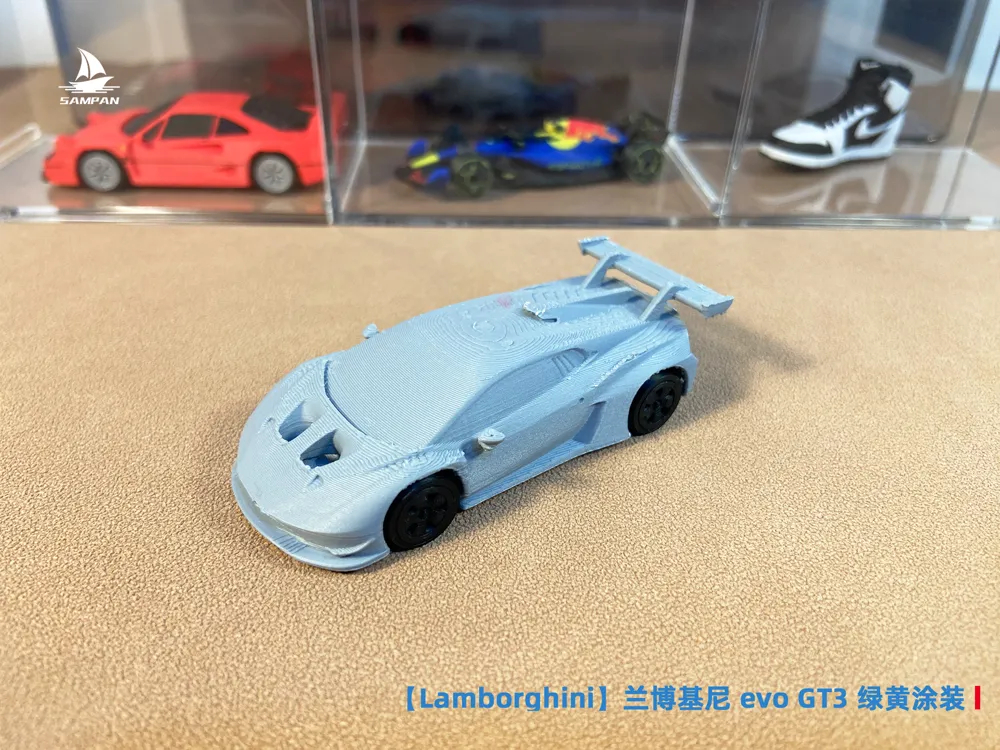

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (assembly might be too tight or too loose; this can be addressed by adjusting the XY contour size compensation for components, or by using sanding tools and 409 glue for processing and connection).
- Infill density: 15%. To increase the model's weighty feel, the infill density can be adjusted to 100%.
- Supports: A combination of normal and tree supports was used.
- Various painted versions will be released later; follow the account to get updates first.
- You can also adjust parameters based on your own printing experience.
Support Removal Instructions
- The model is small, and supports have been added at critical points. Removing supports requires using sprue pliers and tweezers. Breaking them off by hand will likely cause structural damage, especially to the rearview mirrors and rear wing sections.
- Tip: To successfully remove supports from multicolor models and avoid breakage, you can first print and remove supports from a monochrome model to understand the model and support structure, then remove supports from the multicolor model (if breakage occurs, 409 glue can be used for connection).
Monochrome Painting Reference
- Sanding: (Optional) Sand in 400-600-800 grit order.
- Painting: Use acrylic paint brushes for painting (for edge texture bleed issues, apply the main color over a large area first, then paint the edges).
- Polishing: Use a flannel cloth for polishing to make the acrylic paint shiny.
Assembly Instructions

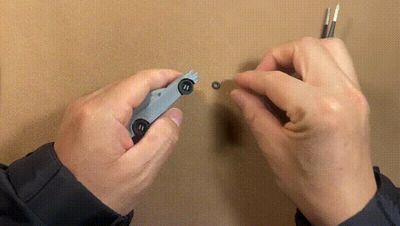

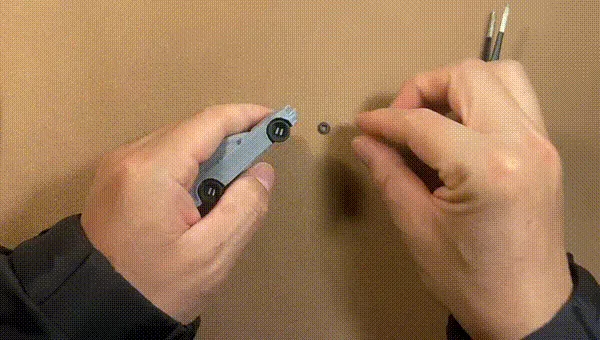

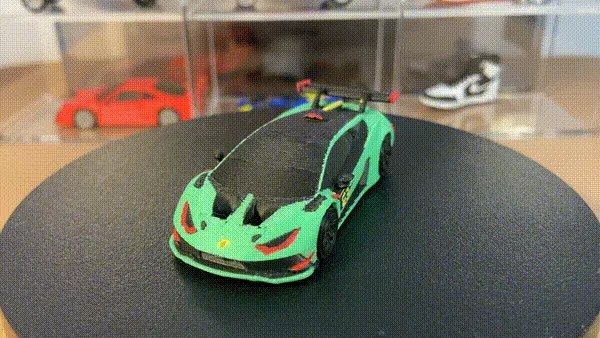

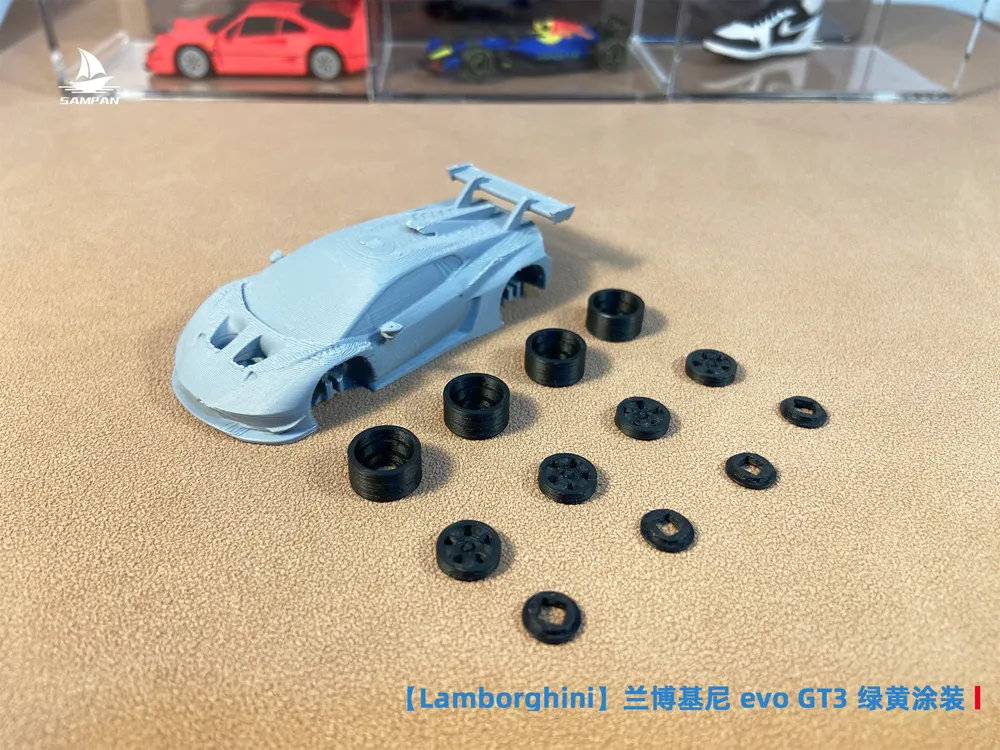

- For long-term stability, the wheels require proper force to install and will be tight when first rotated. After playing with it a few times, it will become more flexible. See the GIF for wheel installation.
- To facilitate the installation of wheel calipers, a dedicated wheel caliper installation tool has been designed and produced. Link:64 Scale Wheel Caliper Installation Tool from SAMPAN Replica - MakerWorld
Visit the author's homepage to see all vehicle models, welcome to like and follow!
Hope to see more friends share your printing photos, I'm curious what kind of works you will print!
We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
