MeLe Quieter 4C Finderscope Bracket Mount

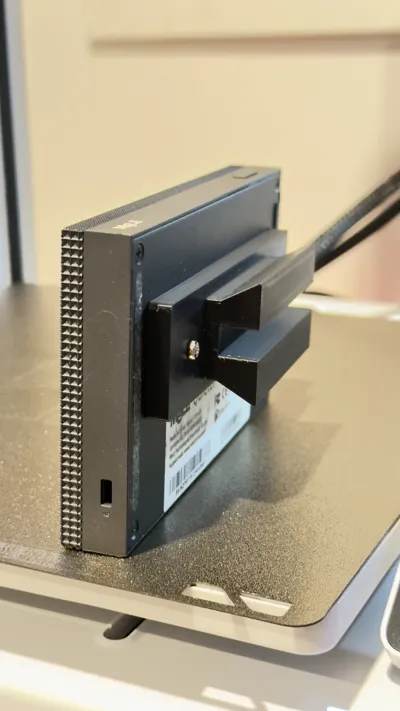

This is just a simple mount/bracket that attaches to the base of a MeLe Quiter 4C mini pc by using the stock VESA mount screw holes and the “legs” slide nicely into the finderscope bracket commonly found on telescopes!! I have only tested fitment on Sky Watcher finderscope brackets but I'm going to assume they're a universal design!!

I used Bambu Labs PETG-HF filament and it consumed 19.29g on 0.16mm High Quality settings within Bambu Studio

The screw hole diameter is 3.25mm which means the M3 screws you'll need to find have a nice snug fit!!

The base is 6mm thick and I recommend using 10mm long screws, they work perfectly for me!!

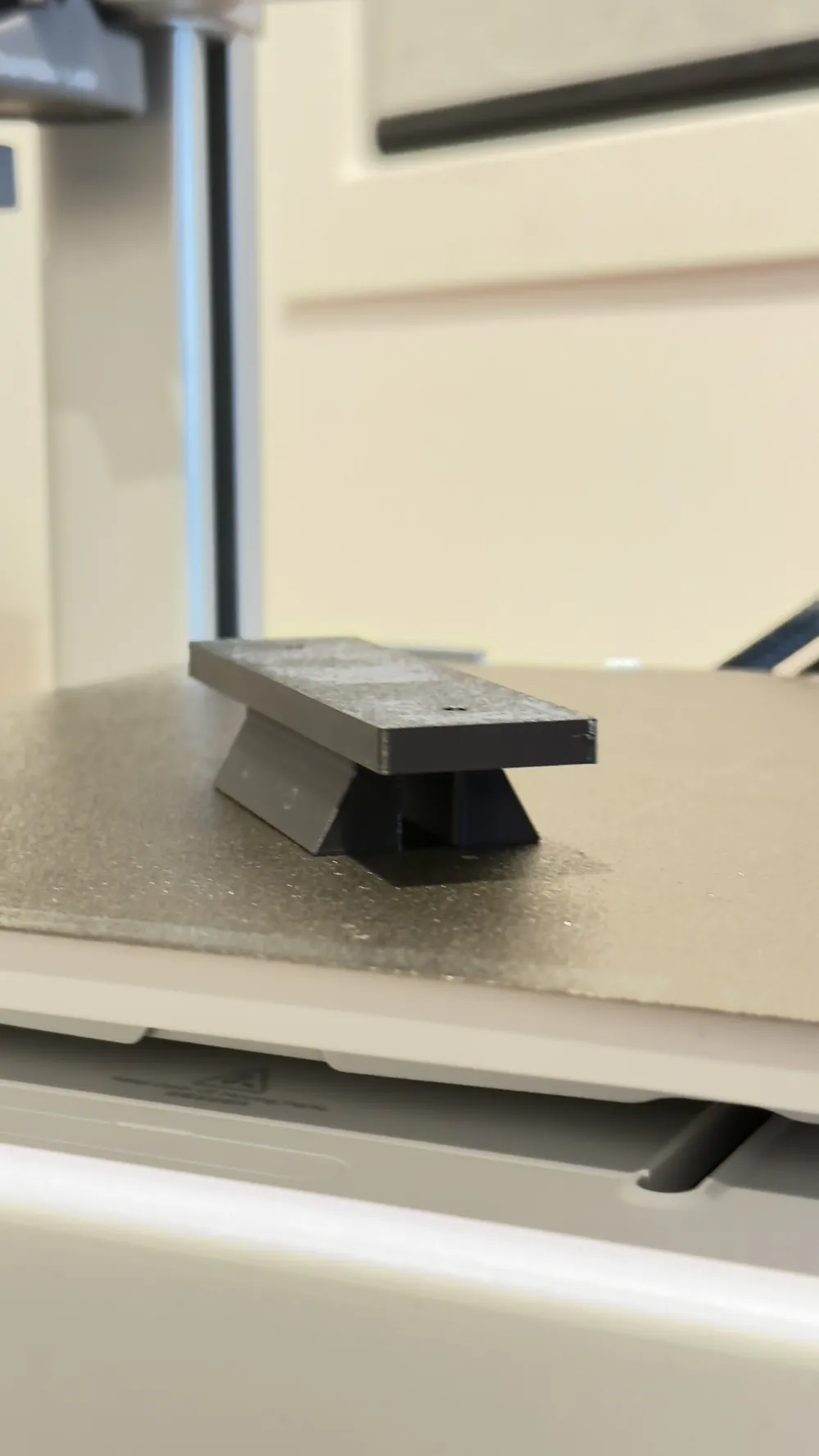

Base Dimensions:

30mm wide — 110mm long — 6mm thick

Screw hole 3.25mm diameter — 6mm deep

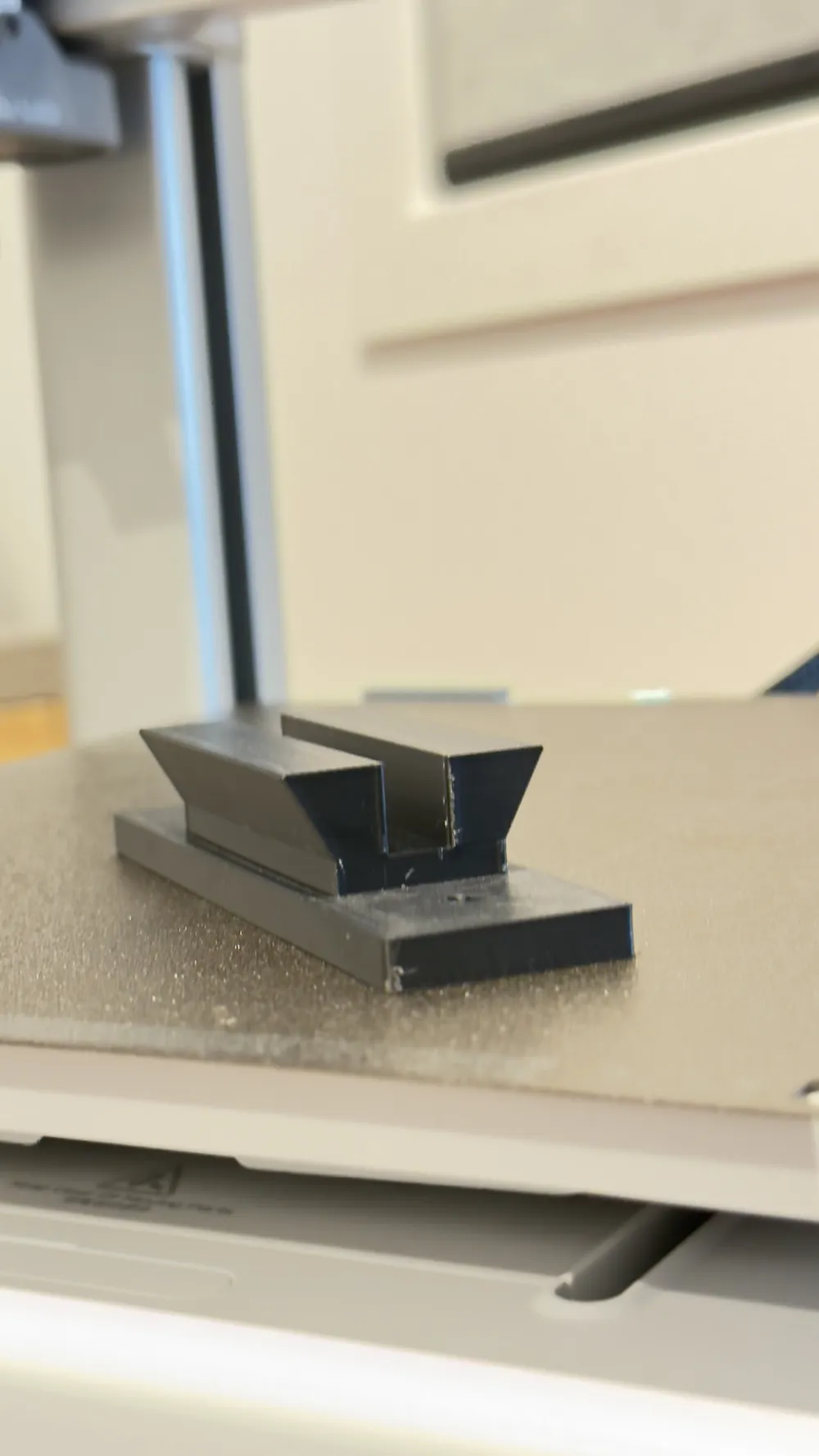

Leg Dimensions:

22mm wide where they join the base

32.31mm at widest point of the legs

Overall length of the legs is 60mm which allows users to slide it through the finderscope bracket to a position that works for them

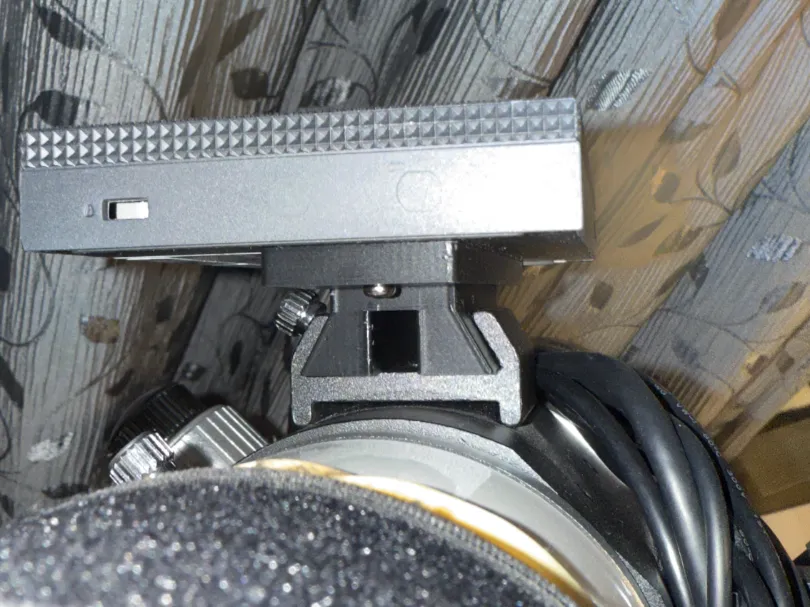

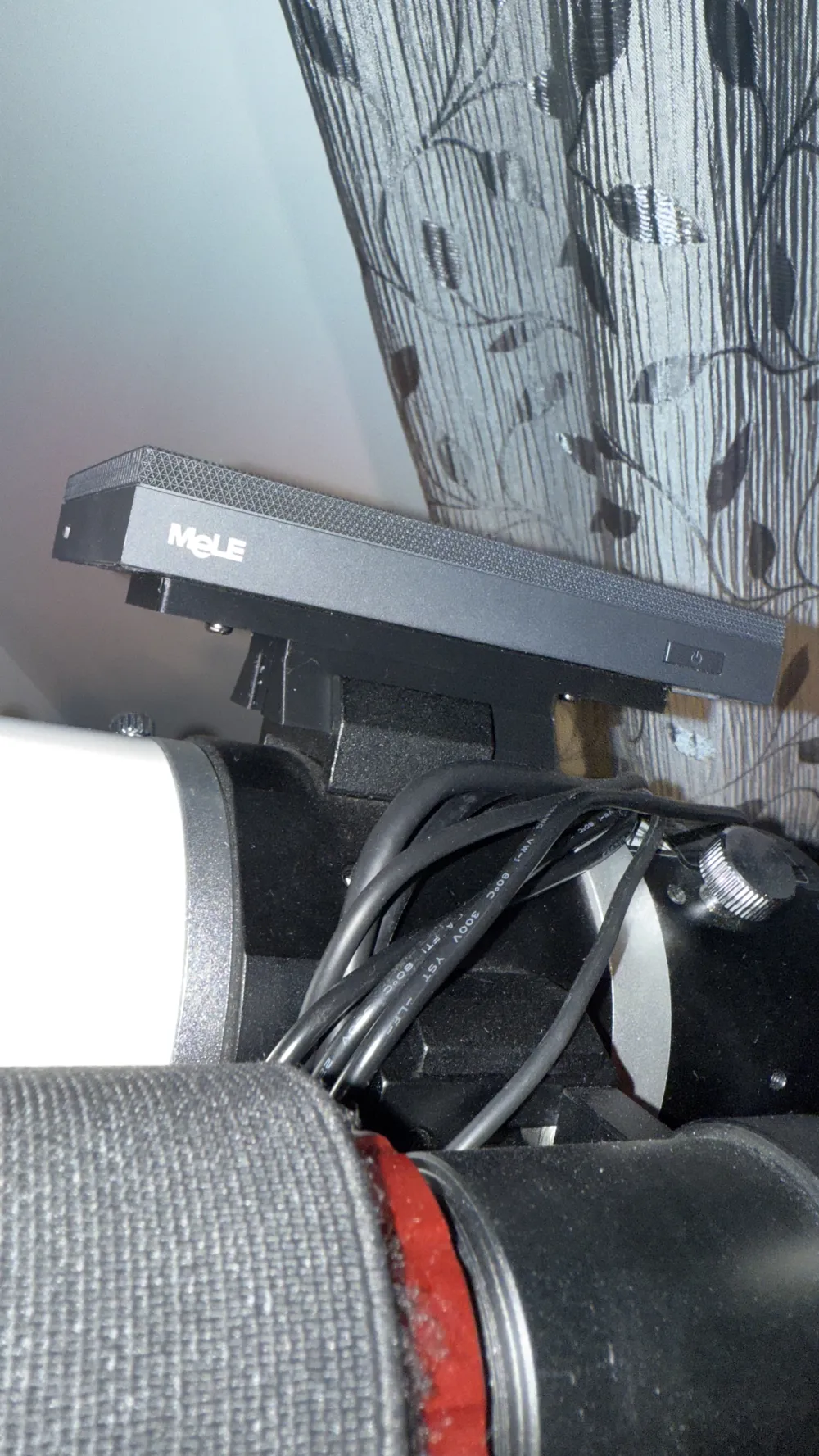

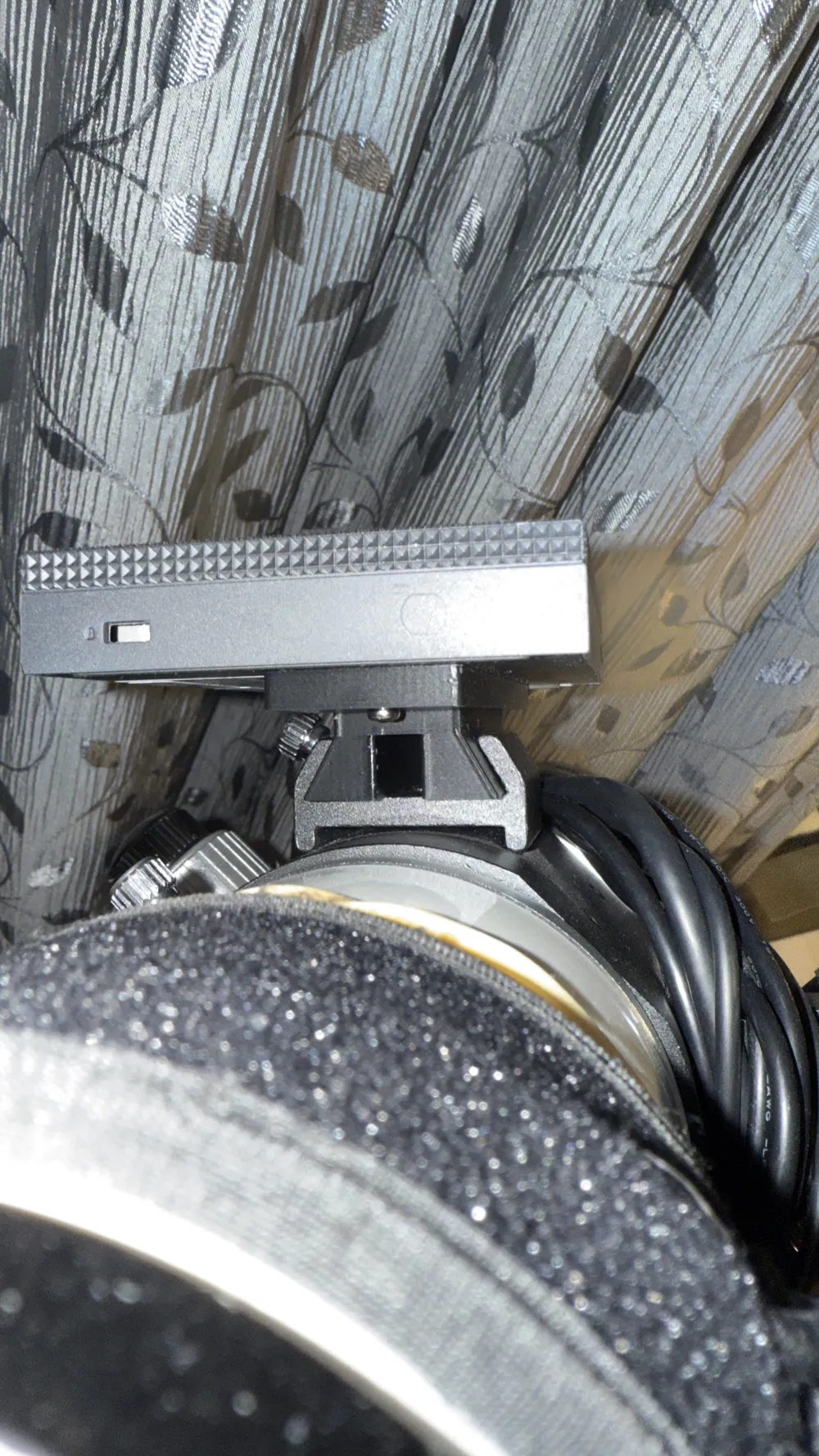

The bottom face of the base sits 4mm above the finderscope bracket which means the bottom face of a MeLe 4C sits 10mm above the finderscope bracket!! The reason for this is to keep everything nice and close to minimise things getting tangled
