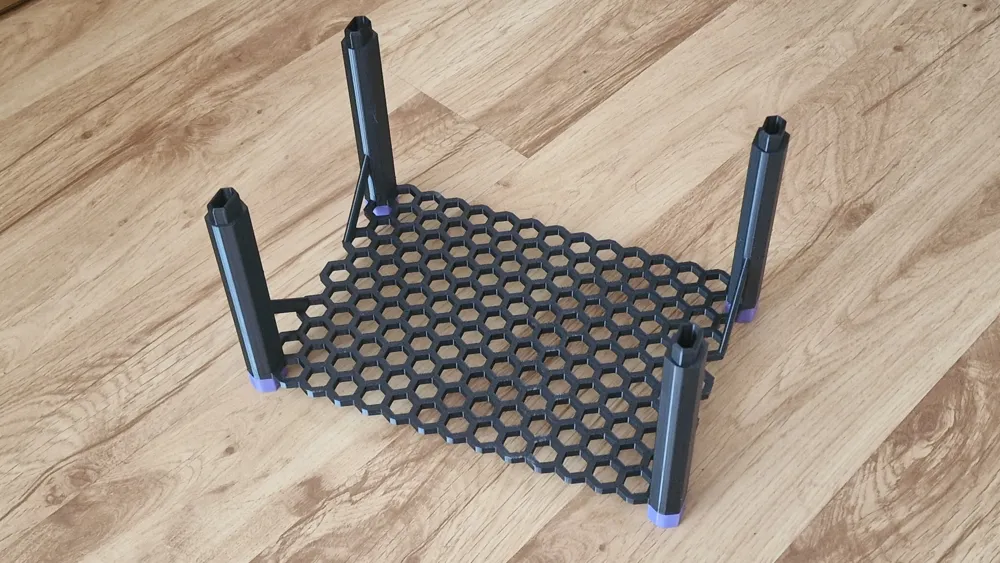

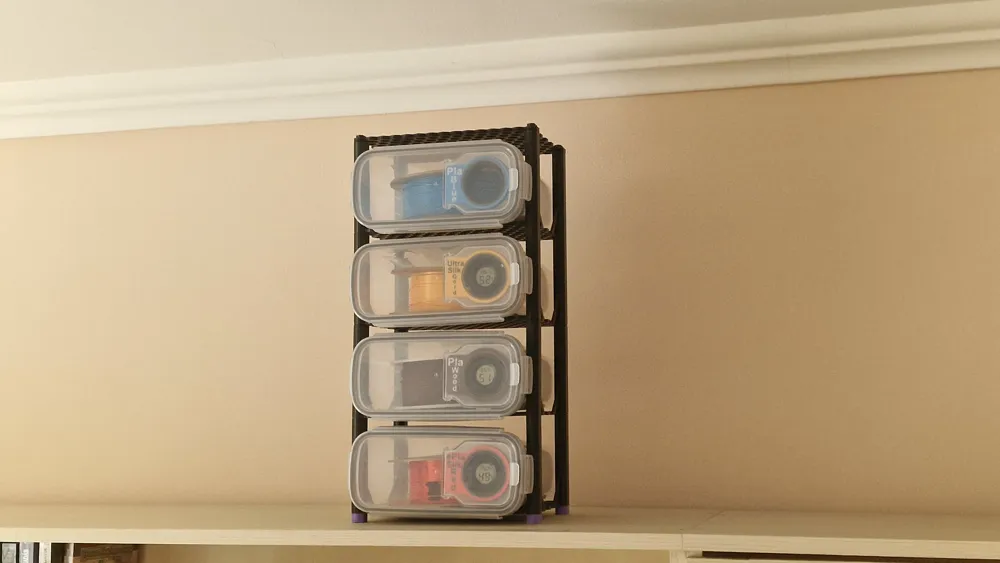

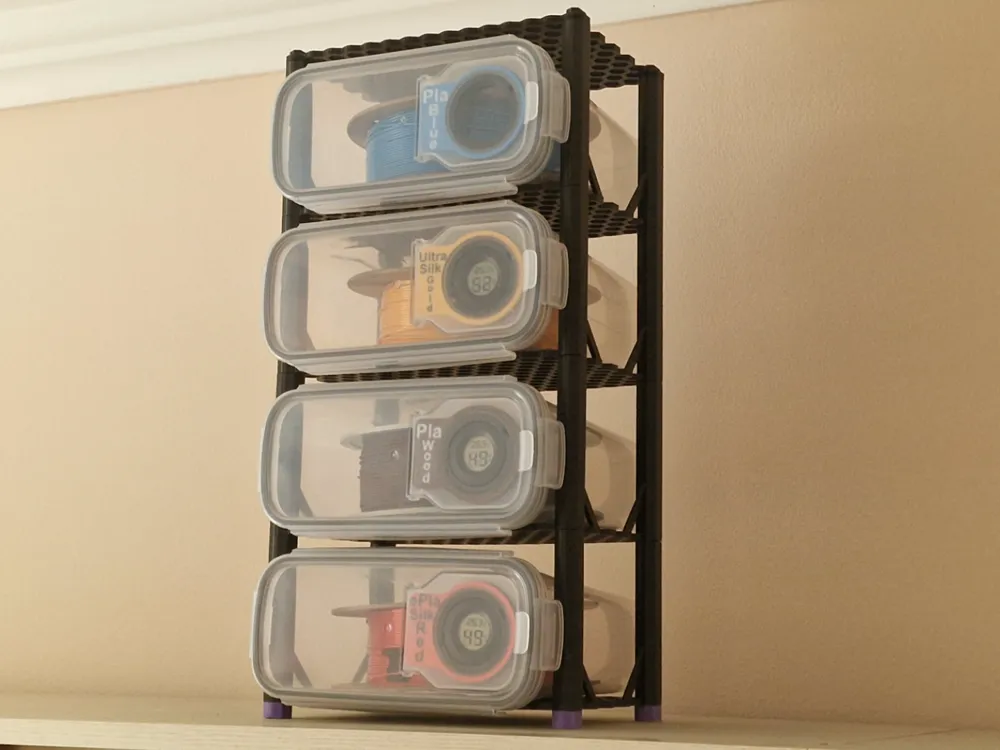

Filament storage rack with 4l container jar

I made the 4l container jar version based on my previous rack.

Complete solution for storage in the 4l container jar together with the thermometer.

Modular structure expandable.

4l Conteiner jar:

Like many others, I used a 4l container jar ordered from Amazon to store the rolls.

Compatible and tried with these containers:

• https://www.amazon.de/-/en/gp/product/B09H2T5B2H?ref=ppx_pt2_dt_b_prod_image&th=1
• https://www.amazon.de/dp/B08CKB2B12?ref=ppx_yo2ov_dt_b_product_details&th=1
• https://www.amazon.com/dp/B08TWH2QHV?ref=ppx_pop_mob_ap_share&th=1

It may work with these containers as well, as they are the same size, but I haven't tested them. If anyone has one and it is compatible with it, please let me know:

• https://www.amazon.com/Cereal-Container-Storage-Set-Containers/dp/B081F6X2W2/ref=lp_21551232011_1_6?pf_rd_p=53d84f87-8073-4df1-9740-1bf3fa798149&pf_rd_r=8AEYFK951HN4QWF2G1HA&sbo=RZvfv%2F%2FHxDF%2BO5021pAnSA%3D%3D&th=1

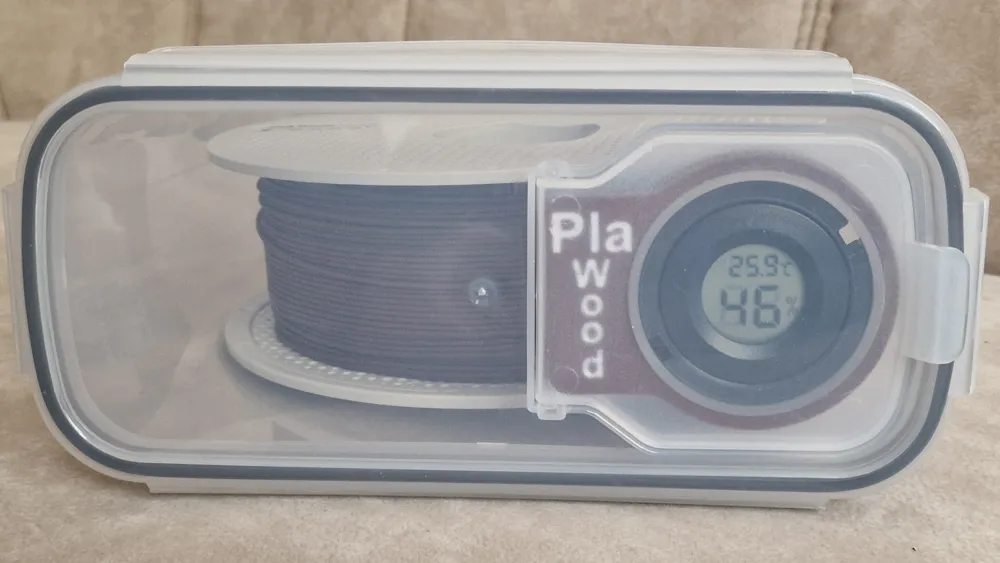

Thermometer,hygrometer:

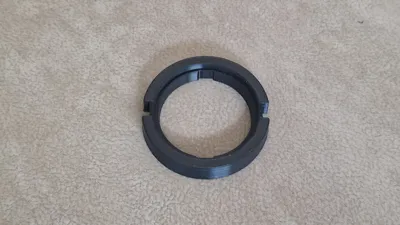

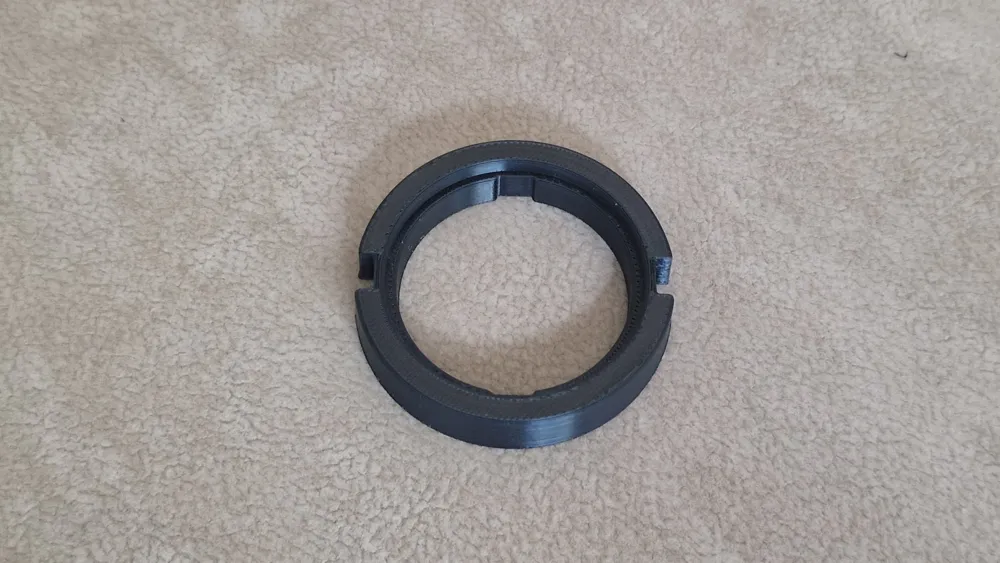

Can order here, fits into the door with the spacer.

Label:

2 type of label can use:

• a simple rectangle that can be customized here and fits inside the door

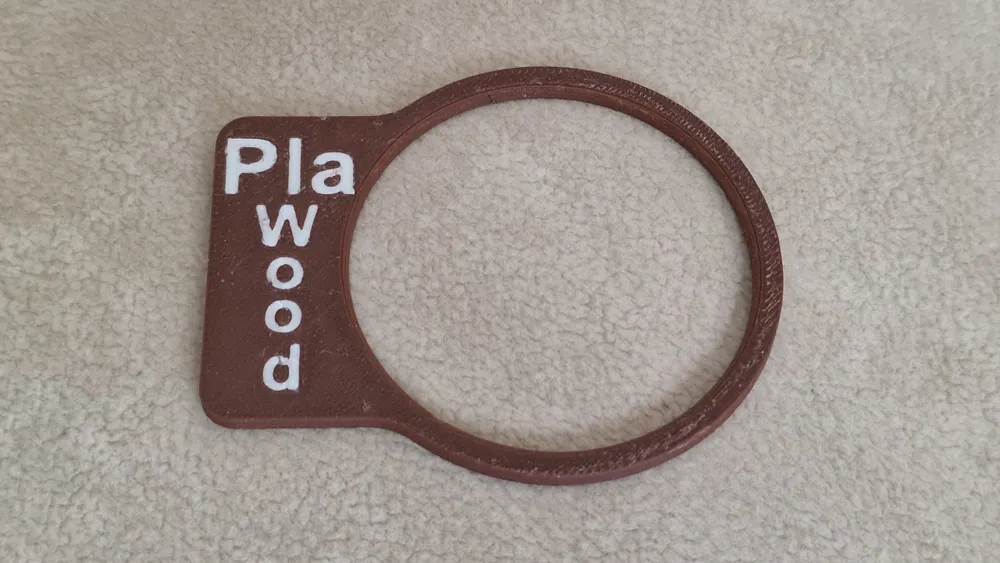

• or the ring on the door window ,but this can customize in Bambu Studio

Wall mount:

The distance from the wall can be 5 types:

• 5 mm
• 10 mm
• 20 mm
• 30 mm
• 40 mm

The hole size is 4 mm but can be used with a bigger screw.

Distance between the holes 63mm

Clips:

If there are many racks next to each other, 2 different types of clips can be used to provide stability.

Desiccant container:

I designed the mesh to be thin so it can ventilate easily, so be careful with the twisting and pressing.

Can be used with the thermometer.

Print without support

Update:

2026.02.07

I added print profile: Wall mount for the rack

2026.04.21

New print profile: Desiccant container
