Two Cats Hueforge
Print Profile(1)
Description

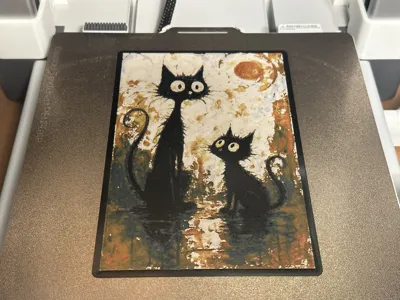

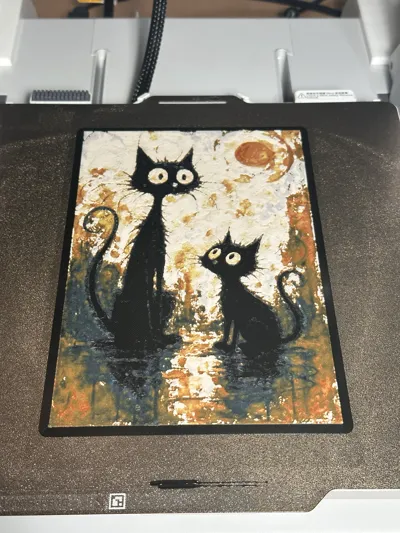

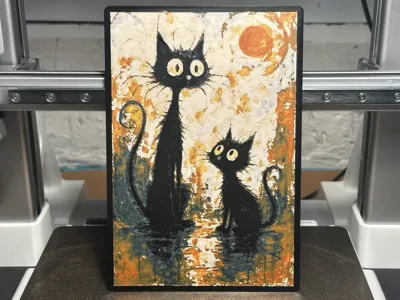

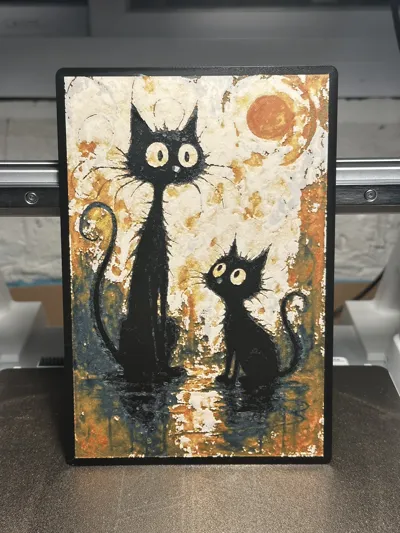

This is a 7 color hueforge of an impressionist style painting of two cats. The original image was generated by @Pinkielicious on civitai

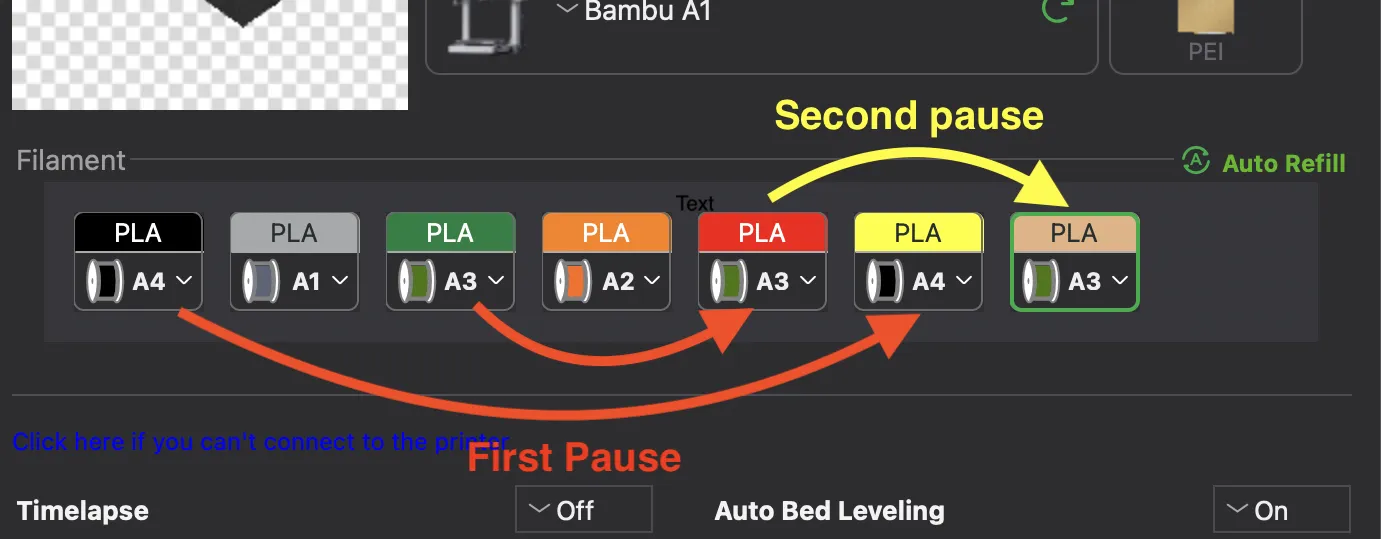

There are two pauses in the print profile for filament swaps so that this can be printed with a single ams unit. the first pause is about 4.5 hours in and the second is 6.5 hours in. Make sure to plan ahead for your filament swaps carefully, and take a screenshot of whatever you picked. For example, here's what I did for mine - At the first swap I swapped black out for yellow and green ice out for red. then at the second pause I swapped red out for beige:
Print at 100% infill with a layer height of 0.04mm with a base layer of 0.24mm
The Model is 133.33x200mm in size. feel free to scale the X or Y but do not change the Z dimension!
Filaments Used:
PLA BambuLab Basic Black Transmission Distance: 0.6
PLA BambuLab Basic Blue Grey Transmission Distance: 2.8
PLA Jessie Premium Green Ice Transmission Distance: 11
PLA BambuLab Basic Orange Transmission Distance: 7
PLA BambuLab Basic Red Transmission Distance: 3.8
PLA BambuLab Basic Yellow Transmission Distance: 6
PLA BambuLab Basic Beige Transmission Distance: 8
This print uses 7 unique filaments
Swap Instructions:
Start with Black
At layer #4 (0.36mm) swap to Blue Grey (5B6579)
At layer #7 (0.48mm) swap to Green Ice
At layer #8 (0.52mm) swap to Orange
At layer #17 (0.88mm) swap to Red (E61515)
At layer #18 (0.92mm) swap to Yellow
At layer #23 (1.12mm) swap to Beige
At layer #28 (1.32mm) swap to Blue Grey (5B6579) for the rest.
