A splitter valve for the Jindouyun air purifier, accommodating two 40mm OD corrugated tubes. Adjustable intake valve flange
Print Profile(1)
Description
Boost Me (for free)
Creation demands considerable effort; if you appreciate this, please freely lend your support!
Creating is not easy, if you like it, please Boost Me for free!

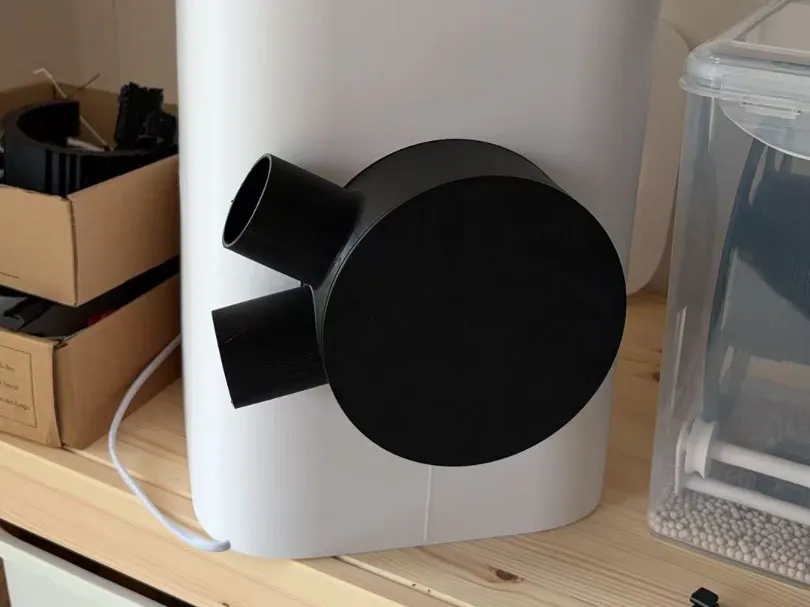

Owing to limited space and the need to exhaust air from two printers, I designed this intake air valve to accommodate the esteemed JinDouYun air purifier.
As mentioned, due to spatial constraints, both intake ports are designed to fit 40mm outer diameter flexible tubing, with the valve body protruding less than 6cm from the main unit.

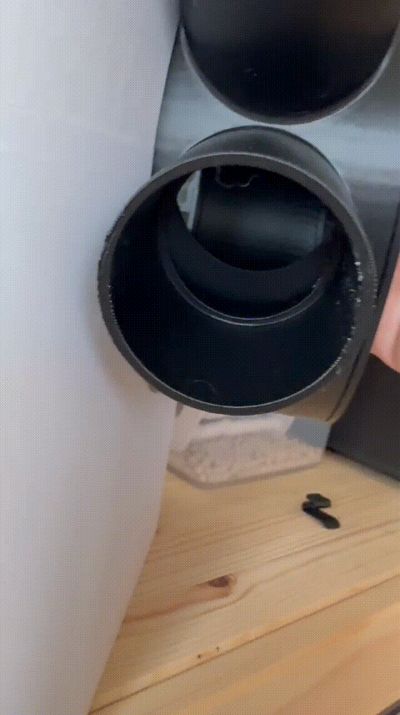

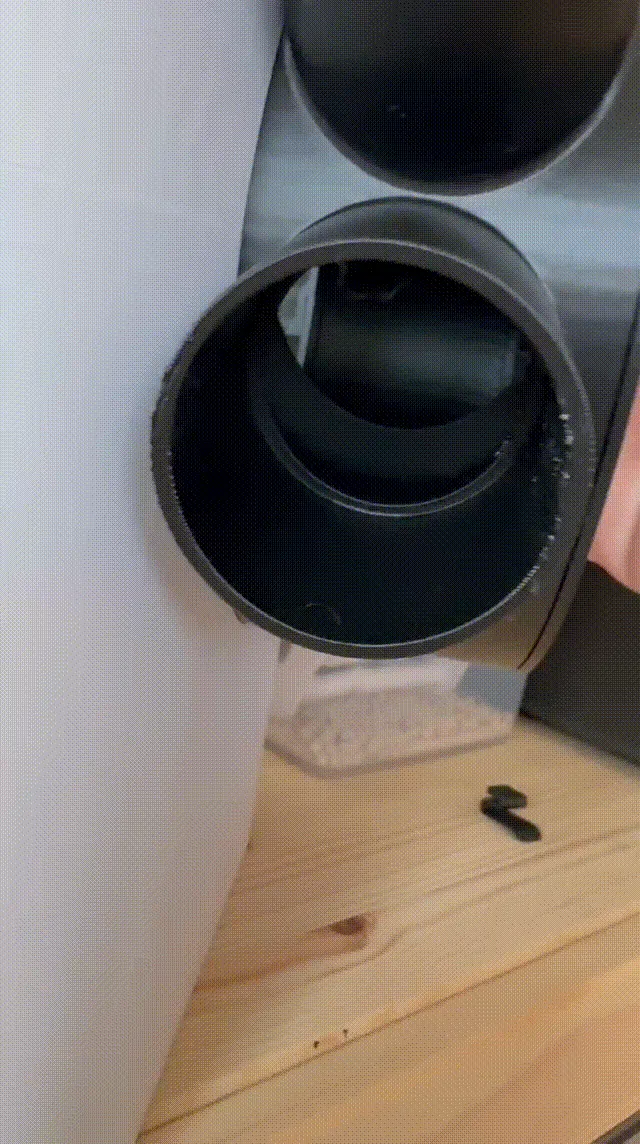

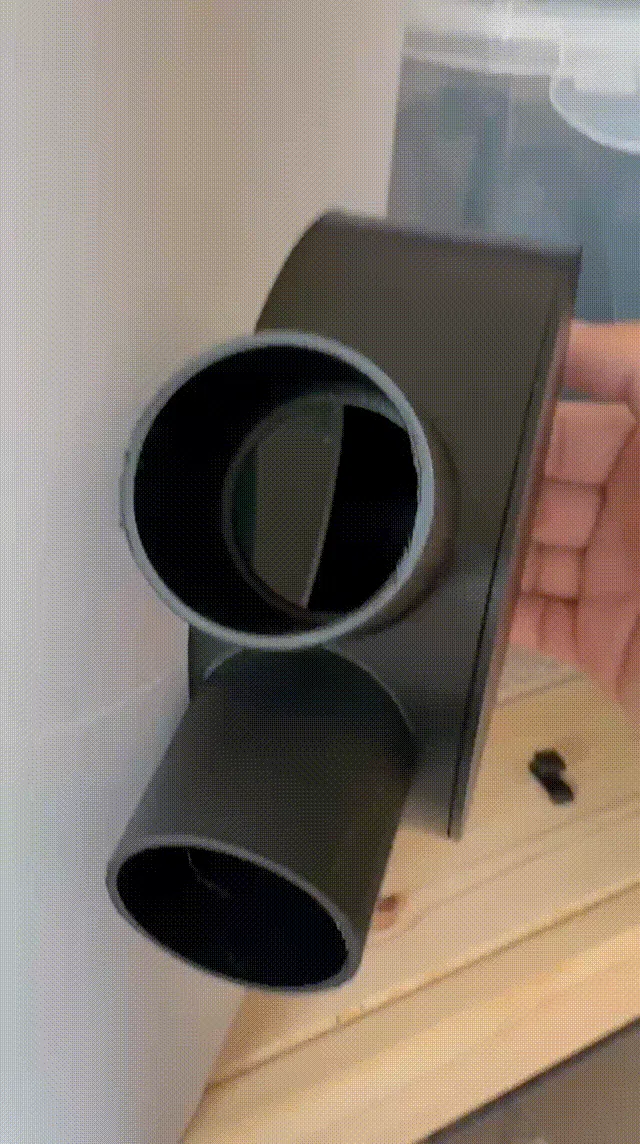

The two intake ports are switchable, configurable for single port A, single port B, or simultaneous intake from both A and B ports, allowing for flexible adjustment based on the operating status of the two printers to maximize exhaust efficiency.
Note: The handle and rotating valve body require adhesion with 502/401 adhesive. Please insert the valve into the housing before bonding. Avoid asking why; I initially attempted a single-piece print, rendering it impossible to assembleT_T. Additionally, use sparingly to prevent the valve and housing from bonding simultaneously. Continuous rotation of the valve before the adhesive sets is recommended to prevent adhesion.
