Drink can dispenser. No assembly, no supports!

EDIT: Multiple versions for different sizes of cans, check the STL files:

• Standard 350ml (355ml, 12oz) cans
• Tall 350ml (350ml ,12oz) cans (medium size RedBull cans)
• 250ml (8.4oz) RedBull cans - 121mm height version!
• 250ml (8.4oz) RedBull cans - 135mm height version!
• 330ml sleek type cans
• 500ml standard cans
• 24fl oz cans - 7.61in height  x 2.86in diameter

Multiple sizes that fit different number of cans (for A1 mini and for larger printers).

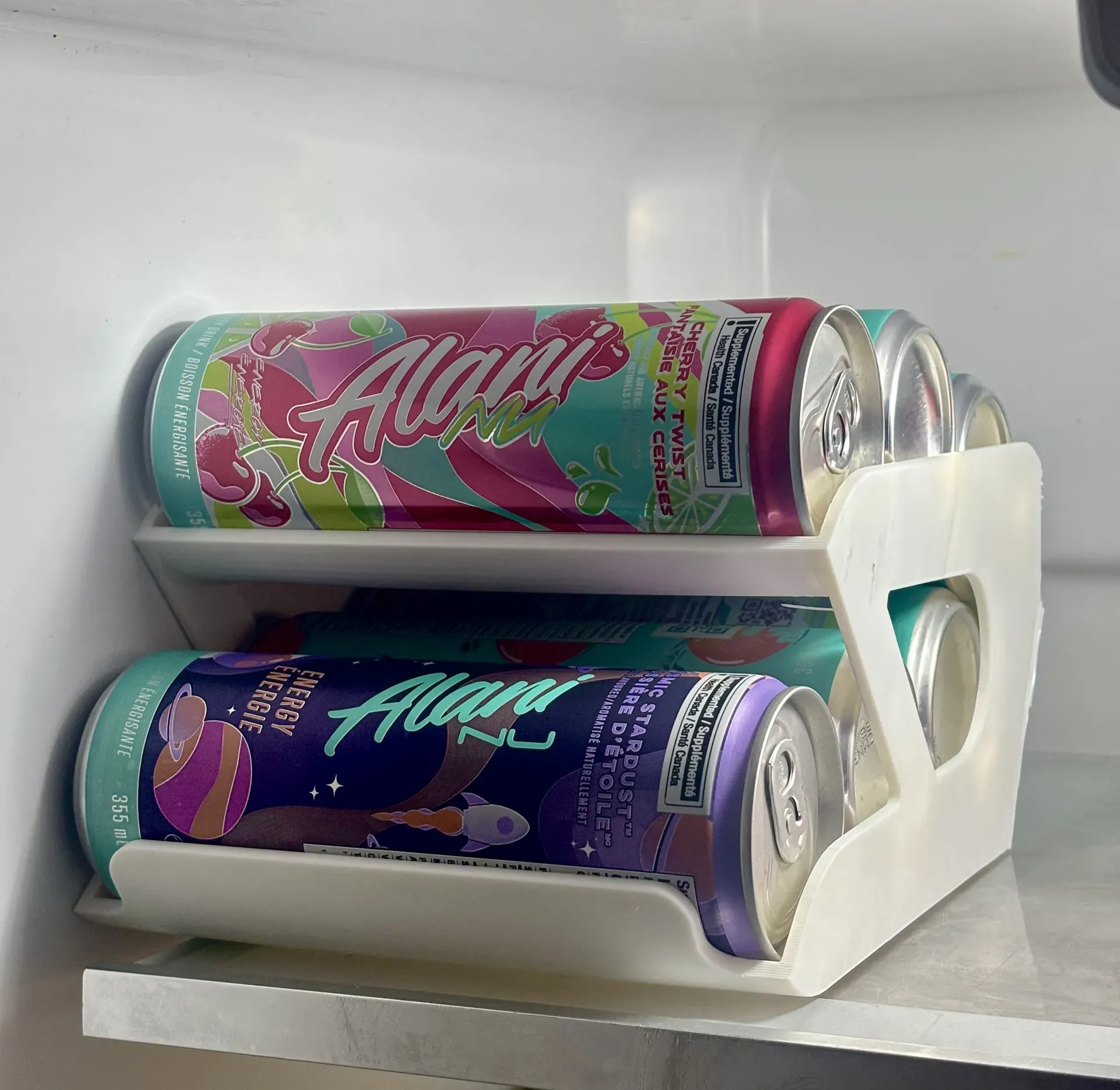

Picture courtesy of @Hexovian (thanks!).

----------

Single Piece Design, no supports and no assembly required. Print and use immediately!

Keep your fridge organized with this compact can dispenser that holds a full six-pack of standard soda/beer cans (350/355ml or 12oz).

Perfect for smaller fridges while maximizing storage efficiency.

Key Features:

Single piece design - No assembly required, strong and stable!

No supports needed - Prints reliably without any support material. Tested extensively on the P1S printer (read note belo for A1 users).

Compact yet spacious - Takes up minimal fridge space, ideal for smaller or shorter refrigerators. Versions for more and less cans available!

Tried and tested - Proven design that works reliably for everyday use.

Print Settings:

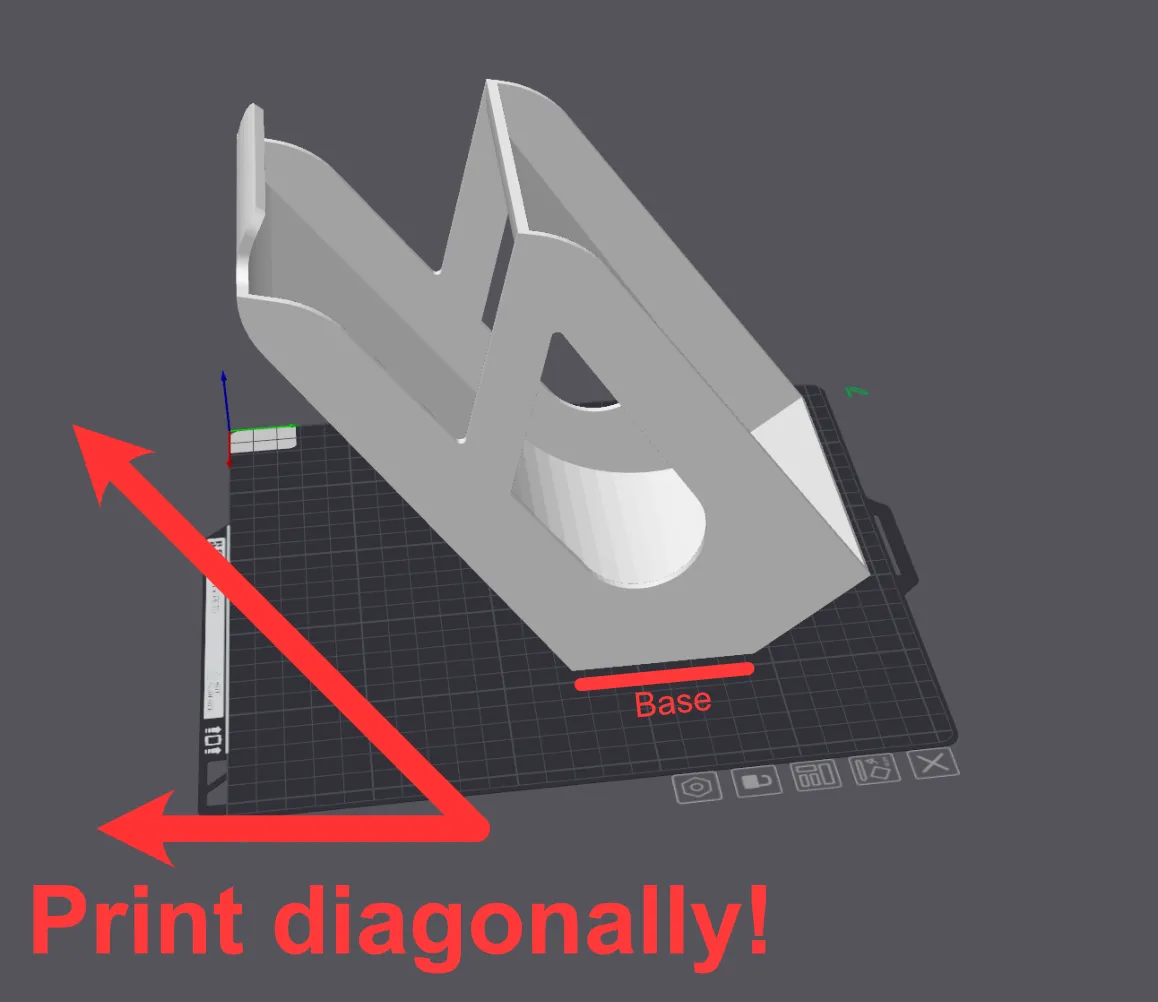

• Supports: None required. Make sure to print diagonally, as shown on the screenshot below!
• Walls: 2 walls is enough.

• Infill: default 15-20% is enough.



  Printing angle:



Note for A1 and Prusa MK3 users: When printing on an A1 or similar bedslinger printer, adding a brim is recommended for better bed adhesion.

All my original designs are licensed under CC BY-SA 4.0, which means it's completely free to use! You can print to sell, modify, or remix however you like! Just give credit when sharing. For example: “Designed by GiskardReventlov and available at https://makerworld.com/en/models/1498799”.

STEP file included.
