Powder/Water Sprayer_Adapter for High One Industrial Air Gun Nozzle_RA18da
Print Profile(2)
Description
Boost Me (for free)
If you think it's good, please boost me

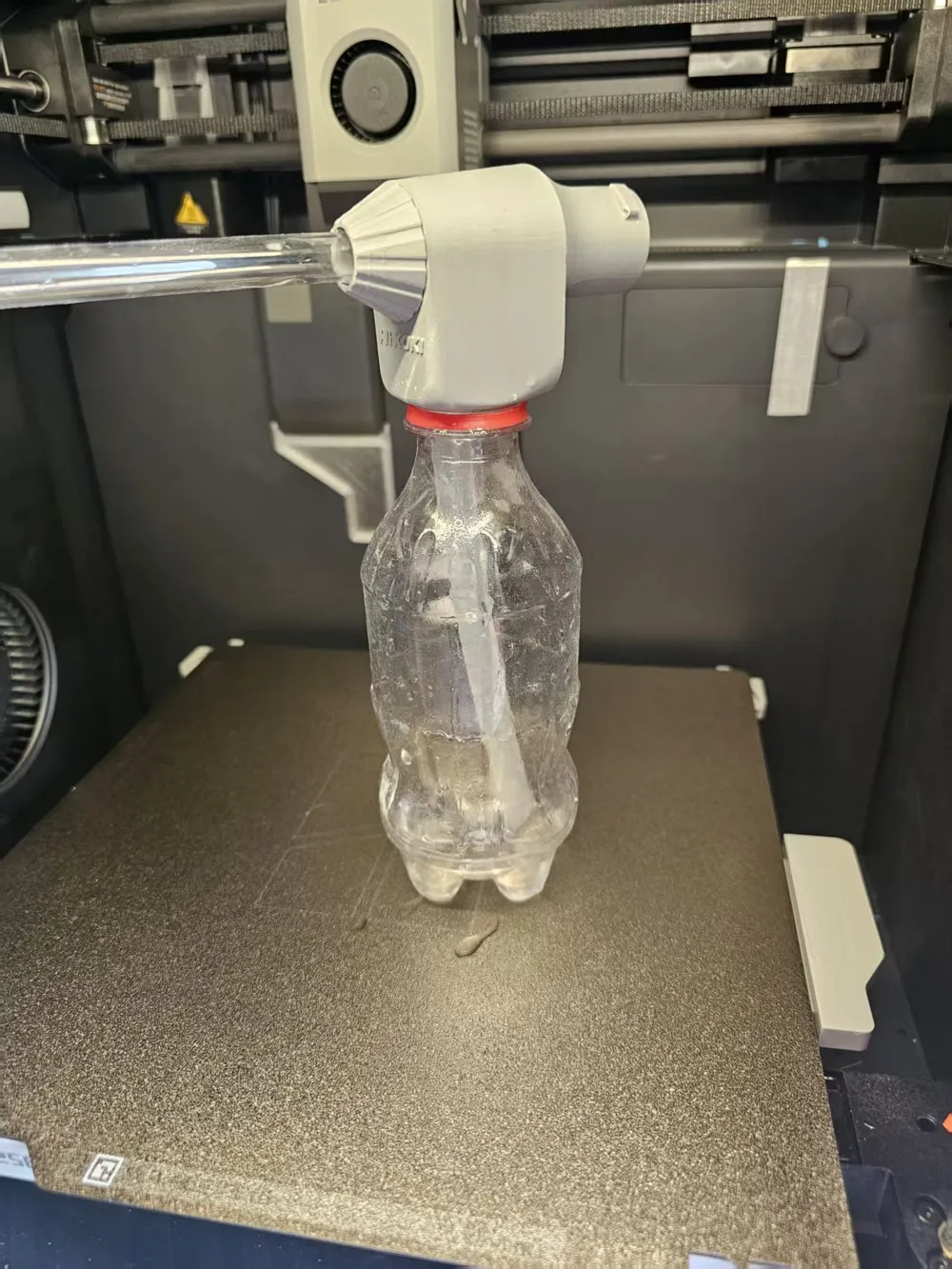

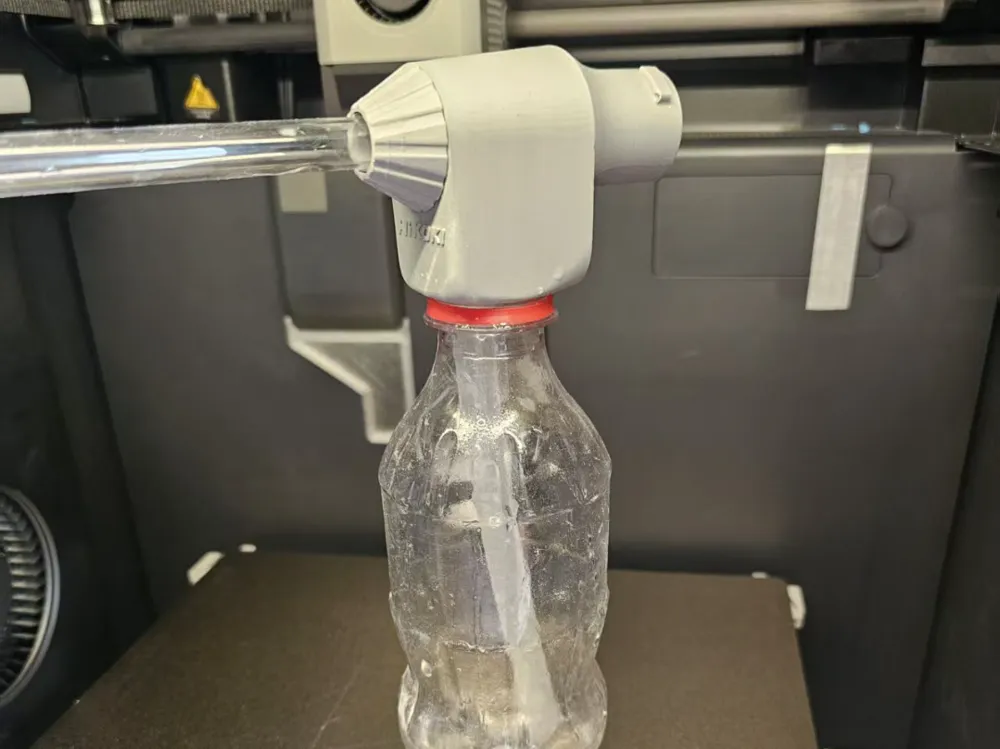

Product Design Overview
This device is specially designed for cable/network cable pulling in pipes. By spraying talcum powder or water to lubricate the inner wall of the pipe, it reduces the pulling resistance and improves construction efficiency.
Components
- Front Spray Head
- Main Body
- Flange Ring
Installation Steps
- Essential Accessories:
✅ Silicone Tube: Dimensions 10mm×8mm (Inner diameter × Outer diameter)
✅ Acrylic Tube: Dimensions 10mm×8mm (Inner diameter × Outer diameter) Assembly Steps:
① Flange Ring Connection: Align the flange ring with the main body and press firmly until it locks.
② Tube Installation: Insert the silicone tube into the flange ring interface. If the spray flow is too large, you can use a cable tie to secure the end of the tube.

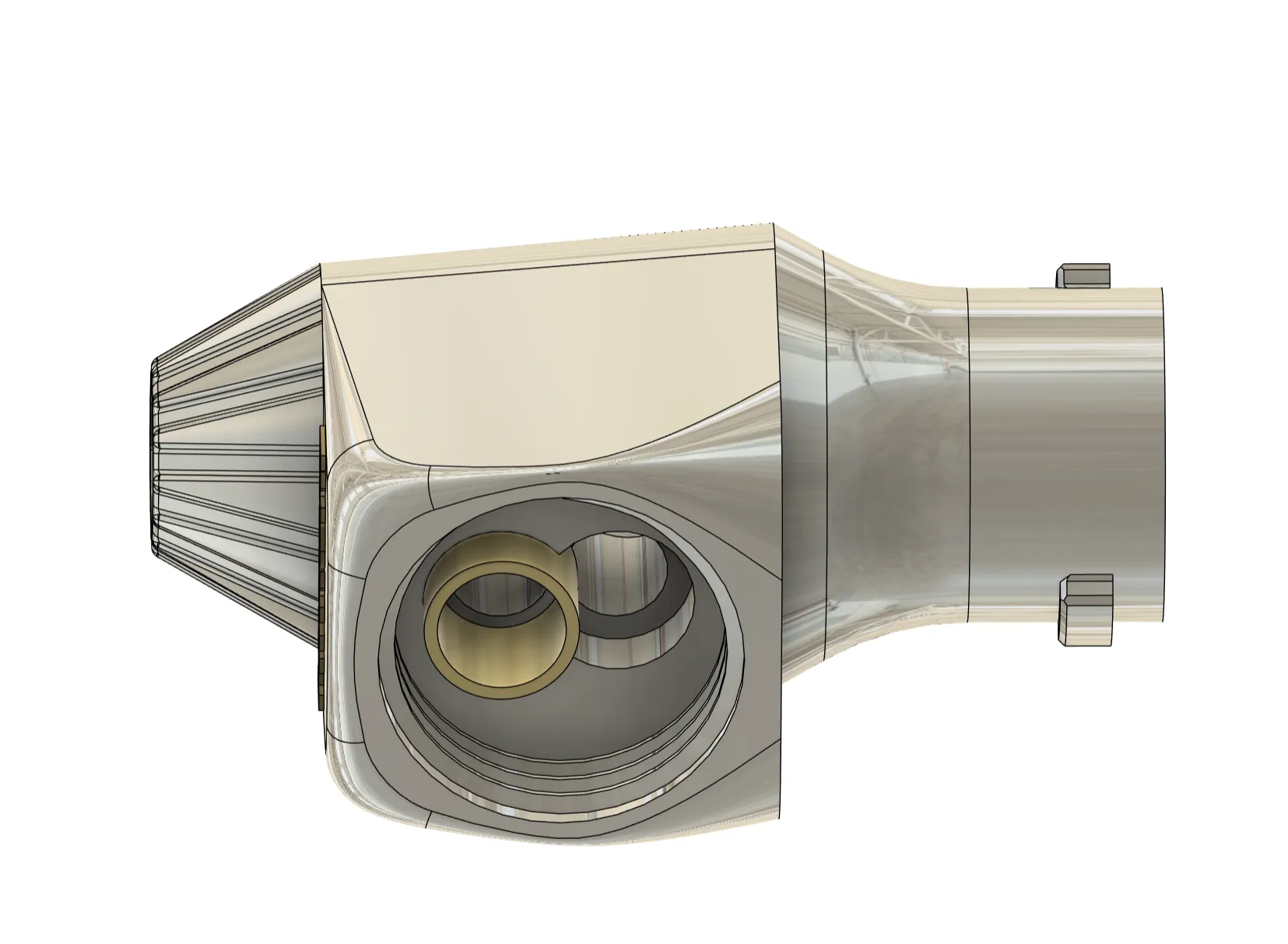

Flange ring connection left interface Powder spray mode
Flange ring connection right interface Water spray mode- ③ Tighten the front nut: Tighten the nut until it feels firm.
Precautions
- Strictly prohibit forcibly inserting tubes exceeding the specifications into the flange ring interface to avoid damaging the internal structure.
- Wear a protective mask during powder spraying operations and ensure good ventilation in the construction environment.

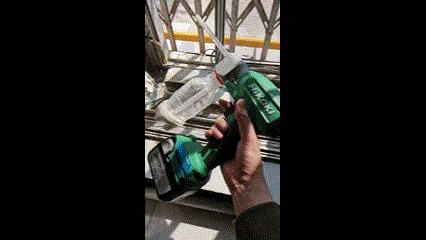

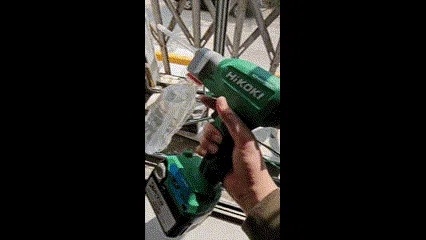

Demonstration
