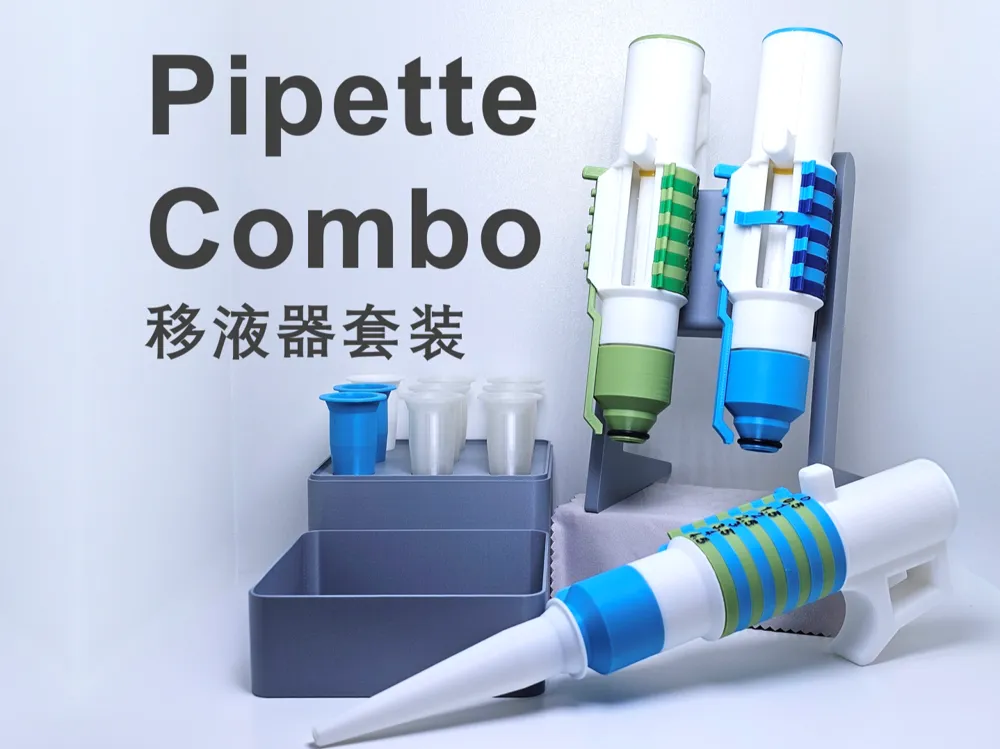

Pipette Combo Set
Print Profile(5)
Bill of Materials
- OD 14*2.4 mm O-rings O型圈 x 2:
- OD 18*2.4 mm O-ring O型圈 x 1:
Description

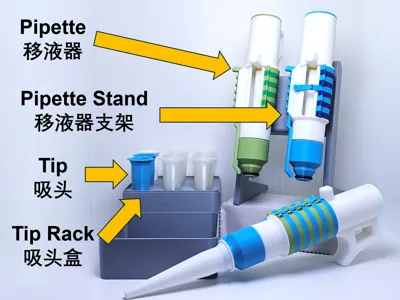

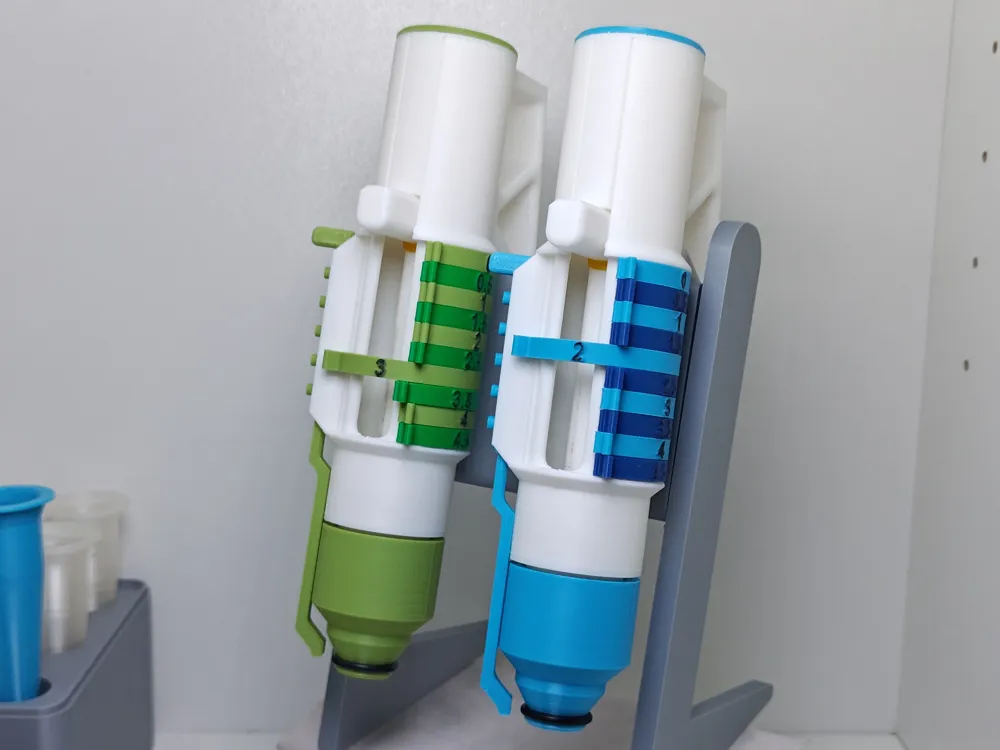

English: This pipette set includes: 1) an adjustable pipette (0-5 ml range, with 0.5 ml increments), 2) pipette tips, 3) a pipette tip rack, and 4) pipette stands (two sizes). While suitable for basic liquid transfer tasks, this set is not intended for professional use. The 3D-printed pipette may not be easily calibrated, and its long-term reliability remains unverified. Assembly requires: two OD 14*2.4 mm O-rings, one OD 18*2.4 mm O-ring, rubber bands (the quantity depends on the elasticity; I recommend two 1.4x20 mm rubber bands available individually at the Bambu Lab Store or within the Maker's Beginner Kit), and some lubricating grease (silicon-based is recommended, also available at the Bambu Lab Store).
English: I have uploaded five print profiles:
- Pipette: the pipette body, printed in two colors across multiple plates
- Pipette Tips: three replaceable pipette tips
- Pipette Tip Rack: a rack holding nine tips, convenient for single-handed operation
- Large Stand: a large stand for two pipettes side-by-side
- Small Stand: a smaller stand for a single pipette
English: Note: When adjusting the volume rings, slide them gently; avoid pressing them into the opening. If the rings loosen, simply snap them back into place.

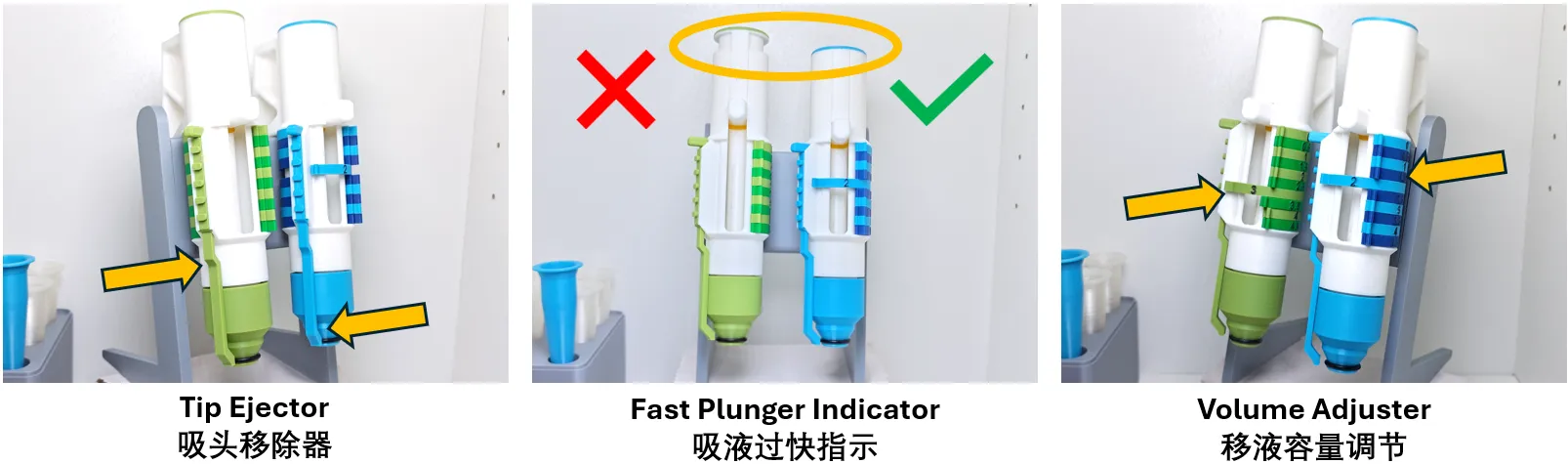

English: Feature Highlights

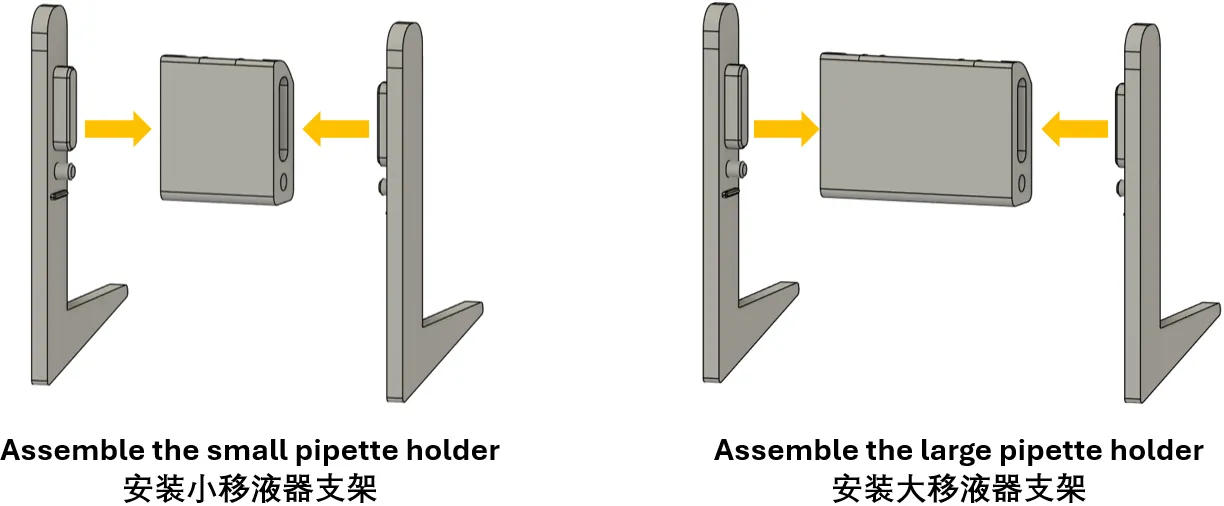

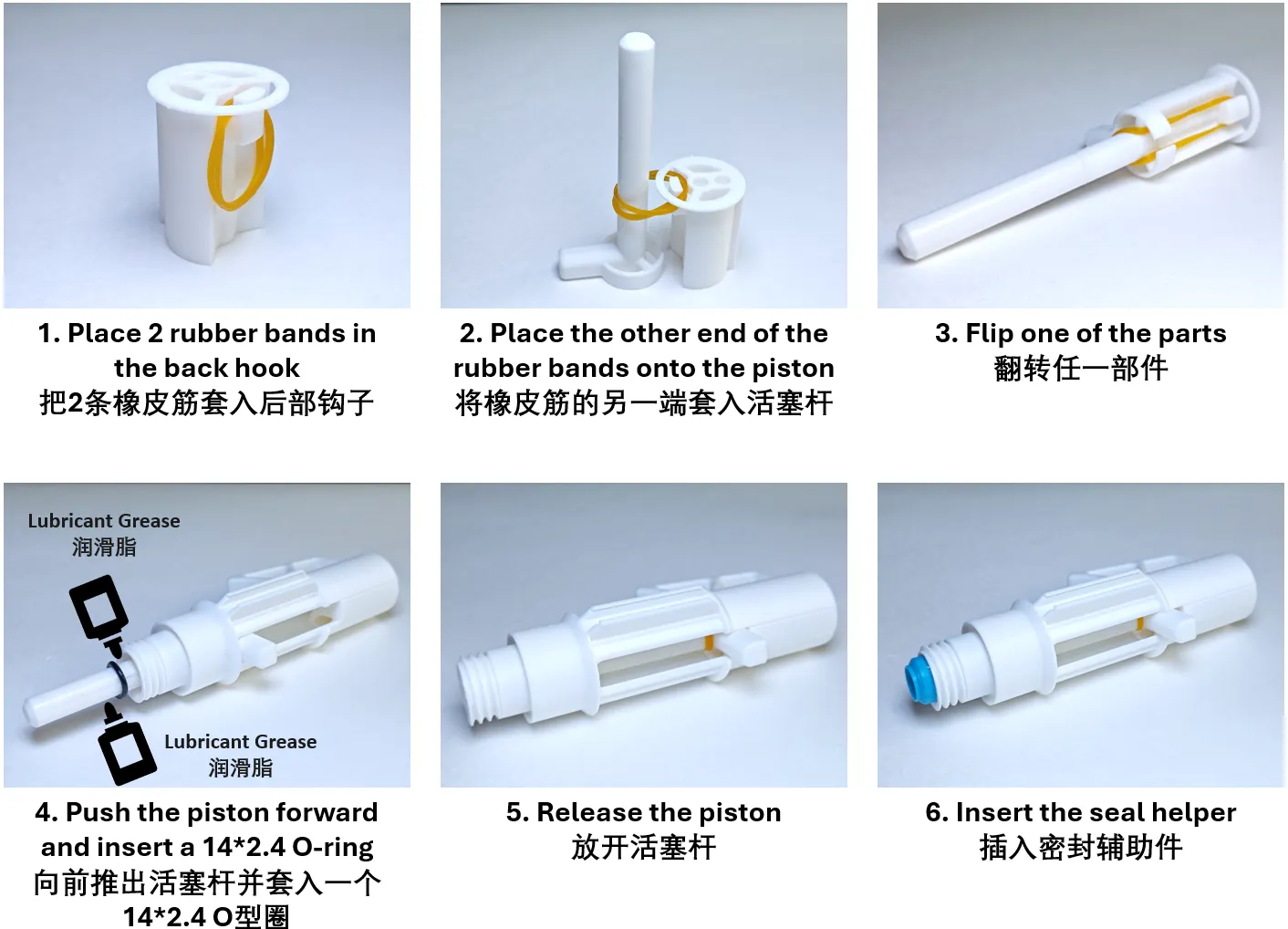

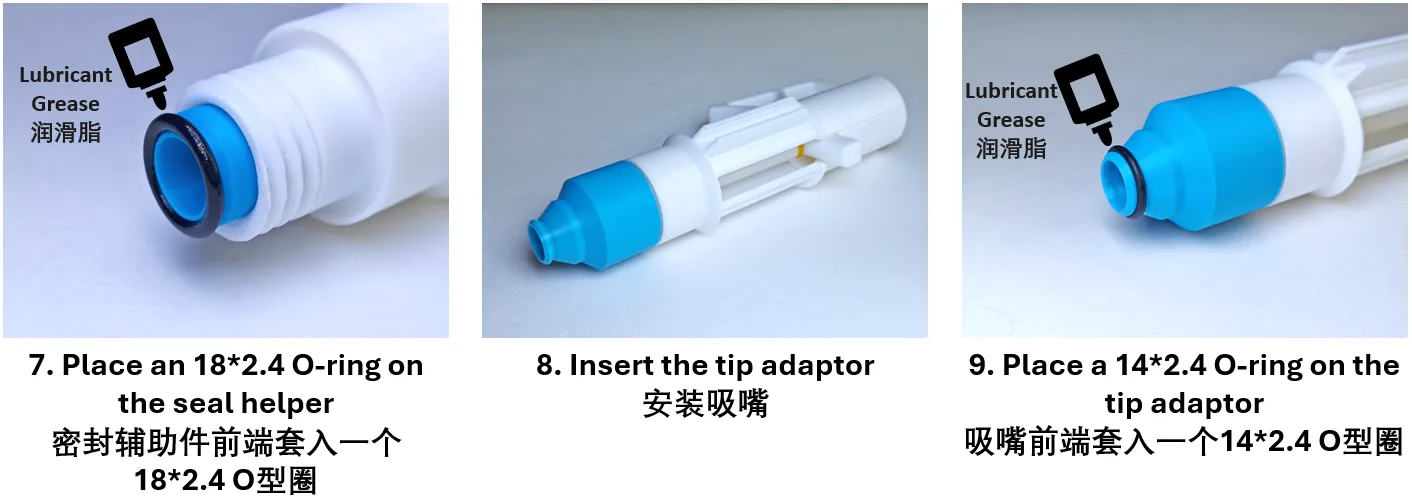

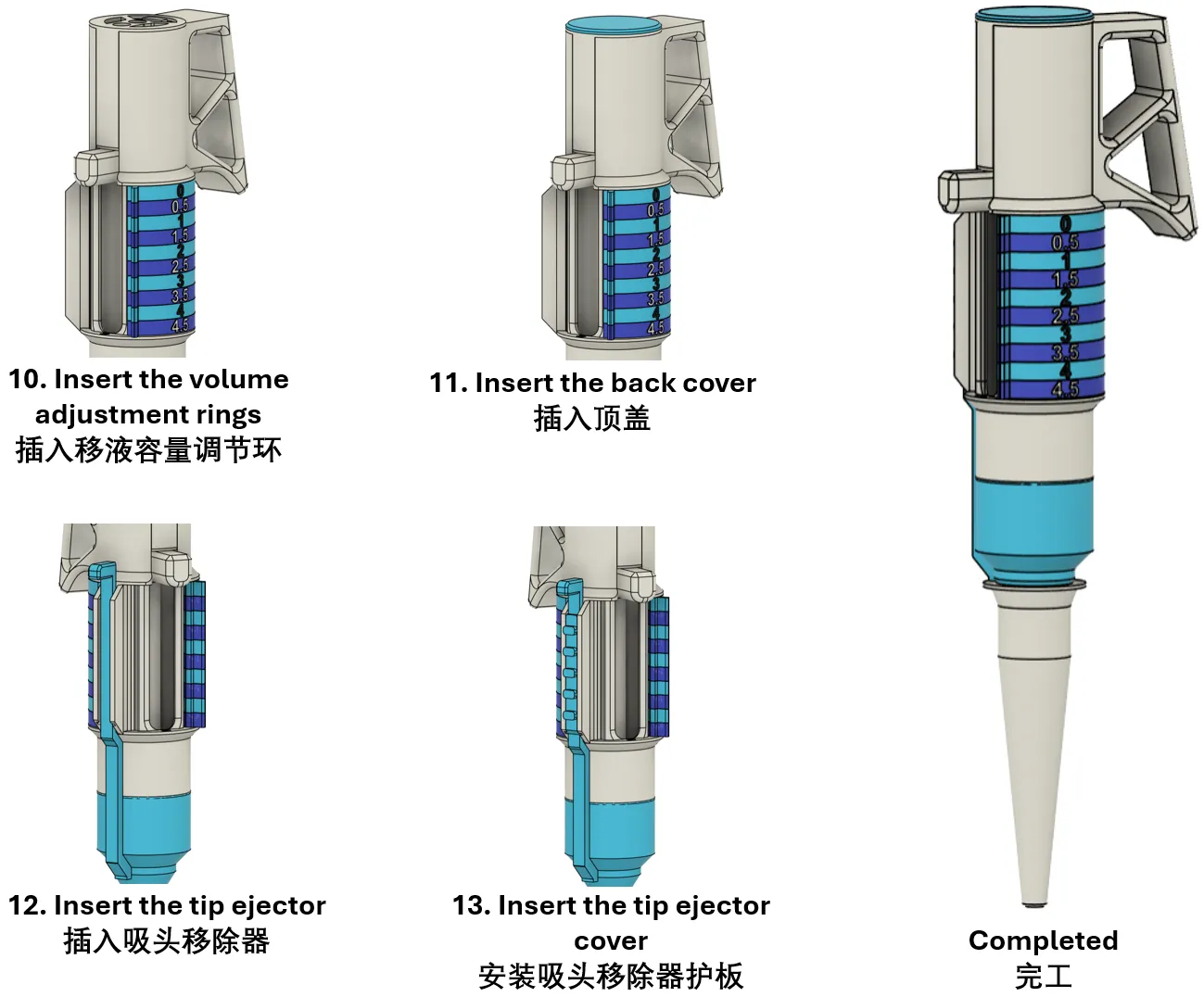

English: Assembly Instructions
English: Hint: Consider highlighting the numbers on the volume adjustment rings with a marker for better visibility.
