Synta-style Finderscope Bracket with Screws

Glad you're here, hope this model works for you!

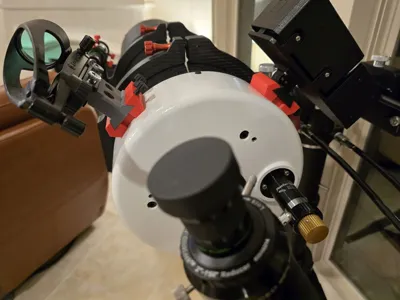

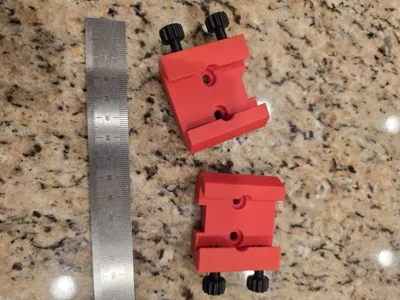

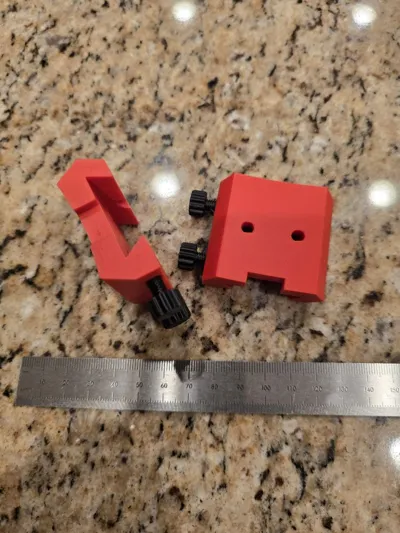

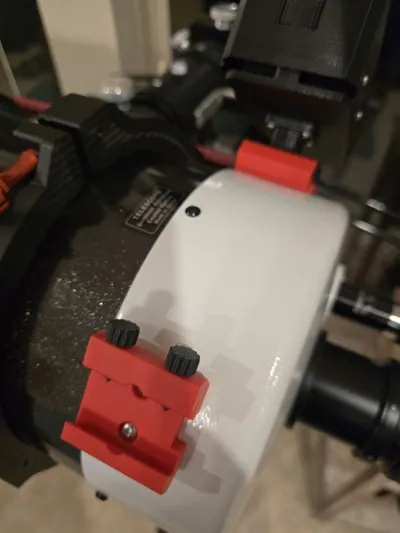

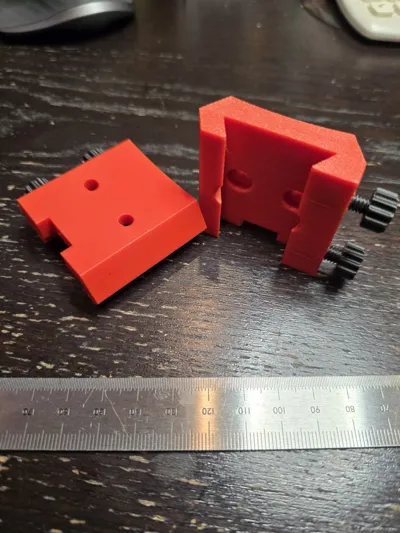

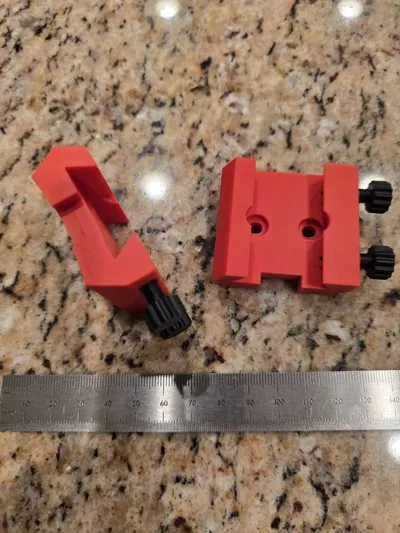

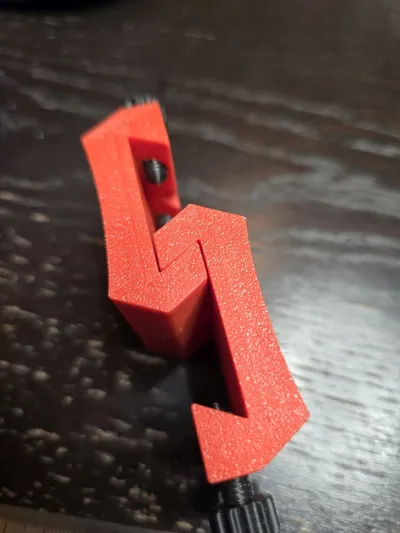

Synta-style dovetail finderscope mount. The bottom of the mount has a radius for a 220mm OTA – 7” SkyWatcher180mm Maksutov-Cassegrain telescope.  Mount has 20mm spacing for mounting holes, to use the M4 x 6mm (.07 pitch) pan head screws. The dovetail uses M6 printed thumbscrews.  My Bambu P1S prints to very tight tolerances, if your printer does not print well, I recommend you lower your print speed, layer height and line width.

I used ELEGOO PLA + with no issues, but you can easily use well-dried PETG.  Print at .16, 4 walls 20% Gyroid, takes 1h 20m and uses 21g of filament for bracket and screws.

__________

Notes: If the model is designed with PLA as the expected material, and you print in PETG, comparably you may have issues as most PETG will shrink about 0.2 – 1.0% variably, and dependent on the parts design.

__________
