CR2032 dummy battery for alternative power source

This is a simple and effective CR2032 dummy battery designed to let you power 3V devices using an alternative power source, for example, rechargeable AA or AAA batteries instead of disposable CR2032 cells. It’s an ideal solution for smart sensors, remotes, or any gadget that uses a CR2032 coin cell.

Why use this?

• CR2032 batteries are not rechargeable
• Rechargeable LIR2032s are unsafe (3.7–4.2V vs. 3V)
• 2x AA/AAA in series provides safe 3V power
• Saves money and reduces waste

I use this with multiple Xiaomi temperature and humidity sensors in filament dryboxes and around the house. Works perfectly—even with slightly lower-voltage NiMH rechargeable AAs.

Assembly:

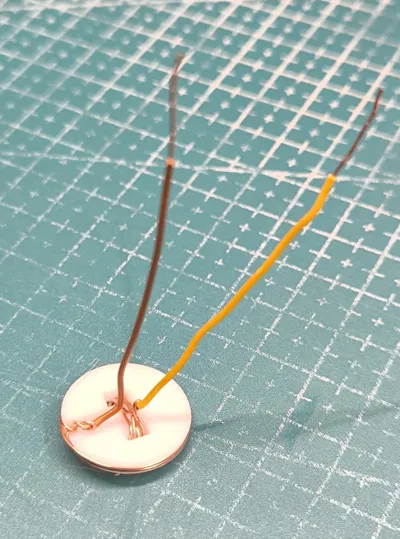

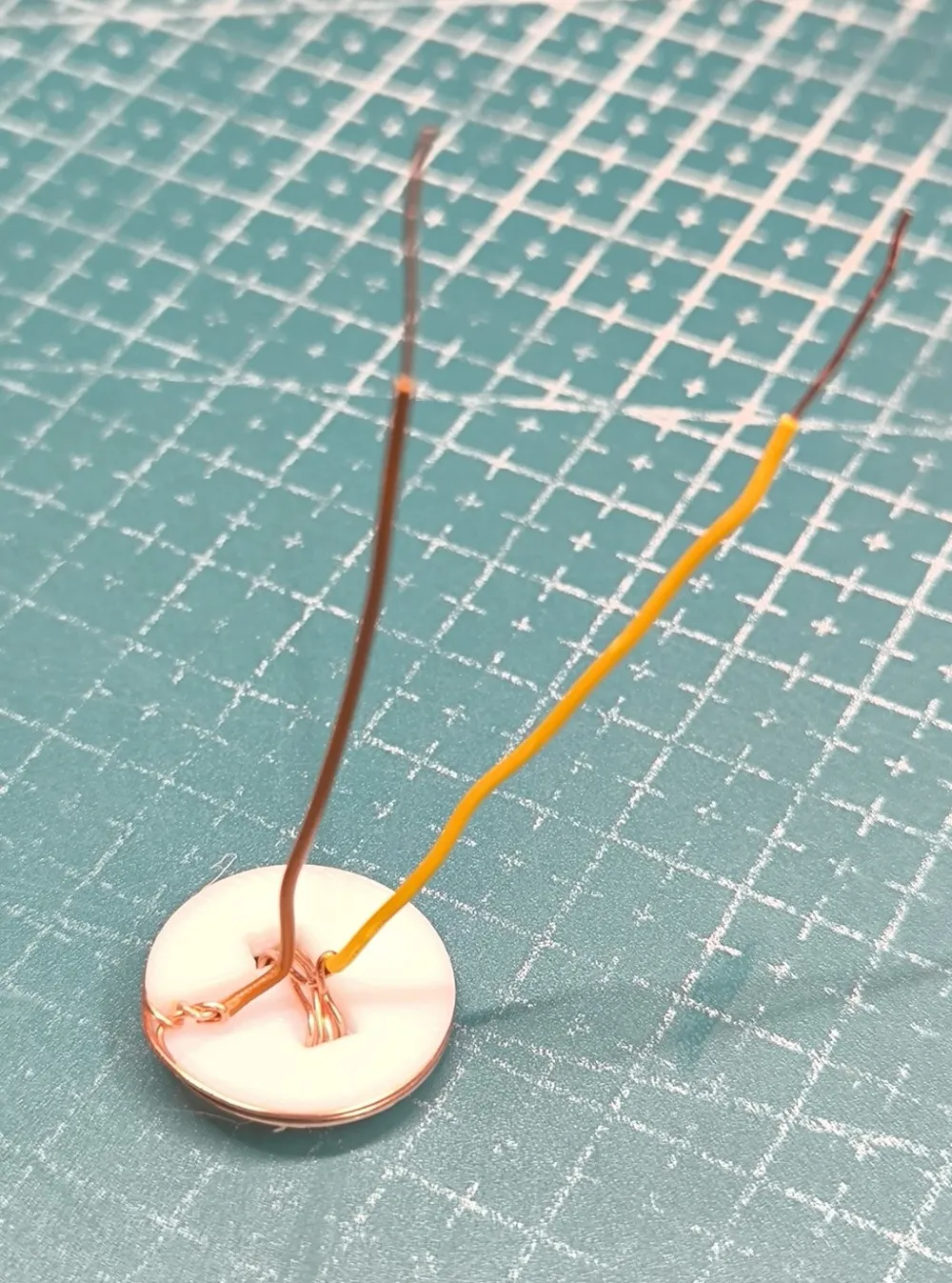

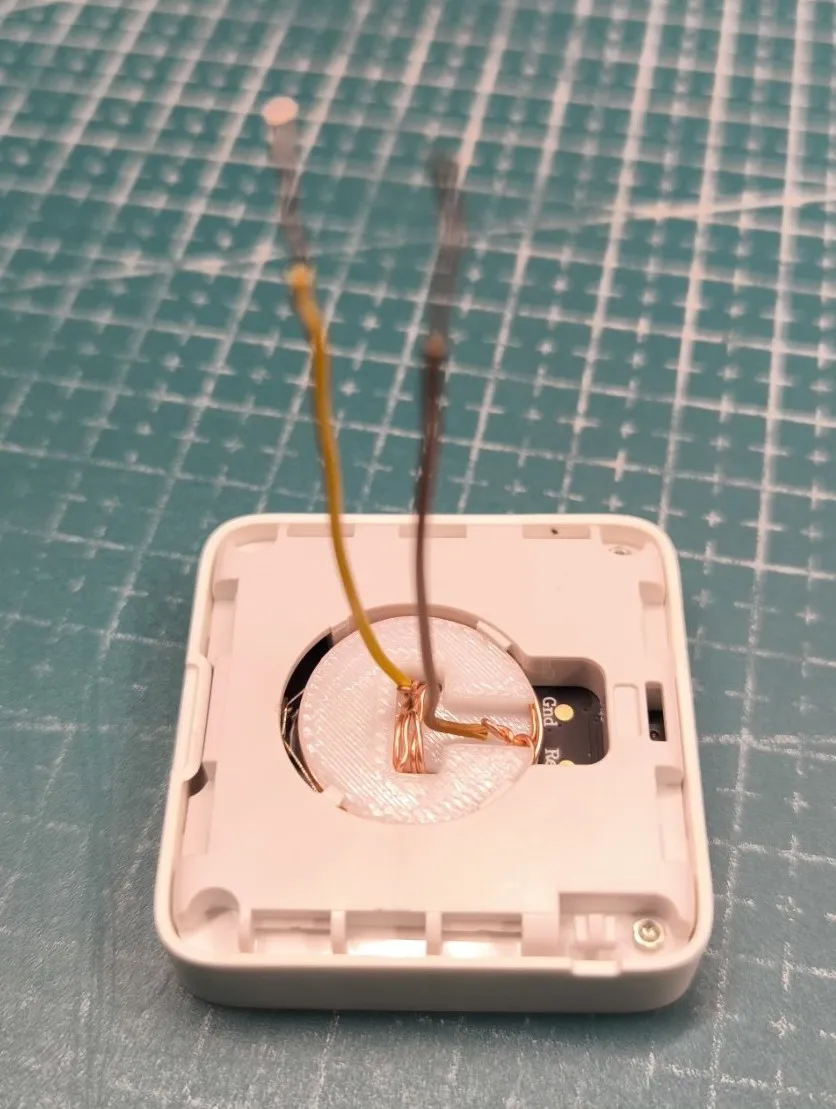

• Uses two pieces of 0.5-0.6mm (20 AWG) single-core copper wire

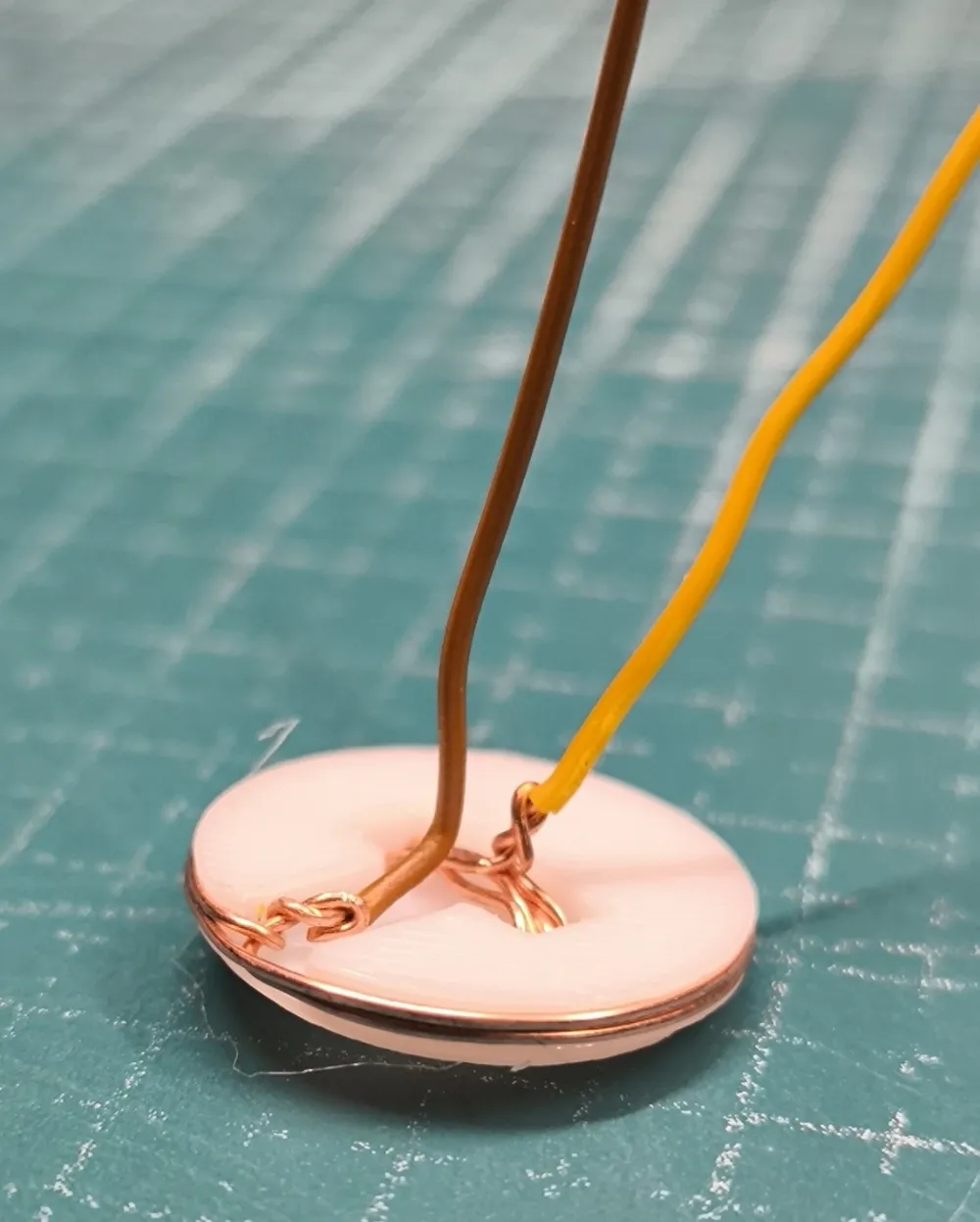

• Positive contact (side): 200mm (150mm bare + 50mm insulated)

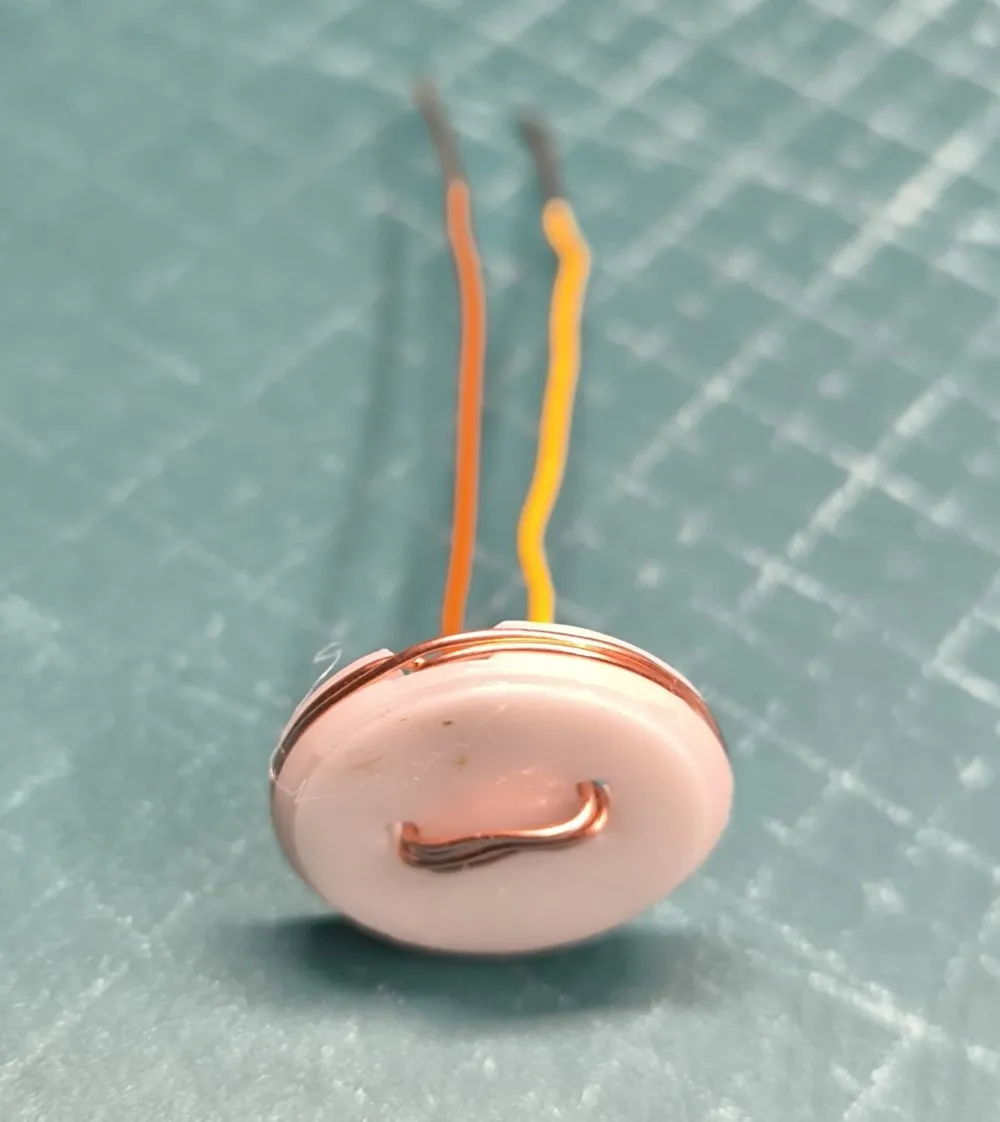

• Negative contact (center): 150mm (100mm bare + 50mm insulated)

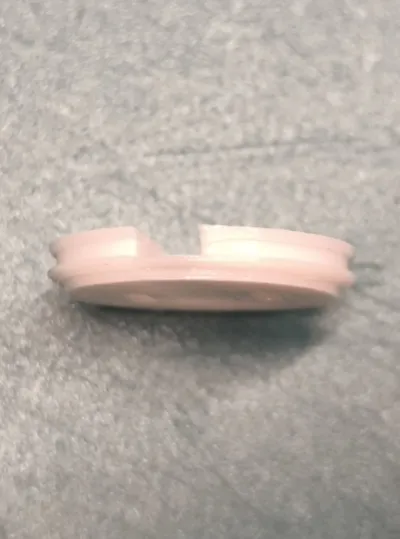

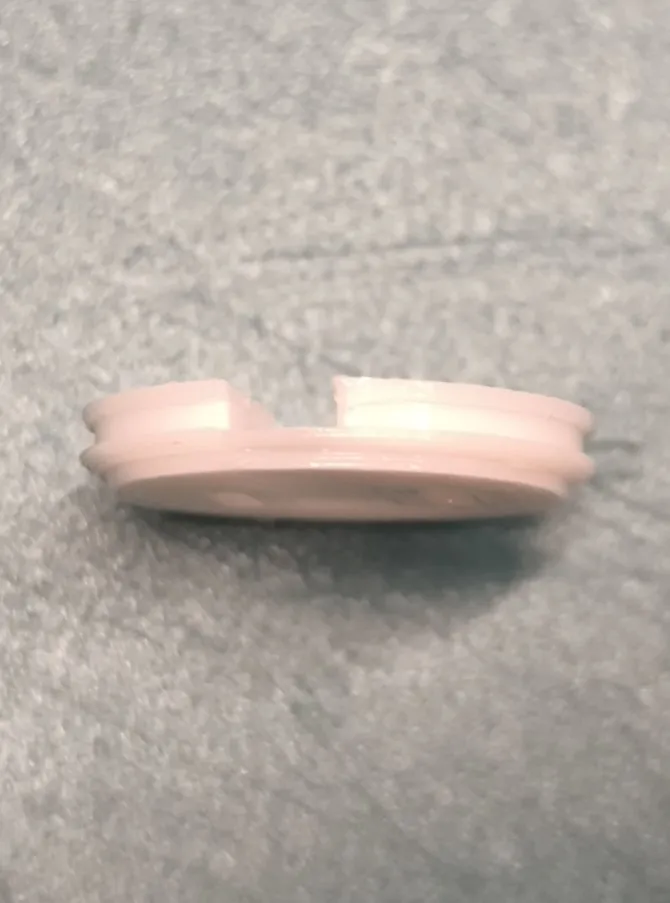

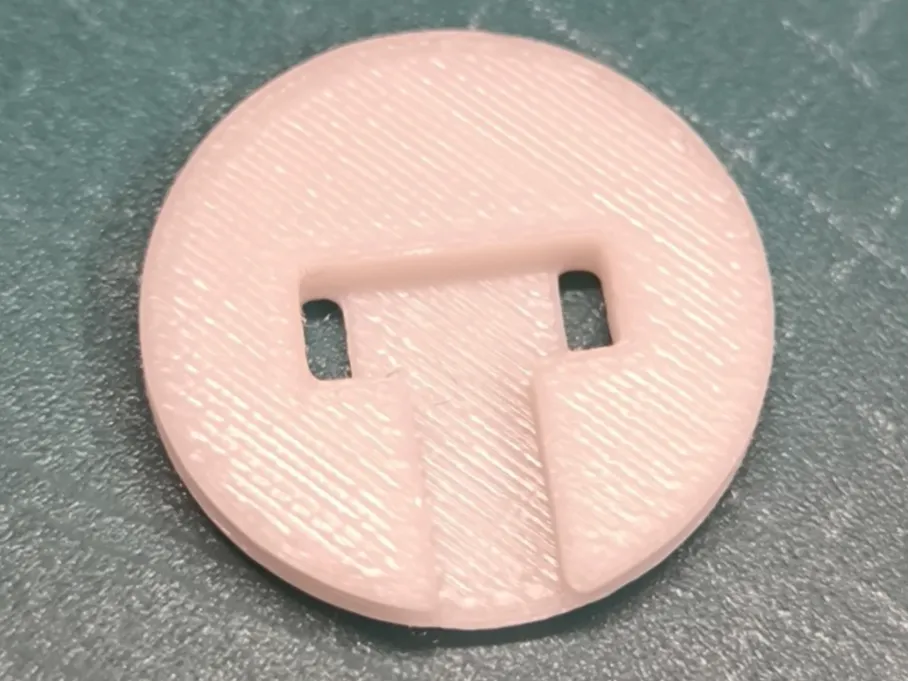

• The wire fits snugly around the printed dummy cell body

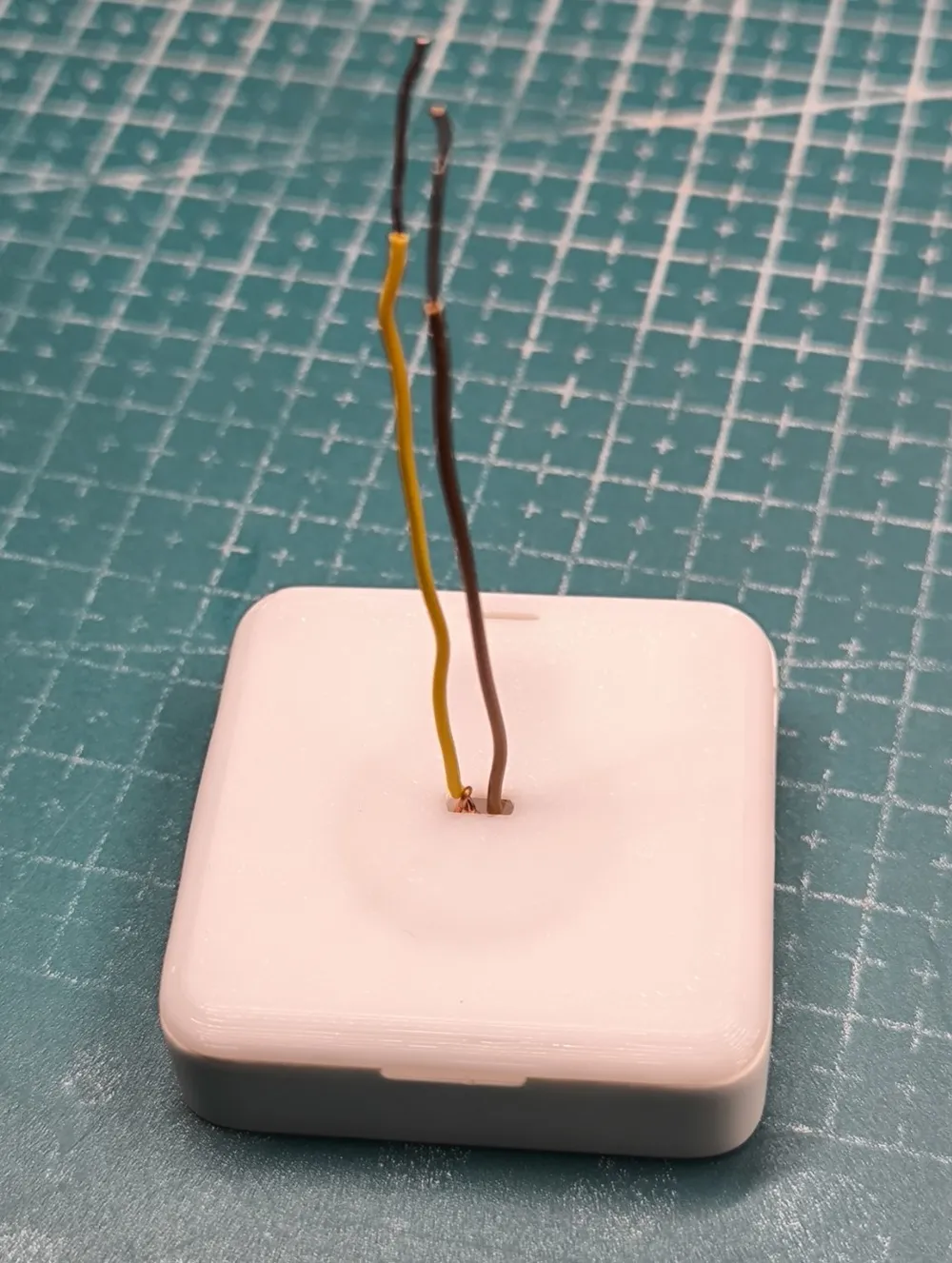

• You can drill a hole in the device’s back cover for the wire, or print a modified back cover with built-in holes

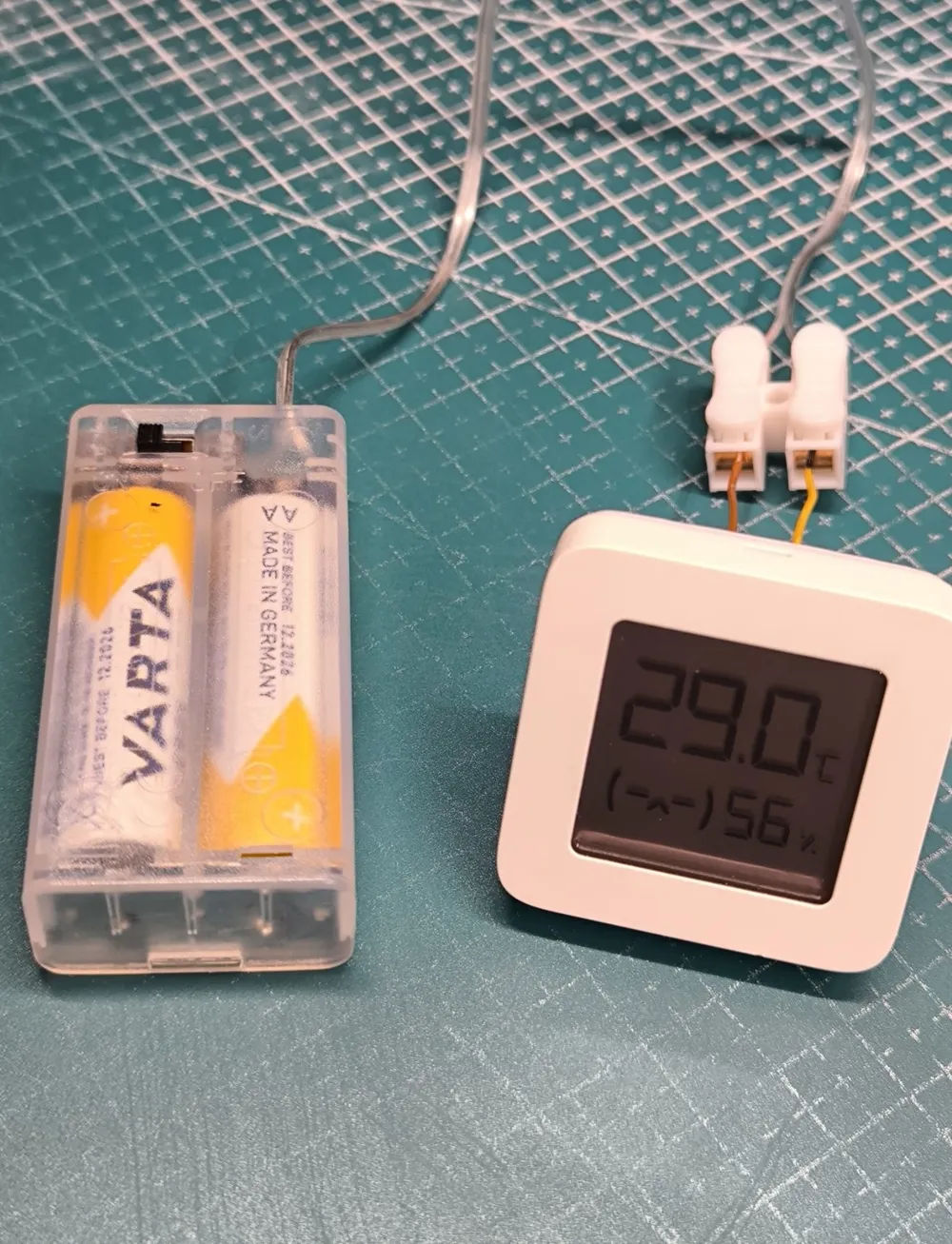

• Connect wires using wire clamps with a battery power source

Happy printing—save money and go green with rechargeable power!
