Bill of Materials

List other parts
  • Pen rubber pads x 1: I bought these from AliExpress (measure 5mm): https://s.click.aliexpress.com/e/_EvxQ6O8
  • Wheel screw x 1: M2.5 L5 su AliExpress: https://s.click.aliexpress.com/e/_EQ8LJCe

Description

First of all, I want to emphasize that this project should be considered an Alpha. It works, but I hope the community will be able to improve it.



The project is made for CMF Phone 1, but I have added two components in the .stl file list made specifically for the CMF Phone 2 Pro (I'm talking about the shell and the thicker wheel).



Super easy setup guide:

  1. Print with PLA the shell vertically (you must print it vertically because of its strength)
  2. Print with PLA the slide horizontally, of course

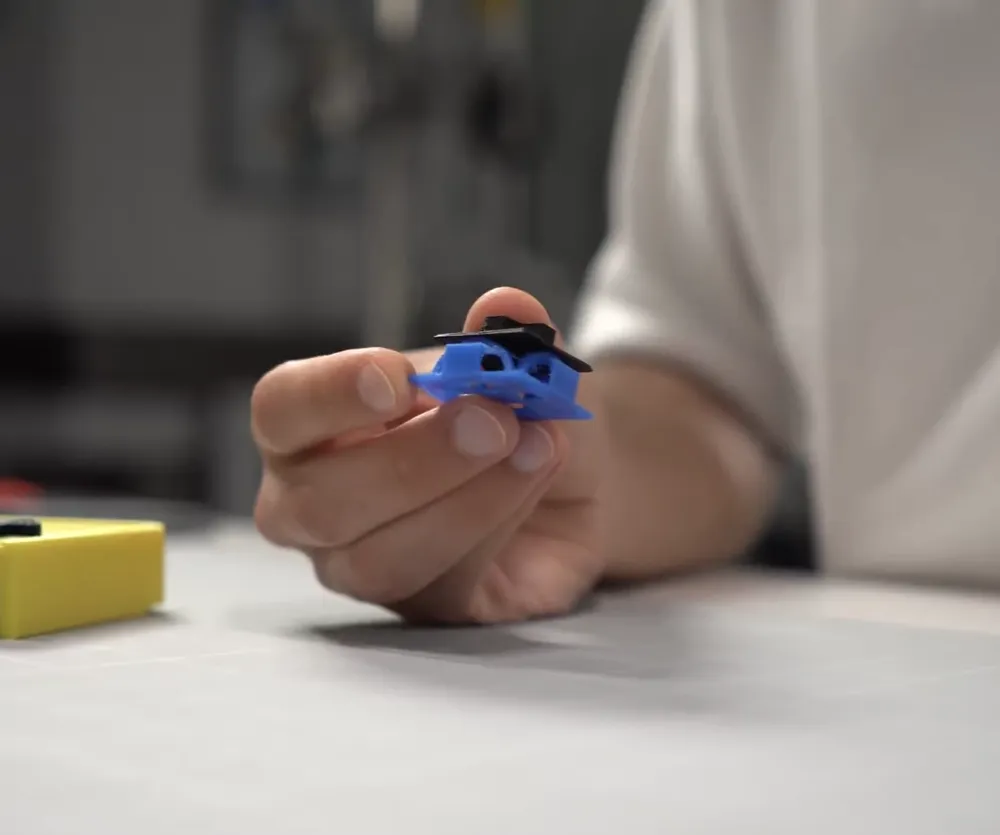

  3. Print with TPU all the supports (I named them like that in the .stl file list)

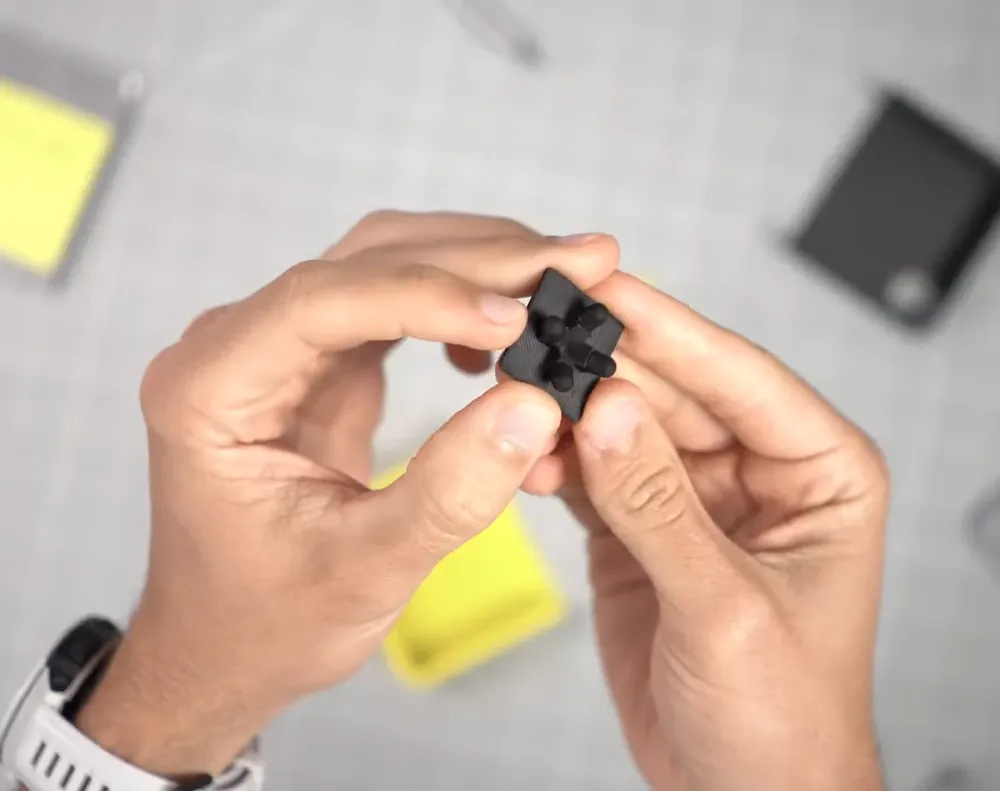

  4. Print with CONDUCTIVE PLA the buttons
  5. Add the rubber pen pads to the buttons  (5mm diameter, I bought them on AliExpress here: https://s.click.aliexpress.com/e/_EvxQ6O8)

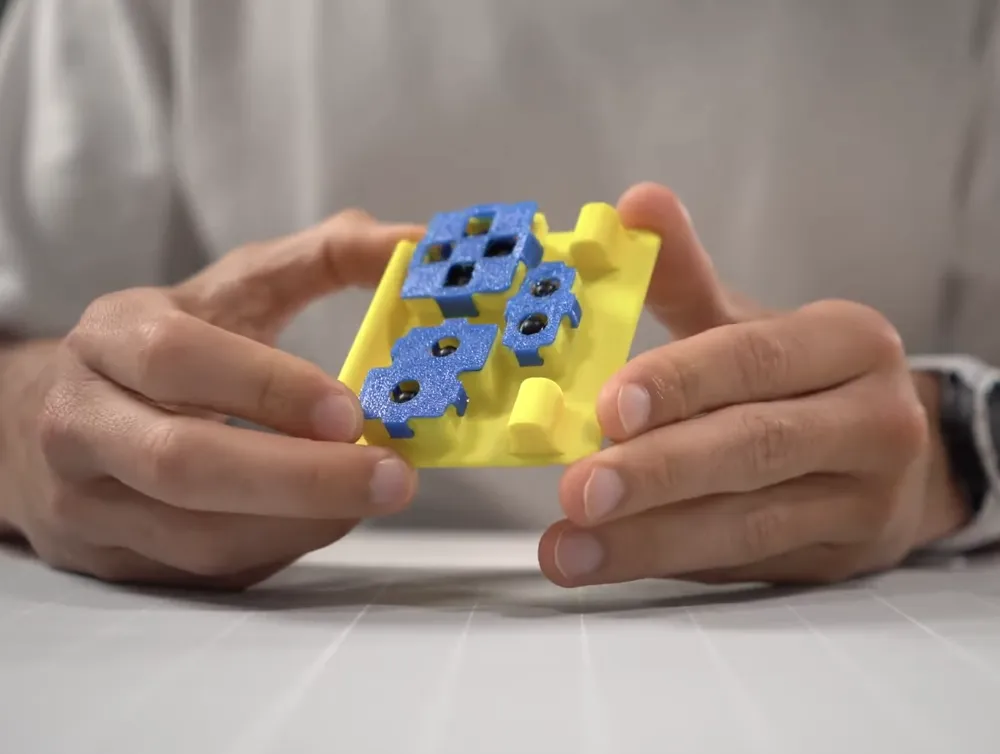

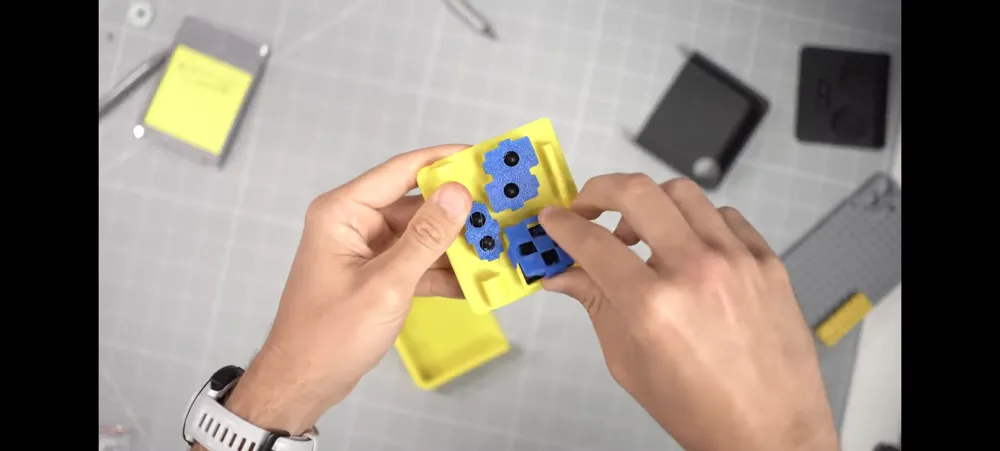

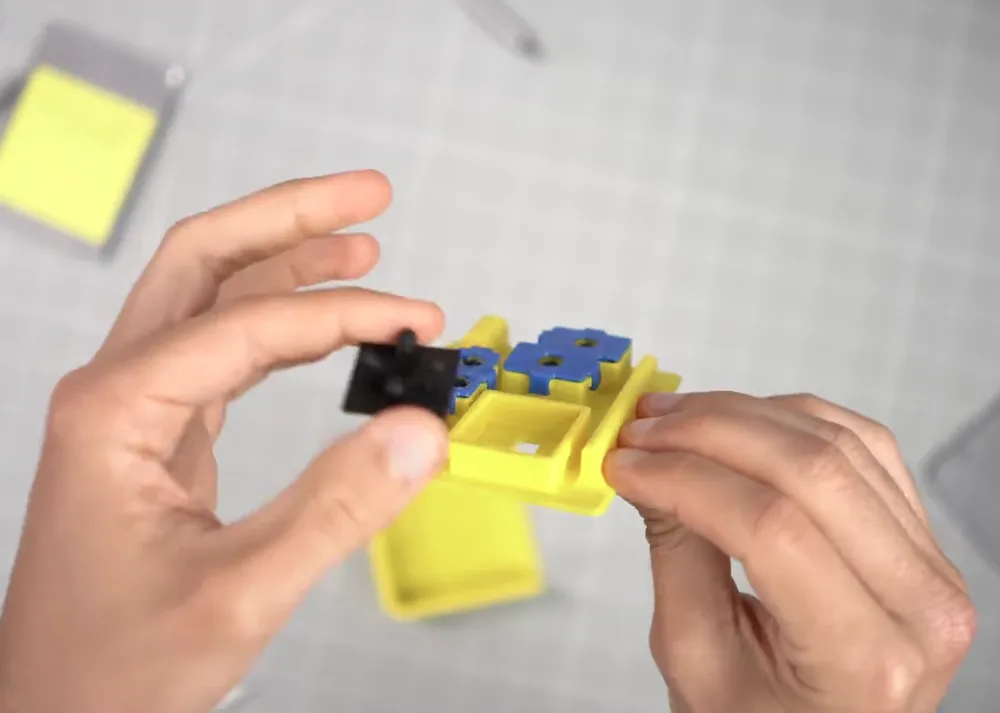

  6. Assemble everything! (It's pretty self-explanatory from the images, check them to have a reference)

CMF Phone 2 Pro variation:



  1. Print the wheel I added in the .stl file list and glue an M2.5 L5 from AliExpress: https://s.click.aliexpress.com/e/_EQ8LJCe
  2. Print the correct shell .stl file instead of the standard one
