Can Strainer

IP Report

Print Profile(2)

All
X1 Carbon
X1
P1P
X1E
H2D
P1S
A1 mini
A1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
2 h
1 plate
4.9(73)

ABS-GF
ABS-GF
Designer
2.1 h
1 plate

Open in Bambu Studio
Boost
195
827
75
8
1.4 k
904
Released

Description

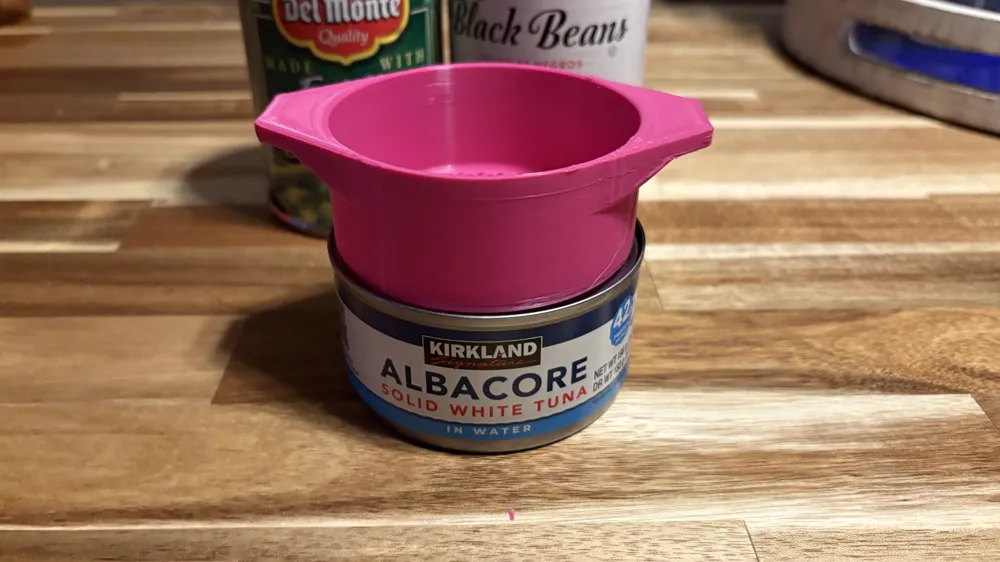

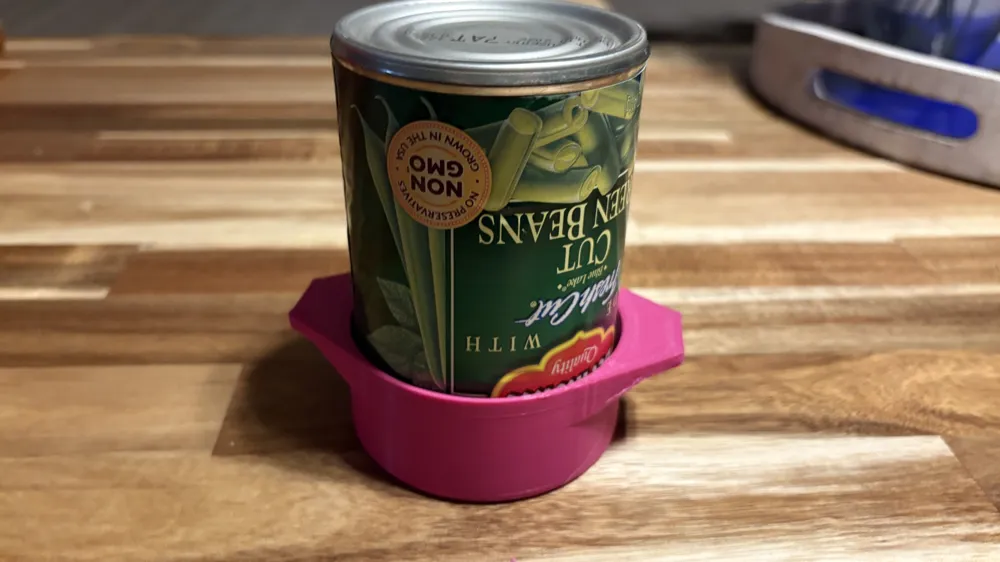

This cleverly designed can strainer is built with precision clearance, featuring a 77 mm inner diameter that allows standard vegetable and bean cans to fit comforably inside, while the 80.5 mm outer diameter lets larger tuna cans wrap around it for effortless draining.

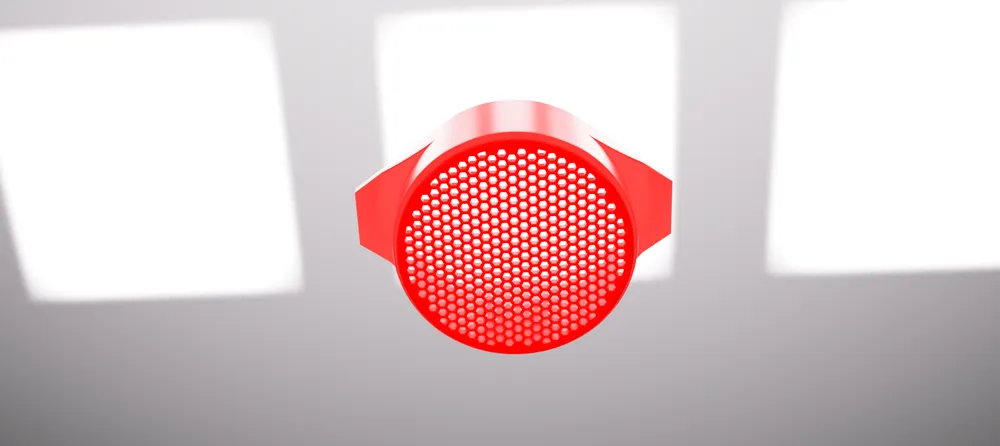

Its hexagonal drain holes—because hexagons are objectively the bestagons—strike the perfect balance between easy cleaning and keeping your ingredients contained. No stray chickpeas rolling away, no lost mushrooms down the drain!

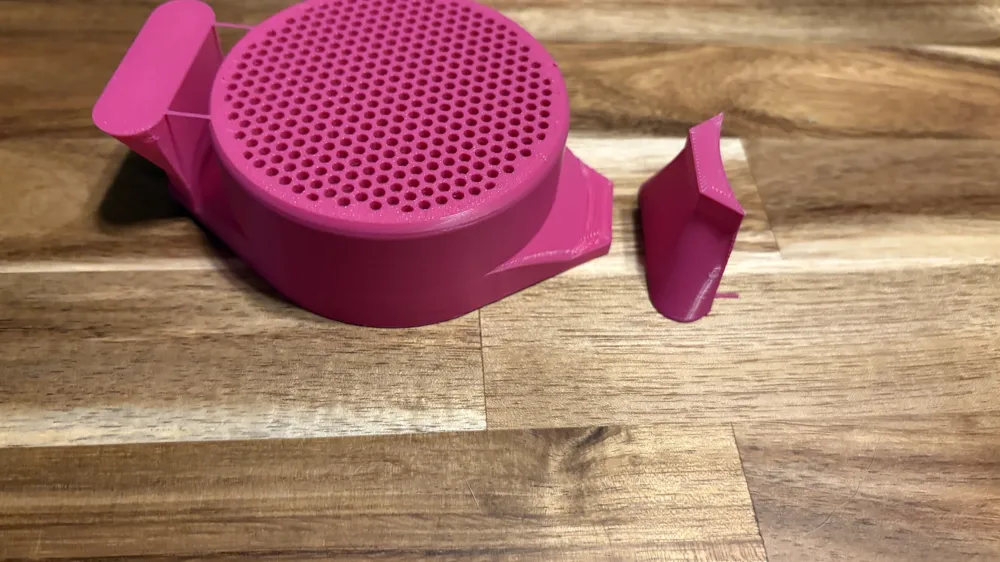

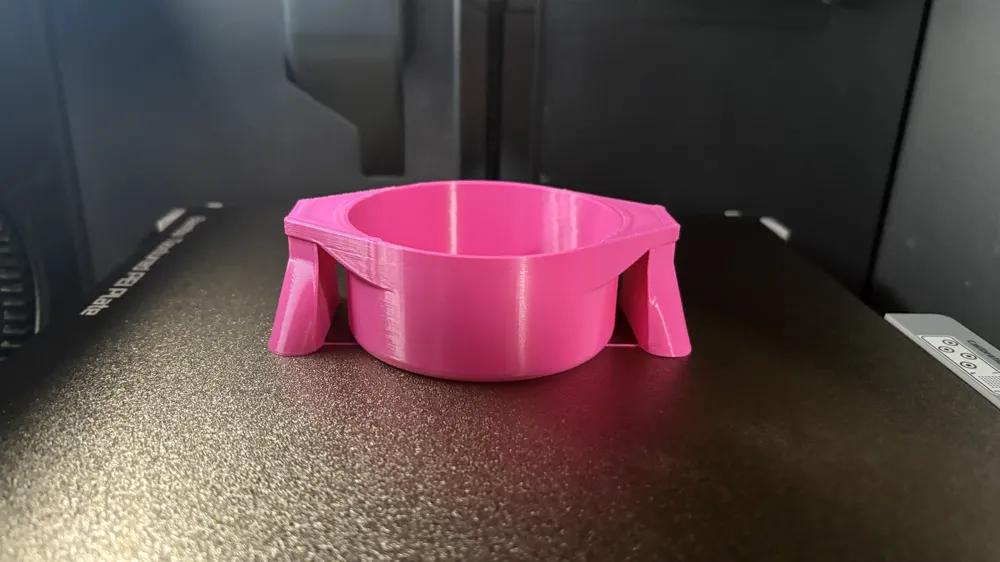

The modeled-in supports snap off with a deeply satisfying pop, ensuring smooth overhangs. When printing from the STL, split the model into parts and use 1 wall, 2 tops/bottom layers, and 10% support cubic infill for the supports, while printing the main section at 0.2 mm layer height with a "strength" preset to maintain watertight integrity.



For durability and dishwasher safety, glass-filled ABS is the top choice. If using PLA, a gentle hand wash in warm water will keep it in prime condition.
