Crosman Trisight Operator 5000

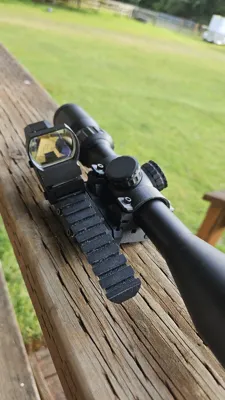

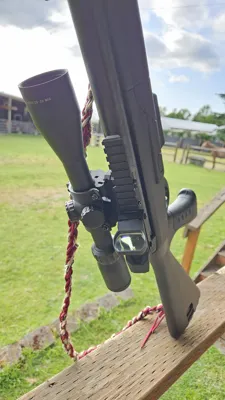

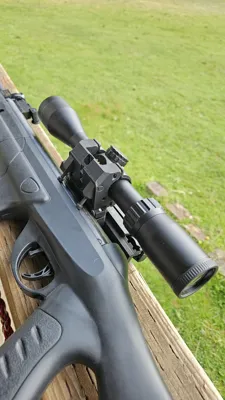

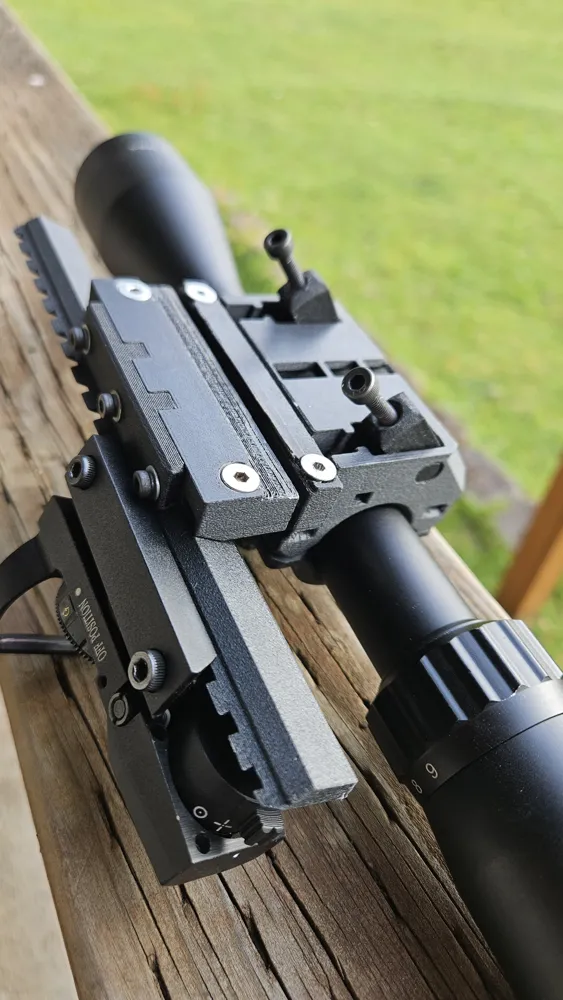

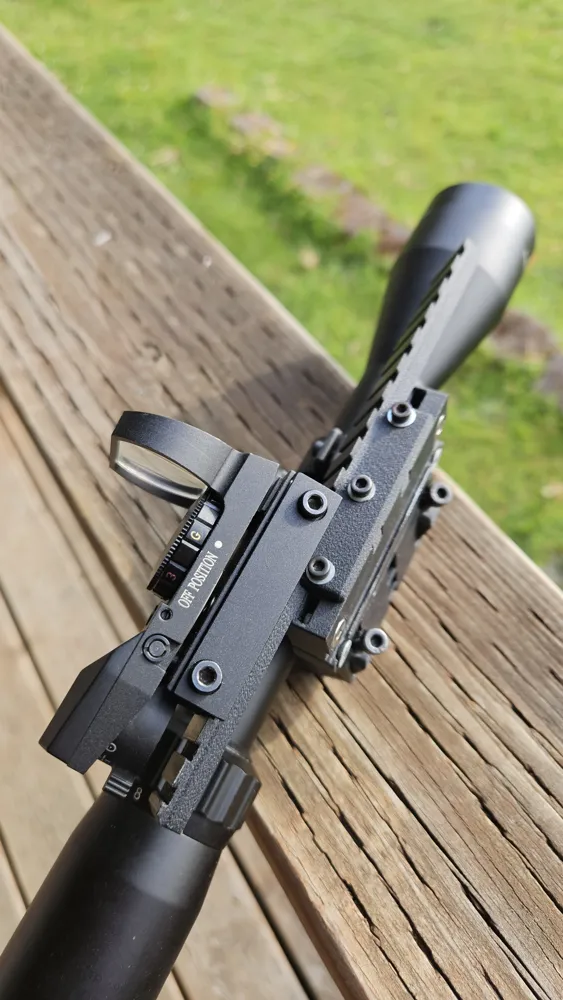

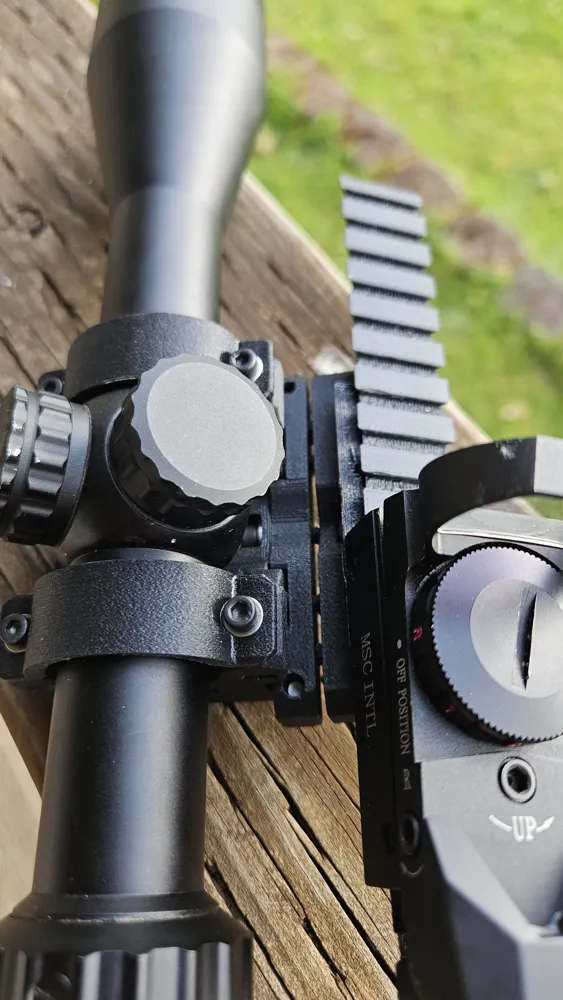

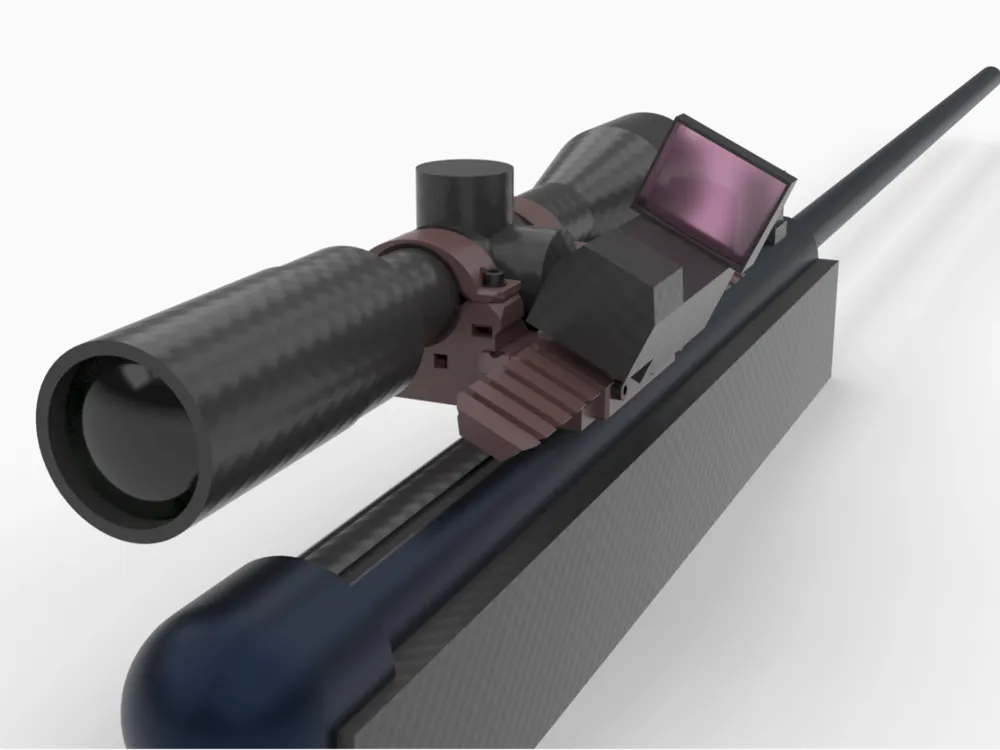

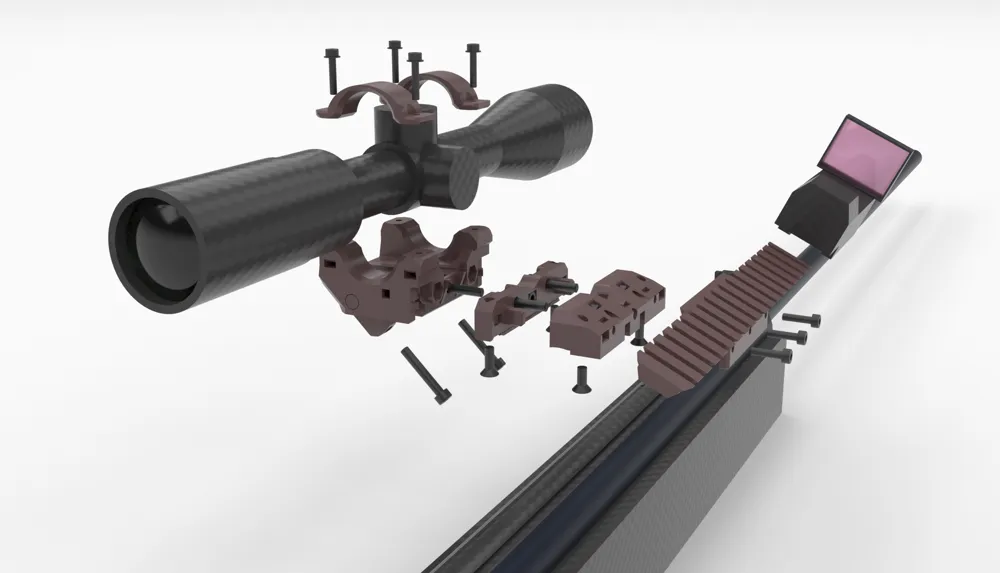

The Crosman Trisight Operator 5000 allows for concurrent use of central iron sights, and an offset scope and offset tacticool rail for reflex sights, lasers, flashlights, etc.  The scope used has 25mm or1" diameter at the clamps.  This design uses metric hardware. There are countersunk screws mounted at the four corners of the central rail mount, which act as the clamping force holders, rather than the actual 3d printed dovetail which is also present, but not as reliable.

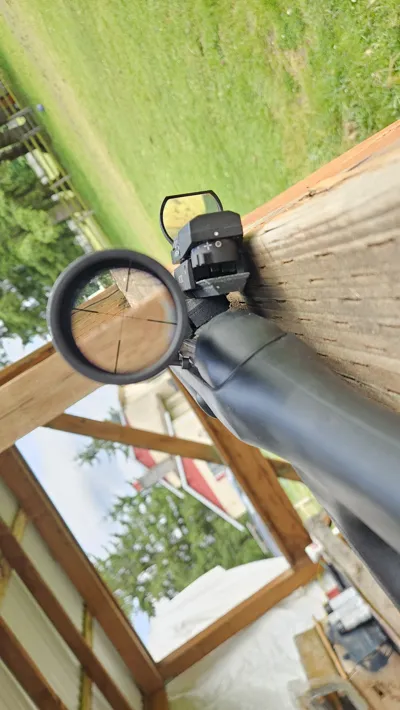

Simplify rotate the air rifle in the pit of your shoulder, around the barrel center, and the 3 aiming methods should successively pass very near to the same part of your vision (aka you shouldn't need to actually move your head much, just spin the rifle).  rotate the whole assembly 180 on the mounting rail to accommodate a reverse mounting config if desired.

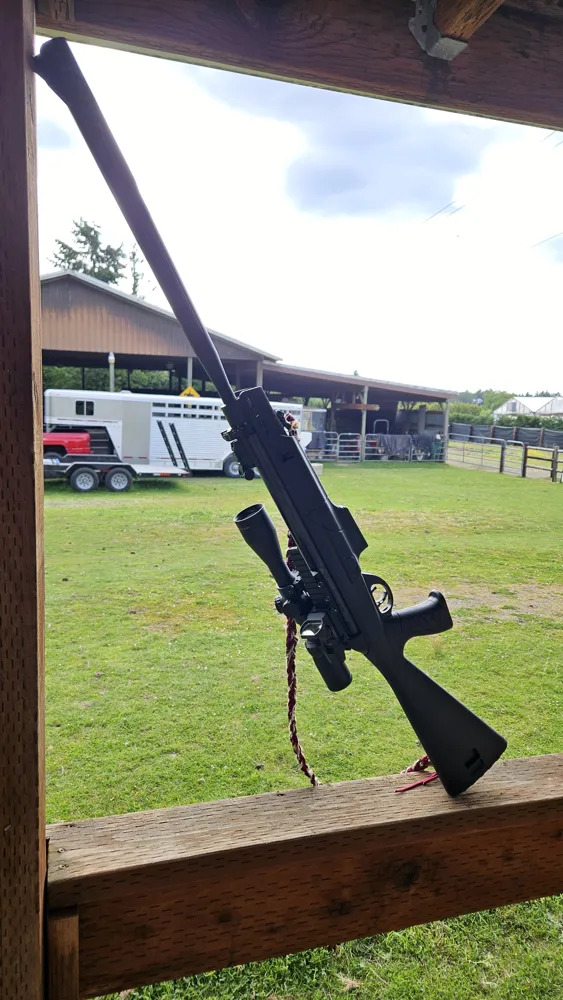

I used Bambu ABS-GF for this, which is very legitimately my favorite material. I do not recommend using anything "weak". Stick to high strength materials for this use case please! If you print this in Basic PLA for example.. It's likely to snap off during use, and your precious optics could get ruined by gravity and the results of said force. I would hate to hear a report of someone damaging equipment because the design was not secured enough. Please comment if you have issues. My installation has been solid thus far, but this is also mostly for meme value, and these are all spare parts for me. please consider that when using this design on anything you actually care about!!

All models are available in STP or 3MF only. if you need to convert to other formats, please use the provided STP files in your slicer of choice, and export to your file type as needed. Thank you.
