Desert Fury – Modular, Weatherproof, Customizable Outdoor Case

Optimized protection for all your outdoor DIY projects – STEP & Fusion 360 files included

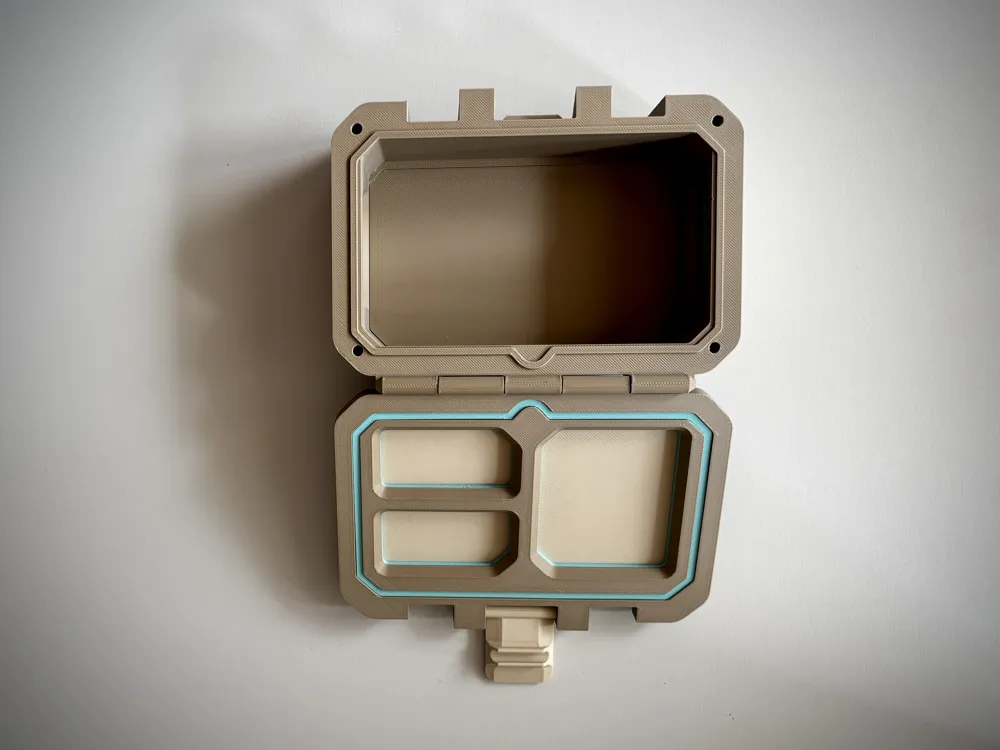

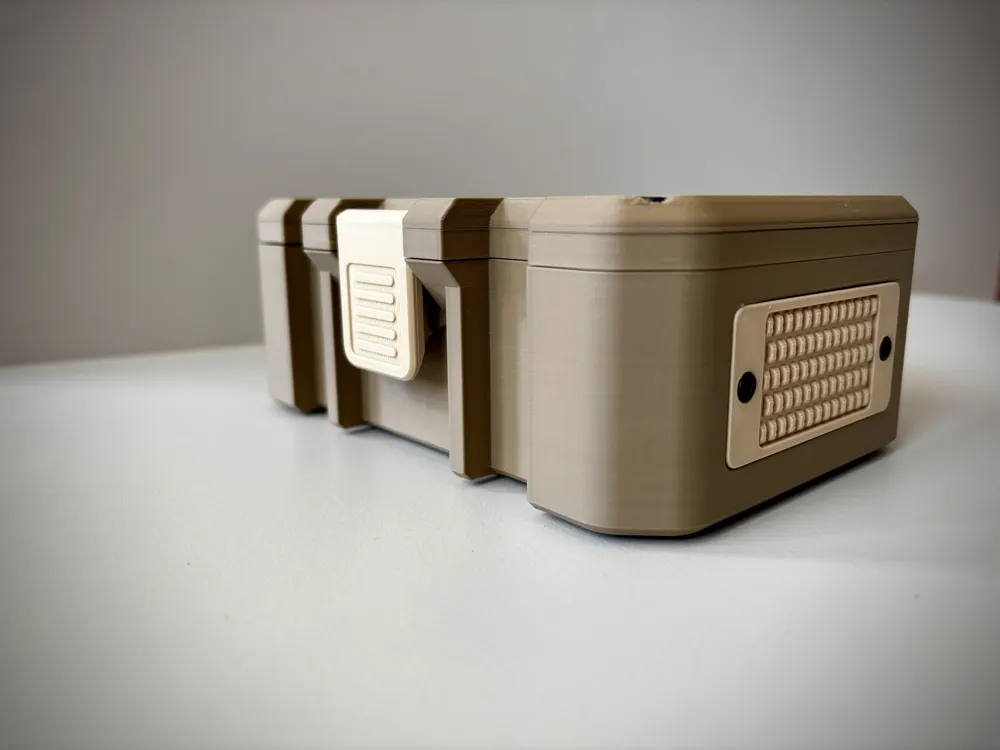

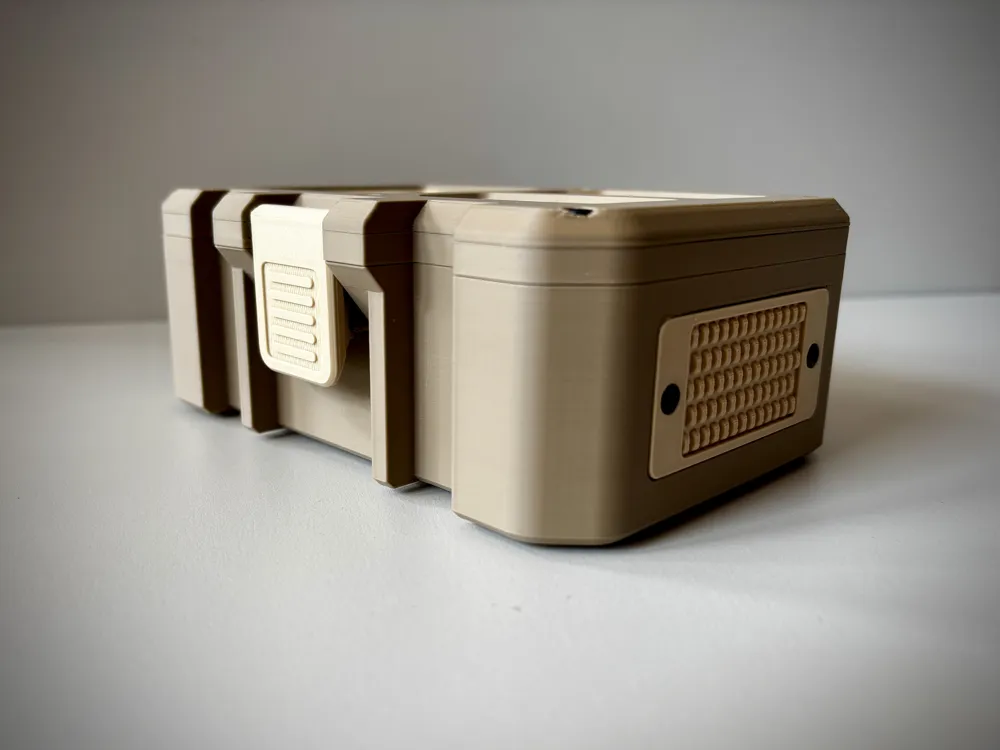

Desert Fury is a rugged enclosure specifically designed to protect your outdoor electronics projects, no matter which microcontroller you use (Raspberry Pi, ESP32, Arduino, etc.). Dustproof and splash-resistant thanks to integrated TPU gaskets, it ensures optimal protection for your components.

With a generous internal space (135 × 80 × 40 mm) and a removable 5 mm mounting plate, Desert Fury makes it easy to install your boards, sensors, or screens.

Maximum customization

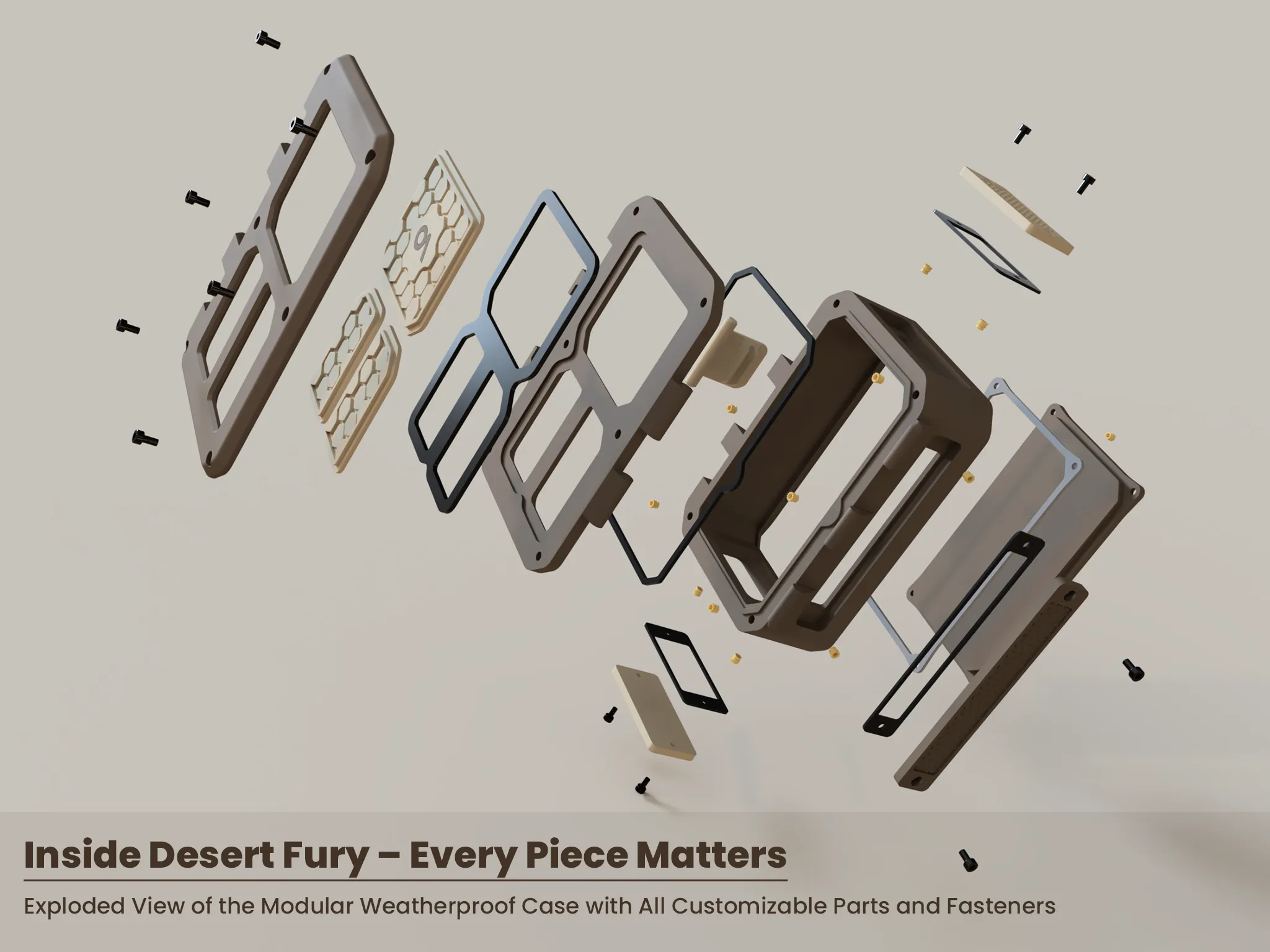

6 modular and easily swappable side panels:

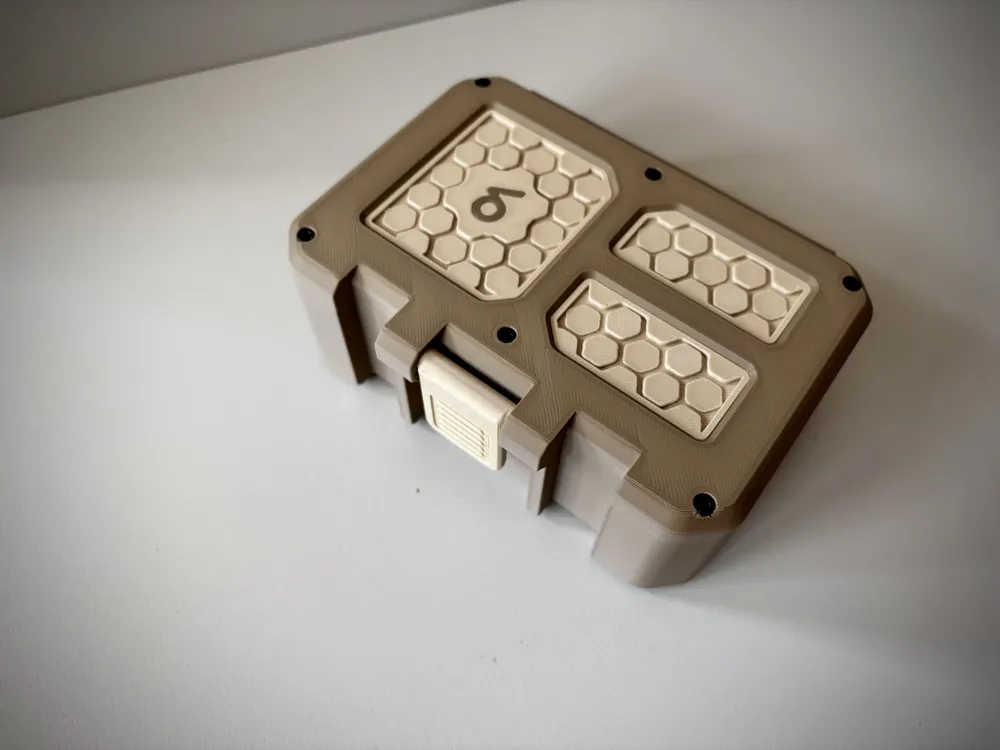

• Top (×3)

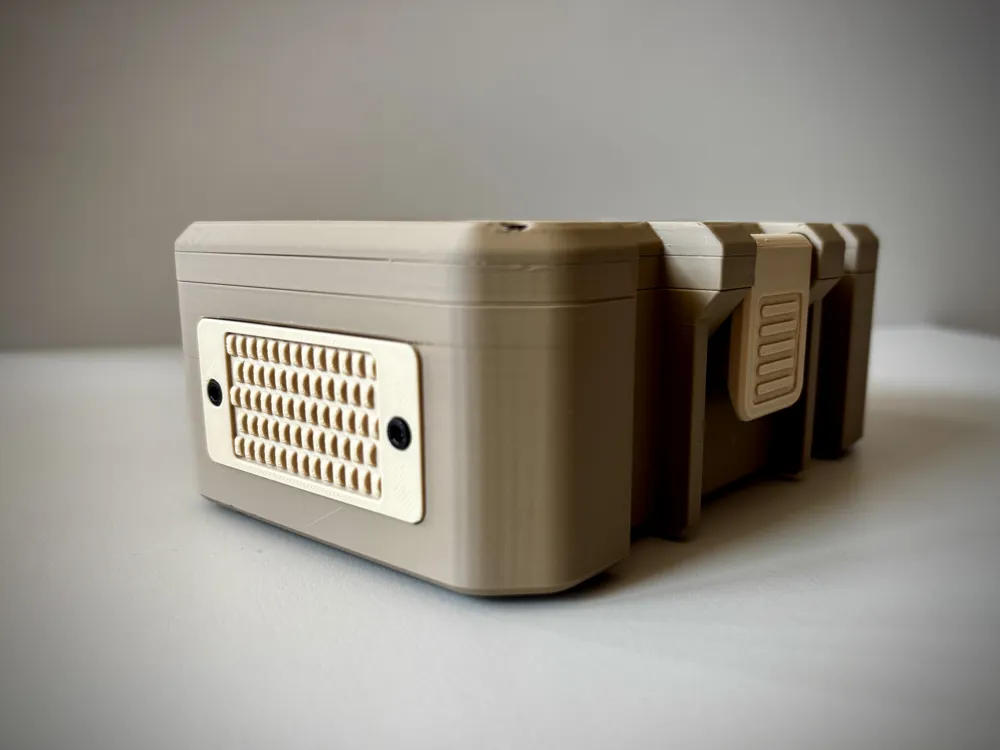

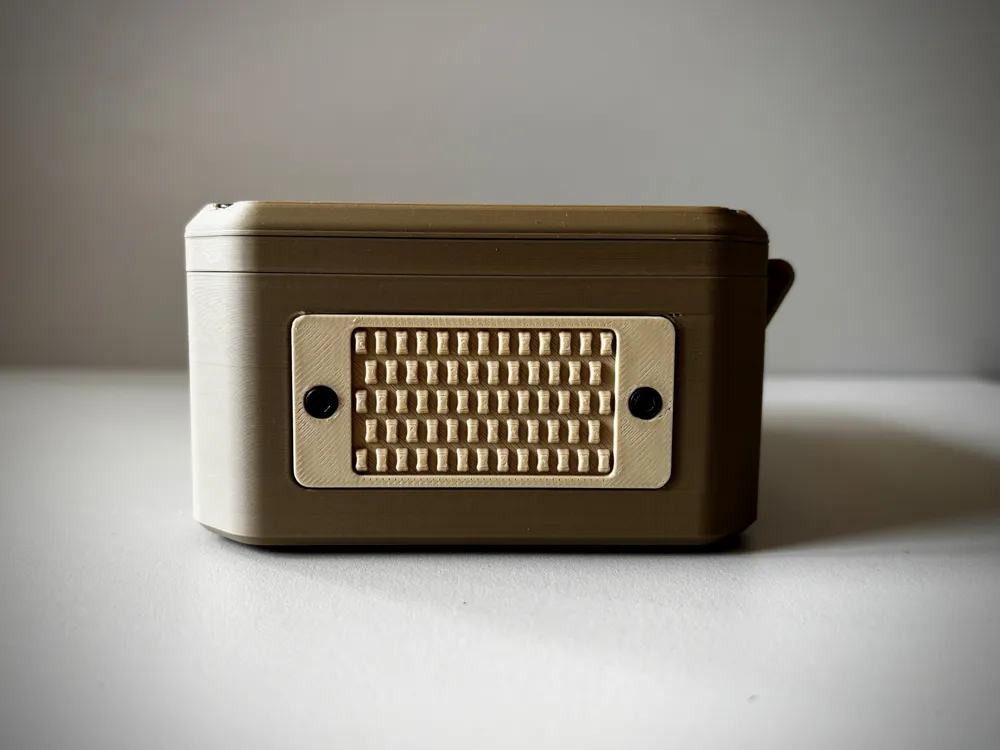

• Side (×2)

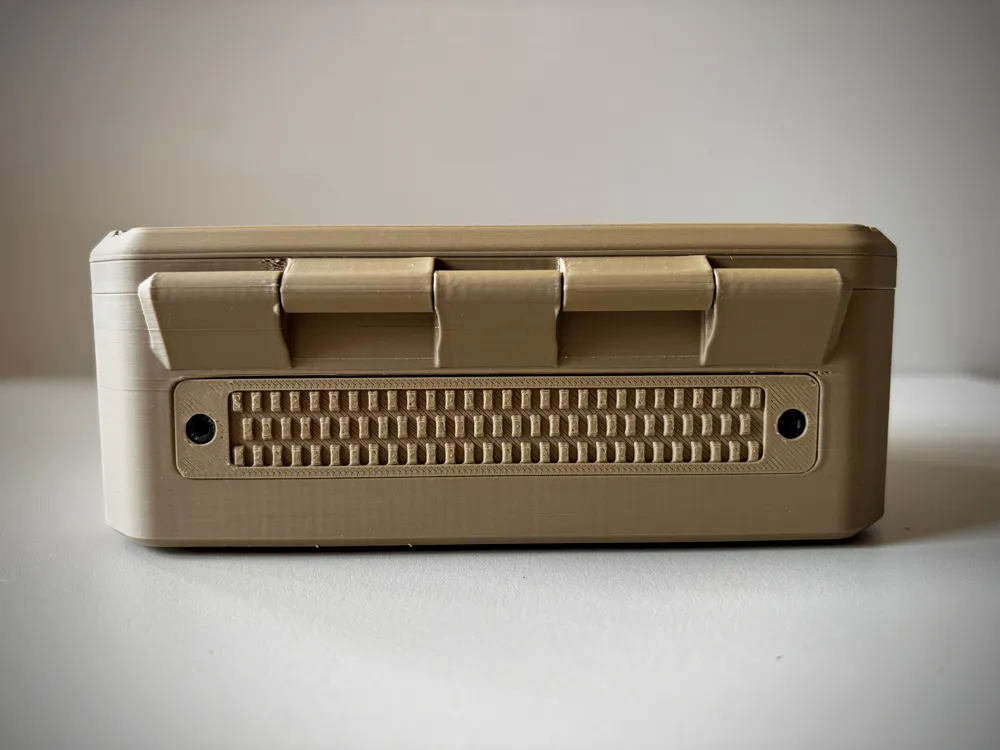

• Rear (×1)
• customizable internal base plate

All STEP and Fusion 360 (F3D) source files are provided, so you can adapt each panel to your exact needs: add engravings, cutouts, or change internal clearance.

Included files

• Inserts & Panels:
  • Desert-Fury_ByNova_Insert1_LargeHex_V2.1.0
  • Desert-Fury_ByNova_Insert2_MedHex_Left_V2.1.0
  • Desert-Fury_ByNova_Insert2_MedHex_Right_V2.1.0
  • Desert-Fury_ByNova_Large-Insert-Back_V2.1.0
  • Desert-Fury_ByNova_SidePlate_Left_V2.1.0

  • Desert-Fury_ByNova_SidePlate_Right_V2.1.0



• Gaskets:
  • Desert-Fury_ByNova_Gasket_Main_V2.1.0
  • Desert-Fury_ByNova_Gasket_TopShell_UpperCover_V2.1.0
  • Desert-Fury_ByNova_Gasket_TopShell_LowerFrame_V2.1.0
  • Desert-Fury_ByNova_Gasket_SidePlate_Right-Left_V2.1.0
  • Desert-Fury_ByNova_Gasket_BackPlate_V2.1.0

  • Desert-Fury_ByNova_Gasket_Housing-Bottom_V2.1.0



• Main enclosure:
  • Desert-Fury_ByNova_Box_V2.1.0
  • Desert-Fury_ByNova_TopShell_UpperCover_V2.1.0

  • Desert-Fury_ByNova_Housing-Bottom_V2.1.0



• Details and misc.:

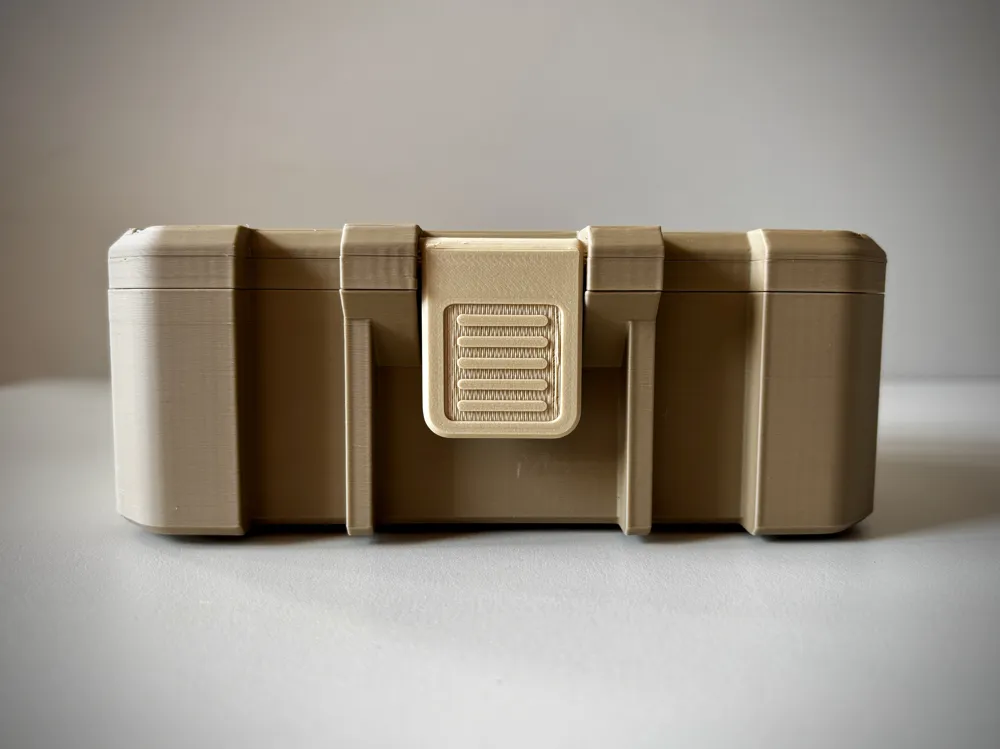

  • Desert-Fury_ByNova_Latch_V2.1.0
  • Desert-Fury_ByNova_Logo_Nova_V2.1.0

Recommended hardware :

• 16x M3 socket head screws
• 16x M3 brass heat inserts (4.5 × 4 mm)

Material & print tips :

• The box is suitable for PETG and PLA. PLA is not recommended for high-heat or high-humidity environments.
  For PETG printing:
• Heated bed: 70–80 °C
• Moderate speed: 40–60 mm/s
• Check retraction and print temps based on filament brand.
• Ensure good bed adhesion.

Practical uses

• Weather station: Ventilation-ready panels, quick sensor mounting (e.g. BMP280, DHT22)
• IoT GPS tracker: Space for LiPo battery and LoRa modules, ideal for secure outdoor use
• Outdoor camera: Easy lens attachment, compact fit for Raspberry Pi Zero or similar boards

MakerWorld advice

• Always test waterproofing in controlled conditions before long-term outdoor use.
• Splash-proof only – not suitable for full submersion.

Technical info

• Author: Nova.connect
  License: CC BY 4.0
  Current version: V2.1.0
  Download: ZIP with STL + STEP + F3D – available exclusively on MakerWorld.
  For commercial use, please contact me directly.
• Happy printing – and feel free to share your build with the MakerWorld community!
