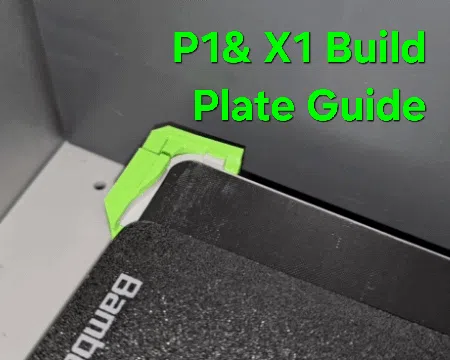

Build Plate Guide For your X1 & P1 Series Printers.

I have created my own version of a build plate guide,
It's been in use for over a month & is working fantastic.

1. Print in your chosen material, best in PETG
2. Remove supports

3. Clip onto the left back corner of the build plate ( should be a completely flush finish )

4. enjoy easy plate alignment
