Sewing Tape Measure Winder V2 - Print-in-Place
Print Profile(1)
Description
Boost Me (for free)

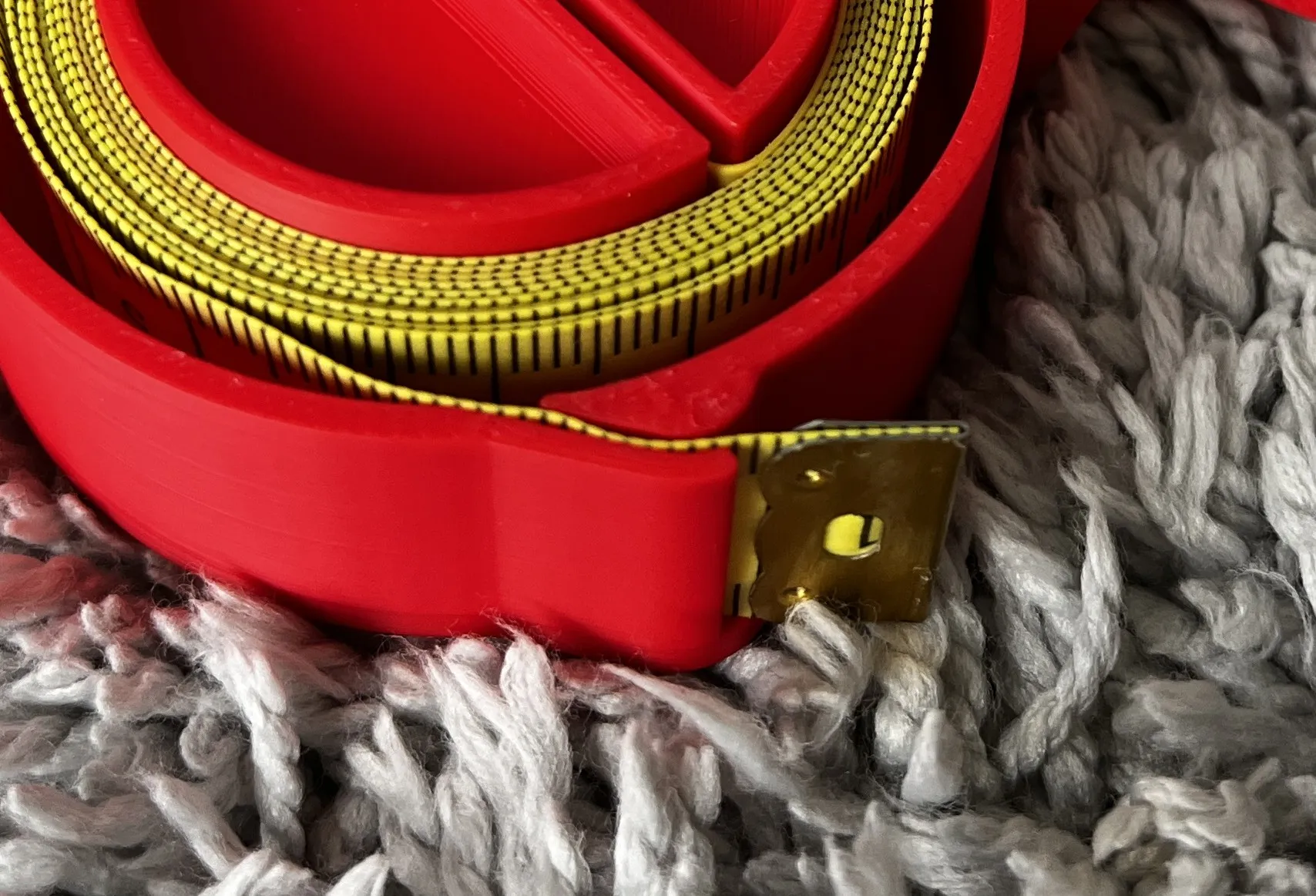

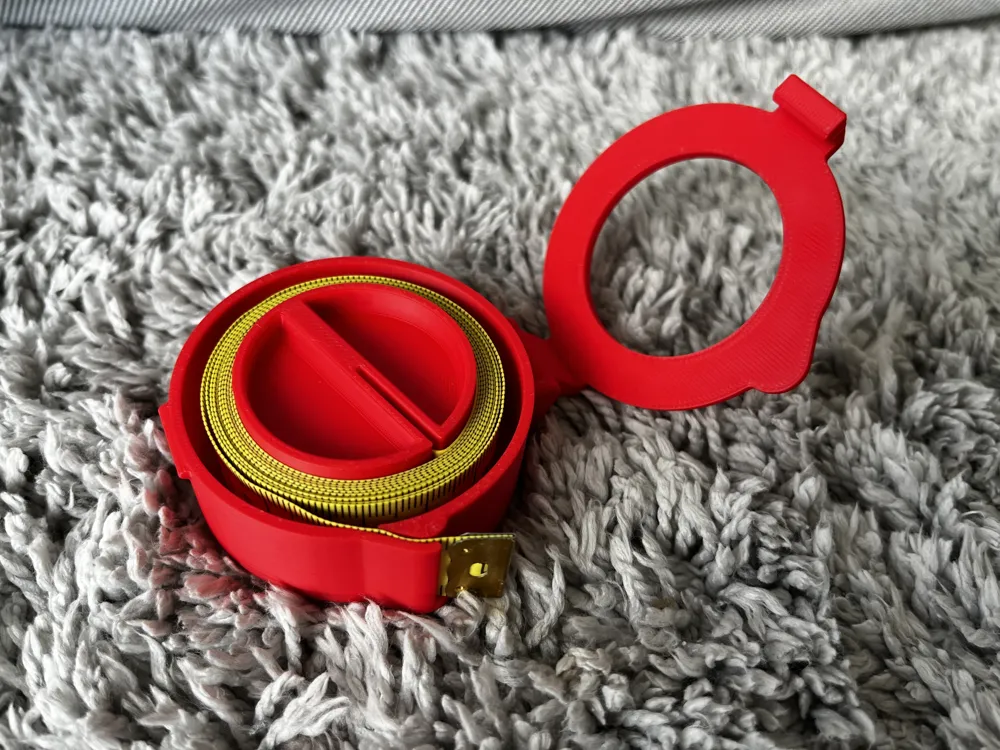

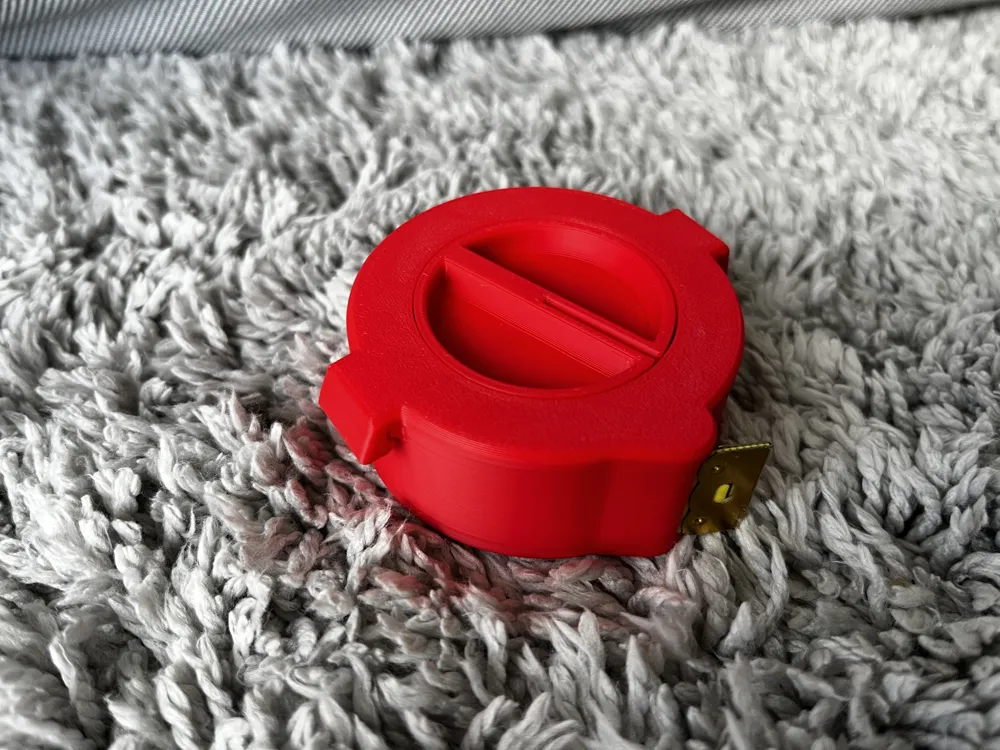

This is a complete redesigned and improved version of my first Sewing Meter Winder.
There is also an Onshape document with parameters available.
Improvements of V2

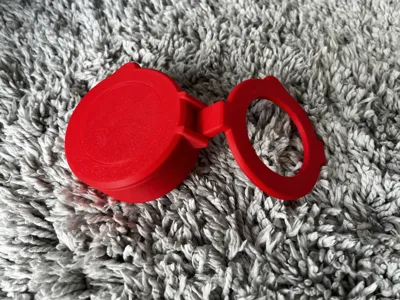

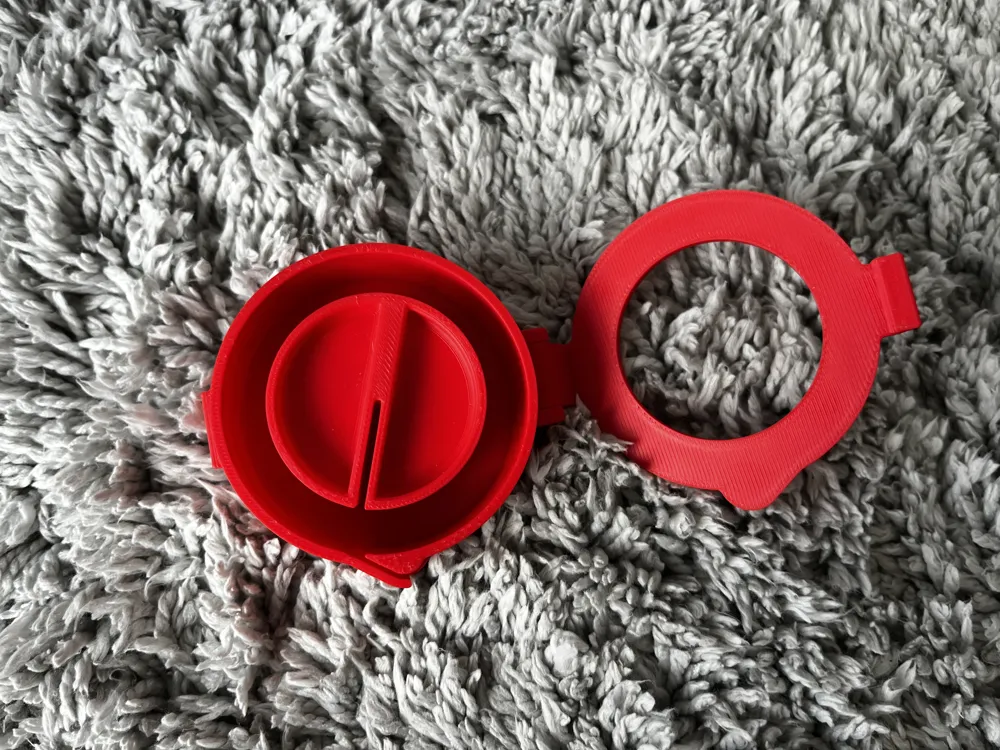

- Better lid: Better locking mechanism, more solid hinge.

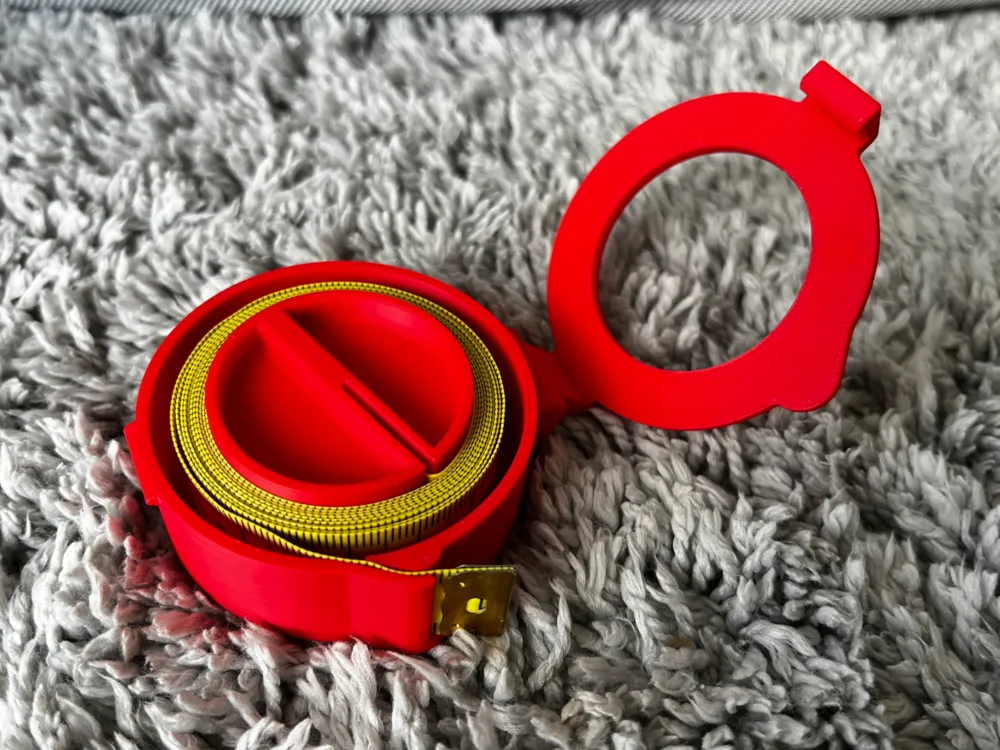

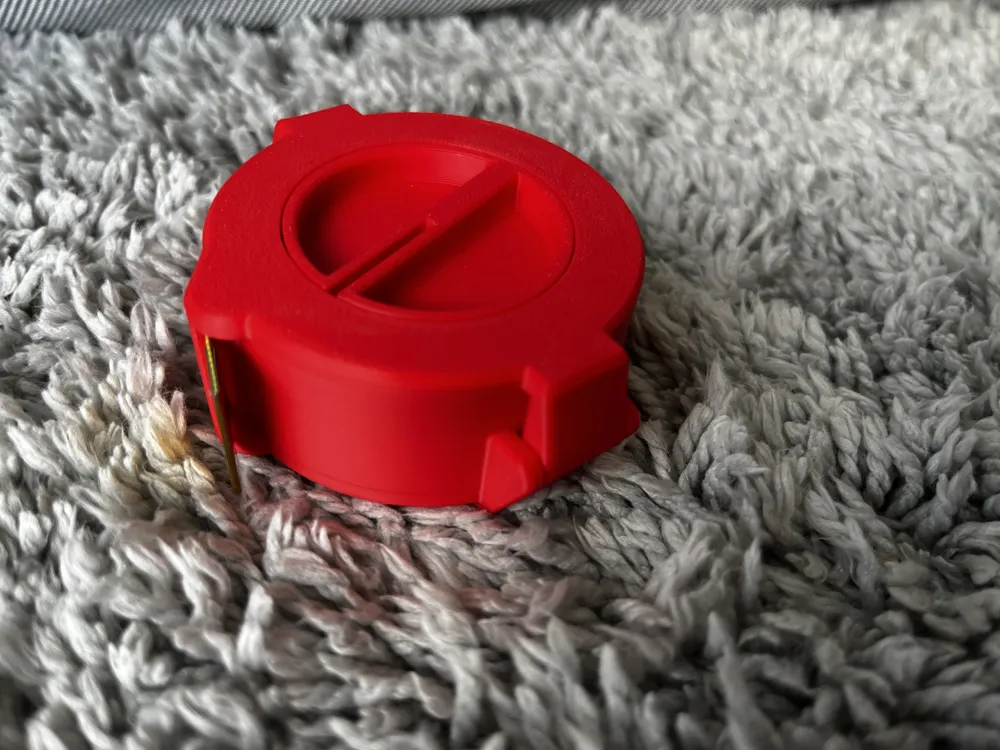

Tape measure stop: When winding the tape measure the end of it will stay outside. Also makes pulling the tape measure smoother.
- Nicer look: Added fillets and chamfers to make it feel and look nicer
Printing
The premade STLs have a clearance of 0.2mm on rotating parts. If you want to change this use the parametric model.
Sizes inside print profile:
Tape measure end cap thickness: 1.5, 1.7, 1.9, 2.1, 2.3mm
Tape measure width: 19, 21, 23, 25mm
After printing
The hinge and rotator might require a bit of force to move the first time.
Parameters
`bottom_height`:
`wall_width`:
- `rotator_diameter`:
- `rotator_clearance`: Clearance around the rotator
`rotator_holder_depth`:
`rotator_holder_width`:

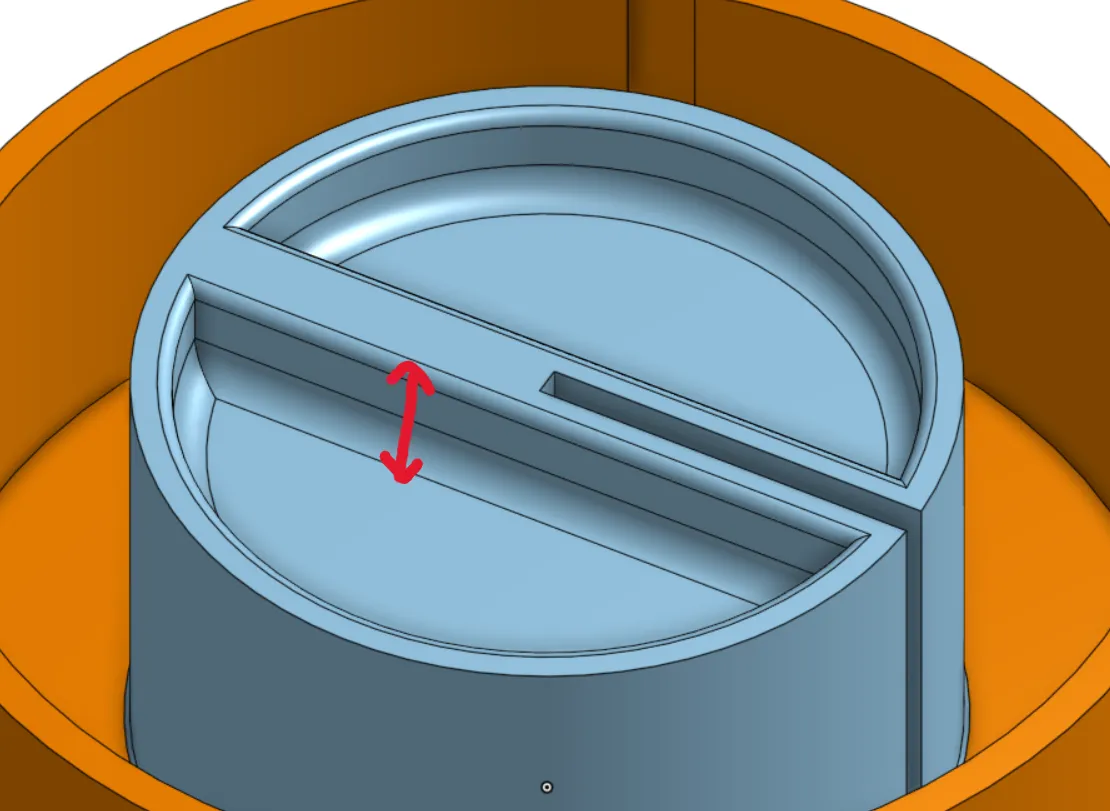

`tape_measure_width`:
`tape_measure_stop_diameter`:
`tape_measure_stop_width`:

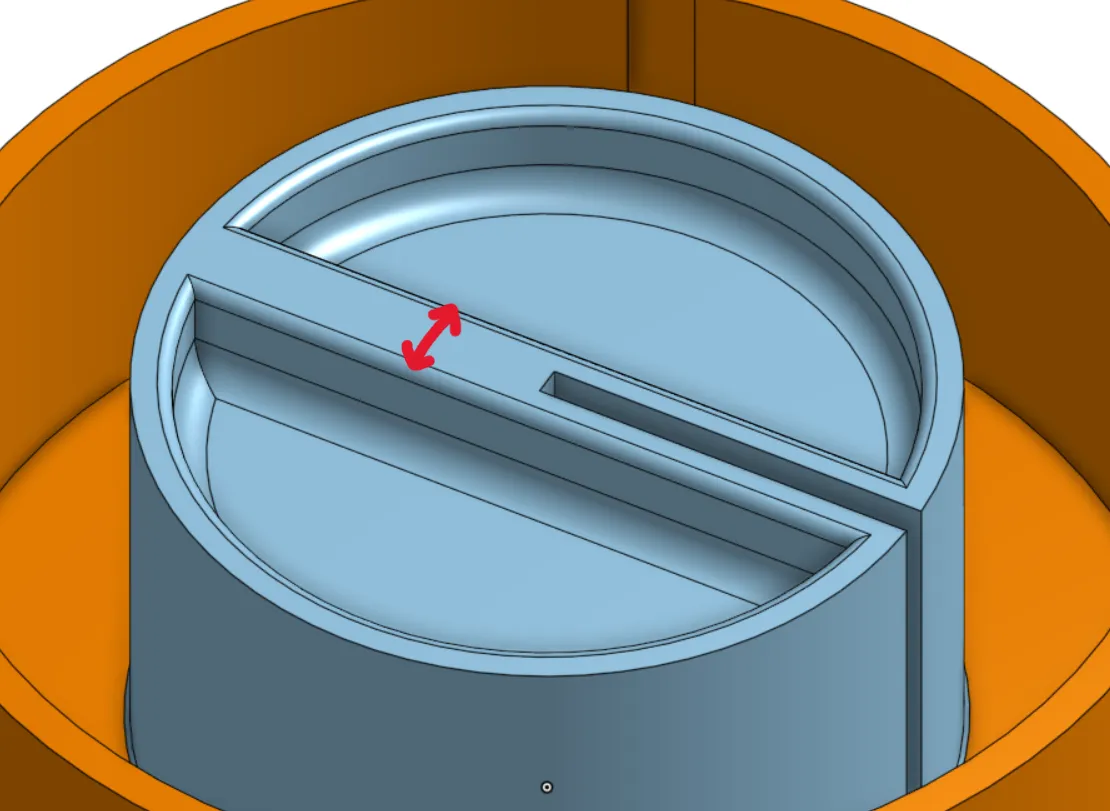

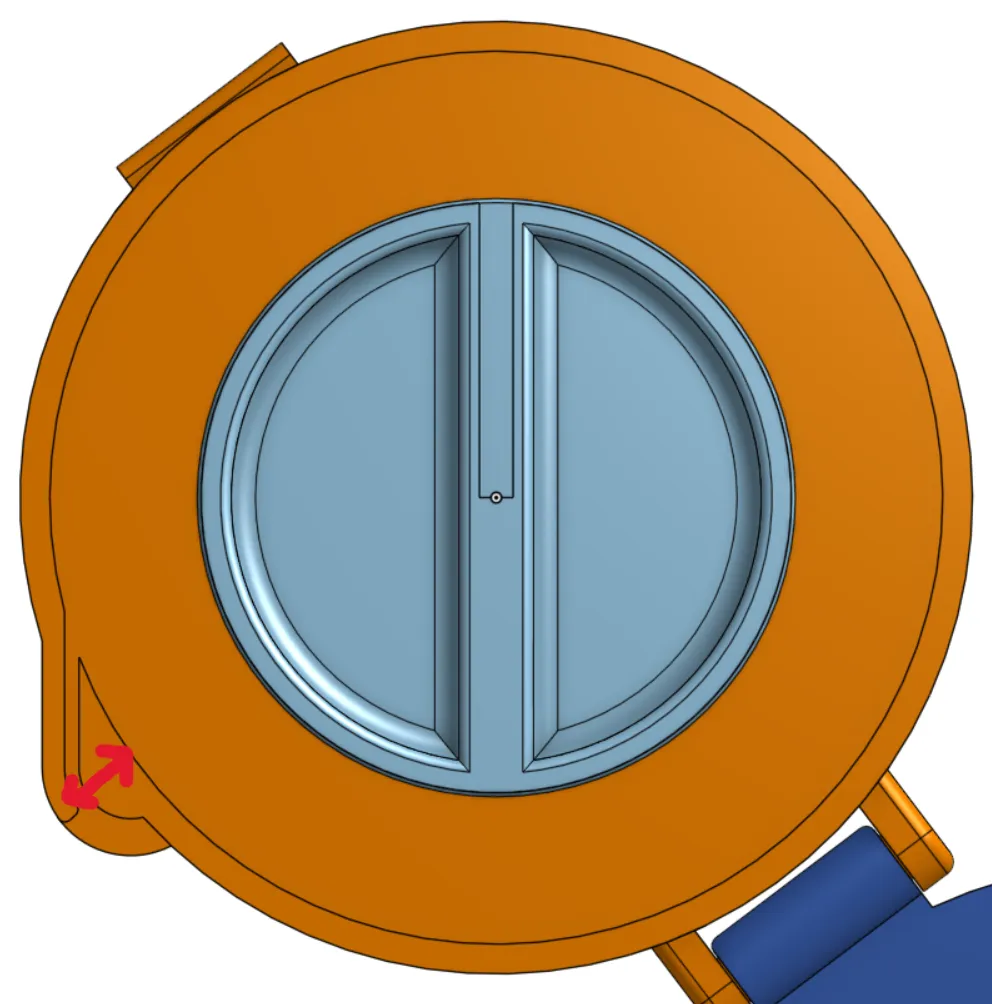

`tape_measure_end_thickness`:

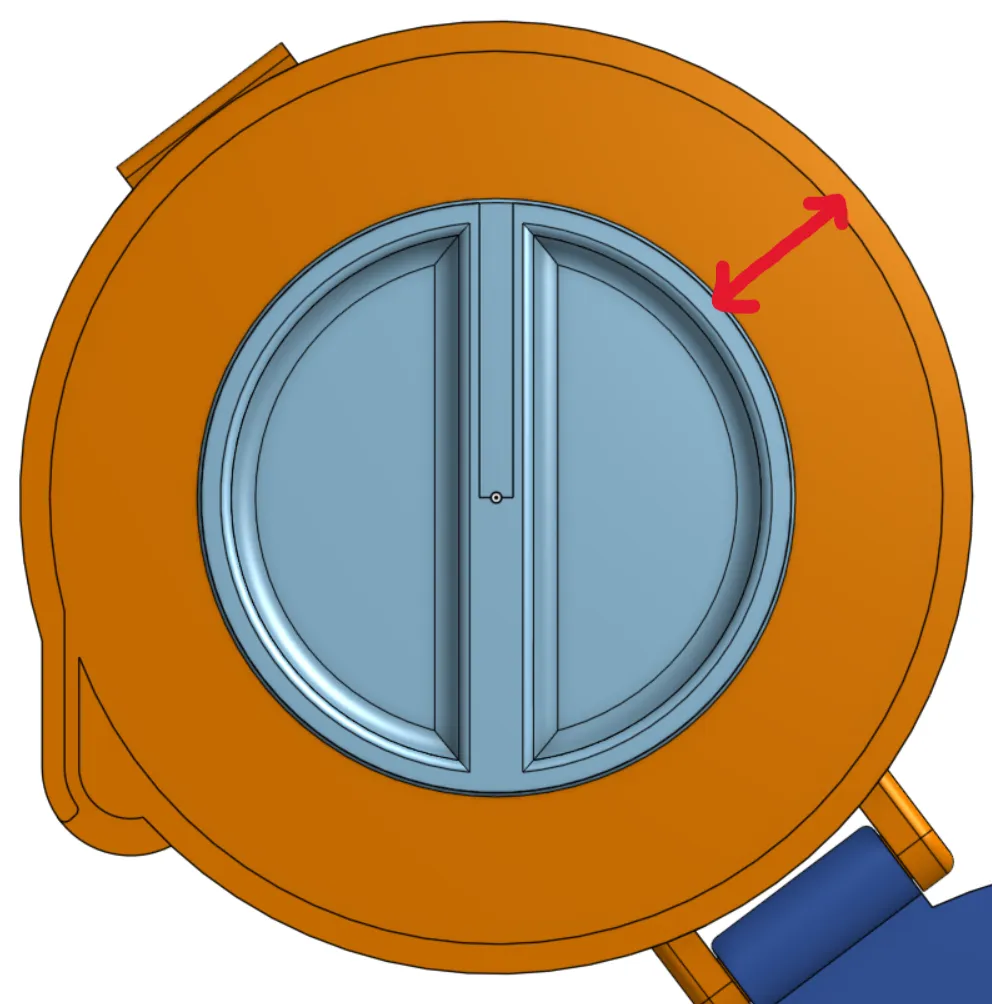

`tape_measure_winded_thickness`:

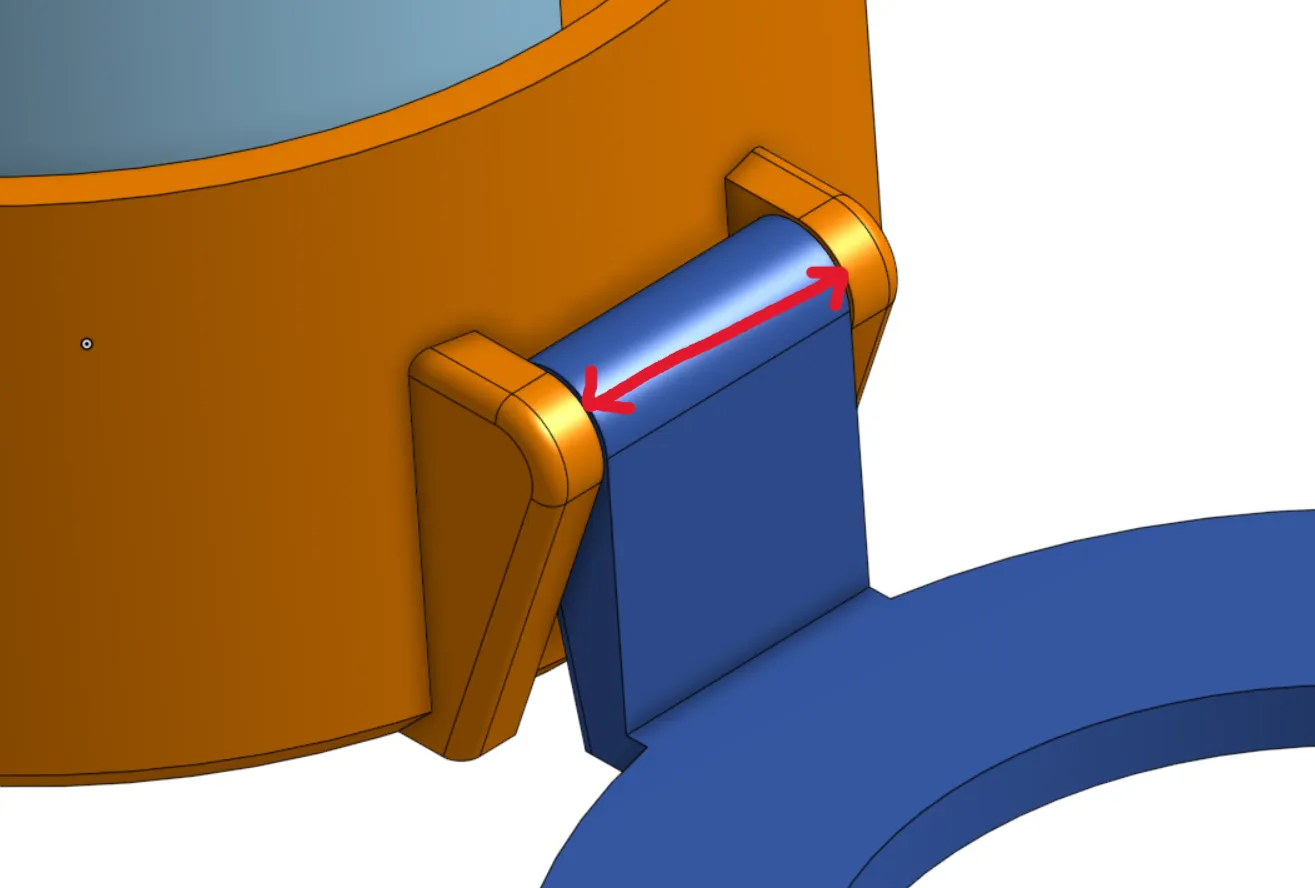

`hinge_width`:

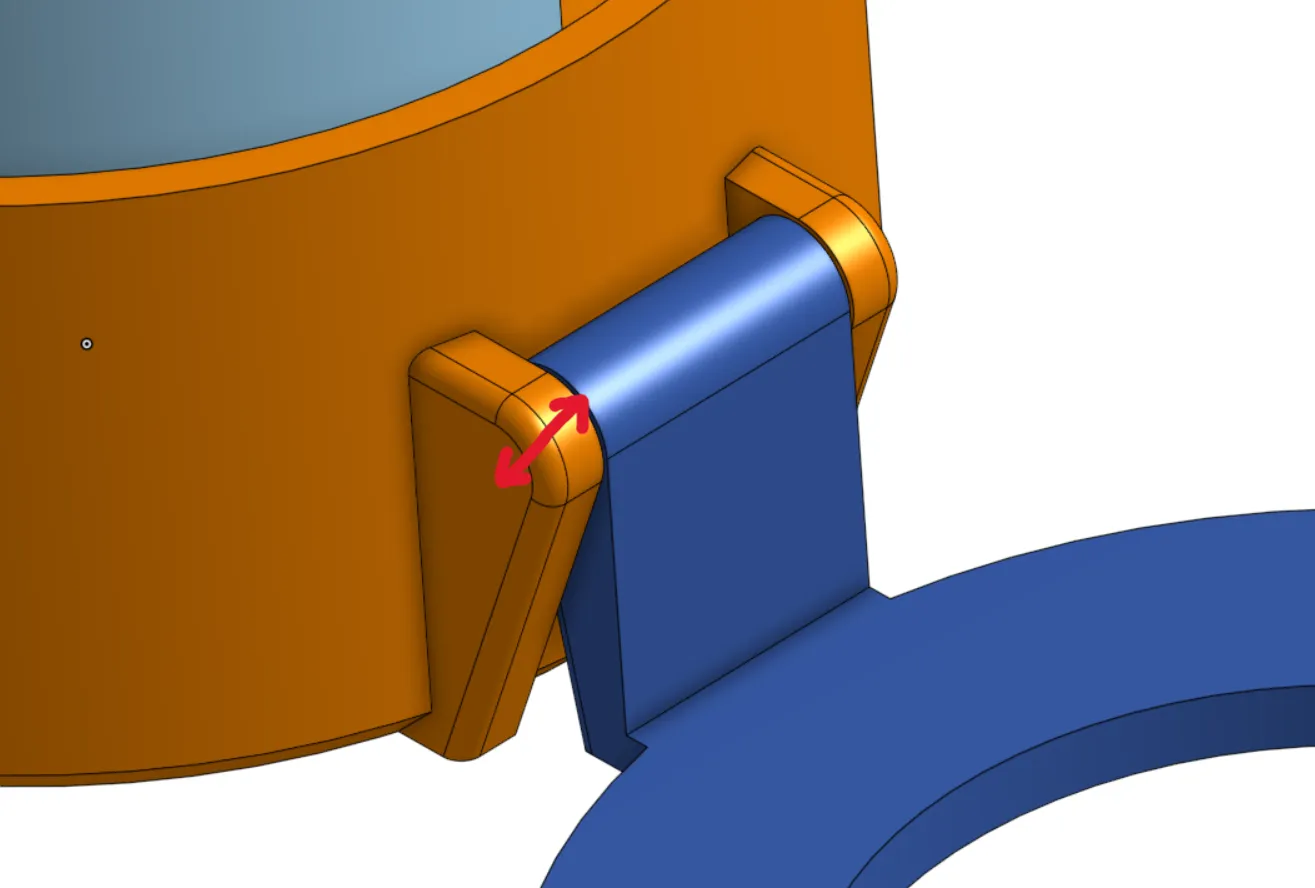

`hinge_diameter`:
- `hinge_clearance`: Clearance around the hinge

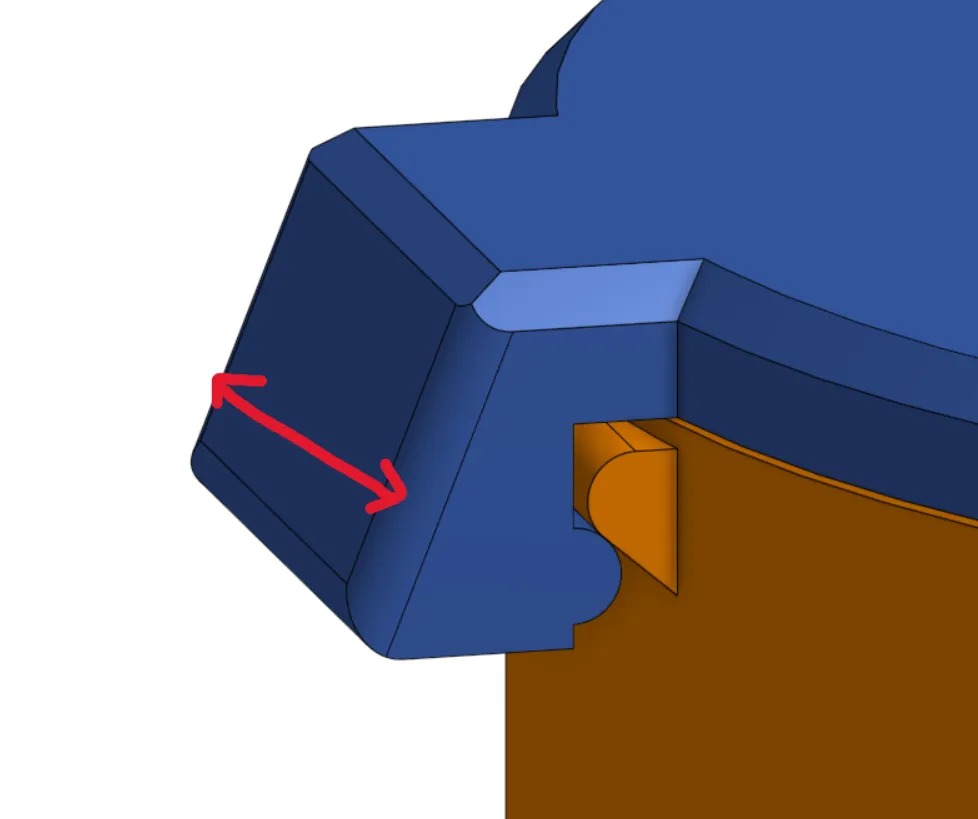

`lock_width`:
`lock_pin_diameter`:
`lock_bottom_depth`:
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
