x, y displacement platform; micro-adjustment slide; dual-axis movement platform
Print Profile(2)
Description

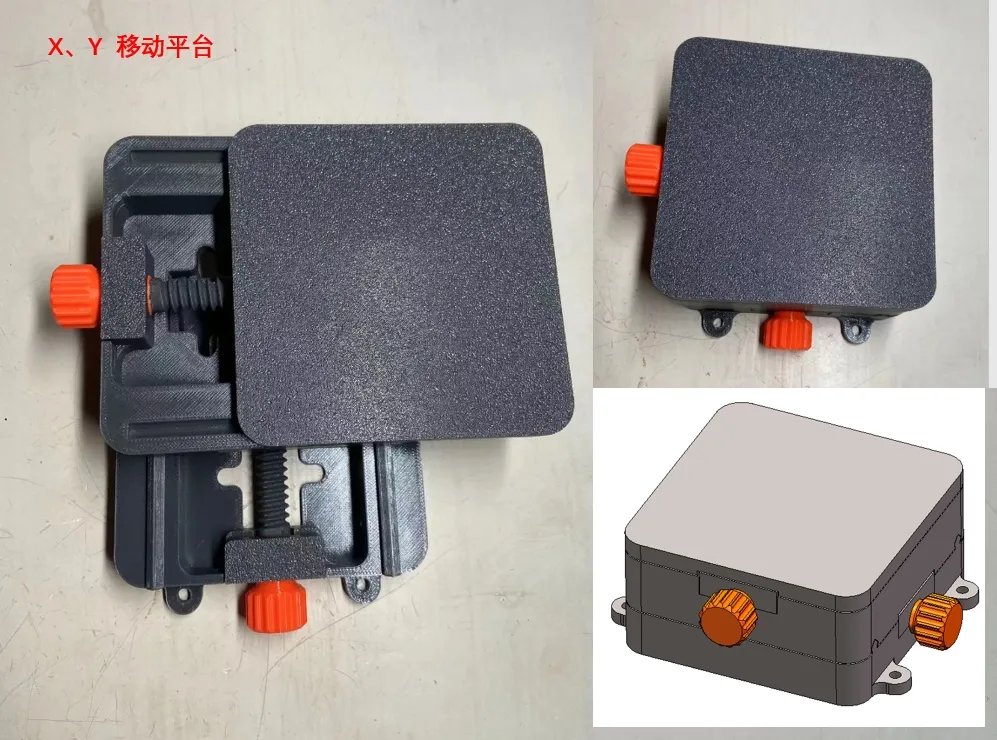

This is a 100 x 100 x 50 mm X, Y-axis manual movement platform;

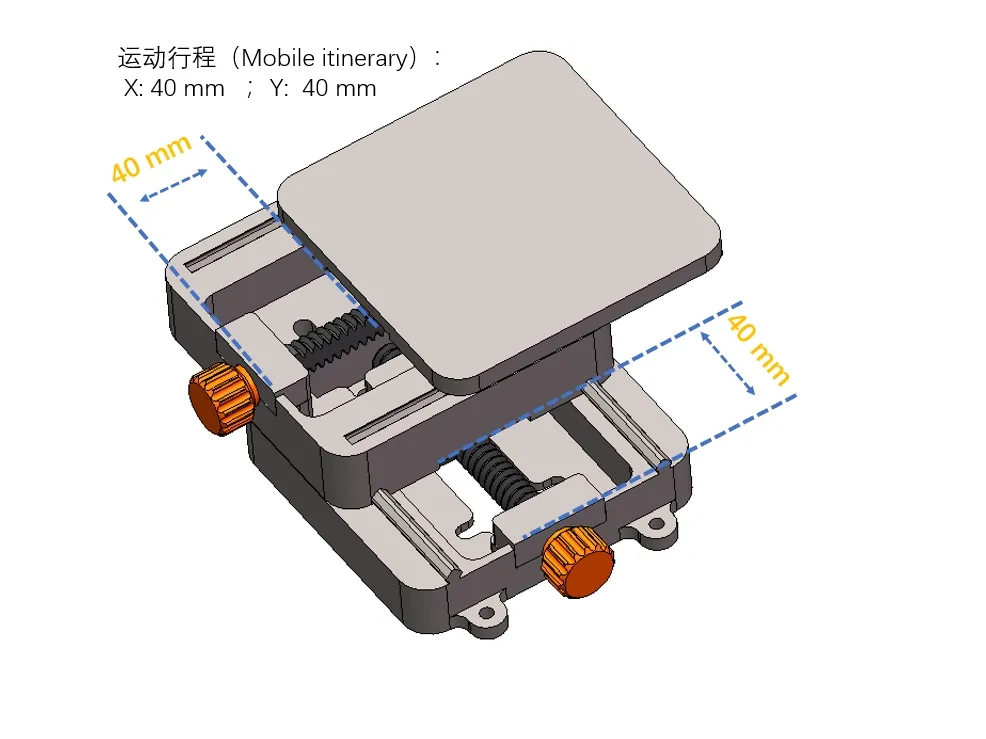

X-axis movable 40 mm; Y-axis movable 40 mm;
Boost Me (for free)
If you find it good, please boost me, thank you!

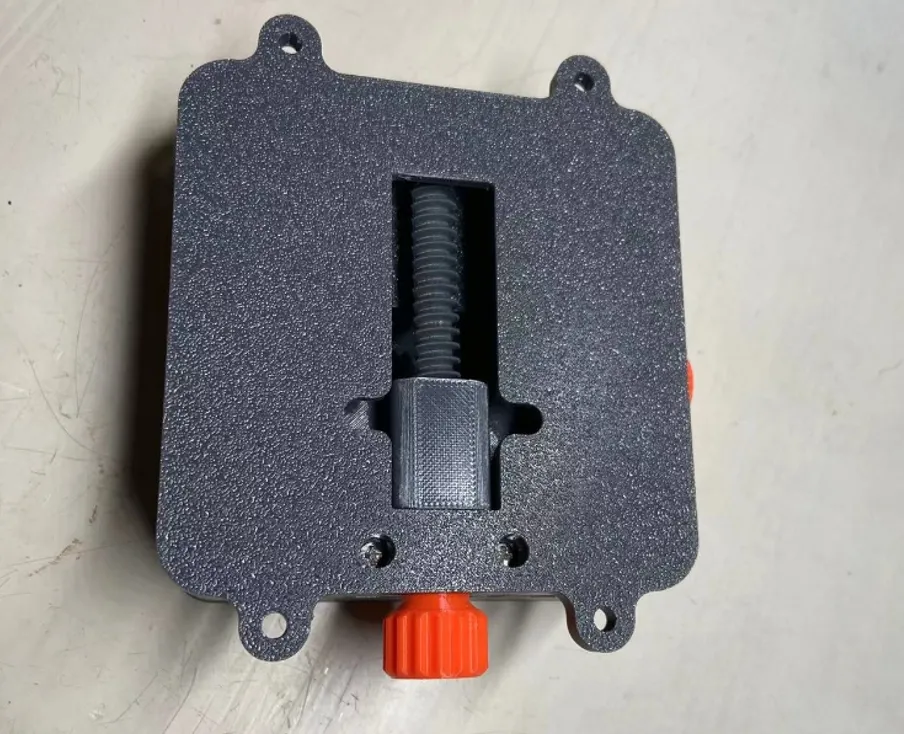

Easy adjustment; easy assembly, assembly steps are as follows;

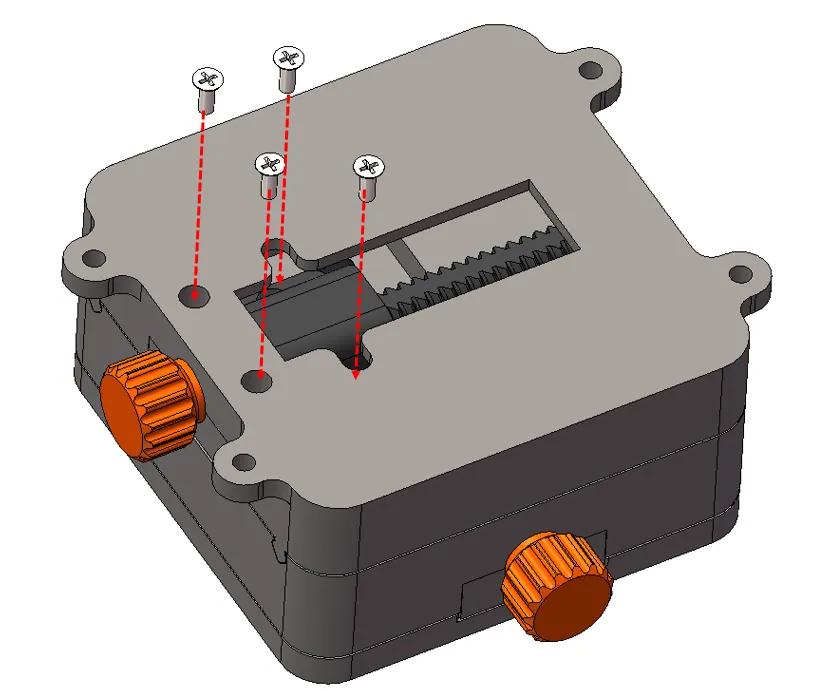

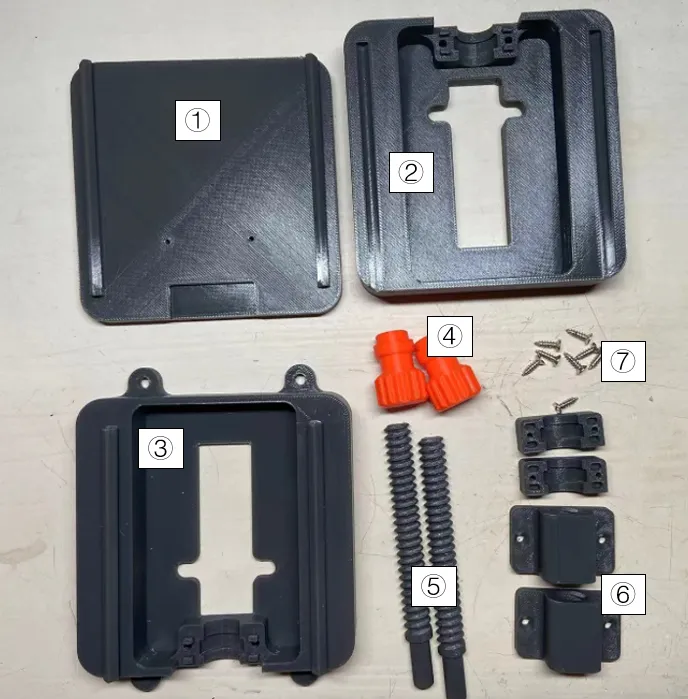

PS: No. ⑦ is a countersunk self-tapping screw ST 3 x 10 mm, which needs to be purchased separately; (Self-tapping screw)

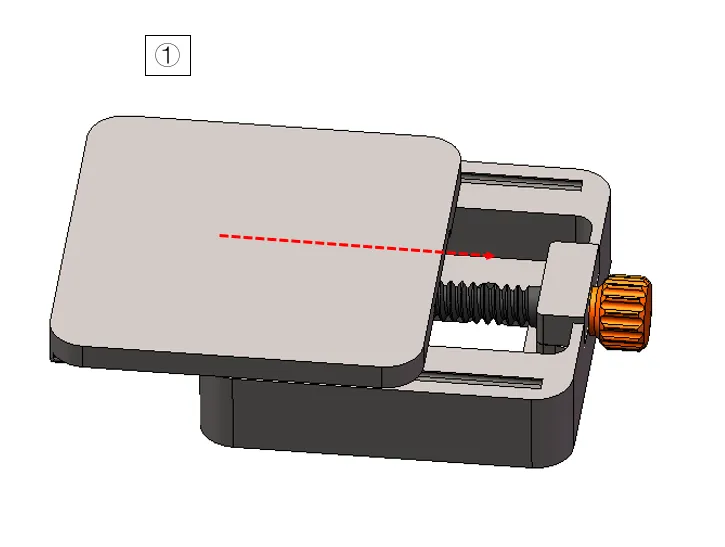

Step 1:

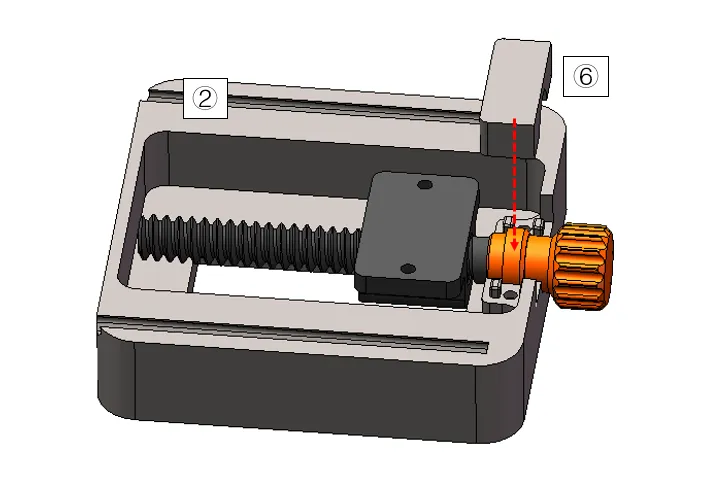

Step 2:

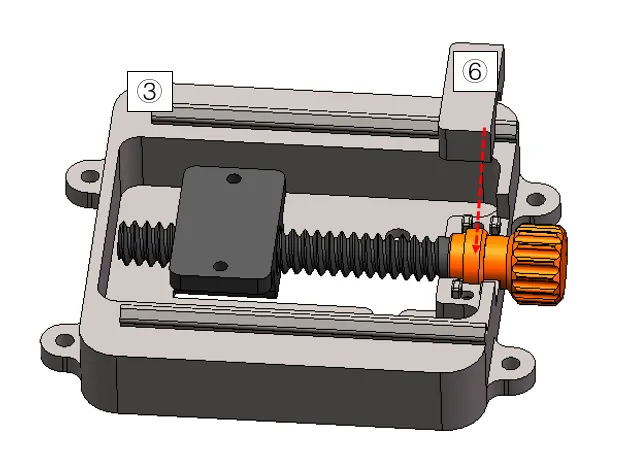

Step 3:
Step 4:

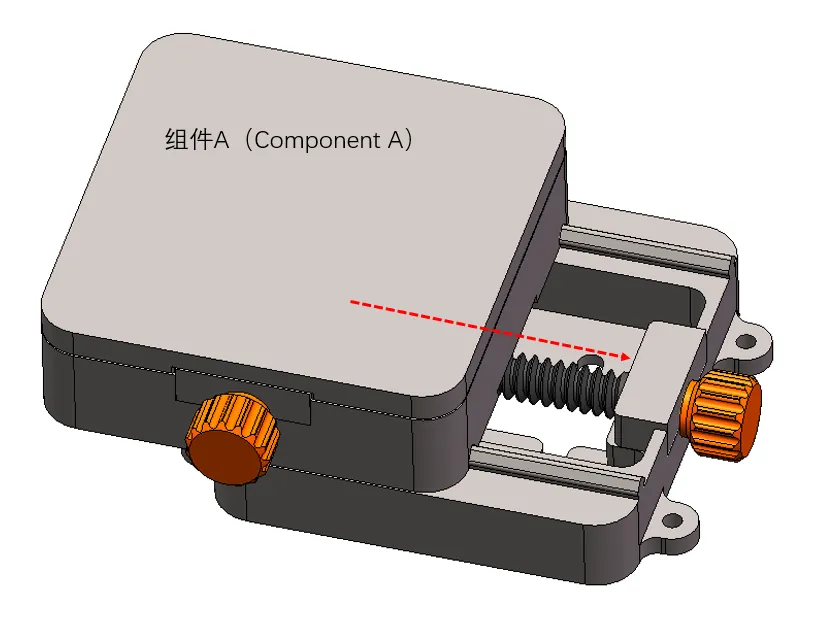

Step 5: (Component A assembly completed)

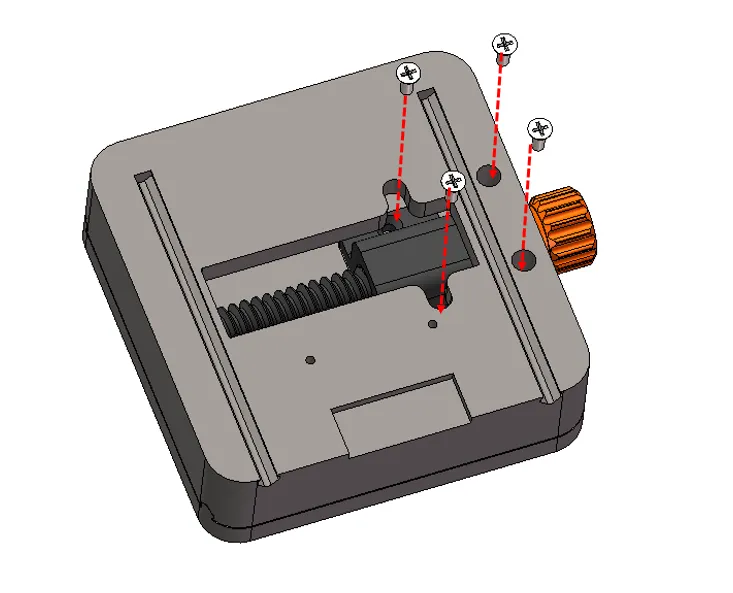

Step 6
Step 7:
Step 8:
