Digital Sight - DSD-Sight V5.0 (Beta Version)

This project has been in development for some time, undergoing continuous iterations. The software is currently at version 5.7. The initial aim was to create a digital sight that was both affordable and powerful, given the high cost of similar products currently on the market.

I hope fellow developers will appreciate the work and ongoing improvements I've made. I will soon publish the code and development documentation to my account. Please stay tuned. The current printed version lacks a control button interface; this should be fully implemented by v7.0.

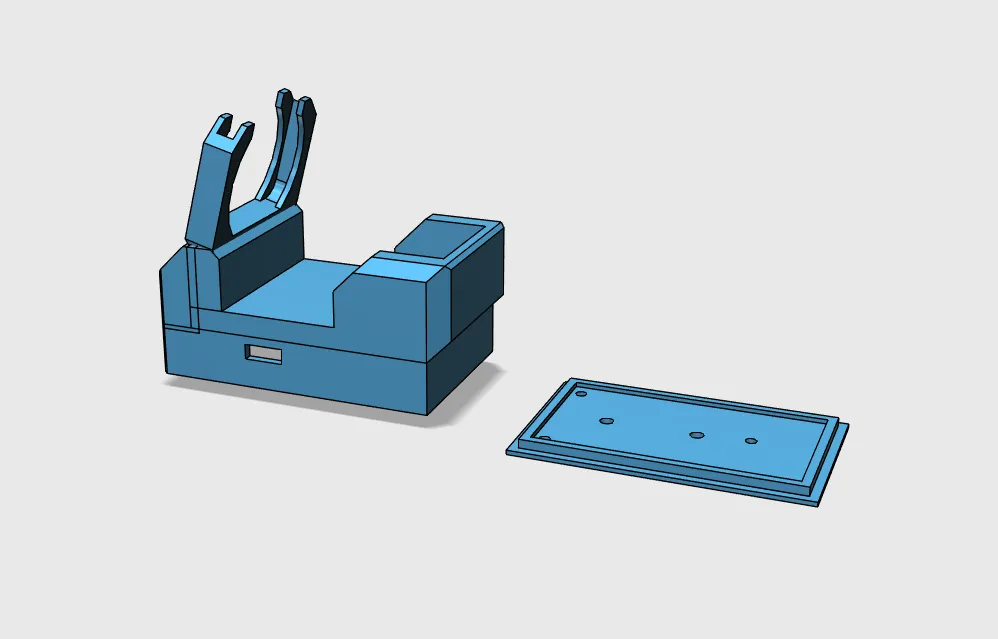

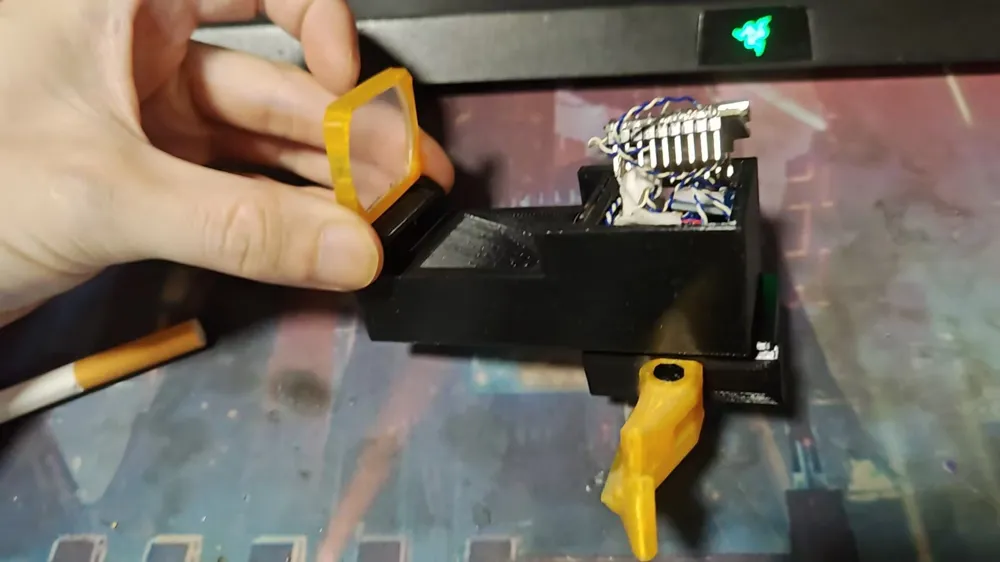

This model is a housing for a digital sight, compatible with the dsd sight v5.0 software version. It features one USB port and two cable exits, but lacks button ports. The next version will include buttons (currently awaiting delivery) along with a single-sided quick-release component. The quick-release mechanism is compatible with Picatinny rails, with a screw spacing of 20mm.

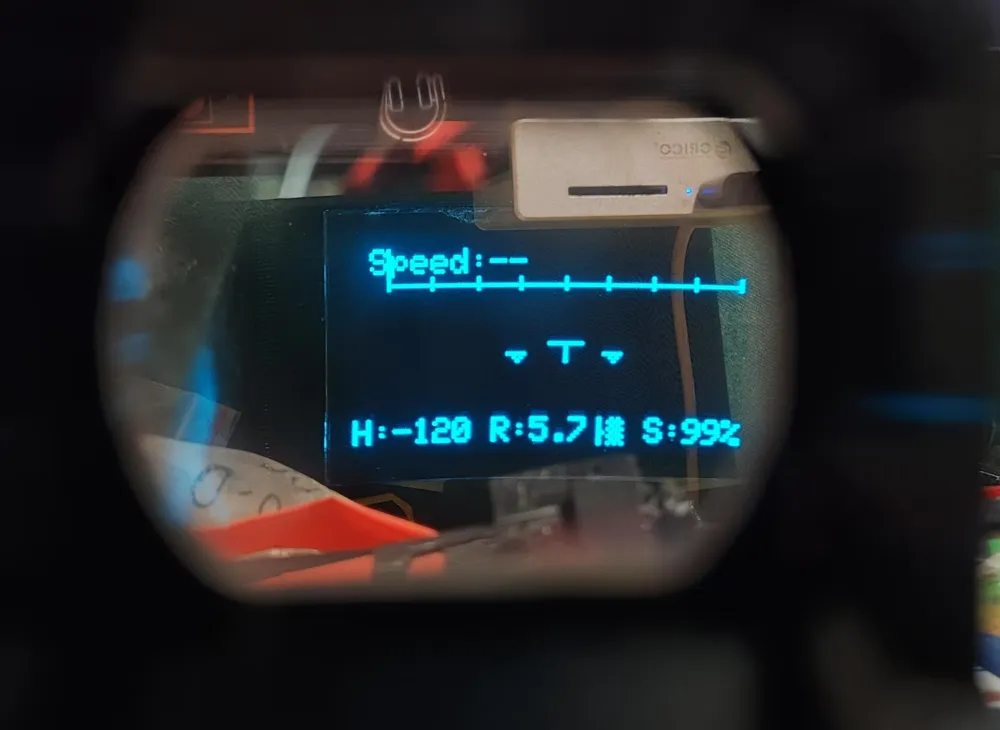

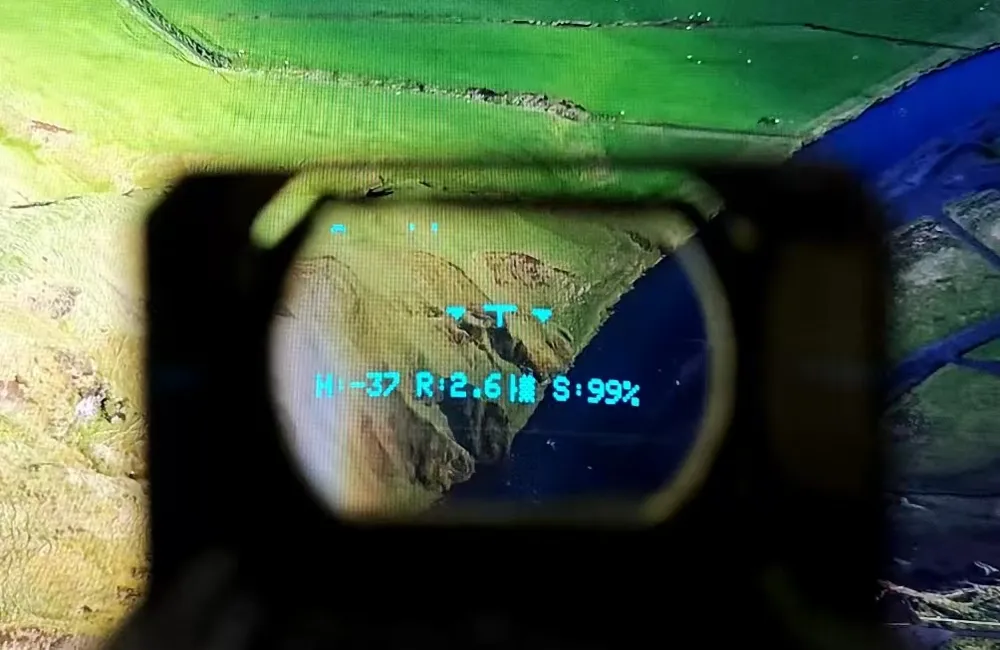

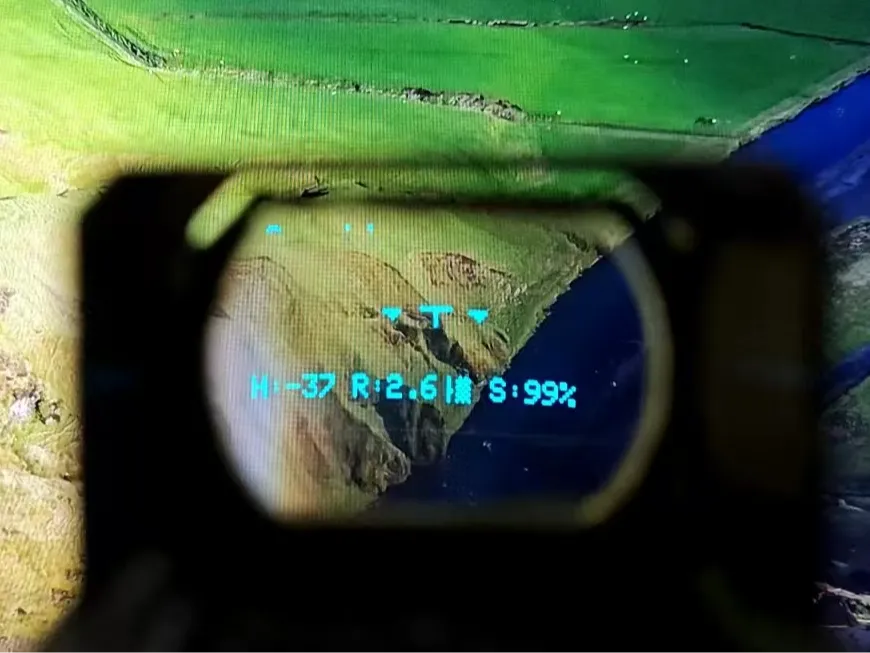

This model is designed for use with a 24mm semi-reflective lens with a 50mm focal length and a 15° reflection angle. It works in conjunction with a microcontroller and a control software suite to provide basic aiming, level indication, heading markers, and muzzle velocity measurement.
