90° pipe fitting connector

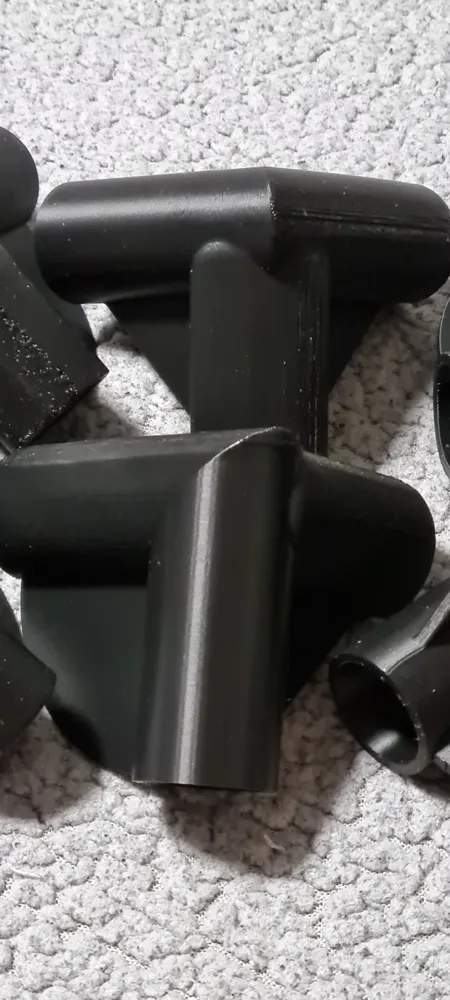

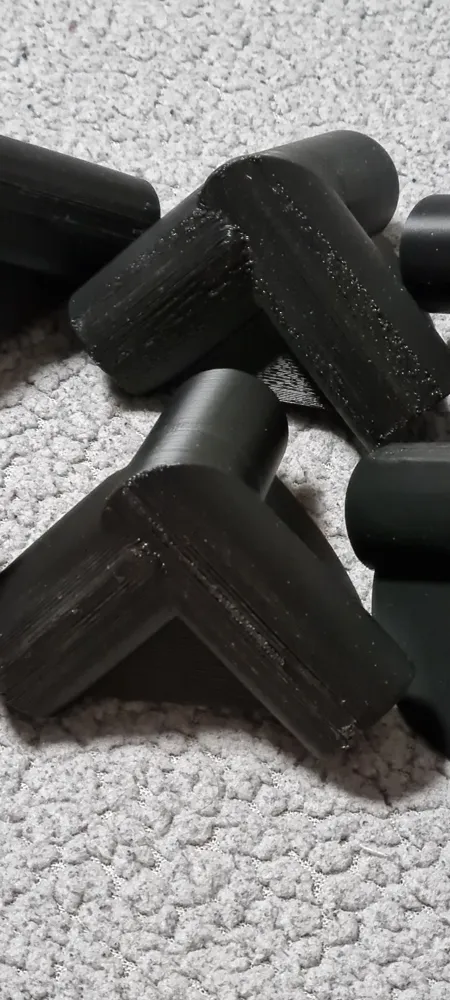

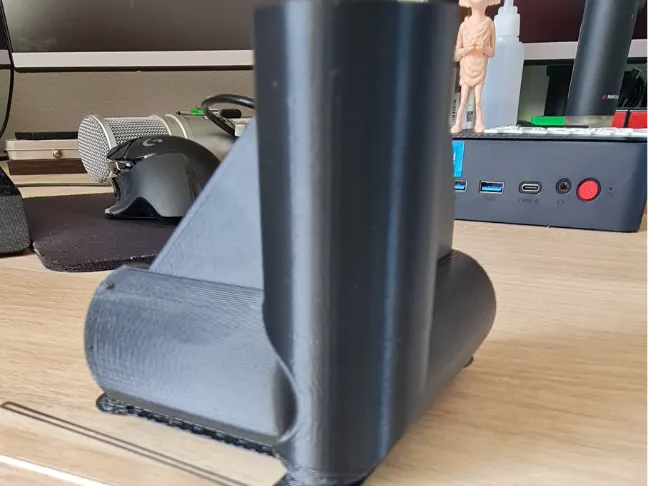

This file replaces broken or brittle tent or awning connectors (pipe connectors) based on a 90° angle.

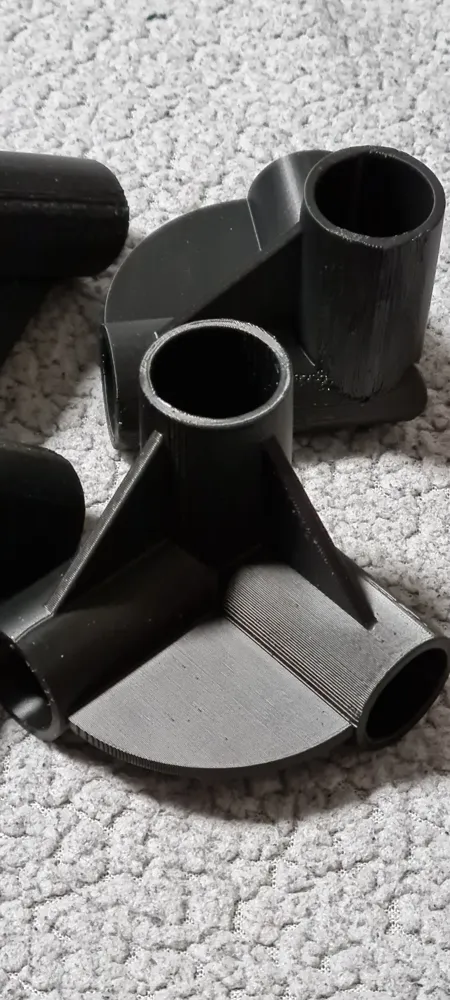

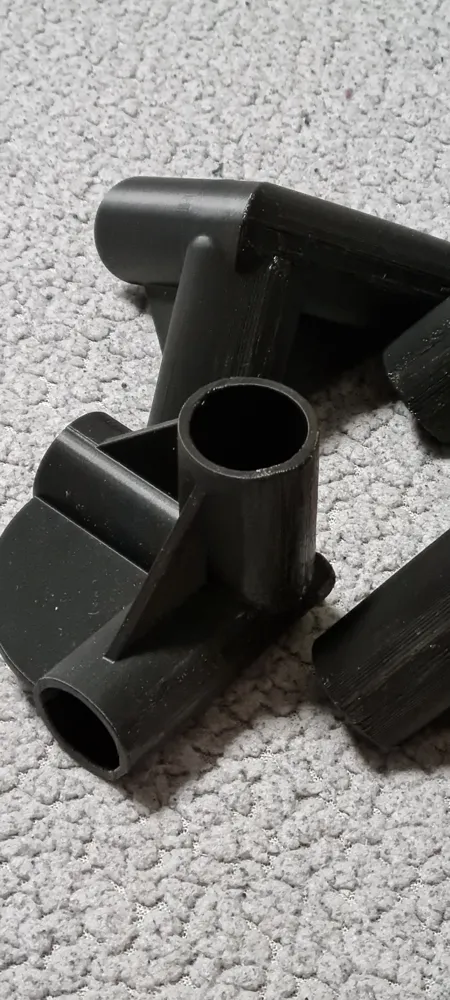

It comprises a 3-way connector with a 25mm pipe diameter and two additional sockets for 23mm pipe diameters.

I printed it in ABS. It is designed to be more robust than my original parts (material thickness is now approximately 2.8mm) and should therefore last longer.

The respective ends have a length of:

The 25mm end has a length of approximately 60mm. (Insertion depth)

The two 23mm ends are approximately 40mm deep. (Insertion depth)

Printed with Qidi Plus4 using Qidi-Studio (based on Bambu Lab)

ABS - black from Giantarm (255/90)°

0.4mm nozzle / 0.28mm per layer

25% infill / 4 walls

Support - YES (auto, tree, thin)

Raft - YES (hollow) 4 layers

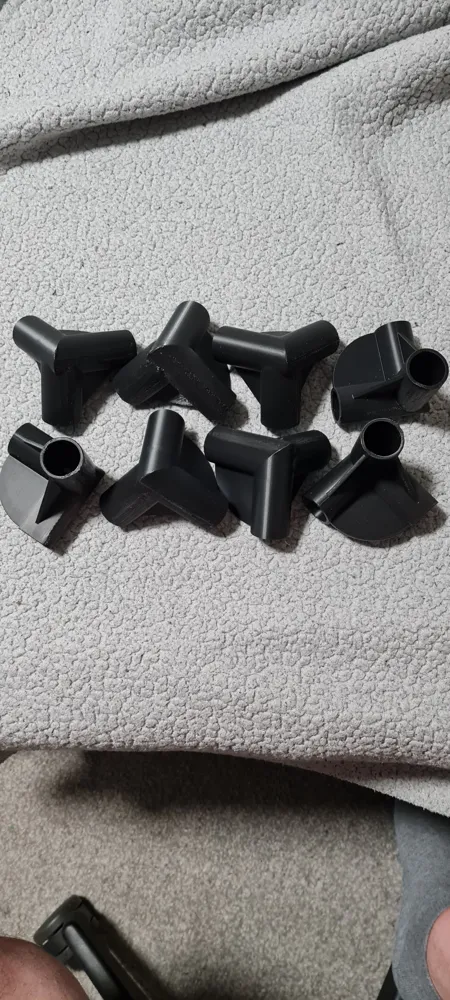

Print time per 2 pc approximately 4h
