Wall Anchors - Universal plug - Fischer style
Print Profile(9)
Description

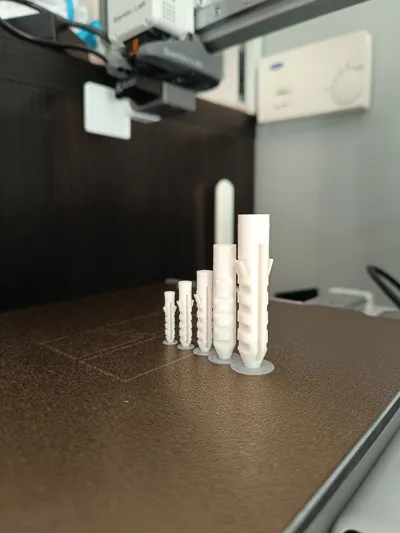

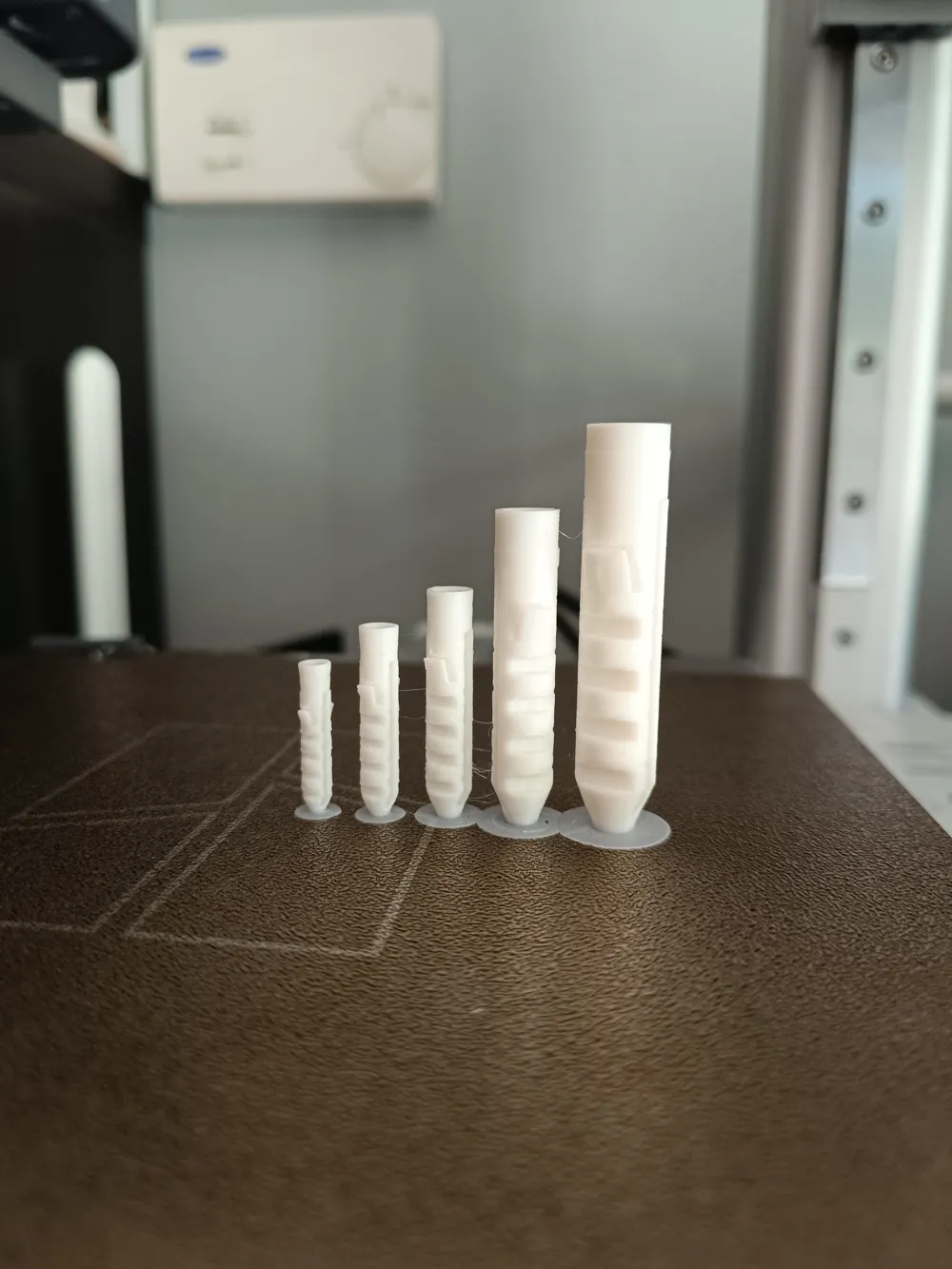

Do you need to hang something on the wall but you don't have the plugs and don't want to go to the hardware store? No problem, I created this set of plugs faithful to the original in different versions:
- S10 for 10 mm holes
- S8 for 8 mm holes
- S6 for 6 mm holes
- S5 for 5 mm holes
- S4 for 4 mm holes
Strengths:
- Fully 3D printable
- Various sizes: S10 - S8 - S6 - S5 - S4
- Only uses a few grams of material
I recommend printing them in PETG for greater resistance and greater elasticity.
UPDATE:
Given the numerous suggestions and comments you have sent me, I have inserted a profile to print the plug horizontally, in this way it has much more resistance in the expansion.
Naturally these plugs are not designed for heavy loads, valuable or in dangerous situations.
They are designed for light and safe fastenings.
If you liked the project, send me a boost to encourage more.
