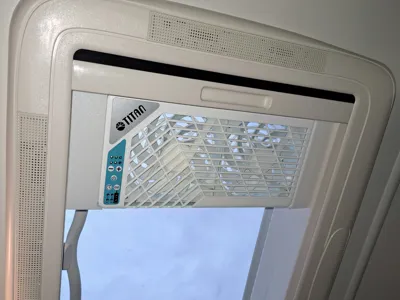

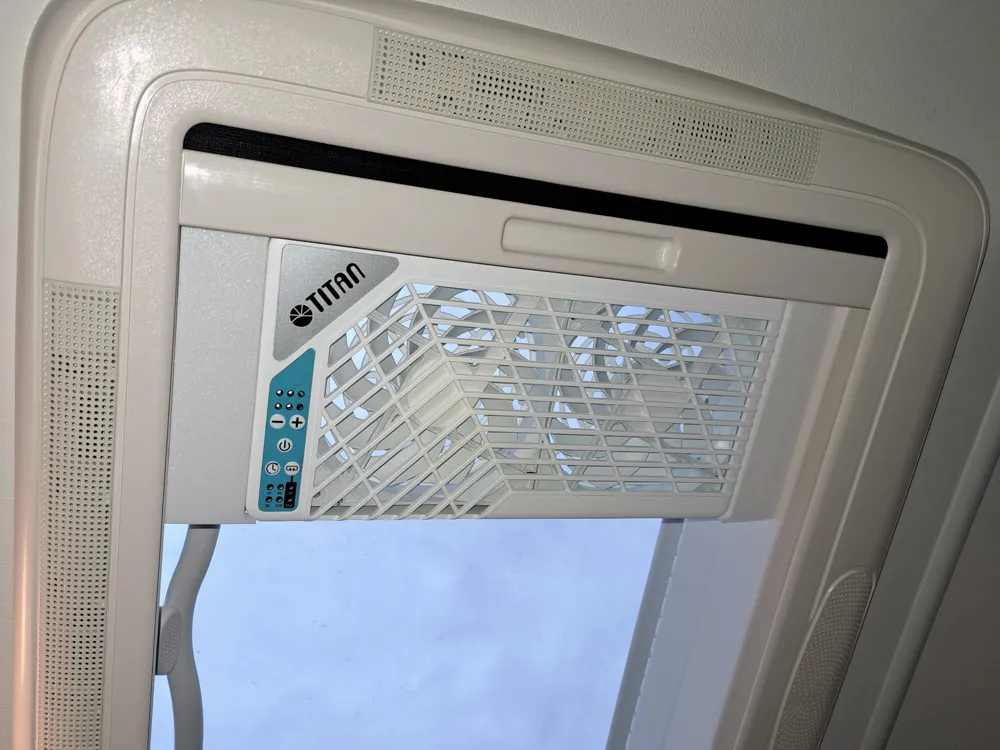

Mount for a Titan TTC-SC21 Camping Fan on a Midi-Heki
Description:

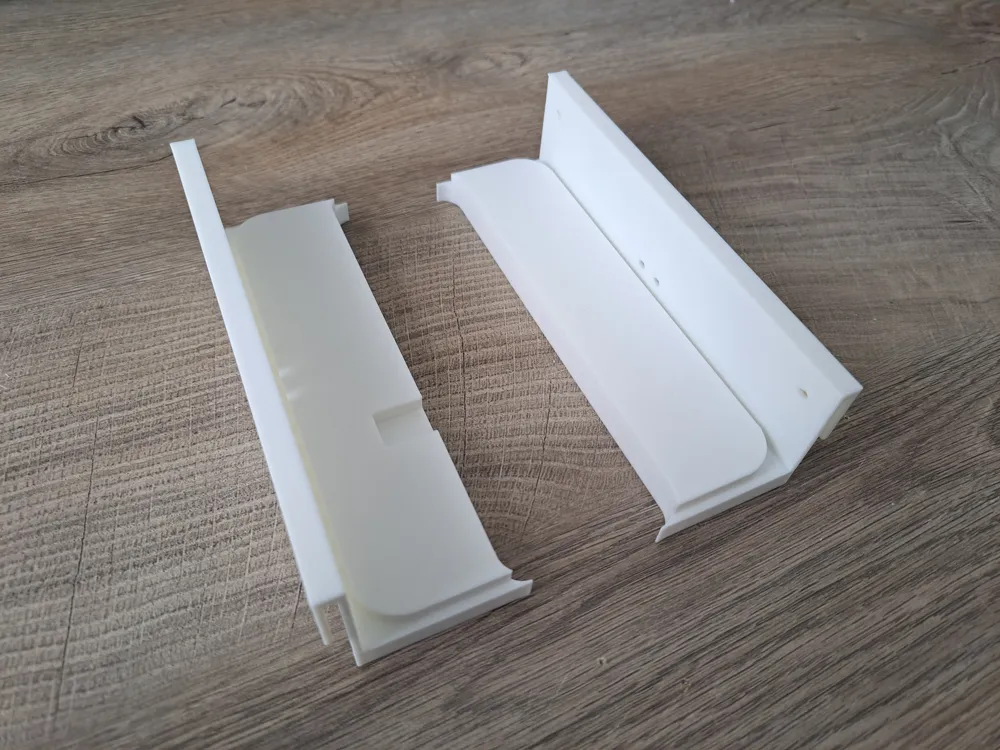

- Precise fit of the fan onto the Midi-Heki's inner frame (instead of the supplied metal clamps)
- Four mounting holes each for original attachment points (optional use)
- Cutout for power connection

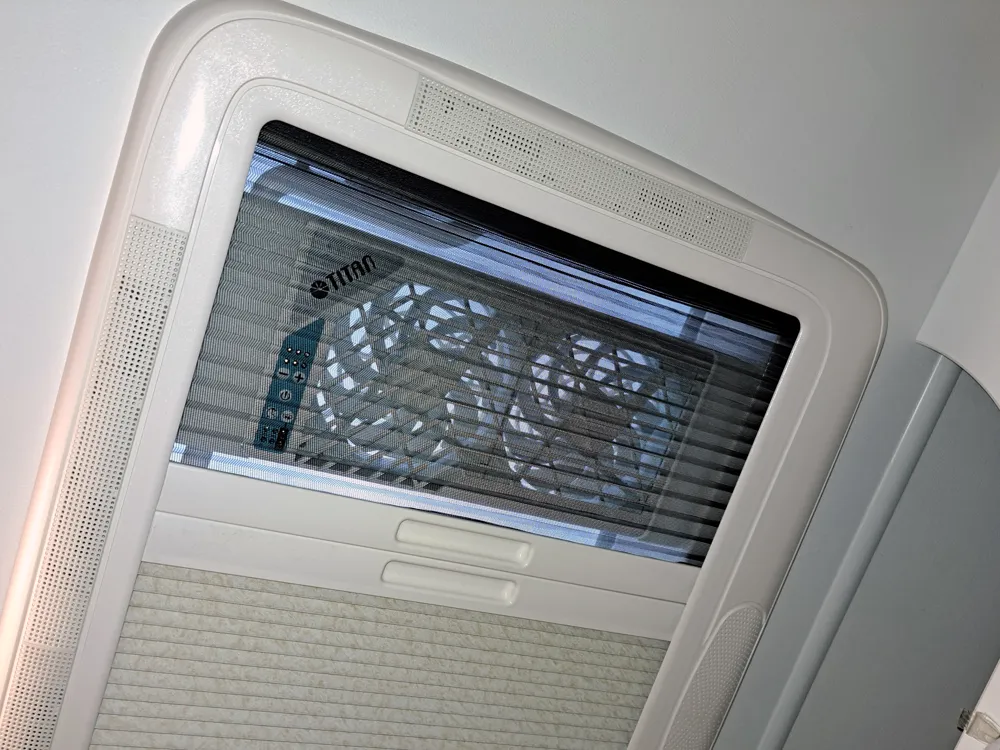

- Full functionality of the fly screen and the blackout blind is retained
Technical Data:
- Width: 157.00 mm, Height: 44.00 mm, Depth: 51 mm
- Weight: 42 g (per piece)
- Colors: white
Instructions:

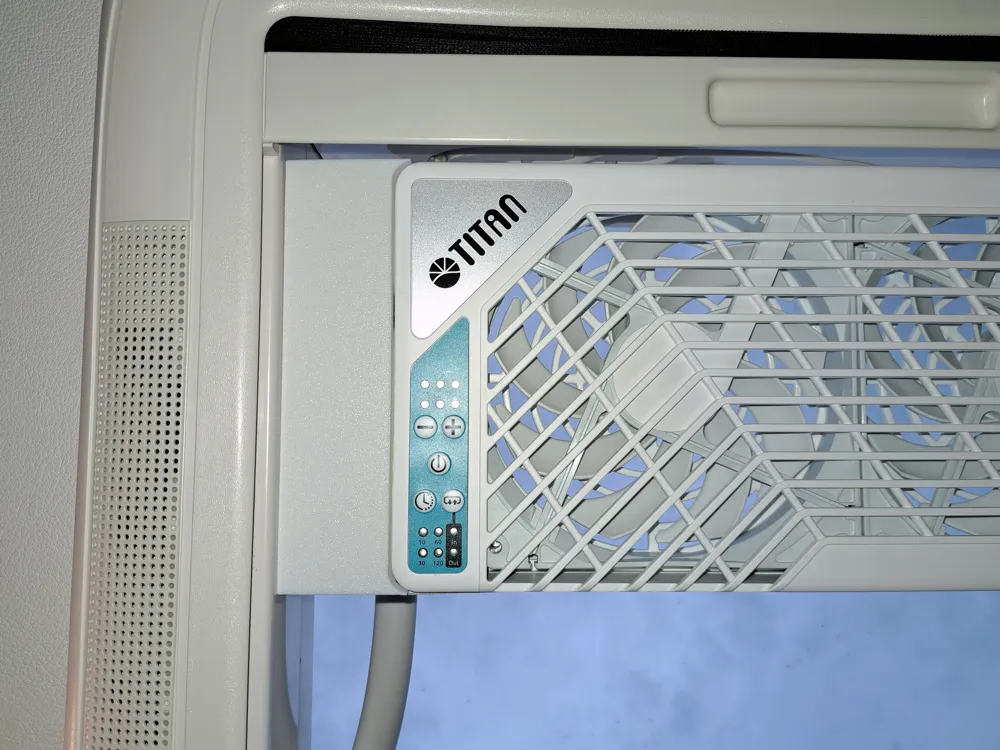

- Simply clamp the original metal clips into the printed mount and hang it from above into the inner frame of the Midi-Heki. If desired, the mount can be additionally fixed with four screws per side.
- Printing with a temperature-resistant filament (e.g., ASA) is recommended to prevent deformation due to heat exposure in the vehicle.
