SMARTFIL Refill Box | Reusable Cardboard Tubes
Print Profile(1)
Description

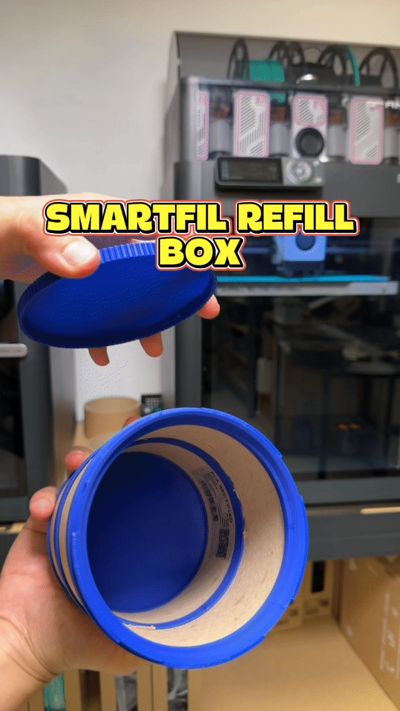

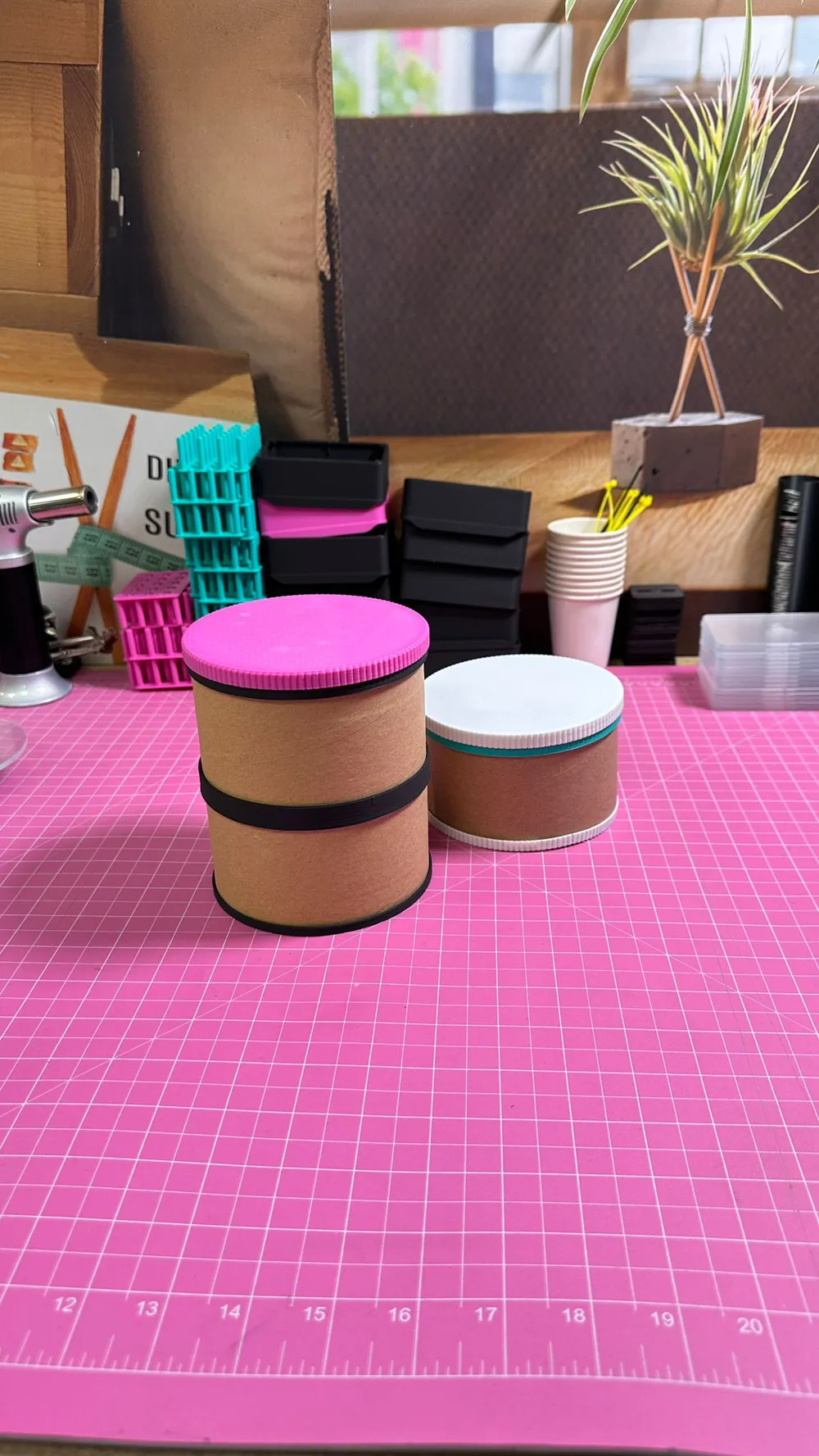

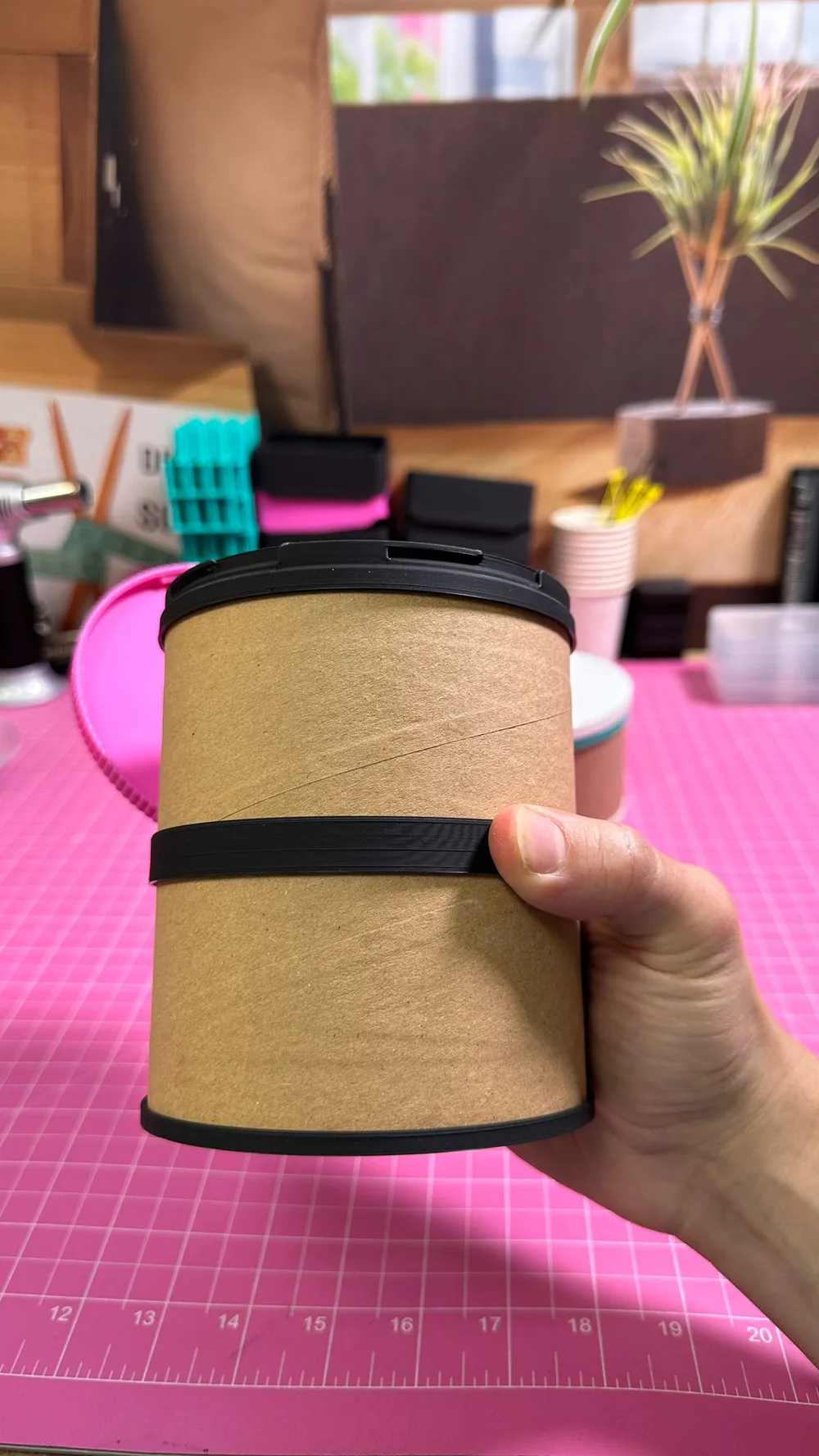

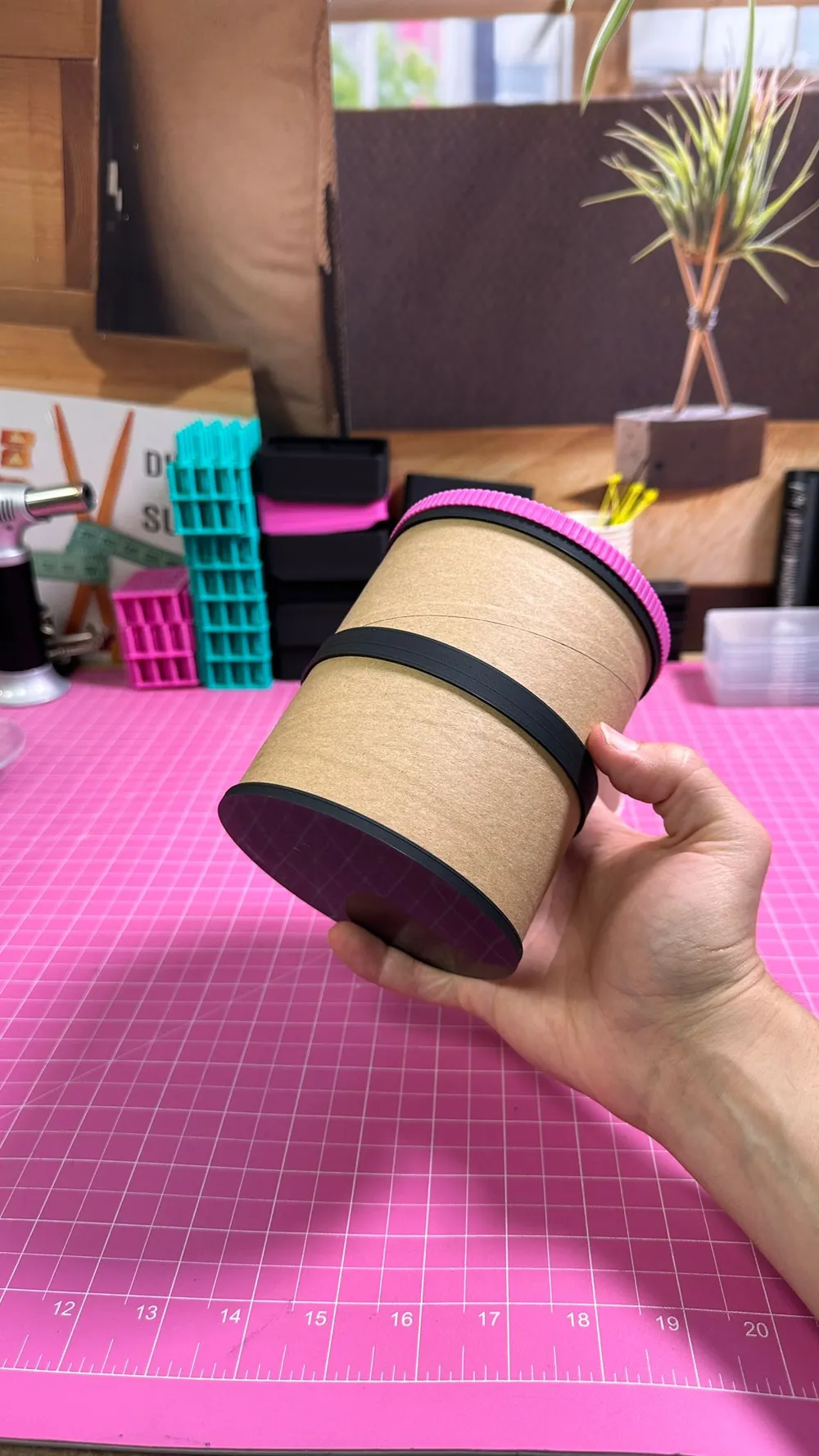

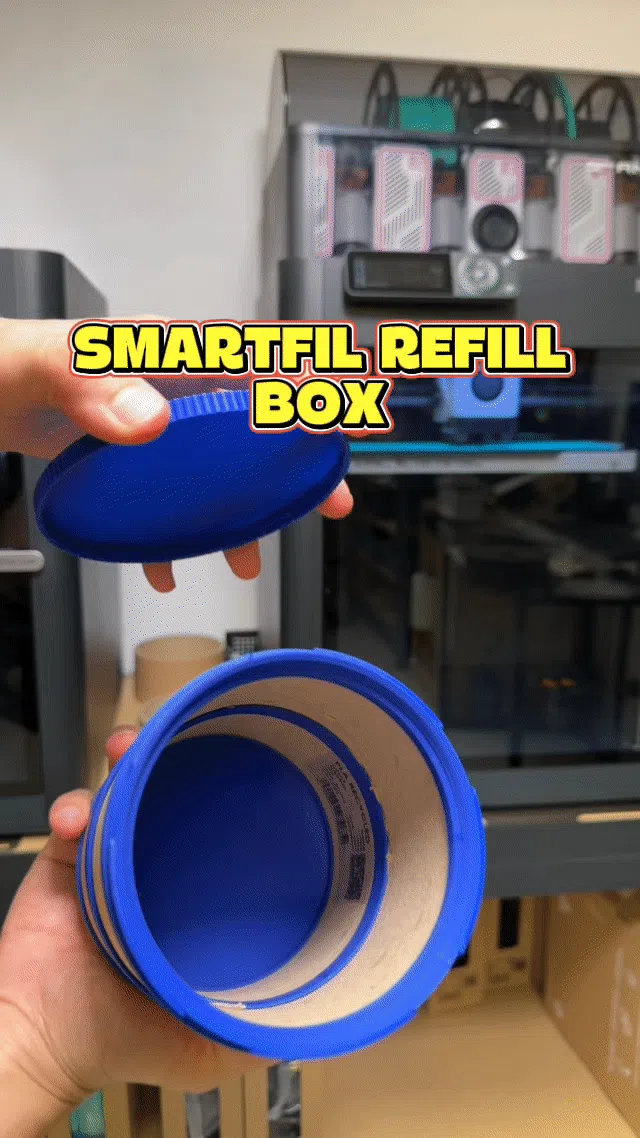

With the cardboard filament spool from SMARTFIL (Smart materials 3d) as the main component of this roll, this box benefits from requiring very little filament. It prints very quickly and is very easy to stack; several tubes can even be joined to make a larger box. It can be used for anything, just like a regular box.

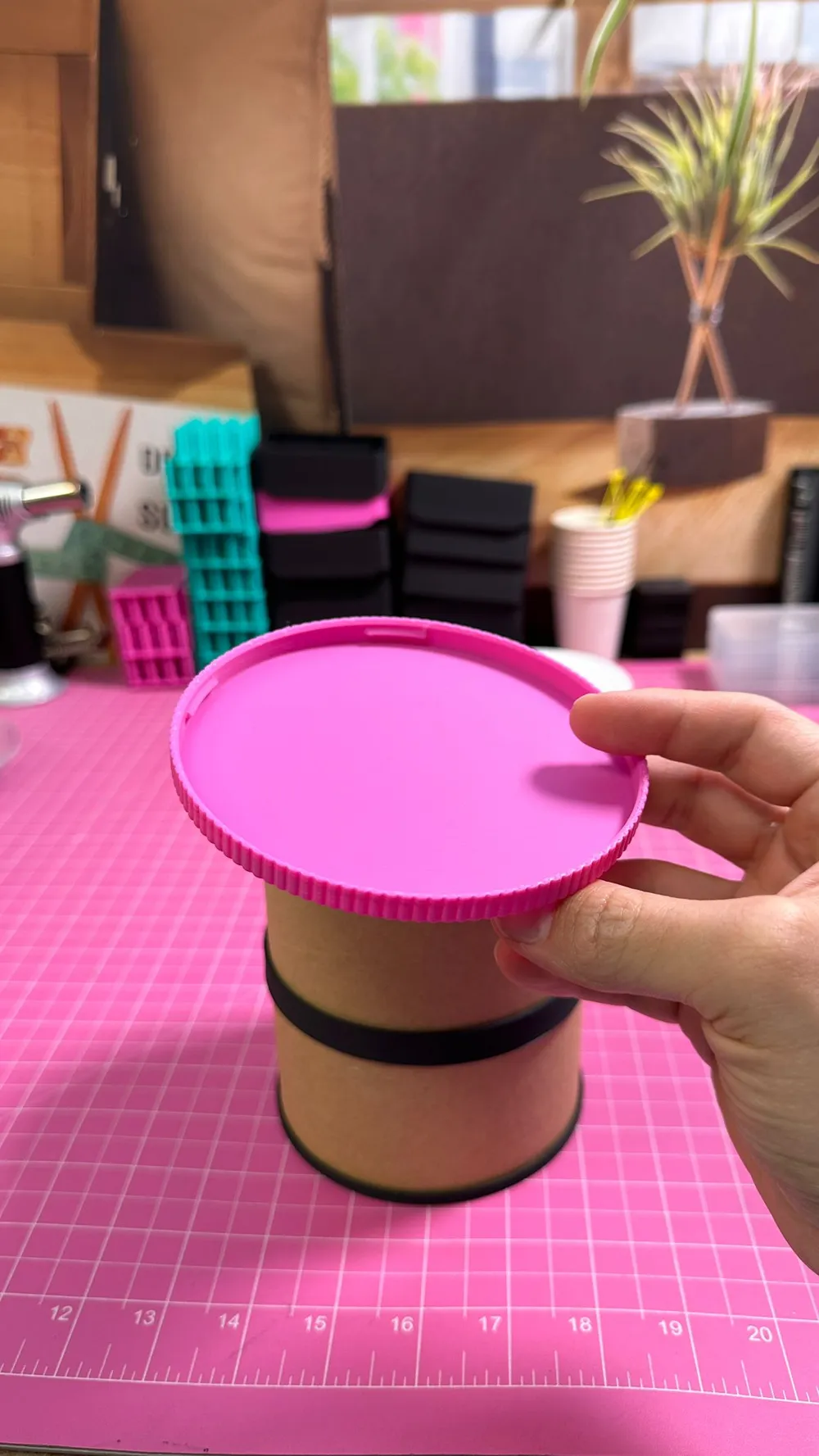

The locking system uses tabs that lock with a small 20-degree clockwise turn.
The model is very easy to print. I recommend printing it at a height of 0.2 or 0.24 mm. I do not recommend 0.28 mm because it does not come out well. It does not need supports. When assembling, ensure the tube has no burrs on the inside. If it does, trim it with a cutter.
Please share any suggestions for improvement so that we can all benefit.
Thank you!
P.S. Thanks to @sdaendi for inspiring me to do this with SMARTFILL spools. He did it with the BAMBULAB refill spool. (./1198037)
