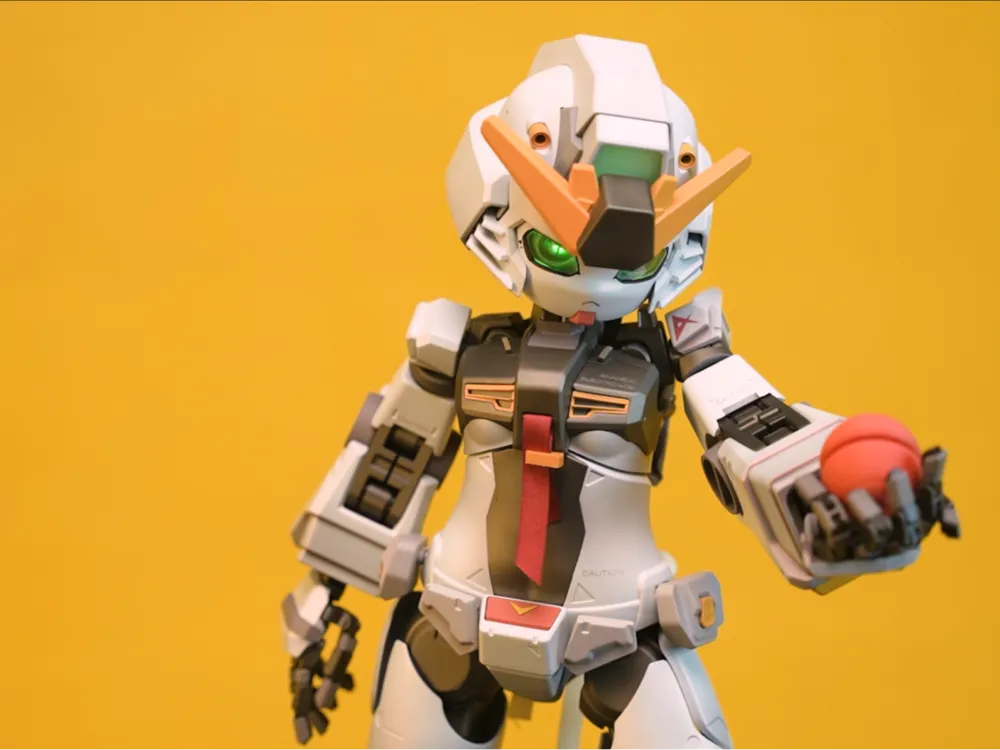

40CM Unicorn Gundam Mecha Girl

40cm Version Unicorn Gundam Mecha Girl

Fully 3D Printed

FDM and SLA Versions Available

The original STEP modeling file can be found in the "Download STL/CAD Files" section

Matching MOTOCOMPO small stool has been open-sourced

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

BOM:

Countersunk Screws:

M3*10 (10pcs)

M3*20 (22pcs)

M3*25 (4pcs)

M3*35 (2pcs)

M3*40 (10pcs)

Magnets:

6mm diameter * 2mm thickness (16pcs)

LEDs:

Magnetic Control Lights (diameter less than 10mm can be installed) (Magnetically activated) (3pcs)

Ribbon:

8mm wide ribbon (choose your own color and cut it yourself) (Off-white + red used in the picture)

Backpack:

Search keywords: BJD bag SD doll clothes retro schoolbag (5.5*2.5*4.5cm)

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Printing Tips:

FDM Parts:

Requires multicolor printing (If you want to challenge yourself, you can also hand-paint it. Single-color printing is also acceptable)

FDM Version Uses:

Elegoo ABS Black Nickel - Frame (can be replaced with Elegoo PETG Black Nickel)

Tough PLA Black - Joints

Elegoo ABS White - White Armor (can be replaced with Elegoo PLA Matte Coconut Milk White)

Elegoo ABS Black Nickel - Dark Armor (can be replaced with Elegoo PETG Black Nickel)

Elegoo PLA Matte Durian Yellow - Armor

Elegoo PLA Matte Herb Gray - Armor

Elegoo PLA Matte Watermelon Red - Armor

Elegoo PLA Matte White Peach Pink - Armor (Replacement color for main white armor)

Kexcelled Transparent ABS - Transparent Head Parts (can be replaced with Elegoo PETG Transparent)

The eyes in the picture use Black Gear PAT10 transparent resin (can be replaced with Elegoo PETG transparent)

--------------------------------------------------------------------------------------------

SLA Parts:

SLA only prints the armor, the frame and joints still need FDM printing (first 4 plates of the 3mf file)

Tested Resins:

Black Gear PAT10 Transparent Resin

Black Gear PAU20 PC-like Resin

Black Gear PAWR10 Wear-Resistant Resin

STEP models of the head and a few other difficult-to-print parts with manually modeled supports are provided, which can be found in the "Download STL/CAD Files" section

Export the remaining model files from the 3mf file yourself

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

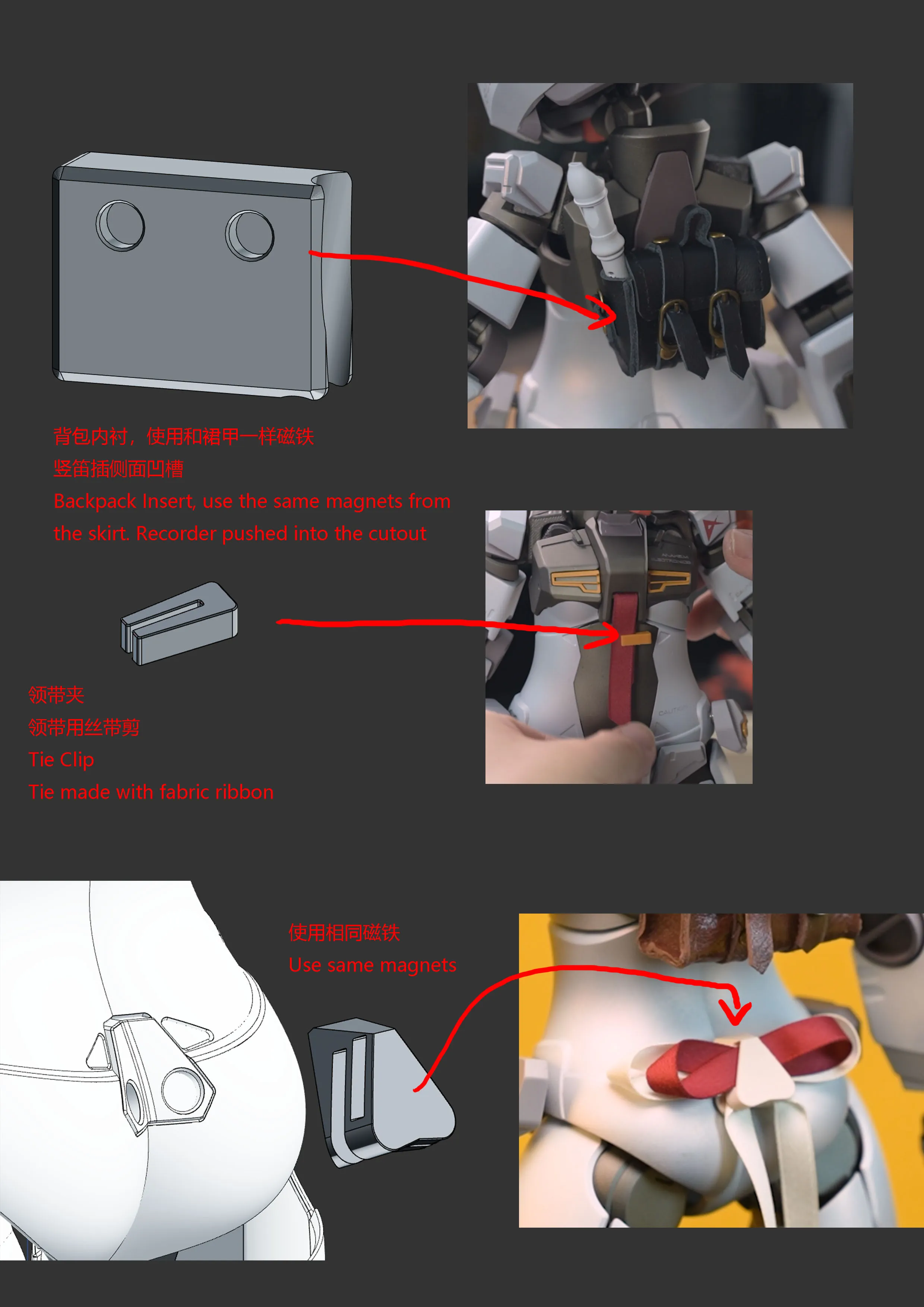

Installation Instructions

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HAVE FUN

If you encounter any problems, please feel free to send a private message to MW, leave a comment, or send a private message on Bilibili
